Overview

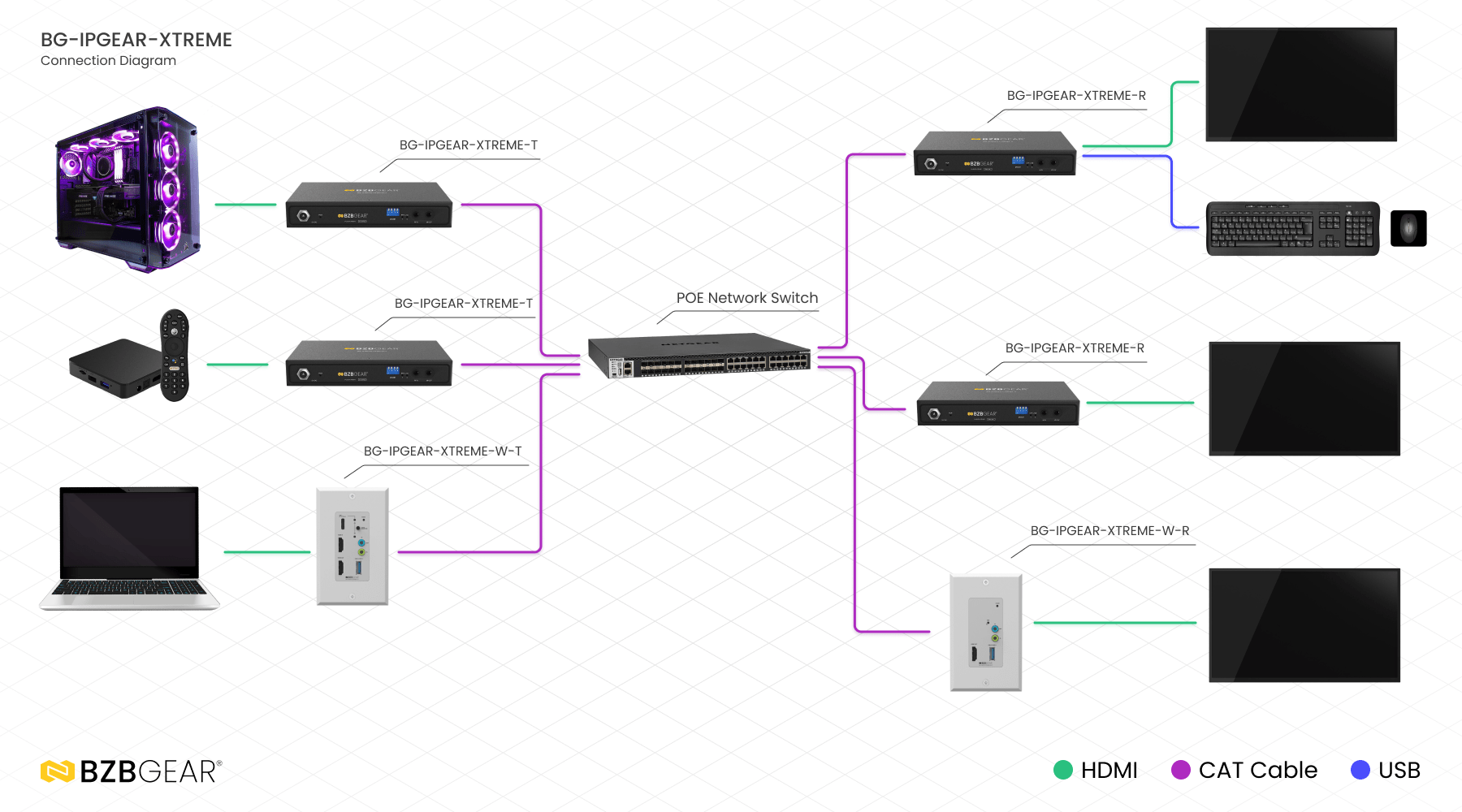

The BZBGEAR BG-IPGEAR-XTREME Series delivers next-generation HDMI 2.1 over IP performance, enabling uncompressed 4K@120Hz 4:4:4 video, multi-channel audio, and KVM functionality over standard Cat.5e/6 cabling up to 100 meters. Designed for high-end AV environments, this system supports point-to-point, point-to-multipoint, and multicast configurations, providing seamless video switching, ultra-low latency, and flexible scalability. With bi-directional IR, RS-232, and USB 3.1 Gen1/Gen2 integration, it’s the ideal solution for digital signage, corporate AV, broadcast, gaming, and command center applications.

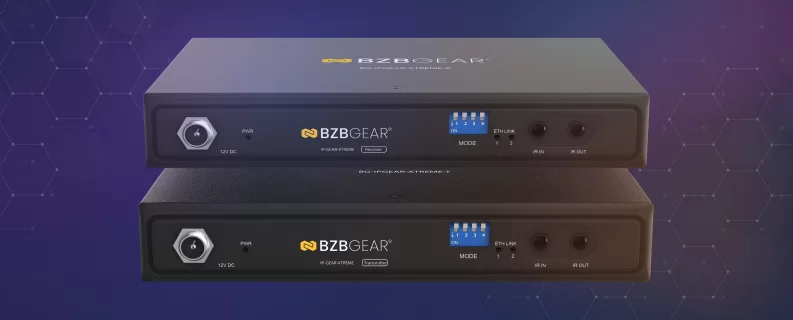

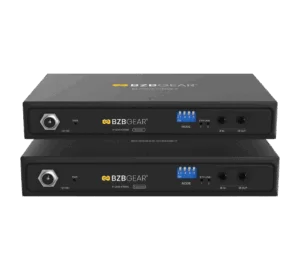

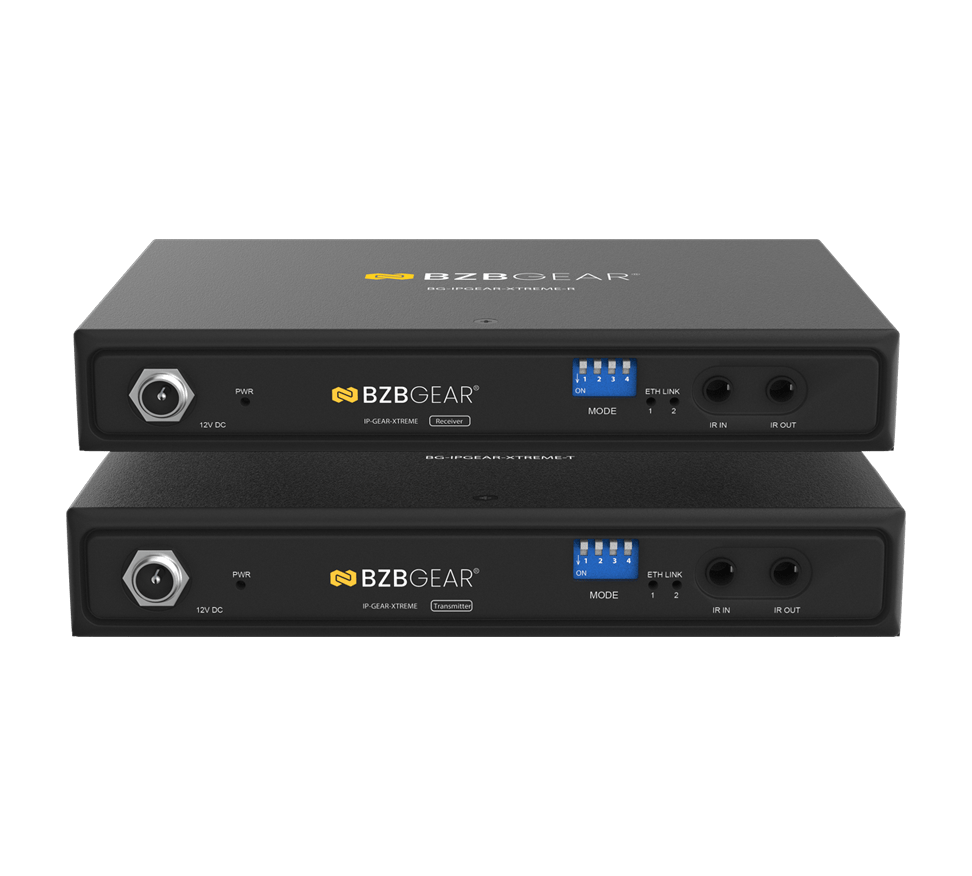

Transmitter (BG-IPGEAR-XTREME-T)

The BG-IPGEAR-XTREME-T transmitter serves as the system’s signal origin, encoding HDMI 2.1 video, audio, and control data for IP distribution. It supports ultra-high-definition resolutions up to 4K@120Hz (4:4:4) with HDR10, HDR10+, and Dolby Vision, ensuring pristine image quality with accurate color reproduction and sharp detail. Advanced content technologies such as Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) reduce input lag and provide smooth, tear-free visuals for interactive and fast-paced applications.

Equipped with a USB Host port, the transmitter connects directly to source devices like PCs, media players, or control servers, enabling KVM (keyboard, video, mouse) functionality when paired with a receiver. Through its RS-232 and IR inputs, users can manage source devices remotely or integrate the system with third-party control platforms. The transmitter supports PoE power through its Gigabit Ethernet port, simplifying installation and reducing cable clutter.

Designed for flexible deployment, the BG-IPGEAR-XTREME-T enables seamless matrix switching, video wall configurations, and MultiView modes (PiP, PbP, PoP, and Quad-view) when used with multiple receivers. Its low-latency (<1 frame) transmission makes it ideal for real-time monitoring, live event production, and mission-critical AV systems.

Receiver (BG-IPGEAR-XTREME-R)

The BG-IPGEAR-XTREME-R receiver is responsible for decoding the transmitted IP signal and delivering uncompressed 4K video and rich audio to displays or projectors. It supports eARC/ARC, enabling high-quality audio return from the display to AV receivers or soundbars without additional cabling. With full Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1 compatibility, the receiver ensures premium sound quality for professional AV and entertainment applications.

The receiver’s USB Device port allows connection to peripherals such as keyboards, mice, or touchscreens, providing full KVM extension when paired with the transmitter’s USB Host. Bi-directional IR and RS-232 interfaces allow remote control of display devices or integration with automation systems. The front-panel DIP mode switch makes configuration simple, while PoE support allows for single-cable power and data delivery.

Optimized for performance and reliability, the BG-IPGEAR-XTREME-R supports seamless source switching, MultiView display modes, and HDR passthrough, ensuring a professional-grade AV experience. Its scalable multicast design makes it easy to expand systems as needed, from single-display setups to large video distribution networks.

Features

  • bi_hdmi
    HDMI 2.1 & HDCP 2.3 Compliance
    Ensures compatibility with the latest high-definition content protection standards
  • 4K
    4K@120Hz 4:4:4 Video Transmission
    Provides ultra-high-definition video with crystal-clear clarity and exceptional color depth
  • vaadin_refresh
    VRR (Variable Refresh Rate) & ALLM (Auto Low Latency Mode)
    Enhances gaming and interactive applications with smooth frame rates and reduced latency
  • Sleek and Discreet
    Long-Distance Transmission
    Extends HDMI signals up to 100m (330ft) over Cat.5e cabling
  • Audio Support
    Advanced Audio Support
    Delivers uncompressed 7.1-channel digital HDMI audio, including DTS-HD Master Audio and Dolby TrueHD
  • mdi_check-network-outline
    Intelligent Network Management
    Works with managed 1GbE switches supporting IGMP Snooping & 802.1Q VLAN for multicast optimization
  • HDCP & CEC Bypass – Maintains compatibility with a wide range of devices
  • Bi-Directional IR & RS-232 Control – Enables seamless integration with AV control systems
  • eARC/ARC Support – Ensures high-quality audio return from displays
  • Seamless Switching & Video Scaling – Provides smooth transitions between sources and adaptable display resolution
  • Picture-in-Picture (PiP), Picture-by-Picture (PbP), and Picture-on-Picture (PoP) Support
  • USB 3.1 Gen1 & Gen2 Support – Facilitates connectivity for UVC webcams and other USB peripherals
  • 1G LAN Integration – Allows network device connection through the built-in Ethernet port
  • Multi-Encode & Decode Capability – Utilizes proprietary codecs for optimized video streaming
  • Ultra-Low Latency: Less than 1 frame for real-time applications
Software background image

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

BZBGEAR Unveils BG-IPGEAR-XTREME-PRO Next-Gen 8K60 AV over IP at CEDIA 2025
BZBGEAR Unveils BG-IPGEAR-XTREME-PRO Next-Gen 8K60 AV over IP at CEDIA 2025

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth up to FRL 5 (40G)
Video Support up to 4K@120 4:4:4
HDMI over UTP 4K@120 4:4:4 100m (330ft) [CAT.5E]
Audio Support Surround sound [up to 7.1ch]
Equalization Auto
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
ESD Protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB Stack-up 6-layer board [impedance control — differential 100Ω; single 50Ω]
IR Pass-thru Bi-directional
RS-232 Support Yes
Input 1x HDMI, 1x 3.5mm, 1x USB, 1x USB-C
Output 1x 3.5mm, 1x RJ-45
I/O 1x terminal block (RS-232)
HDMI Source Control Controllable via IR pass-through from RX to TX or TX to RX with IR extenders
HDMI Connector Type A [19-pin female]
RJ-45 Connector WE/SS 8P8C (Reverse Mode)
USB Connector Type A / USB-C
3.5mm Connector IR receiver / IR blaster
Mechanical
Housing Metal enclosure
Fixedness Wall-mounting case with screws
Dimensions (LxWxH) 5.2 x 3 x 0.79in [132 x 75 x 20mm]
Weight 1.1 lbs [0.5kg]
Power Supply 12V DC, 1A
Power Consumption 12 Watt [max]
Operation Temperature 32~104°F / 0~40°C
Storage Temperature -4~140°F / -20~60°C
Relative Humidity 20~90% RH [no condensation]

Resources

PACKAGE CONTENTS

  • 1x BG-IPGEAR-XTREME
  • 1x IR Blaster
  • 1x IR Receiver
  • 2x DC 12V
  • 1x User Manual
  • 2x 3-pin Power Terminal Block Connector

Interfaces

Interfaces image

Transmitter

  1. +12V DC: Interlocking power jack for 12V DC power supply unit.
  2. Indicator LED: Power indicator LED.
  3. Mode: for USB host/device mode and FW update mode.
  4. Indicator LED: ETH and Link indicator LED.
  5. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver.
  6. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster.
  7. 1G Copper OUT: Plug in Cat.5e cable that needs to be linked to the other unit.
  8. USB 3.1 Gen 1: Connect to USB devices.
  9. HDMI IN: Connect to a HDMI source.
  10. USB 3.1 Gen 2 (USB-C): Connect the USB cable to PC.
  11. RS-232 (terminal block format): The order of RS-232 pin are TX, GND, RX (from the left side to the right).
Interfaces image

Receiver

  1. +12V DC: Interlocking power jack for 12V DC power supply unit.
  2. Indicator LED: Power indicator LED.
  3. Mode: for USB host/device mode and FW update mode.
  4. Indicator LED: ETH and Link indicator LEDs.
  5. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver.
  6. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster.
  7. 1G Copper: Plug in Cat.5e cable that needs to be linked to the other unit.
  8. USB 3.1 Gen 1: Connect to USB devices.
  9. HDMI OUT: Connect to a HDMI display.
  10. USB 3.1 Gen 2 (USB-C): Connect the USB cable to PC.
  11. RS-232 (terminal block format): The order of RS-232 pin are TX, GND, RX (from the left side to the right).
