1080P Full HD 3G-SDI Fixed Wide Zoom Box Camera
and engineering support
Overview
The BG-BFS is a full HD SDI IP Streaming box camera which utilizes a 3G-SDI connection to deliver 1080p@60Hz video at distances up to 300ft. Additionally, the BG-BFS also supports power over ethernet (PoE) functionality. This camera is well suited for use in settings such as manufacturing, lecture halls, retail spaces, studios, and medical facilities. The BG-BFS is a great choice for any application that requires a high-quality image and easy setup from a fixed angle camera.

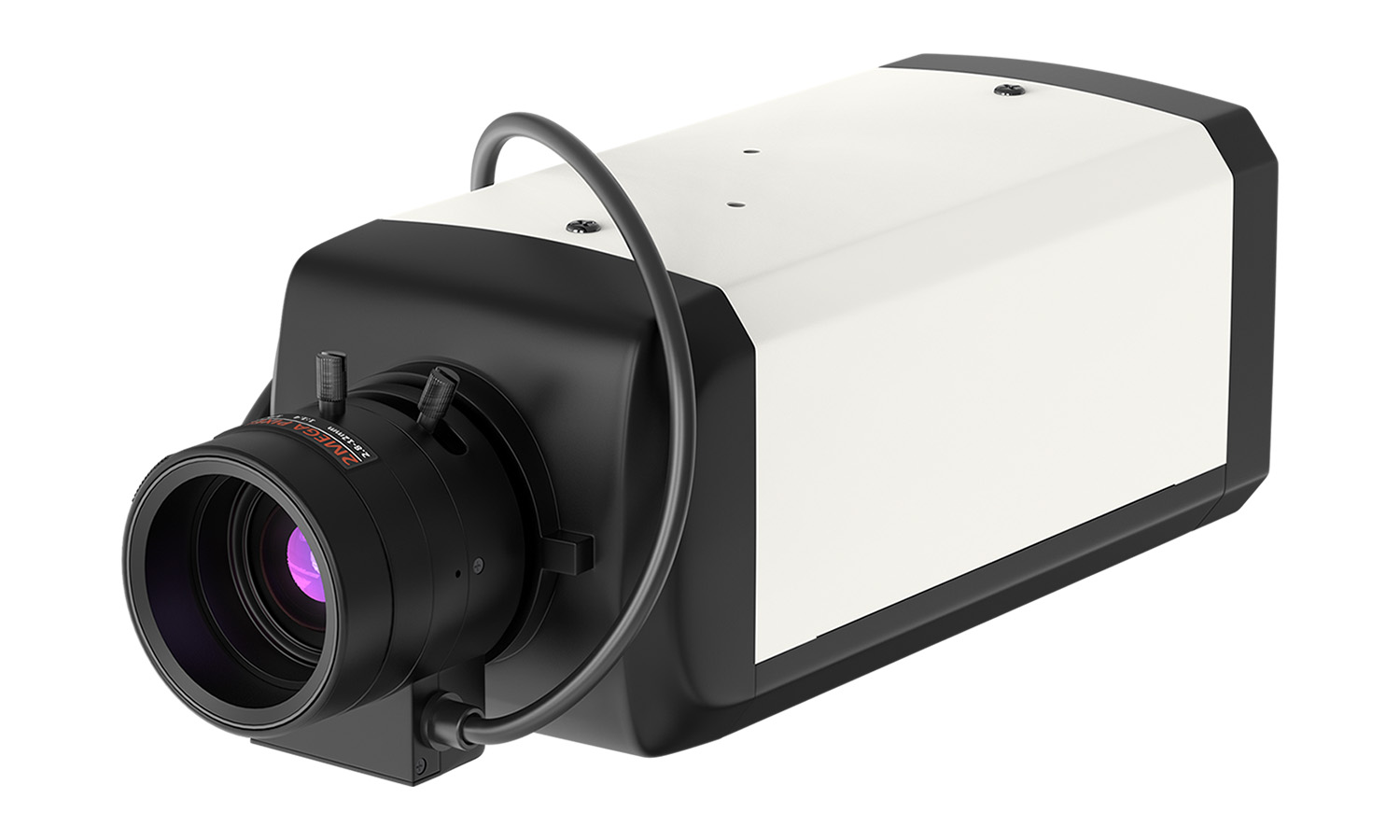

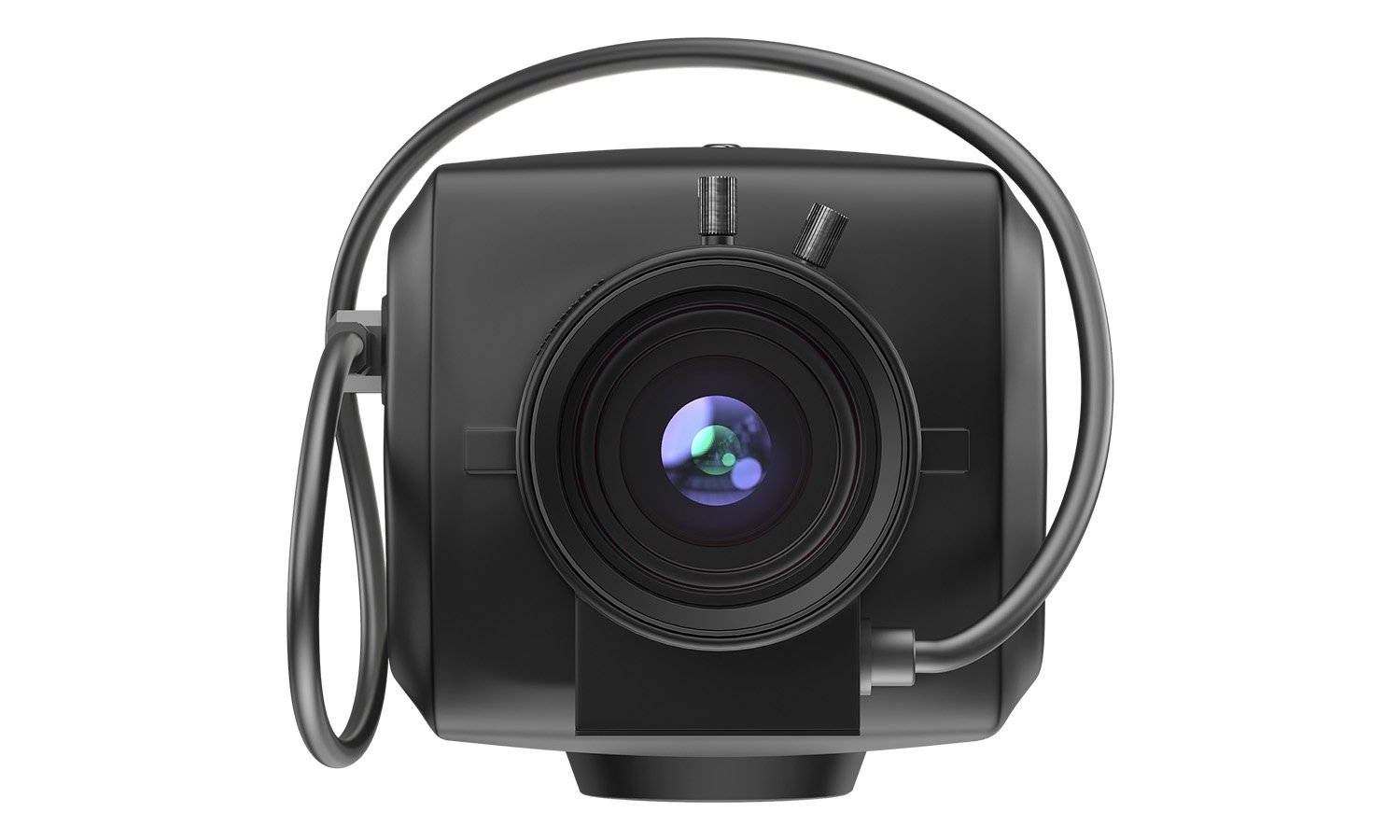

The BG-BFS is equipped with a manual lens featuring 4x optical zoom. The manual adjustments make it ideal for set and forget installation, ensuring precise zoom and focus settings for long-term reliability. The 1/2.8” HD CMOS sensor delivers accurate color reproduction and crisp 1080P HD imaging.
Connectivity and Control

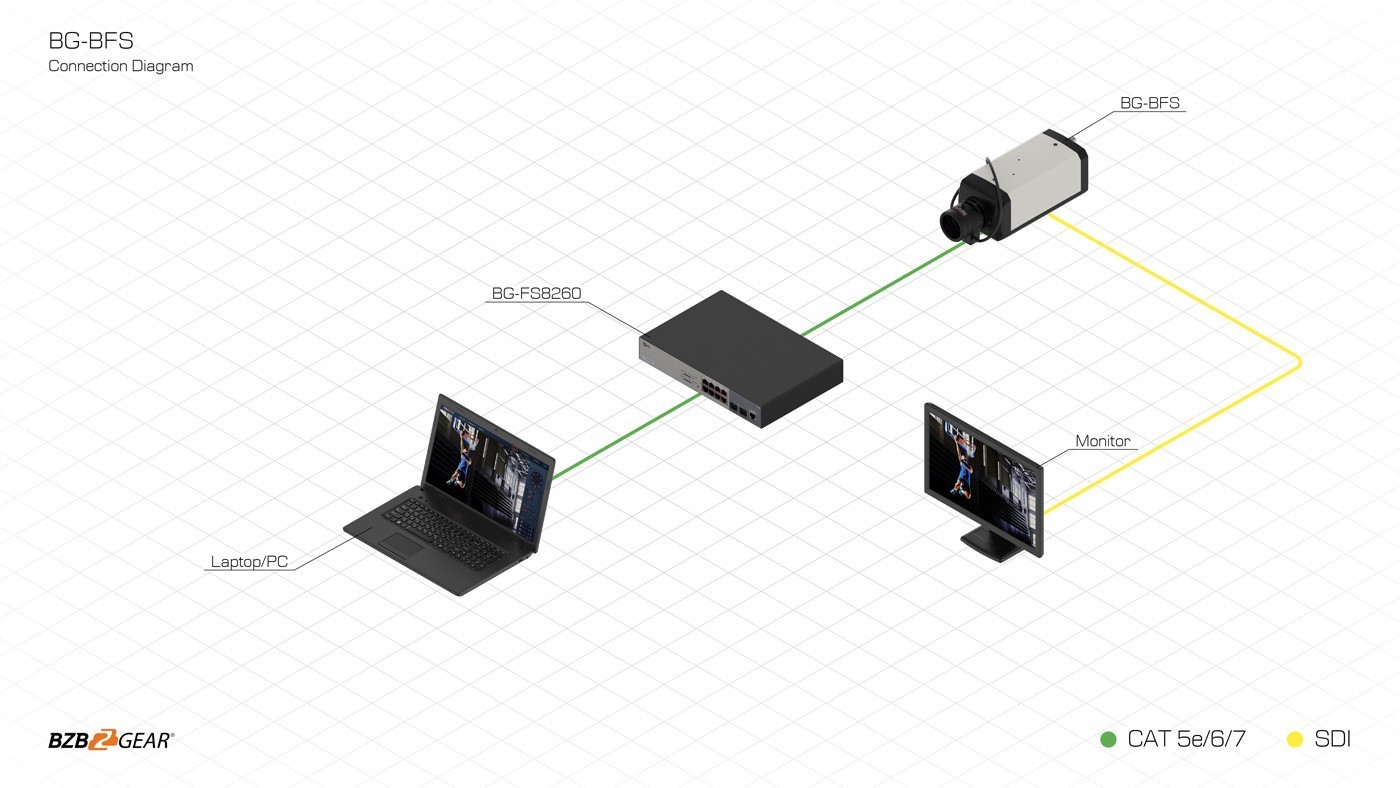

Utilizing Power over Ethernet, a single category can transmit the IP video stream as well as power the camera, greatly simplifying the installation process. A full-featured web interface provides easy access to detailed image settings.
The BG-BFS is equipped with simultaneous 3G-SDI and IP streaming video outputs and supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream the output directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-BFS to be easily integrated into most situations.
Revamp Your Camera Remotely: Upgrade, Reboot, Reset!
The ability to remotely upgrade, reboot, and reset the BG-BFS is vital for ensuring the camera's optimal performance, minimizing downtime, reducing operational costs, and enhancing the overall security and accessibility of the camera system. It is a crucial feature for modern surveillance and monitoring applications.
Features
-
Zoom4x manual optical zoom -
3.5mm Audio InputConnect audio mixer output or microphone and embed audio into your live stream -
Power over EthernetDelivers power directly over an ethernet cable from your PoE enabled network switch -
1080p@60Hz OutputHigh framerate ensures fluid motion capture -
Manual FocusDial in a perfect image -
ReliableDesigned for years of trouble-free use
- PoE LAN port allows for single cable installations
- Supports ONVIF, RTSP, RTMP protocols
- Simultaneous 3G-SDI and LAN outputs
- 1/2.8" high quality low noise CMOS sensor
- Remotely upgrade, reboot, and reset the camera
- Low noise and high SNR
Compatible with:
Videos
Tech Specifications
| Camera Parameters | |
| Sensor | 1/2.8" high quality HD CMOS sensor |
| Effective Pixels | 16:9, 2.07MP |
| Video Format | 1080p@60/50/30/25/59.94/29.97 1080i@60/50/59.94 720p@60/50/30/25 /59.94/29.97 |
| Auto Iris | DC driving mode |
| View Angle | 5.5° (tele) - 54.7° (wide) |
| Zoom | 4x manual optical zoom |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto/Manual/One Push/3000K/4000K/5000K/6500K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/Dynamic level adjustment |
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Input/output Interface | |
| Video Interfaces | 3G-SDI |
| Image Code Stream | Dual stream output |
| Video Compression Format | H.264, H.265 |
| Control Protocol | Protocol: VISCA / Pelco-D / Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| HD IP Interface | 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port. |
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181 |
| Power Interface | HEC3800 power socket (DC12V) and Power over Ethernet (PoE) |
| Other Parameters | |
| Power Adaptor | AC110V-AC220V to DC12V/1A, POE power supply (optional) |
| Input Voltage | DC12V±10% |
| Input Current | 400mA(Max) |
| Consumption | 4.8W (Max) |
| Store Temperature | 14° ~ 140°F / -10°C ~ +60°C |
| Store Humidity | 20% – 95% |
| Working Temperature | 14° ~ 122°F / -10°C ~ +50°C |
| Working Humidity | 20%–80% |
| Dimension | 5in x 2.2in x 2.3in [126.8mm x 55mm x 58.6mm] |
| Weight | 1.1 lbs [0.5kg] |
| Working Environment | Indoor Only |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
Resources
PACKAGE CONTENTS
- BG-BFS Camera
- 12V/1A Power Supply
- Lens
- Wall/Ceiling Mount Bracket
- User Manual

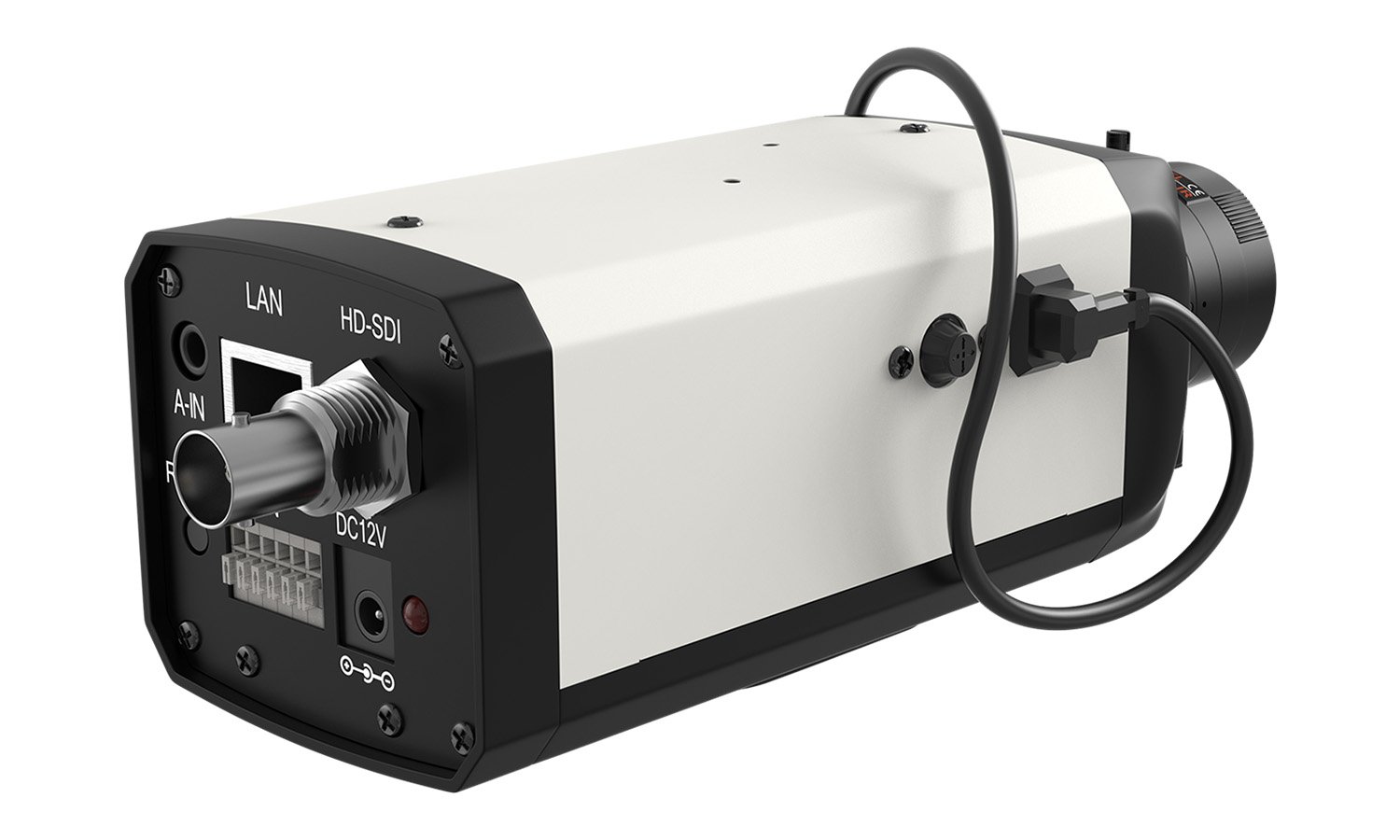

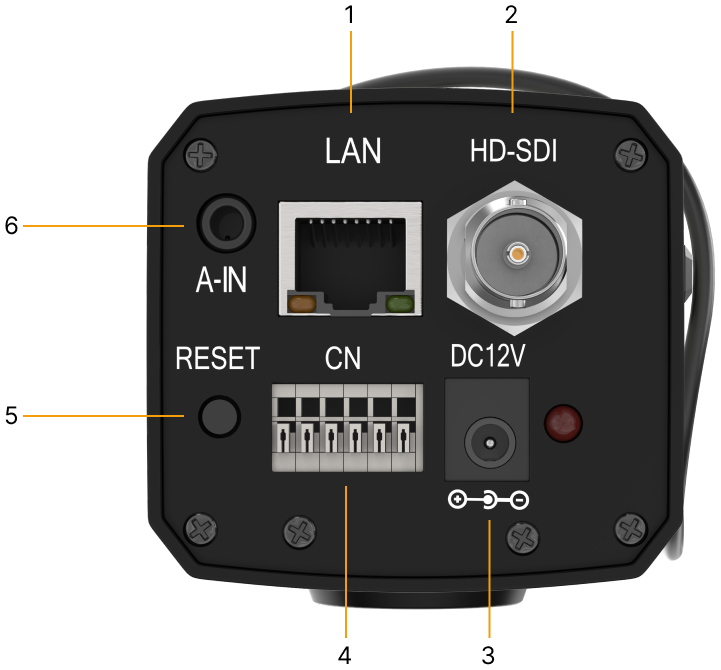

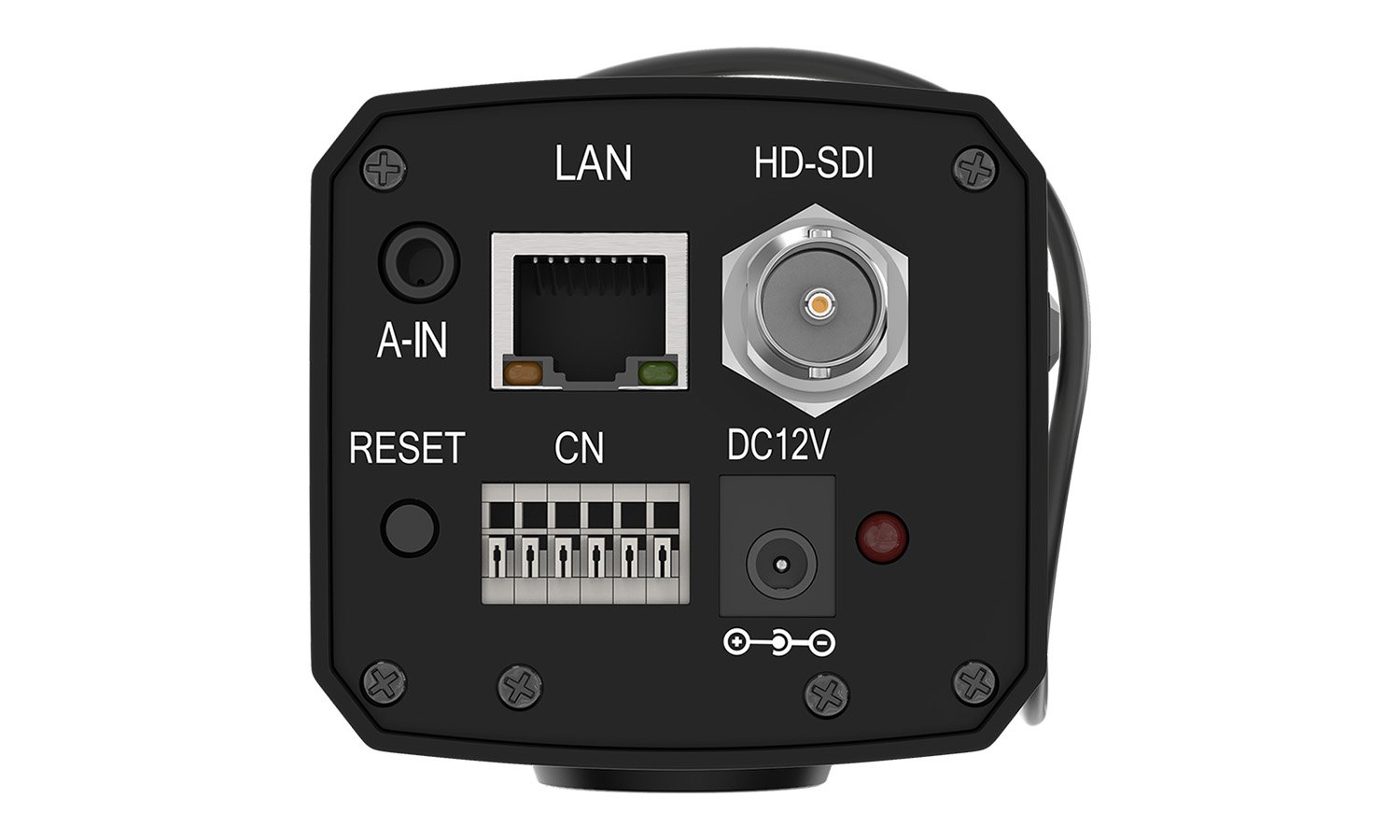

Interfaces
-
LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
-
HD-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
-
Power: Connect supplied 12V power adapter.
-
CN (RS-485): Connect via RS-485 to control the camera with a joystick controller or control software.
-
Reset: Hold Reset button to factory restore.
-
A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
