Tech Specifications
Camera/ Lens Parameters | |||
Image Sensor | 1/2.8" High Quality 4K CMOS Sensor | ||
Effective pixels | 8.28 Megapixel, 16:9 | ||
Video Format | SDI /HDMI output: 1080p@30Hz/25Hz; 720p@60Hz/50Hz/30Hz/25Hz; USB 3.0 output: 1920x1080p@30Hz /25Hz; 1280x720p@60Hz /50Hz /30Hz /25Hz; 960x540p@30Hz; 800x600p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; USB 3.0 can be compatible with USB 2.0 output |
||
View Angle | 57.2° (D) /47° (H) /36° (V) | ||
Focus | f=7.23mm | ||
Aperture | F2.4+ 5% | ||
Digital Zoom | 3X | ||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
DNR | 2D & 3D DNR | ||
White Balance | Auto / Manual/ One Push/ Specified color temperature (2400K-7100K, step length is 100) | ||
Focus | Manual | ||
Exposure | Fixed | ||
BLC | ON/ OFF | ||
DNR | >50dB | ||
Input/Output Interface | |||
Video Interfaces | 1x SDI / HDMI interface 1x USB interface 1x LAN interface: 10M/100M adaptive Ethernet port (support POE) |
||
Video Compression Format | H.264, H.265, MJPEG, YUY2, NV12 | ||
Audio Input Interface | Double track 3.5mm linear Input | ||
Audio Compression Format | AAC, MP3, G.711A | ||
Network protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
Control Interface | RS232, RS485, LAN | ||
Communication Protocol | VISCA, Pelco-D, Pelco-P, support baud rate 115200/38400/9600/4800/2400; Support VISCA Control Protocols | ||
Power Interface | HEC3800 power socket (DC12V) | ||
Other Parameters | |||
Input Voltage | Power Adapter: 12V | ||
POE Supply: 48V | |||
Input Current | Power Adapter: 0.42A (max) | ||
POE Supply: 0.104A (max) | |||
Power Consumption | 5W (max) | ||
Stored Temperature | -10°C ~ +60°C | ||
Stored Humidity | 20% ~ 95% | ||
Working Temperature | -10°C ~ +50°C | ||
Working Humidity | 20% ~ 80% | ||
Dimension (W x H x D) | 5.9 x 3.1 x 3.1in [149.2 x 78 x 78mm] | ||
Weight | Approx. 1.17 lbs [0.53kg] | ||
Working Environment | Indoor Only |
PACKAGE CONTENTS

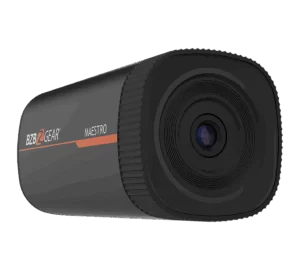

- 1x BG-MAESTRO Camera
- 1x 10' USB 3.0 Cable
- 1x Metal Wall/Ceiling Mount (White)
- 1x User Manual
Interfaces
- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
- Power: Connect supplied 12V power adapter.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@30Hz) over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080p@30Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@30Hz.
- Reset: Hold Reset button to factory restore.
