Overview

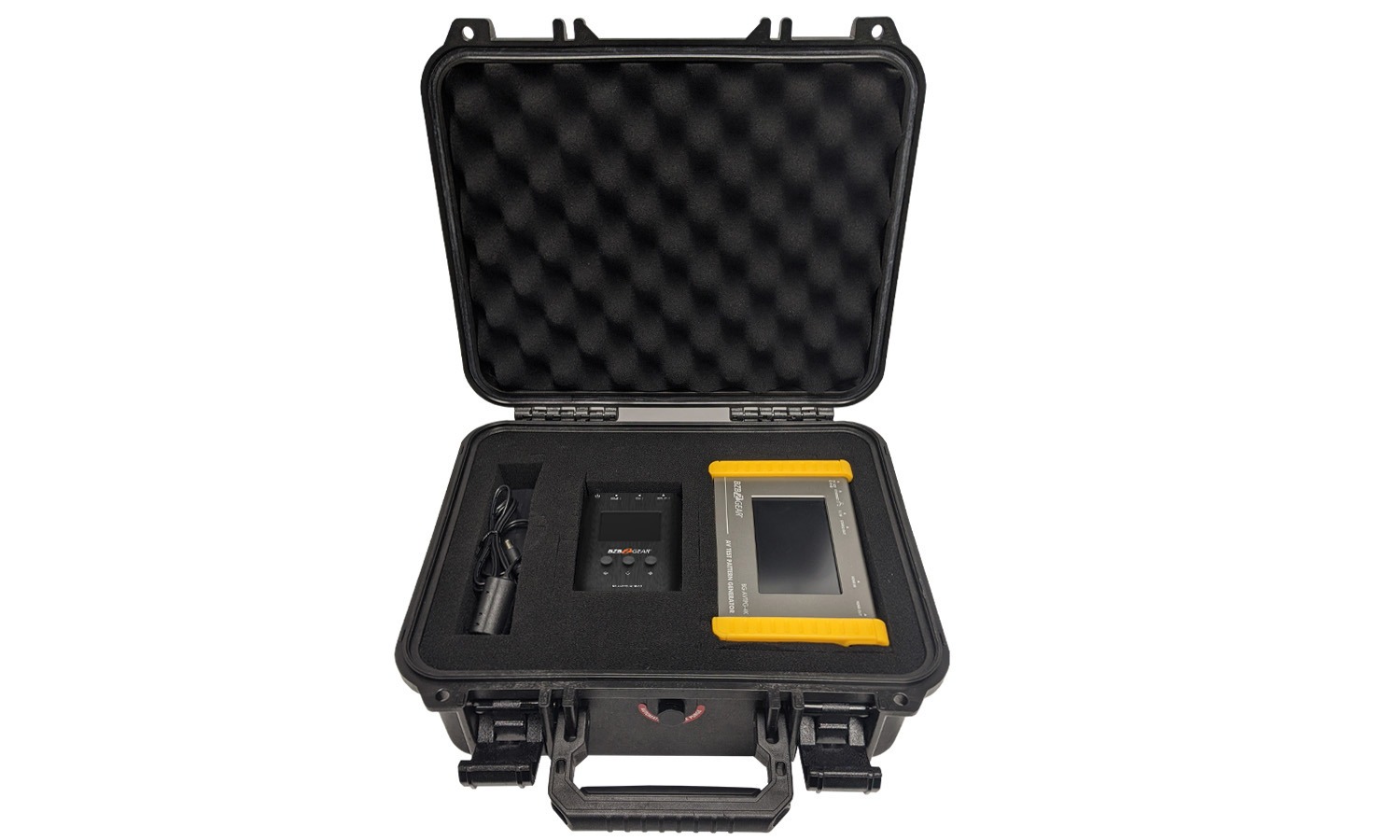

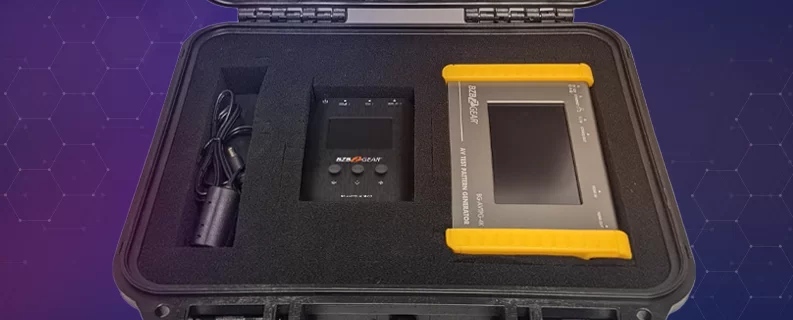

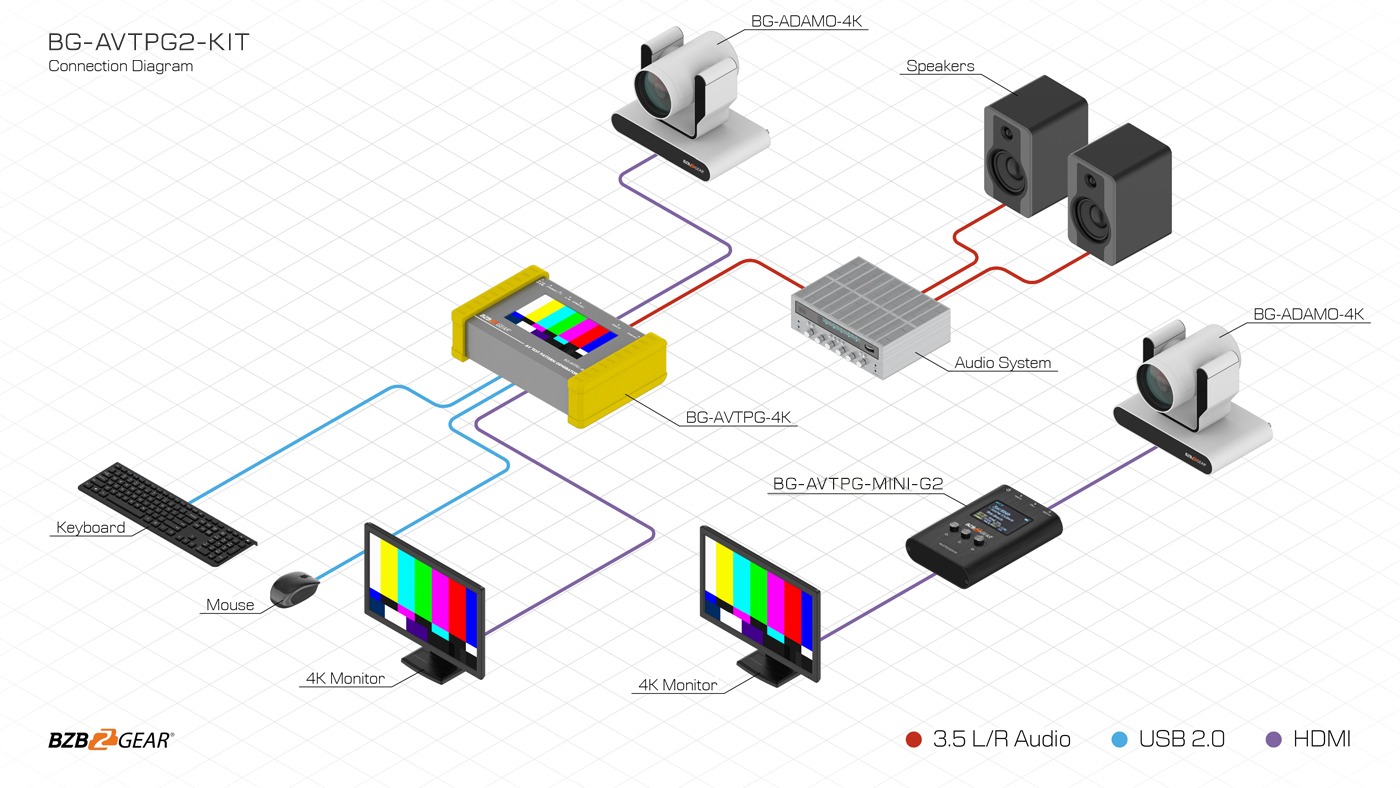

The BG-AVTPG2-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI-G2 in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.
TAA COMPLIANT PRODUCT
BG-AVTPG-4K
1080P FHD/4K UHD HDMI 2.0 18GBPS VIDEO TEST PATTERN GENERATOR/TESTER AND ANALYZER WITH ETHERNET
The BG-AVTPG-4K HDMI 2.0 Generator and Analyzer is a versatile and compact test set designed for A/V Professionals. The set allows the user to conduct verification and diagnostic tests of HDMI cables, A/V components and video distribution networks with confidence. Its protective rubberized edges and rechargeable battery make it well-suited for on-site testing virtually anywhere. With the advanced touch panel and USB connection mouse control you can easily access options for video patterns, audio signals, HDCP analyzer, and loop signal testing. The unit supports 8 channel LPCM with selectable sampling rate making it perfect for testing multi-channel audio systems. The BG-AVTPG-4K is a must-have for all AV System Integrators and Technicians.
BG-AVTPG-MINI-G2
8K/4K/1080P HDMI 2.1 48Gpbs Portable Signal Test Generator and Analyzer
The BG-AVTPG-MINI-G2 HDMI 2.1 tester/analyzer is a mobile, hand-held device which can help installers test cable quality by generating HDMI signals and detecting important HDMI features quickly. With this handy and portable tool users will appreciate the built-in 3 hour chargeable battery, video patterns and other features. It features adjustable color depth so installers can instantly test the connected display’s capability. Getting important pieces of information makes troubleshooting a breeze and helps installers take the guess work out of HDMI compatibility issues. With the device’s response time, you will have the answer to a potential problem in less than a minute! The BG-AVTPG-MINI-G2, with its cost and features, is the ideal testing unit for custom and commercial integrators to have on every call!
BZBGEAR AWARDS
Features
-
![Bzbgear image]()
4K Support4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator -
![bi_usb-symbol]()
USB 2.0Supports mouse control -
![wpf_audio-wave]()
Audio Support8ch LPCM with selectable sampling rate up to 192kHz -
![mdi_audio-input-stereo-minijack-1 | IR INPUT]()
3.5 mm OutputAllows for testing of analog audio equipment -
![material-symbols_safety-check]()
Durable ChassisDesigned to hold up to the demands of field work -
![fluent_top-speed-24-filled]()
18GbpsHigh-bandwidth HDMI
- Supports user control device through Ethernet
- Embedded LINUX KERNAL system with limitless extension
- Supports HDMI loop through function
- Battery powered for portability, it can extend operation time with full load up to 4 hours
- 4.3 touch panel
- Firmware update through USB Flash Drive
- Scrambler supported for videos over 340MHz output wise
- HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
- Rechargeable battery design with short charging time about 2 hours
- Supports mouse control
- Supports user defined pattern up to 2GB
- Loop test capability to provide statistics analysis for connection stability
- Qualified physical layer performance to ensure the best compatibility
-
![bi_badge-8k]()
8K SupportIt supports diverse resolutions and color formats, like 8K60 4:2:0 and 8K30 4:4:4, ensuring an accurate display of details and colors -
![bi_badge-4k]()
Supports 4K120Provides smoother gameplay, reduced input lag, better visual clarity, and high-quality broadcasting for Esports -
![HDCP test capability]()
HDCP test capabilityValidates secure content transmission -
![Battery-powered portability]()
Battery-powered portabilityFacilitates convenient on-the-go testing and field calibration for optimal performance -
![HDCP Protection 2]()
HDCP ProtectionHDCP 1.4 & 2.3 compliant -
![Future-Proof]()
Future-ProofEmbracing a spectrum of resolutions, from the stunningly detailed 8K60 and 4K120 to the widely used 4K60 and 1080p
- Video resolution outputs up to 8K60 10bit/12bit 4:2:0, 8K30 4:4:4, 4K2K 120Hz
- HDR 4K2K@60 4:2:0 10bit/12bit
- Built-in 4 video patterns
- Both HDMI input and output support up to HDMI 2.1
- Fundamental HDMI feature analysis up to 8K@60/4K@60 4:4:4/4:2:0 12bit/10bit/8bit HDMI 2.1 input
- Input Video bandwidth: 48G
- Output Video bandwidth: 48G
- Hand-held pocket size
- Rechargeable battery powered for portability
- Operation time with a full charge up to 3 hours
Videos
Tech Specifications
BG-AVTPG-4K 4K/1080P HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer with Ethernet
| Technical Specifications | ||
| Role of usage | Generator / Analyzer | |
| Video bandwidth | Single link 600MHz (18Gbps) | |
| HDMI compliance | HDMI 2.0 and below | |
| HDCP compliance | HDCP 2.2 and below | |
| Video Support | Up to 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR) | |
| Video Format Support | HDMI | |
| Audio support | 8ch LPCM up to 192K | |
| Control | USB mouse / touch panel / Ethernet | |
| ESD protection | Human body model ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| Input | 1x HDMI + 1x USB + 1x RJ-45(Ethernet) | |
| Output | 1x HDMI + 1x 3.5mm (Stereo) | |
| USB Support | USB 2.0 | |
| HDMI connector | Type A (19-pin female) | |
| USB Connector | Type A | |
| RJ-45 connector | WE/SS 8P8C with 2 LED indicators | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Dimensions (L x W x H) | Model | 4.1" x 6.6" x 1.7" [105 x 166 x 42mm] |
| Package | 1'5" x 6.7" x 3" [371 x 170 x 77mm] | |
| Carton | 1'3" x 1'4" x 1'5" [410 x 368 x 393mm] | |
| Weight | Model | 27 oz [765g] |
| Package | 2.8 lbs [1294g] | |
| Power supply | 12V 5A DC / Battery | |
| Power Consumption | 15 Watts | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20-90% RH [no condensation] | |
BG-AVTPG-MINI-G2 8K/4K/1080P HDMI 2.1 48Gpbs Portable Signal Test Generator and Analyzer
| Technical | ||
| Usage | HDMI 2.1 Signal Generator and Analyzer | |
| Video bandwidth | Input up to FRL 5 (48G) Output up to FRL 6 (48G) |
|
| HDMI compliance | HDMI 2.1 and below | |
| HDCP compliance | HDCP 2.3 and below | |
| Video Support | Up to 8K60 4:2:0 10bit, 8K30 4:4:4, & 4K2K 120Hz | |
| Video Format Support | HDMI | |
| Control | Push Button | |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| Input | 1x HDMI | |
| Output | 1x HDMI | |
| USB Support | Firmware update / Recharge | |
| HDMI connector | Type A [19-pin female] | |
| USB Connector | USB-C | |
| Mechanical | ||
| Housing | Metal Enclosure | |
|
Dimensions [L x W x H] |
Model | 5.1" x 3.5" x 0.6" [130 x 89 x 14mm] |
| Package | 7.8" x 5.4" x 2.9" [198 x 137 x 74mm] | |
| Weight | Model | 10.4 oz |
| Package | 16 oz | |
| Power Supply | USB-C / Battery | |
| Operation Temperature | 32~104°F / 0~40°C | |
| Storage Temperature | -4~140°F / -20~60°C | |
| Relative Humidity | 20~90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-AVTPG-4K Video Test Pattern Generator/Tester & Analyzer
- 1x BG-AVTPG-MINI-G2 Portable Signal Test Generator and Analyzer
- 1x Power Supply
- 1x Case
- 1x User Manual
Interfaces
- OUTPUT: HDMI output.
- INPUT: HDMI input.
- Stereo Out: Analog audio output.
- USB: Connect to a USB device for control or firmware update.
- Ethernet: Check if a connection can issue an IP address using DHCP.
- +12V DC: 12 V 5A DC power jack.
- Power Switch: Power ON/OFF.
- Touch screen Display: Control device and displays information.
- LCD Display: the measured data is shown here.
- Button (left): Back button.
- Button (down): Select button.
- Button (right): Enter button.
- OUTPUT: HDMI output.
- USB-C: Firmware update / Recharge.
- INPUT: HDMI input.
- Power Switch: Power ON/OFF Switch.
