Tech Specifications
Audio Input | |
Input | 2x Stereo Audio, 1x MIC, 1x Digital Fiber Audio |
Input Connector | 2x RCA, 1x 3.5mm Jack, 1x 3-pole 3.81mm Captive Screw Connector, 1x SPF Fiber Connector |
Input Impedance | >10KΩ |
Audio Output | |
Output | 1x Mono Amplifier |
Output Connector | 1x 3-pole 3.81mm Captive Screw Connector |
Output Type | Constant voltage 70V or 100V |
Audio General | |
Frequency Response | 120Hz ~ 20KHz |
CMRR | >70dB@20Hz ~ 20KHz |
SNR | 80dB (Max) |
Bandwidth | 120Hz ~ 20KHz |
Rated Power Output | 40Watt |
THD + Noise | 1%@1KHz, 0.3%@20KHz at nominal level |
Voltage Gain | 26dB |
Control Function | |
RS232 Control | 1x 3-pole 3.81mm Captive Screw Connector |
Front Panel Control | Buttons |
ID Code Control | 16 ID Codes for control |
Optional | IR Remote & TCP/IP controlled by programmable interface |
General | |
Temperature | 14 ~ 104°F / -10 ~ +40°C |
Humidity | 10% ~ 90% |
Power Supply | DC 24V 2.71A Power Adapter |
Standby Power Consumption | 5W |
Case Dimension (WxHxD) | 5.1 x 1.7 x 5.7in [130 x 44 x 144mm] (1U high) |
Product Weight | 1.9 lbs [860g] |
Resources
Documents
PACKAGE CONTENTS
- 1x 40 Watt Power Amplifier
- 2x Mounting ears with 4 Screws
- 4x Plastic Cushions
- 2x Pluggable Terminal Blocks
- 1x RS232 Cable
- 1x Power Adapter (DC 24V 2.71A)
- 1x User manual

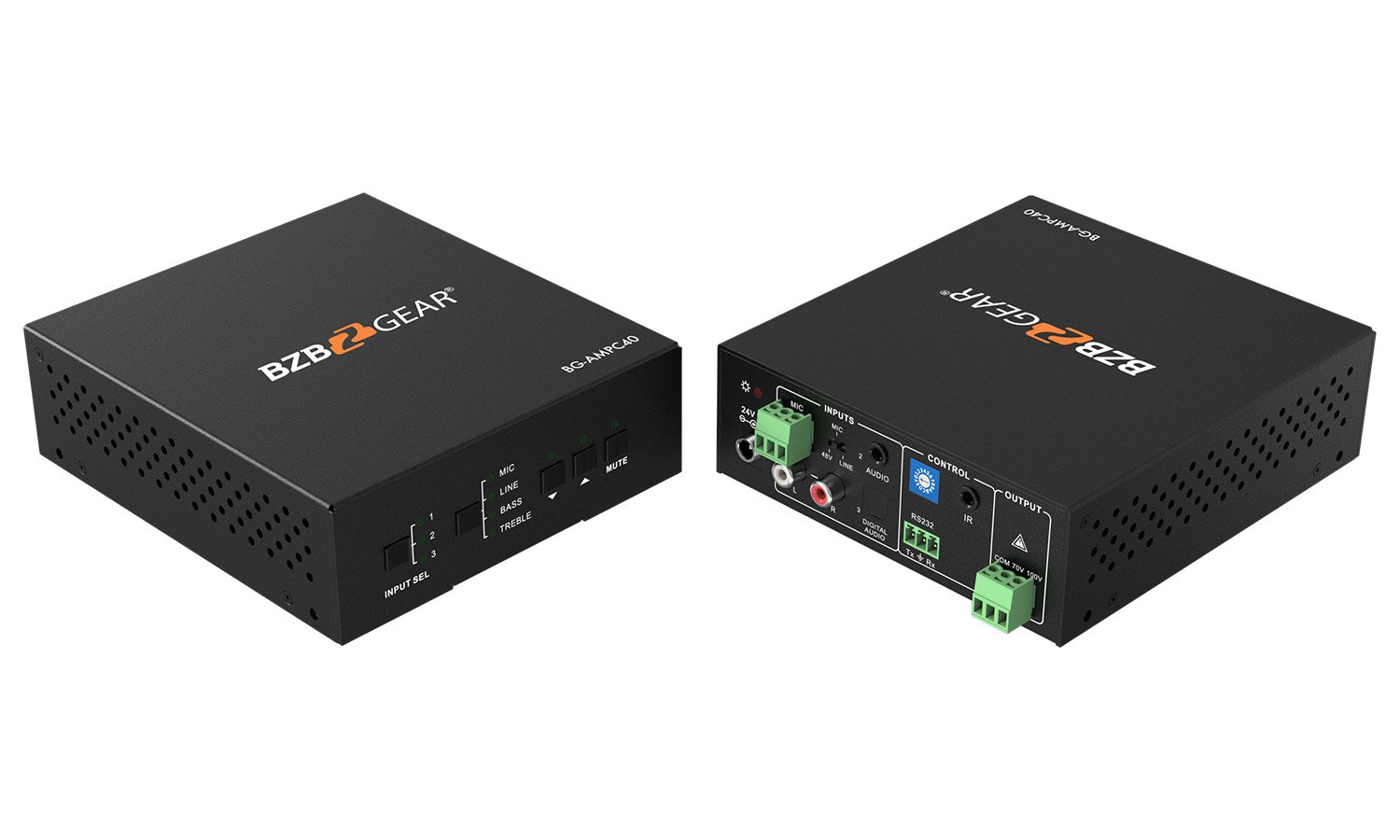

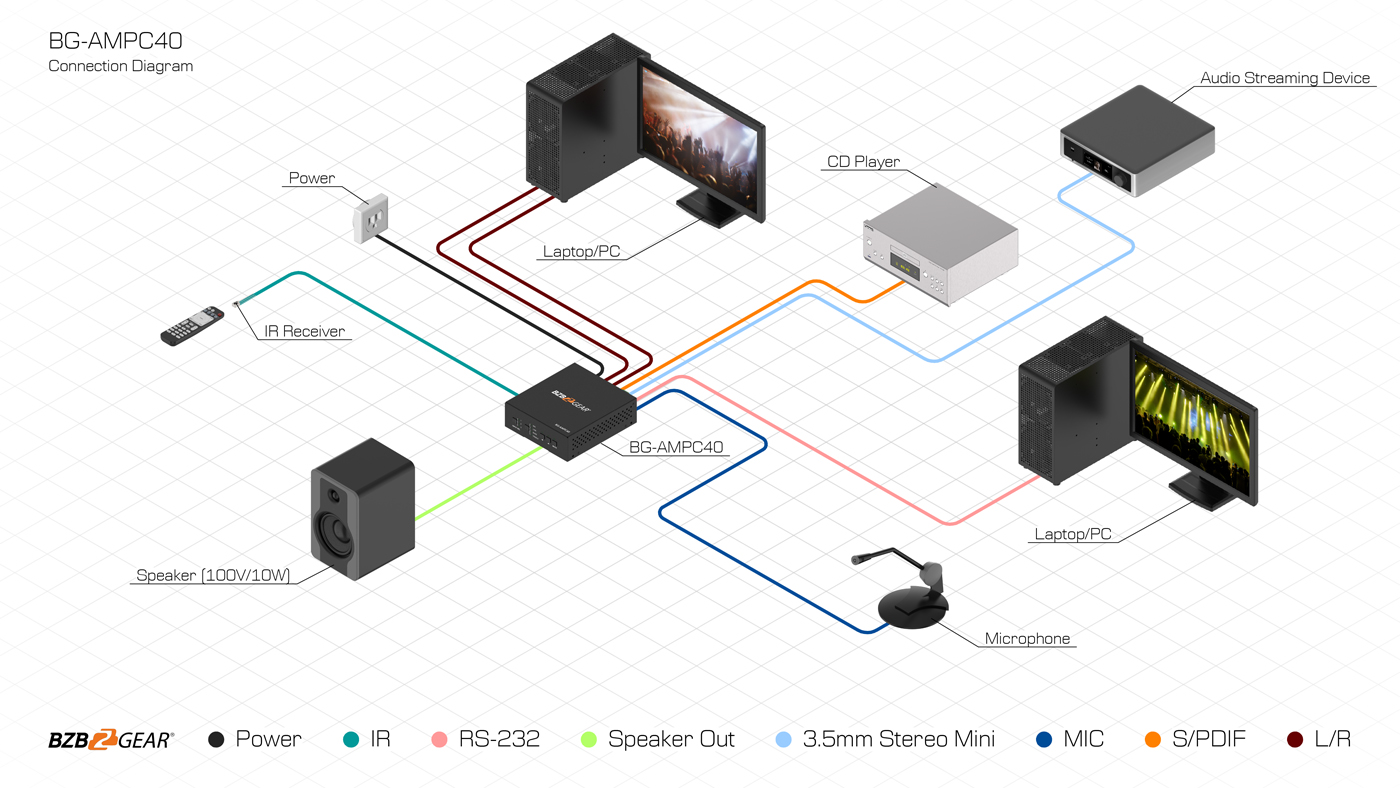

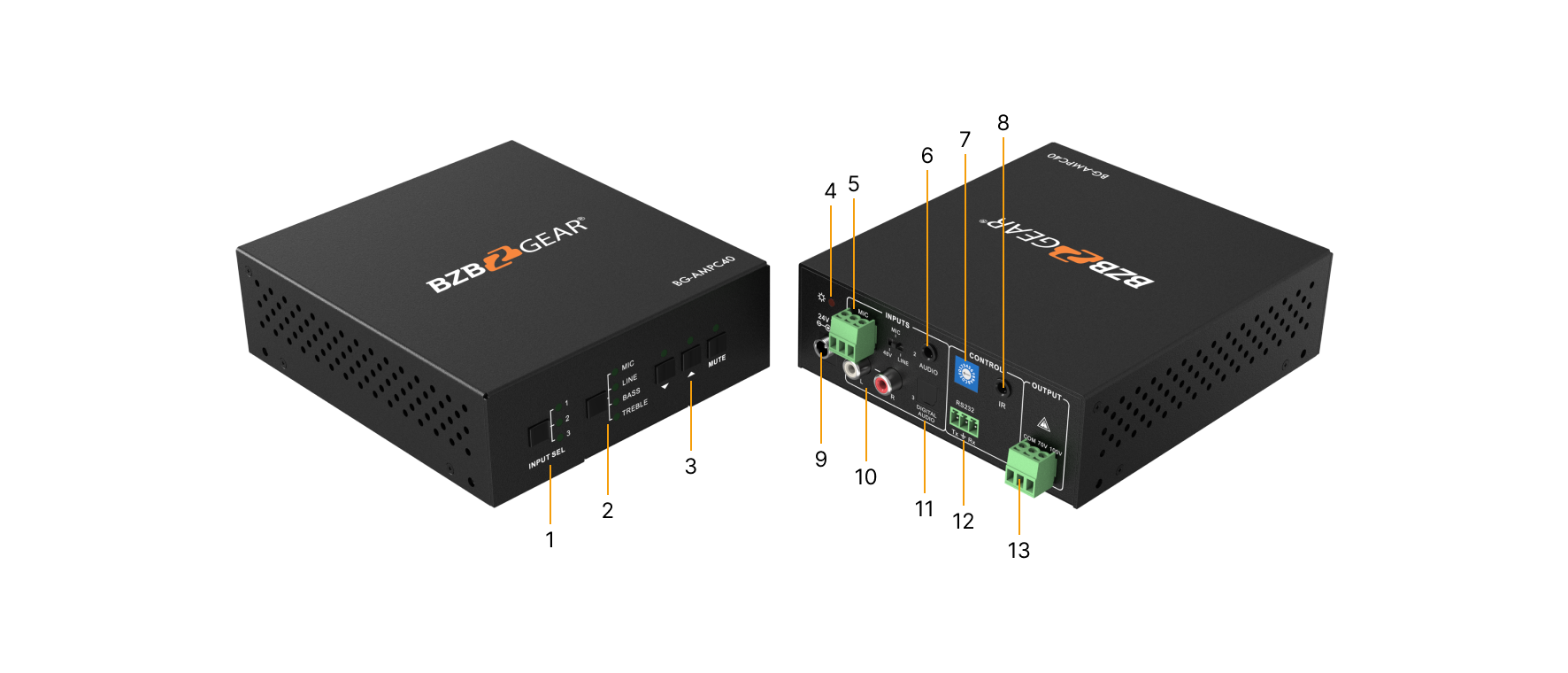

Interfaces

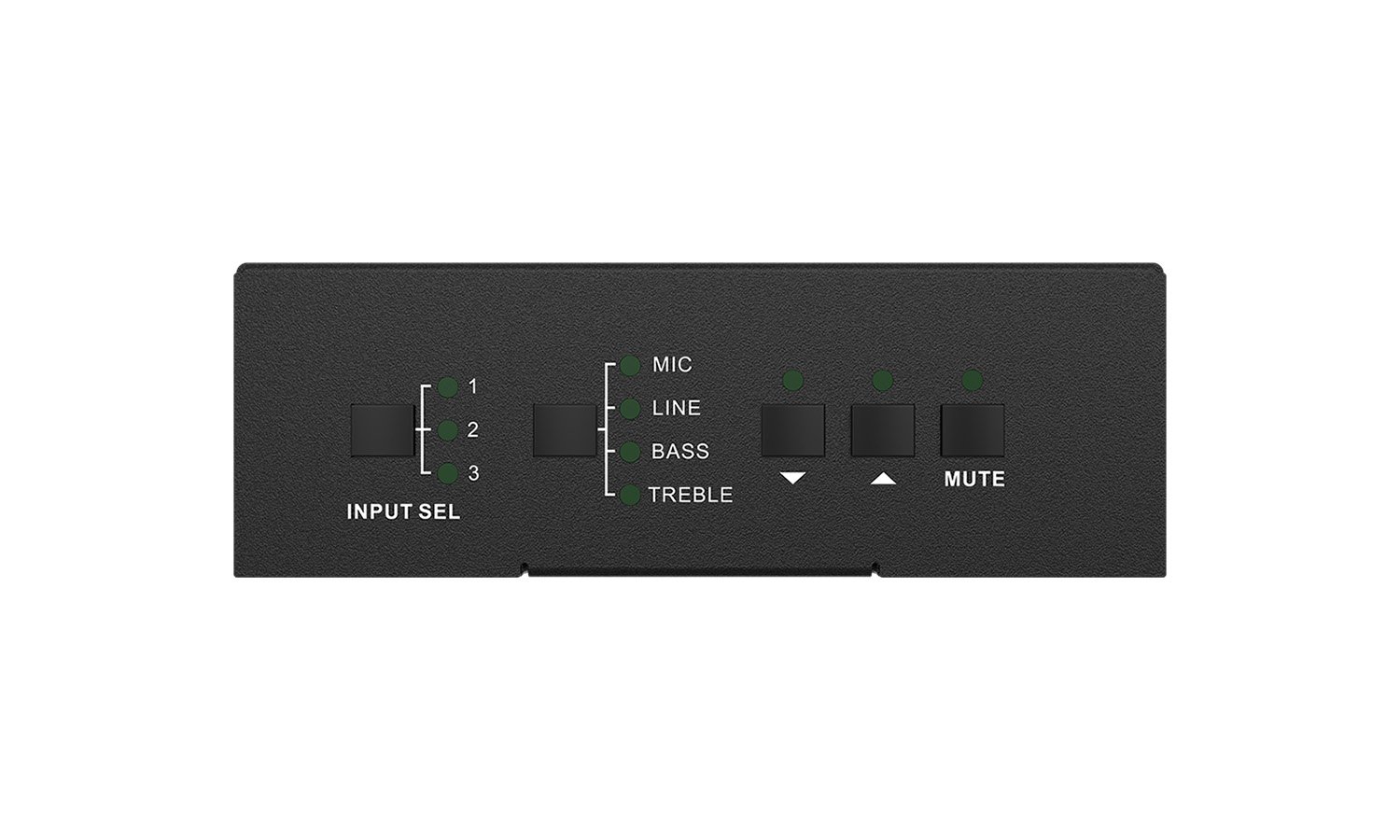

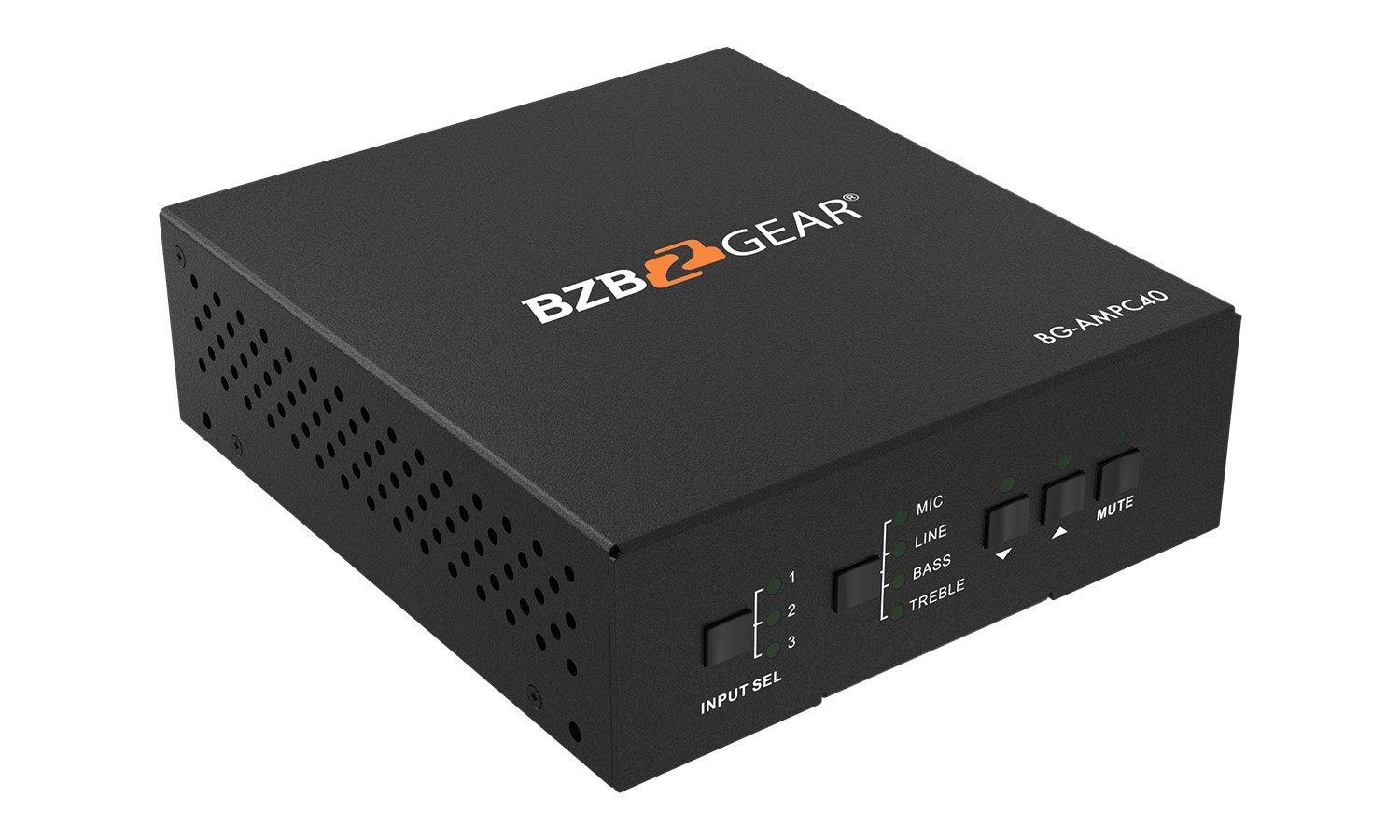

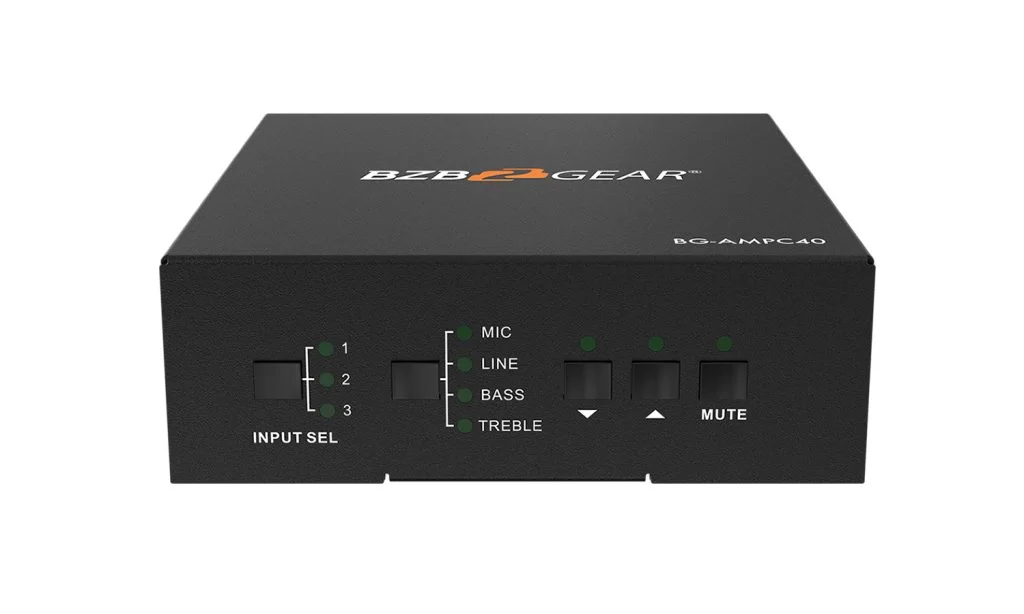

- Audio Input Selection: Press the INPUT SEL button to select an input audio source, After choosing an audio source, the corresponding LED indicator will illuminate.
No.1 is for dual mono audio input (2 RCA connectors for L&R), No.2 is for stereo audio input (3.5mm mini jack), and No.3 is for digital fiber audio input. - Audio Control: Select the MIC, Line, Bass, or Treble with this button to then be able to control their volume levels.
- Volume Adjustment: To turn up, down, or mute the selected audio.
▽: Turn down the volume
△: Turn up the volume
MUTE: Mute the output. - Power Indicator: Illuminates red when power is connected.

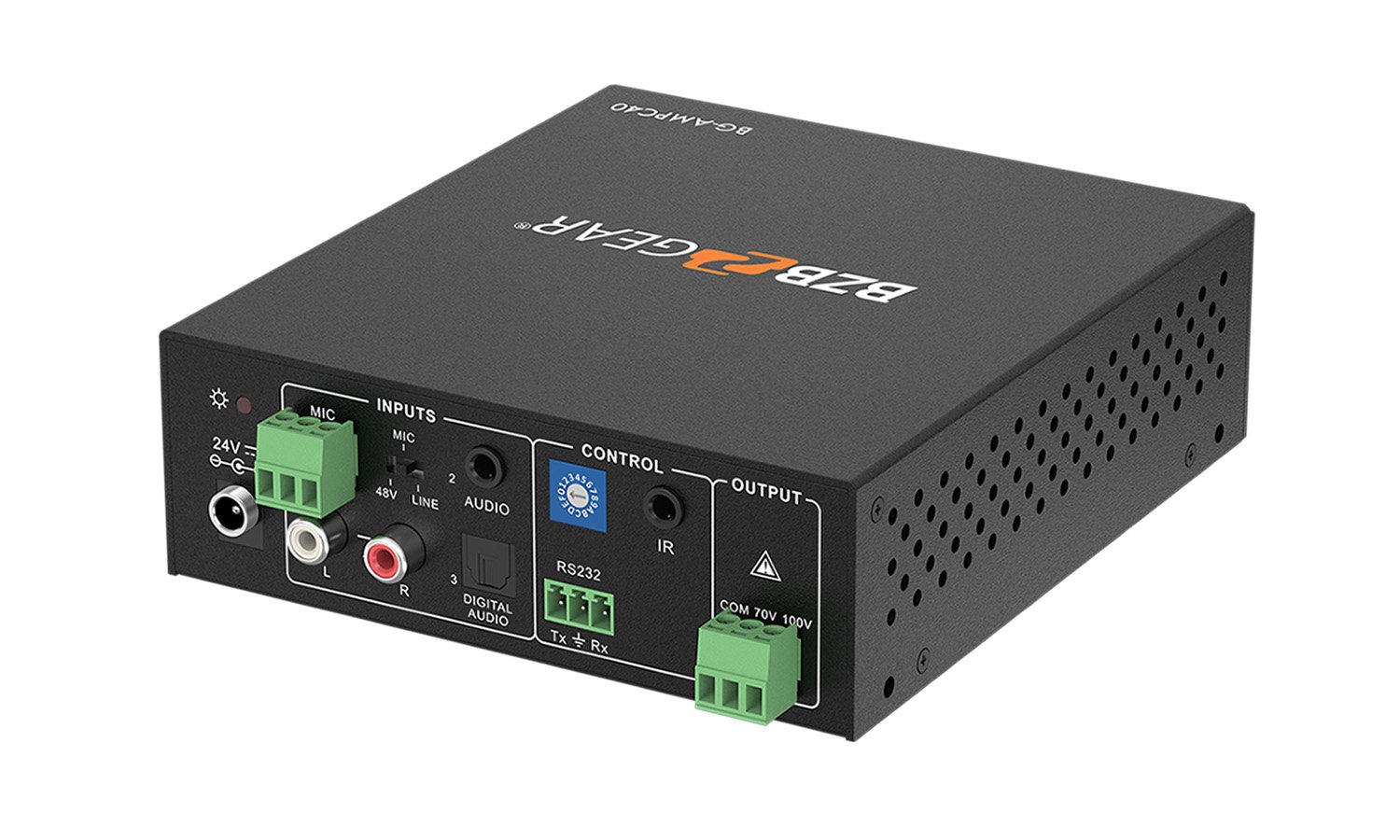

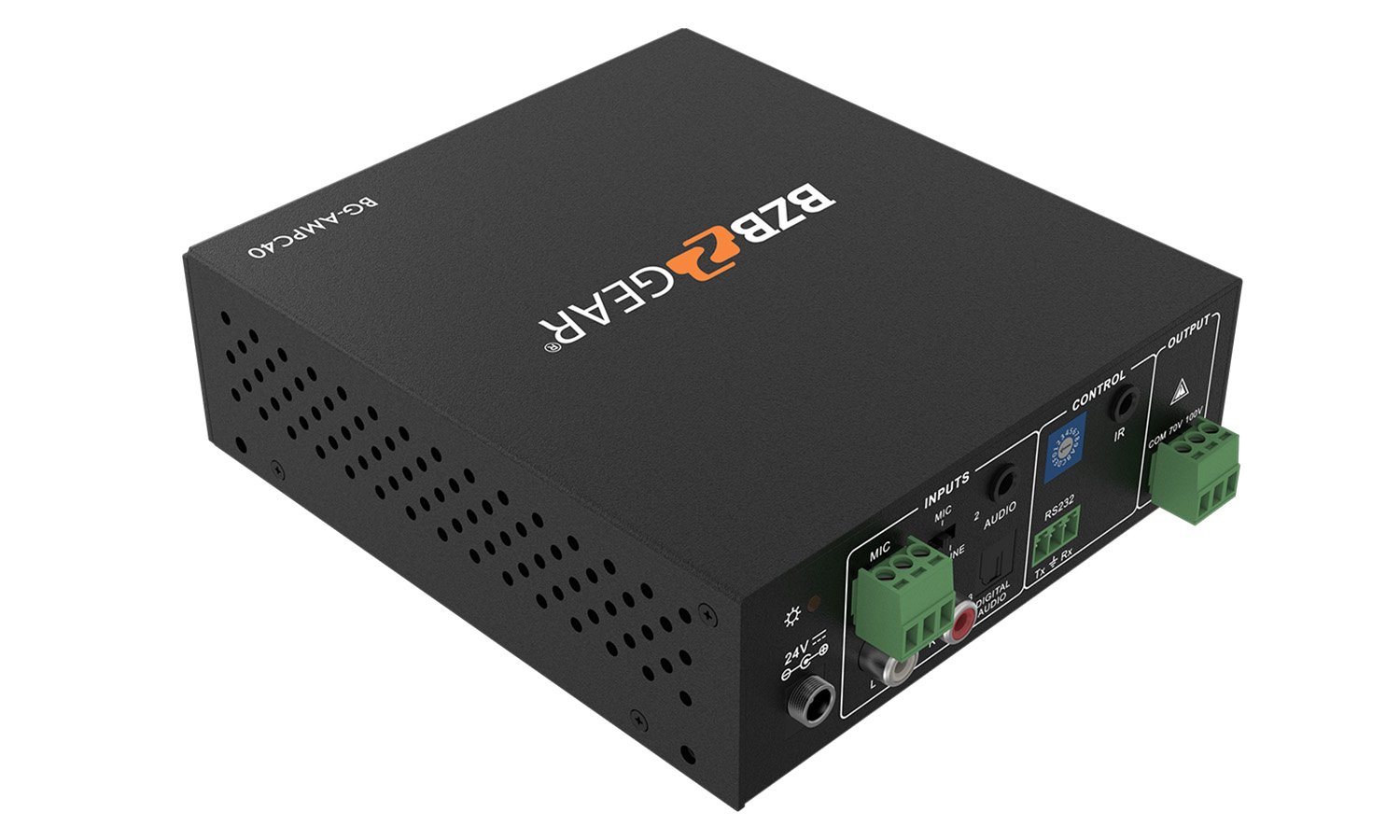

- Microphone input port: 3-pin phoenix connector for microphone input. The switch on the right side is used to select the input type: 48V (for condenser microphone), MIC (for dynamic microphone), and LINE (for line audio).
- Audio Inputs: 3.5mm mini jack for stereo audio input. It can be connected with audio source devices (e.g., DVD player).
- ID Code: Turn the dial to select 1 of 16 codes which range from 0 to F (hexadecimal). It is used to manage multiple units with PC control software.
- IR: To connect with the IR receiver. Increases the range of the IR remote if the main unit is out of line of sight.
- Power Port: Connect with the power adapter (DC24V).
- L+R RCA: Dual-mono audio input.
- Digital Audio Input: Fiber connector for digital audio input (PCM format only).
- RS-232: 3-phoenix connector for serial control. It can be connected with a PC to control the amplifier.
- Audio Output: To connect with audio output devices such as speakers (to select 70V or 100V depends on the input voltage of the speakers). COM is for grounding (GND).
