Versatile 8x8 Balanced Digital Audio Matrix Processor: Featuring AEC, ANS, AGC, Auto Mixer, and 8-ch Programmable GPIO Support
NEW
Configure the Perfect Solution
Get Started
Overview
This digital audio processor is designed to enhance the audio quality in a variety of settings where multiple speakers are present and clear communication is essential. It provides eight MIC/linear inputs and eight linear outputs, allowing you to connect a wide range of audio sources and destinations. Its advanced algorithms, including full-band Adaptive Echo Cancellation (AEC), Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), and Auto Mixer, work together to produce clear, clean, and resonant sound with a high signal-to-noise ratio.
This processor is easy to use, with no need for additional software. It is ready to use right out of the box, making it an excellent choice for project implementation and testing. It can be applied in a variety of settings and industries, including smart system integration in small to medium-sized conference rooms, instruction recording and distance teaching in education, court trial recording and virtual court trials in the judiciary, surgery recording and video consultations in healthcare, and command center establishment in governmental projects. Its versatility and high-quality audio processing capabilities make it an invaluable tool for improving the clarity and quality of audio in many different types of environments.
Features
-
Advanced DSPManipulate and enhance audio signals with essential modules like Expander, Equalizer, Compressor, and more, ensuring optimal audio quality and control -
Quality Audio ConversionAchieve high-quality audio output with a 48kHz sampling rate and 24-bit A/D or D/A conversion -
Echo CancellationClear audio communication and minimized feedback issues with built-in echo cancellation -
Adaptive FeedbackMitigate feedback problems and improve audio performance with adaptive feedback suppression -
Adaptive Noise ReductionEnhance audio clarity and signal-to-noise ratio with dynamic noise reduction technology -
Auto Mixer functionSeamless audio mixing in scenarios with multiple microphones and adjustable priority settings
- Balanced Inputs and Outputs: Connect various audio sources and devices with 8-ch balanced MIC/linear inputs and outputs
- 48V Phantom Power Supply: Power condenser microphones with 48V phantom power available for 8-ch MIC inputs
- Switching Matrix Routings: Efficient signal routing and management with versatile routing configurations
- Basic Control Features: Volume control, metering, and scene control for accurate monitoring and adjustment of audio levels
- Programmable GPIO Function: Additional control options through 8-ch programmable GPIO for integration with external devices
- Platform Compatibility: Compatible with Win 7 and Win 10, with standard RJ45 interface control for seamless integration
- RS-232 Serial Commands Control: Alternative control method for specific setups or legacy systems using RS-232 control
Videos
Enhance Clarity: Unveiling the Ultimate Digital Audio Processor BG-A88M
Tech Specifications
| Technical | |
| Amplitude-frequency (20Hz~20kHz@+4dBu) |
±0.2dB |
| THD+N (1kHz@+4dBu) | ≤ 0.01% |
| SNR (linear input) | ≥ 90dB |
| Dynamic Range | ≥ 100dB |
| Channel Level Difference | ±0.5dB |
| Channel Isolation | ≥ 80dB |
| Max Input Level | 20dBu |
| Max MIC Gain | 40dB |
| Input Impedence | 20KΩ |
| Output Impedence | 300Ω |
| Sampling Frequency | 48kHz |
| A/D and D/A Conversion | 24Bit |
| Phantom Power | +48 VDC |
| Connection | |
| Inputs | 8 x Balanced MIC/LINE [3-pin phoenix connector] or 4 x Stereo Audio [3-pin phoenix connector] |
| Outputs | 8 x Balanced LINE [3-pin phoenix connector] or 4 x Stereo Audio [3-pin phoenix connector] |
| Controls | 1 x LAN [RJ45] 1 x RS-232 [3-pin phoenix connector] 8 x GIPO [10-pin phoenix connector] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 17" x 9.8" x 1.8" [440mm (W) x 250mm (D) x 45mm (H)] |
| Weight | 7.3lbs [3.3kg] |
| Power Supply | AC 100 - 240V 50/60Hz |
| Power Consumption | 9W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
PACKAGE CONTENTS
- 1 x Digital Audio Processor
- 1 x AC 100~240V 50/60Hz Power Cord
- 1 x 3pin-3.81mm Phoenix Connectors (Male)
- 1 x 10pin-3.81mm Phoenix Connectors (Male)
- 4 x 12pin-3.81mm Phoenix Connectors (Male)
- 2 x Mounting Ears (Wall Mount)
- 8 x Machine Screws (KM3x4)
- 1 x User Manual

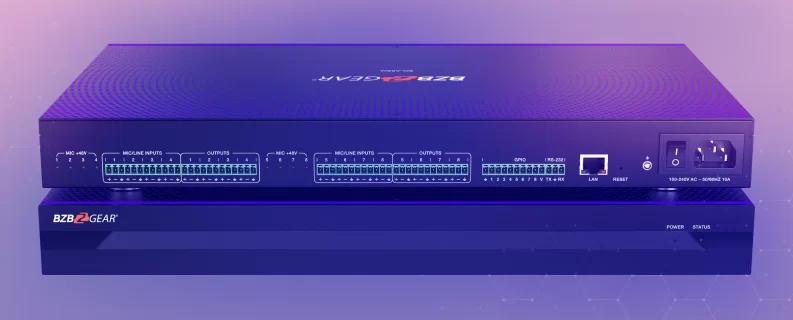

Interfaces
- POWER LED: When the device is powered on, the red LED will be illuminated.
- STATUS LED: When the device is running normally, the green STATUS LED will flash.
- MIC +48V: 8-ch phantom power supply indicators.
- MIC/LINE INPUTS: 8-ch balanced MIC/linear inputs, used for connecting audio source devices via phoenix connectors.
- OUTPUT: 8-ch balanced linear outputs, used for connecting to an amplifier or speaker via phoenix connectors.
- GPIO: 8-ch programmable GPIO interfaces.
- RS-232: Connect to a PC or control system to transmit RS-232 control commands.
- LAN: Standard RJ45 interface for network connection.
- RESET: Used for resetting the audio processor.
- GND: Connect outer housing to the ground.
- Power Switch & Power Port: Power switch and AC 100-240V power input port.
