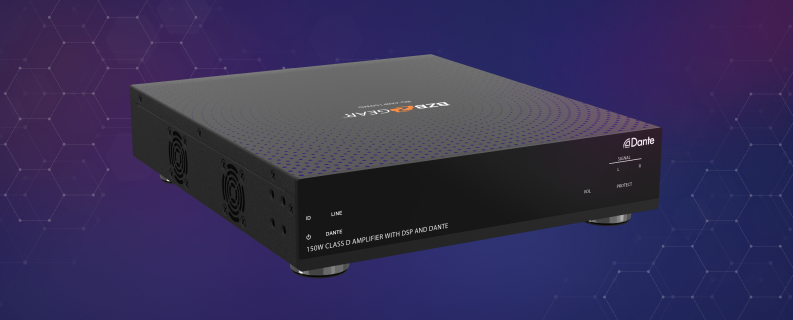

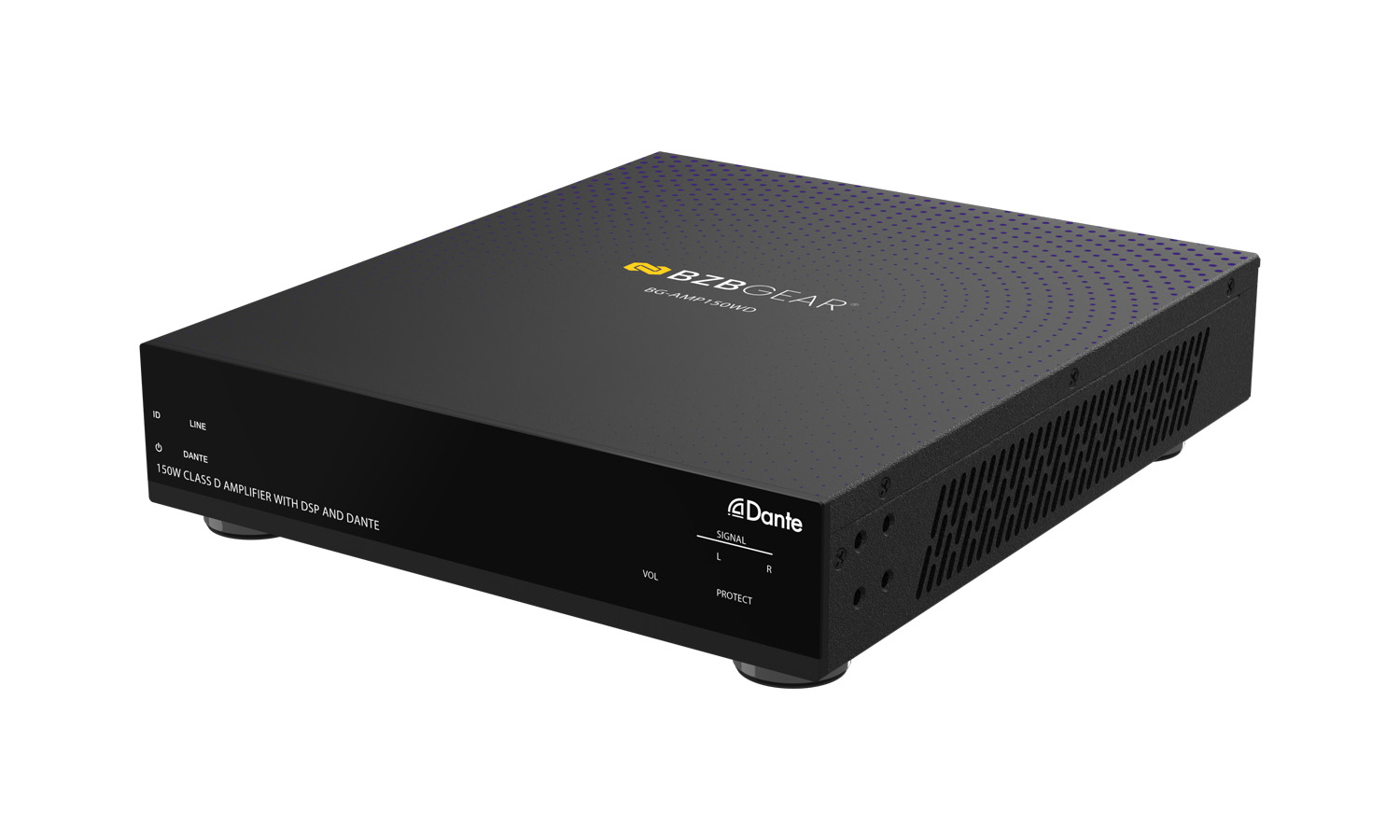

Overview
The BG-AMP150WD is a versatile two-channel amplifier that harnesses the power of class D amplifier technology, offering outstanding performance and efficiency. Perfectly designed for both low impedance (4Ω/8Ω) stereo systems and constant voltage (100V and 70V) configurations, this amplifier delivers robust and reliable audio solutions for a wide range of AV installations. With a maximum power output of 2 x 75 watts in stereo mode and up to 150 watts when bridged, the BG-AMP150WD is engineered to meet the demands of modern audio environments.
Features in Depth
The BG-AMP150WD utilizes advanced class D technology, delivering up to 2 x 75 watts in low impedance (4Ω/8Ω) stereo mode and 150 watts in bridged high impedance (70V/100V) mode. It features Dante 2-channel digital audio inputs and outputs, along with balanced and unbalanced line-level analog inputs and outputs for versatile connectivity, including 1x Dante Network audio input, 1x LINE balanced stereo 0dBu/10kΩ input, 1x Dante Network audio output, and 1x Stereo or constant voltage 70V/100V speaker output.
With a built-in DSP processor, the amplifier offers precise audio control with independent input gain, output EQ, and volume adjustments, operating at a 48KHz sampling rate with 24-bit A/D and D/A converters for superior audio quality. The amplifier's input sensitivity is set at full power@0.775V (0dBu), and it supports a maximum voltage gain of 27 - 30dB SE/39 - 42dB BTL. It boasts a frequency response of 20Hz - 20kHz @ ±3dB, a signal-to-noise ratio of 87dB (20Hz - 10kHz), and a THD+N (1KHz@1W) of 0.04%.
Control options include RS-232, LAN, and a Web GUI, with a 5-12V trigger input for seamless system integration and an auto-standby function for energy efficiency. The amplifier supports various audio formats, including analog and digital audio, with inputs and outputs designed for maximum performance.
Features
-
![Dante-logo 1]()
Dante 2-Channel Digital AudioSupports digital audio input and output via Dante, ensuring high-quality sound transmission and interoperability with other Dante-enabled devices. -
![BALANCED INPUTS and OUTPUTS]()
Flexible Analog Inputs/OutputsIncludes balanced or unbalanced line-level analog inputs and outputs, providing versatile connectivity options for various audio sources and setups. -
![Digital (DSP) Technology]()
Built-In DSP ProcessorFeatures a built-in Digital Signal Processor (DSP) for advanced audio processing capabilities, allowing fine-tuning of sound quality to match specific installation needs. -
![Multiple Control Options (PTZ models have app compatibility)]()
Independent Control OptionsOffers independent input gain, output EQ, and volume control, enabling precise audio adjustments for optimal performance. -
![Audio Support]()
High-Quality ConversionEquipped with 48KHz sampling rate and 24-bit independent A/D and D/A converters, ensuring pristine audio quality. -
![Control Options]()
Control OptionsProvides flexible control via RS-232, LAN, and a Web GUI, allowing for easy integration and remote management in complex AV systems.
- Includes a 5-12V trigger input for seamless integration with other AV equipment and systems.
- The half-rack/one-rack design ensures easy installation and integration into standard AV racks and enclosures.
- Adaptive Output Modes: Easily switch between Lo-Z (low impedance) and Hi-Z (high impedance) output modes to accommodate different types of speaker installations. In Lo-Z mode, choose between single-channel 150W or two-channel 2 x 75W at 4Ω/8Ω. In Hi-Z mode, select a single-channel 150W output at 70V/100V.
- Auto Standby Function incorporates an auto-standby feature to conserve energy when the amplifier is not in use.
Tech Specifications
| Technical | |||||||||||||||||||||
| Input | 1x Dante Network audio input 1x LINE balanced stereo 0dBu/10kΩ input |
||||||||||||||||||||
| Output | 1x Dante Network audio output 1x Stereo or constant voltage 70V/100V speaker output 1x LINE balanced stereo output |
||||||||||||||||||||
| Input Sensitivity | Full power@0.775V (0dBu) | ||||||||||||||||||||
| Output Power | DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω; 1x 150W@70V/100V | ||||||||||||||||||||
| Maximum Voltage Gain |
27 - 30dB SE/39 - 42dB BTL |
||||||||||||||||||||
| Amplifier Type | Class D | ||||||||||||||||||||
| Frequency Response | 20Hz - 20kHz @ ±3dB | ||||||||||||||||||||
| Signal to Noise Ratio | 87dB, 20Hz - 10kHz | ||||||||||||||||||||
| THD+N | THD+N (1kHz@1W) 0.04% | ||||||||||||||||||||
| Control | RS-232, Web GUI | ||||||||||||||||||||
| Audio Format | LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS] LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS] DANTE [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit] AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS] 70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS] |
||||||||||||||||||||
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) | ||||||||||||||||||||
| Connection | |||||||||||||||||||||
| Input: | 1x LINE IN [5pin-3.81mm Phoenix Connector] 1x DANTE [RJ45 connector] |
||||||||||||||||||||
| Output: | 1x LINE OUT [5pin-3.81mm Phoenix Connector] 1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] 1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] |
||||||||||||||||||||
| Control: | 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier] 1x LAN [RJ45 connector] |
||||||||||||||||||||
| Mechanical | |||||||||||||||||||||
| Housing | Front panel: Aluminum; Rear case: Metal Enclosure | ||||||||||||||||||||
| Color | Black | ||||||||||||||||||||
| Dimensions (WxDxH) | 9.4in x 8.3in x 1.7in [240mm x 210mm x 44mm] | ||||||||||||||||||||
| Weight | 4.1 lbs [1.88Kg] | ||||||||||||||||||||
| Power Supply | DC Input: AC100 - 240V 50/60Hz | ||||||||||||||||||||
| Power Consumption | 75W | ||||||||||||||||||||
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C | ||||||||||||||||||||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | ||||||||||||||||||||
| Relative Humidity | 20%~90% RH (non-condensing) | ||||||||||||||||||||
Resources
PACKAGE CONTENTS
- 1 x 150W Class D Amplifier
- 3 x 5pin-3.81mm Phoenix Connector (male)
- 2 x 4pin-5.08mm Phoenix Connector (male)
- 6 x Mounting Ear
- 24 x Machine Screw
- 1 x AC (100-240V) Multinational Power Cord (1.5 meters)
- 1 x User Manual

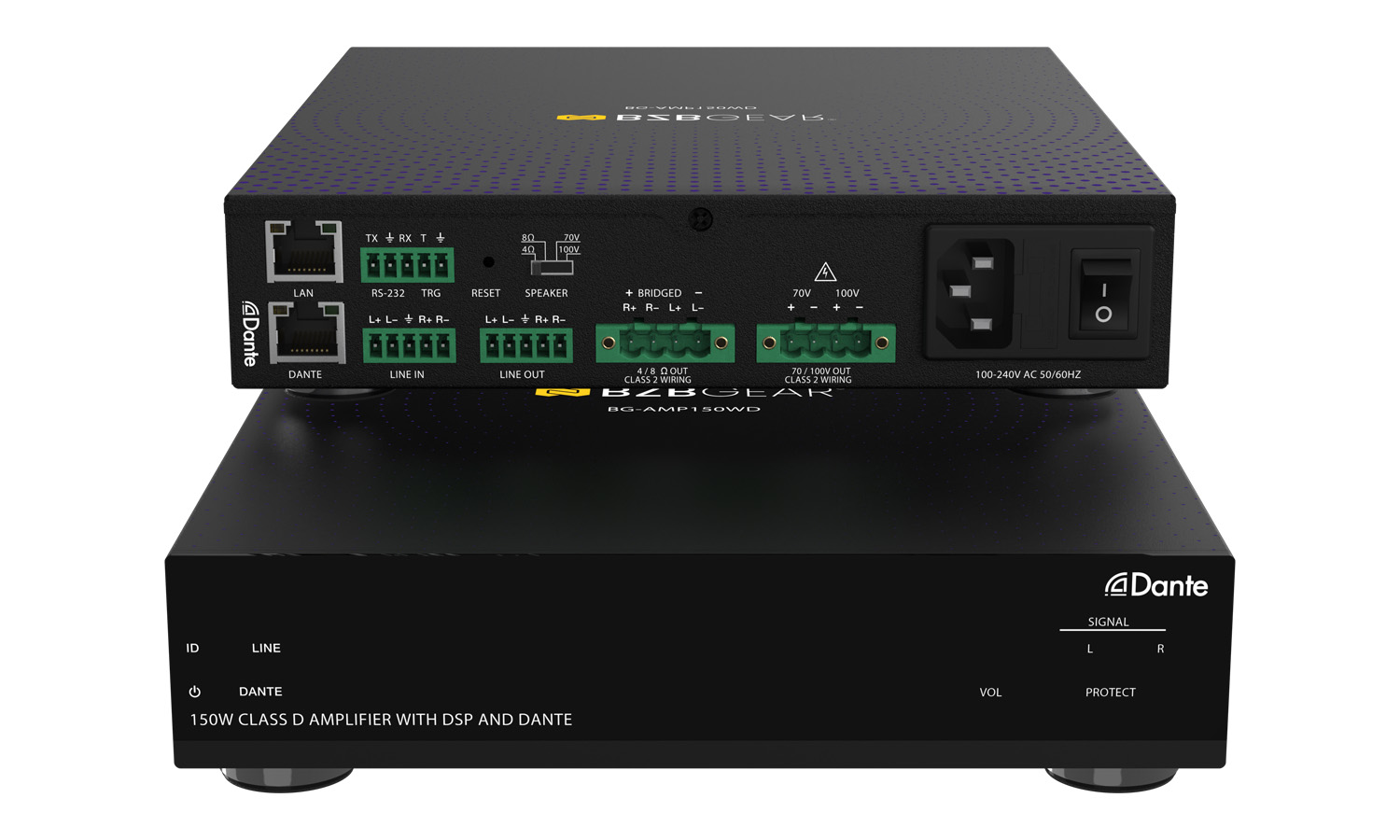

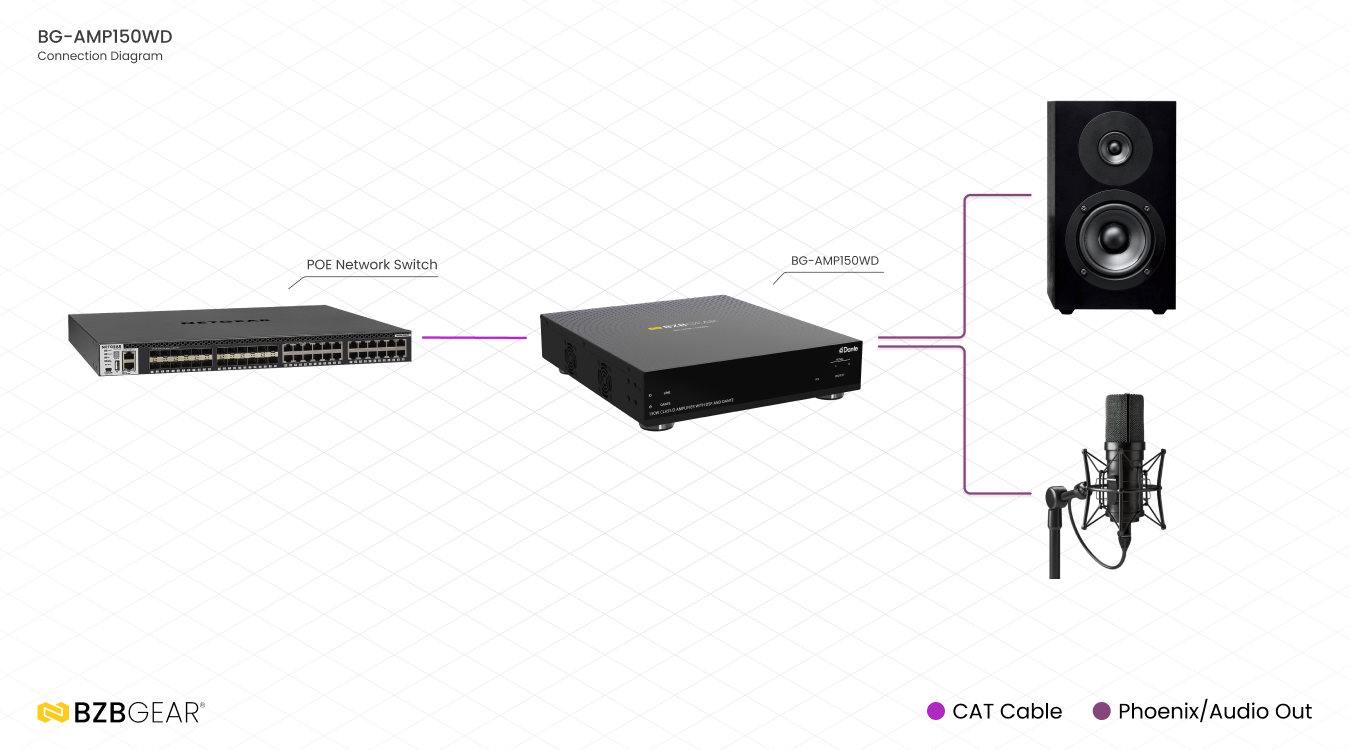

Interfaces

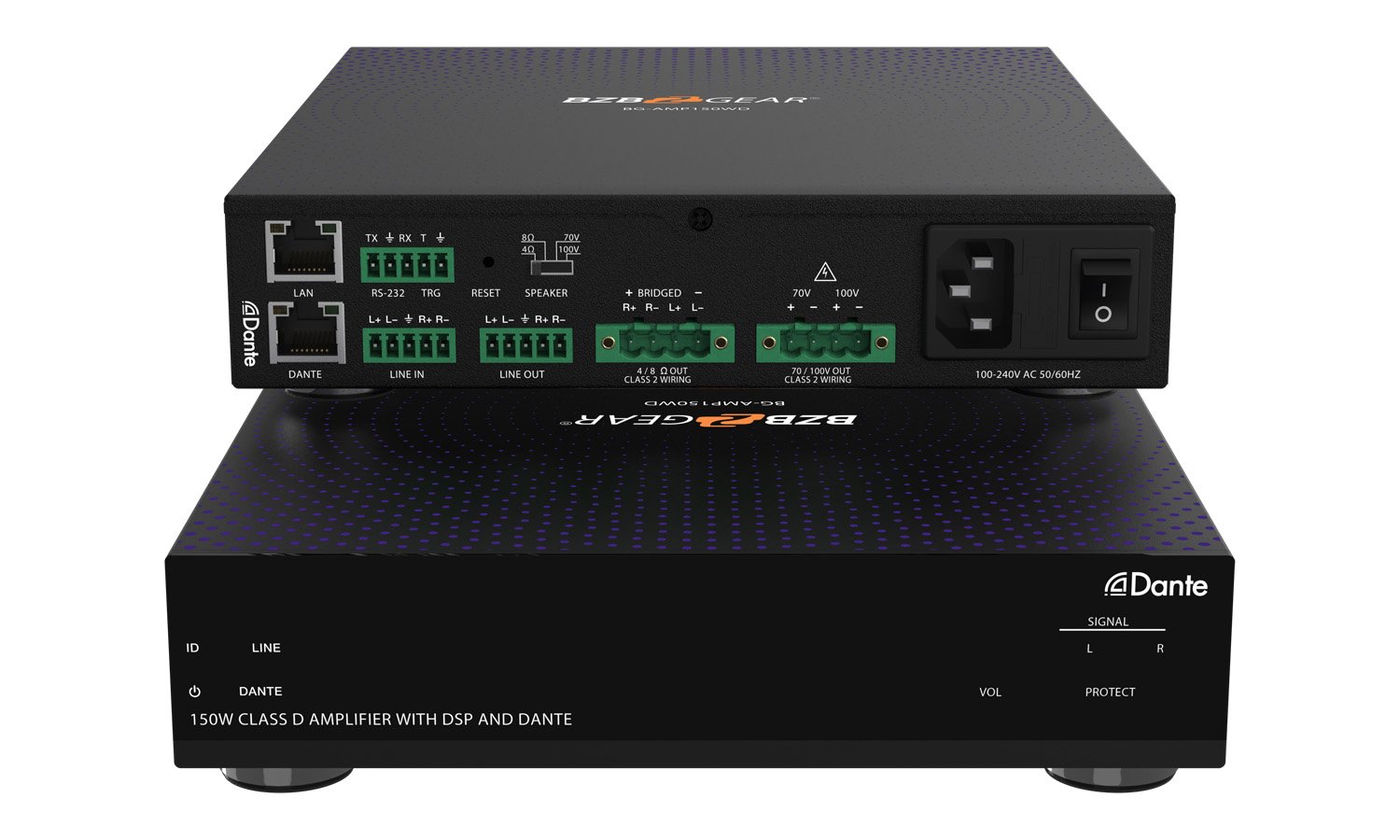

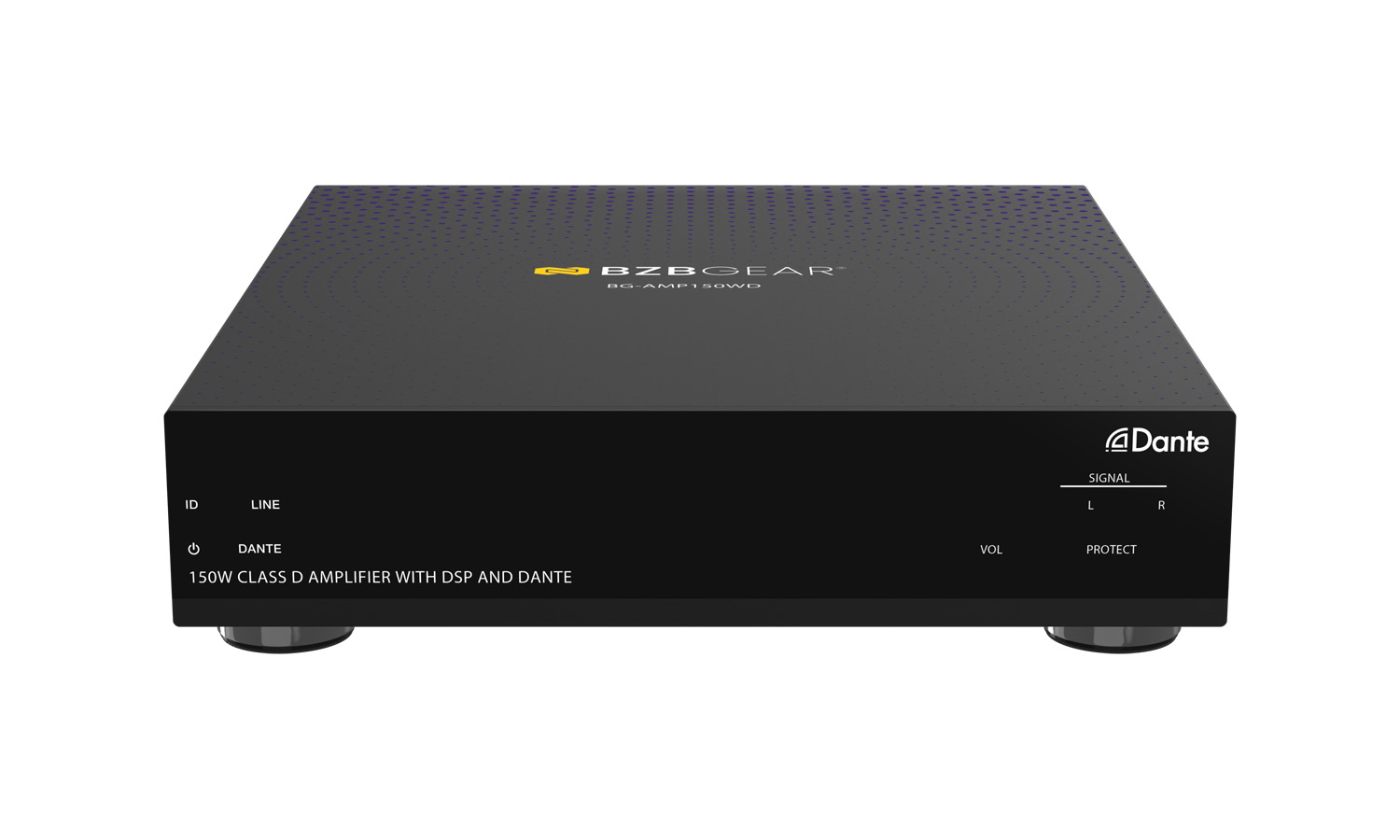

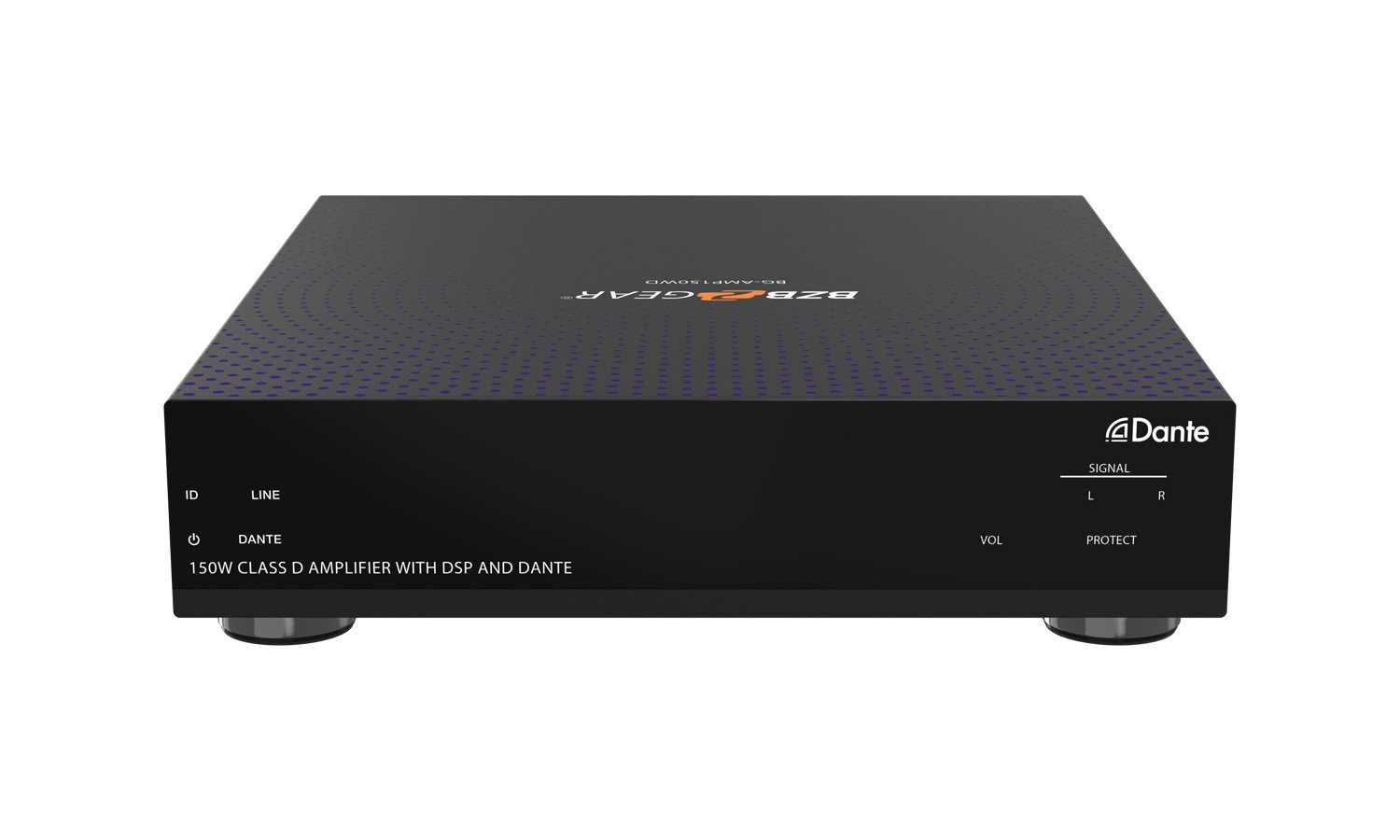

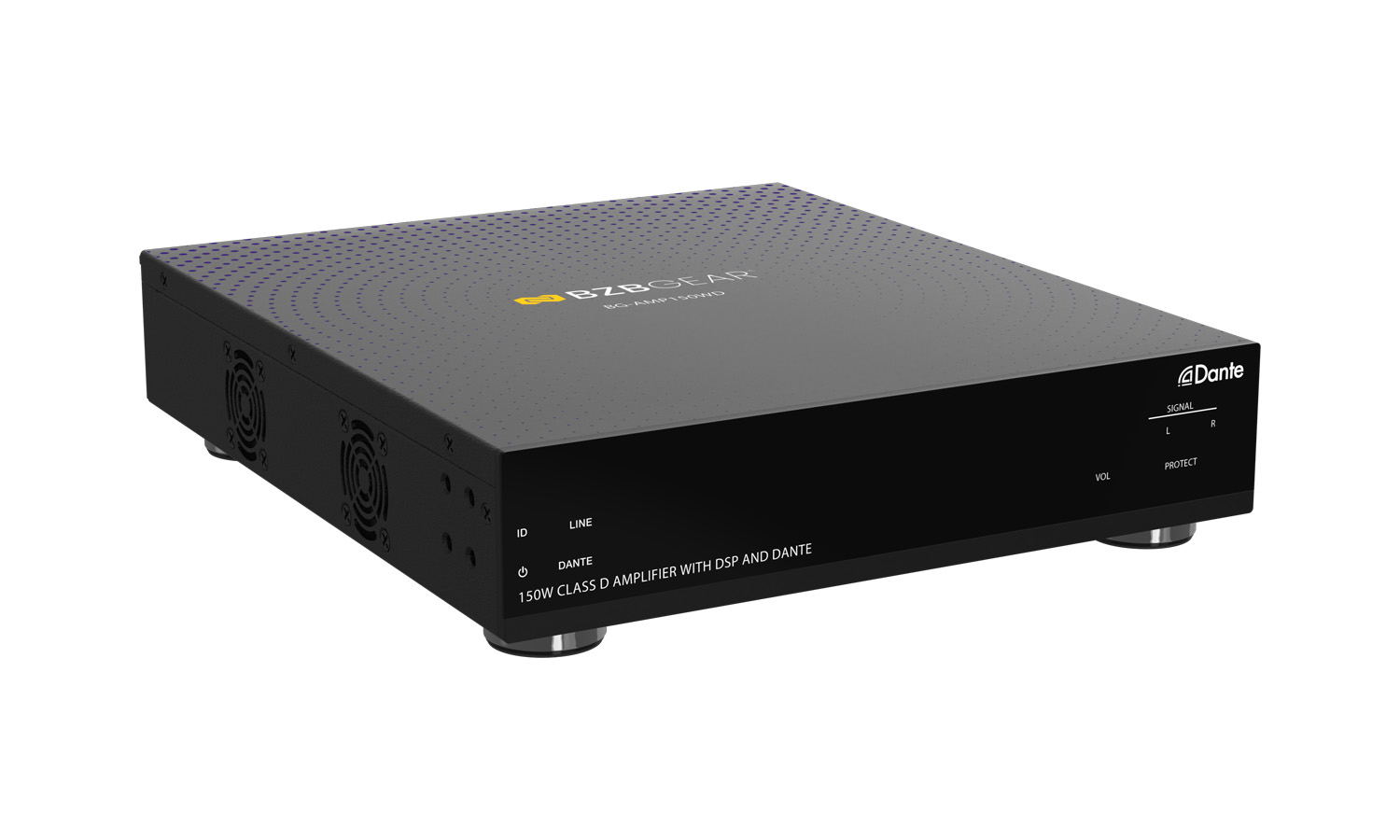

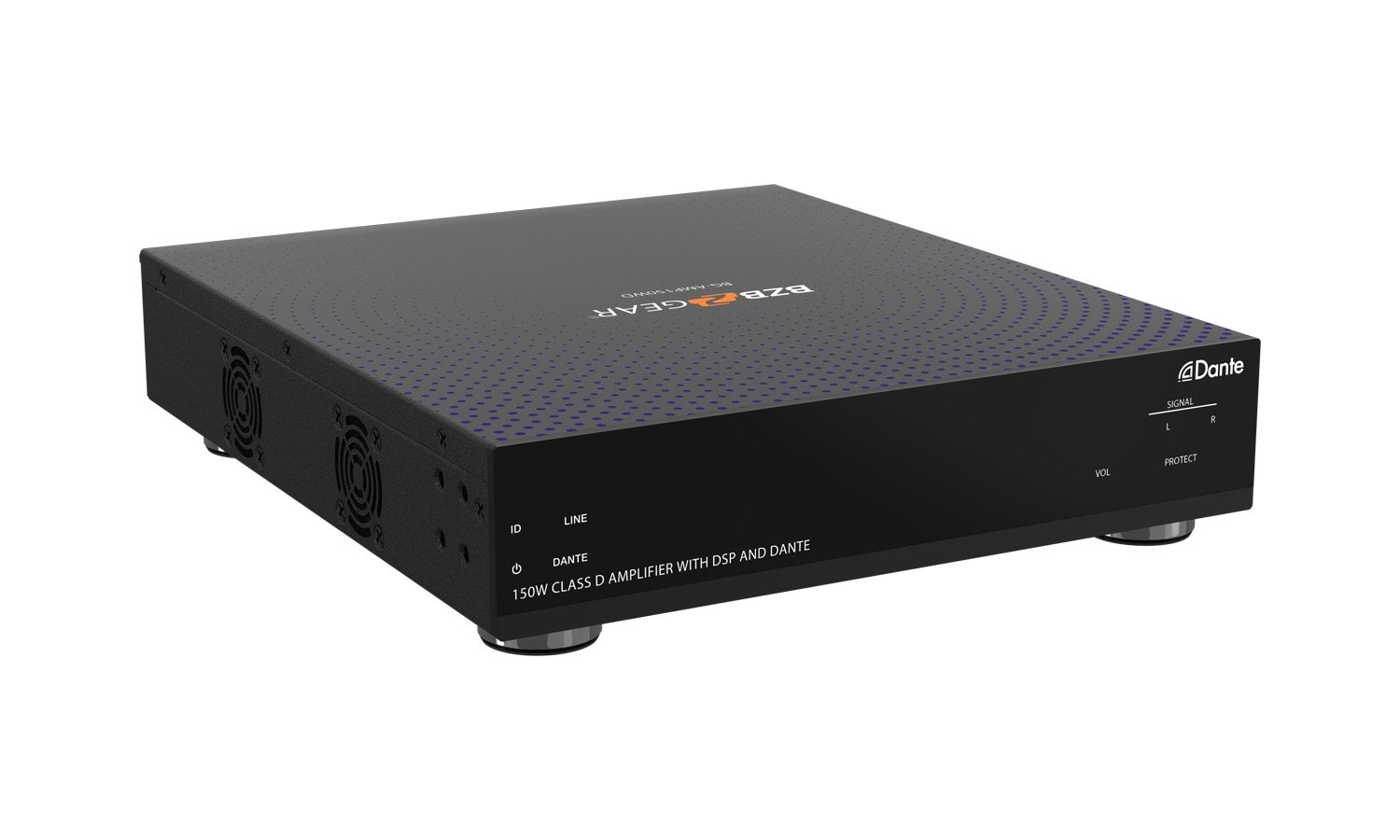

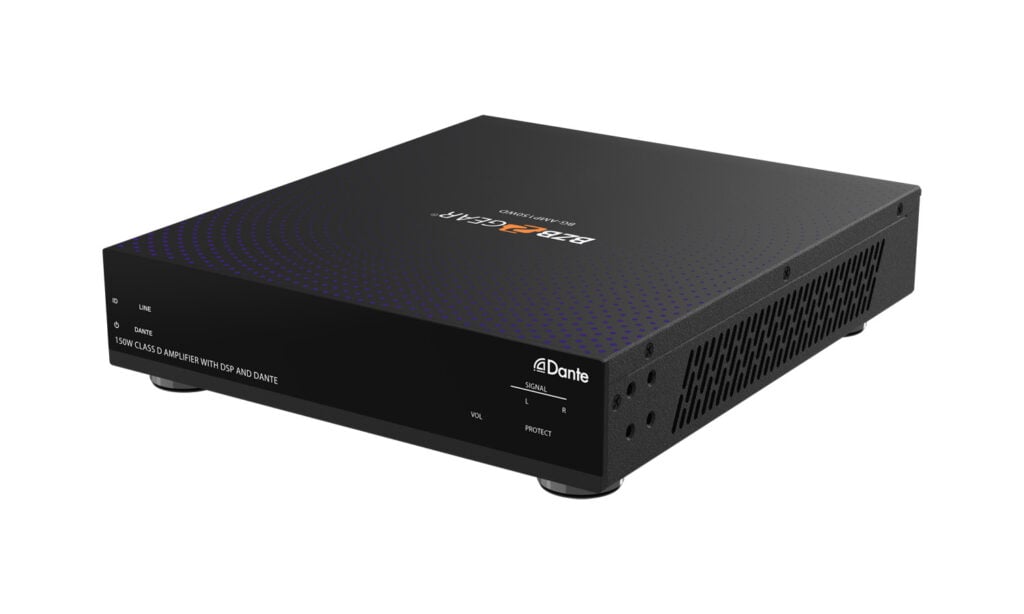

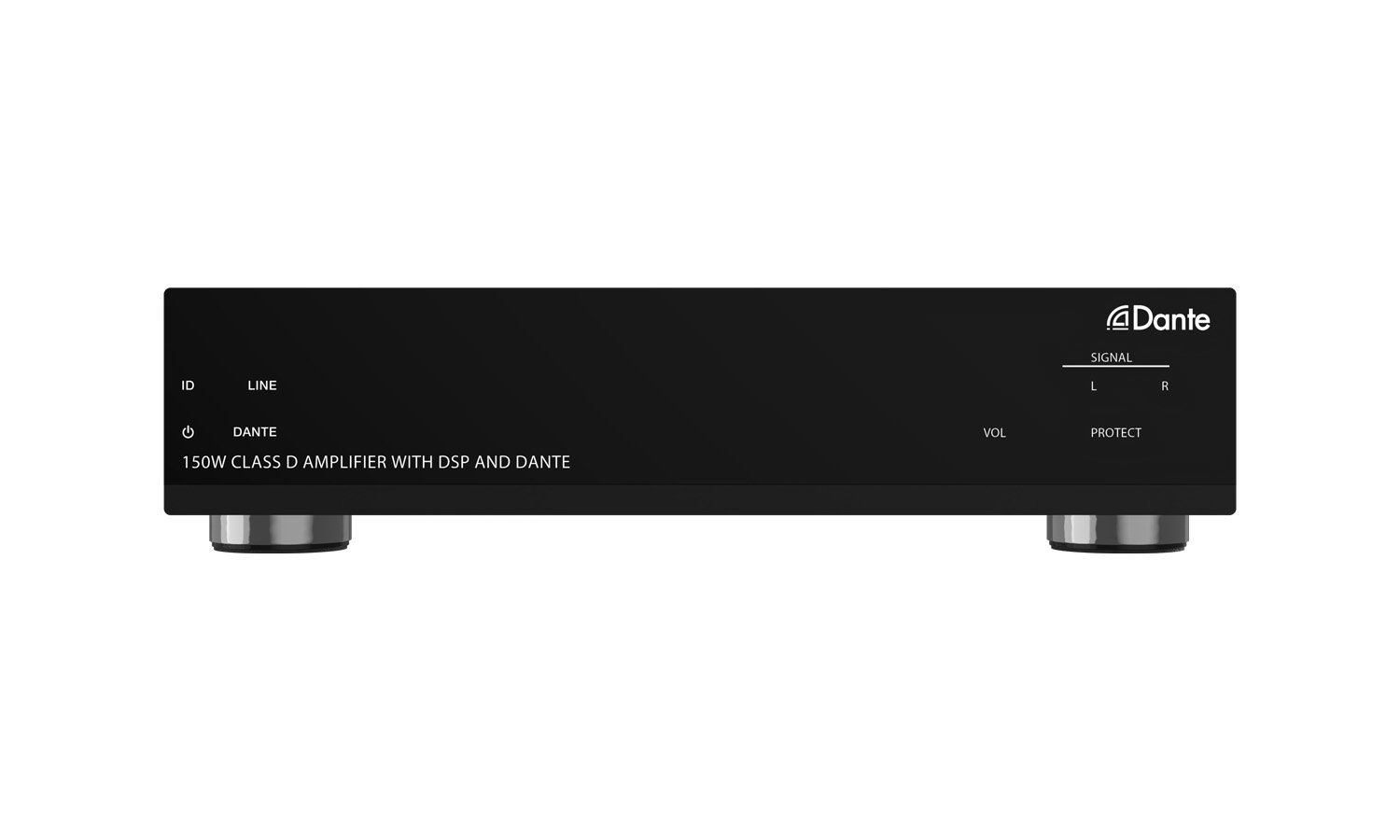

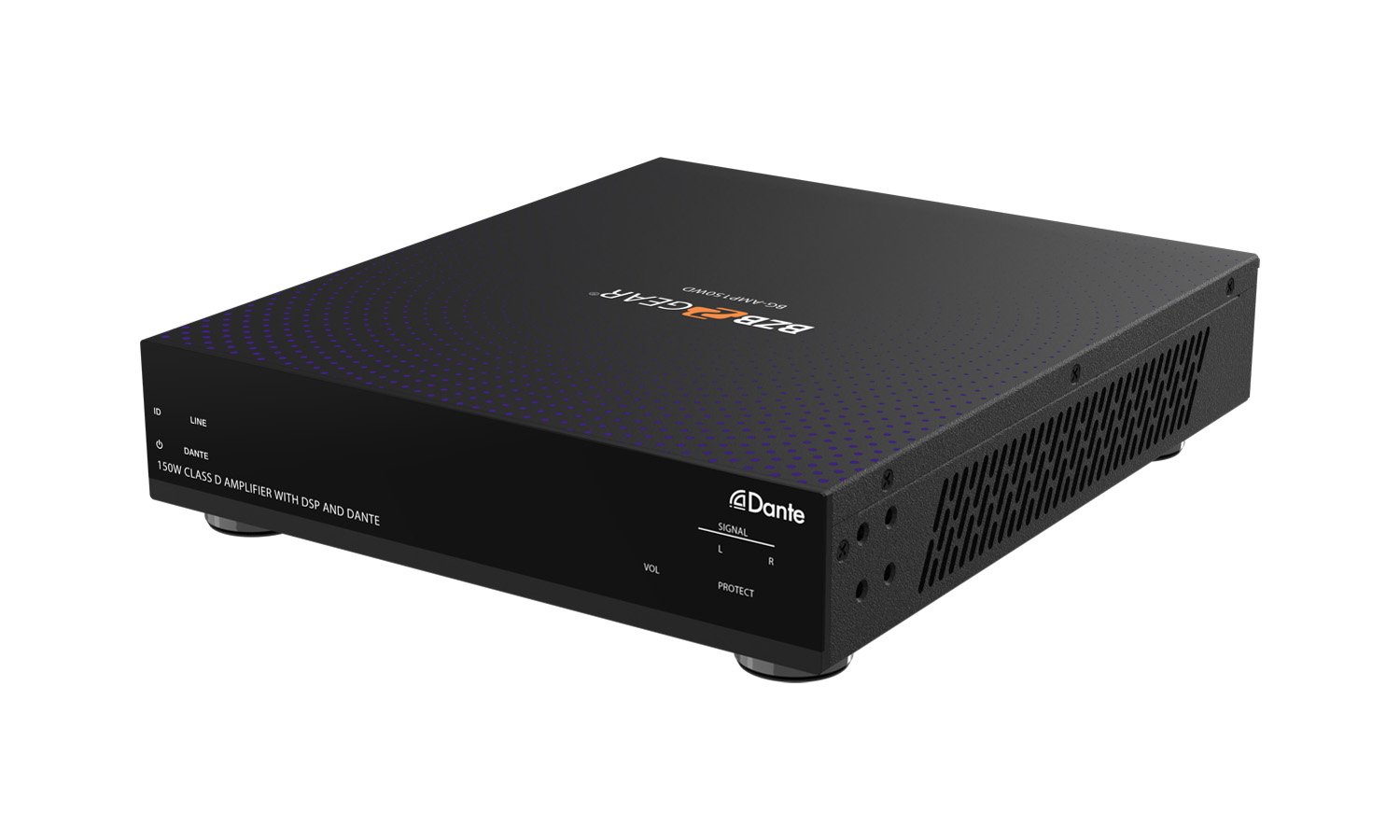

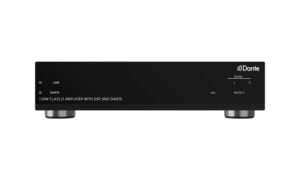

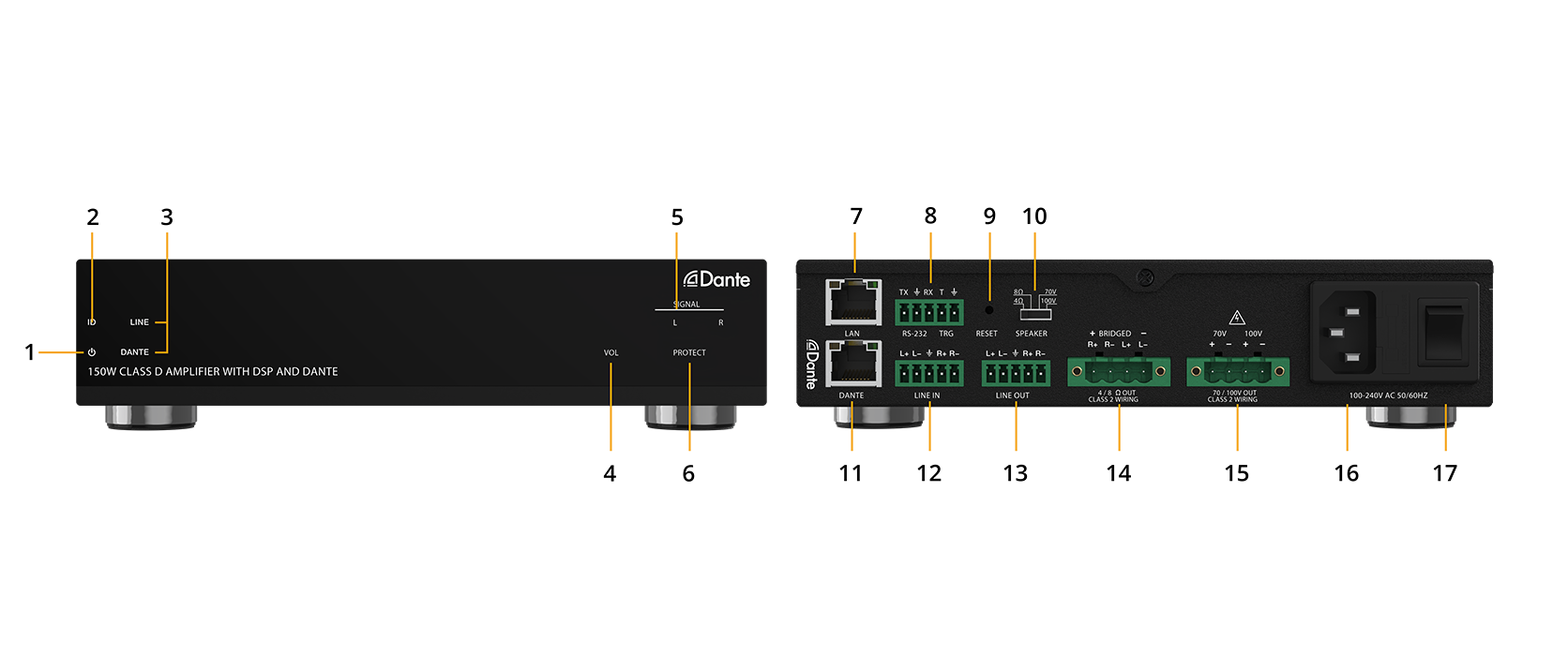

- Power LED: ▪ Steady on: The unit is working normally.
▪ Slow flash at 4Hz: The Web GUI operation is in standby mode.
▪ Fast flash at 1Hz: There is no signal input, and the unit will enter the standby mode within the set duration. - ID (show me) LED: This LED indicates the presence of the product. It can be controlled through Web GUI or API command. For example, when selecting the “On” option for “DANTE Identification” on the System page of the Web GUI, the ID (show me) LED on the front panel will flash, so that you can find the corresponding machine in the system.
- LINE/DANTE LED: Input signal source indicators. When the DANTE or LINE IN port is selected as the signal input channel, the corresponding green LINE/DANTE LED is on.
Note: The DANTE port is the signal input channel by default. - VOL LED: The main audio volume of the system is displayed in five green segments, with each segment corresponding to 20% of the volume. 50% of the main audio volume is displayed by default after system initialization.
Note: The audio volume can be controlled through Web GUI or API command. - SIGNAL L/R LEDs: Left and right channel signal indicators of the stereo audio. When there is stereo audio signal, the LEDs will be on.
- PROTECT LED: When the machine is protected by overtemperature, overcurrent or overvoltage, the PROTECT LED is on.

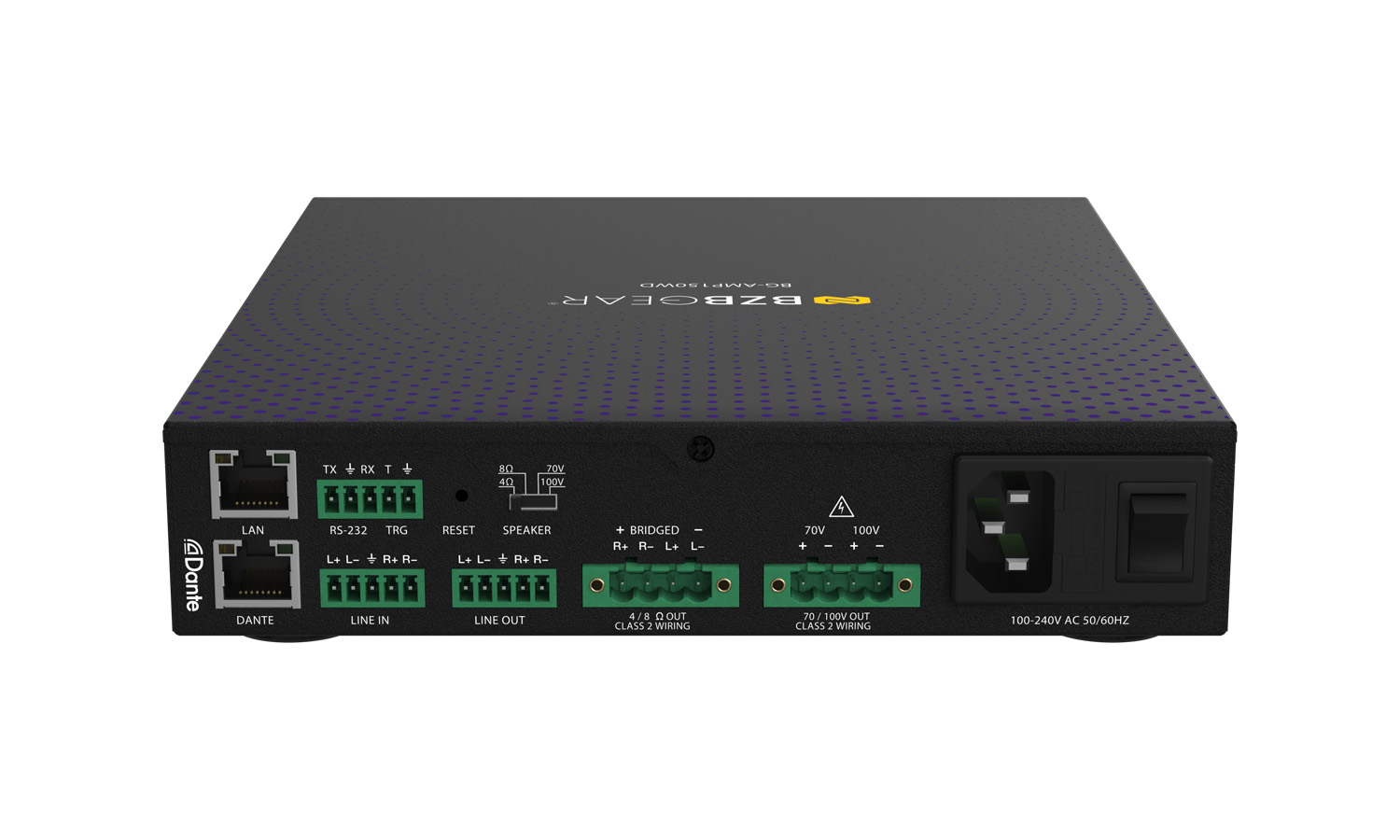

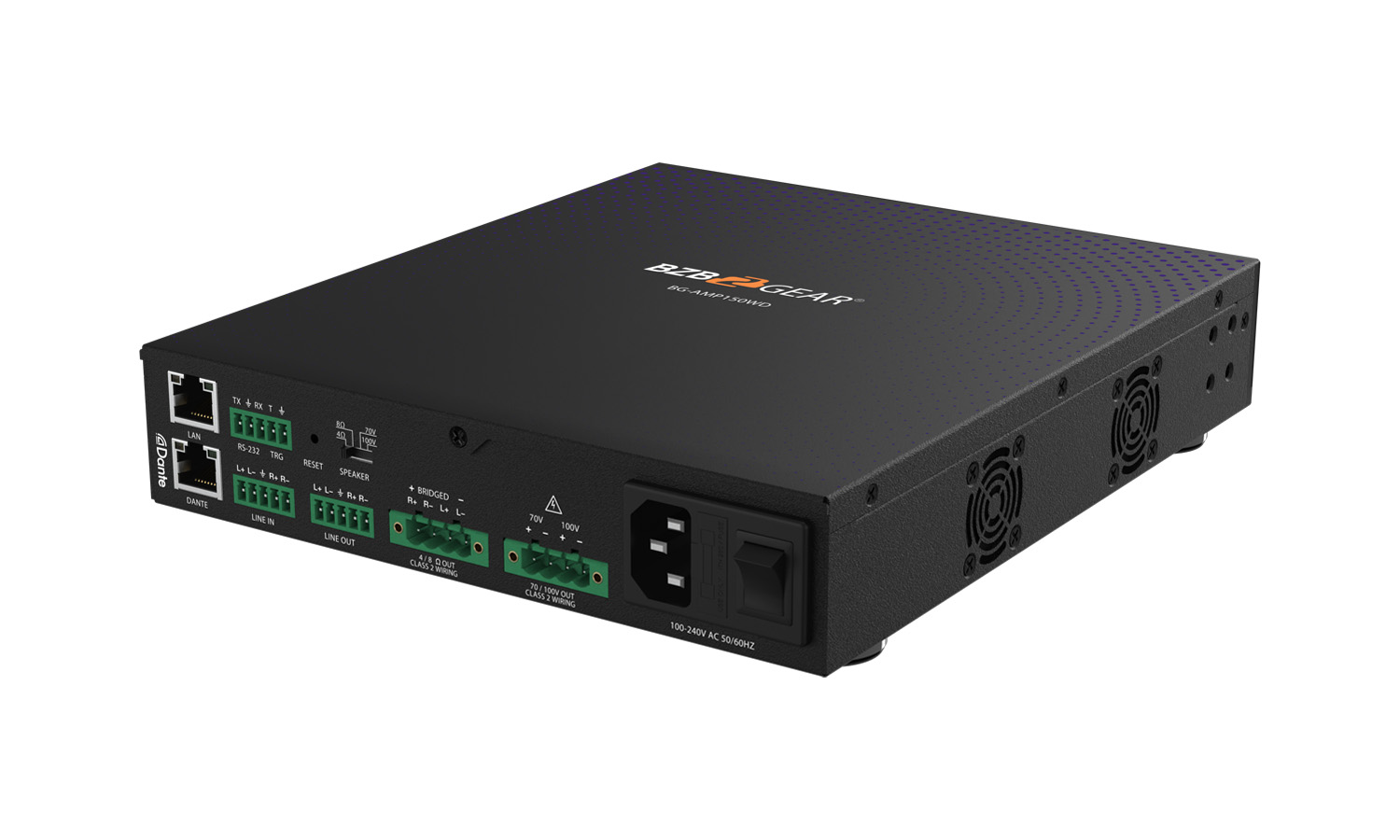

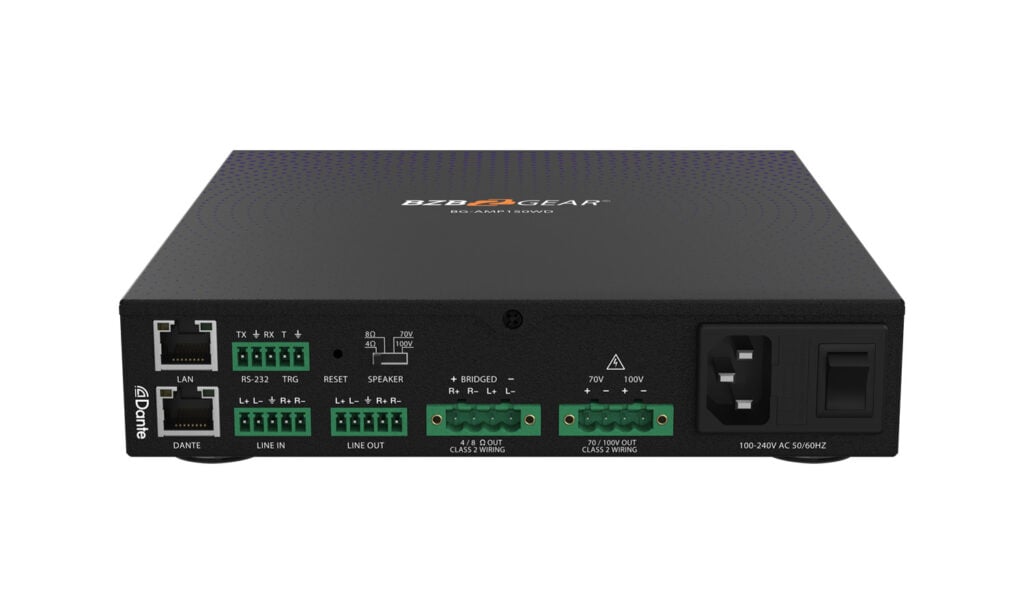

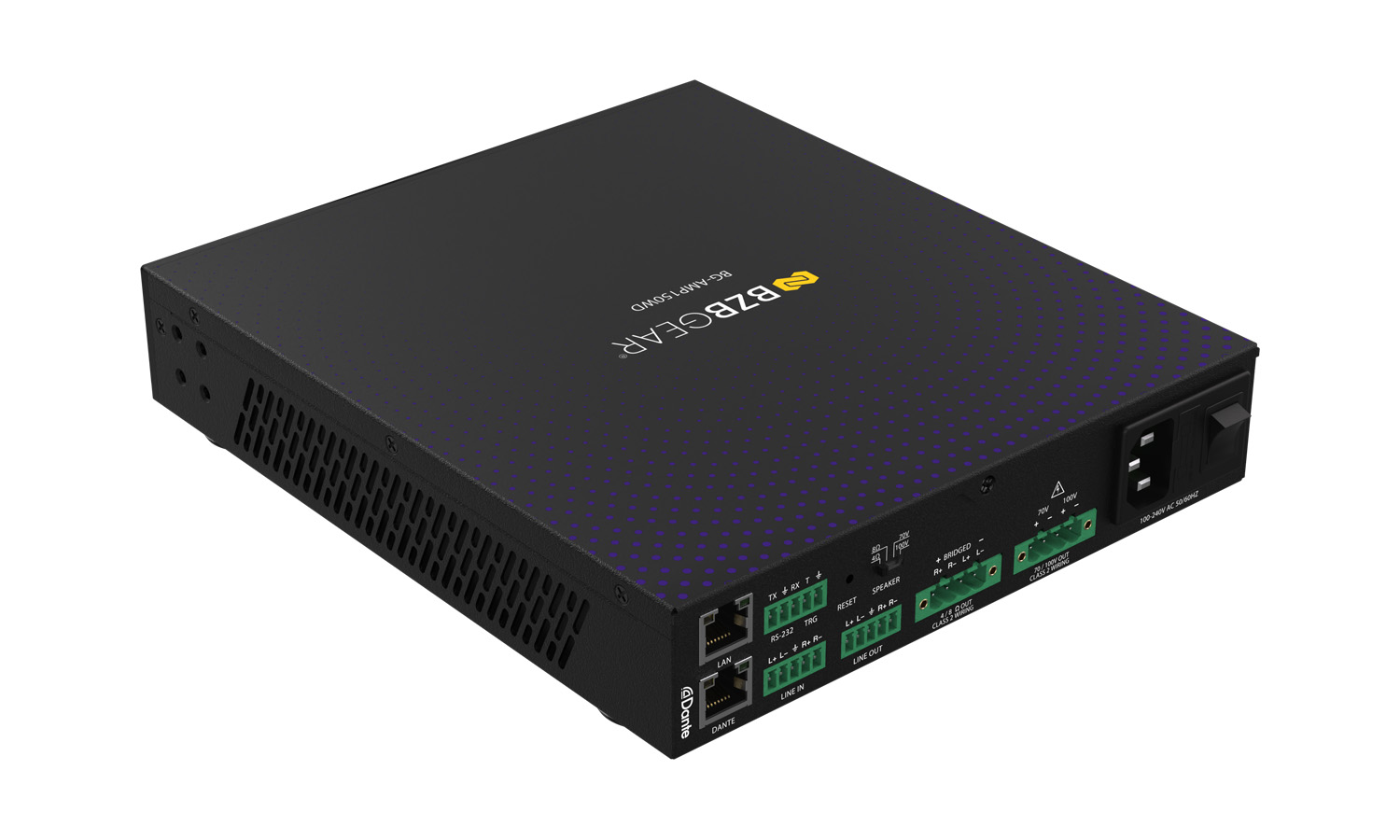

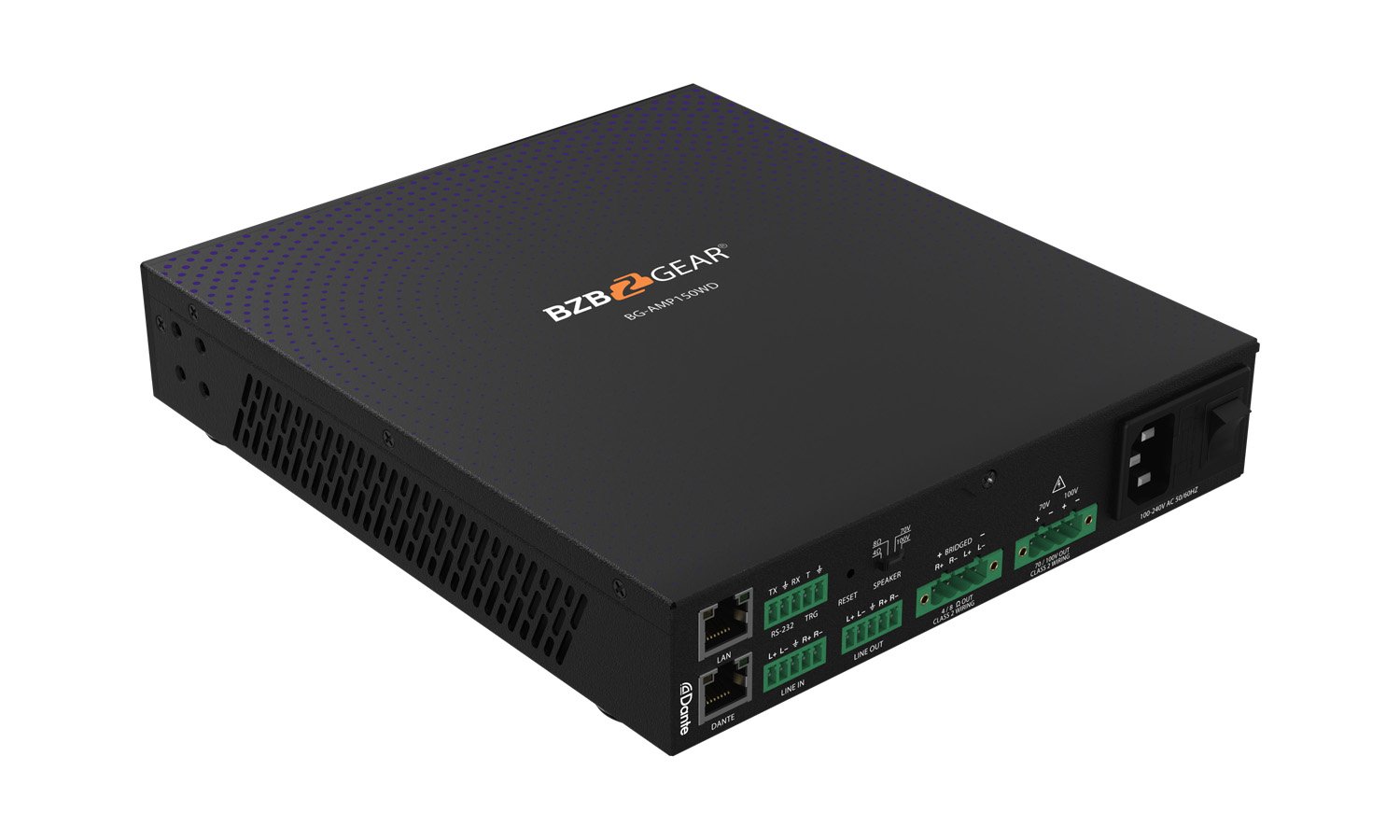

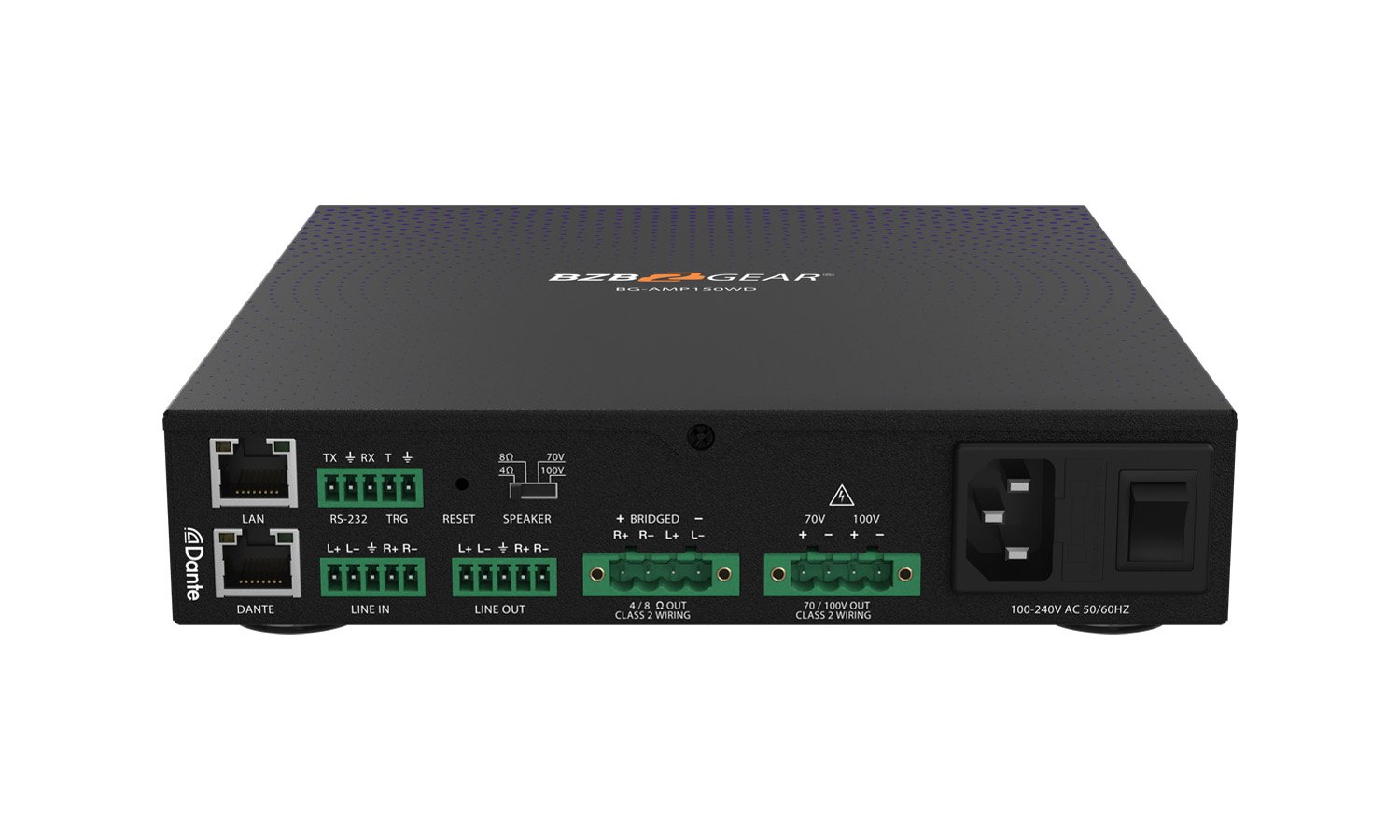

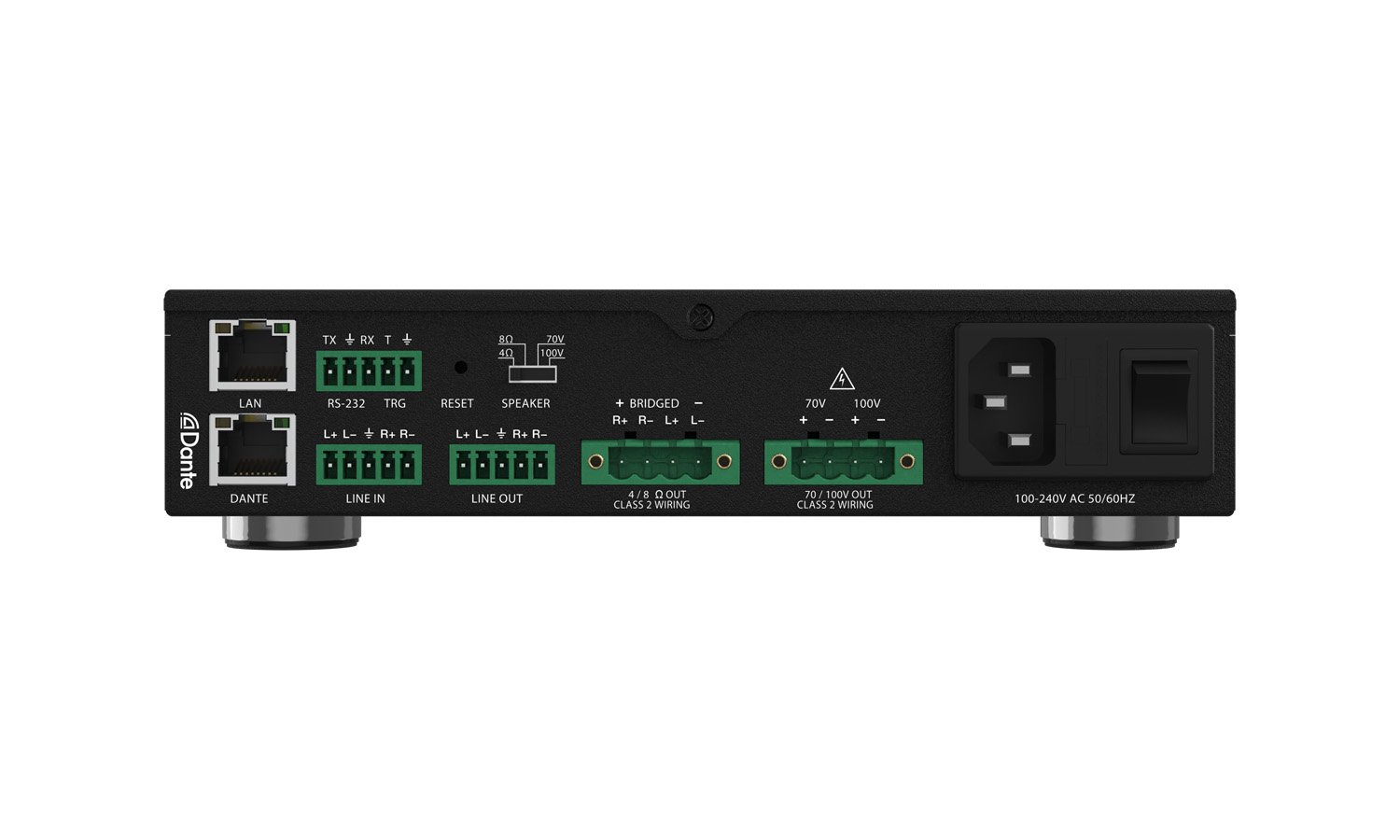

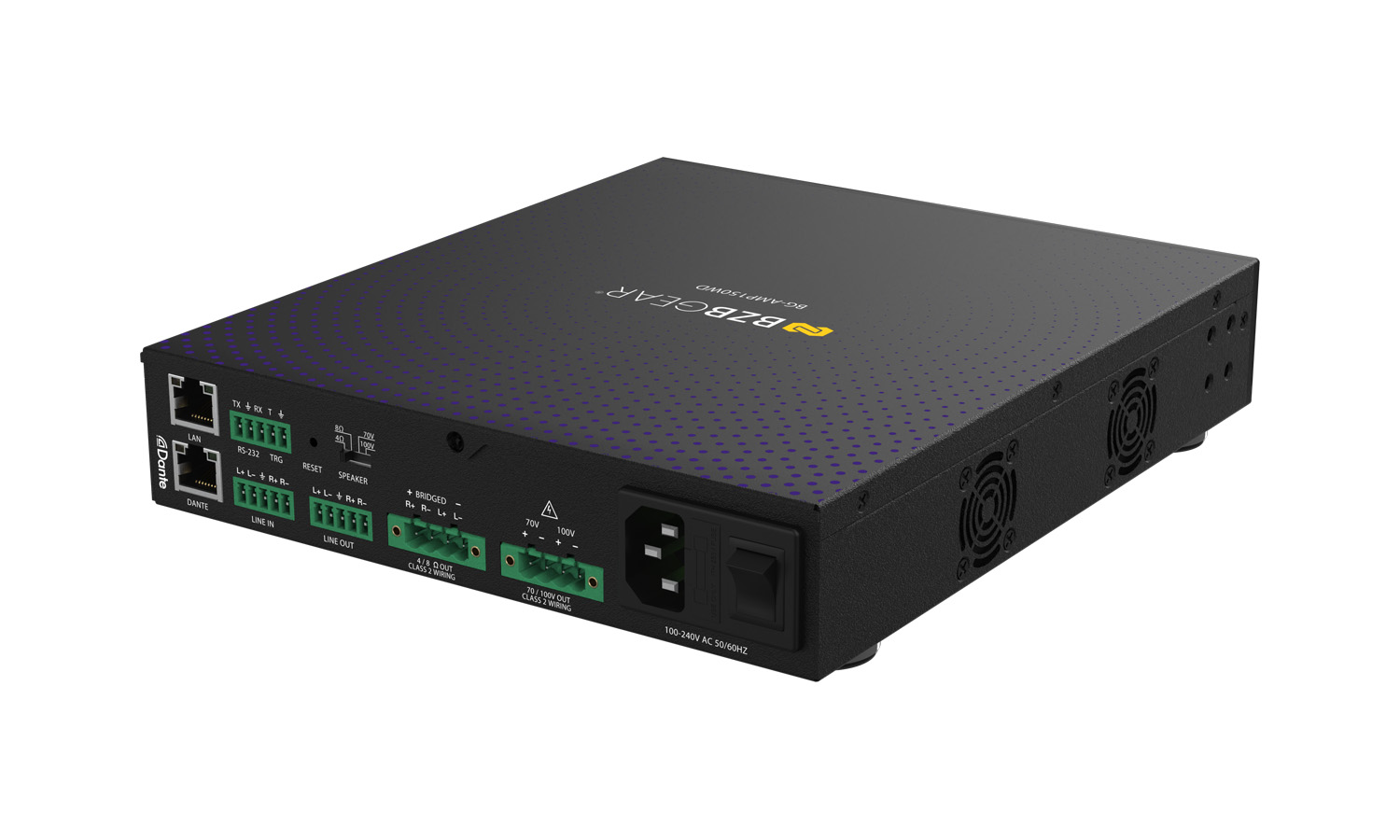

- LAN port: Connect to a PC for Web access. The default IP address is 192.168.0.200.
- RS-232/TRG port: RS-232: Serial control port, used for RS-232 signal pass-through or controlling this product via RS-232 commands.
TRG: T trigger signal input port, effective at high level. When this port is connected to a 5V/12V trigger voltage, the amplifier will be mute. After trigger is disconnected, the amplifier can output audio normally. - RESET button: Press and hold this button for 5 seconds to restore to factory default settings.
- SPEAKER switch: Speaker high-low resistance switch, used to switch among Lo-Z (4Ω/8Ω), Hi-70V and Hi-100V.
- DANTE port: Dante audio input and output port, using dynamic IP by default.
- LINE IN port: Balanced stereo audio input port, with a Max input level of 2Vrms.
- LINE OUT port: Balanced stereo audio output port, with a Max output level of 2Vrms.
- 4/8Ω OUT port: 4/8Ω speaker output port. When this port is connected to a 4/8Ω speaker and the SPEAKER switch is dialed to 4/8Ω, the audio will be output from this port normally.
- 70/100V OUT port: 70/100V speaker output port. When this port is connected to a 70/ 100V speaker and the SPEAKER switch is dialed to 70/100V, the audio will be output from this port normally.
- Power port: 100-240V AC 50/60Hz power input port.
- Power switch: Press the power switch to turn on/off the power supply.
