Overview

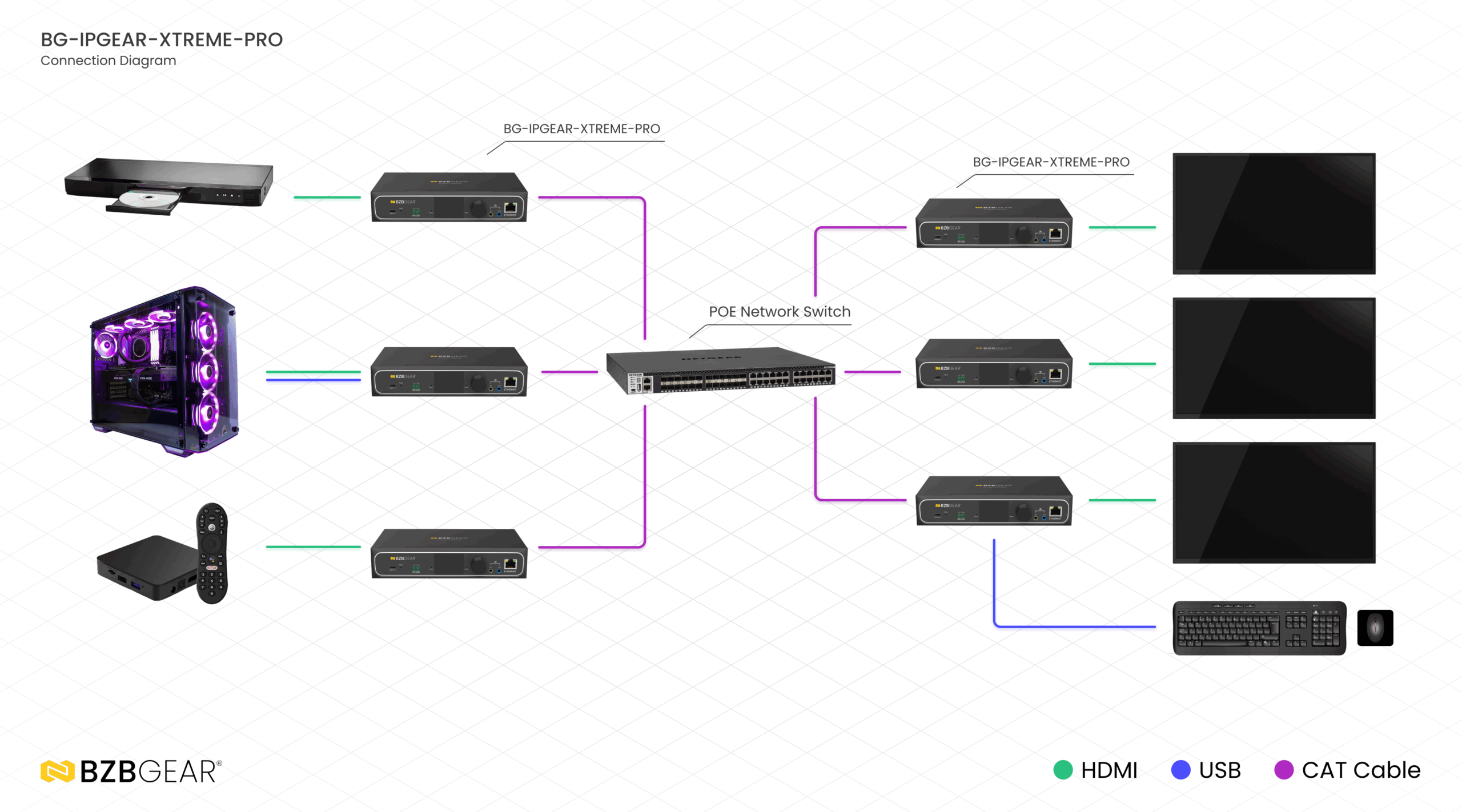

The BG-IPGEAR-ULTRA8K is a high-performance HDMI 2.1 over IP multicast transceiver system designed for seamless AV transmission over 1GbE networks. This system supports 8K@60Hz 4:2:2 DSC and 4K@144Hz 4:4:4, providing crystal-clear video and ultra-low latency, making it ideal for applications in gaming, broadcasting, healthcare, digital signage, and professional AV environments. With HDMI 2.1, USB-C (Alt Mode DP 1.4), and eARC/ARC compatibility, the BG-IPGEAR-ULTRA8K ensures broad device support and superior compatibility.
Additionally, its KVM functionality enhances control over multiple devices, while the system’s compact form factor, rugged metal enclosure, and efficient power management make installation easy and reliable in demanding environments.
Features in Depth

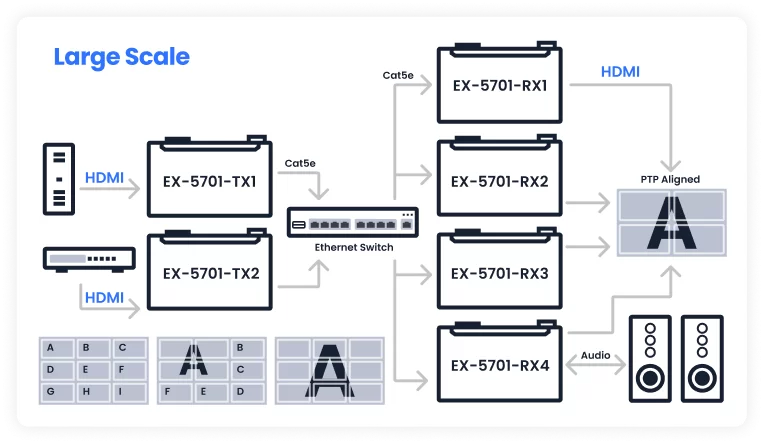

The BG-IPGEAR-ULTRA8K transceiver system delivers cutting-edge video performance with support for 8K@60Hz 4:2:2 DSC and 4K@144Hz 4:4:4, making it ideal for high-resolution, high-refresh-rate applications. The system includes Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM), providing smoother gameplay and reducing input lag, which is crucial for gaming and real-time applications. For display setups that require multiple screens, the BG-IPGEAR-ULTRA8K supports Multiview modes such as PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key), along with video wall functionality, including image rotation and flip, for creative and flexible display arrangements. The system also ensures smooth, seamless video distribution through auto equalization and switching capabilities, guaranteeing minimal interruptions.

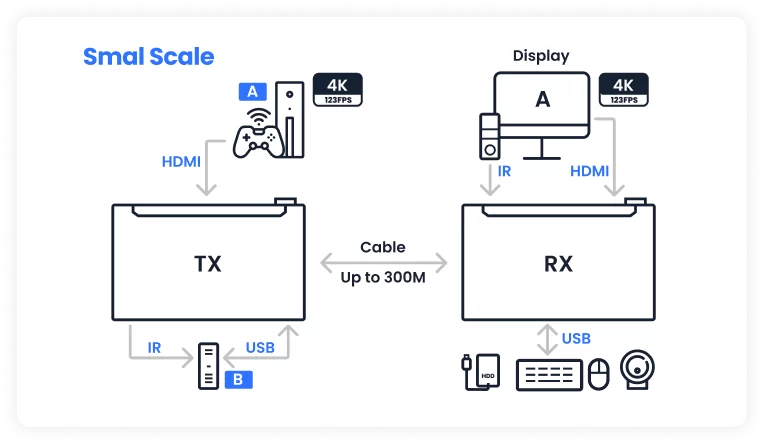

When it comes to audio, the BG-IPGEAR-ULTRA8K offers comprehensive support, including eARC/ARC for high-quality audio pass-through, making it compatible with modern sound systems. It supports DTS-HD Master Audio, Dolby TrueHD, and 7.1-channel digital surround sound, ensuring premium audio output for both home and professional audio setups. The system also excels in connectivity and control, offering bi-directional IR and RS-232 pass-through for remote control integration. With full-duplex RS-232 control supporting up to 115,200 bps, the BG-IPGEAR-ULTRA8K is designed for sophisticated system management. It also includes USB 3.1 Host Mode (Gen 1) for UVC webcam functionality and USB 3.1 Device Mode (Gen 2) for additional USB peripheral connectivity, making it versatile for various applications. The KVM mouse roaming functionality allows users to seamlessly control multiple devices from a single interface, simplifying management in complex systems. Additionally, the system features an integrated 1G LAN port, expanding network connectivity options for more flexible setups.
Designed for durability, the BG-IPGEAR-ULTRA8K is housed in a rugged metal enclosure, ensuring long-lasting performance in demanding environments. It supports transmission distances of up to 100 meters (330 feet) using Cat.6A cables, providing reliable AV distribution across large areas. The system is built to handle modern content protection with HDMI 2.1 and HDCP 2.3 compliance, ensuring compatibility with the latest AV equipment, including gaming consoles and professional video systems. For ease of use, the LCD status monitor and intuitive control knob allow for quick system monitoring and operation, while ESD protection ensures stability and protection from electrical surges.
Features
-
Ultra-HD ResolutionUp to 8K@60Hz (4:2:2 DSC) & 4K@144Hz (4:4:4) -
Video Wall SupportAdvanced functionality with image rotation & flipping -
Multi-View ModesPiP, PbP, & PoP (Chroma Key) for enhanced display options -
Audio Format SupportDTS-HD Master Audio & Dolby TrueHD high bit-rate audio -
Multi-Input SupportUSB-C (Alt Mode DP 1.4) with simultaneous HDMI & DisplayPort input -
Software ManagementSupports configuration, firmware updates, and signal management
- Video Standard Compliancy: Supports HDMI 2.1 & HDCP 2.3 for high-quality streaming

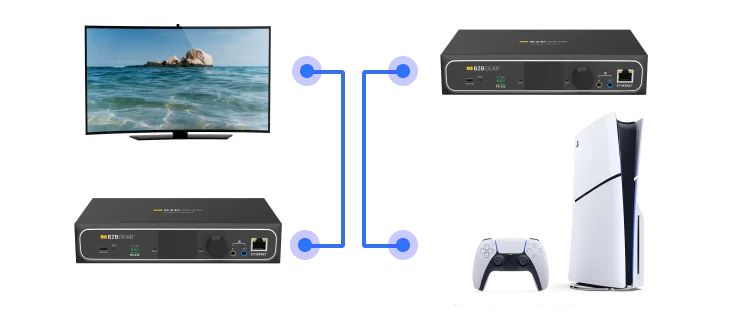

- Gaming Optimization: VRR & ALLM for smooth, low-latency performance
- Extended Transmission: Up to 100m (330ft) over Cat.6A cable
- Encoding & Decoding: Multi-Encode & Decode with proprietary codecs
- Ultra-Low Latency: Less than 1 frame for real-time applications
- High-Quality Audio: Uncompressed 7.1-channel digital HDMI over Cat.6A
- Audio Pass-Through: Bi-directional analog audio pass-through & eARC/ARC support
- Seamless Switching: Zero interruptions during signal transitions
- Custom Scaling: Adjustable scaling for optimized display output
- IR Control: Bi-directional full-frequency IR (20KHz - 60KHz) support
- RS-232 Control: Full duplex RS-232 with speeds up to 115,200 bps
- KVM Functionality: Mouse roaming support for seamless control
- Network Connectivity: Integrated 1G LAN port for efficient networking
- Reliable Networking: Cat.6A extension & IGMP Snooping for smooth data transmission
Effortlessly control and
manage your video system
with our user-friendly app!
Tech Specifications
| Technical | |
| Role of Usage | Transceiver |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | up to FRL 6 (48G) |
| Video Support | up to 4K@144 4:4:4/ 8K@60 4:2:2 DSC |
| HDMI over UTP | 4K@144 4:4:4/ 8K@60 4:2:2 DSC 100m (330ft) [CAT.6A] |
| Audio Support | Surround sound (up to 7.1ch) or stereo digital audio |
| Equalization | Auto |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| ESD Protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] |
| PCB Stack-up | 4-layer board [impedance control — differential 100Ω; single 50Ω] |
| IR Pass-thru | Bi-directional |
| RS-232 Support | Yes |
| I/O Connector | 2x HDMI + 4x 3.5mm + 4x USB + 2x USB-C + 2x TOSLINK + 1x RJ-45 + 1x RS-232 |
| HDMI Source Control | Controllable via IR pass-through from RX to TX or TX to RX with IR extenders |
| HDMI Connector | Type A [19-pin female] |
| RJ-45 Connector | WE/SS 8P8C |
| USB Connector | Type A/ Type B/ USB-C |
| 3.5mm Connector | IR receiver / IR blaster / Stereo |
| Mechanical | |
| Housing | Metal enclosure |
| Fixedness | Wall-mounting case with screws |
| Dimensions (LxWxH) | 8.5 x 4.1 x 1.7in [215 x 104 x 44mm] |
| Weight | 1.3 lbs [0.6kg] |
| Power Supply | 12V DC, 1A |
| Power Consumption | 12 Watt [max] |
| Operation Temperature | 32~104°F / 0~40°C |
| Storage Temperature | -4~140°F / -20~60°C |
| Relative Humidity | 20~90% RH [no condensation] |
PACKAGE CONTENTS
- 1x BG-IPGEAR-ULTRA8K
- 1x IR Blaster
- 1x IR Receiver
- 1x DC 12V
- 1x User Manual

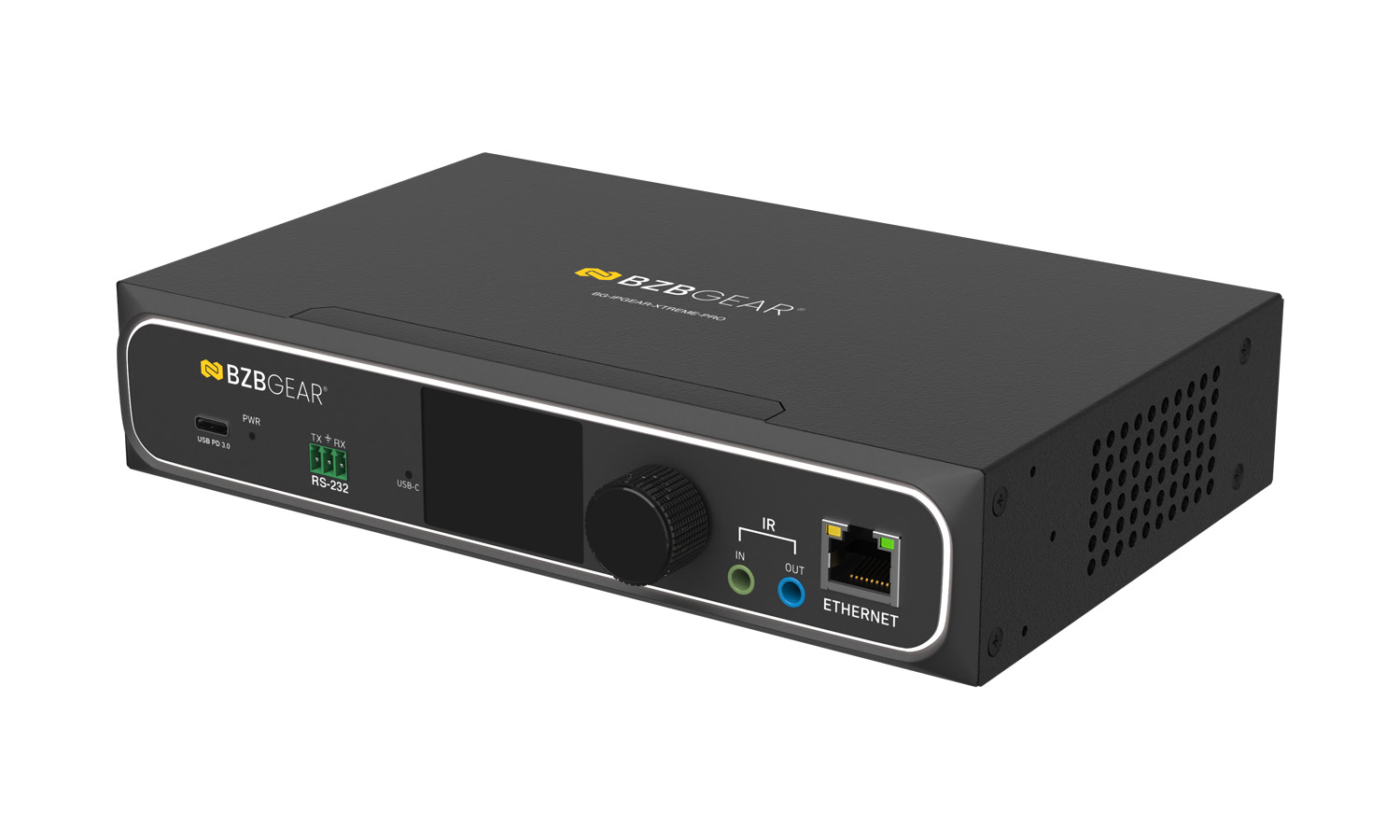

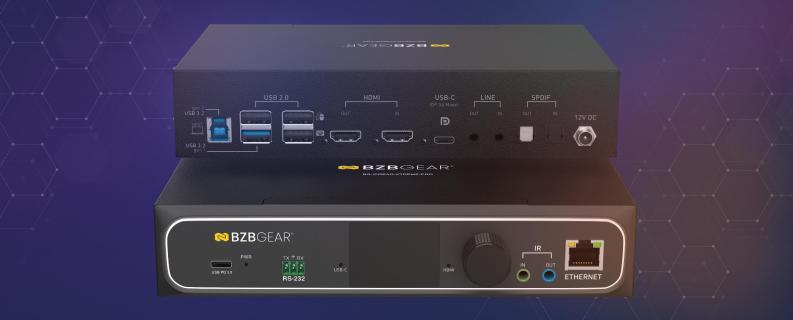

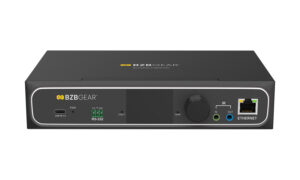

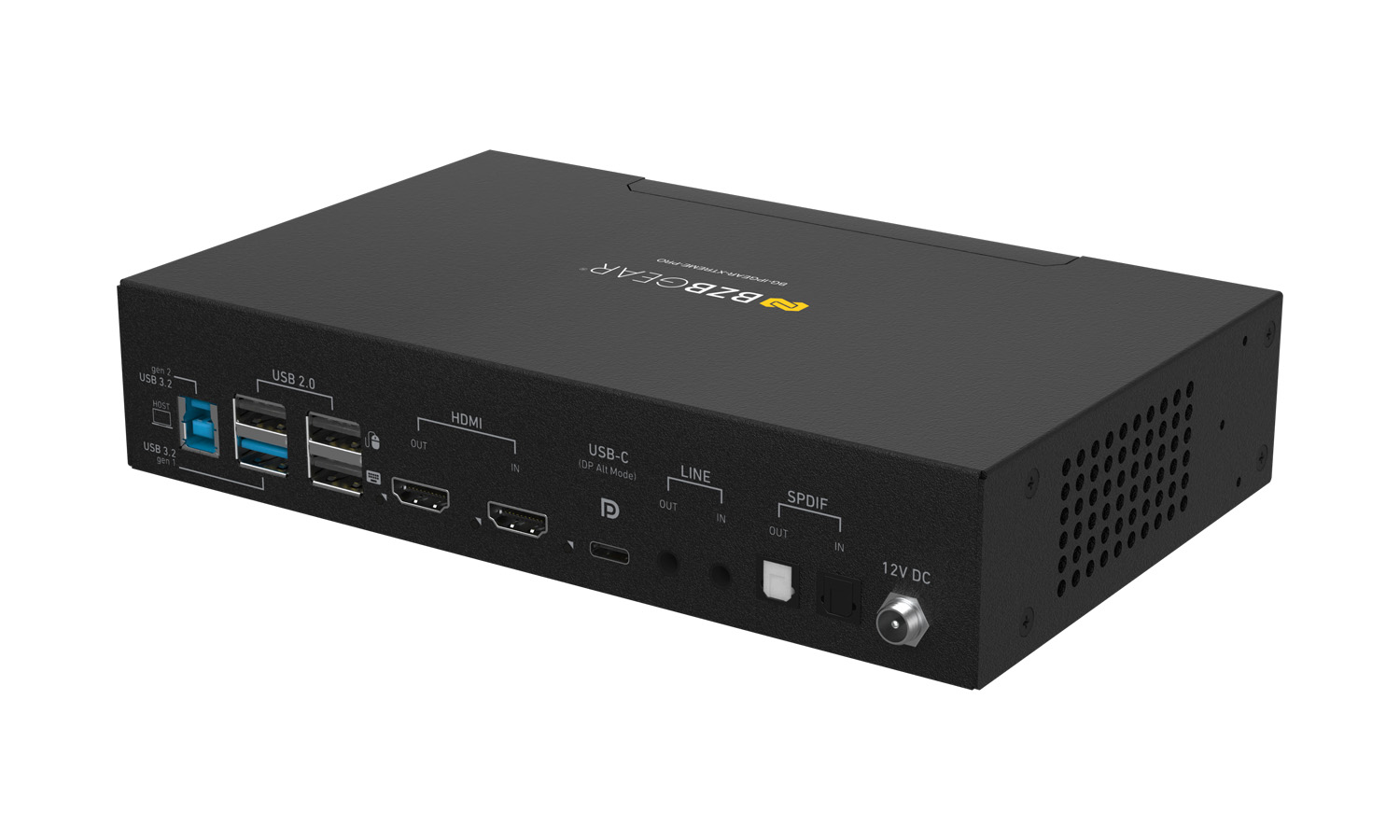

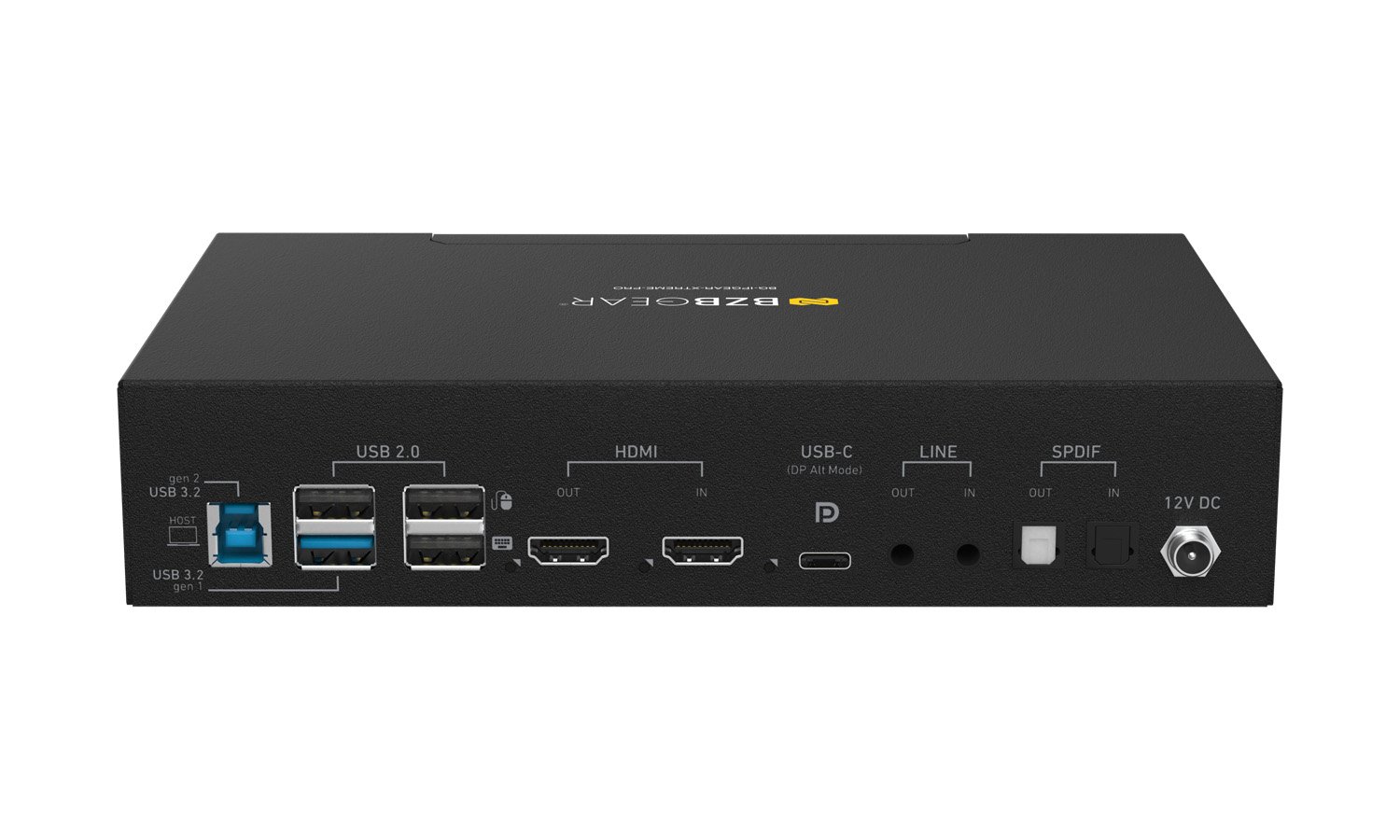

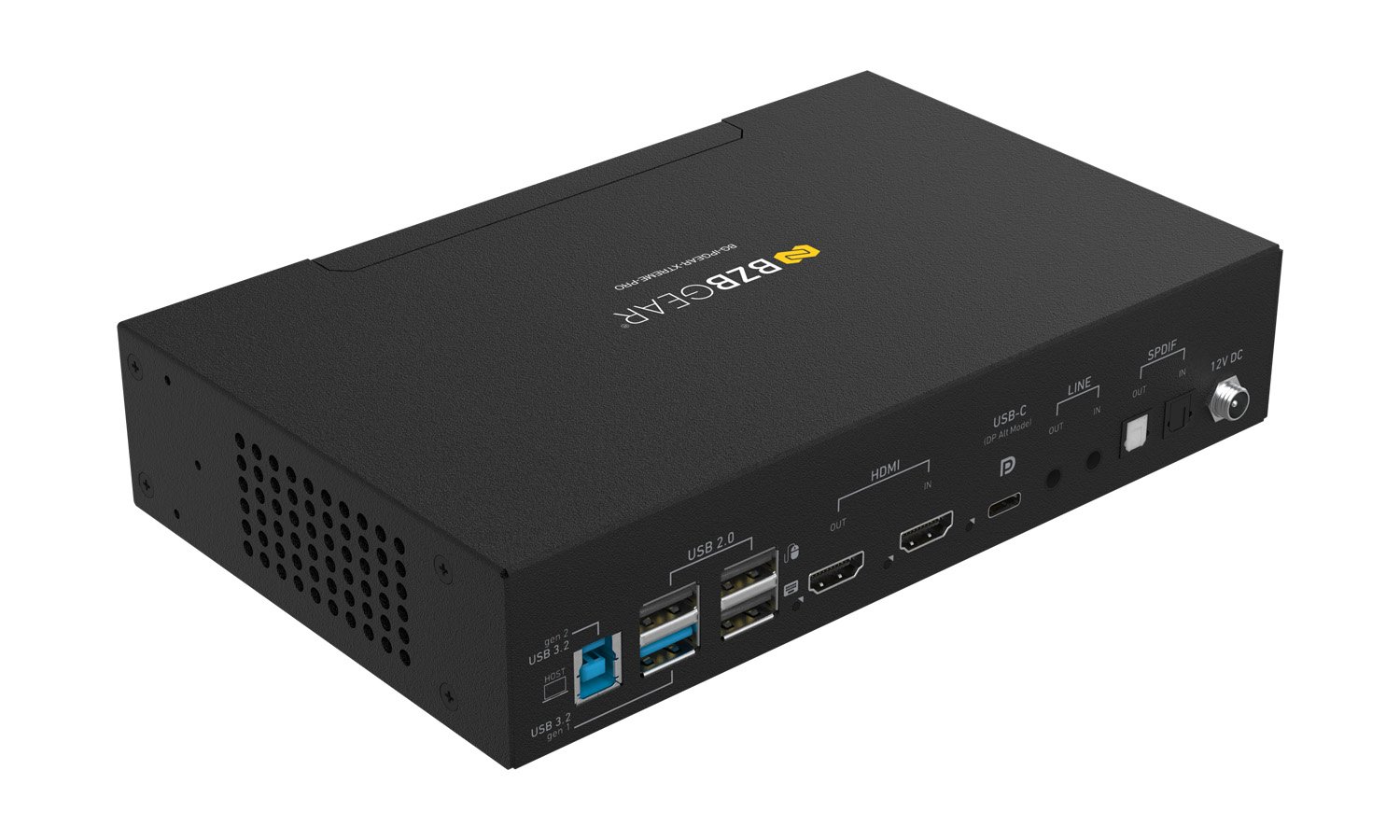

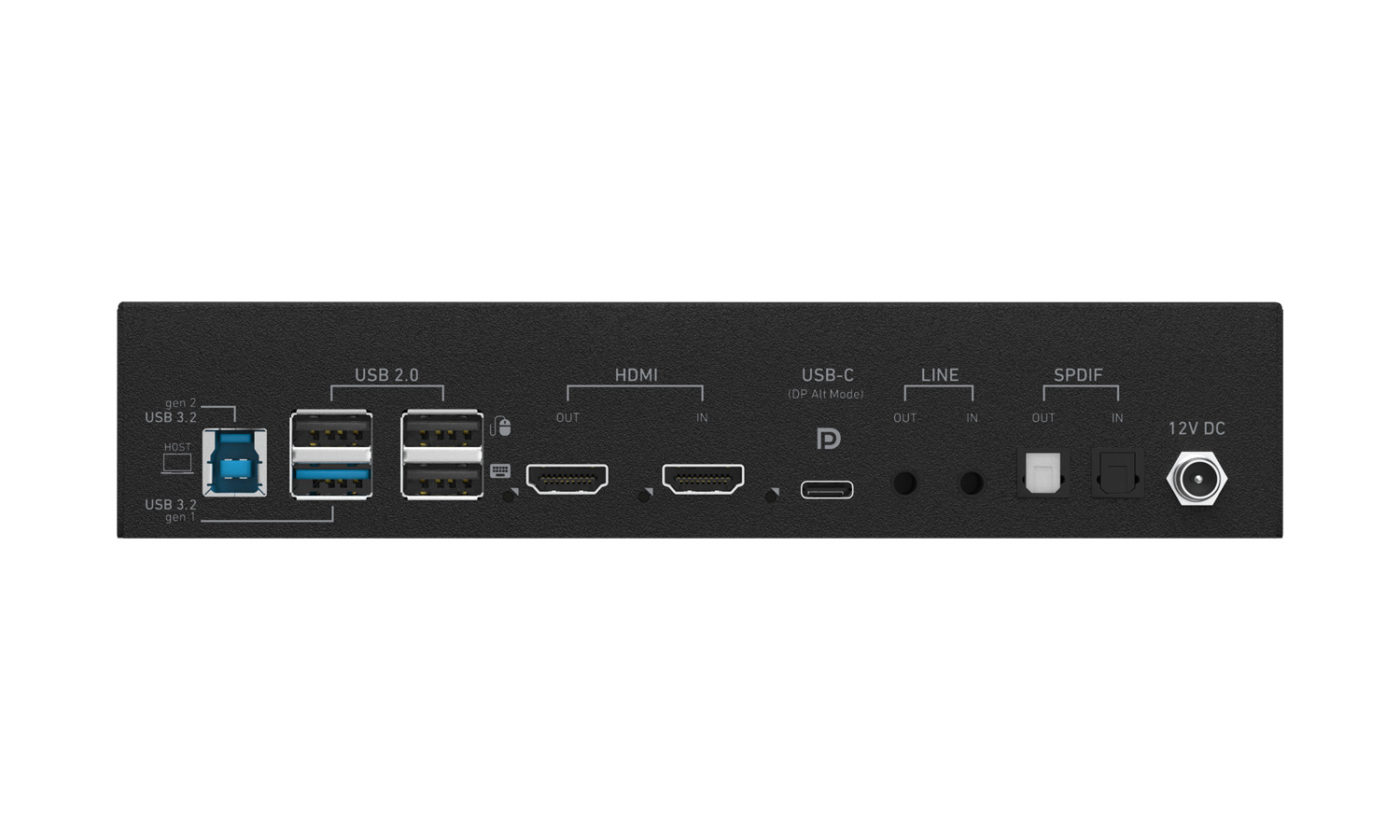

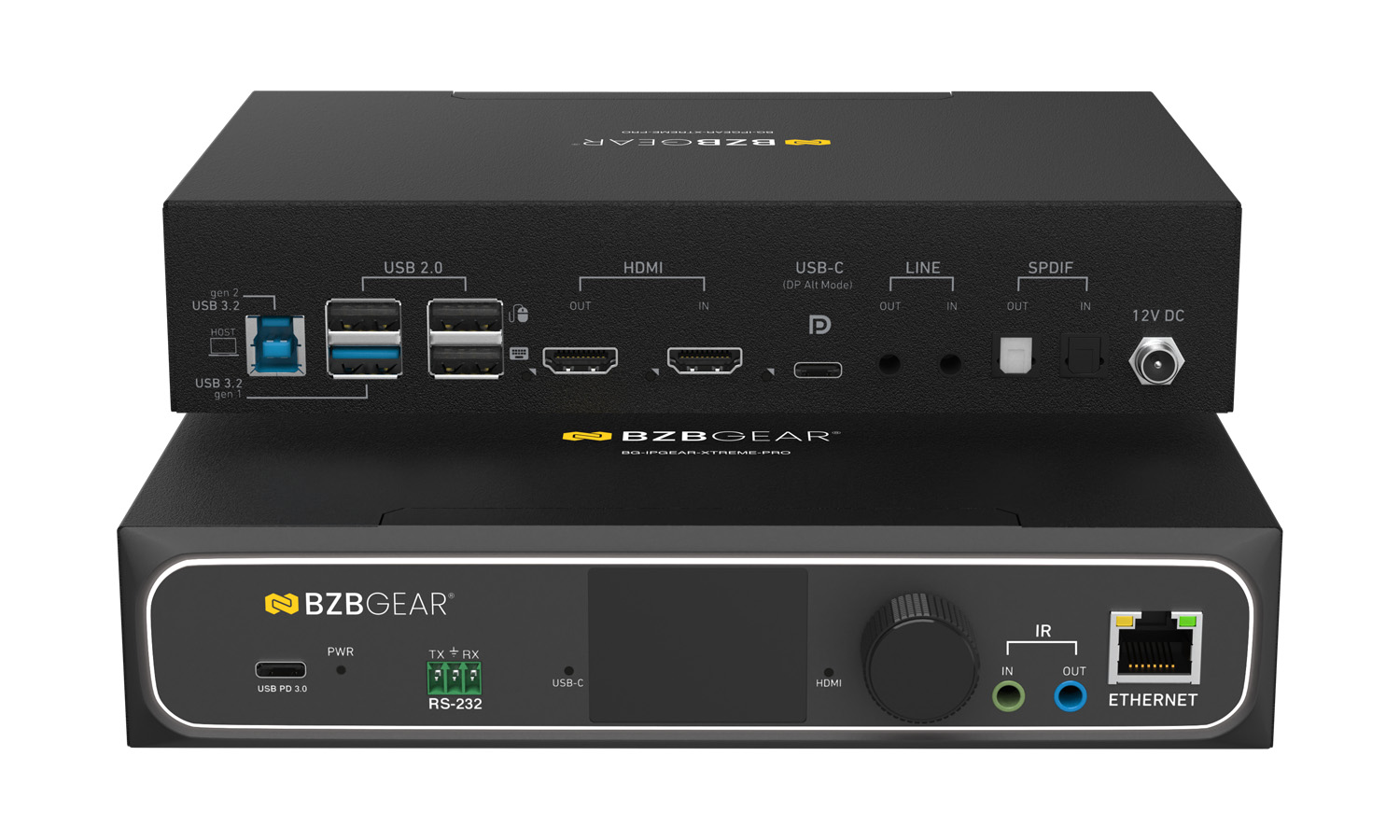

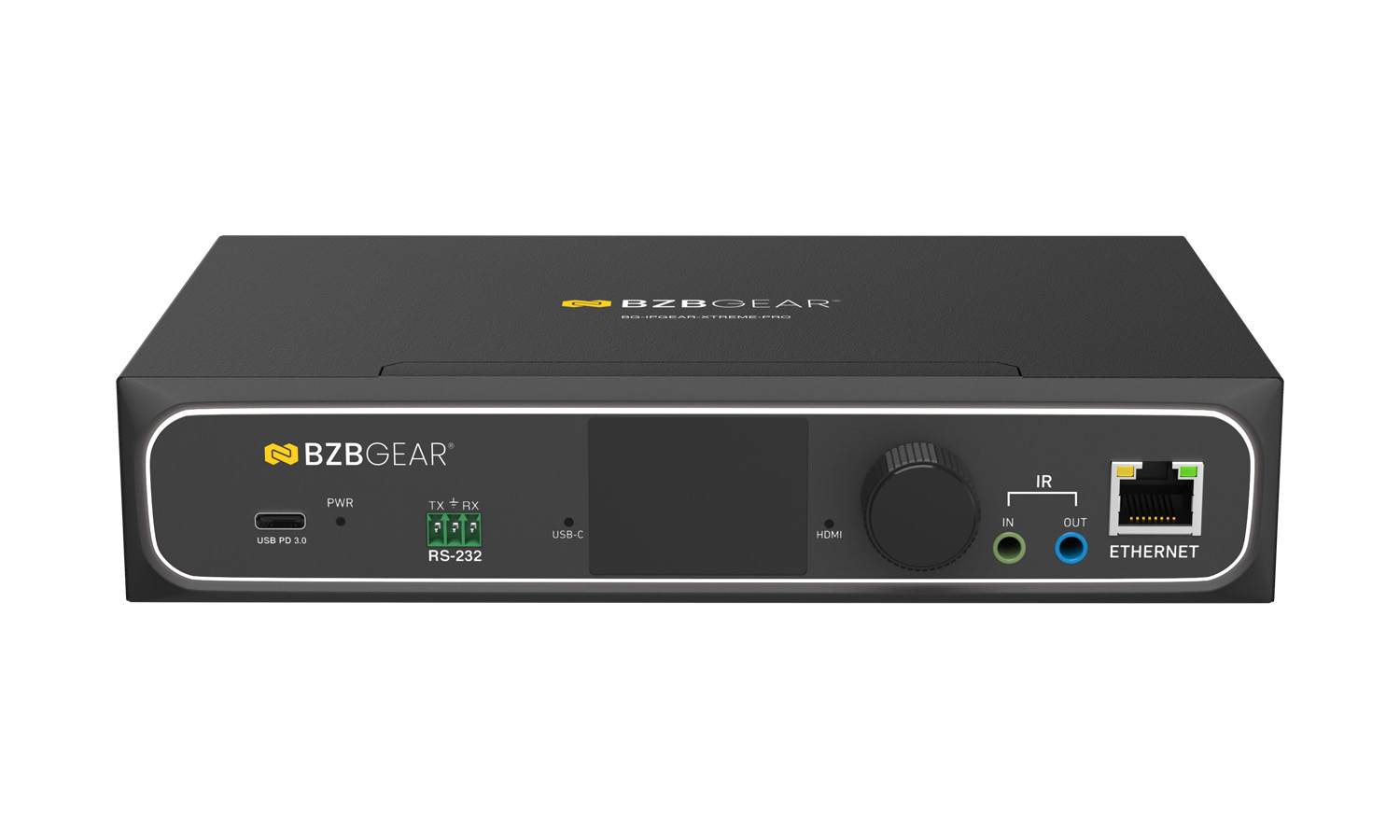

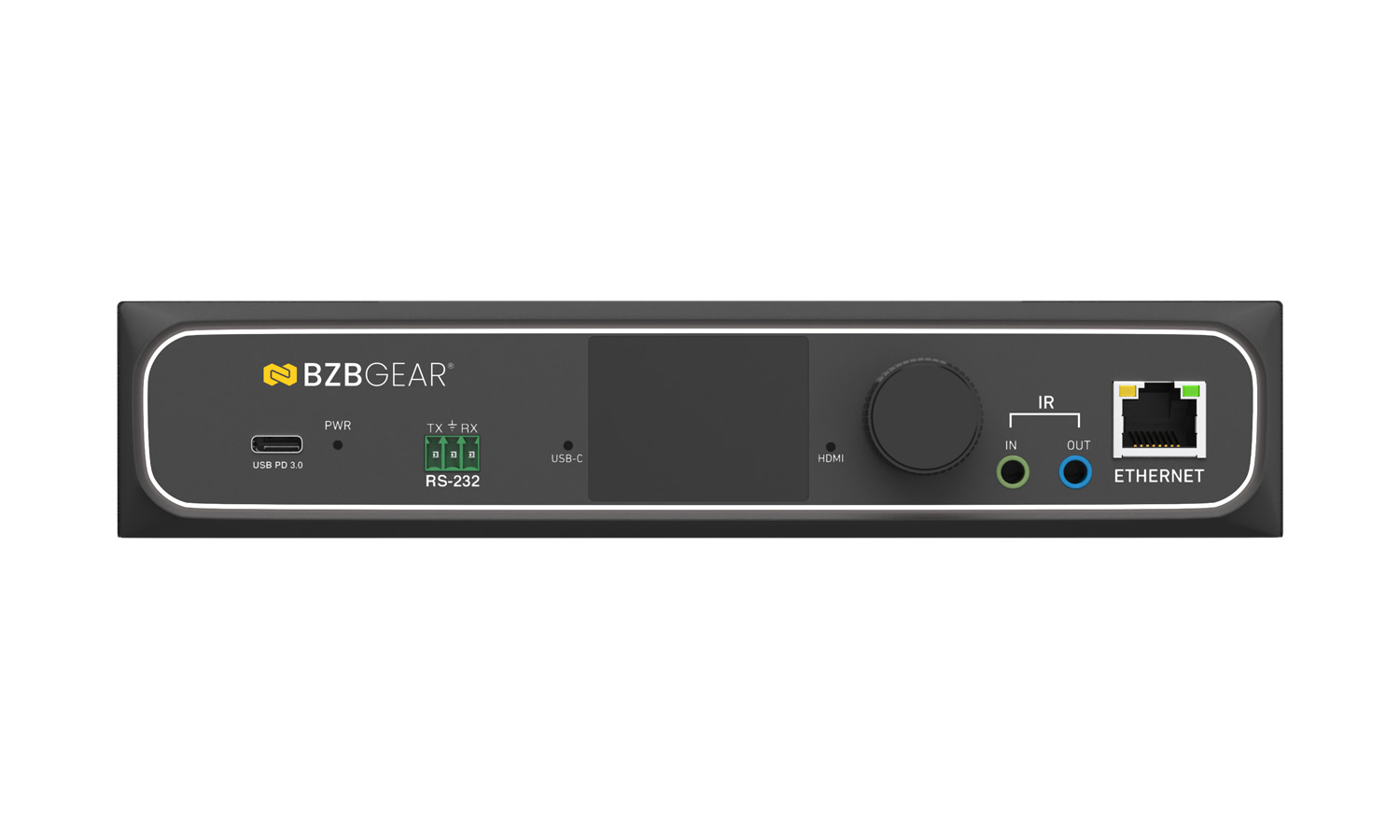

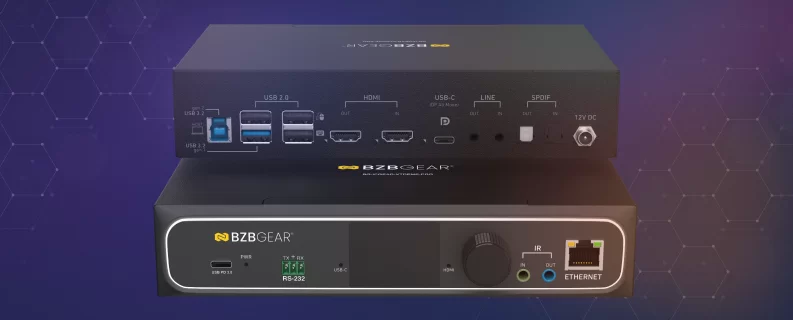

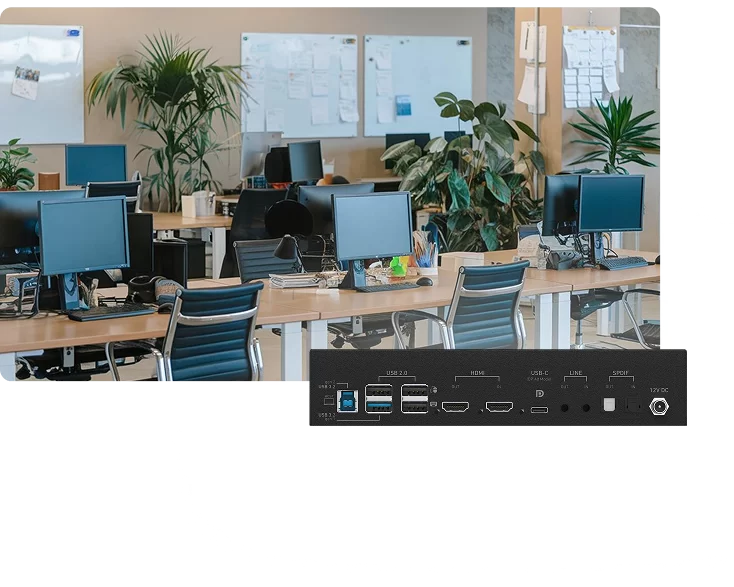

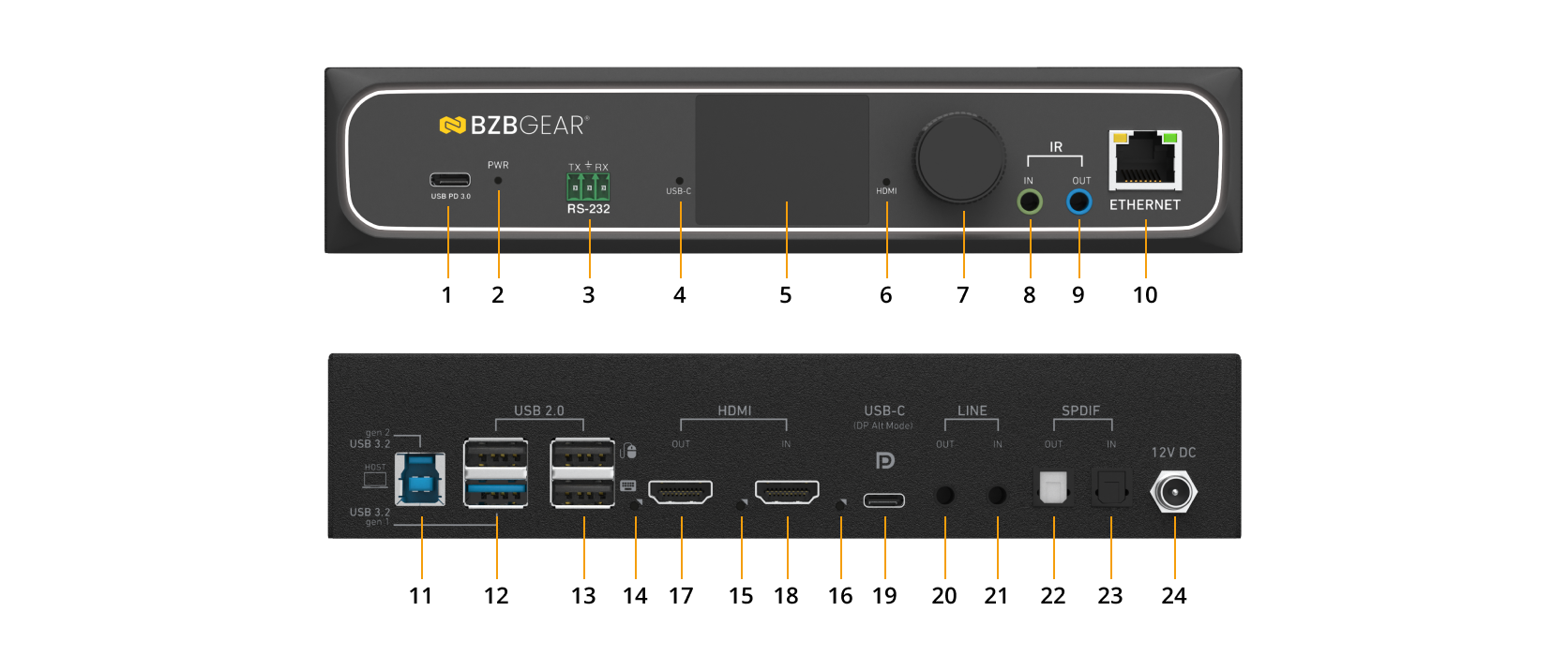

Interfaces
- USB-C Power Port: Connect to a USB-C power supply unit.
- Indicator LED: Power indicator LED.
- RS-232: Connect to serial port device with a DSUB-9 cable.
- Indicator LED: Selected USB-C source status LED.
- LCD: 2.0” LCD monitor.
- Indicator LED: Selected HDMI source status LED.
- Knob: Control OSD menu on the LCD panel.
- IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver.
- IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster.
- 1G Copper IN/OUT: Plug in Cat.6A cable that needs to be linked to the other unit.
- USB 3.1 Gen 2 (Type B): Connect the USB cable to PC.
- USB 3.1 Gen 1/USB 2.0 Hub: Connect to USB devices. [Top USB] USB 2.0. [Bottom USB] USB 3.1 Gen1.
- USB 2.0: Connect to keyboard, mouse or USB 2.0 device.
- Indicator LED: HDMI out signal LED.
- Indicator LED: HDMI in signal LED.
- Indicator LED: USB-C in signal LED.
- HDMI OUT: Connect to a HDMI display.
- HDMI IN: Connect to a HDMI source.
- USB-C (DP Alt Mode) IN: Connect to a USB-C(DP) source.
- Stereo OUT: Connect to analog stereo audio speaker.
- Stereo IN: Connect to analog stereo audio source.
- TOSLINK OUT: S/PDIF output.
- TOSLINK IN: S/PDIF input.
- +12V DC: Connect to a 12V power supply unit.
