Overview

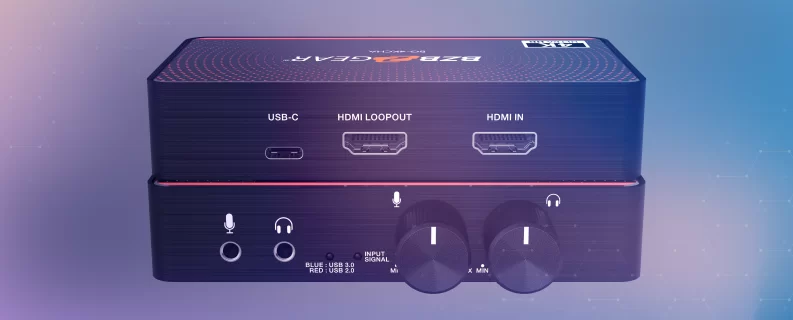

The BG-4KCHA is an advanced USB-C 4K video capture device with a scaler, HDMI 2.0 loopout, audio, and HDR10 to SDR conversion, designed for professional HDMI video signal capturing. It uses a USB 3.1 Type-C Gen 1 (USB 3.0) interface, allowing for high-speed transmission. Additionally, the HDMI input and loopout can support up to 4K2K@60, enabling users to connect the BG-4KCHA to a 4K@60 source and capture Ultra HD (4K2K@30) video. With the capability to capture and display uncompressed HDMI video, the BG-4KCHA provides more realistic color renditions. Moreover, the BG-4KCHA employs large volume image buffer technology to effectively avoid video tearing, while the high sampling rate and accuracy result in captured videos with high sharpness, rich details, and fewer color edges.
Furthermore, the HDR10 to SDR conversion allows Playstation and Xbox players to enjoy 4K2K@60 HDR games on a 4K TV through the loopout HDMI port and record real-time 4K2K@30/1080P@120 video streams with SDR quality through the USB 3.0 port simultaneously. With its versatility and features, the BG-4KCHA is a highly capable and professional-grade HDMI video capture device for demanding applications.
* PS5 & Xbox Series X also support 1080P120.
Features
-
4K UHDVideo resolution up to 4K2K@30/1080P@120 (Video stream over USB-C)* HDMI input & loopout up to 4K2K@60 -
Volume controlUse the volume control knobs to adjust the MIC/Headphone volume -
Plug and PlayAuto-detection of video format -
Software CompatibilityCompatible with most 3rd party software such as OBS Studio and AMCap -
Mic-in-mixAllows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the HDMI connection -
Low Latency3~4ms at 1080P
- Deinterlacer & scaler**
- HDMI audio extraction
- HDR10 to SDR conversion***
- Play 4K@60 HDR on the HDMI out while streaming/capturing gameplay at 4K2K@30/1080P@120 with SDR colors
- Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
- HDMI video and audio streams over USB 3.1 Type-C Gen 1
- UVC1.0/1.1/1.5
- Operating Systems: Windows 7/8.1/10/11, Mac, & Linux OS

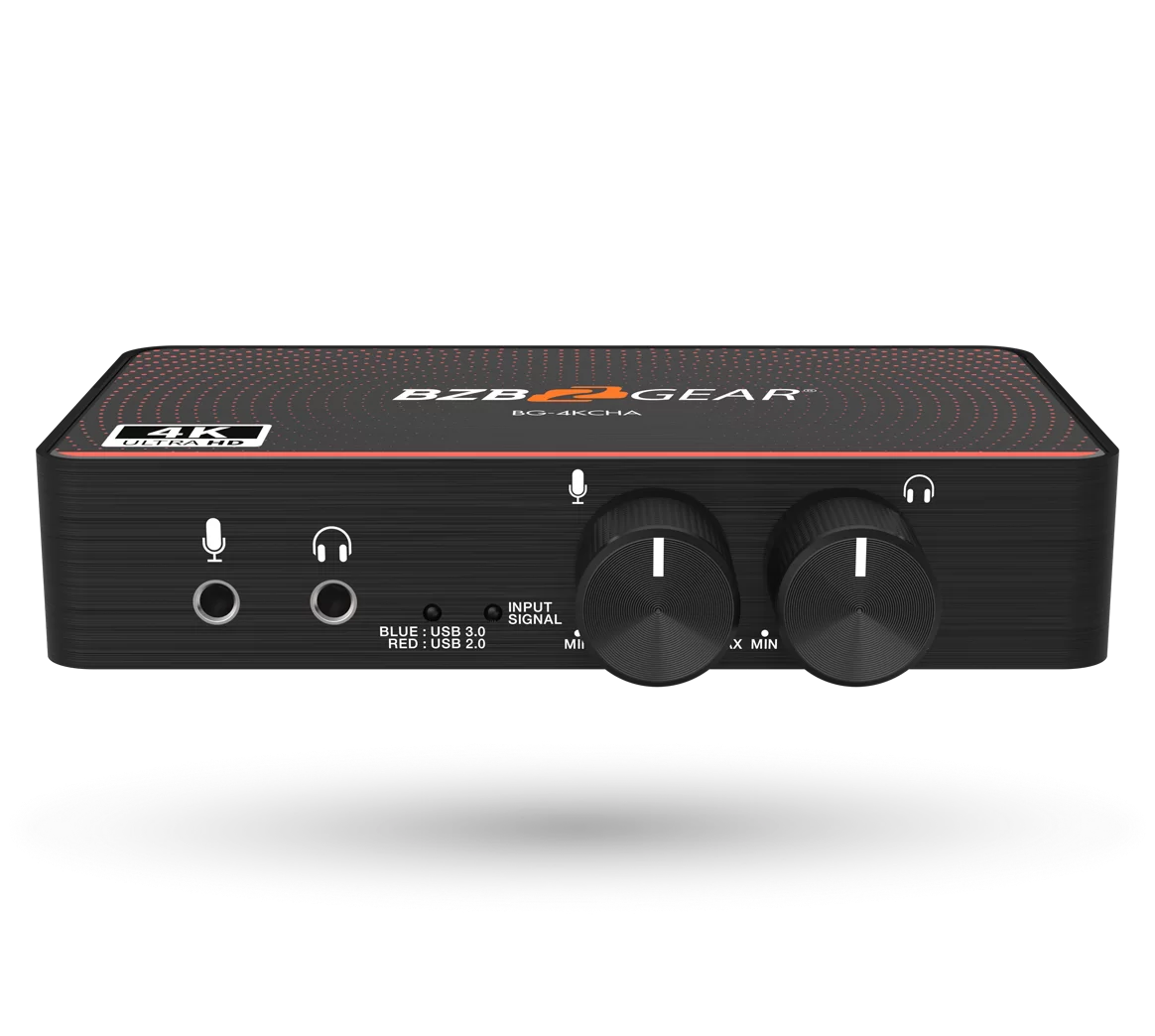

Stereo Audio Input Volume Control
Fine-tune the volume of your stereo audio input for precise recording, ensuring optimal sound levels for capturing every moment exactly as you want.

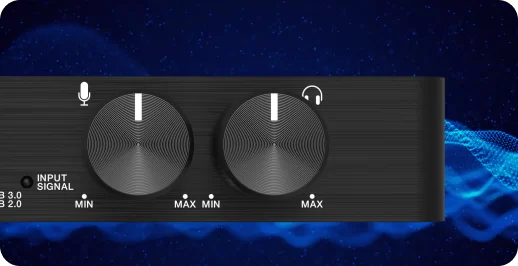

Stereo Audio Output Volume Control
Customize the stereo audio output volume to achieve flawless sound reproduction, capturing every detail exactly as intended.

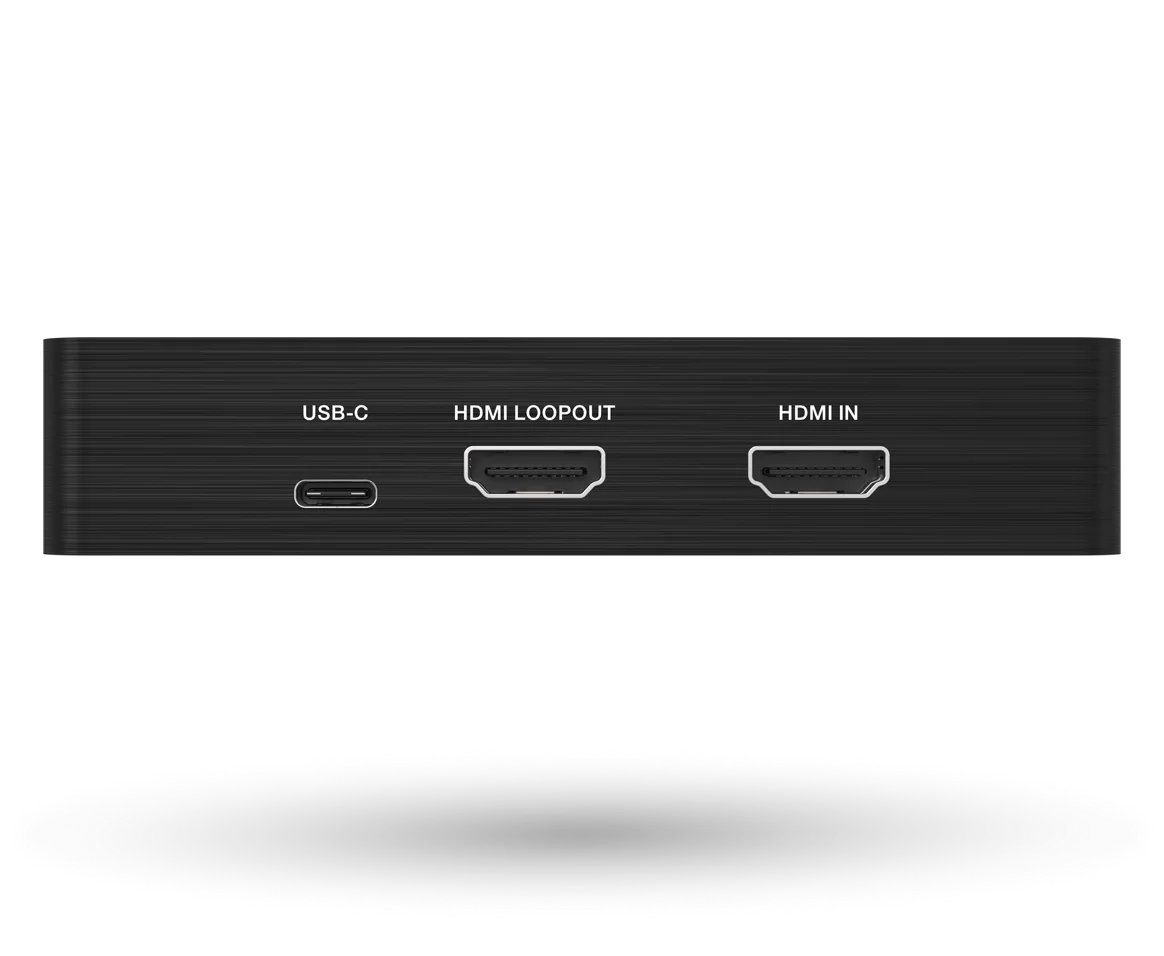

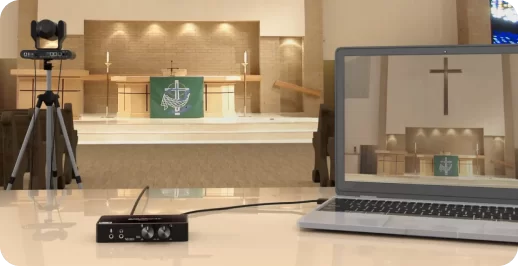

Utilize the HDMI Loop-out Port
Take advantage of the HDMI Loop-out Port to effortlessly display your source on a separate monitor, perfect for convenient content monitoring and showcasing.
Videos
Tech Specifications
| Model Name | BG-4KCHA | |
| Technical | ||
| Role of usage | Video Capture Device | |
| Input Video bandwidth | 600MHz | |
| Output bandwidth | Up to 350Mbps (USB-C) | |
| Video support (USB-C) | Up to 4K2K@30/1080P@120 | |
| Video support (Loopout) | Up to 4K2K@60 | |
| Audio Input | HDMI Embedded Audio & Stereo audio Input | |
| Audio Format | 2CH 16 bit PCM | |
| Recording Video Format | RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0) | |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| PCB stack-up | 4-layer board [impedance control — differential 100Ω; single 50Ω] | |
| Firmware update | Feasible via USB-C Port | |
| Input | 1x HDMI + 1x 3.5mm | |
| Output | 1x USB-C + 1x HDMI + 1x 3.5mm | |
| HDMI connector | Type A [19-pin female] | |
| USB connector | USB 3.1 Type C (SuperSpeed USB) | |
| Software compatibility (not complete list) | OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) | |
| OS Support | Windows 7 /8.1 /10, Mac and Linux OS | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Dimensions [L x W x H] |
Model | 4.6" x 2.5" x 0.9" [116 x 63 x 23mm] |
| Package | 9" x 3.7" x 1.6" [230 x 95 x 41mm] | |
| Weight | 10 oz [286g] | |
| Power supply | Via USB-C | |
| Power consumption | Watts [max] | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20~90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-4KCHA
- 1x USB 3.0 A to C Cable (host to device)
- 1x User Manual

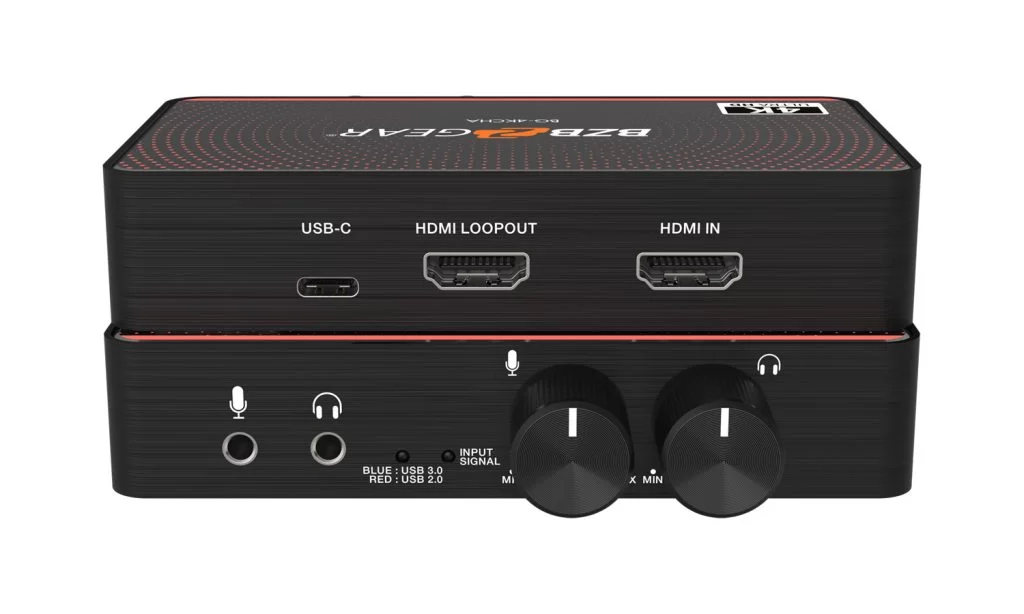

Interfaces
- STEREO AUDIO IN: Connect to an analog stereo audio source.
- STEREO AUDIO OUT: Extract audio from the HDMI input.
- LED INDICATOR: USB-C signal indicator LED
[Red] Connected to a USB 2.0 port on the host
[Blue] Connected to a USB 3.0 port on the host. - LED INDICATOR HDMI: input signal indicator LED.
- STEREO AUDIO IN VOLUME KNOB: To adjust the stereo audio in sound level.
- STEREO AUDIO OUT VOLUME KNOB: To adjust the stereo audio out sound level.
- USB-C OUT: Connect to a USB host (PC, NB, MAC…).
- HDMI OUT: Connect to a HDMI display.
- HDMI IN: Connect to a HDMI source.
