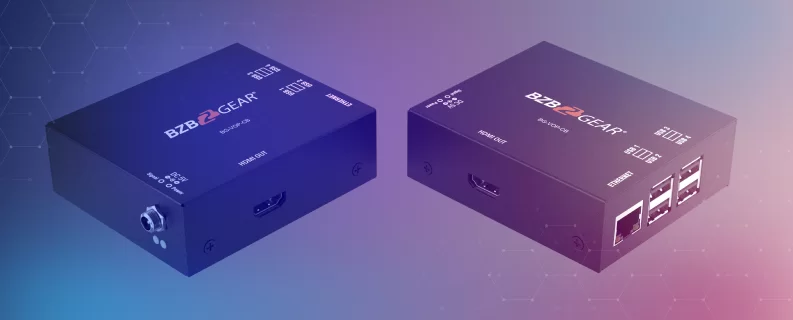

The BG-VOP-CB Smart Controller provides system management for BZBGEAR’s BG-VOP-MT transceivers. In addition to managing devices and serving as the gateway for the web interface, this TAA-Compliant unit allows users to monitor the IP-based BG-VOP-MT transceivers in real time. This device allows the system to be highly expandable and can manage up to 1024 transceivers at the same time.
With a web-based GUI users can drag and drop any source to any connected display, build video walls, and create custom on-screen displays (OSD).
Connectivity
The BG-VOP-CB is capable of continuous system monitoring and self-recovery. This includes real-time event notifications and alerts. A free iOS app is available for mobile control as well. With a simple and easy to use interface, this app allows easy control of basic system functions such as mapping and preset recall.
This unit uses a 5V DC power adapter, an HDMI connector, and an Ethernet port for system connectivity. The simple connections allow stress-free installation and servicing.
Storage and Ergonomics
In case of temperature fluctuations in the operating environment, the BG-VOP-CB can safely operate between temperatures of 0~40°C [32~104°F]. The compact form factor makes placement easy with dimensions of just 90 x 78 x 29 mm.
Additional Details
Please review our guide on AVoIP Network Switch Requirements, which is essential for ensuring the reliable functionality of the device.
Given its features, interface, and ease of use, the BG-VOP-CB provides a reliable and cost-effective IP video solution for audio-visual professionals. It is also perfectly suited for distributing audio-visual signal across large campuses or with multiple buildings.
TAA COMPLIANT PRODUCT
This product meets the standards of the Trade Agreement Act (TAA).
You can find all BZBGEAR TAA Compliant Products on this page.
Features
-
![ph_picture-in-picture-light]()
Graphics OverlayAdd your own custom graphics to overlay displayed images or create Menu Boards -
![Physical and IP-based Control]()
Web Interface and Mobile AppUse the Web Interface or Mobile app to easily control devices remotely -
![material-symbols_shield-lock-outline]()
HDCP 2.2High-Bandwidth Digital Content Protection Supported -
![solar_remote-controller-2-linear]()
Control Multiple TransceiversControl up to 1024 BG-VOP-MT transceivers over a wide area -
![video-wall2-icon]()
Video WallSpread a source across multiple displays -
![Monitor]()
Video MatrixView any source on any display
- TAA compliant product
- Schedule time for audio/video mapping, cycle play and mute/resume
- Intuitive and powerful user interface
- Auto-detection of transceiver units on the network
- Self-monitoring with auto-reboot ensures devices are always online
- Monitors all devices in one central location
- Includes web interface and Mobile App support
- Control center of the IP based BG-VOP-MT transceiver
- Perfect for AV distribution over large campuses
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Product type | Smart Controller | |
| Input | 1x RJ-45 | |
| Output | 1x HDMI | |
| HDMI connector | Type A [19-pin female] | |
| RJ-45 connector | WE/SS 8P8C | |
| Housing | Metal enclosure | |
| Dimensions [L x W x H] | Model | 3.5" x 3.0" x 1.1" [90 x 78 x 29mm] |
| Package | 7.8" x 5.4" x 2.9" [198 x 137 x 74mm] | |
| Weight | Model | 7.8 oz [222g] |
| Package | 1.08 lbs [493g] | |
| Mouting | Rack-mount with ears | |
| Power supply | 5V DC | |
| Power consumption | 3.5 Watts [max] | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20~90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-VOP-CB
- 1x 5V Power Adapter
- 1x User Manual

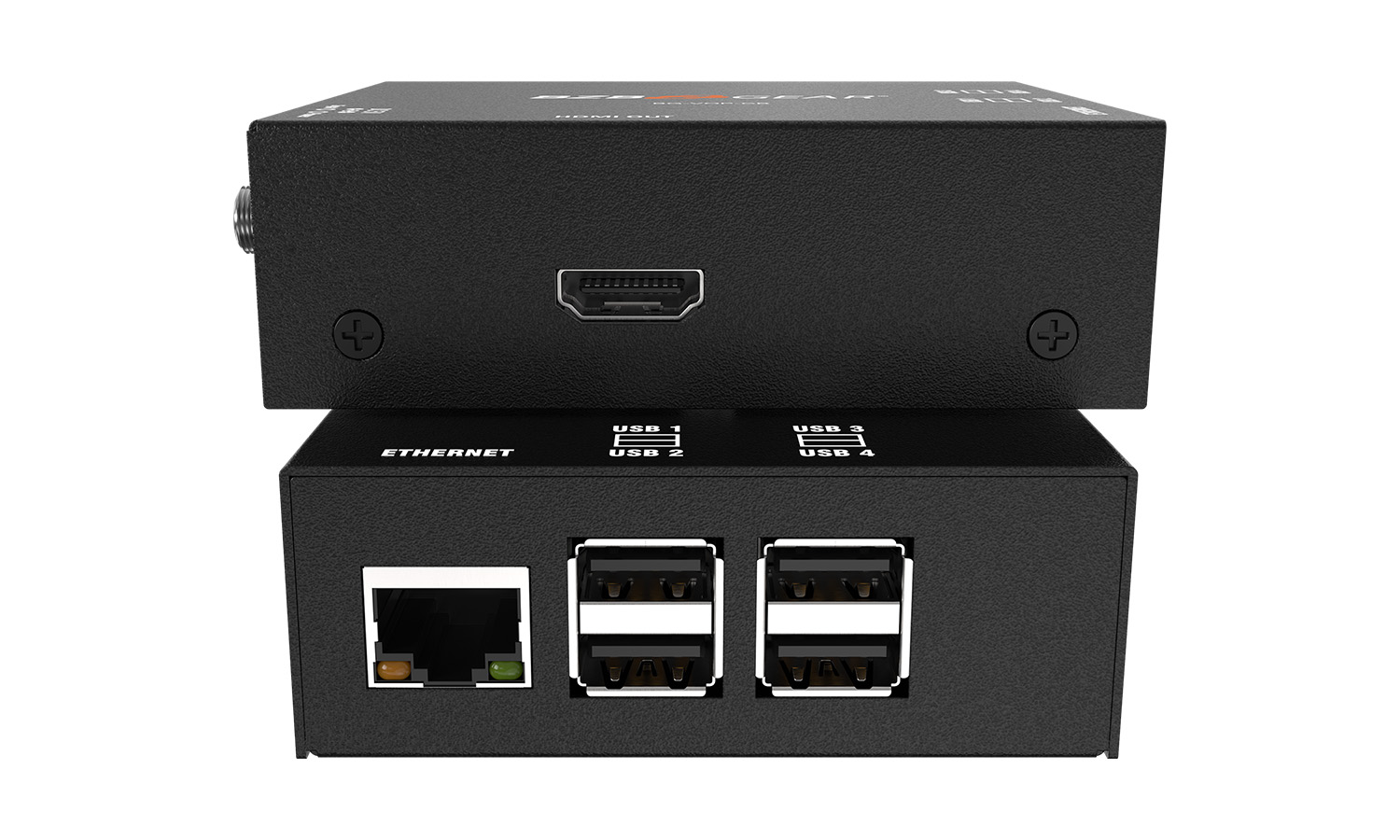

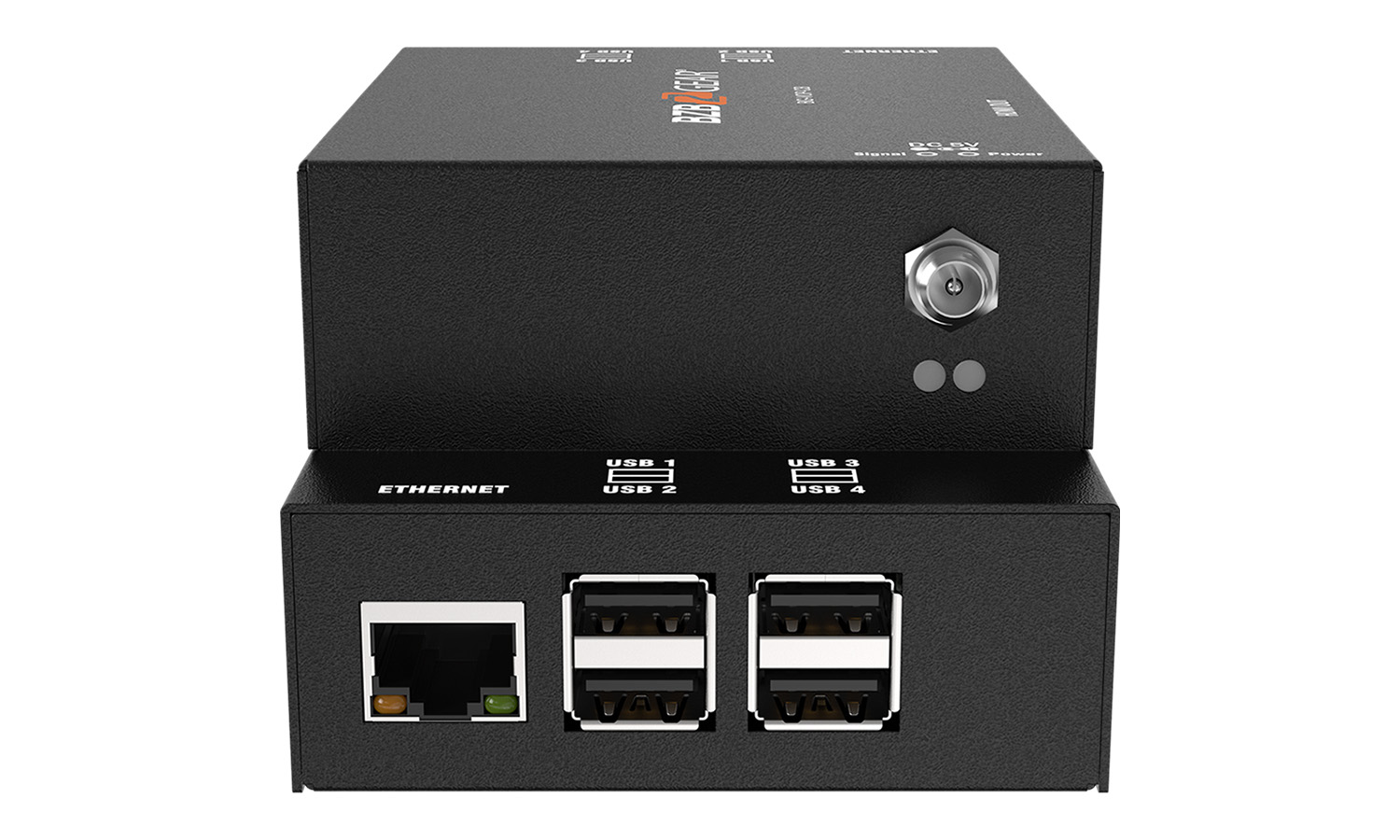

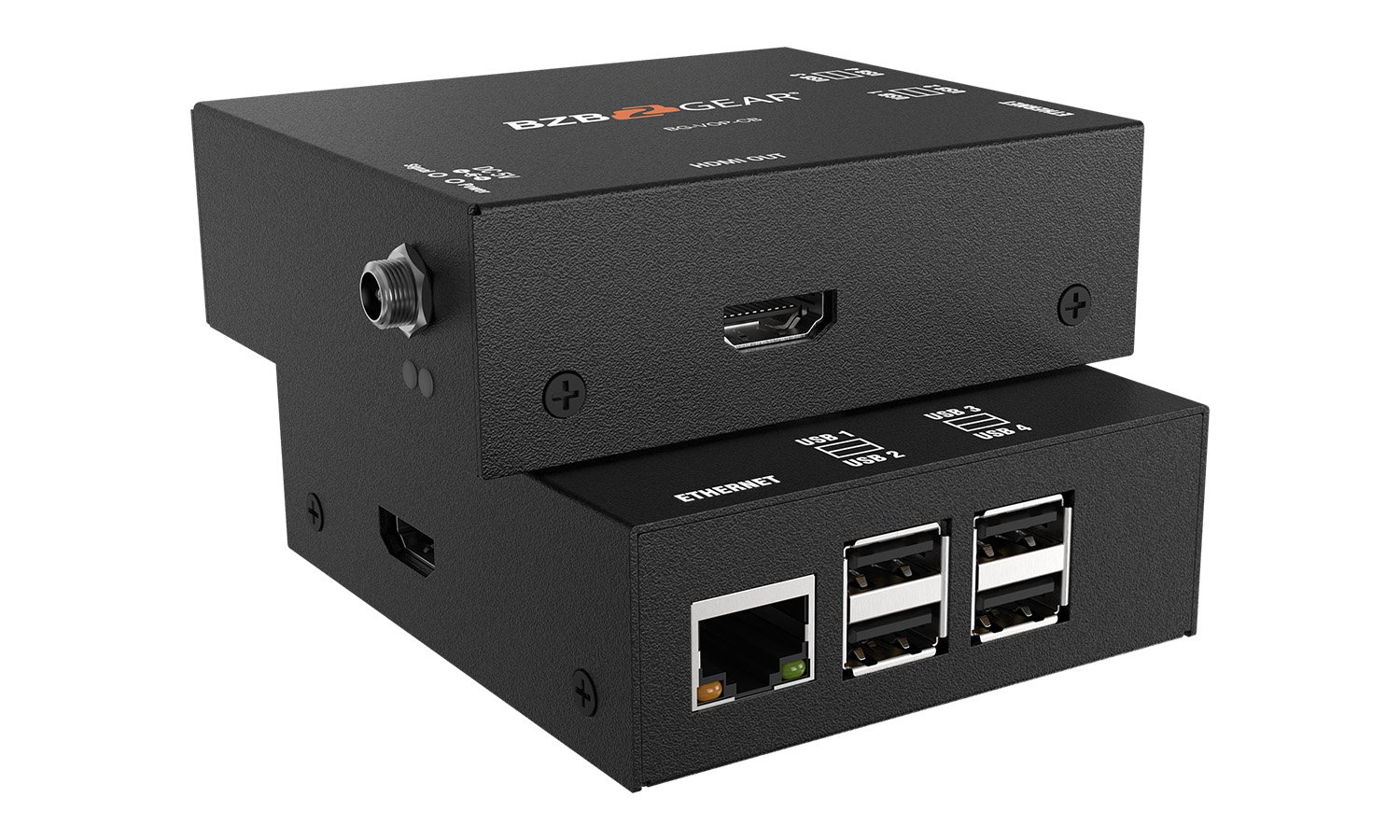

Interfaces

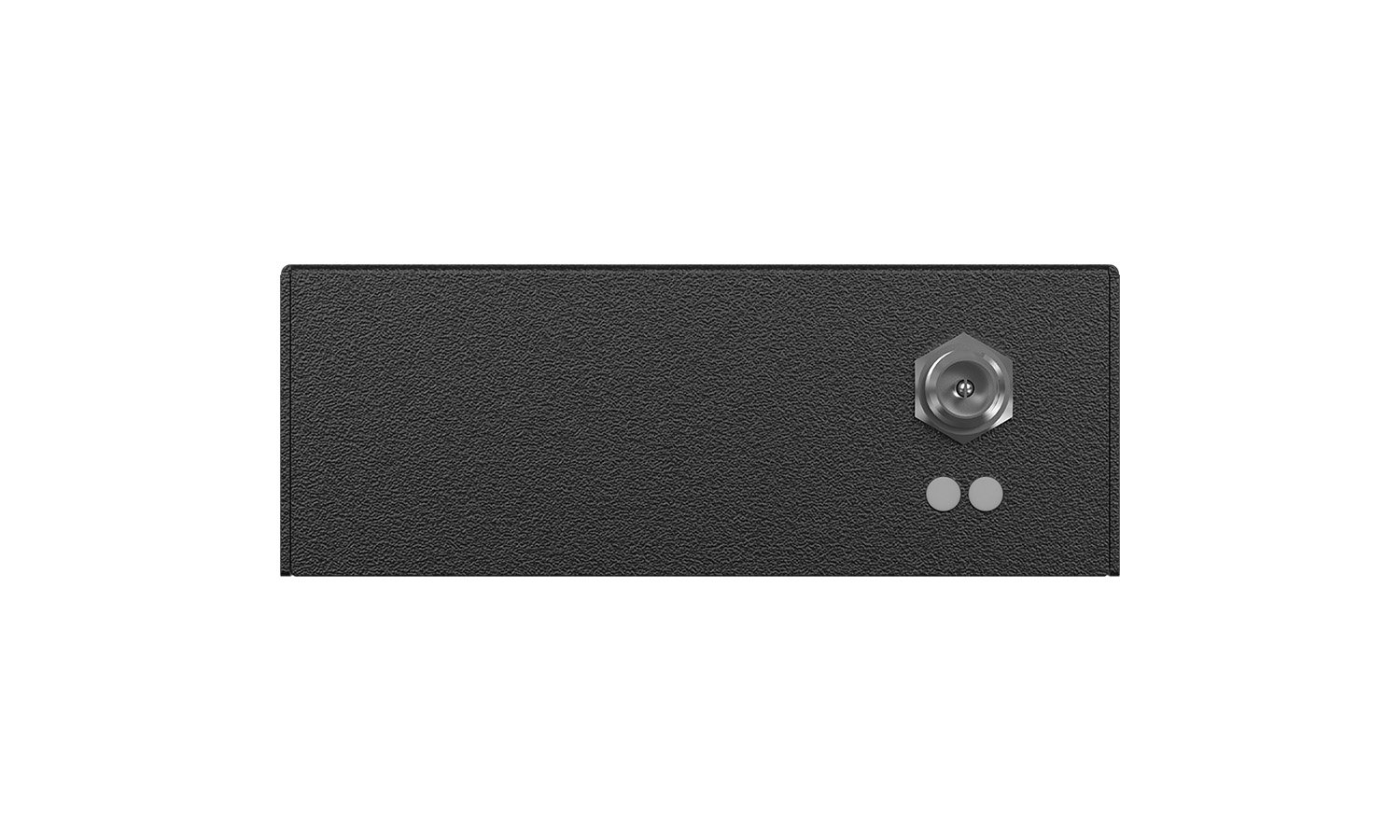

- Power: Connect to 5V DC power supply.

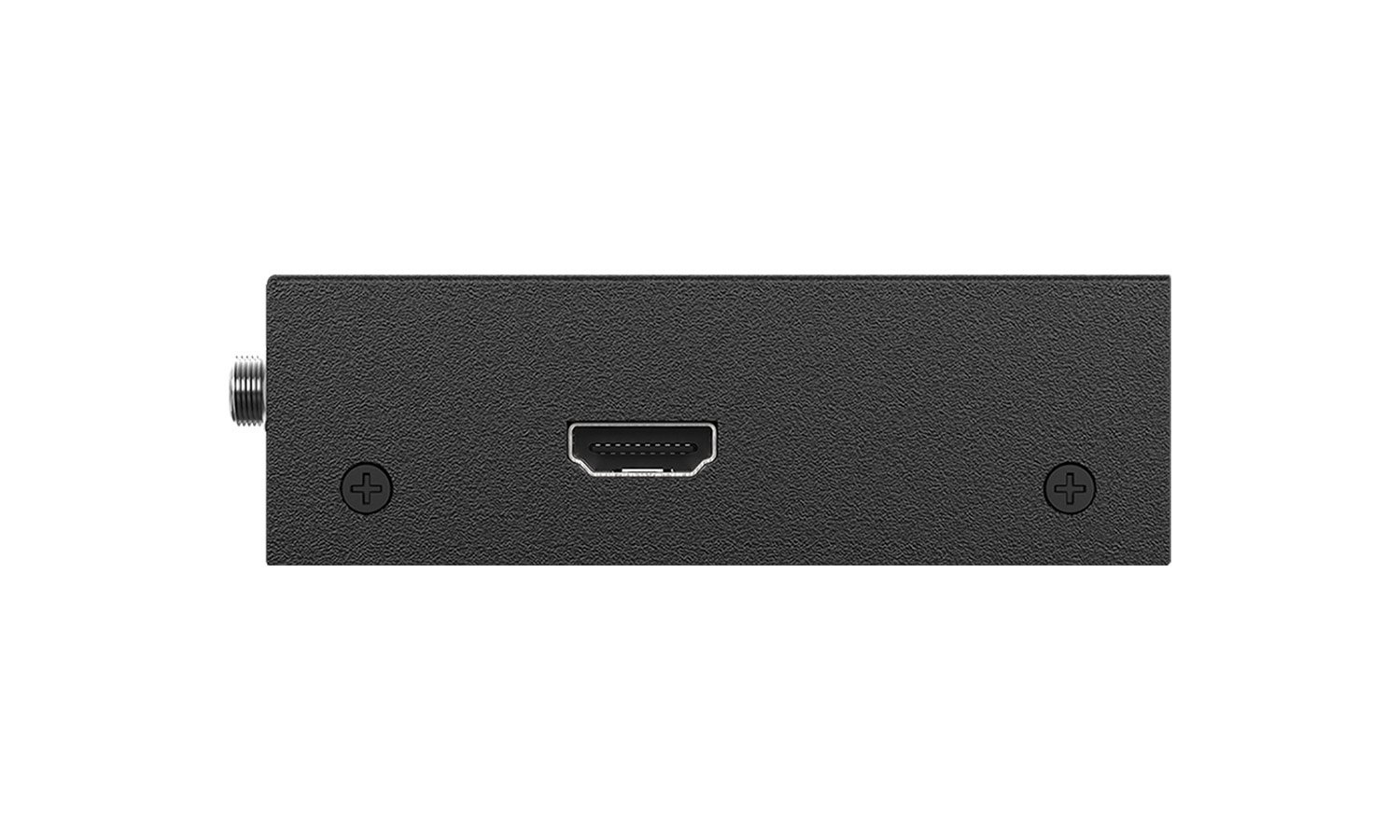

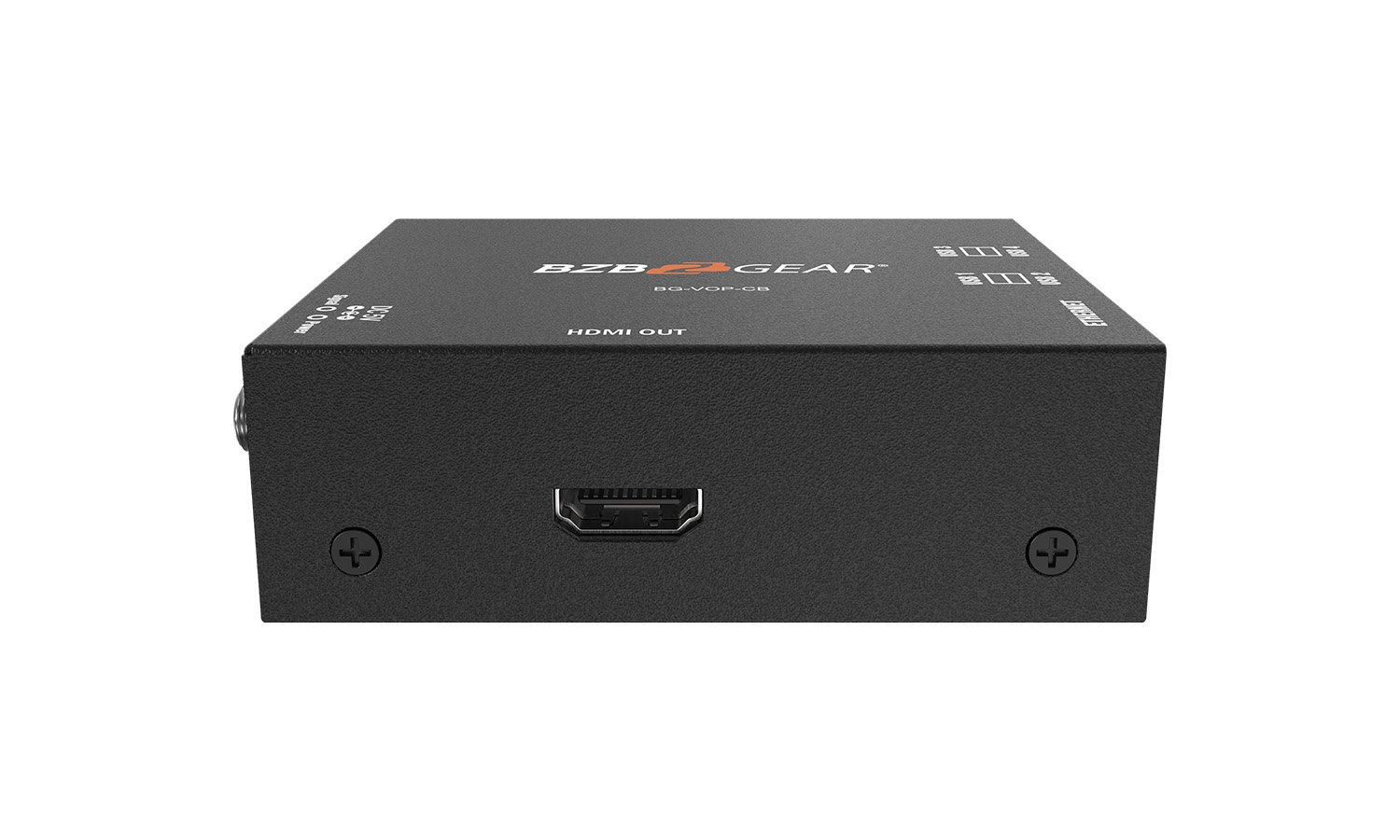

- HDMI Out: Connects to an HDMI display with a HDMI cable.

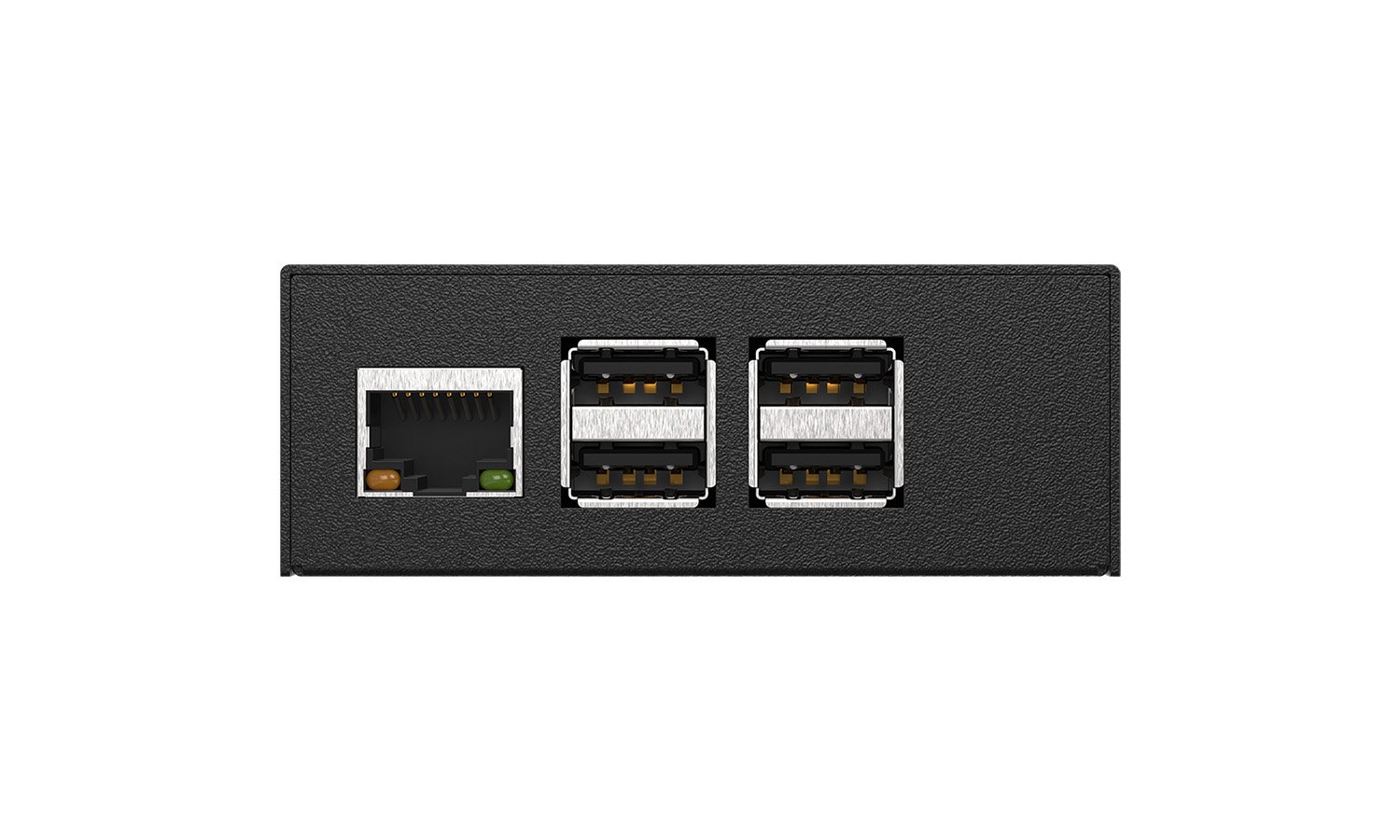

- Ethernet: RJ-45: Gigabit Ethernet port.
- USB 1 / USB 2: Reserved.
- USB 3 / USB 4: Reserved.
