Overview

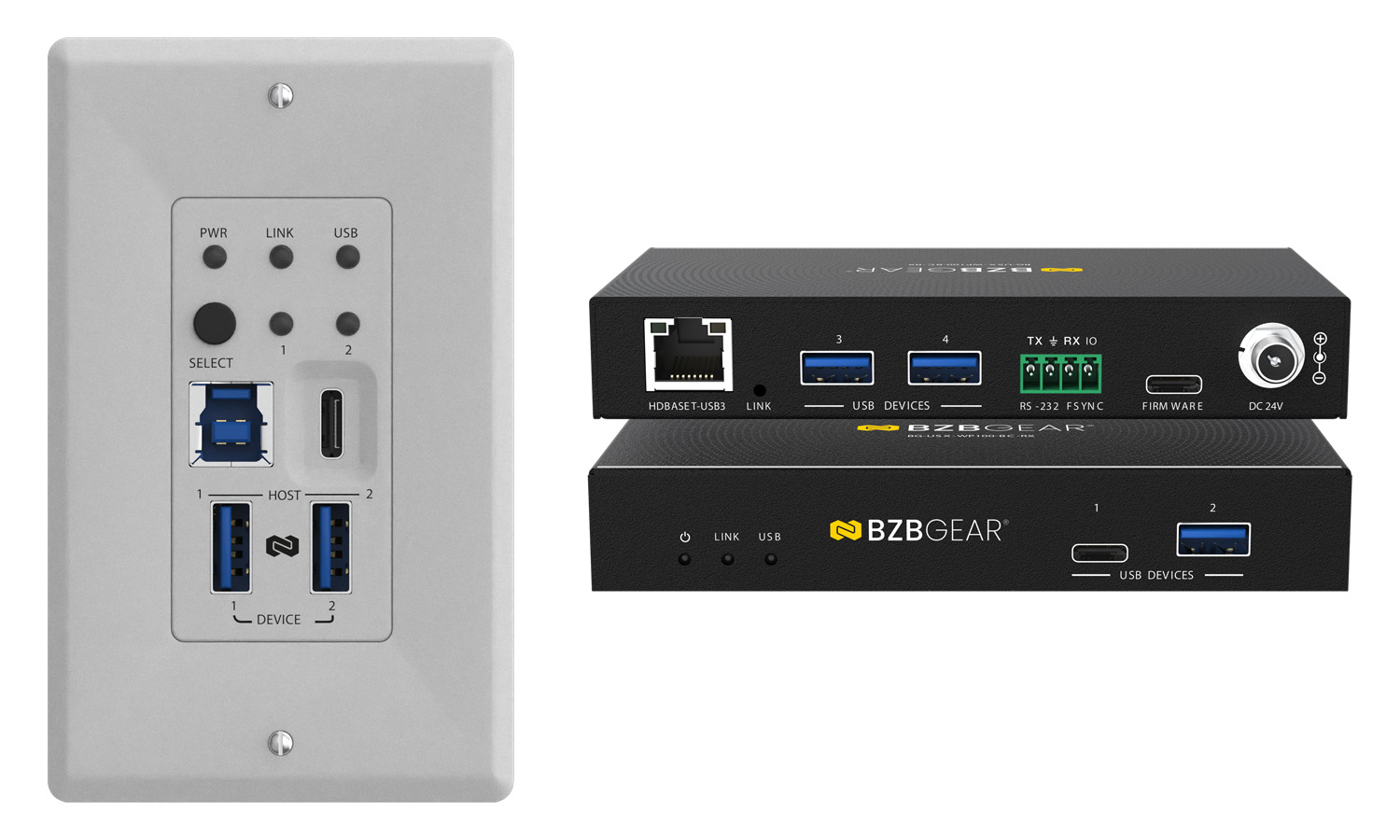

The BG-USX-WP100BC is a professional USB 3.2 Gen 1 extender system that transmits high-speed USB signals up to 100 meters (328 feet) over a single CAT6A (F/FTP) cable. Featuring a 1-gang wall plate transmitter and compact receiver, it supports USB data rates up to 5Gbps while maintaining backward compatibility with USB 2.0 and USB 1.1 devices. With multiple USB host and device connections, it provides a flexible solution for extending cameras, storage devices, touchscreens, keyboards, and other USB peripherals in professional AV and enterprise environments.

Designed for clean, reliable installations, the BG-USX-WP100BC includes bi-directional 24V Power over Cable (PoC), RS-232 pass-through, FSYNC GPIO synchronization, API control support, and hardware acceleration for stable USB performance. Its wall plate design simplifies integration into conference rooms, classrooms, control rooms, and commercial spaces while delivering dependable long-distance USB connectivity.

Features in Depth

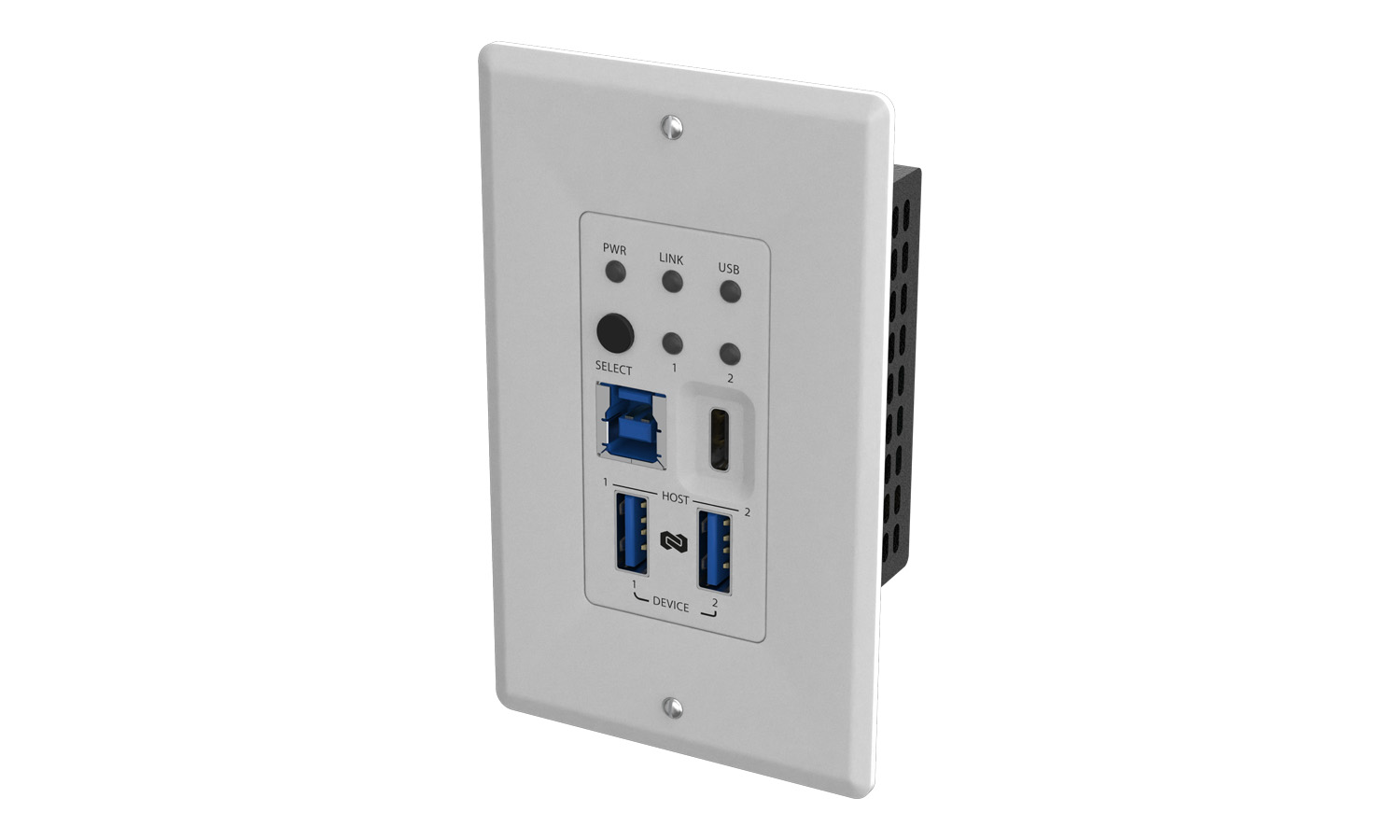

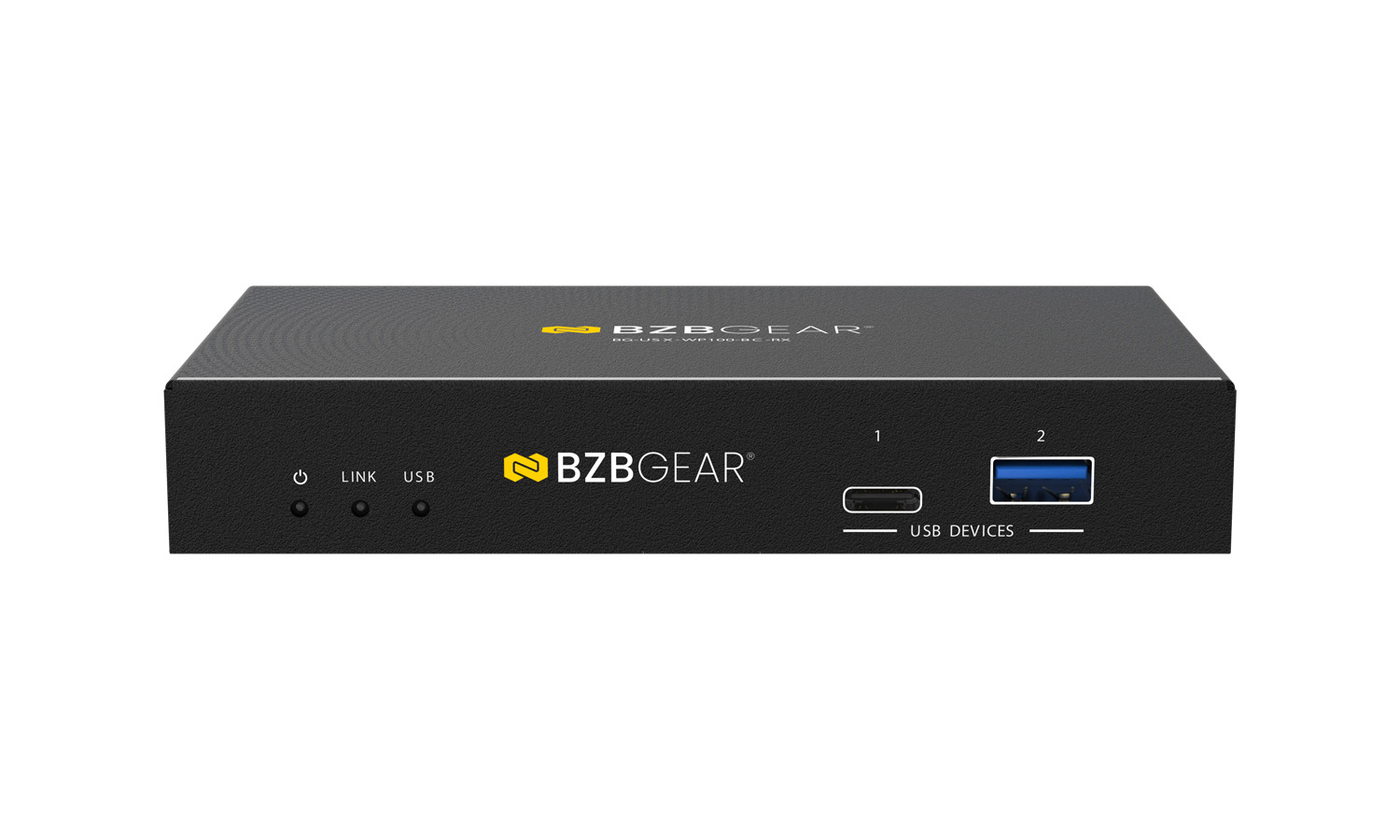

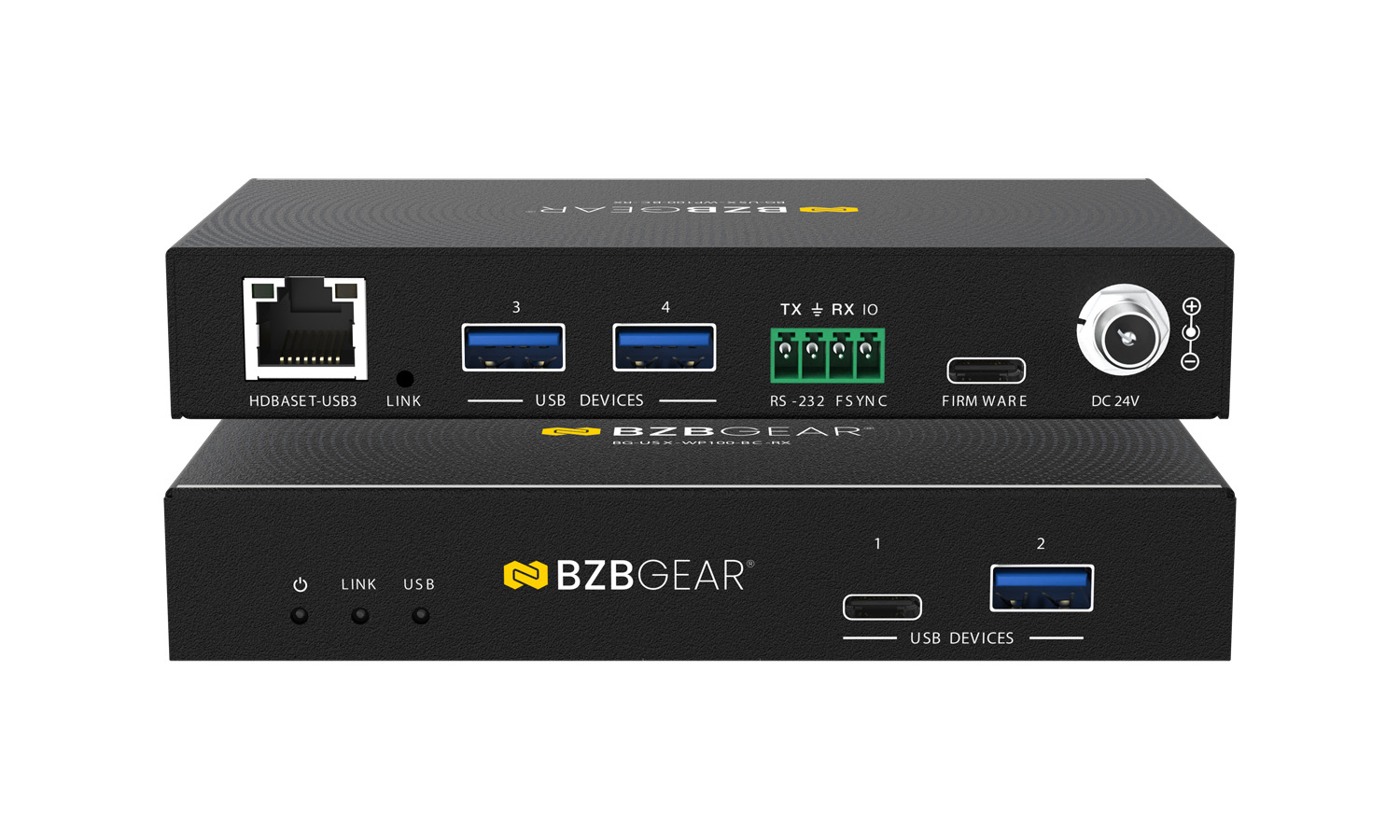

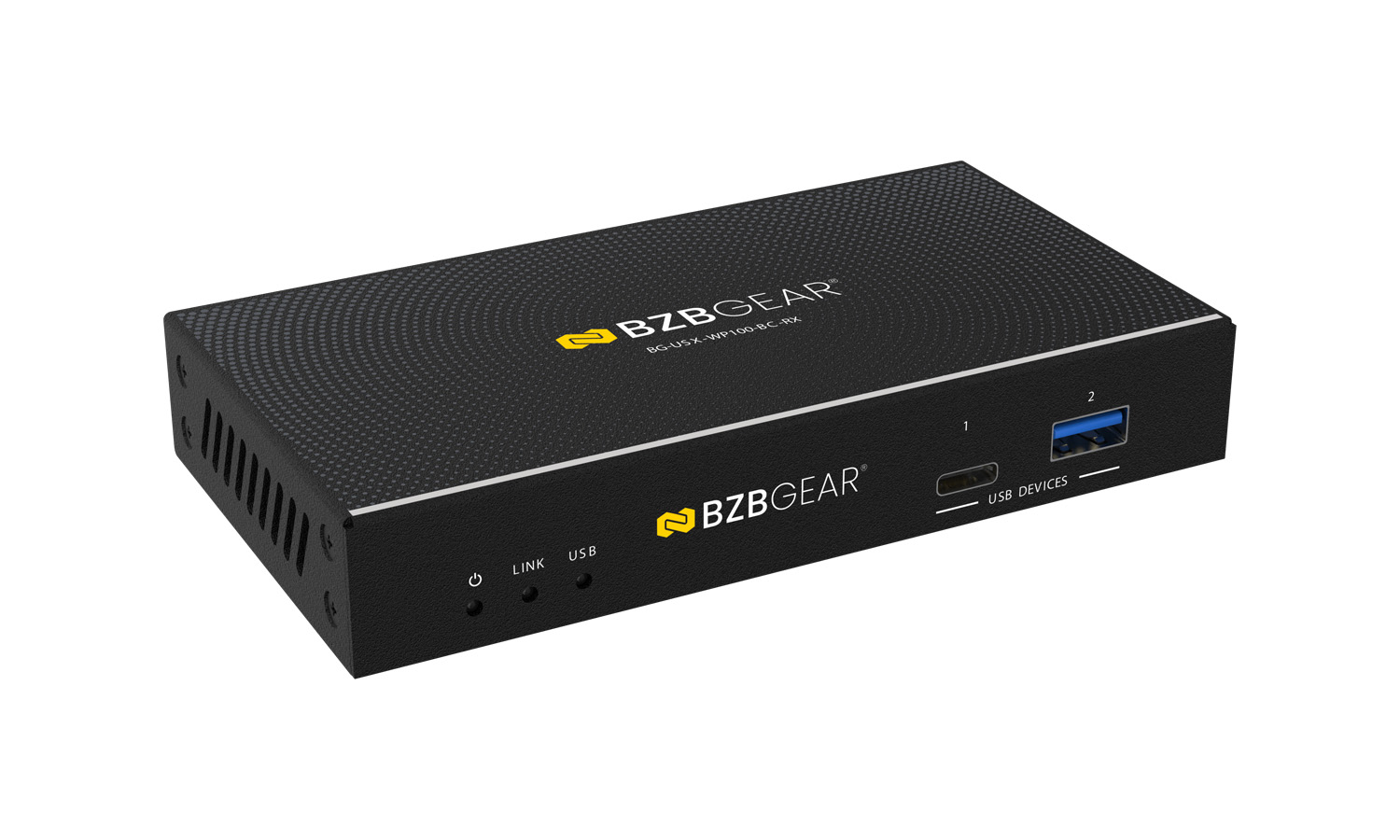

The BG-USX-WP100BC extends USB 3.2 Gen 1 signals up to 100m (328ft) using a single CAT6A (F/FTP) cable, supporting data transfer speeds of up to 5Gbps for high-bandwidth USB devices. The wall plate transmitter features selectable USB-C and USB-B host inputs, allowing installers to connect a variety of host systems without additional adapters. Two USB-A loop-out ports on the transmitter provide convenient local connectivity, while the receiver offers one USB-C and three USB-A device ports for connecting multiple peripherals including PTZ cameras, webcams, storage devices, touch displays, keyboards, and other USB equipment.

Designed for professional AV and integrated control systems, the extender supports bi-directional 24V Power over Cable (PoC), allowing either the transmitter or receiver to power the complete system over the CAT cable. RS-232 pass-through enables serial communication between endpoints for integration with automation systems, while FSYNC GPIO support provides synchronization for machine vision and industrial camera applications. Hardware acceleration ensures reliable handling of both isochronous and bulk USB traffic, delivering stable performance for bandwidth-intensive devices.

Installation and maintenance are streamlined through plug-and-play operation, eliminating the need for drivers or software. LED indicators provide real-time monitoring of power, USB activity, and link status for quick diagnostics, while a dedicated USB-C service port allows convenient firmware updates. Combining high-speed USB extension with professional control features and a space-saving wall plate design, the BG-USX-WP100BC is an ideal solution for conference rooms, classrooms, enterprise AV systems, industrial environments, and commercial installations.

Features

  • Wide-Angle 2
    100m Extension
    Extends USB signals up to 328ft (100m) over a single CAT6A (F/FTP) cable while supporting transfer speeds up to 5Gbps
  • Efficient Cable Management
    Flexible Connectivity
    Features selectable USB-C and USB-B host inputs, dual USB-A loop-out ports, and a receiver with one USB-C plus three USB-A device ports
  • Power Over Cable (POC)
    Bi-Directional PoC
    Supports 24V PoC, allowing either endpoint to power the entire system for simplified installations
  • Control Options
    Control Integration
    Includes RS-232 pass-through, API command support, and FSYNC GPIO synchronization for AV, automation, and industrial applications
  • img10-1
    High-Speed USB
    Hardware acceleration ensures stable transmission of both bulk and isochronous USB data for demanding peripherals
  • mounts-icon
    Wall Plate Installation
    Combines a 1-gang wall plate transmitter with a compact receiver for clean, professional installations in commercial environments
  • USB 3.2 Gen 1 compliant with backward compatibility for USB 2.0 and USB 1.1 devices
  • Supports high-bandwidth USB peripherals including PTZ cameras, webcams, storage devices, keyboards, mice, and touchscreens
  • Dual USB-A loop-out ports provide convenient local USB connectivity at the transmitter
  • LED indicators display power, USB activity, and link status for simplified troubleshooting
  • Driver-free plug-and-play operation for Windows, macOS, and Linux systems
  • Dedicated USB-C service port for firmware upgrades and long-term maintenance
  • Single CAT6A cable installation reduces cabling complexity and installation costs
  • Durable construction designed for professional AV and enterprise deployments
  • Includes mounting hardware and wall plate accessories for streamlined installation

Tech Specifications

Technical
USB Protocol USB 3.2 Gen 1
Data Rate Up to 5Gbps
Transmission Distance Up to 100m (328ft) via CAT6a (F/FTP); up to 1.5m (4.9ft) via USB cable
ESD Protection IEC 61000-4-2: ±8kV (air discharge), ±4kV (contact discharge)
Power Supply DC 24V / 3.75A (AC 100–240V, 50/60Hz adapter)
Max Power Consumption 62W
Transmitter Connections
USB HOST Inputs 1x USB-C (24-pin female), 1x USB-B (9-pin female)
USB DEVICE Outputs 2x USB-A (5V/1A)
Link Interface 1x RJ45 (HDBT-USB3, PoC)
Control Ports 1x RS-232 (3-pin Phoenix), 1x FSYNC (1-pin Phoenix), 1x USB-C SERVICE (firmware update)
Receiver Connections

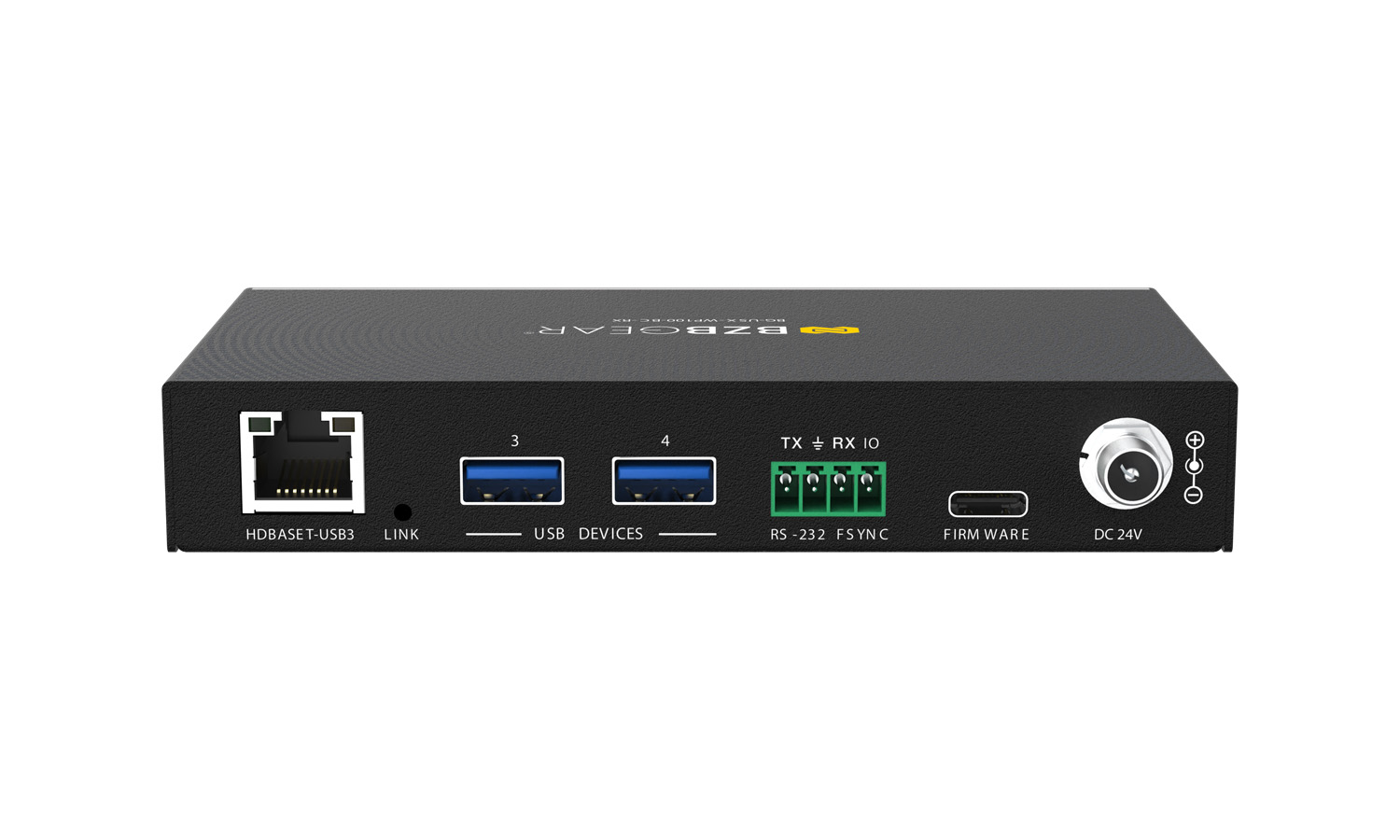

Link Input 1x RJ45 (HDBT-USB3, PoC)
USB Outputs 1x USB-C DEVICE, 3x USB-A DEVICE (5V/1A & 5V/1.5A)
Control Ports 1x RS-232 (3-pin Phoenix), 1x FSYNC (1-pin Phoenix), 1x USB-C SERVICE (firmware update)
Mechanical
Housing TX: Plastic front panel + metal enclosure; RX: Metal enclosure
Color TX: White + Black; RX: Black
Dimensions TX: 1.8 x 1.7 x 4.1 in [45 x 42 x 103.5 mm]; RX: 5.5 x 3 x 0.91 in [140 x 75 x 23 mm]
Weight TX: 0.25 lb [115g]; RX: 0.70 lb [318g]
Environmental
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity 20% ~ 80% RH (non-condensing)
Storage Humidity 10% ~ 90% RH (non-condensing)

Resources

Documents

PACKAGE CONTENTS

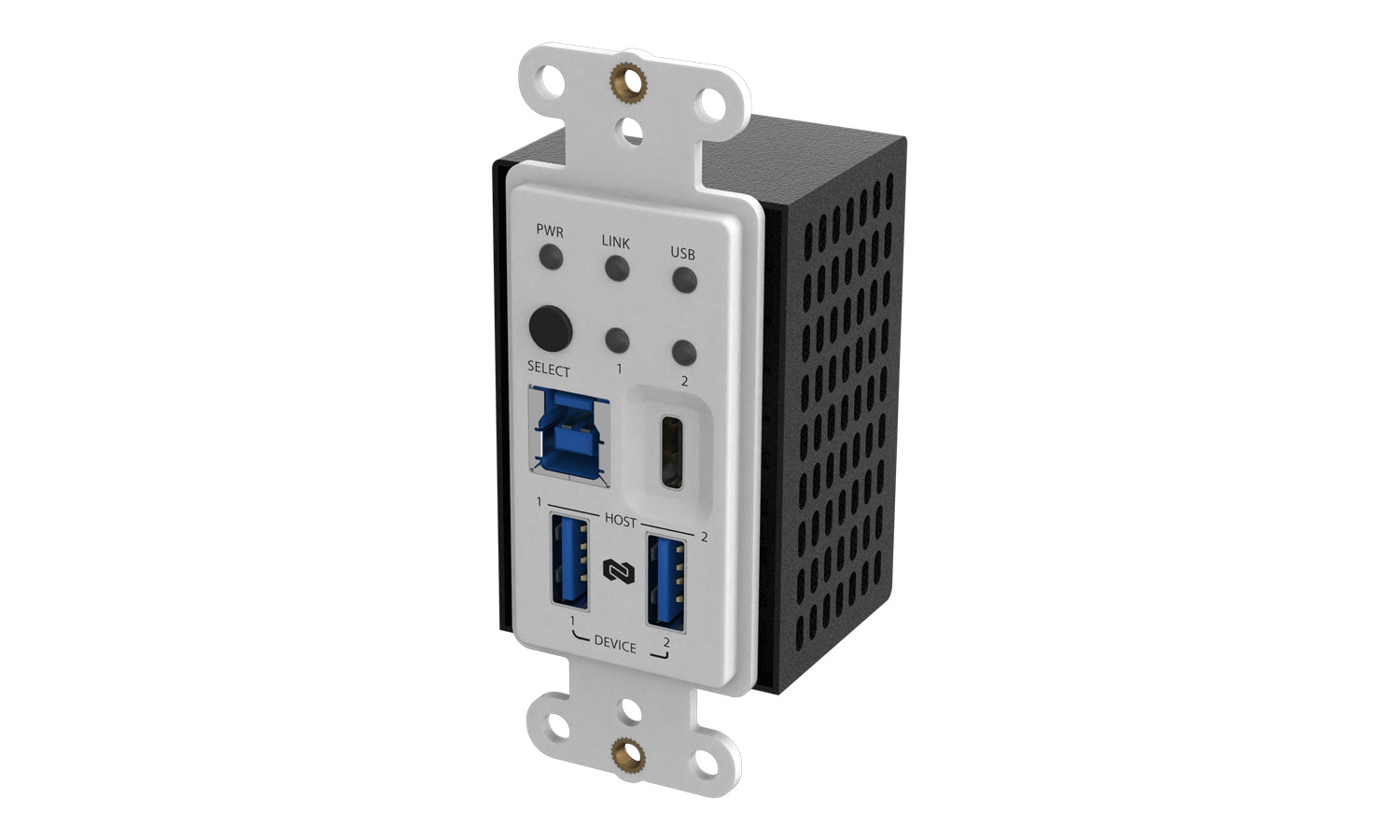

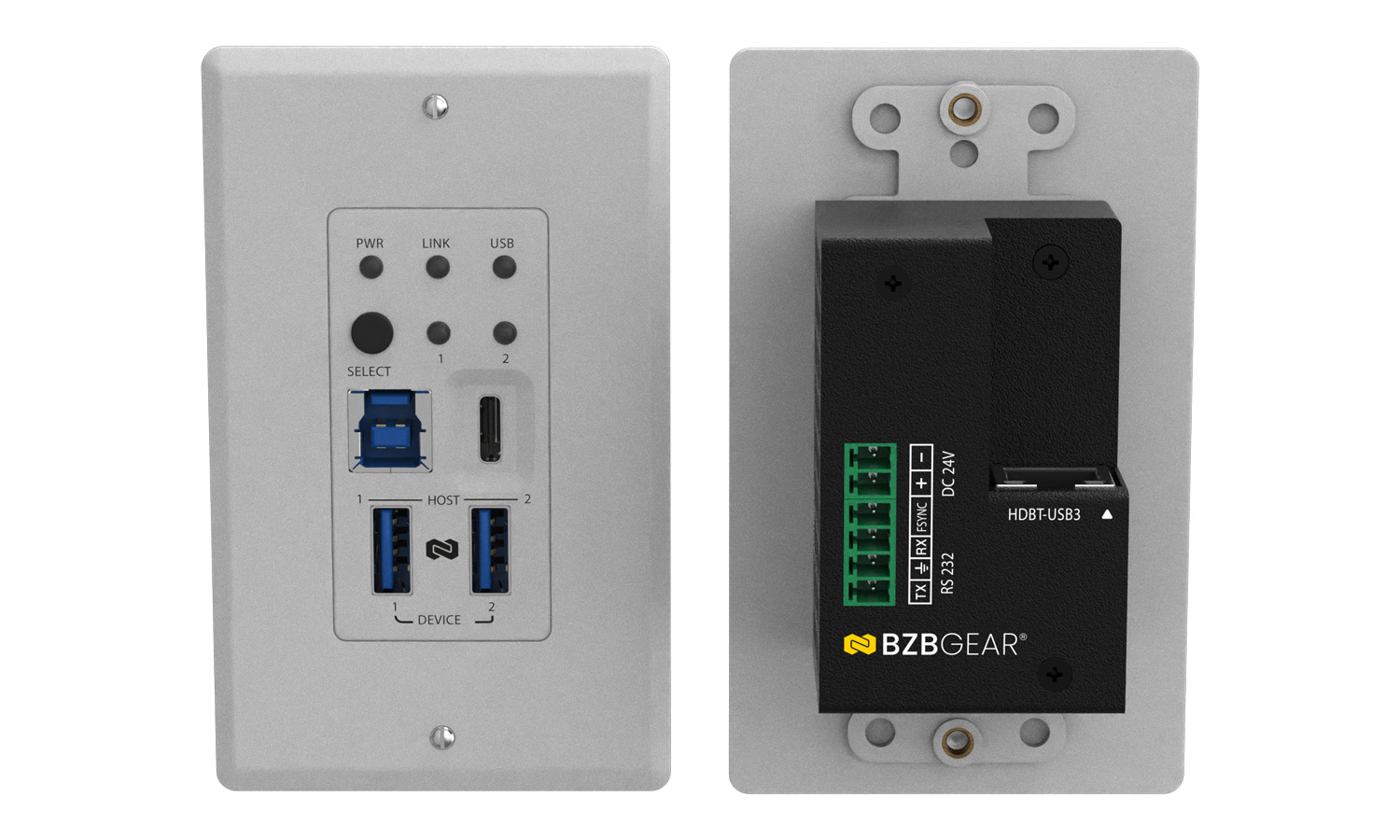

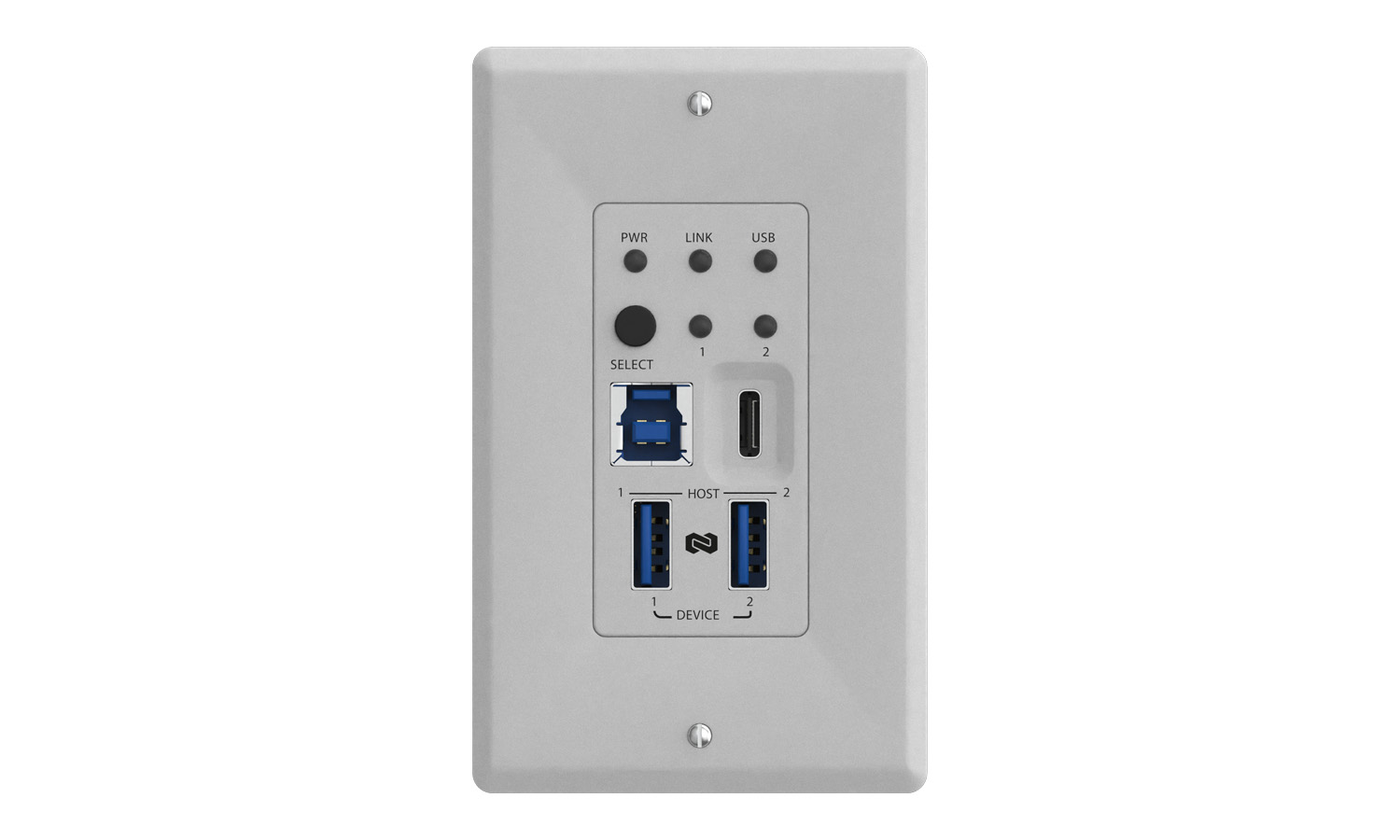

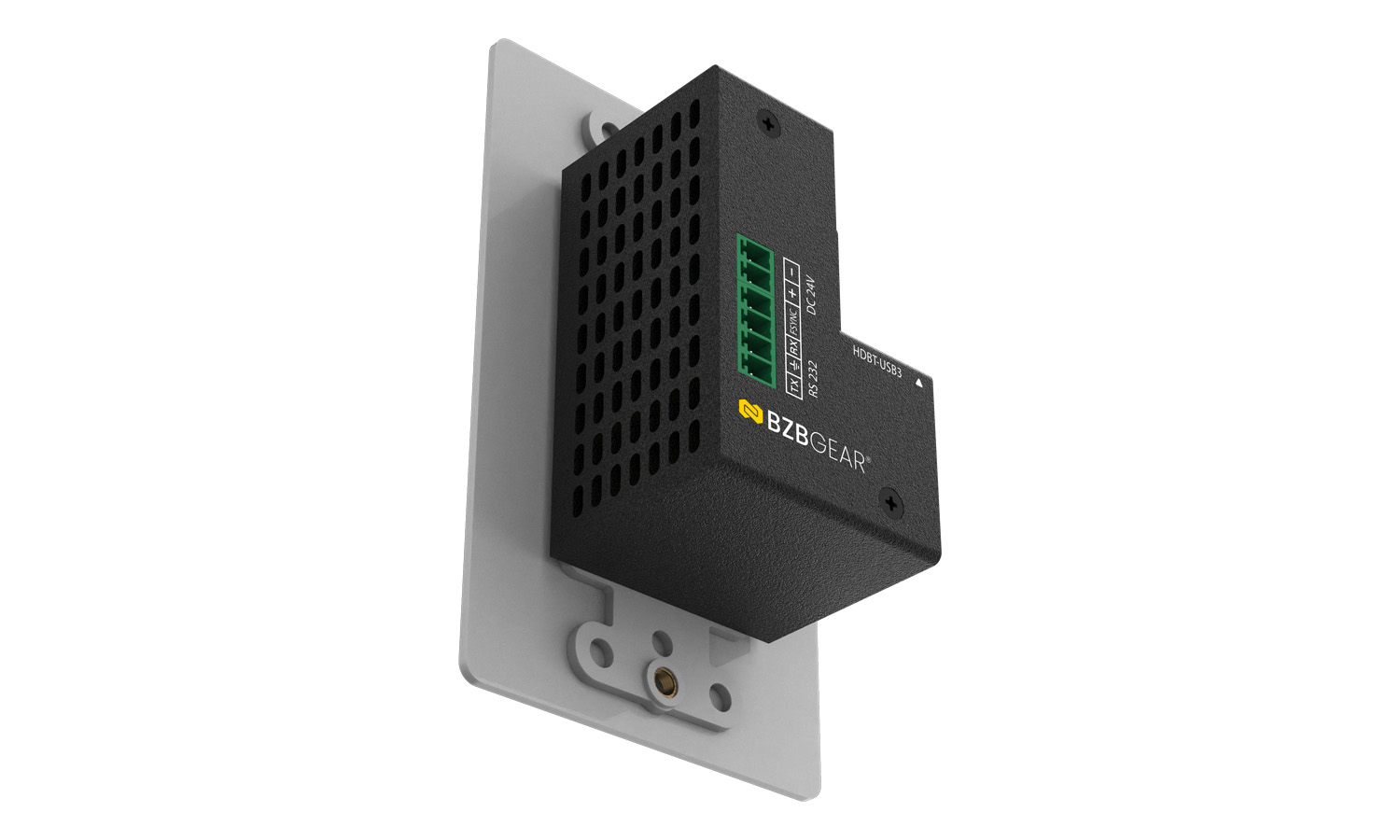

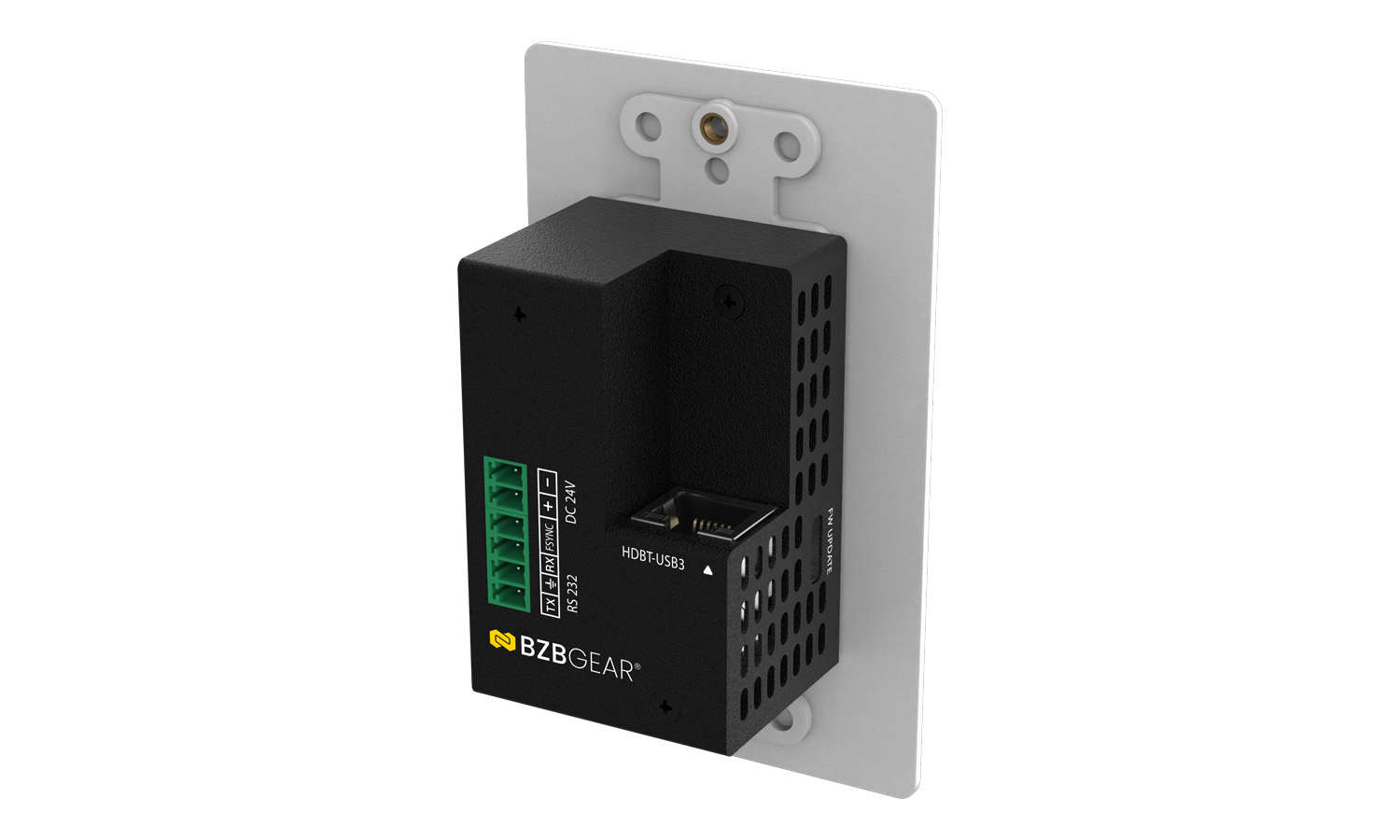

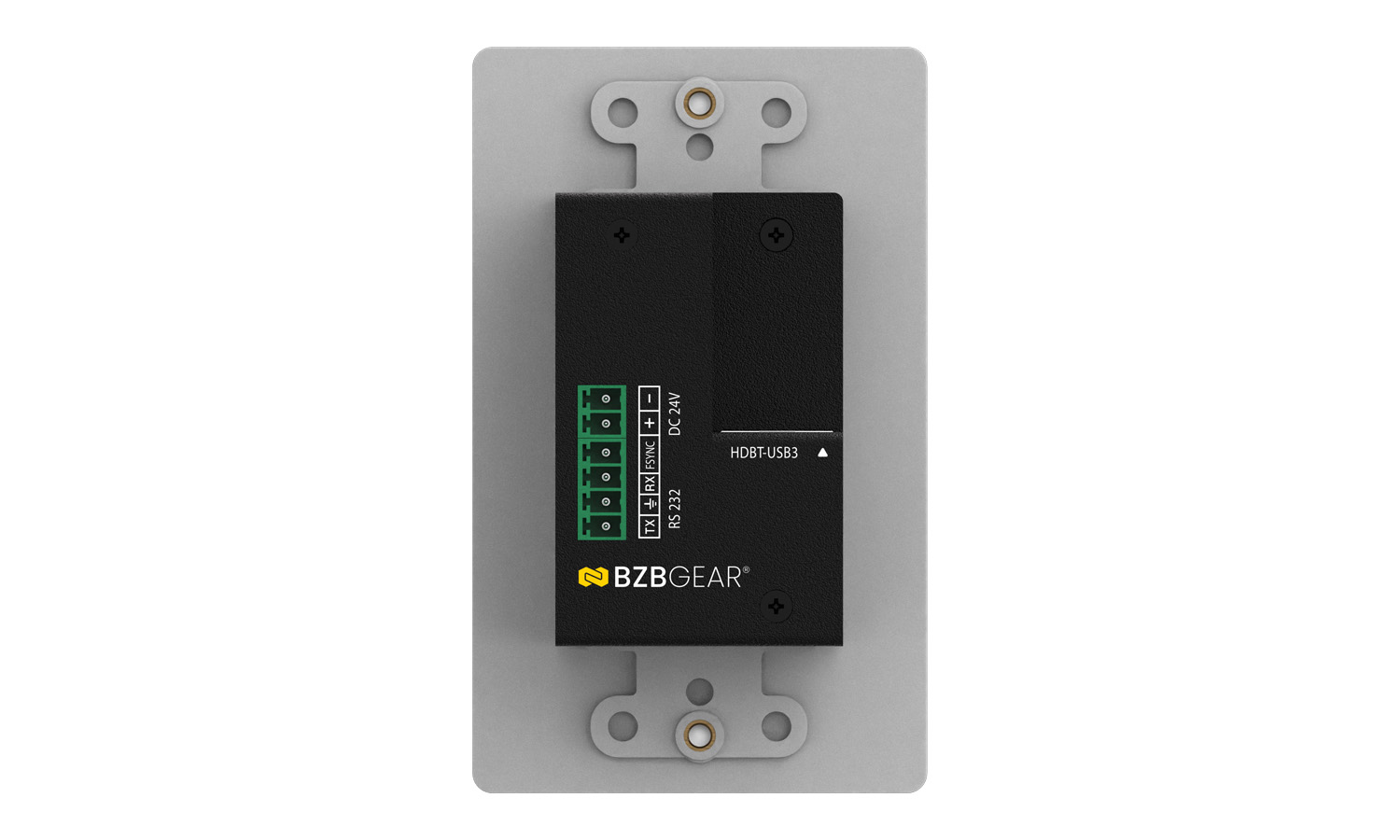

  • 1x USB 3.2 Gen 1 Wall-Plate Extender (Transmitter)

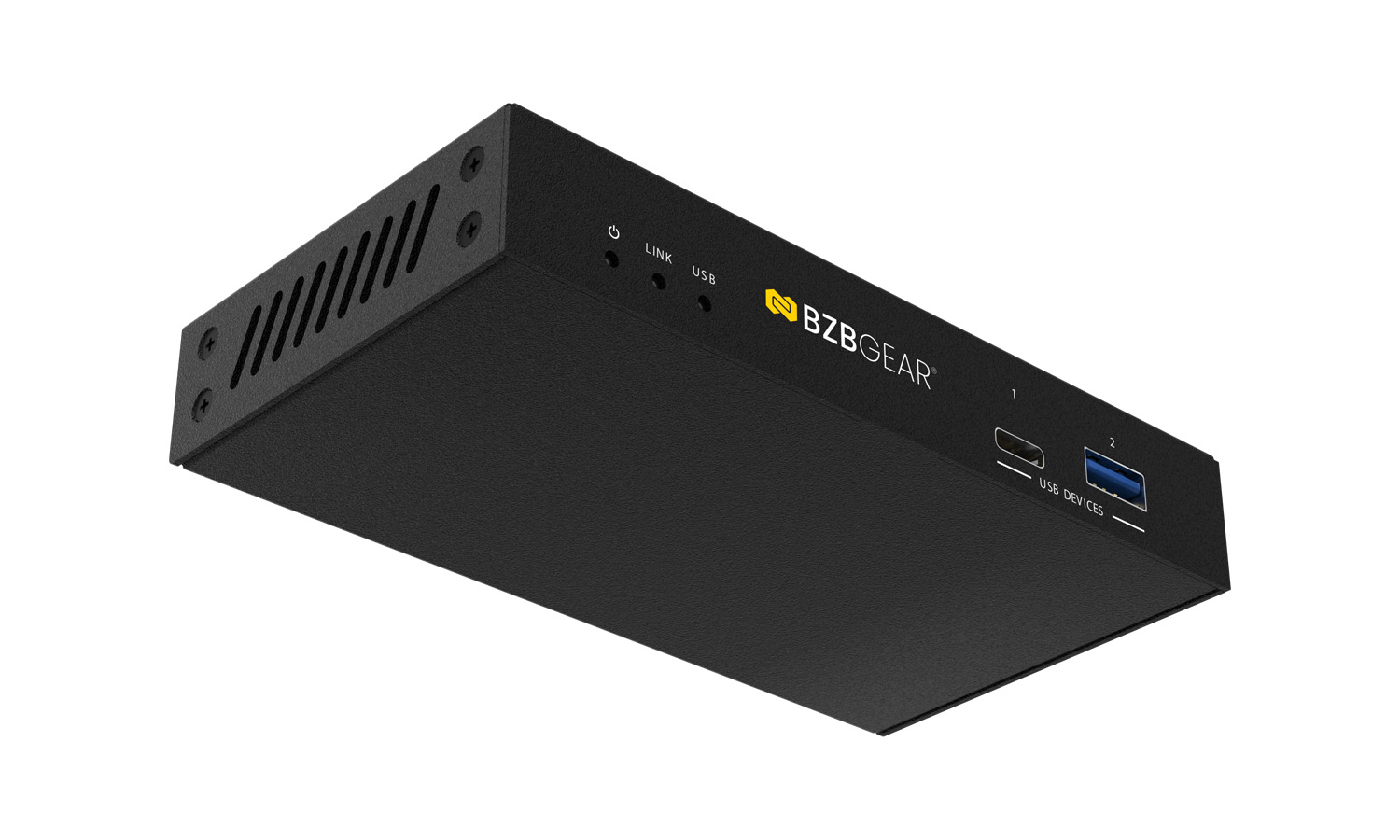

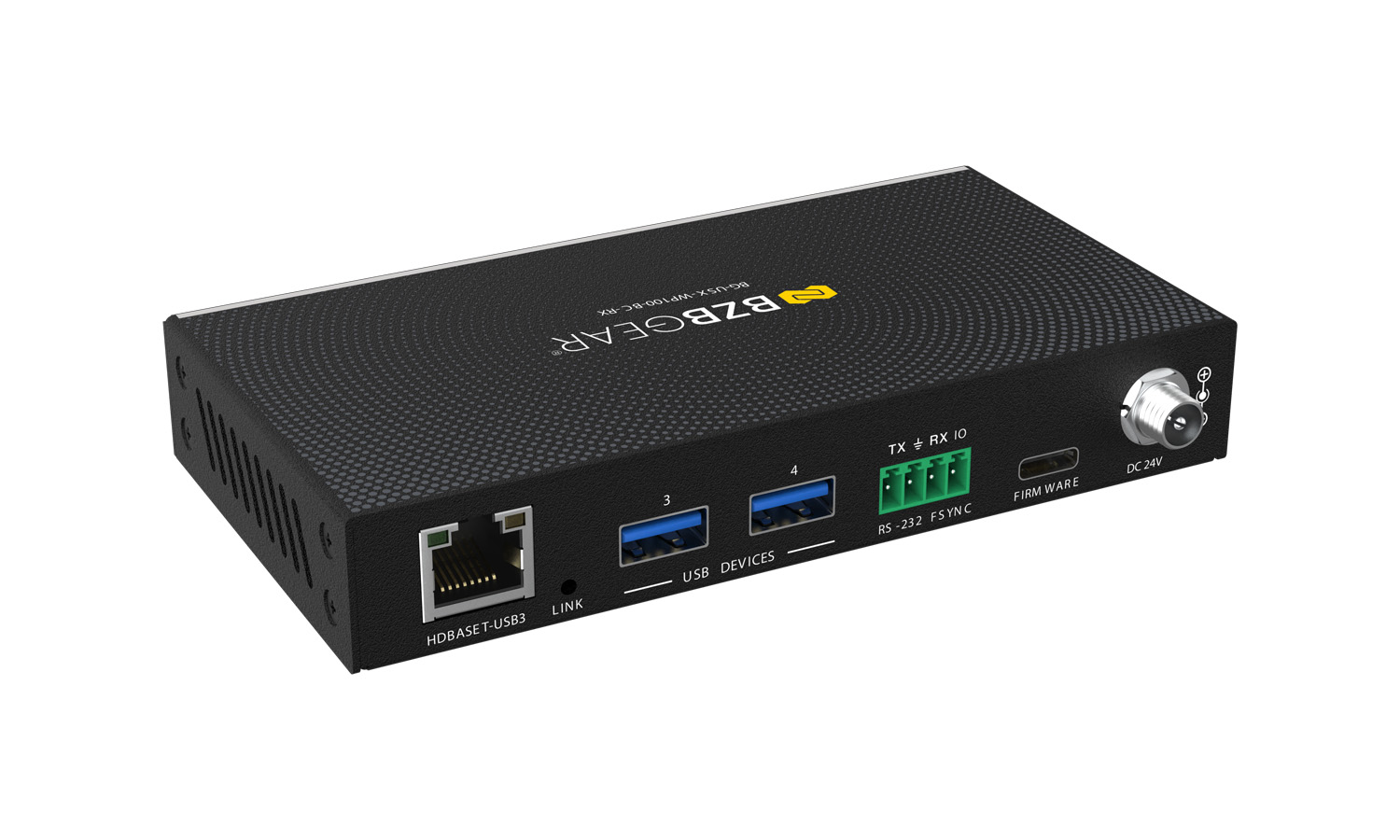

  • 1x USB 3.2 Gen 1 Box Extender (Receiver)
  • 1x 24V/3.75A Power Supply
  • 1x 2-pin 3.5mm Phoenix Connector (Male)
  • 2x 4-pin 3.5mm Phoenix Connector (Male)
  • 2x Mounting Ears
  • 4x Machine Screws (KM3x4)
  • 2x Machine Screws (6#-32x3/4)
  • 1x Top Panel Cover
  • 1x User Manual

Interfaces

Interfaces image

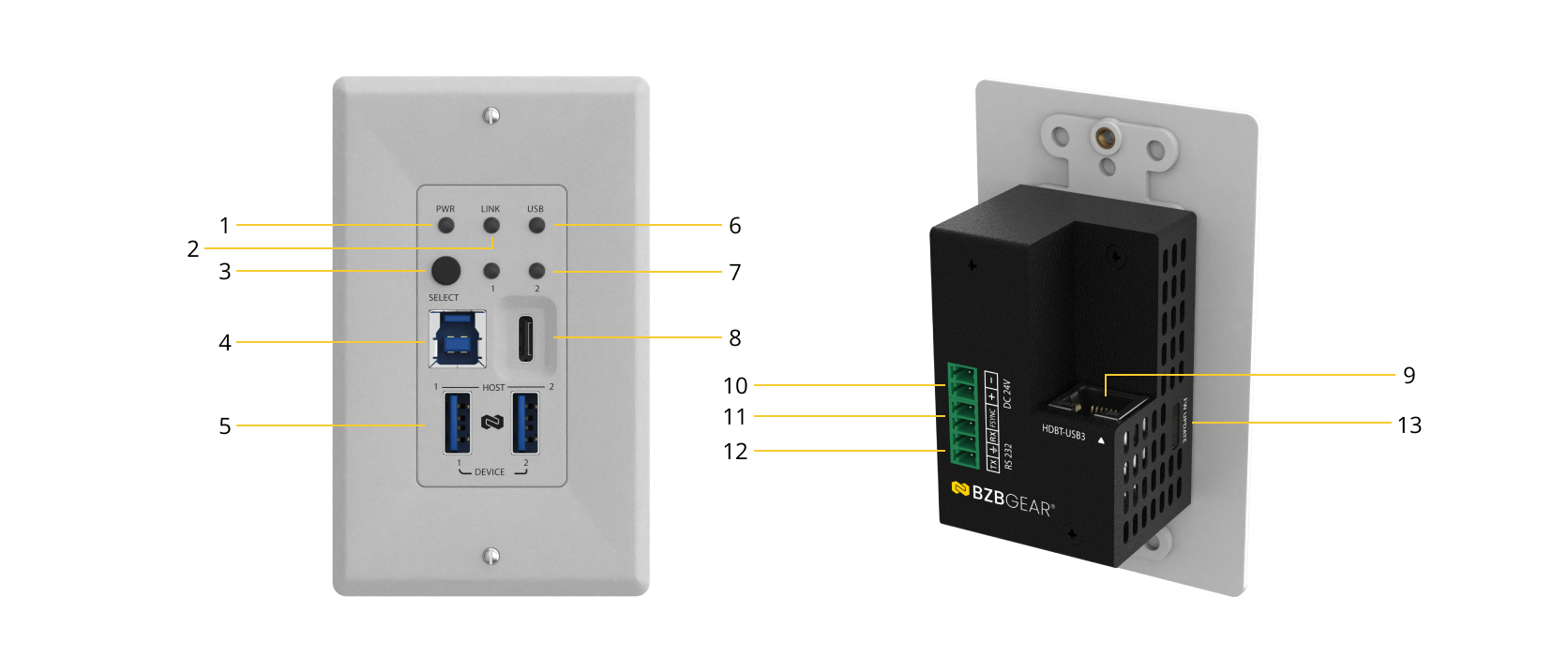

Transmitter

  1. PWR LED: Indicates power status. Green LED is ON when the unit is powered.
  2. LINK LED: Indicates link status. ON when TX and RX are successfully connected.
  3. SELECT Button: Cycles between USB HOST 1 and HOST 2 input selection.
  4. HOST 1 (USB-B): USB host input port for connection to a PC or host device.
  5. USB-A DEVICE 1/2: USB device ports for peripherals (e.g., flash drives, storage devices). Supports up to 5V/1A power output.
  6. USB Status LED: USB signal indicator: ON = USB 3.0, Blinking = USB 2.0, OFF = no USB signal detected.
  7. HOST LEDs 1/2: Indicates active USB host selection (HOST 1 or HOST 2).
  8. HOST 2 (USB-C): Alternative USB host input for connection to a PC or host device.
  9. HDBT-USB3 (RJ45): Single CAT6a link connection to Receiver; supports USB extension and PoC.
  10. DC 24V: 24V power input port (required if powering TX side).
  11. FSYNC: GPIO-style signal pass-through for external device synchronization (0–5V level).
  12. RS-232: 3-pin Phoenix connector for serial command pass-through/control system integration.
  13. SERVICE (USB-C): Firmware update port and service interface connection.
Interfaces image

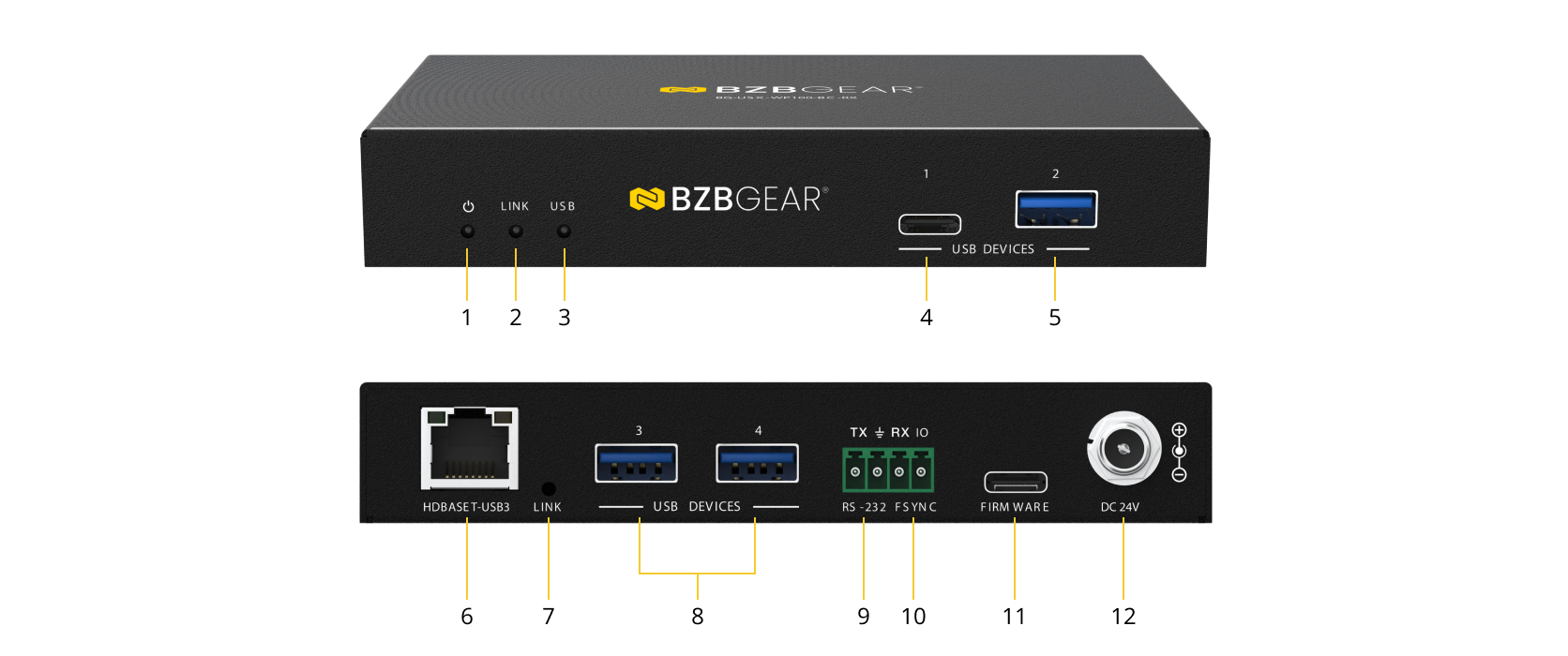

Receiver

  1. Power LED: Indicates power status. ON when receiver is powered.
  2. LINK LED: Indicates connection status between TX and RX. ON = linked, OFF = no link.
  3. USB LED: USB activity indicator: ON = USB 3.0, Blinking = USB 2.0, OFF = no USB signal.
  4. USB-C DEVICE: USB device port for peripherals (e.g., storage, cameras, controllers).
  5. USB-A DEVICE 2: USB device port for peripherals. Supports up to 5V/1A.
  6. USB-A DEVICE 3/4: High-power USB device ports for peripherals. Supports up to 5V/1.5A.
  7. HDBT-USB3 (RJ45): CAT6a link input from transmitter; carries USB data and PoC power.
  8. LINK LED: Secondary link status indicator confirming TX/RX connection.
  9. RS-232: 3-pin Phoenix connector for serial control pass-through.
  10. FSYNC: GPIO signal pass-through for external synchronization (0–5V).
  11. SERVICE (USB-C): Firmware upgrade and service port.
  12. DC 24V: 24V power input (optional if powering from TX via PoC).
