Dual-Host USB 3.2 Type-A/B/C Switcher & HDBaseT 3.0 Extender Kit with Bi-Directional PoC/RS-232 up to 328ft
and engineering support

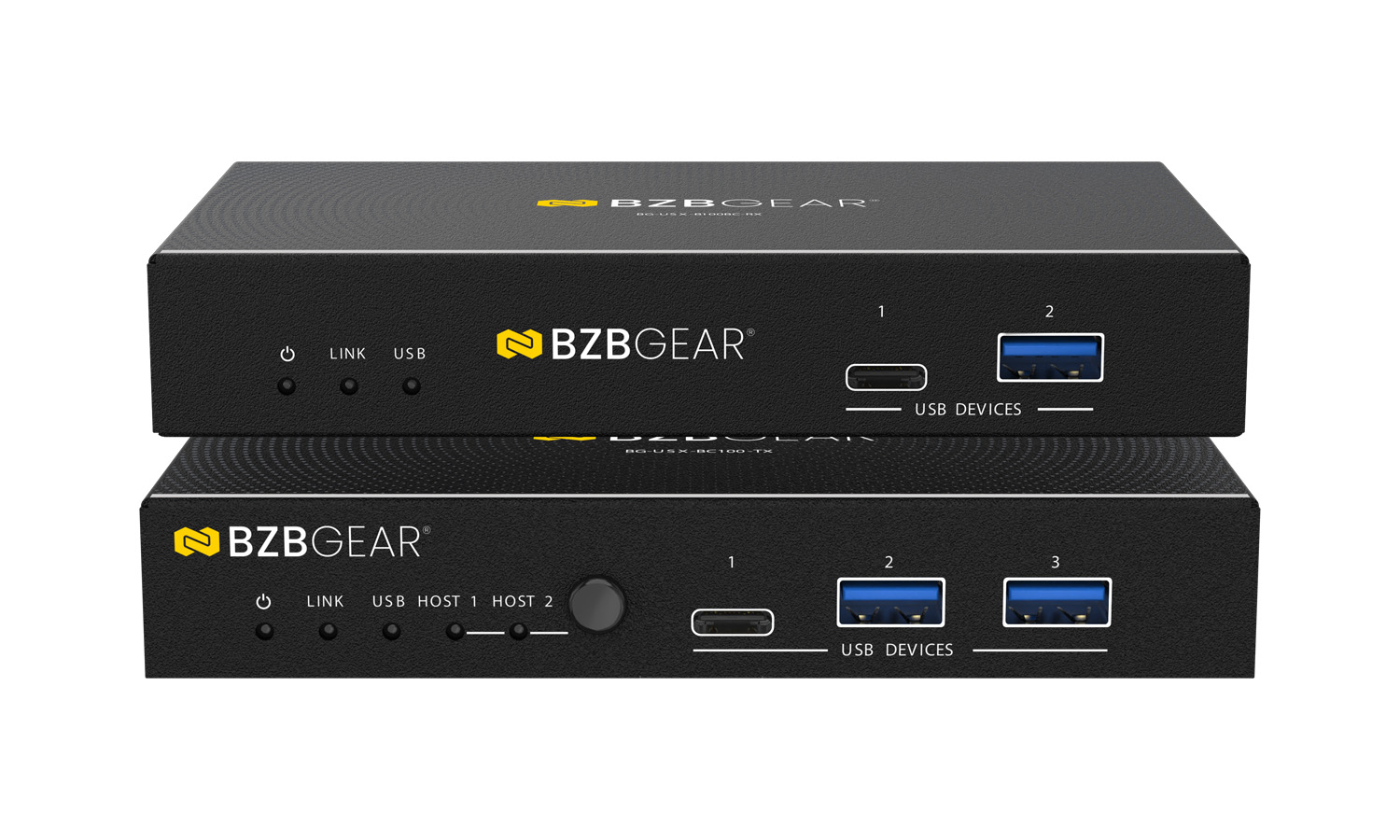

Overview
The BG-USX-B100BC is a professional USB 3.2 Gen 1 extender kit that extends high-speed USB connectivity up to 100m (328ft) over a single CAT6a cable. Supporting data transfer rates up to 5Gbps, it enables reliable long-distance connectivity for USB peripherals while remaining fully backward compatible with USB 2.0 and USB 1.1 devices. With selectable USB-C and USB-B host inputs, multiple USB device ports, and plug-and-play operation, it provides a flexible solution for professional AV, industrial, and enterprise installations.
Designed for demanding applications, the BG-USX-B100BC features bi-directional 24V Power over Cable (PoC), automatic and manual host switching, RS-232 pass-through, FSYNC GPIO support, API control, and hardware acceleration for stable isochronous and bulk USB transfers. Whether extending PTZ cameras, touch displays, industrial cameras, or conferencing peripherals, the system delivers reliable performance with simplified installation.
Features in Depth
The BG-USX-B100BC extends USB 3.2 Gen 1 signals up to 100m (328ft) using a single CAT6a (F/FTP) cable while maintaining transfer speeds of up to 5Gbps. The transmitter features selectable USB-C and USB-B host inputs, allowing easy integration with modern laptops, desktop computers, media servers, and industrial control systems. The receiver provides one USB-C and three USB-A device ports, enabling simultaneous connection of multiple USB peripherals without sacrificing bandwidth or reliability. Full backward compatibility with USB 2.0 and USB 1.1 devices ensures seamless operation with legacy equipment.
Built for professional and industrial environments, the BG-USX-B100BC incorporates hardware acceleration to optimize both isochronous and bulk USB transfers, making it particularly effective for latency-sensitive peripherals such as PTZ cameras, webcams, touchscreens, industrial cameras, machine vision systems, storage devices, and other high-bandwidth USB equipment. Automatic host switching via USB 5V detection allows seamless transitions between connected host devices, while manual switching offers greater control for integrated workflows.
To simplify deployment, the system features bi-directional 24V Power over Cable (PoC), allowing either the transmitter or receiver to power both units through the CAT6a connection, reducing cabling and power supply requirements. Additional integration features include RS-232 pass-through, FSYNC GPIO synchronization, API command support, and firmware upgrades through a dedicated USB-C service port. Housed in durable metal enclosures and requiring no driver installation, the BG-USX-B100BC provides a dependable long-distance USB extension solution for conference rooms, broadcast facilities, industrial automation, medical imaging, education, and enterprise AV systems.
Features
-
![Wide-Angle 1]()
100m USB 3.2 Gen 1 ExtensionExtends high-speed USB signals up to 100m (328ft) over a single CAT6a cable with data rates up to 5Gbps -
![bi_usb-symbol]()
Flexible Host & Device ConnectivityFeatures selectable USB-C and USB-B host inputs and provides one USB-C plus three USB-A device ports for connecting multiple peripherals -
![img8]()
Bi-Directional 24V Power over CableEither endpoint can power the complete system, reducing installation complexity and minimizing power supply requirements -
![Future-Proof]()
Optimized High-Bandwidth PerformanceHardware acceleration ensures reliable isochronous and bulk USB transfers for PTZ cameras, webcams, storage devices, touch panels, and industrial equipment -
![Third-Party Compatibility]()
Professional System IntegrationSupports RS-232 pass-through, FSYNC GPIO, API commands, automatic/manual host switching, and firmware updates for advanced control applications -
![fluent_plug-connected-add-20-regular]()
Plug-and-Play DeploymentDriver-free operation with backward compatibility for USB 2.0 and USB 1.1 devices enables fast installation across a wide range of operating systems
- Extends USB 3.2 Gen 1 signals up to 100m (328ft) over CAT6a (F/FTP) cable
- Supports USB transfer speeds up to 5Gbps
- Fully backward compatible with USB 2.0 and USB 1.1 devices
- Selectable USB-C and USB-B host interfaces provide flexible source connectivity
- Receiver includes one USB-C and three USB-A device ports
- Automatic host switching via USB 5V detection
- Manual host selection for controlled switching between connected systems
- Hardware acceleration improves stability for isochronous and bulk USB traffic
- RS-232 pass-through supports remote serial communication and automation systems
- FSYNC GPIO pass-through supports synchronized industrial and machine vision camera applications
- API command support enables integration with third-party control platforms
- Dedicated USB-C service port supports firmware upgrades and long-term maintenance
- Bi-directional 24V PoC allows either the transmitter or receiver to power both units
- Durable metal enclosures designed for continuous commercial operation
- Plug-and-play installation requires no software or driver installation
Tech Specifications
| Technical Specifications | |
| USB Protocol | USB 3.2 Gen 1 |
| Max Data Rate | Up to 5Gbps |
| Transmission Distance | Up to 100m / 328ft via CAT6a (F/FTP); up to 1.5m / 4.9ft via USB cable |
| ESD Protection | IEC 61000-4-2: ±8kV (air discharge), ±4kV (contact discharge) |
| Connections | |
| Transmitter Host Inputs | 1x USB-C (24-pin, female), 1x USB-B (9-pin, female) |
| Transmitter Device Outputs | 1x USB-C (24-pin, female), 2x USB-A (9-pin, female) |
| Transmitter Extension Port | 1x HDBT-USB3 (RJ45, 24V PoC) |
| Transmitter Control Ports | 1x RS-232 (3-pin 3.5mm Phoenix), 1x FSYNC (1-pin 3.5mm Phoenix) |
| Transmitter Service Port | 1x USB-C (firmware update) |
| Receiver Extension Input | 1x HDBT-USB3 (RJ45, 24V PoC) |
| Receiver Device Outputs | 1x USB-C (24-pin, female), 3x USB-A (9-pin, female) |
| Receiver Control Ports | 1x RS-232 (3-pin 3.5mm Phoenix), 1x FSYNC (1-pin 3.5mm Phoenix) |
| Receiver Service Port | 1x USB-C (firmware update) |
| Mechanical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W x D x H) | 5.5 x 3 x 0.91 in [140 x 75 x 23 mm] (Transmitter / Receiver) |
| Weight | Transmitter: 0.69 lb [313 g]; Receiver: 0.70 lb [318 g] |
| Power Supply | AC 100–240V, 50/60Hz; DC 24V / 3.75A output |
| Power Consumption | Transmitter: 23W (max); Receiver: 35W (max) |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | −4°F to 140°F / −20°C to 60°C |
| Operating Humidity | 20%–80% RH, non-condensing |
| Storage Humidity | 10%–90% RH, non-condensing |
Resources
PACKAGE CONTENTS
- 1x USB 3.2 Gen 1 Extender (Transmitter)
- 1x USB 3.2 Gen 1 Extender (Receiver)
- 1x 24V / 3.75A Locking Power Supply
- 2x 4-Pin 3.5mm Phoenix Connector (Male)
- 4x Mounting Ears
- 8x Machine Screws (KM3x4)
- 1x User Manual

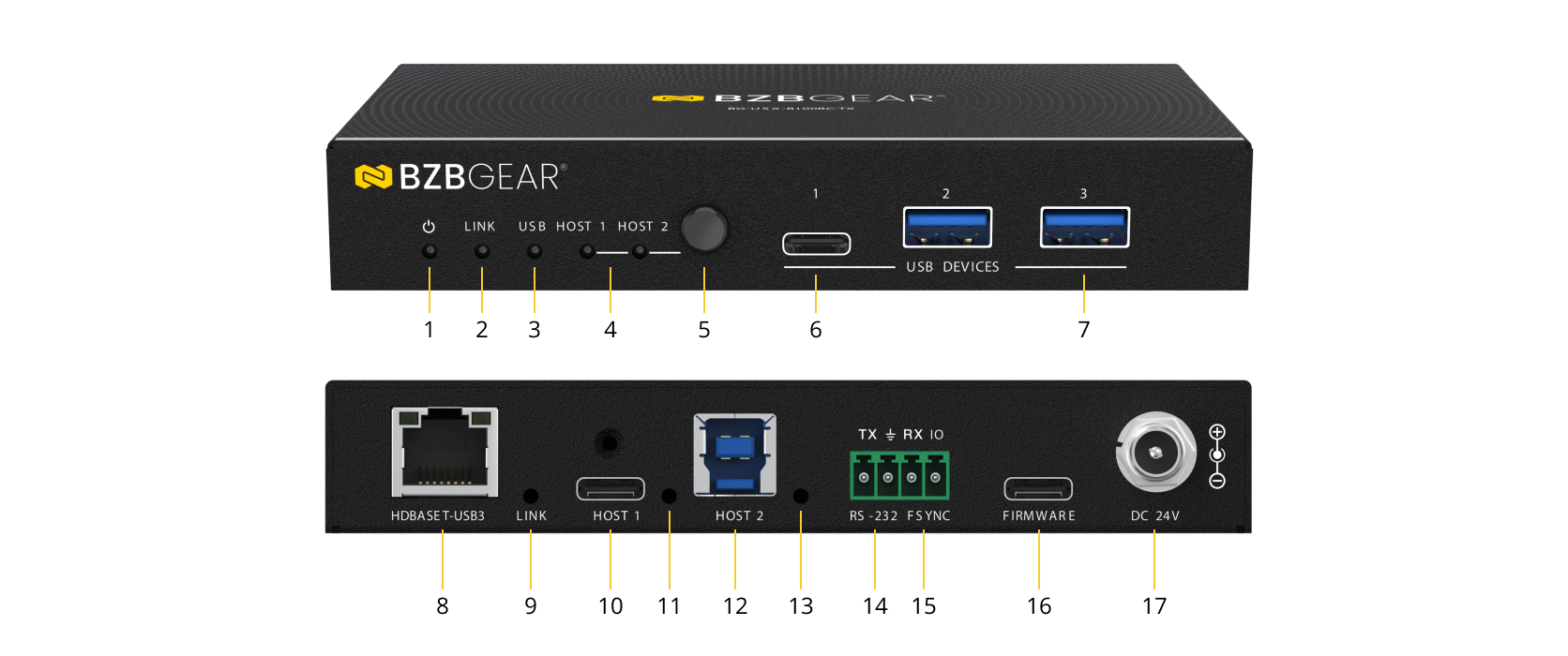

Interfaces

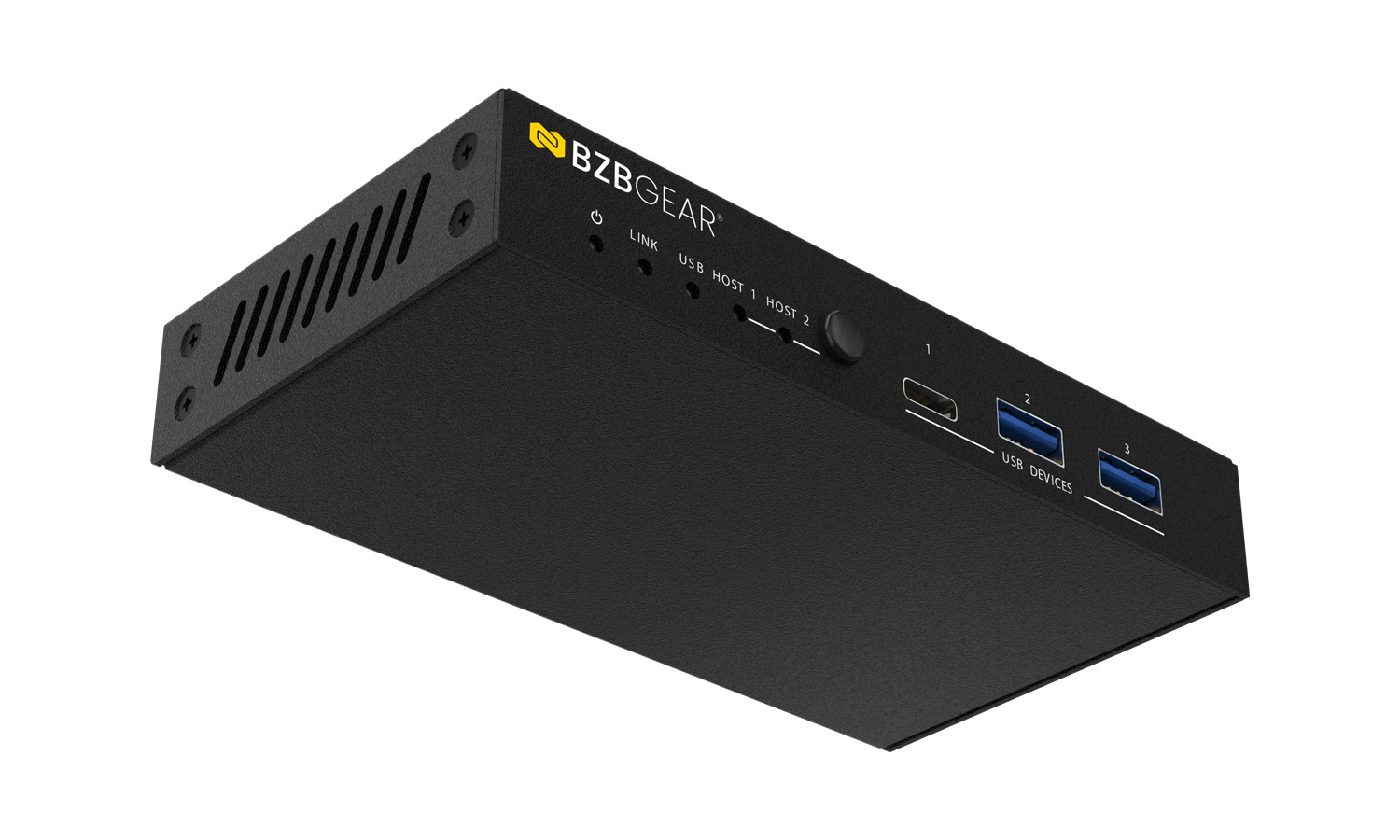

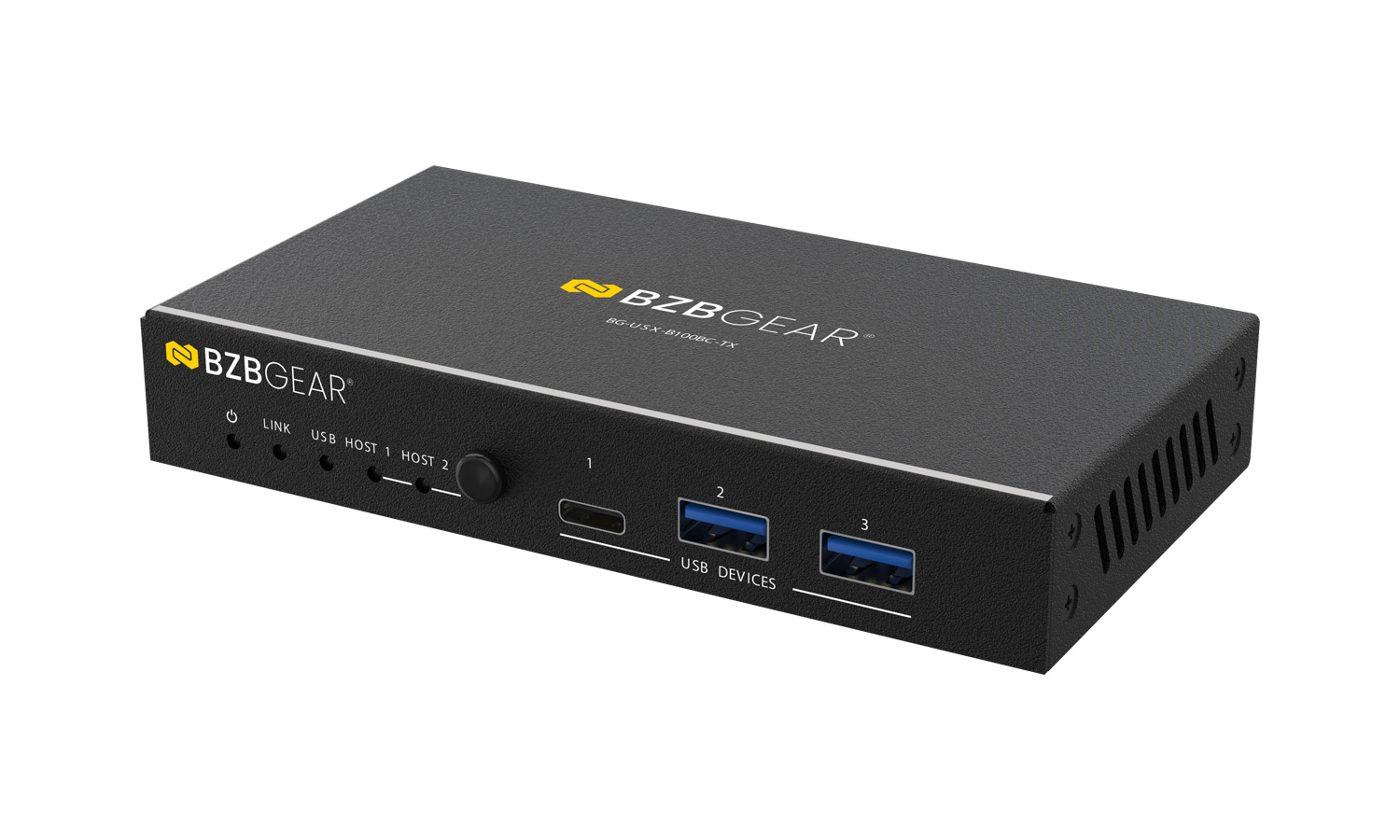

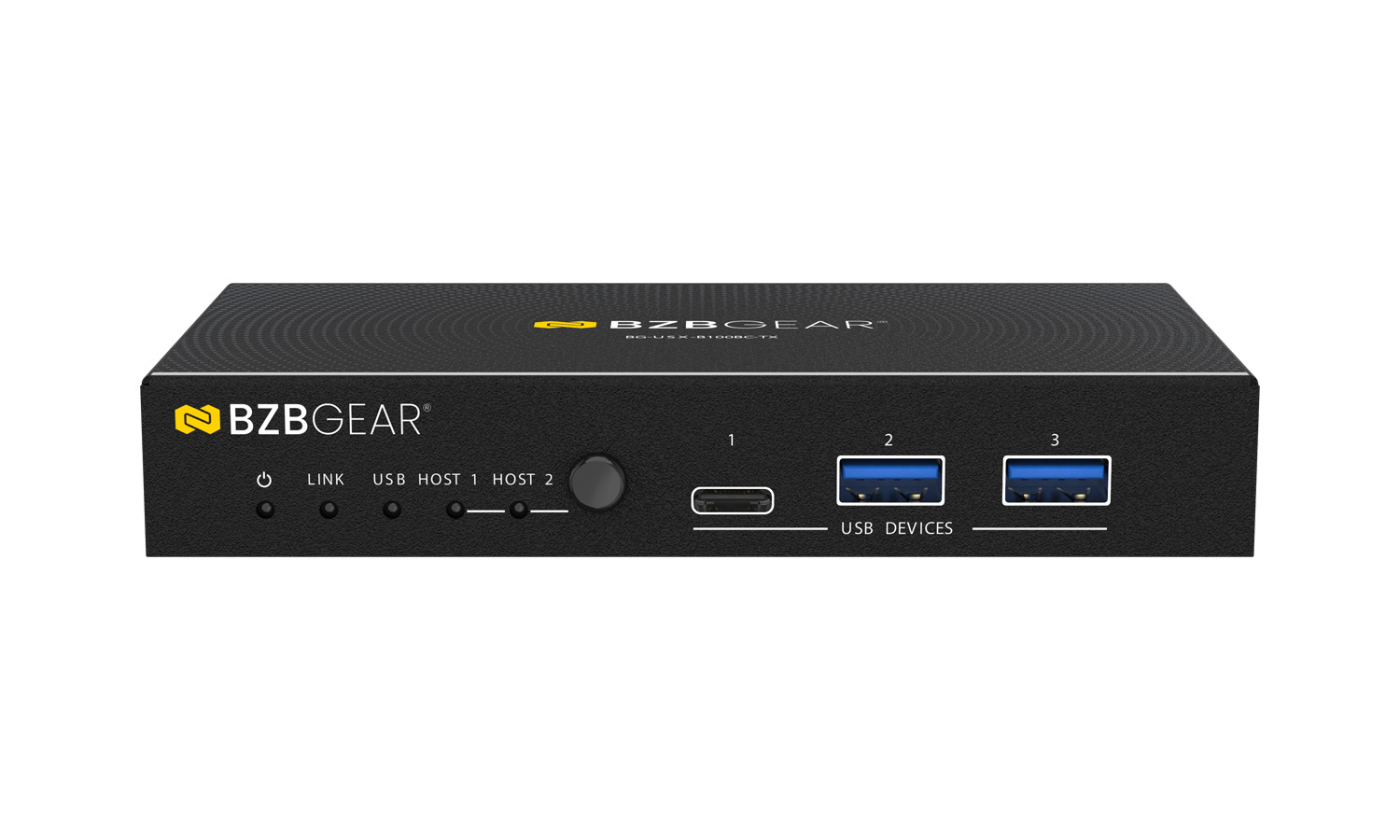

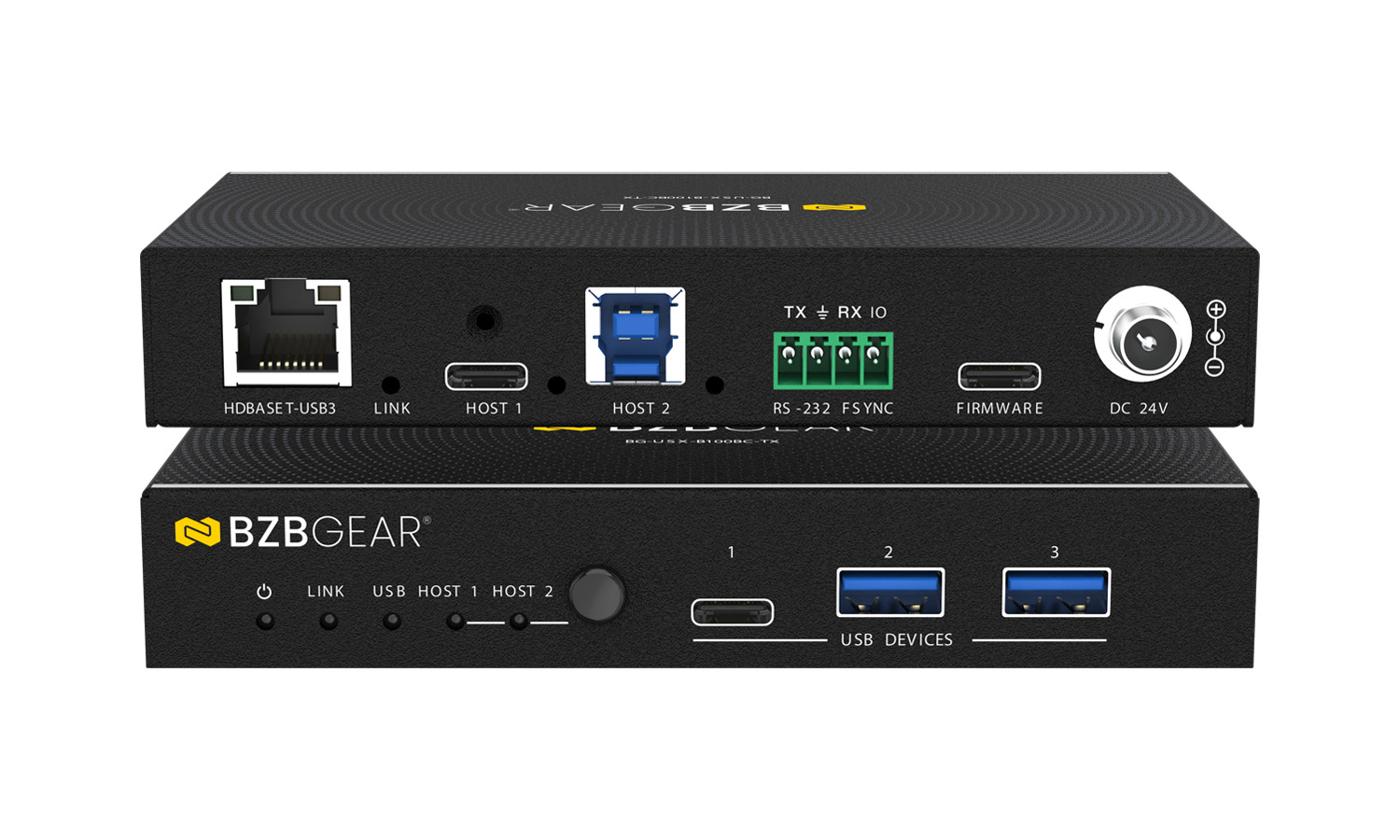

Transmitter
- Power LED: Indicates power status. LED is ON when the transmitter is powered.
- LINK LED (Top): Indicates connection status between transmitter and receiver. ON: link established; OFF: no link.
- USB LED: Indicates USB signal status. ON: USB 3.0 detected; Blinking: USB 2.0 detected; OFF: no USB signal.
- HOST (1~2) LED: Indicates which host input is currently selected (HOST 1 or HOST 2).
- HOST Switch Button: Used to manually switch between HOST 1 (USB-C) and HOST 2 (USB-B).
- USB DEVICE (USB-C): Downstream USB-C port for connecting USB peripherals (up to 5V/1A).
- USB DEVICE (USB-A x2): Downstream USB-A ports for connecting USB peripherals (up to 5V/1A each).

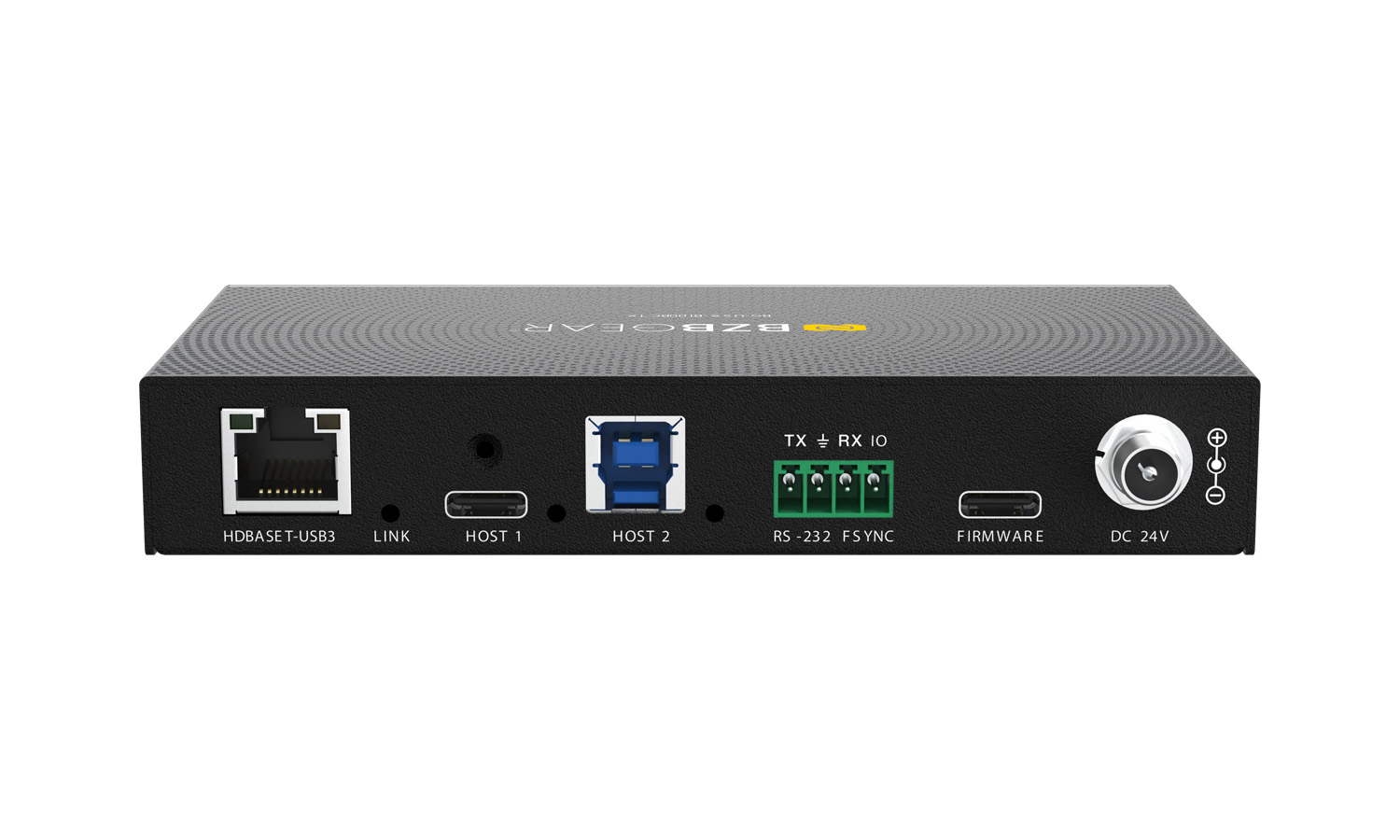

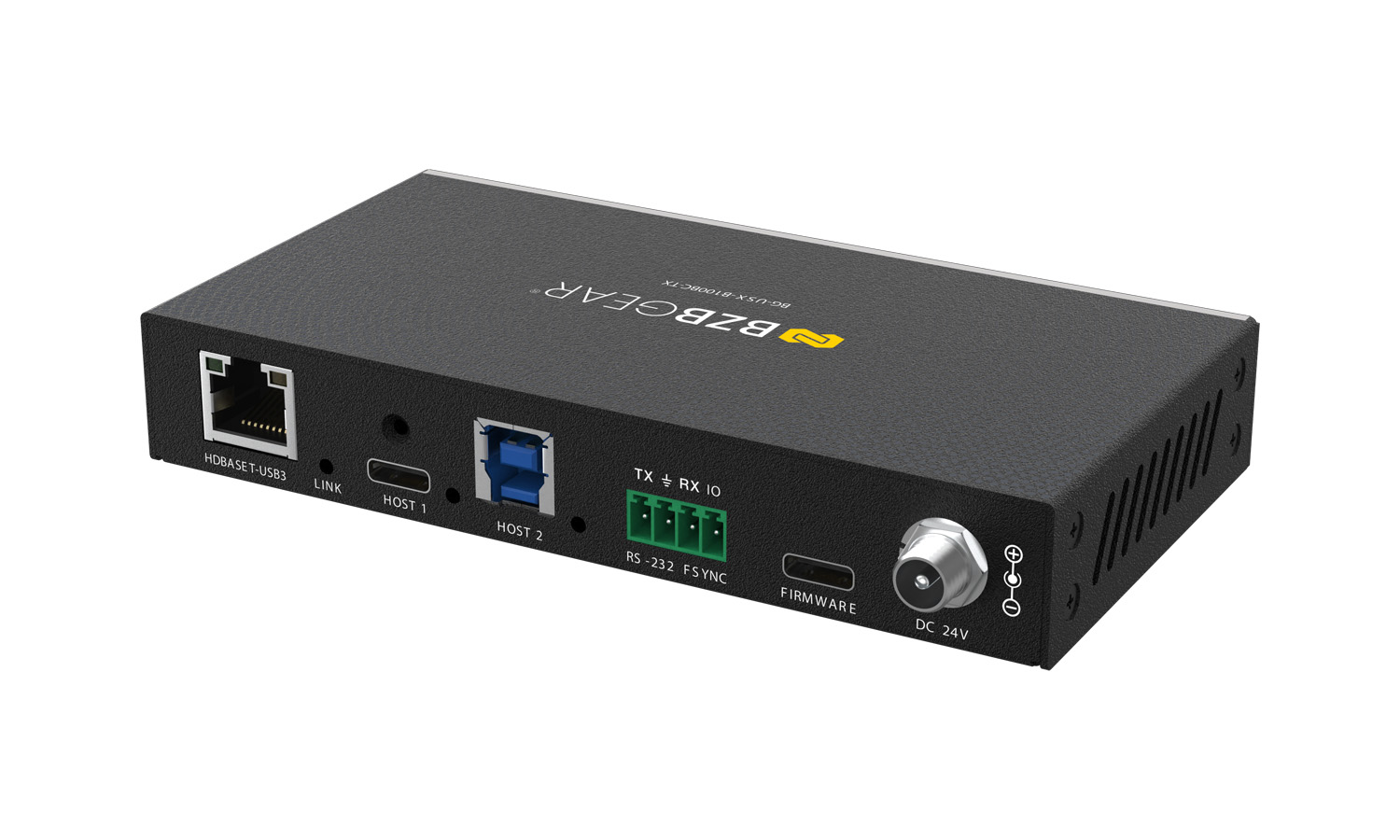

- HDBT-USB3 (RJ45): Connects to the receiver via CAT6a cable for USB extension and PoC power transmission.
- LINK LED (Bottom): Secondary link indicator for HDBT-USB3 connection status. ON: linked; OFF: no link.
- HOST 1 (USB-C): USB host input port (USB-C) for PC connection; also used for firmware updates.
- HOST 1 LED: Indicates USB signal activity on HOST 1. ON: active signal detected.
- HOST 2 (USB-B): USB host input port (USB-B) for PC connection; also used for firmware updates.
- HOST 2 LED: Indicates USB signal activity on HOST 2. ON: active signal detected.
- RS-232: 3-pin Phoenix connector for RS-232 pass-through communication with control systems.
- FSYNC: GPIO pass-through port (0–5V) for synchronization with external devices.
- SERVICE: USB-C service port used for firmware upgrades and maintenance.
- DC 24V: 24V DC power input (required if PoC is not used).

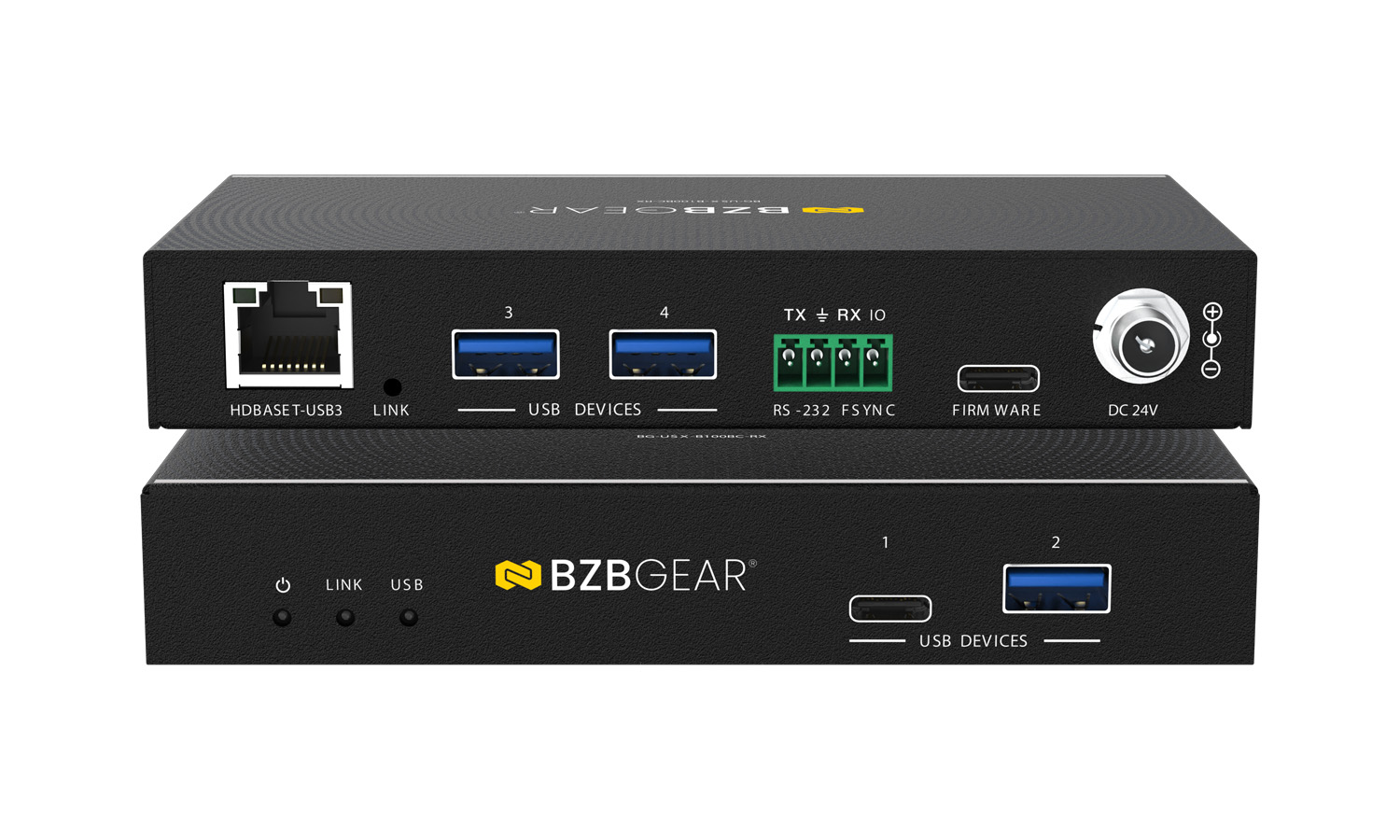

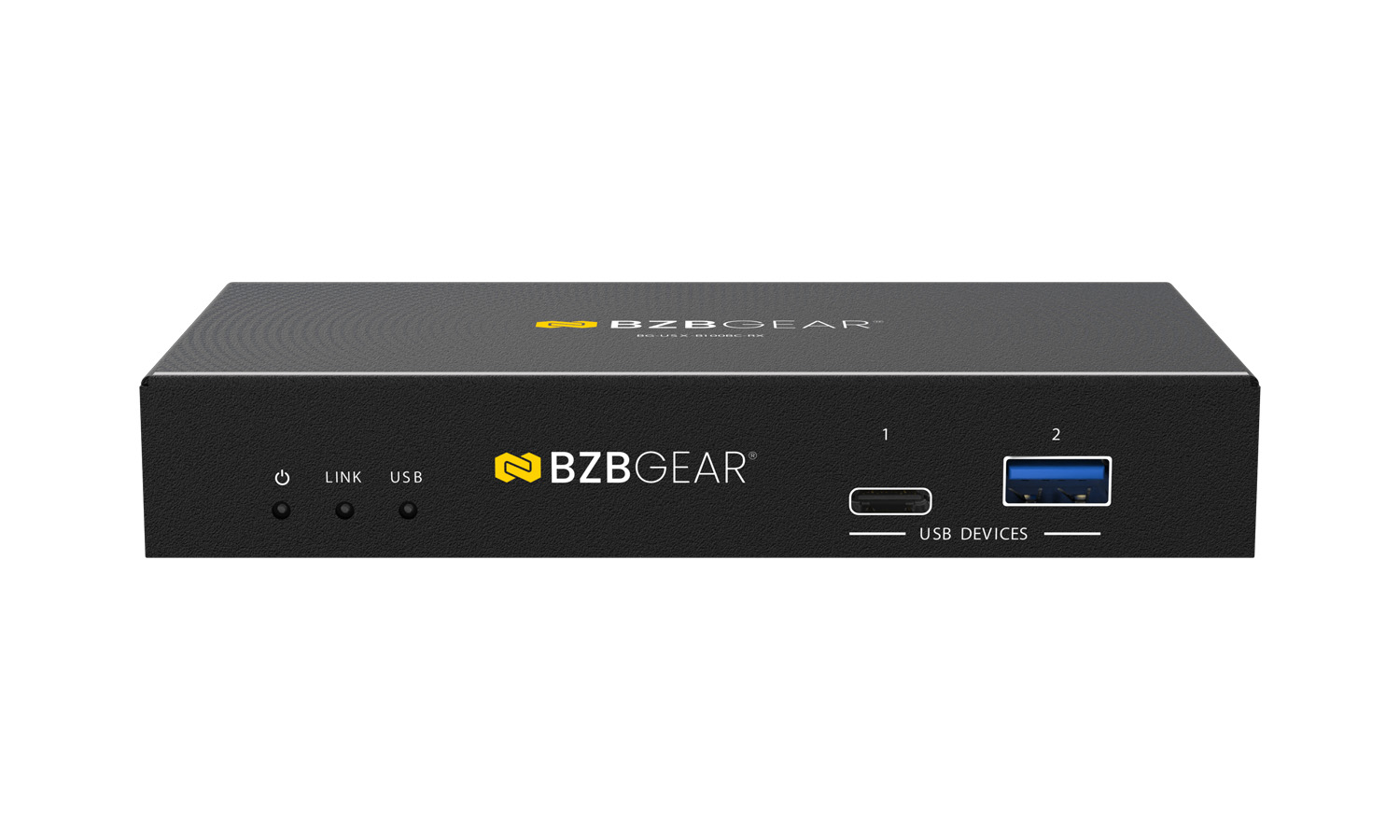

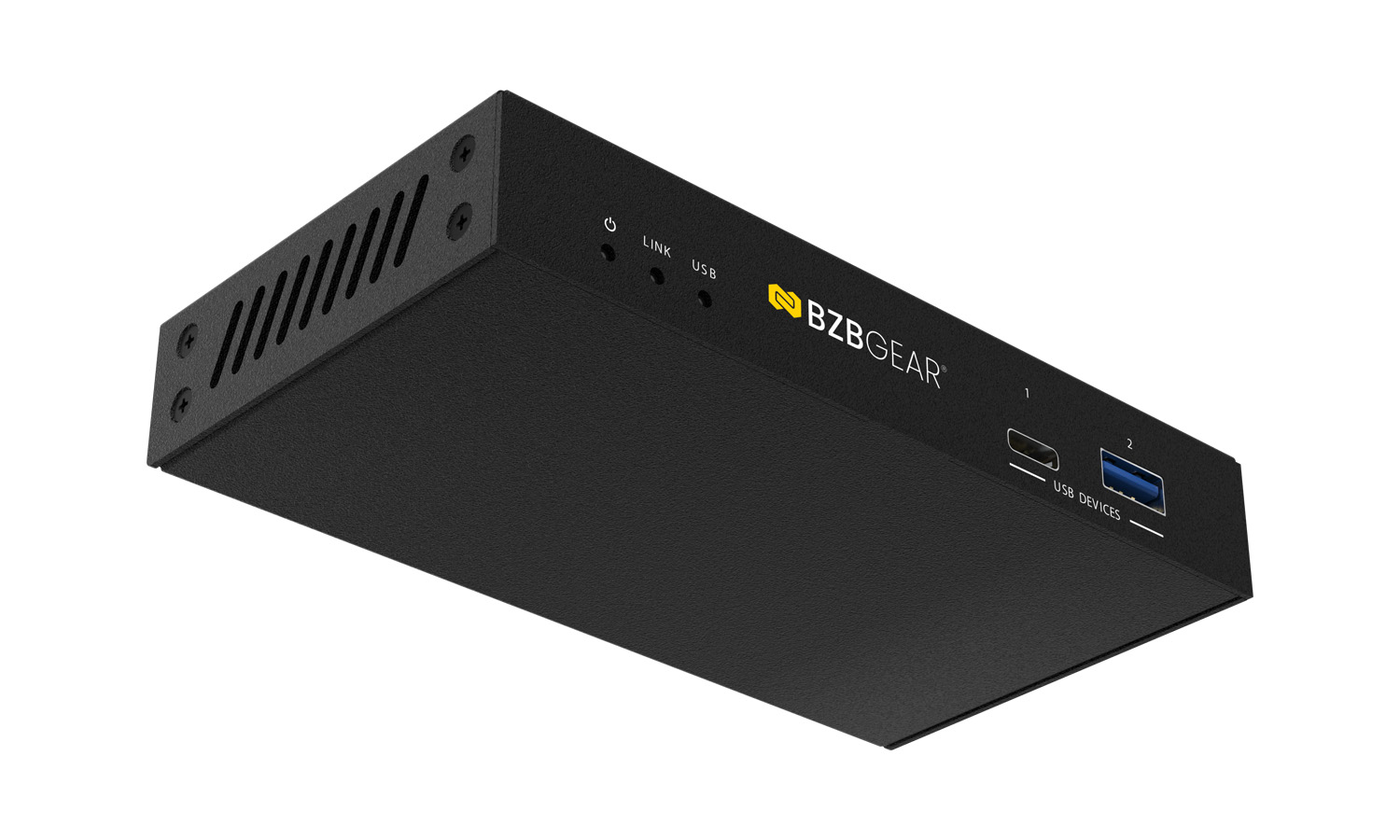

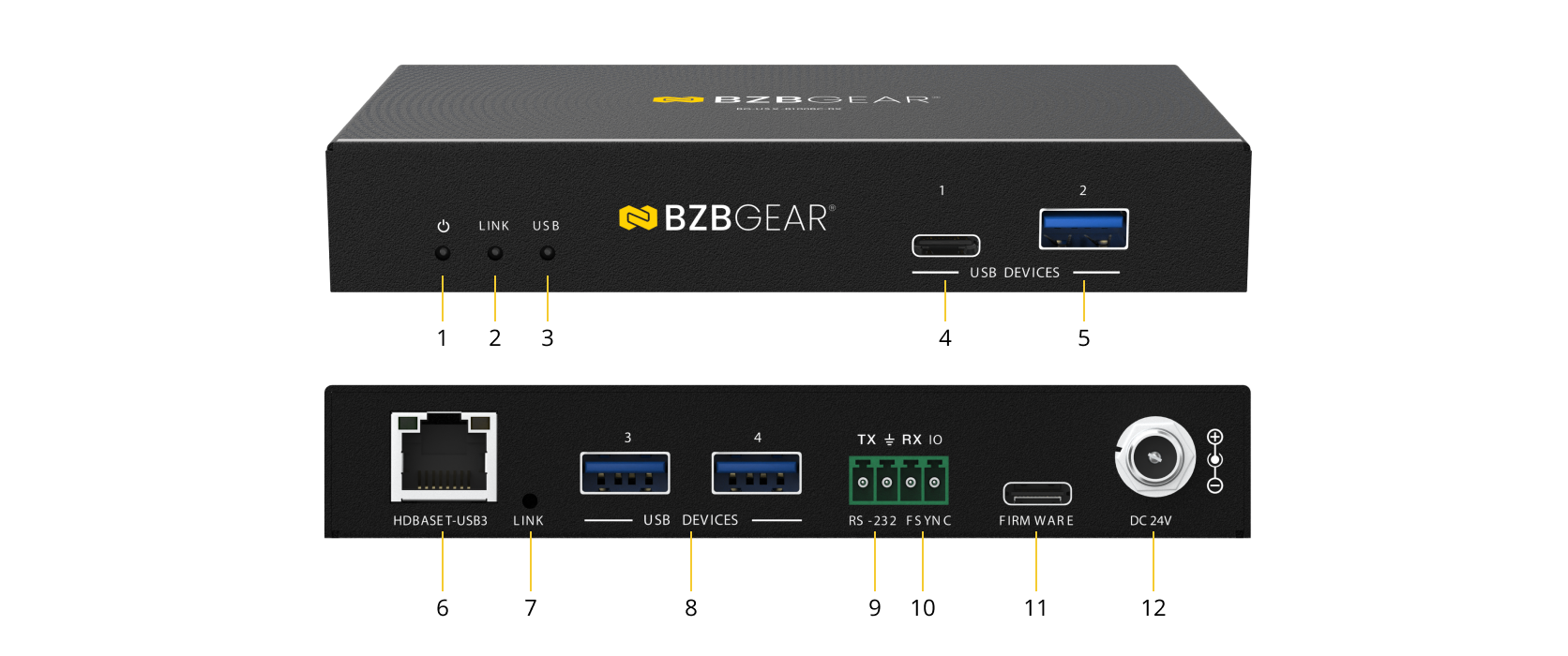

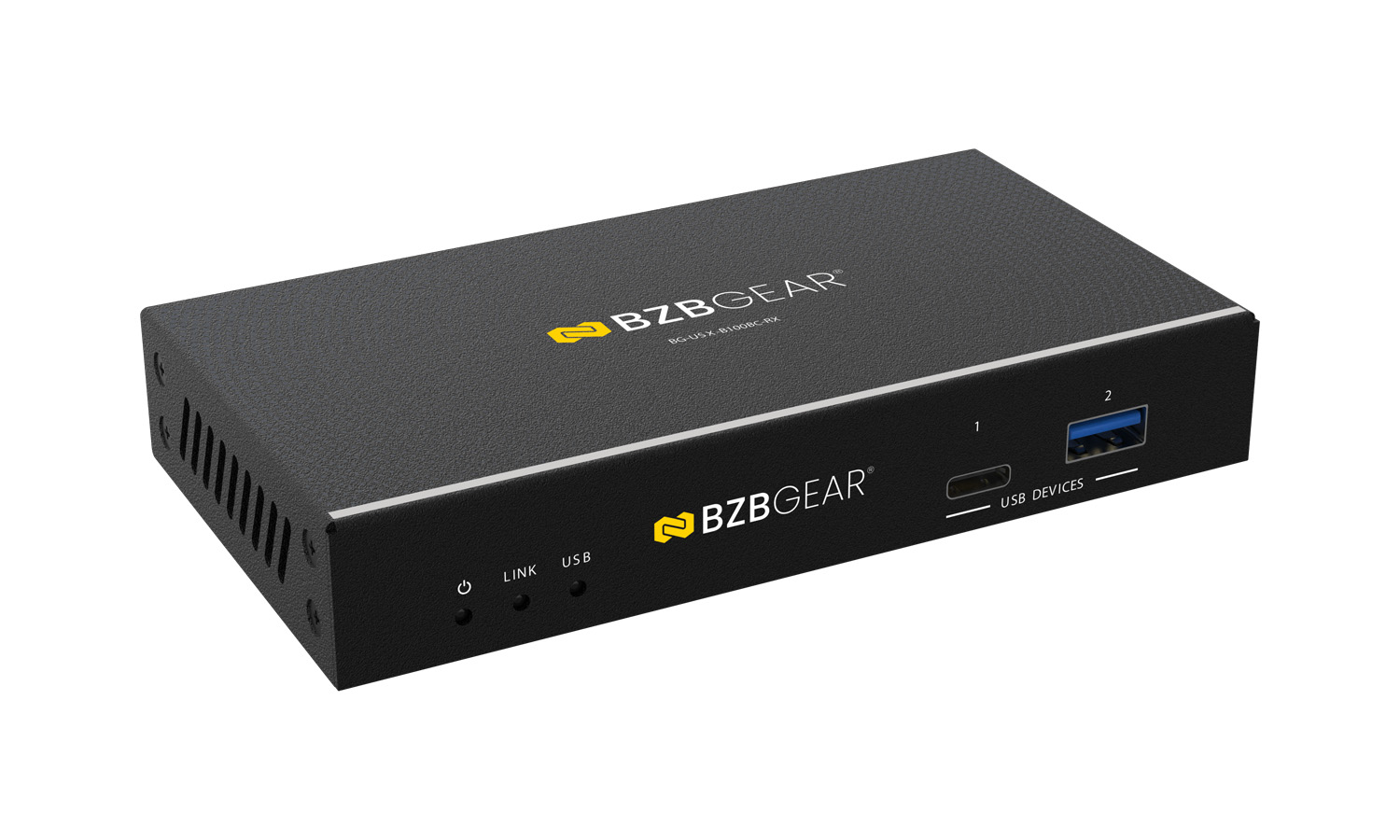

Receiver
- Power LED: Indicates power status. LED is ON when the receiver is powered.
- LINK LED (Top): Indicates link status with transmitter. ON: connected; OFF: no link.
- USB LED: Indicates USB signal status. ON: USB 3.0 detected; Blinking: USB 2.0 detected; OFF: no USB signal.
- USB DEVICE (USB-C): Downstream USB-C port for peripherals (up to 5V/1A).

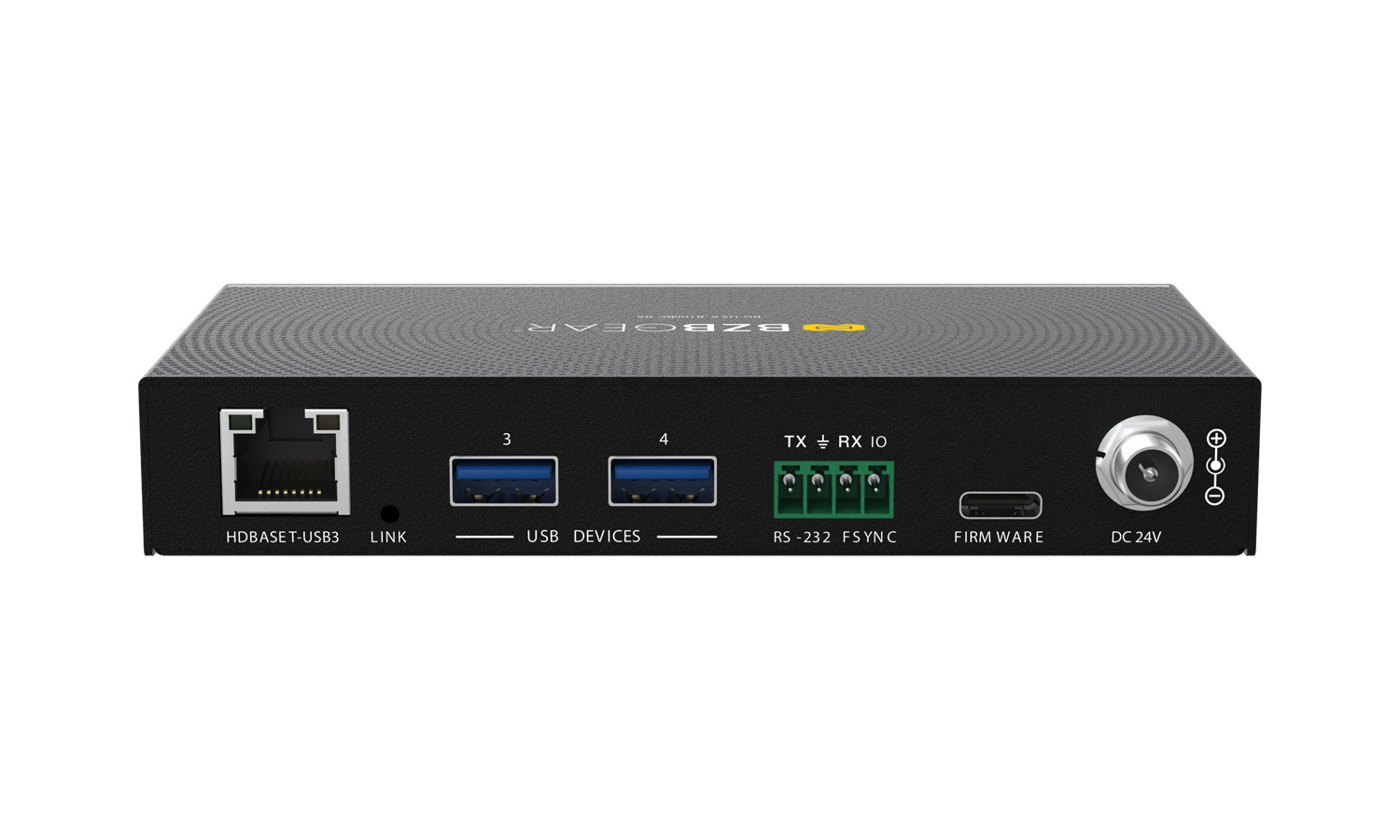

- USB DEVICE (USB-A x1): Downstream USB-A port for peripherals (up to 5V/1A).

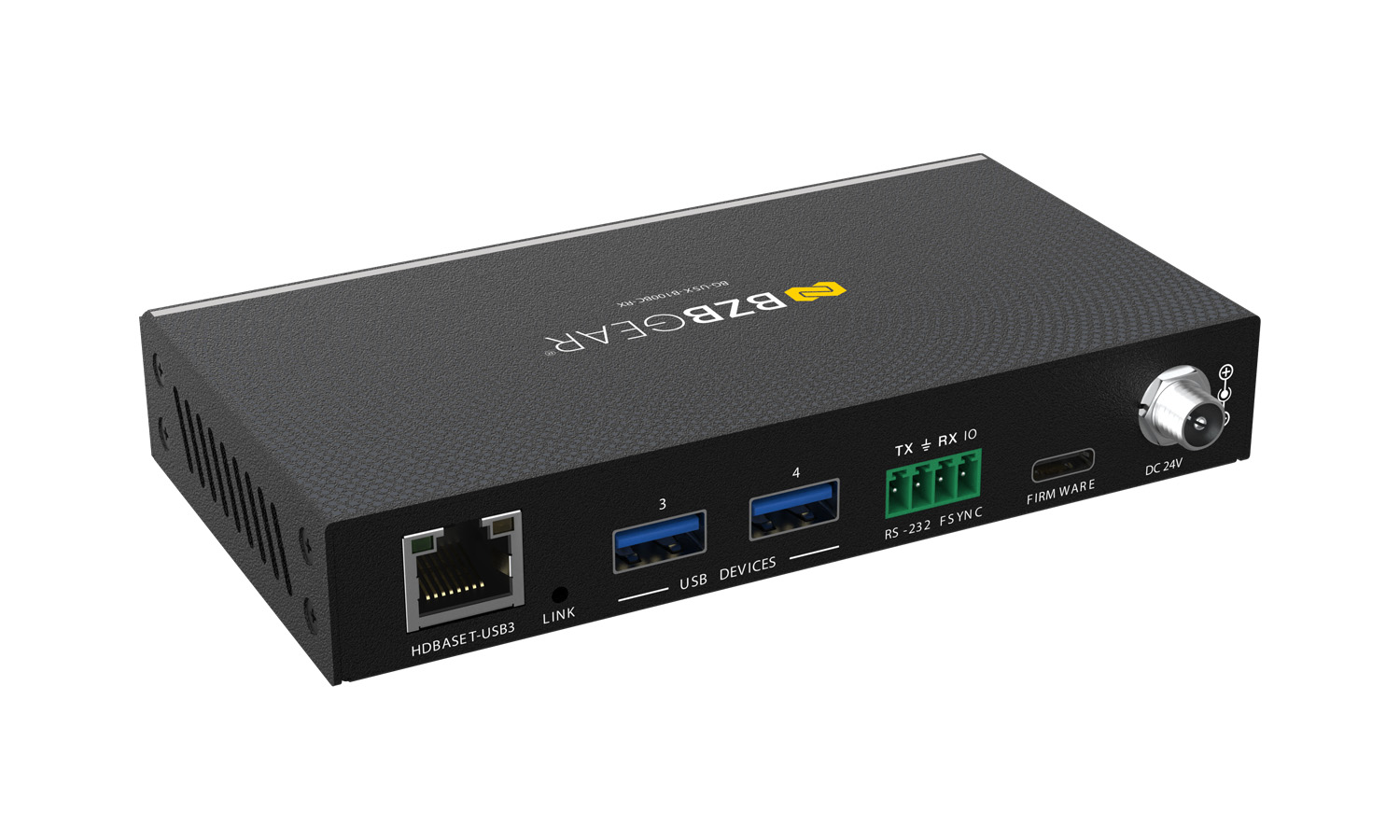

- HDBT-USB3 (RJ45): Receives USB signal and PoC power from transmitter via CAT6a cable.
- LINK LED (Bottom): Secondary link indicator for connection status. ON: linked; OFF: no link.
- USB DEVICE (USB-A x3): Additional downstream USB-A ports for peripherals (up to 5V/1.5A each).
- RS-232: 3-pin Phoenix connector for RS-232 pass-through communication.
- FSYNC: GPIO pass-through port (0–5V) for synchronization with external devices.
- SERVICE: USB-C service port used for firmware upgrades and maintenance.
- DC 24V: 24V DC power input (optional when PoC is not used).
