4X1 4K UHD HDMI Seamless Multiviewer/Switcher/Scaler with Audio and RS-232 Support

MSRP: $999.00

MSRP $999

3

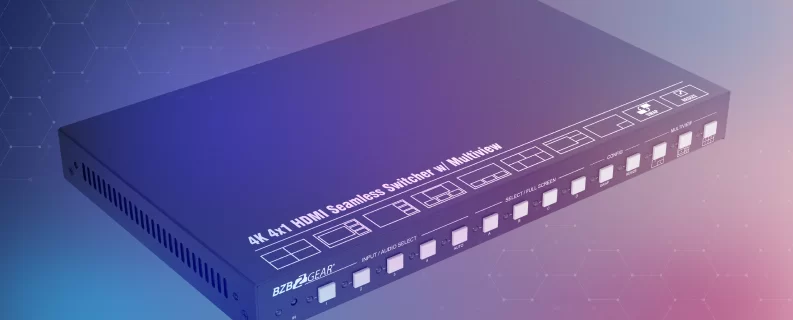

Overview

This 4K multi-view switcher is a great fit for anyone looking to seamlessly flow between presentations and videos on one display, as well as simultaneously view up to four video sources on that display via a single HDMI output. Video sources shown either in full screen or through multi-view windows can be easily swapped with the push of a button from the IR remote and several other helpful control options to monitor multiple video sources at once.

Thanks to its [email protected] Hz resolution, every detail is captured from each video source. Two audio outputs also support audio de-embedding to extract audio from your sources. Audio embedding options are also available via two inputs on the device.

Connectivity & Control

Integrated auto video scaling for each of the four HDMI inputs ensures video signals from your devices are compatible with 4K displays. Audio embedding is supported with line and mix in dual audio input. Audio de-embedding is supported via the two TOSLINK and 3.5mm outputs.

The BG-UMV-HA41 has several control options, including buttons on the front panel, IR remote control, RS232, and a web interface. The layout and size of each display window can be customized, and users can also choose from 16 preset layouts via the BG-UMV-HA41’s web interface. On the IR remote, there are four presets with four additional slots open for users to set their own presets.

The BG-UMV-HA41 can be easily rack mounted, furthering its flexibility for use in any environment.



Features
High Resolution Inputs
Input Up To [email protected] 4:4:4 Chroma
Control Options
IR remote, RS-232, Web GUI, or Front Panel Buttons
Seamless Switching
Quick And Easy Source Switching
Audio Embedding
3-Pin Line-In And Mix Inputs
Audio De-embedding
3.5mm Analog And TOSLINK Digital Outputs
Multi-View
Simultaneously Display Multiple Inputs On A Single Monitor
  • Based on FPGA technology
  • SNR > 90dB, 20Hz-20 kHz bandwidth
  • Resize the windows with 3 different options
  • Upgradeable firmware
  • Auto-scaling for each source input
  • Single window auto-switching
  • Rack mountable, all metal construction
  • Cascadable for up to 16 screens on 1 display
  • 16 pre-defined layouts


Specifications
Video
Video Input (4) HDMI IN (1~4)
Video Input Connector (4) Type-A female HDMI
HDMI Input Resolution Up to [email protected] 4:4:4
Video Output (1) HDMI
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] RGB
HDMI Standard HDMI 1.4
HDCP Version Up to HDCP 2.2
Audio IN
Audio In (1) LINE IN, (1) MIX IN
Audio In Connector (2) 3-pin terminal connectors
Frequency Response 20Hz to 20kHz, ±3dB
Max Input Level 2.0Vrms ± 0.5 dB. 2V=16 B headroom above -10dBV (316 mV) nominal consumer line level signal
L-R level deviation < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Input Impedance > 10kohm
Audio Format PCM 2CH
SPDIF OUT
SPDIF Out (1) SPDIF
Audio Out Connector (1) Toslink
Max Output level ±0.05dBFS
Frequency Response 20Hz ~ 20kHz, ±1dB
THD+N < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0 dBFS level (or max level)
Signal-to-Noise Ratio > 90dB, 20Hz-20 kHz bandwidth
Crosstalk isolation < -70dB, 10kHz sine at 0dBFS level (or max level before clipping)
Noise -90dB
Audio Format PCM 2CH
Audio OUT
Audio Out (1) AUDIO
Audio Out Connector (1) 3.5mm mini jack
Frequency Response 20Hz ~ 20kHz, ±1dB
Max Output Level 2.0Vrms ± 0.5dB. 2V=16dB headroom above -10dBV (316 mV) nominal consumer line level signal
THD+N < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
Signal-to-Noise Ratio > 80dB, 20Hz ~ 20kHz bandwidth
Crosstalk Isolation < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output Load Capability 1kohm and higher (supports 10x paralleled 10kohm loads)
Noise -80dB
Control
Control port (1)RS232, (1)TCP/IP
Control Connector (1) 3-pin terminal connector, (1) RJ45
General
Operation Temperature 5°F to 131°F / -5°C to +55°C
Storage Temperature -13°F to 158°F / -25°C to +70°C
Relative Humidity 10% ~ 90%
External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
Power Consumption 13W (Max)
Dimension (W*H*D) 11.2" x 1” x 6.8” [285mm x 27mm x 172.5mm]
Net Weight 2.731bs [1.24Kg]
MORE / LESS SPECS

Ideal fit for:
  • Conference Rooms
  • Surveillance Monitoring
  • Presentation Spaces
  • Security Guards
  • Educators
  • Live Speakers
Interface

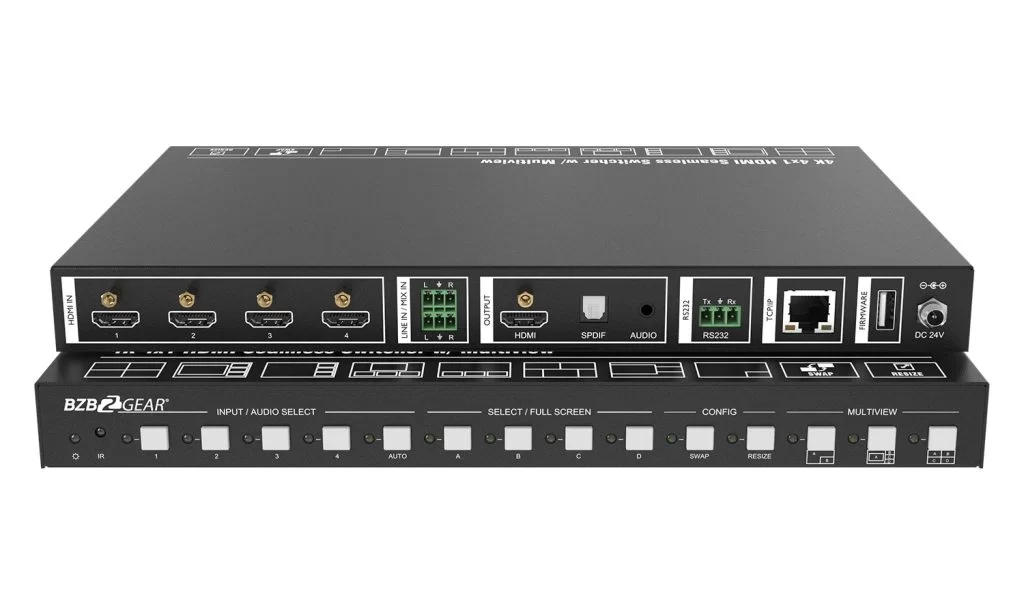

1.
POWER LED: The LED illuminates green when it is working, and the LED illuminates red when it is in standby.
2.
IR LED: Built-in IR sensor, receives IR signal sent from IR remote.
3.
Input/Audio Select Buttons: Press 1-4 button to select corresponding HDMI input.
4.
Select/Full Screen Buttons: Press the buttons to select the corresponding input source as Full Screen.
5.
Config Buttons: Press the SWAP button to select the window display screen counter-clockwise direction. Press the RESIZE button to readjust the window size.
6.
Multi-View Buttons: Press the buttons to choose different available Multi-view modes.
7.
HDMI IN 1-4: Four type-A female HDMI input ports to connect HDMI source devices.
8.
LINE IN, MIX IN: 3-pin terminal block to connect an audio source device to embed in HDMI audio sources.
9.
Outputs: HDMI OUTPUT - HDMI output port to connect a display device.
SPDIF OUTPUT - Toslink for audio de-embedding from HDMI output.
AUDIO OUTPUT: 3.5mm mini jack for audio de-embedding from HDMI output.
10.
RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a third-party device to be controlled by RS232 commands.
11.
TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher by GUI.
12.
FIREWARE: Type-A USB port for firmware upgrade.
13.
DC 24V: DC connector for power adapter connection.
