1080p USB Conference Camera with Microphone
and engineering support
Overview
If you’re a student or remote worker looking for a high-quality camera for incredible value, the BG-UC-MHD is a great choice. This camera offers full HD recording equipped with a low-distortion wide-angle FOV. With an omnidirectional microphone, you’ll be able to capture sound from every part of the room. The compact size of the device and its mounting system means that it can go anywhere, anytime, whether it be mounted to your desktop, monitor, tripod, or wall mount, or even in your backpack for travel.
Camera & Output
The BG-UC-MHD conference camera can capture images at a crystal clear 1080p@30Hz resolution powered by a high-quality HD CMOS sensor. A 3.24 mm lens enables an 80° low-distortion wide viewing angle, enabling you to show more to your colleagues. An omnidirectional microphone enables you to make sure you’re heard without any extra equipment.
This device also offers a great degree of control over the image. The BG-UC-MHD supports auto-exposure adjustment, but the user can also manually adjust this. The brightness, color, saturation, and contrast can all be configured as well. Anti-flicker adjustment is also available.
Connectivity & Versatility

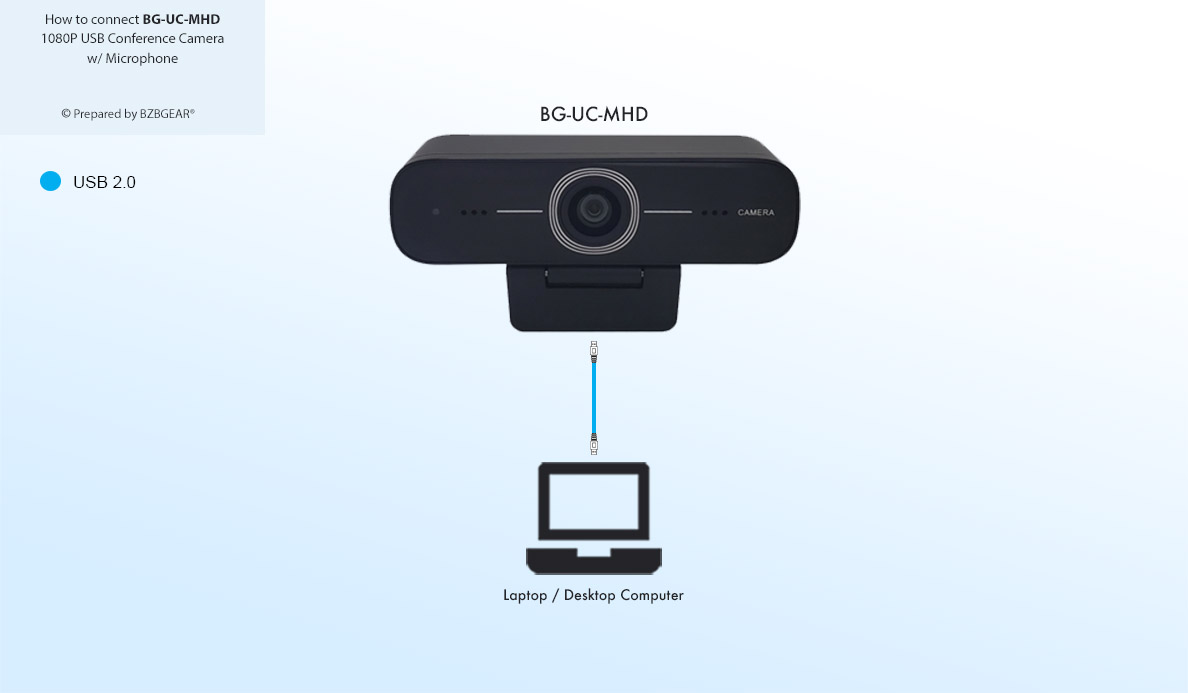

One of the best features about the BG-UC-MHD is its simplicity in connectivity. The webcam is ready for plug and play with a single USB 2.0 cable that provides power and data transfer in one connection.
Thanks to its versatile mounting system, the webcam can be mounted just about anywhere, whether it’s a TV, monitor, desktop, laptop, wall bracket, or even directly onto your desk. The camera is also small enough to be portable, enabling you to take it wherever you go. This makes this webcam a great option for remote workers who change locations periodically, or for students who work across campus.
Features
-
![Wide-Angle 1]()
Wide Angle80° low-distortion lens -
![Plug-and-Play Setup]()
USB 2.0Plug and Play functionality -
![material-symbols_auto-detect-voice]()
Built-in MicrophoneNo extra equipment needed -
![badge-Full-hd | 1080P HD]()
Crystal Clear Image1080p@30Hz resolution -
![mounts-icon]()
Integrated MountEasily mounts to desktops, monitors, or laptops -
![check-square 3]()
PortableEasily fits in backpack or briefcase
- Superb high-definition image
- Small form factor
- High quality HD CMOS sensor
- Multiple video compression options
- Anti-flicker adjustment available
- Adjust brightness, color, saturation, and contrast
- Simple to connect and operate
- Signal to noise ratio >50dB
- Fixed focus and aperture
Compatible with:
Tech Specifications
| Camera Parameters | |
| Sensor | High quality HD CMOS sensor |
| Effective Pixels | 16:9 2.07MP |
| Video Format | 1920x1080@30Hz/25Hz; 1600×896 @ 30Hz/25Hz; 1280×720 @ 30Hz/25Hz; 1024×576 @ 30Hz/25Hz; 960×540 @ 30Hz/25Hz; 800×600 @ 30Hz/25Hz; 800×448 @ 30Hz/25Hz; 720×576 @ 30Hz/25Hz; 720×480 @ 30Hz/25Hz; 640×480 @ 30Hz/25Hz; 640×360 @ 30Hz/25Hz; 480×270 @ 30Hz/25Hz; 320×240 @ 30Hz/25Hz; 352×288 @ 30Hz/25Hz; 320×180 @ 30Hz/25Hz |
| View angle (default) | 88° (D) / 80° (H) / 50°(V) |
| Focal length (default) | 3.24mm |
| Focus | Fixed |
| Aperture | Fixed |
| Backlight contrast | On/OFF |
| Minimum illumination | 0.5 Lux (F1.8, AGC ON) |
| Exposure | Exposure parameter could be adjusted; support auto exposure |
| Video Adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation etc. |
| SNR | >50dB |
| Input/Output Interface | |
| Video Interfaces | USB 2.0 (power supply, upgrading available) |
| Video Compression Format | MJPEG, YUV, H.264, H.265 |
| Audio Input Interface | Built in omnidirectional high sensitive digital pickup |
| Other Parameter | |
| Input Voltage | 5V |
| Input Current | 500mA (Max.) |
| Power consumption | 2.5W |
| Store Temperature,Humidity | 14° ~ 140°F / -10°C ~ +60°C, 20%~95% |
| Working Temperature,Humidity | 14° ~ 122°F / -10°C ~ +50°C, 20%~80% |
| Dimension（WXHXD） | 4.0in x 1.8in x 1.2in [102mm x 46mm x 30mm] |
| Weight (appx.) | 0.33lbs [0.15kg] |
| Working Environment | Indoor Only |
