1x4 1080P/4K30 HDMI Splitter/Distribution Amplifier Kit with 4 Receivers up to 230ft over Category Cable
and engineering support
Overview

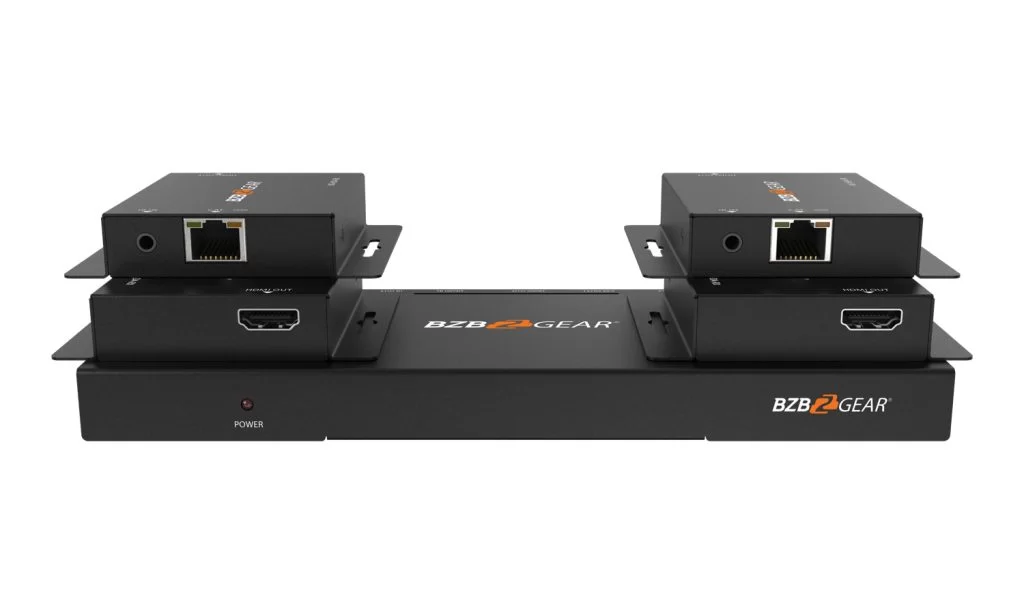

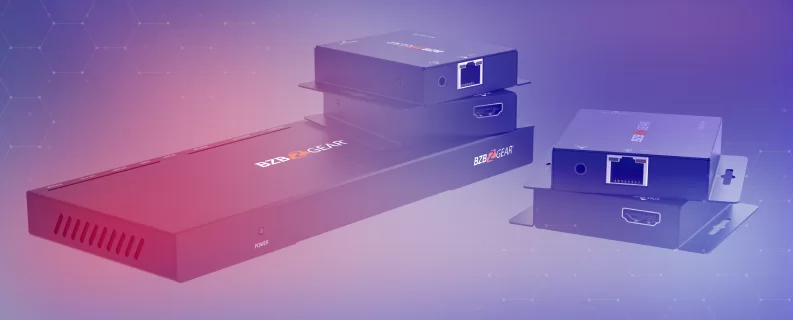

The BG-HDA-E14 is a 4K 1x4 HDMI splitter that can split a single HDMI source signal to four displays at distances up to 70 meters over CAT6 networking cable. This splitter is a great choice for users that need to output a single video source like a Blu-ray player, computer, game console, or streaming media player to multiple displays.
Connectivity and Quality
Ease of installation and high quality video are hallmarks of the BG-HDA-E14. The splitter supports resolutions as high as 4K2K@30Hz 4:4:4, ensuring no quality is lost when your input is split between the four outputs. The splitter has one HDMI input, one HDMI loop output, and eight CAT outputs. The signal can be extended at distances up to 50m/164ft at 4K@30Hz resolution or up to 70m/230ft at 1080p@60Hz.
This splitter also supports power over cable (POC) from the transmitter to receiver, eliminating the need for an external power supply at the receiver. The device is also HDMI 1.4 and HDCP 1.4 compliant. The BG-HDA-E14 has the ability to handle multiple audio formats, including LPCM 7.1CH, Dolby True HD, and DTS-HD. Link lights on the RJ45 ports provide a visual indication of connection status for at-a-glance troubleshooting.
Control and Features
A set of DIP switches on the transmitter provide access to advanced EDID management for the BG-HDA-E14. One-way IR control signal pass-through provides source control from the receivers. The IR receivers can accept and transmit a signal from up to 8 meters away.
Features
-
Crystal Clear ImagesSupports resolutions up to 4K@30Hz -
Power over Cable (PoC)Receivers require no power supply -
HDCP 1.4High-Bandwidth Digital Content Protection Supported -
HDMI Loop-OutConnect a local display -
Multi-Channel Audio SupportDolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1 -
ControlIR Passthrough
- Extend the signal transmission distance up to 164 ft / 50 m at the resolution of 4K@30Hz, or 230 ft / 70 m at 1080P@60Hz via a single CAT6 cable
- Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs
- Advanced EDID management
Videos
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i ~1080p@50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
| Color Space | RGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0 |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio |
| ESD Protection | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 4x CAT OUT [RJ45] Controls: 1x IR OUT [3.5mm Stereo Mini-jack] 1x EDID DIP switch [4-pin] 1x Update [Micro USB] |
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter: 8.3” (W) x 3.3" (D) x 0.7” (H) [210mm (W) x 83mm (D) x 18mm (H)] Receiver: 3.1” (W) x 2.7” (D) x 0.7” (H) [79.5mm (W) x 69mm (D) x 16.5mm (H)] |
| Weight | Transmitter: 1lbs [448g]; Receiver: 0.3lbs [130g] |
| Power Supply | 12V/2.5A DC Power (US/EU standards, CE/FCC/RoHs certificated) |
| Power Consumption | 11W |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources
PACKAGE CONTENTS
- 1 x HDMI 1x4 Splitter
- 4 x CAT Receiver
- 1 x IR Blaster Cable (1.5 meters)
- 4 x IR Receiver Cable (1.5 meters)
- 2 x Mounting Ear
- 1 x 12V/2.5A DC Locking Power Adapter
- 8 x Machine Screw (KM3*4)
- 1 x User Manual
Interfaces
- POWER LED: When the transmitter is powered on, the red power LED will illuminate.
- CAT OUT 1-4: Connect to the CAT port of the receiver.
- Power LED (Green): The transmitter supports a one-way POC function. When it supplies power to the receiver through a CAT cable, the power LED will illuminate.
- Data Signal Indicator (Yellow): Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal. - HDMI OUT: HDMI loop output port, Connects to a local HDMI display device.
- HDMI IN: Connect to an HDMI source device.
- IR OUT: Connect to IR blaster cable, the IR signal is from the “IR IN” port of the Receiver.
- EDID DIP Switch: EDID management.
- UPDATE: Mini USB firmware update.
- DC 12V: Power input port.
- POWER Switch: Press the switch to power on/off the device (“-” for on, “o” for off).
- HDMI OUT: Connect to an HDMI display device.
- IR IN: Connect to the IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter.
- CAT: Connect to the CAT output port of the transmitter.
- Power LED (Green): When the receiver is powered on, the LED will illuminate.
- Data Signal Indicator (Yellow): Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.
