1×4 4K UHD HDMI HDBaset Splitter/Distribution Amplifier over Category Cable (Kit, Includes 4x RX)

MSRP: $1,199.00
Status: In Stock


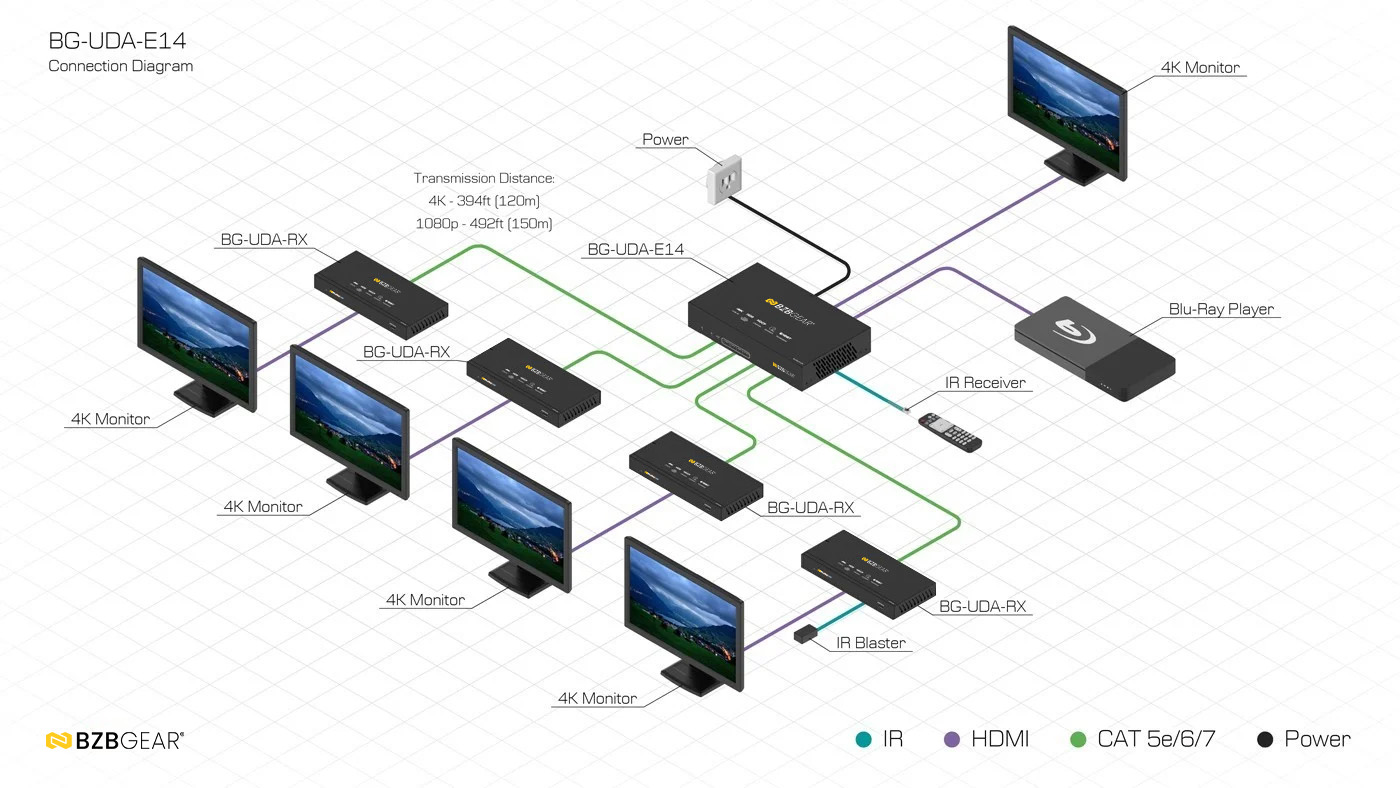

The BG-UDA-E14 is a 1x4 4K HDBaseT splitter/extender kit. Supporting resolutions up to [email protected], users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at [email protected] with the included HDBaseT extenders. With the ability to connect to one local and four remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.

Connectivity and Features

The BG-UDA-E14 supports a maximum resolution of [email protected] 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.


[email protected] 4:4:4 Support
Ultra HD refers to a TV resolution of 3840 x 2160 pixels
Multi-Channel Audio
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master
Power over Cable
Receivers need no power supply
Transmit signal up to 120 meters (390 feet)
Compact Design
Slim components make a clean installation easy
EDID Control
Multiple selectable EDID modes ensure reliable connectivity
  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Support 18Gbps video bandwidth
  • Support HDR, HDR10+, HLG and Dolby vision
  • Support digital and analog audio de-embedded output
  • Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs
  • IR, RS-232 routed to HDBaseT output

Tech Specifications

HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to [email protected] 4:4:4
Color Depth 8-bit, 10-bit, 12-bit([email protected])
8-bit ([email protected] YUV4:4:4)
8-bit, 10-bit, 12-bit([email protected] YCbCr 4:2:2/4:2:0)
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support HDR, HDR10+, HLG, Dolby vision
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio Formats PCM 2.0CH
ESD Protection Human body model:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)

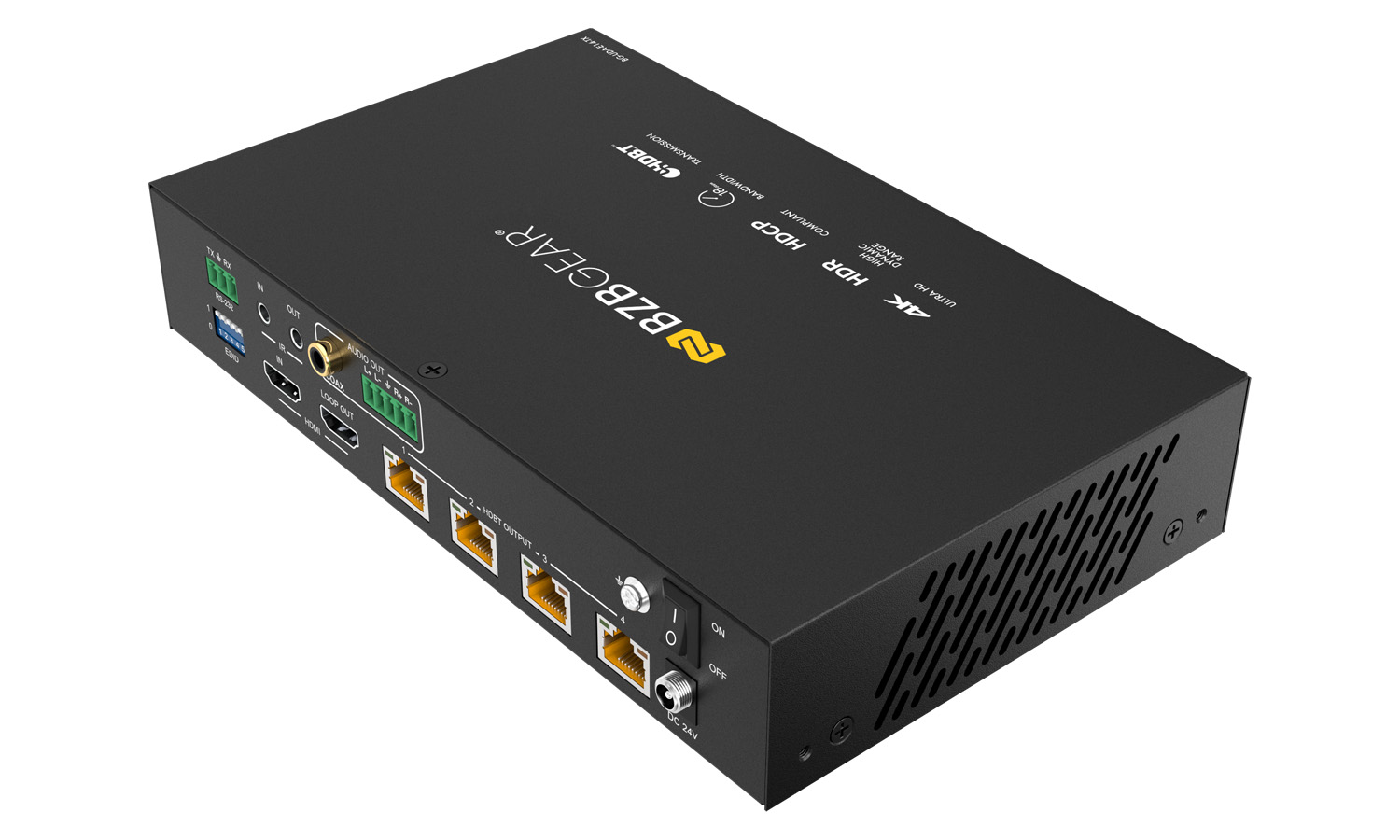

Input 1x HDMI Type A (19-pin female)
Output 1x HDMI Type A (19-pin female)
4x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
Control 1x RS-232 (3-pin phoenix connector)
1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
Housing Metal Enclosure
Silkscreen Color Black
Dimensions Transmitter: 8.7″(W) x 5.1”(D) x 1.6(H) [220mm (W) x 130mm (D) x 40mm (H)]
Receiver: 5.5”(W) x2.6”(D) x 0.7”(H) [140mm (W) x 65mm (D) x 18mm (H)]
Weight Transmitter: 1.9lbs [853g]
Receiver: 0.54lbs [246g]
Power Supply Input: AC100 – 240V 50/60Hz, Output: DC 24V/2.7A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 35W
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

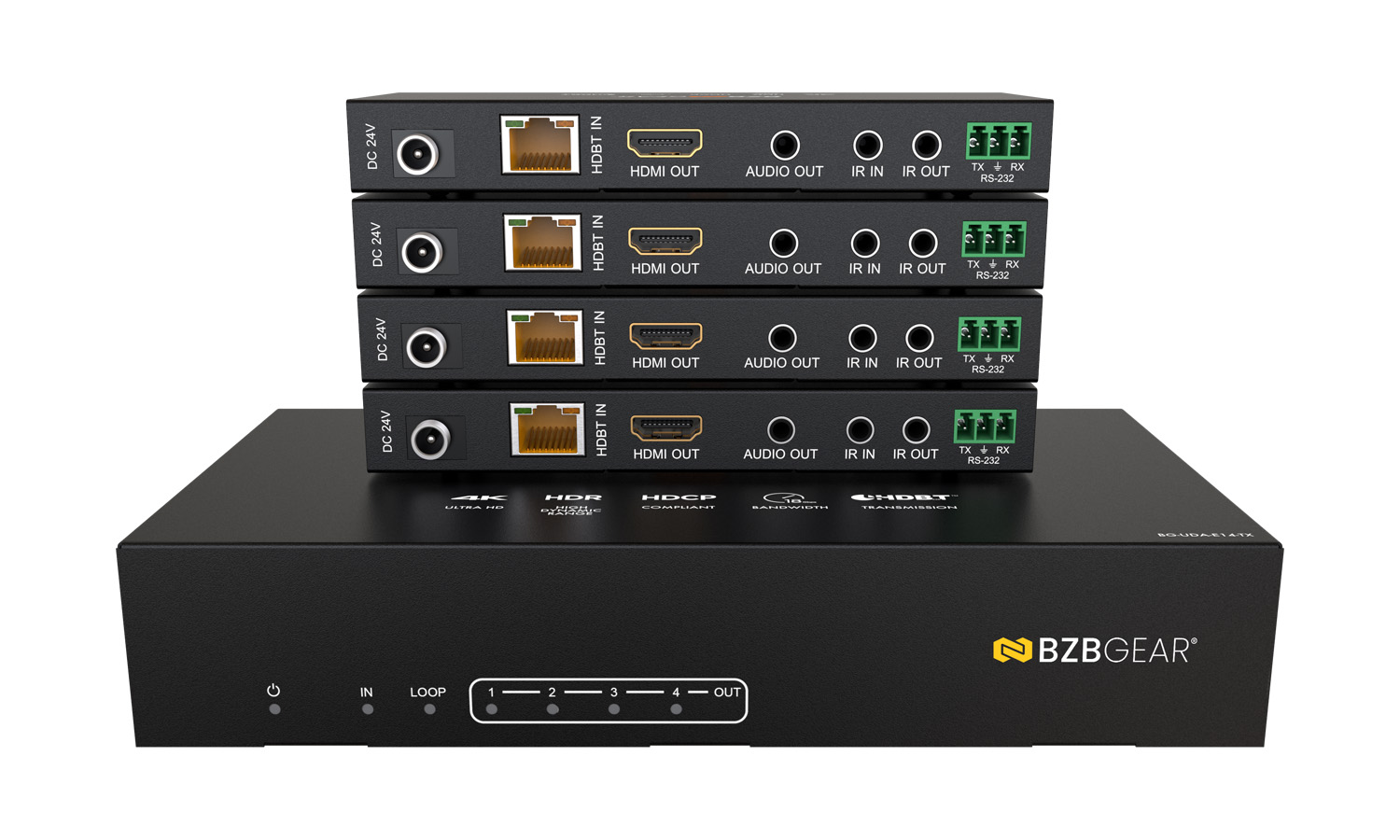

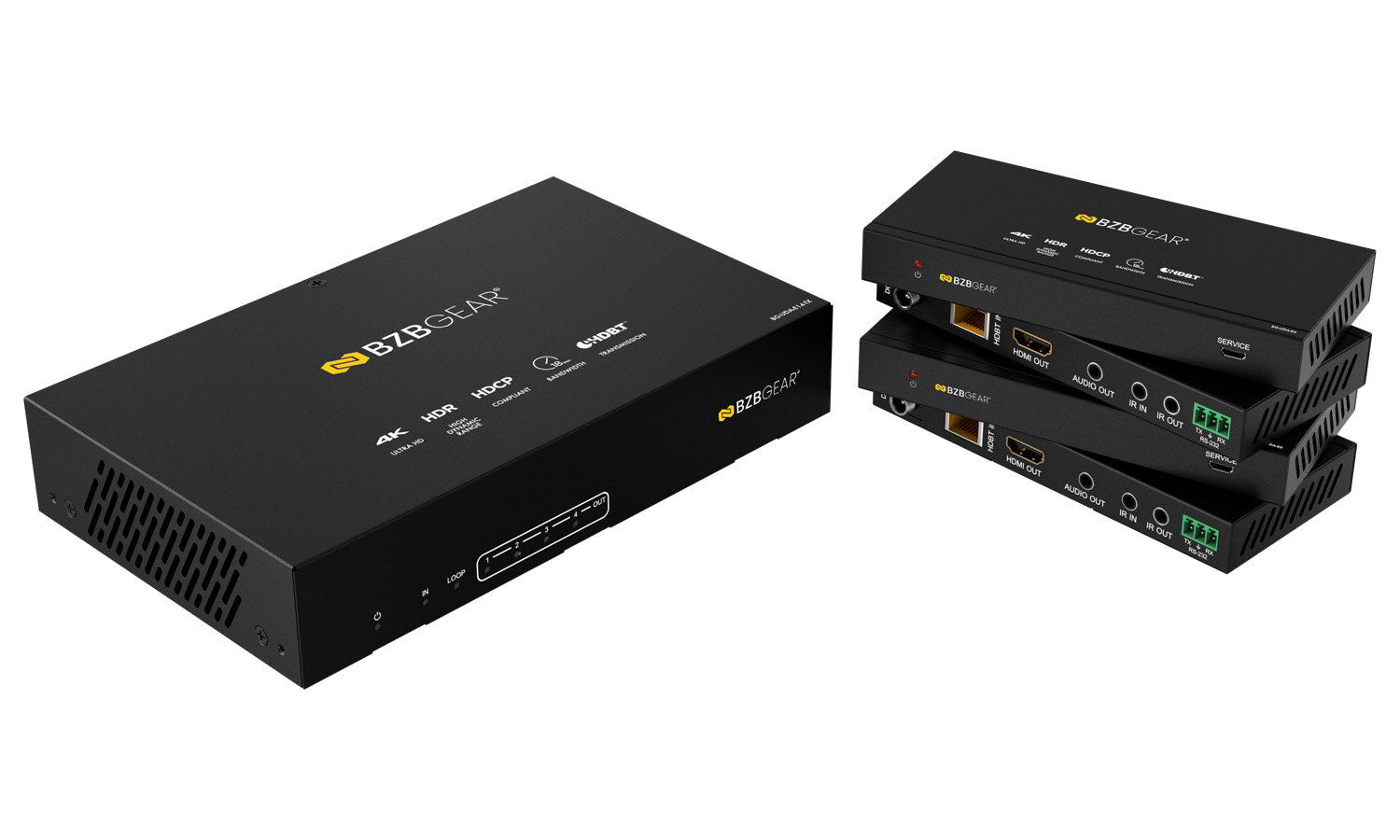

  • 1x 18Gbps HDMI 1×4 HDBaseT Splitter
  • 4x HDBaseT Receiver
  • 5x IR Blaster Cable (1.5 meters)
  • 5x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 5x 3-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 10x Mounting Ear
  • 1x 24V/2.7A DC Locking Power Adapter
  • 1x User Manual

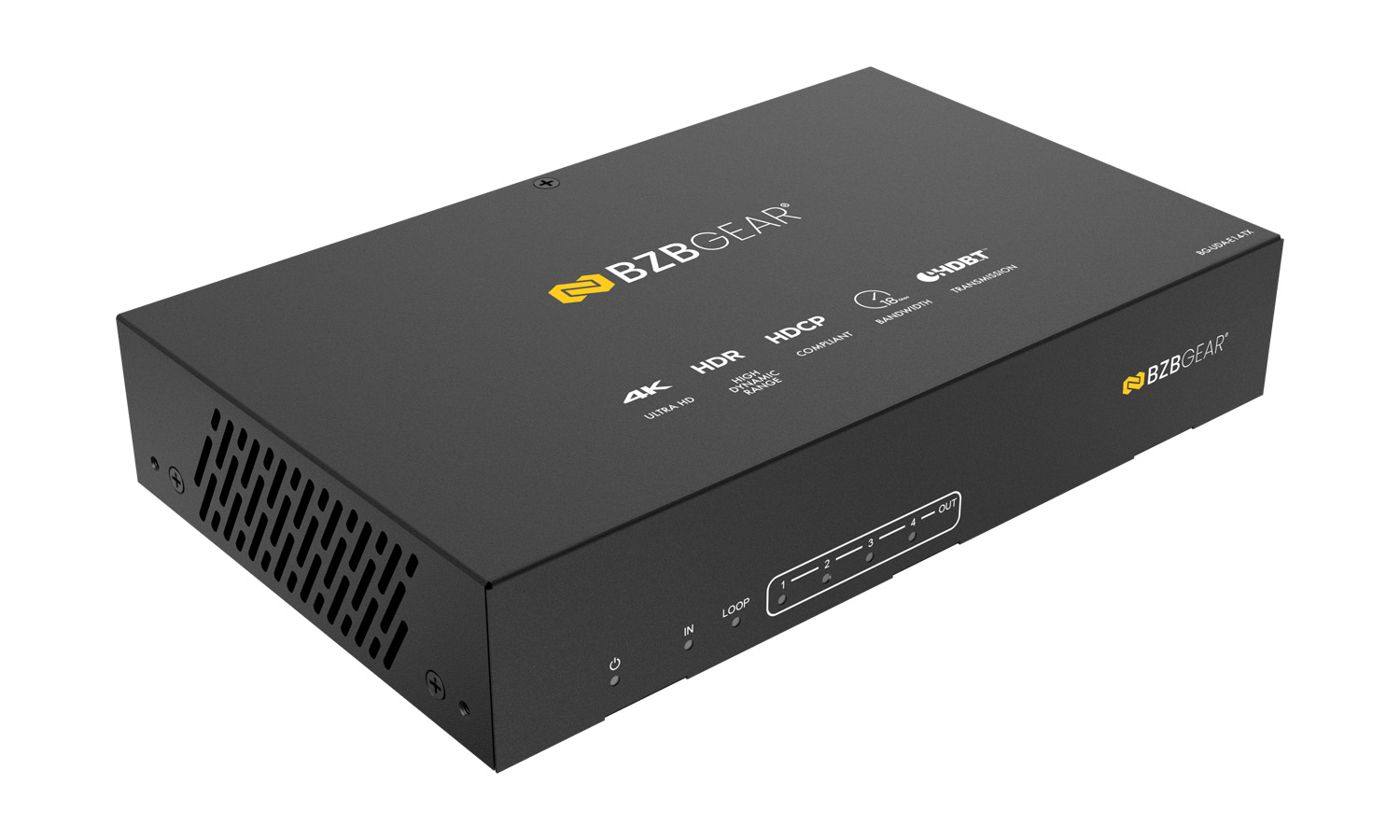

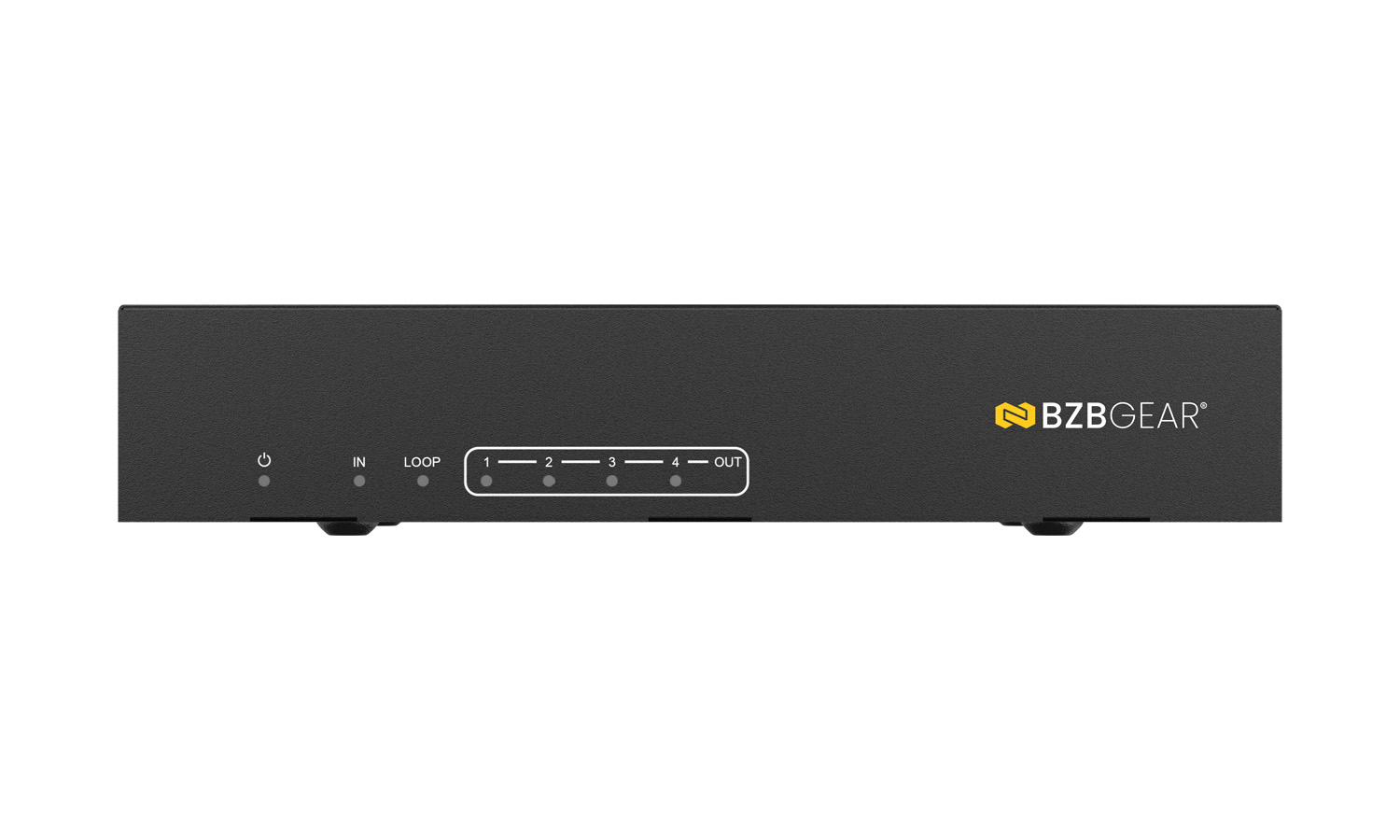

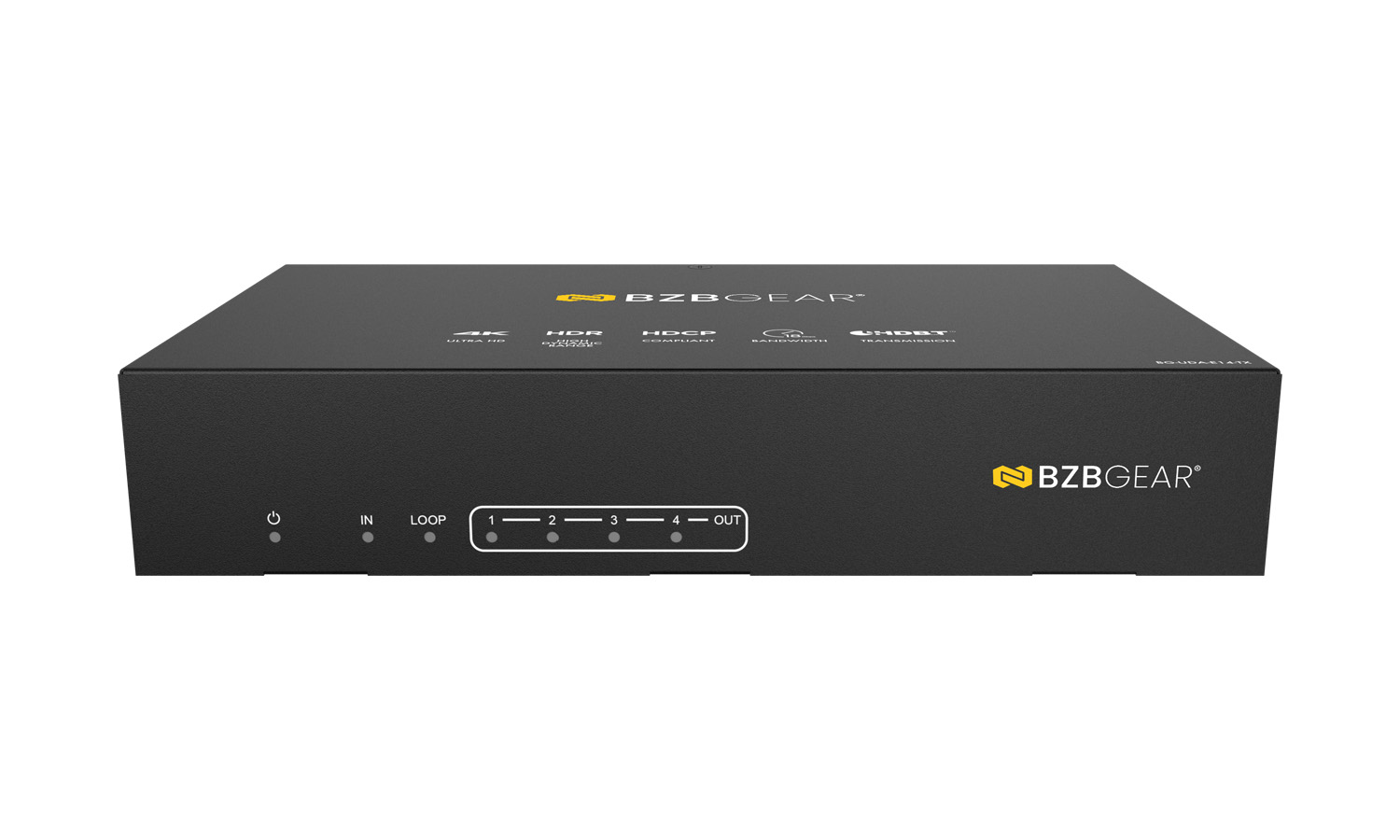

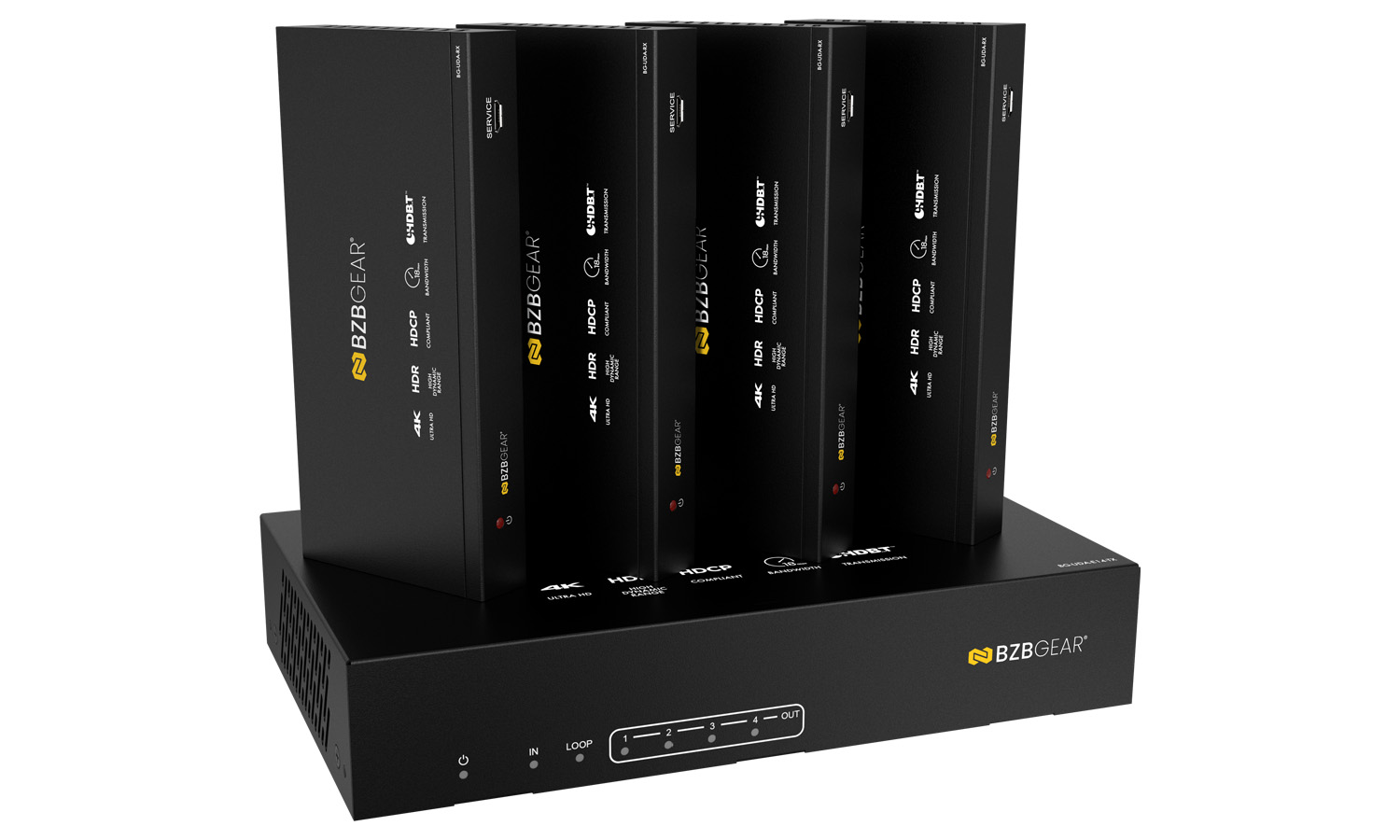

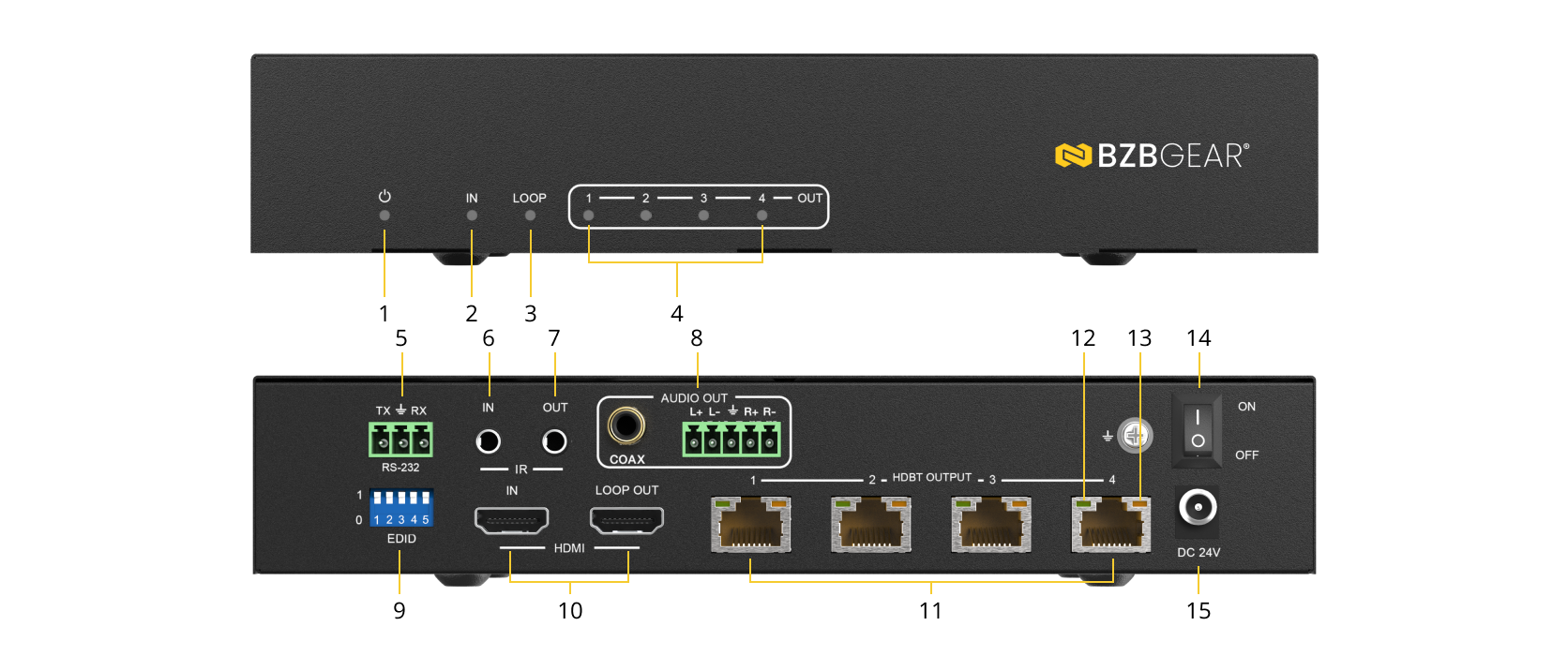

  1. POWER LED: When the device is powered on, the red power LED will illuminate.
  2. IN LED: When the HDMI IN port connects an active source device, the green LED will illuminate.
  3. LOOP LED: When the HDMI LOOP OUT port connects an active display device, the green LED will illuminate.
  4. OUT 1-4 LED: When the HDBT OUTPUT port connects to an HDBaseT Receiver, the corresponding green OUT LED will illuminate.

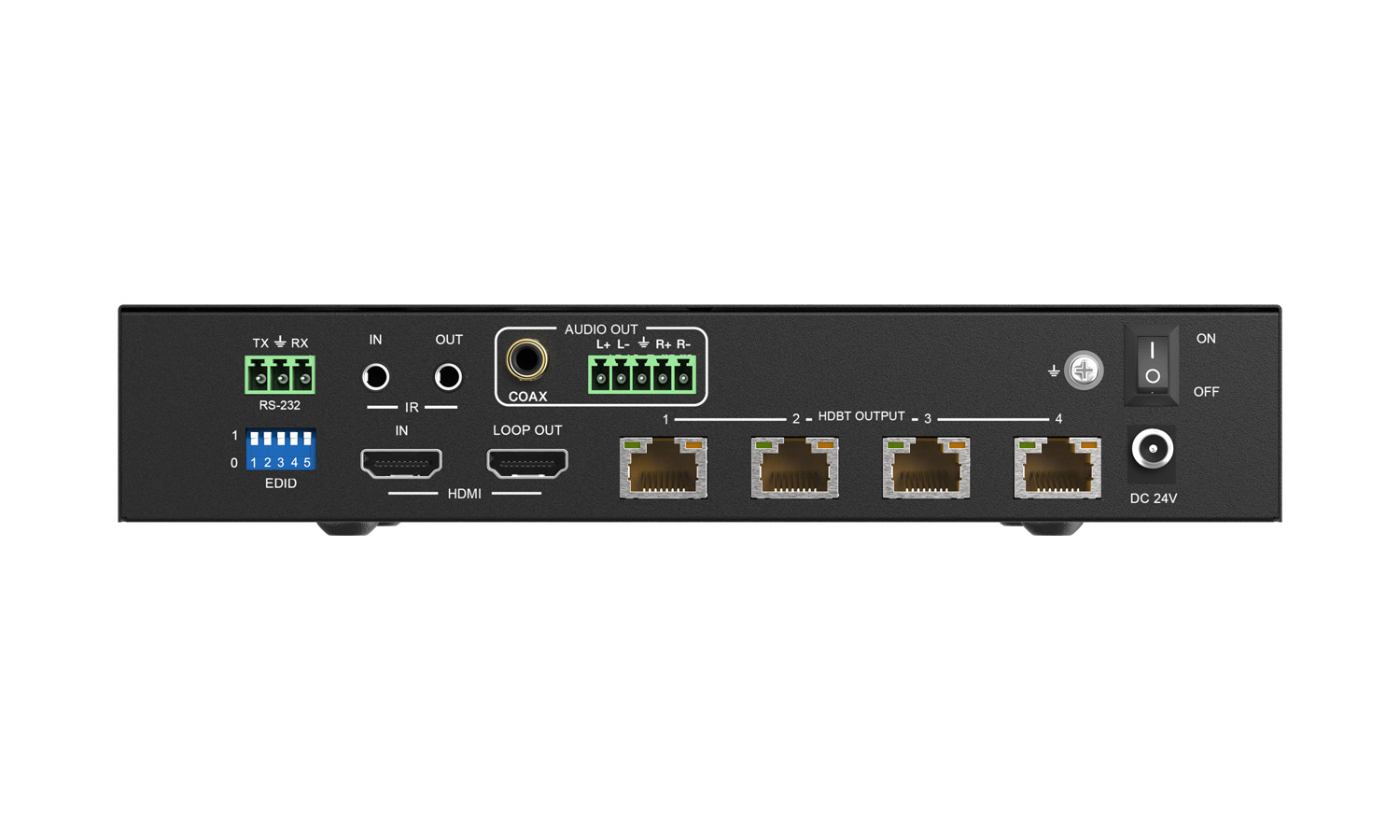

  5. RS-232: Connect to a PC or control system via a 3-pin phoenix connector cable.
  6. IR IN: Connect to the IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the HDBaseT Receiver.
  7. IR OUT: Connect to IR blaster cable, the IR emit signal is from the “IR IN” port of the HDBaseT Receiver.
  8. AUDIO OUT (COAX, L/R): Coaxial/balanced audio output ports, connect to an amplifier or speakers.
  9. EDID DIP switch: Set EDID modes.
  10. HDMI port: IN: HDMI input port, connect to HDMI source device such as DVD or set-top box with an HDMI cable.
    LOOP OUT: HDMI loop output port, connect to a local HDMI display device such as TV.
  11. HDBT OUTPUT port 1-4: Connect to the HDBT IN port of the HDBaseT receiver with a CAT cable.
  12. Link Signal Indicator lamp (Green): Illuminated: Transmitter and receiver are connected.
    Dark: Transmitter and receiver are not connected.
  13. Data Signal Indicator lamp (Orange): Illuminated: There is signal transmission between the transmitter and the receiver.
    Dark: No signal transmission.
  14. POWER switch: Press this switch to power on/off the device.
  15. DC 24V: Plug the DC 24V power supply into the unit and connect the adaptor to an AC outlet.

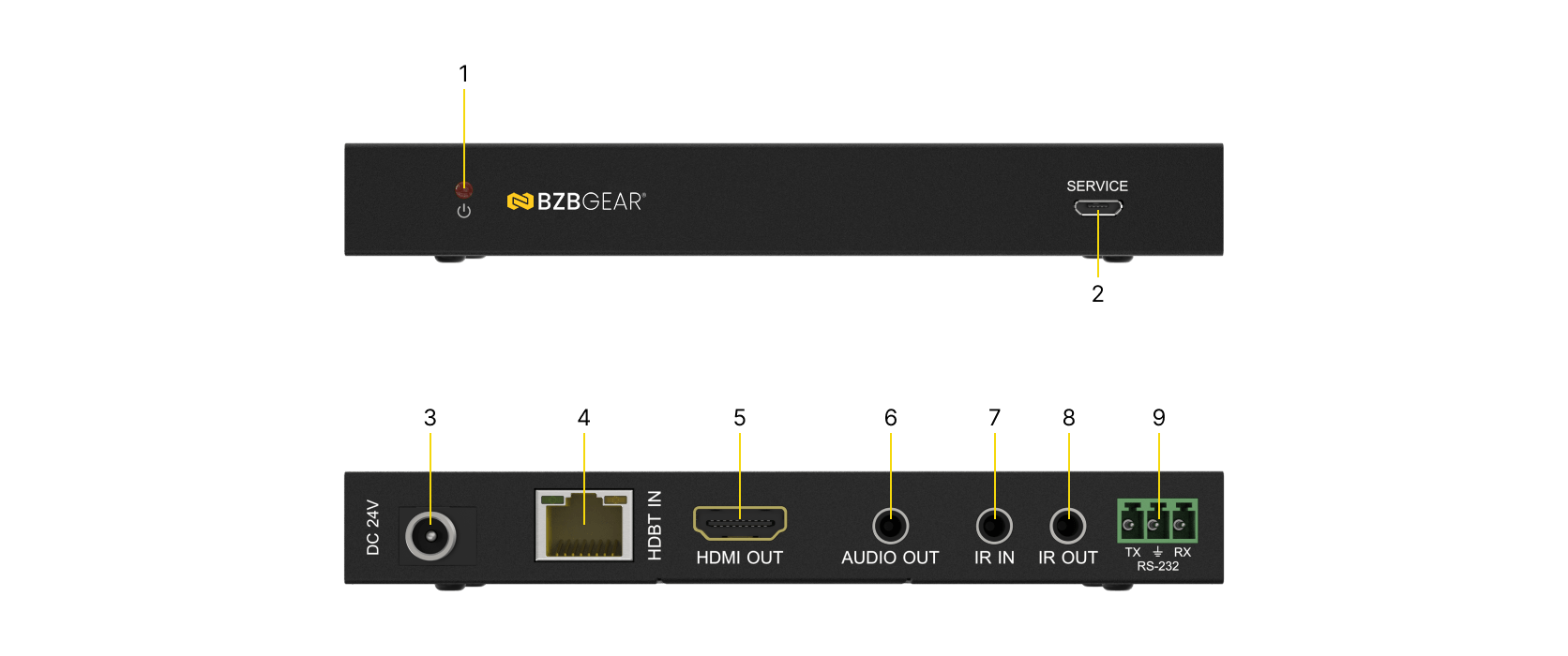

  1. Power Indicator: When the receiver is powered on, the power indicator will illuminate.
  2. SERVICE port: Used for firmware update.
  3. DC 24V: Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet.
  4. HDBT IN: Connect to the HDBT OUTPUT port on the transmitter with a CAT cable.
  5. HDMI OUT: HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
  6. AUDIO OUT: Audio output port, connect to an amplifier or speaker.
  7. IR IN: Connect to the IR Receiver cable. The IR signal will send to the IR OUT port of the transmitter.
  8. IR OUT: Connect to the IR blaster cable, the IR signal is from the IR IN port of the transmitter.
  9. RS-232: 3-pin Phoenix connector for RS-232 command transmission.
