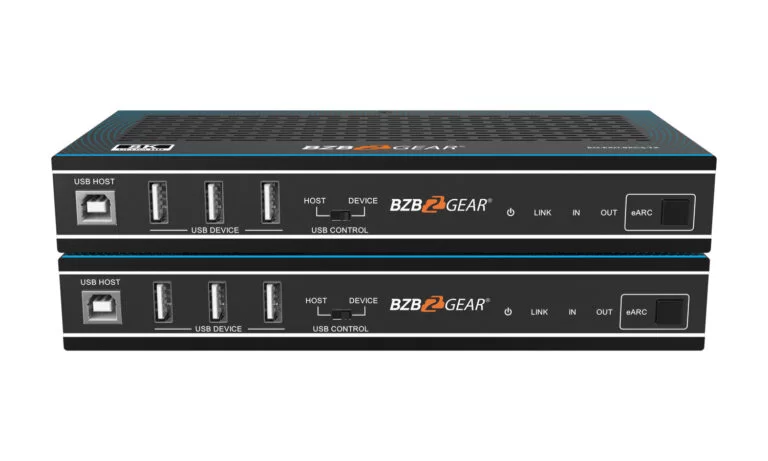

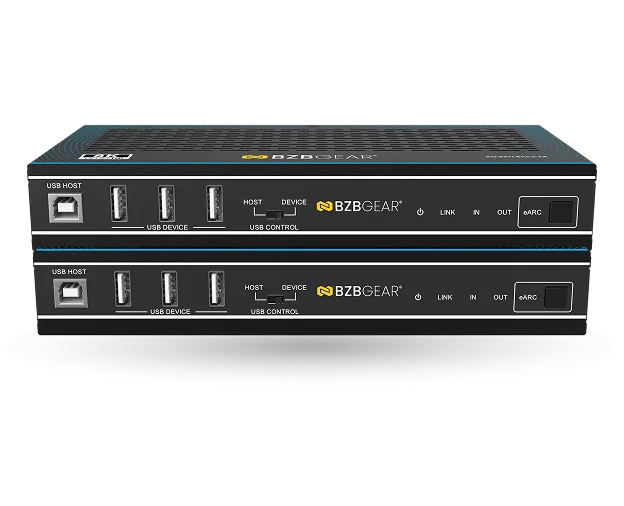

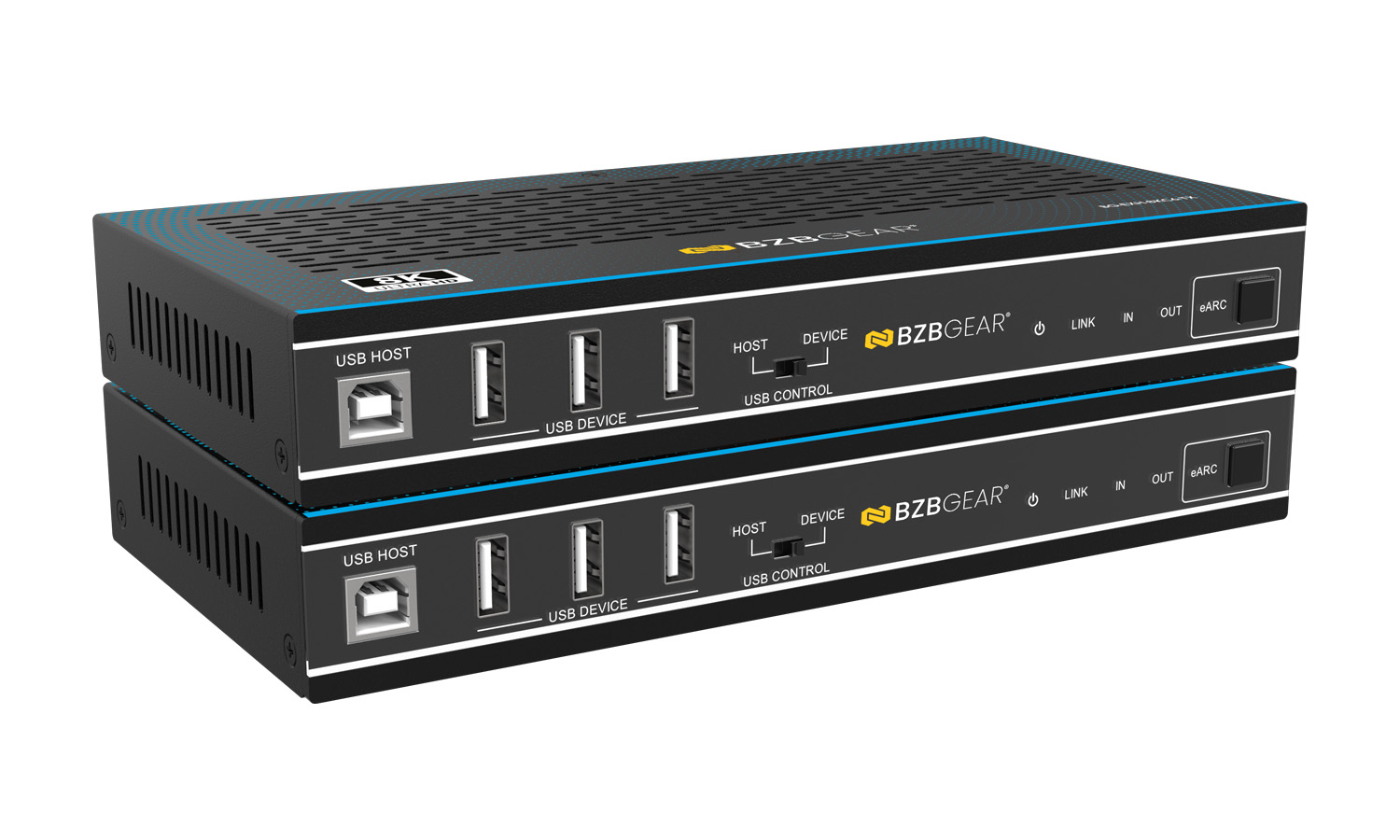

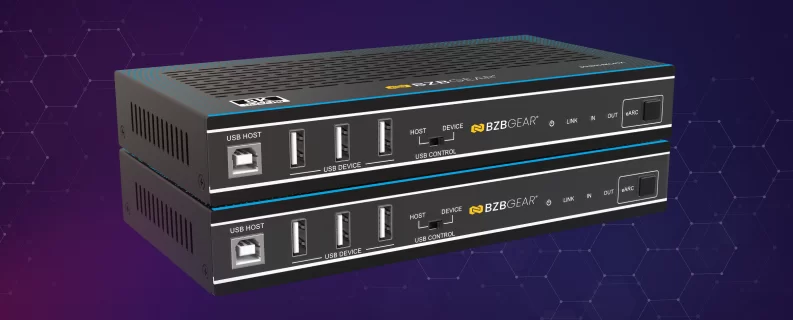

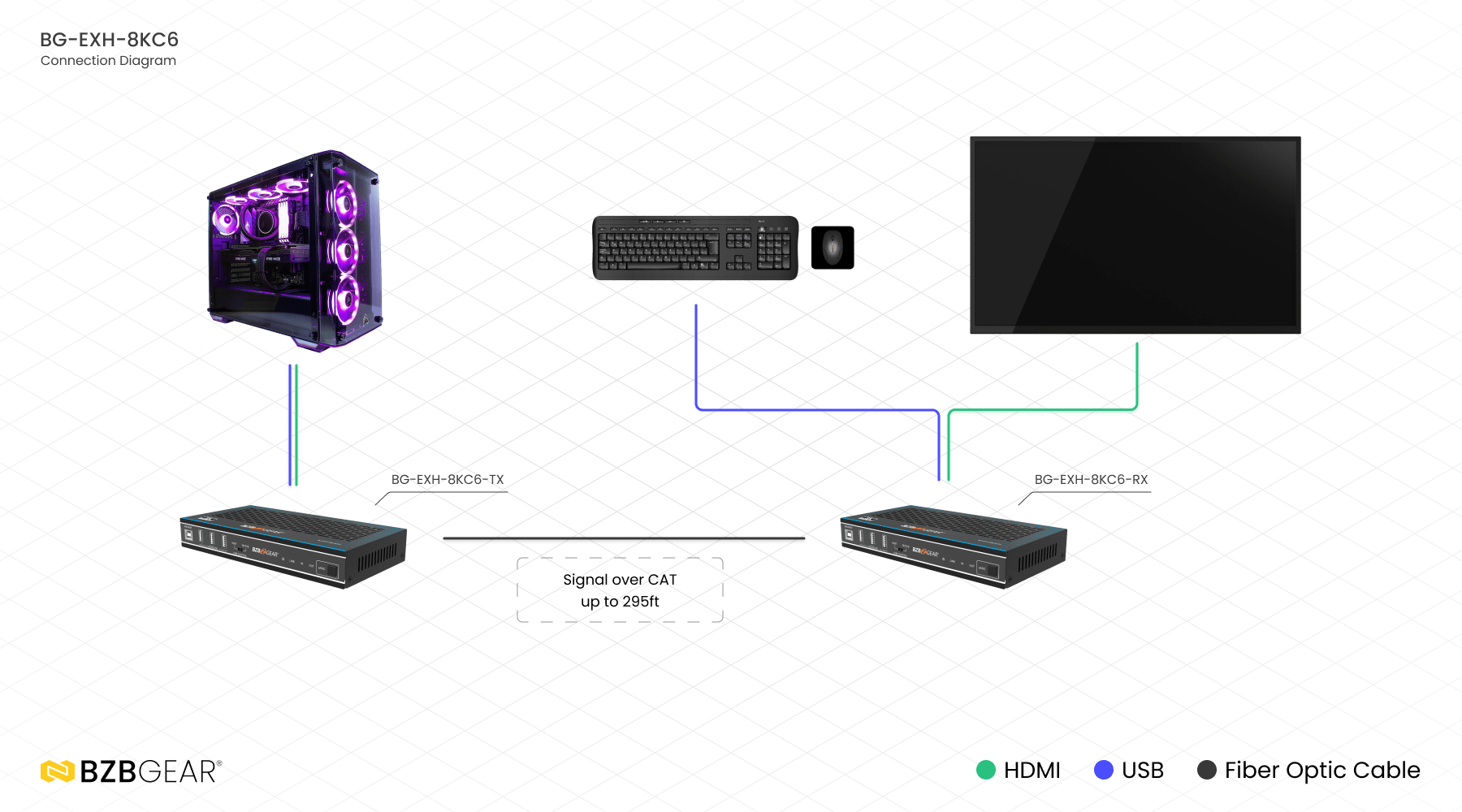

8K 60fps (4K@120) HDMI Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB and Audio Embedding/De-embedding up to 330ft
NEW
U.S.-based Company
Complimentary design services
and engineering support
and engineering support
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Tech Specifications
Technical Specifications | ||||
HDMI Compliance | HDMI 2.1 | |||
HDCP Compliance | HDCP 2.3 | |||
Video Bandwidth | Up to 40Gbps FRL and 18Gbps TMDS | |||
Video Resolution | Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
USB Bandwidth | Up to 350Mbps | |||
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | |||
Color Depth | 8/10/12-bit | |||
Audio Formats | HDMI: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X Analog: PCM 2.0 48K |
|||
IR Level | 5Vp-p/12Vp-p | |||
IR Bandwidth | 20K - 60KHz | |||
Transmission Distance | MAX: CAT6 = 197ft (60m) / CAT6A/7 = 295ft (90m) | |||
ESD Protection | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
Connections | ||||

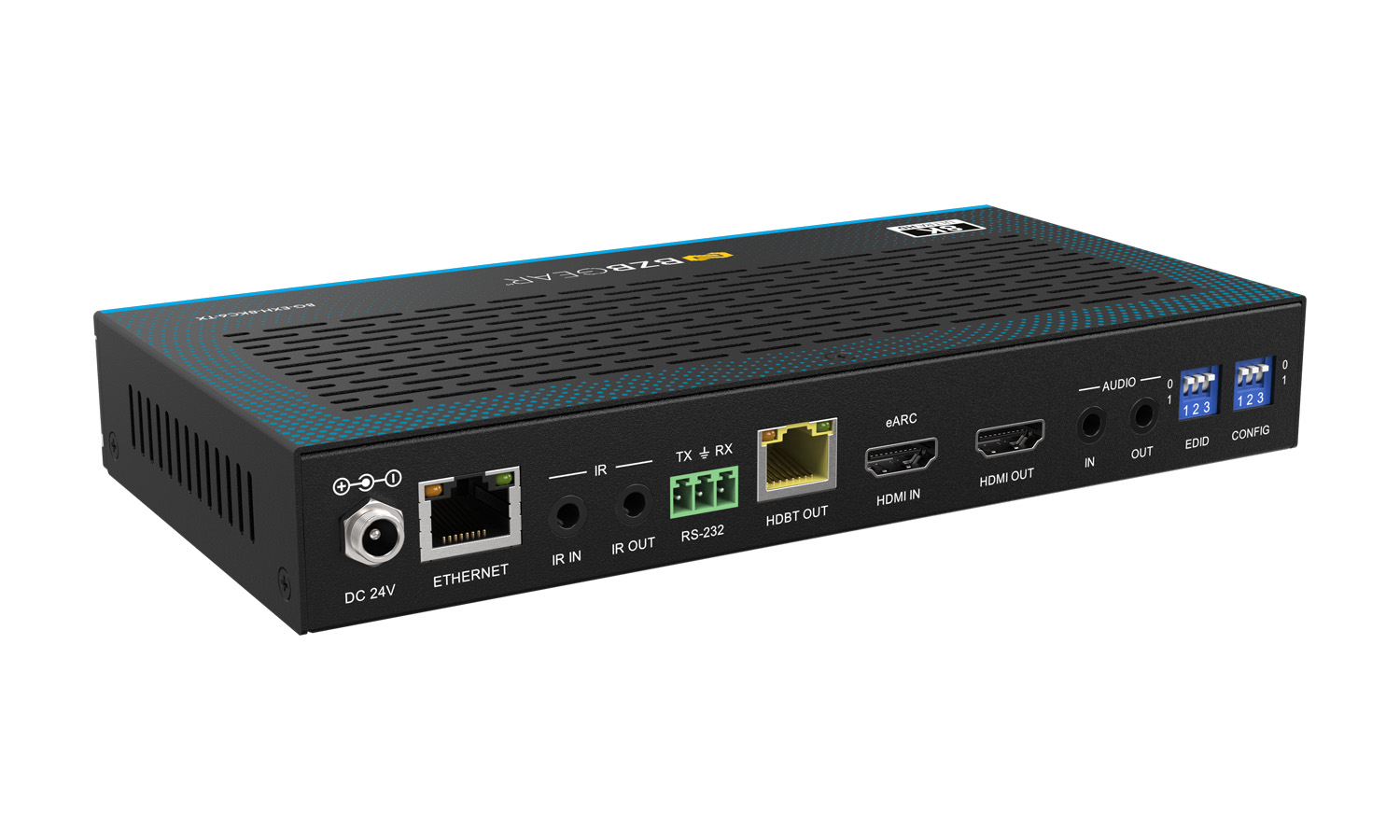

Transmitter | Input: 1 x HDMI IN [Type A, 19-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] |
|||

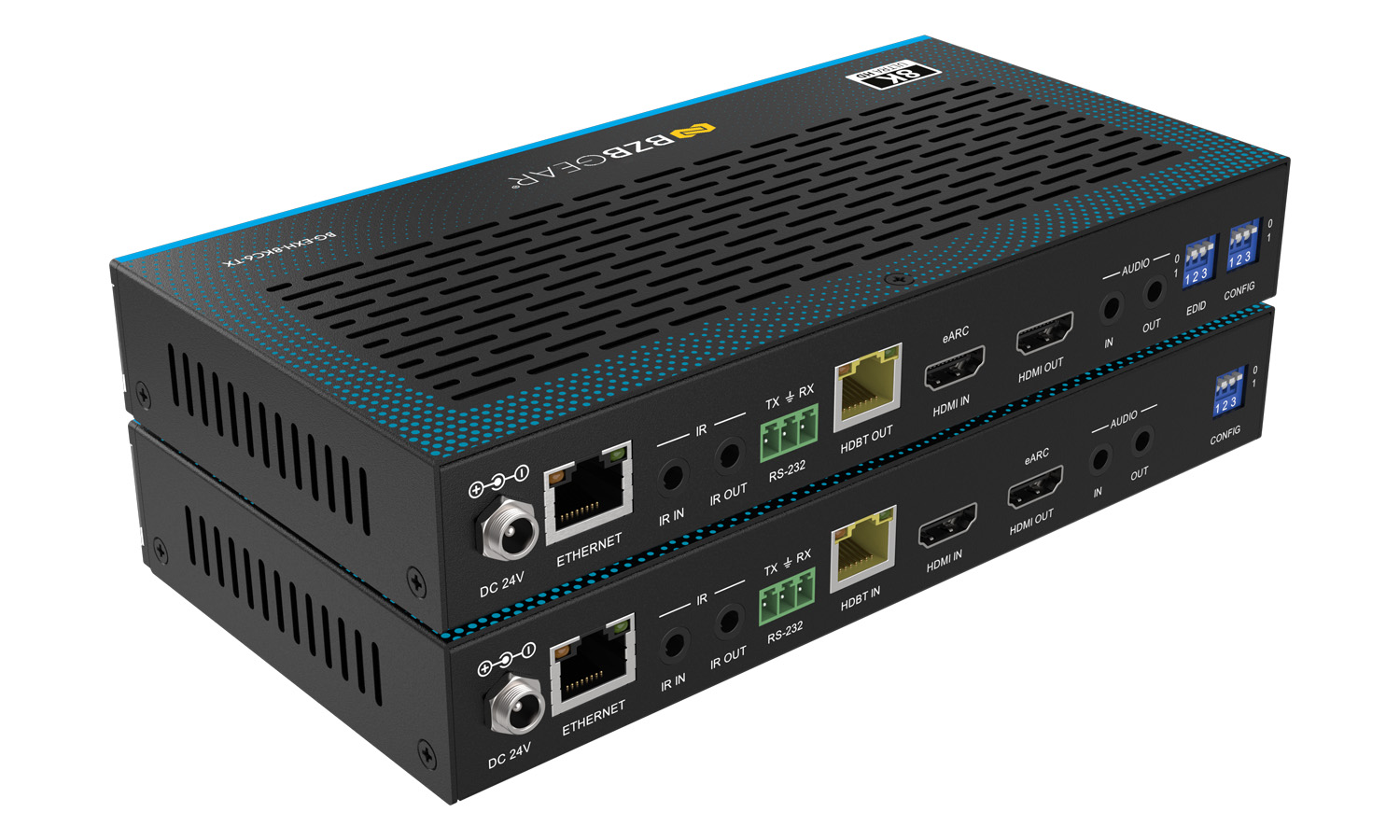

Receiver | Input: 1 x HDMI IN [Type A, 19-pin female] 1 x HDBT IN [RJ45, 8-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] |
|||
Mechanical | ||||
Housing | Front Panel - Aluminium / Enclosure - Metal Composite | |||
Color | Black | |||
Dimensions (L x W x H) | 7.9in x 3.9in x 1.2in [200mm x 100mm x 30mm] | |||
Weight | 1.25 lbs (20oz) [1.1kg] | |||
Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) |
|||
Power Consumption | Total power consumption: 20.4w (POC) TX/RX Full Load: 9.36w/9.84w; TX/RX No Load: 2.46w/3.36w |
|||
Operating Temperature | 32° - 104°F / 0° - 40°C | |||
Storage Temperature | -4° - 140°F / -20° - 60°C | |||
Relative Humidity | 20 - 90% RH (no condensation) | |||
Resolution | 8K30 | 4K60 | 4K24 | 1080P60 |
Cable Length | 9.8ft / 3m | 16ft / 5m | 32ft / 10m | 66ft / 20m |
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended. |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-EXH-8KC6 Transmitter
- 1x BG-EXH-8KC6 Receiver
- 1x 24V / 2.7A Locking Power Supply
- 1x IR Blaster Cable (1.5m)
- 1x IR Receiver Cable (1.5m)
- 2x 3-pin 3.81mm phoenix connectors
- 4x Mounting ears
- 8x KM3*4 Machine Screws
- 8x Rubber feet
- 1x User Manual

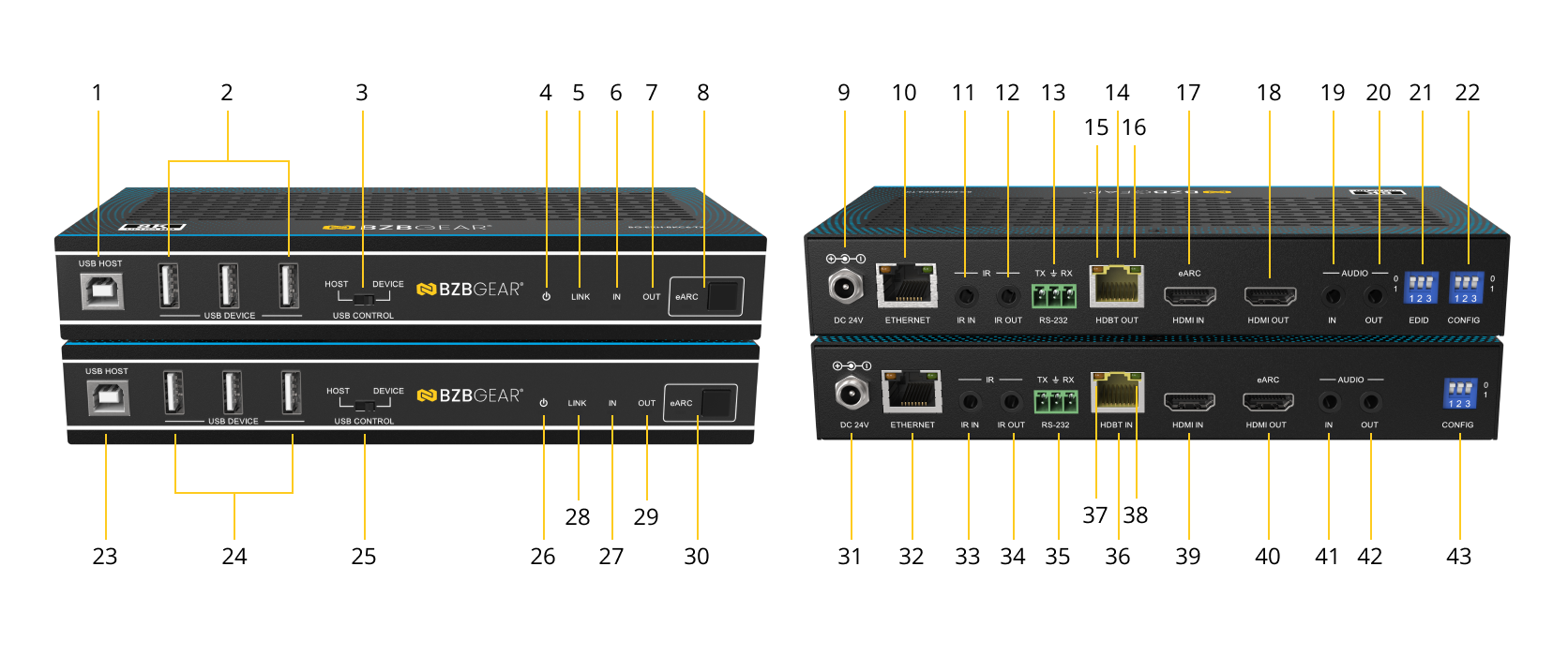

Interfaces

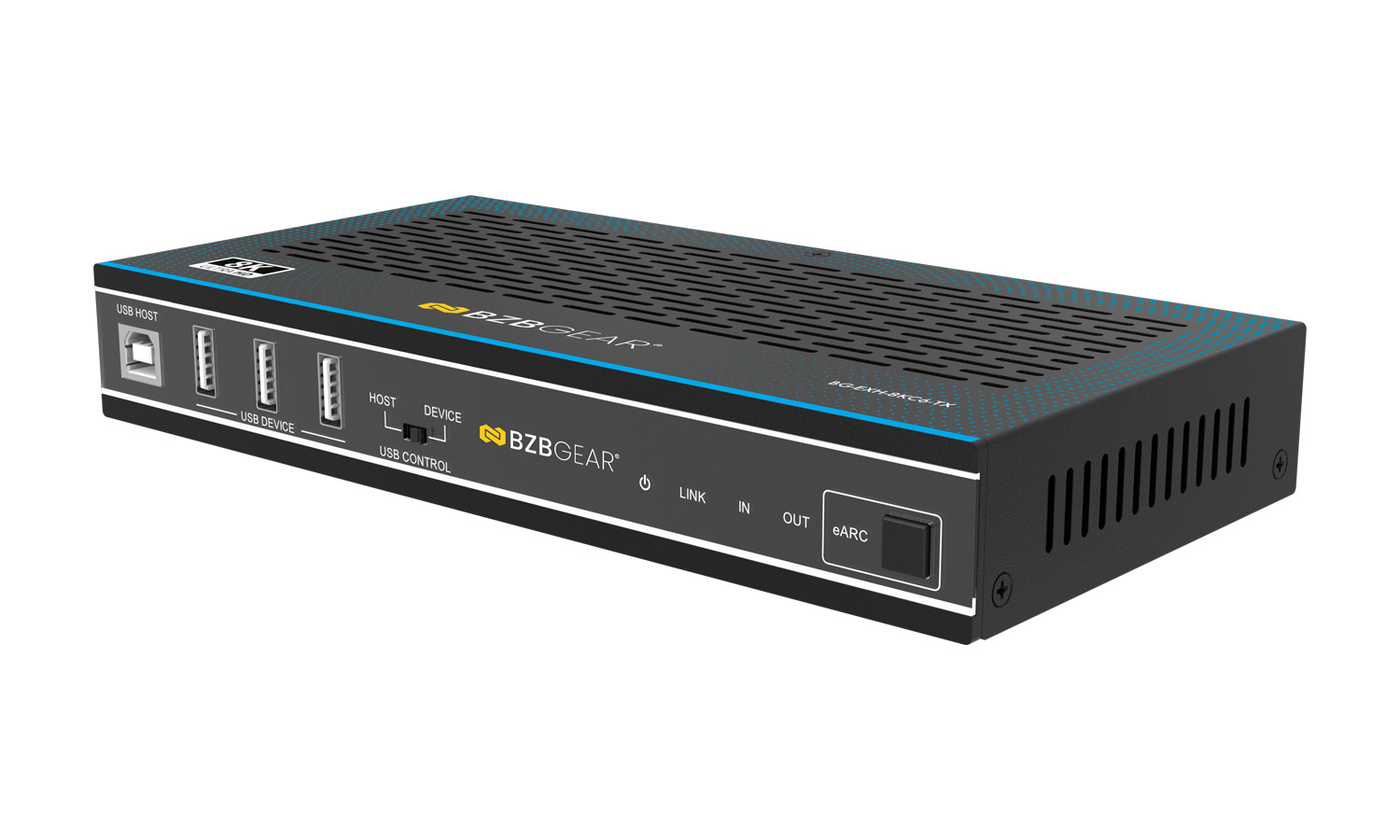

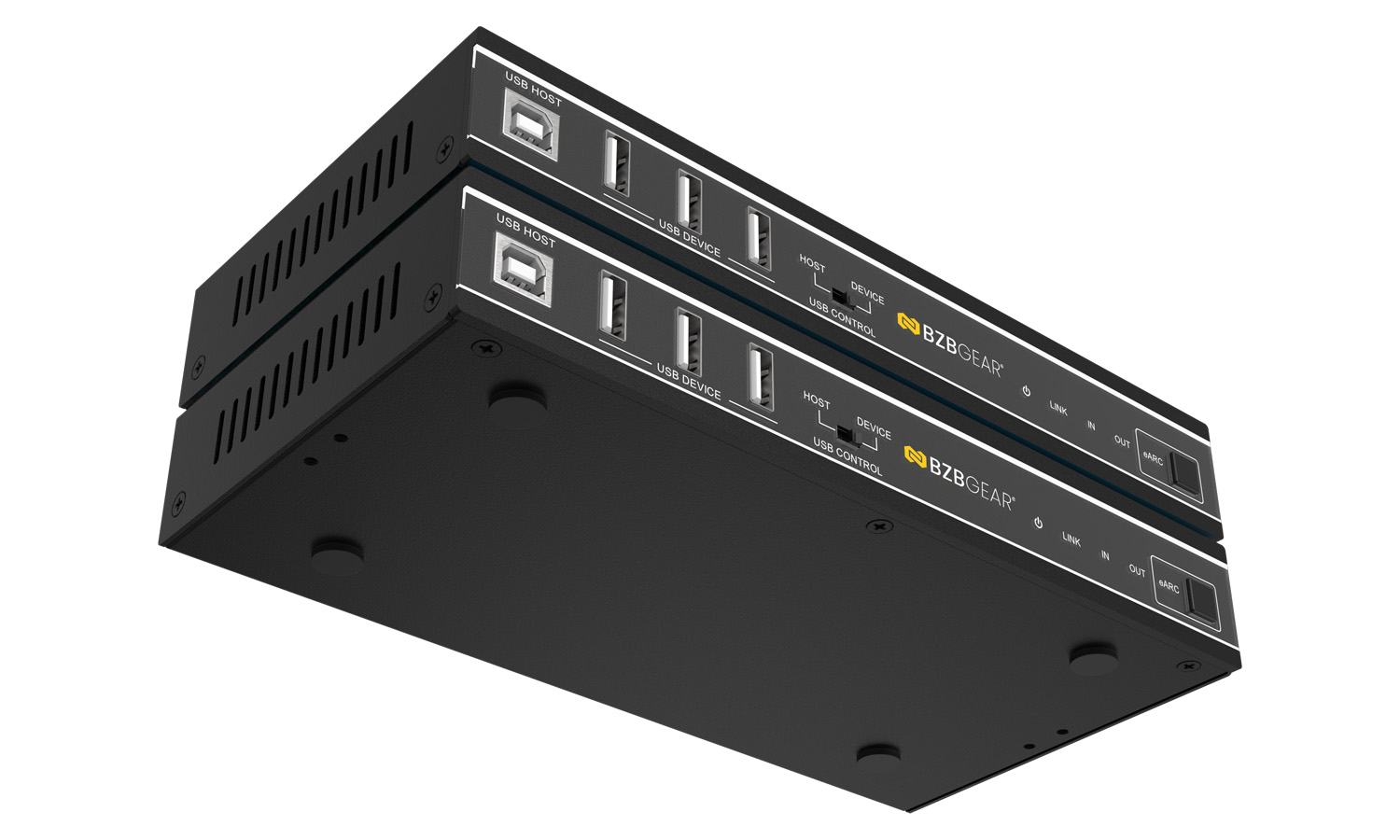

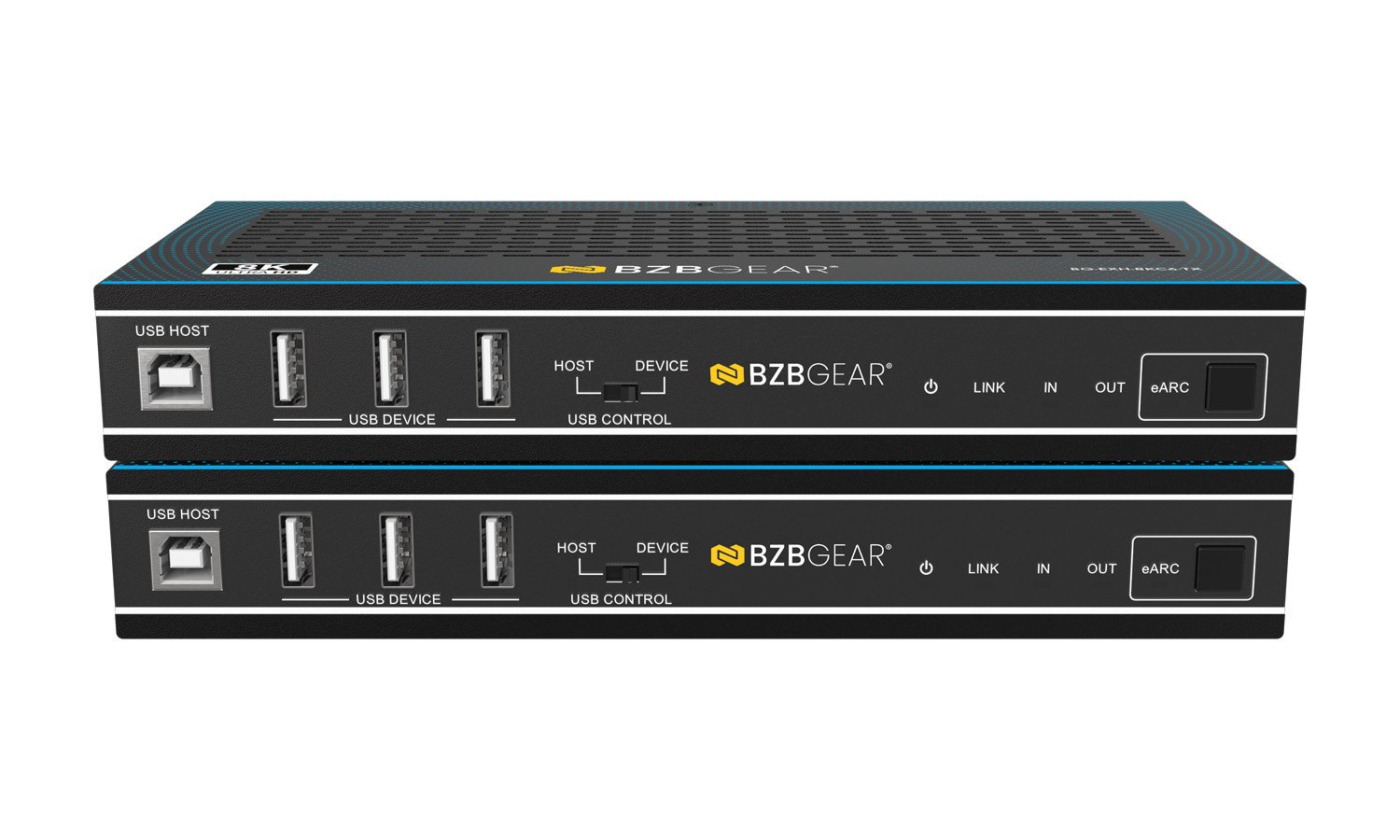

- USB Host: Connect to a PC.
- USB Device: 3 USB extension ports; connect a flash drive, mouse, or keyboard.
- Host/Device USB Control Switch: Switch to left (HOST), the USB HOST mode is enabled;
Switch to right (DEVICE), the USB DEVICE mode is enabled.
Note: If the transmitter is set to USB HOST mode, the receiver must be set to USB DEVICE mode. - Power LED: Light on: The transmitter is powered on.
Light off: The transmitter is powered off. - Link LED: Light on: Transmitter and receiver are in good connection status.
Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
Light off: Transmitter and receiver are not connected. - In LED: Video signal input indicator.
Light on: There is HDMI signal input.
Light off: There is no HDMI input or the system is powered off. - Out LED: Video signal output indicator.
Light on: There is HDMI signal output.
Light off: There is no HDMI output or the system is powered off. - eARC LED & Button: Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following:
Light on: The eARC/ARC mode is enabled, and the device is working normally.
Light flashing: The eARC/ARC mode is enabled, but the device is working abnormally.

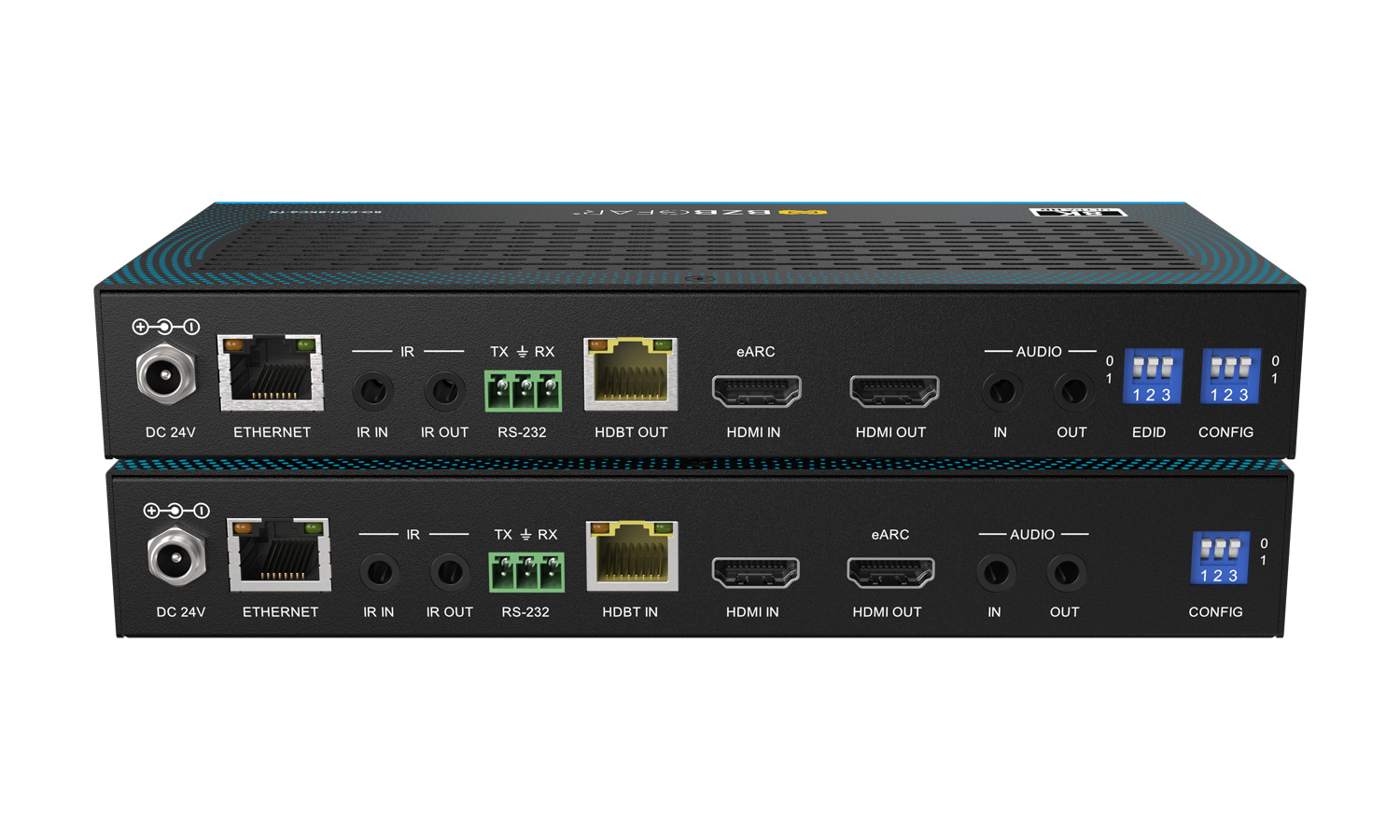

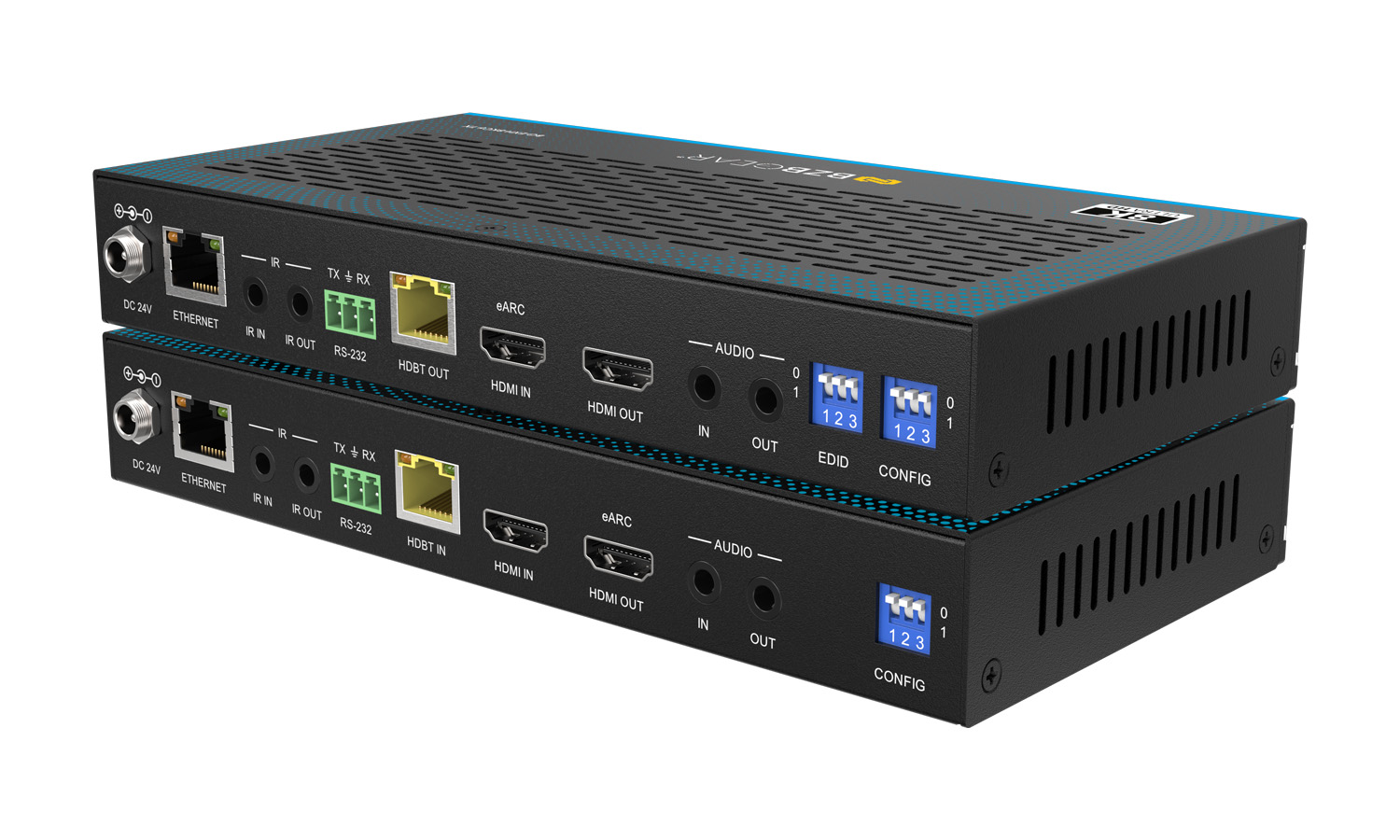

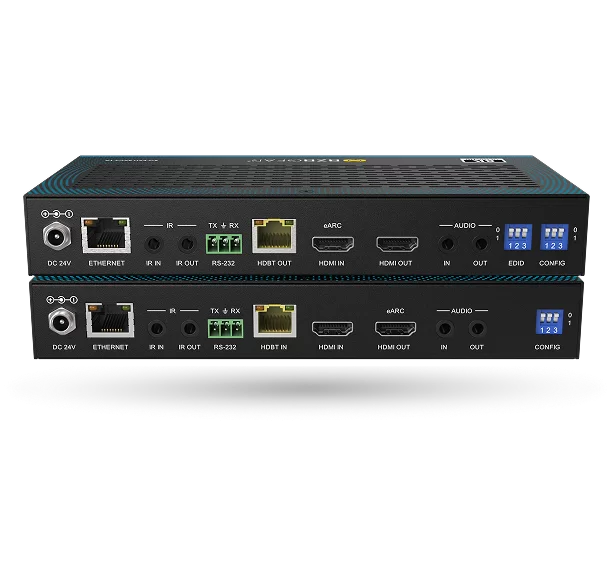

Light off: The eARC/ARC mode is disabled. - DC 24V: DC 24V/2.7A power supply input port.
Note The extenders support POC functionality which means that either the transmitter or receiver is powered on by the 24V/2.7A power adapter, the other one does not need a power supply. - Ethernet Indicators: Ethernet port with adaptive broadband rate. For example, if the transmitter is connected to a PC
with a 100Mbps, and the receiver is connected to a Gigabit router, the device can automatically switch the 100Mbps of the transmitter to Gigabit rate. (Note: If the connected device only supports 100Mbps, the extender cannot switch to Gigabit.)
Light in green: the Ethernet rate is 1000 Mbps.
Light in yellow: the Ethernet rate is 100 Mbps. - IR In: IR signal input port, connect to IR Receiver cable.
- IR Out: IR signal output port, connect to IR Blaster cable.
- RS-232: The RS-232 serial port features different functions by setting the CONFIG DIP switch:
1. RS-232 signal pass-through
2. Control & FW upgrade
3. VS3000 FW upgrade

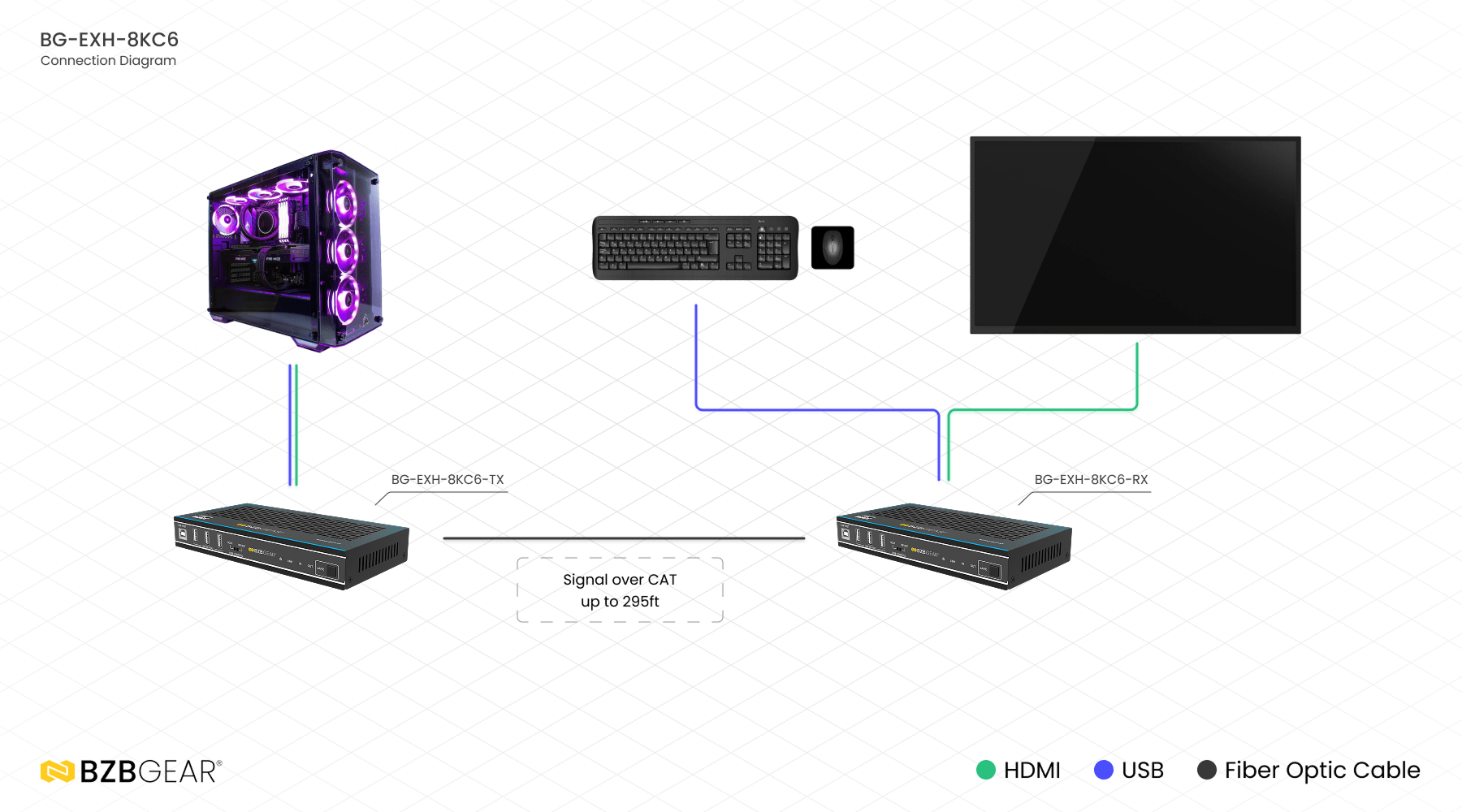

4. Debug. - HDBT Out: HDBaseT Network port, connect to the HDBT IN port of the receiver with a CAT 6A/7 cable. It is used for various signals pass-through.
- Data Signal Indicator (Yellow): Light on: HDMI signal with HDCP.
Light flashing: HDMI signal without HDCP.
Light off: No HDMI signal - Link Signal Indicator (Green): Light on: Transmitter and receiver are in good connection status.
Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
Light off: Transmitter and receiver are not connected. - eARC/HDMI In: This port features two functions:
1. HDMI signal input port, connect to HDMI source device.
2. eARC/ARC audio port, connect to eARC/ARC amplifier/sound system. - HDMI Out: HDMI video signal output port. It can loop out the local video signal or output the video signal returned from the receiver.
- Audio In: Analog audio input port. The audio from this port can be output through the AUDIO OUT port of the receiver.
- Audio Out: Analog audio output port. It can output the audio from the AUDIO IN port of the receiver.
- EDID DIP Switch: The DIP switch is used for EDID settings.
- CONFIG DIP Switch: The DIP switch is used to set IR level and serial port access.
- USB Host: Connect to a PC.
- USB Device: 3 USB extension ports; connect a flash drive, mouse, or keyboard.
- Host/Device USB Control Switch: Switch to left (HOST), the USB HOST mode is enabled; Switch to right (DEVICE), the USB DEVICE mode is enabled.
Note: If the transmitter is set to USB HOST mode, the receiver must be set to USB DEVICE mode. - Power LED: Light on: The transmitter is powered on.
Light off: The transmitter is powered off. - Link LED: Light on: Transmitter and receiver are in good connection status.
Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
Light off: Transmitter and receiver are not connected. - In LED: Video signal input indicator.
Light on: There is HDMI signal input.
Light off: There is no HDMI input or the system is powered off. - Out LED: Video signal output indicator.
Light on: There is HDMI signal output.
Light off: There is no HDMI output or the system is powered off. - eARC LED & Button: Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following:
Light on: The eARC/ARC mode is enabled, and the device is working normally.
Light flashing: The eARC/ARC mode is enabled, but the device is working abnormally.

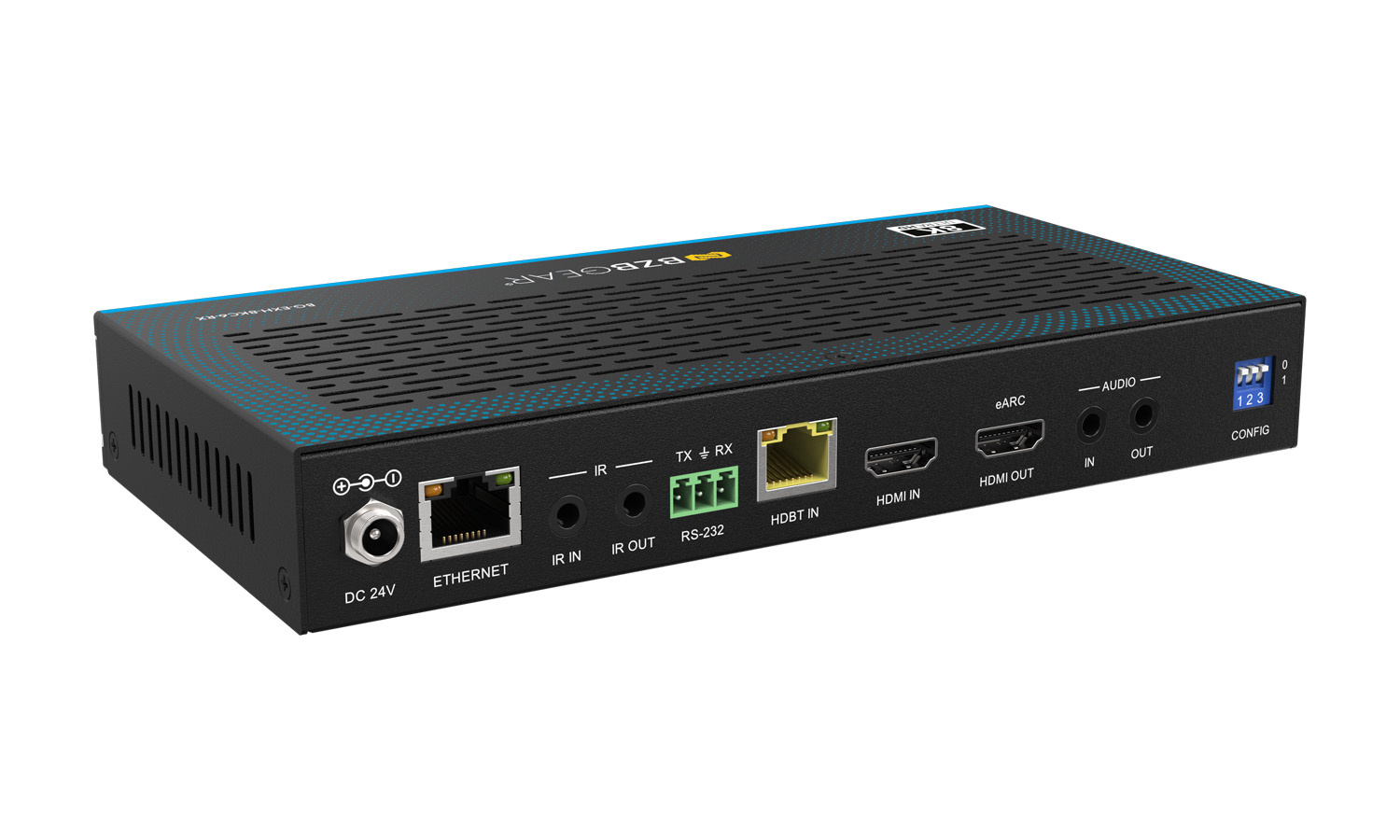

Light off: The eARC/ARC mode is disabled. - DC 24V: DC 24V/2.7A power supply input port.
Note The extenders support POC functionality which means that either the transmitter or receiver is powered on by the 24V/2.7A power adapter, the other one does not need a power supply. - Ethernet Indicators: Ethernet port with adaptive broadband rate. For example, if the transmitter is connected to a PC with a 100Mbps, and the receiver is connected to a Gigabit router, the device can automatically switch the 100Mbps of the transmitter to Gigabit rate. (Note: If the connected device only supports 100Mbps, the extender cannot switch to Gigabit.)
Light in green: the Ethernet rate is 1000 Mbps.
Light in yellow: the Ethernet rate is 100 Mbps. - IR In: IR signal input port, connect to IR Receiver cable.
- IR Out: IR signal output port, connect to IR Blaster cable.
- RS-232: The RS-232 serial port features different functions by setting the CONFIG DIP switch:
1. RS-232 signal pass-through
2. Control & FW upgrade
3. VS3000 FW upgrade
4. Debug. - HDBT In: HDBaseT Network port, connect to the HDBT OUT port of the transmitter with a CAT 6A/7 cable. It is used for
various signals pass-through. - Data Signal Indicator (Yellow): Light on: HDMI signal with HDCP.
Light flashing: HDMI signal without HDCP.
Light off: No HDMI signal. - Link Signal Indicator (Green): Light on: Transmitter and receiver are in good connection status.
Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
Light off: Transmitter and receiver are not connected. - HDMI In: HDMI Signal input port, connect to HDMI source device. IT can transmit video with resolutions of 1080p@24Hz in
reverse to the HDMI OUT port of the transmitter.
Note:This port is reserved and closed by default. Before using this port, users will need to turn it on through RS232 commands and ensure that the eARC function is disabled. - eARC/HDMI Out: This port features two functions:
1. HDMI signal output port, connect to HDMI display device.
2. eARC/ARC audio port, connect to TV with eARC/ARC function. - Audio In: Analog audio input port. The audio from this port can be output through the AUDIO OUT port of the transmitter.
- Audio Out: Analog audio output port. It can output the audio from the AUDIO IN port of the transmitter.
- CONFIG DIP Switch: The DIP switch is used to set IR level and serial port access.
