Overview

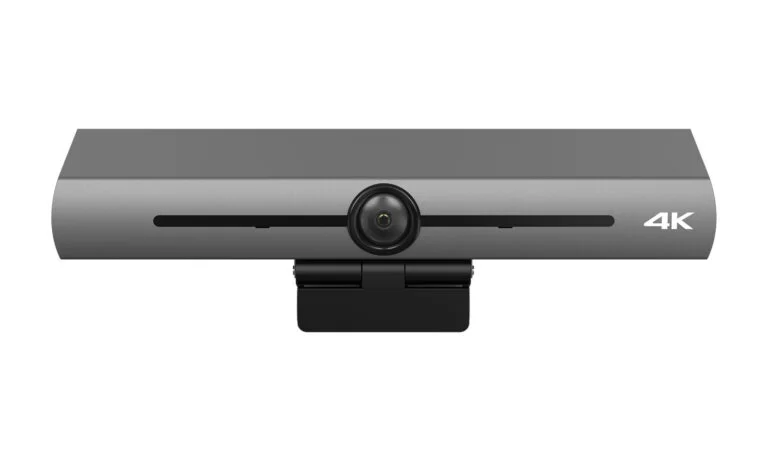

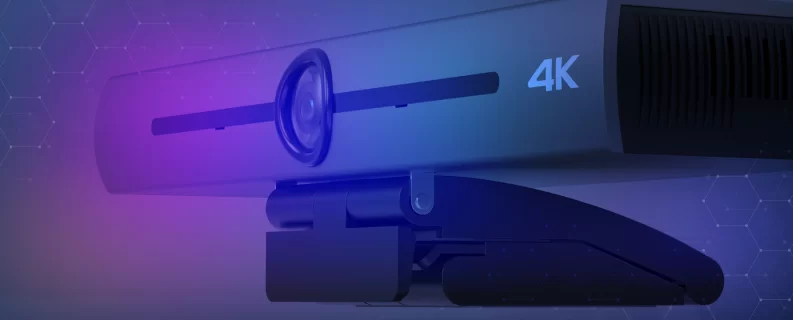

Whether you’re running a small or large meeting, the BG-EPTZ-AF auto-framing camera offers great value by ensuring everyone in your meeting is included. This camera detects how many people are in the room and automatically zooms and reframes the image to make sure all attendees are in the frame and centered in the field of view. Thanks to its 1/2.5” 8MP CMOS sensor, the BG-EPTZ-AF can record in 4K@30Hz to capture every detail of your meeting. With a USB 3.0 port, simultaneous main and sub-stream output is possible as well.
This camera is a great choice for small to medium sized businesses, educators, and other presentation needs.
Camera & Sensors
The BG-EPTZ-AF utilizes ePTZ (electronic pan/tilt/zoom) technology to ensure that all users are captured in the field of view. It also has a wide 120° field of view with no fish-eye effect or distortion. Combined with its high quality 4K@30Hz video capture, this camera is exceptionally flexible when it comes to small or large meetings.
This camera also has two built-in microphones with 360 degrees of sound to record every aspect of your meetings at a distance of up to five meters. Auto-noise suppression is included as well to improve sound quality.
Control & Connectivity
The camera can be controlled via an IR remote, making it easy to operate. It also is equipped with audio output and power supply via a USB 3.0 connection. Not only does this enable main and sub dual stream output, but it also reduces the need for additional power cables. No additional drivers are needed either, making setup simple.
Best of all, the USB 3.0 connection makes it possible to use the camera with just about any video conferencing software needed, including Zoom, Teams, Skype, Google Meet, and more.
A built-in mount and stand enable operators to position the BG-EPTZ-AF auto-framing camera on a desktop, monitor, tripod, or on top of a laptop.
Features
-
Auto FramingCamera automatically adjusts to keep subjects centered -
Crystal Clear 4K ImageOutput resolutions up to 4K@30Hz -
Built-in microphoneEnsures the sound is as clear as the picture -
Wide AngleCapture the whole scene with no fish-eye effect -
Easy to UsePlug and Play with USB 3.0 -
Easy InstallationMount/Stand is built-in
- Utilizes a 1/2.5" 8MP CMOS sensor
- USB 3.0 main and sub dual stream outputs
- Low noise and high SNR ≥50dB
- EPTZ and 4X digital zoom
- 2D & 3D DNR
- Auto-framing sensitivity
- Min illumination 0.1Lux (F1.8, AGC ON)
- Supports audio output over USB 3.0
- Auto or manual focus and exposure
Compatible with:
Videos
Tech Specifications
| Camera Parameters | |
| Image Sensor | 1/2.5" High Quality 4K CMOS Sensor |
| Effective Pixels | 8.28MP 16:9 |
| Video output port | 1x USB 3.0, Type B, support audio output over USB 3.0 |
| Audio input | 2 built-in MIC pickups |
| Video Format | Main stream: 3840x2160p@30Hz, 1920x1080p@30Hz/25, 1280x720p@30Hz/25, etc. Sub-stream: 1280x720p@30Hz/25, 640x480p@30Hz/25, 320x172p@30Hz/25, etc. |
| View Angle | 126°(D)/120°(H)/85°(V) |
| Lens | f=2.72mm |
| Aperture | F2.5 |
| Digital zoom | 4X |
| Min Illumination | 0.1Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| Ultra-low illumination | On/off |
| White Balance | Auto / Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K |
| Focus | Auto / Manual / One push Focus |
| Exposure | Auto / Manual |
| Auto framing | On/off/sensitivity |
| Backlight compensation | On/off |
| Dual stream | On/off |
| SNR | ≥50dB |
| USB Features | |
| Operation Systems | Windows 7 (1080p at the most), Windows 8.1, Windows 10, macOS™ 10.10 or higher, Linux (Require to support UVC) |
| Video Compression format | YUY2, MJPG, H.264, H.265 |
| Audio over USB 3.0 | Support |
| USB communication protocol | UVC, UAC |
| PTZ control | Support EPTZ |
| Hardware requirement | 2.4 GHz Intel@ Core 2 Duo processor or higher, 2GB RAM or more, USB 2.0 /USB 3.0 port (USB 3.0 is needed for 4K) |
| Other Parameters | |
| Input Voltage | 5V |
| Input Current | 1A (Max) |
| Power consumption | 5W (Max) |
| Store Temperature | 14°F ~ 140°F / -10°C ~ +60°C |
| Store Humidity | 20%~90% |
| Working Temperature | 14°F ~ 122°F / -10°C~+50°C |
| Working Humidity | 20% ~ 80% |
| Dimension (WxHxD) | 8.7 x 3.7 x 2.2in [222 x 93 x 57mm] |
| Weight | 1.17 lbs [0.53kg] |
| Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS
- 1x BG-EPTZ-AF Camera
- 1x Remote control
- 1x USB3.0 cable
- 1x User Manual
Interfaces
- USB: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 4K@30Hz.
