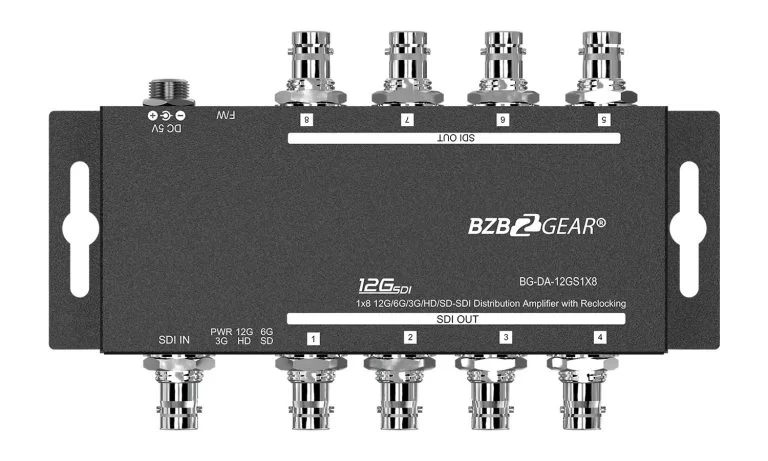

12G-SDI / 6G-SDI / 3G-SDI 1X8 Splitter
MSRP: $399.00

MSRP $399.00

3

Description

The BG-DA-12GS1x8 is a 1x8 12G-SDI splitter. It can split an SD, HD, 3G, 6G, or 12G-SDI video source to two SDI compliant displays simultaneously for real time monitoring. Each output is separately buffered and re-clocked to eliminate signal disruption and extend transmission distances. This splitter also provides automatic input cable equalization (Belden 1694A) up to 180m(594ft) @3G, 100m(330ft) @6G and 70m(230ft) @12G.

The LED indicators show signal lock and current video rate, and the inter-locked power supply ensures a reliable power connection.

Additional information

Weight3 lbs
Dimensions12 × 8 × 2 in
Number of Outputs

2, 4, 8

Overview

The BG-DA-12GS1x8 is a 1x8 12G-SDI splitter. It can split an SD, HD, 3G, 6G, or 12G-SDI video source to two SDI compliant displays simultaneously for real time monitoring. Each output is separately buffered and re-clocked to eliminate signal disruption and extend transmission distances. This splitter also provides automatic input cable equalization (Belden 1694A) up to 180m(594ft) @3G, 100m(330ft) @6G and 70m(230ft) @12G.

The LED indicators show signal lock and current video rate, and the inter-locked power supply ensures a reliable power connection.



Introduction

SDI is the modern standard for professional high-definition and ultra-high definition signal delivery. Its ability to transmit high resolution audio and video over long distances while using durable, inexpensive cabling makes it a better choice than HDMI in professional applications. BZBGEAR offers multiple solutions for SDI signal distribution including support for 3G, 6G and 12G-SDI.
Features
8 Outputs
Increased connectivity
Buffered and re-clocked outputs
Eliminate jitter and increase transmission distance
Automatic input cable equalization
Up to 180 meters @ 3G
LED Indicators
Signal lock and video rate at a glance
Interlocked Power Supply
Ensures power stays connected
Rugged Design
Built to last for years of operation
  • 8 Outputs – Increased connectivity
  • Buffered and re-clocked outputs – Eliminate jitter and increase transmission distance
  • Automatic input cable equalization – Up to 180 meters @ 3G
  • LED Indicators – Signal lock and video rate at a glance
  • Interlocked Power Supply – Ensures power stays connected
  • Rugged Design – Built to last for years of operation


Specifications
Technical
SDI standardSD/HD/3G/6G/12G-SDI
Multi-Rate SupportAuto detection of SD, HD, 3G, 6G or 12G Signals
SDI ComplianceSMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI, ST-
2081(6G), ST2082(12G)
SDI Data rates1.485 / 2.97 / 5.94 / 11.88 Gbps
Video bandwidth[11.88Gpbs & 11.88/1.001Gbps]
Output impedance75Ω
ReclockingYes
Cable equalization[12G] up to 70m (230ft)
[6G] up to 100m (330ft)
[3G] up to 180m (594ft)
Audio supportYes
RP-198 pathological patternsImmune
PCB stack-up4-layer board [impedance control — differential 100Ω; single 75Ω]
Input1x BNC [SDI]
Output8x BNC [SDI]
BNC connector75Ω inter-locked socket
Eye pattern characteristics[12G]Amplitude: Within 800mV (<10%) Rise/Fall time: Less than 35ps
Timing jitter: <1.0 UI (10Hz to 1188MHz)
Alignment jitter: <0.3 (100KHz to 1188MHz)
Mechanical
HousingMetal enclosure
Dimensions [L x W x H]Model: 133 x 53 x 28 mm [5.2" x 2.1" x 1.1"]
Package: 198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton: 420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
WeightModel: 198g [7 oz]
Package: 425g [0.9 lbs]
FixednessWall-mounting case
Power supply5V 2A DC
Power consumption2.5 Watts [max]
Operation temperature0~40°C [32~104°F]
Storage temperature-20~60°C [-4~140°F]
Relative humidity20~90% RH [no condensation]
MORE / LESS SPECS
Perfect Fit for:
- Houses of Worship
- Studios
- Live Productions


Who is using it?
- Video Production Crews
- Producers
- Clergy


Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1x BG-DA-12GS1X8
② 1x 5V power adapter
③ 1x BNC 75 ohm terminator
④ 1x User Manual
