Overview

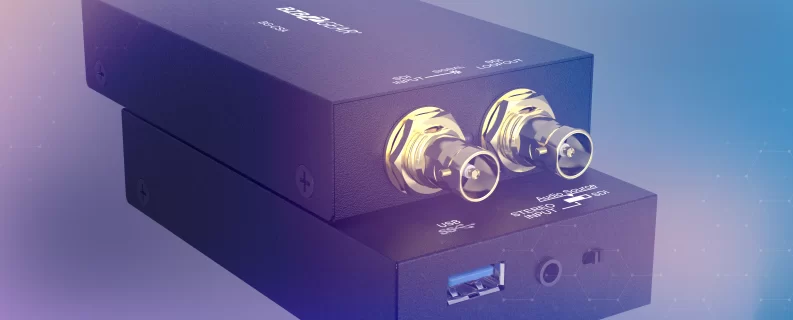

The BG-CSA is a 3G/HD/SD-SDI capture device. When you need to record or stream any SDI source (like video camera or video mixer output) on your PC – this device will do the job.
It supports any resolutions up to 1080P at 60fps on USB 3.0/3.1 ports. Built-in scaler gives you more flexibility for the capturing video format. Large volume image buffer ensures smooth uninterrupted video capture.
Using 3.5mm stereo audio input you can switch to the external mic or other audio signal and embed it into the video stream. All aluminum housing and power from USB port (no additional power adapter required) adds durability and portability to our setup.
If you need to set up additional local monitor or extend/split input there is an SDI loop-out port which will re-clock and mirror original signal.
Features
-
![sdi]()
3G-SDICrystal clear image with resolutions up to 1080p@60Hz -
![COMPACT DESIGN]()
PortableIdeal for recording in the field or on the go -
![bi_usb-symbol]()
USB Data TransferThe USB 3.1 port supplies power for the unit and transfers data to the connected device -
![fluent_slide-microphone-32-regular]()
Audio InputEmbed audio from microphone or other source -
![iconoir_pc-check]()
Easy to UseSimple for anyone to learn -
![ph_devices-light]()
CompatibilitySupports Mac OS, Windows, and a wide array of third-party applications
- 1080P Resolution – Capture and store Full HD signal
- Metal Enclosure – Durable metal structure built to withstand years of operation
- Loop Output – Allows uncompressed signal pass-thru for local displays
Videos
Tech Specifications
| Technical | |
| Max. Data Rate | 350 Mbps |
| UAC Video Output Resolution | SMPTE 424M-2.97 Gbps 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2) SMPTE 274M-1.485 Gbps HD-SDI: 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz SMPTE 292M-1.485 Gbps HD-SDI: 1080i at 30 Hz, 720p at 60 Hz SMPTE 296M-1.485 Gbps HD-SDI: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz SMPTE 259M-270 Mbps SD-SDI: NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz |
| UAC Audio Output Format | Stereo / 16-bit / 48000Hz |
| Recording Video Format | YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1) |
| Audio Input | SDI Embedded Audio 3.5mm Analog Stereo Audio |
| Operating System Compatibility | Windows 7, 8, 10, Mac OS X 10.9 or above, Linux |
| 3rd-Party Software Compatibility | OBS Studio (Windows, Linux)/ AMCap (Windows) Potplayer (Windows)/ Skype (Windows, OS X) Hangout (Windows)/ TeamViewer (Windows) |
| Hardware Requirements | Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher |
| ESD Protection | 8 KV - Contact Discharge 15KV - Air Discharge |
| Mechanical | |
| Housing Design | Aluminum |
| Casing Style | Portable |
| Power Connection | Micro-USB Port |
| Power Supply | 5V DC, 1A |
| Power Consumption | 4 watts (Max) |
| Operating Humidity | 20-90% RH (no condensation) |
| Operation temperature | 32~104°F / 0~40°C |
| Product Weight | 0.3 lbs [135g] |
| Package Weight | 0.6 lbs [270g] |
| Certifications | CE, FCC, RoHS |
Resources
PACKAGE CONTENTS
- 1x BG-CSA USB 3.1 Gen 1 3G-SDI Capture Device
- 1x USB 3.1 Gen 1 A to A Cable (host to device)
- 1x User Manual
Interfaces

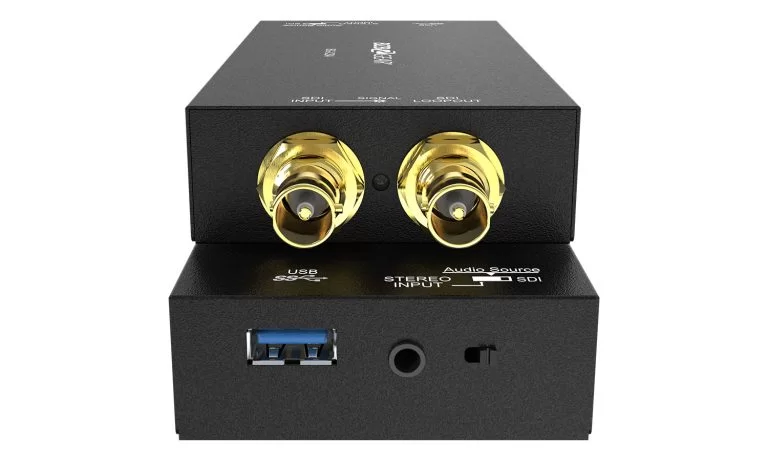

- USB OUT: Connect to a USB host device such as a PC, laptop, or MAC.
- STEREO AUDIO IN: Embed audio using a 3.5mm stereo mini cable.
- AUDIO SWITCH: [left] Audio from 3.5mm stereo audio in, [right] Audio from SDI.
- SDI IN: Connect to a 3G/HD/SD-SDI source.
- LED INDICATOR: SDI input signal indicator LED.
- SDI LOOPOUT: Connect to a local 3G/HD/SD-SDI display.
