Overview

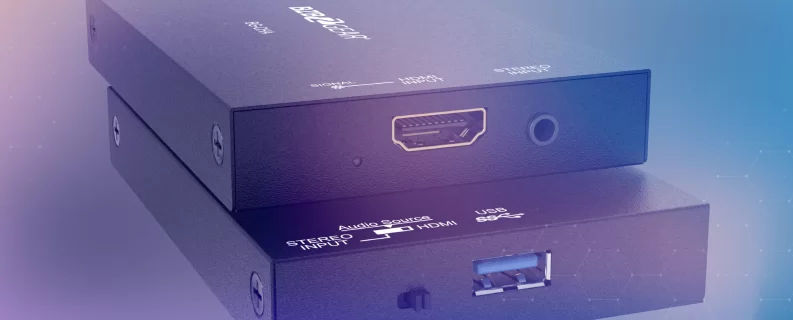

The BG-CHA is an HDMI video capture device. When you need to record or stream any HDMI source (like video camera, gaming console or other computer) on your PC – this device will do the job.
It supports any resolutions up to 1080P at 60fps on USB 3.0/3.1 ports. Built-in scaler gives you more flexibility for the capturing video format. Large volume image buffer ensures smooth uninterrupted video capture.
Using 3.5mm stereo audio input you can switch to the external mic or other audio signal and embed it into the video stream. All aluminum housing and power from USB port (no additional power adapter required) adds durability and portability to our setup.
BG-CHA is HDCP compliant and will not allow to record protected content.
Features
-
![badge-Full-hd | 1080P HD]()
1080p/60 SupportCrystal clear image with resolutions up to up to 1080p@60Hz -
![COMPACT DESIGN]()
CompactIdeal for recording presentations on the go -
![bi_usb-symbol]()
USB 3.1 Data TransferThe USB 3.1 port supplies power for the unit and transfers data to the connected device -
![fluent_slide-microphone-32-regular]()
Audio InputEmbeds audio from a microphone or other device -
![iconoir_pc-check]()
Easy to UseLogical layout allows anyone to take control -
![ph_devices-light]()
CompatibilitySupports Mac OS, Windows, and a wide array of third-party applications
- 3rd Party Software Support – Compatible with most 3rd party software such as OBS Studio and AMCap
- Image Buffering – Ensures a smooth uninterrupted video capture
- H.264 – Supports H.264 compression format
Videos
Tech Specifications
| Technical | |
| Max. Data Rate | 350 Mbps |
| UAC Video Output Resolution |
UHD Video Standards：
HD Video Standards：
VESA Standards：
|
| UAC Audio Output Format | Stereo / 16-bit / 48000Hz |
| Recording Video Format | YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1) |
| Audio Input | HDMI Embedded Audio 3.5mm Analog Stereo Audio |
| Operating System Compatibility | Windows 7, 8, 10, Mac OS X 10.9 or above, Linux |
| 3rd-Party Software Compatibility | OBS Studio (Windows, Linux)/ AMCap (Windows) Potplayer (Windows)/ Skype (Windows, OS X) Hangout (Windows)/ TeamViewer (Windows) |
| Hardware Requirements | Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M+4GB RAM or higher |
| ESD Protection | 8 KV - Contact Discharge 15KV - Air Discharge |
| Mechanical | |
| Housing Design | Aluminum |
| Casing Style | Portable |
| Power Connection | Micro-USB Port |
| Power Supply | 5V DC, 1A |
| Power Consumption | 4 watts (Max) |
| Operating Humidity | 20-90% RH (no condensation) |
| Operation temperature | 32~104°F / 0~40°C |
| Product Weight | 0.3 lbs [135g] |
| Package Weight | 0.6 lbs [270g] |
| Certifications | CE, FCC, RoHS |
Resources
PACKAGE CONTENTS
- 1x BG-CHA USB 3.1 Gen 1 Full HD Video Capture Device
- 1x USB 3.1 Gen 1 A to A Cable (host to device)
- 1x User Manual

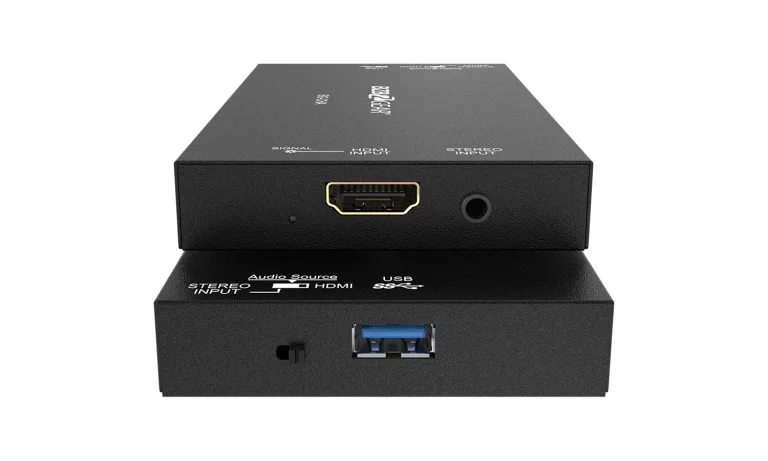

Interfaces
- AUDIO SWITCH: [left] Audio from 3.5mm stereo audio in, [right] Audio from HDMI.
- USB OUT: Connect to a USB host (PC, laptop, MAC).
- LED INDICATOR: HDMI input signal indicator LED.
- HDMI IN: Connect to a HDMI source.
- STEREO AUDIO IN: Connect to 3.5mm stereo audio source.
