Overview

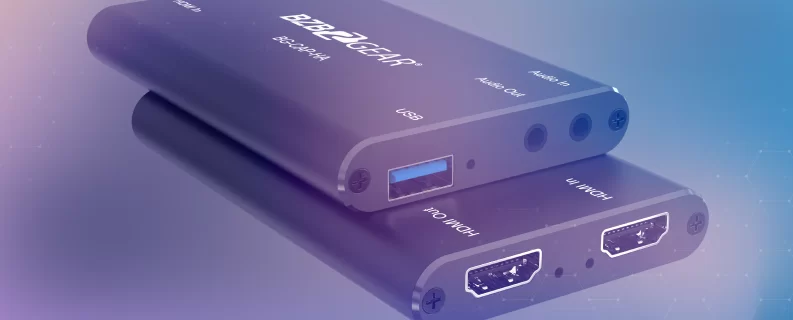

The BG-CAP-HA is a 4K capture device designed to convert an HDMI source to a USB 3.0 output for recording, editing, and/or streaming from a PC or Mac. This unit receives audio and video at resolutions up to 4K@60Hz 4:4:4 HDR10 with an output resolution of 1080P@60Hz.
Either it is live video streaming setup for the interview, or streaming of gaming process with voice over, or conference room setup with camera and microphone – this device will do the job.
Featuring an HDMI loop-out for a local display, it is also equipped with 3.5mm audio input and output ports that provide audio embedding or de-embedding for connecting microphone or external audio system.
The USB 3.0 cable also supplies power to the unit, eliminating the need for a power supply.
The BG-CAP-HA is HDCP compliant and will not capture protected content.
Features
-
Loop-OutHDMI Loop-out to live view captured images -
PortableIdeal for recording presentations on the go -
USB Data TransferThe USB 3.0 port supplies power for the unit and transfers data to the connected device -
Stereo AudioStereo audio input/output for connecting mics and local audio -
Easy to UseSimple for anyone to learn -
CompatibilitySupports Mac OS, Windows, and a wide array of third-party applications
- 1080P@60Hz Resolution – Capture and store Full HD video on your device
- Audio Input – Embeds audio from a microphone or other device
- Audio Output – De-Embeds audio from HDMI for analog devices
Videos
Tech Specifications
| Model | BG-CAP-HA | |
| Description | HDMI to USB Video Capture Device | |
| Input | 1x HDMI In, 1x Audio In | |
| Input Connector | 1x Type-A HDMI, 1x 3.5mm jack | |
| Output | 1x HDMI Out, 1x USB, 1x Audio Out | |
| Output Connector | 1x Type-A HDMI, 1x Type-A USB, 1x 3.5mm jack | |
| HDMI Standard | 2.0 | |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR10 | |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10 | |
| USB Output Color Space | YUV2, RGB | |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through | |
| Microphone Audio Format | PCM 2.0 | |
| Headphone Audio Format | PCM 2.0 | |
| OS Support | Windows, Mac OS X, Linux | |
| Compatible Media Player | OBS, PotPlayer, VLC and so on | |
| Video Capture Format | HDMI Source | Captured Video by USB |
| 4K@60Hz 4:4:4 | 1080p@60Hz/720p | |
| 1080p@60Hz 4:4:4 | 1080p@60Hz/720p | |
| 720p | 720p | |
| 480 | 480 | |
| 576 | 576 | |
| General | ||
| Operation Temperature | +23° to +131°F / -5° to +55°C | |
| Storage Temperature | -13° to +158°F / -25° to +70°C | |
| Relative Humidity | 10% to 90%, Non-condensing | |
| Dimension (WxHxD) | 4.0 x 0.51 x 2.4in [102 x 13 x 61mm] | |
| Net Weight | 0.17 lbs [75g] | |
Resources
PACKAGE CONTENTS
- 1x BG-CAP-HA USB 3.0 Powered HDMI Capture Device
- 1x User Manual

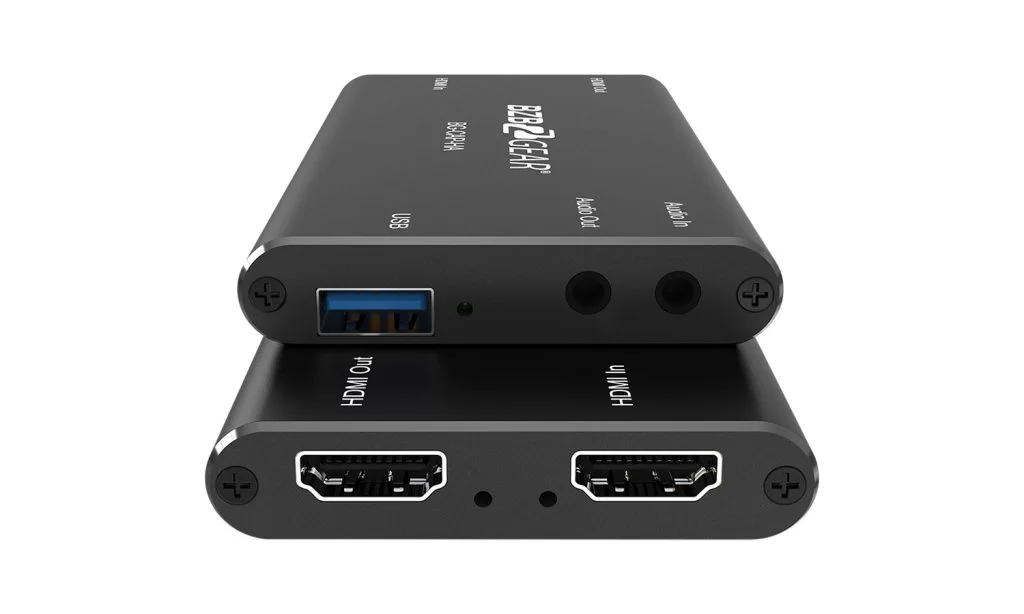

Interfaces
- HDMI Out: HDMI loop output for HDMI display device connection.
- HDMI In: Connects to HDMI source device.
- USB: Connects to laptop, PC or other recording device.
- Audio Out: Extract HDMI source audio using a 3.5mm stereo mini cable.
- Audio In: Embed audio using a 3.5mm stereo mini cable.
