4x4 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/MultiViewer with Scaler/IR/Audio/IP and RS-232
Overview

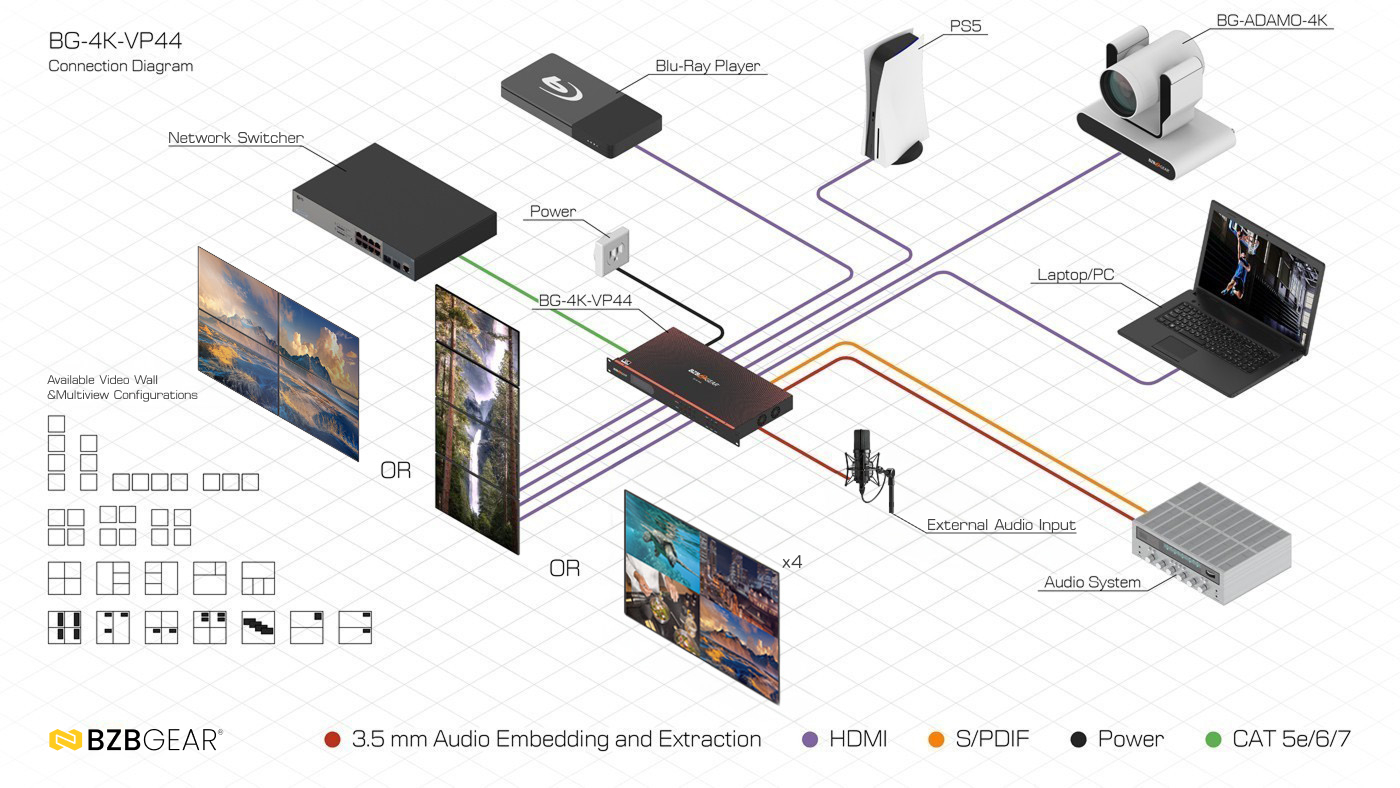

The BG-4K-VP44 is a powerful video processor and supports four HDMI inputs that can be independently routed to HDMI Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP44 supports Video Wall configurations of up to 7 different modes with each monitor. It can also display four pictures on the same screen and has multiple split display modes.
Connectivity and Quality
With max resolutions up to 4K@60HZ 4:4:4, the BG-4K-VP44 is capable of producing high-quality imagery with pristine detailing and rich color. All HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
Control
The BG-4K-VP44 offers multiple control methods including front panel controls, IR remote control, RS-232, or IP control. The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation.
In addition to a full-featured web interface, the BG-4K-VP44 includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.
BZBGEAR AWARDS
Features
-
4X4 Matrixing4x HDMI Inputs that can be independently routed to 4 HDMI Outputs -
Video WallSupports Video Wall up to 7 different modes with each monitor -
Multiview CapabilitiesIt can display 4 pictures on the same screen and has multiple split display modes -
HDCP CompliantHDCP 2.2 compliancy ensures copyright protection -
Control OptionsControl via panel button, Remote Control, RS232 Control, TCP/IP Control -
4K@60HzSupports resolution up to 4K@60Hz 4:4:4
- No switching delay or picture loss during transitions
- Supports HDMI audio formats including Dolby-5.1, DTS-5.1
- Analog audio extraction and the audio can be independently switching
- Advanced EDID management: Seamless scaling for the best results
Seamless Matrix Switching. No matter your preferred method—whether it's drag-and-drop, click-to-switch, or serial command-based control—the BG-4K-VP44 ensures a seamless source-switching experience. Effortlessly move any source to any output at any time!
Multiple Multiview Presets. Choose from various pre-configured multiview presets, and easily customize your setup by dragging and dropping sources.
Intuitive Video Wall Configuration. Select from a list of pre-configured video wall presets or design your own custom configuration. For optimal picture quality, utilize our integrated bezel correction settings.
Hassle-Free Audio Setup. Equipped with four audio input ports, four audio output ports, four S/PDIF outputs, and HDMI audio embedding, the BG-4K-VP44 offers exceptional flexibility for comprehensive audio integration and routing.
Intuitive Audio Management Interface. The intuitive Web GUI simplifies audio routing and matrixing with user-friendly check/uncheck options and convenient drop-down menus for easy selection.
BZBGEAR Switch Control App
- The BG-4K-VP44 is fully compatible with the BZBGEAR Switch Control App, a free proprietary application tailored for BZBGEAR matrix switchers, video wall processors, and AVoIP systems.
- Available on Windows, Mac, iOS, and Android devices, the app offers a seamless user experience by bringing all the functionalities of the web interface to your personal device. Enjoy features like drag-and-drop switching, video wall creation, and preset configurations, all at your fingertips.
IR Remote Control. The BG-4K-VP44 includes a complimentary IR remote controller, providing easy access to the main menu for comprehensive setup and configuration management.
Serial and IP Commands. Users can request the BG-4K-VP44's comprehensive command list documentation, which facilitates integration with third-party drivers and enables command execution via serial and IP-based control programs.

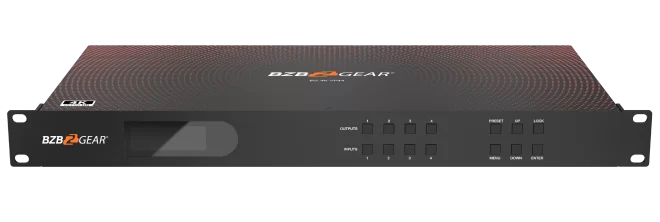

Front Panel Control. The front panel of the BG-4K-VP44 features intuitive buttons for basic matrix switching and menu access, complemented by an LCD screen that displays the current settings being accessed.
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Input ports | 4xHDMI |
| Output ports | 4xHDMI |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 4x4 seamless switching |
| Video wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Power Consumption | 23 Watts (Max.) |
| Operating Temperature Range | 23 to +104°F / -5 to +40°C |
| Storage Temperature Range | -14 to +140°F / -10 to +60°C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Dimensions | Matrix: 10”(L) x 6.4"(W) x 1.4”(H) [L262 x W163 x H36 mm] |
| Mass (Main Unit) | 6lbs [2710g] |
PACKAGE CONTENTS
- 1x Main Unit (4x4 HDMI Matrix)
- 1x DC 12V/3A power adapter
- 1x Remote control
- 1x Wide-Band IR Receiver cable
- 1x 3 Pin Phoenix terminal plug

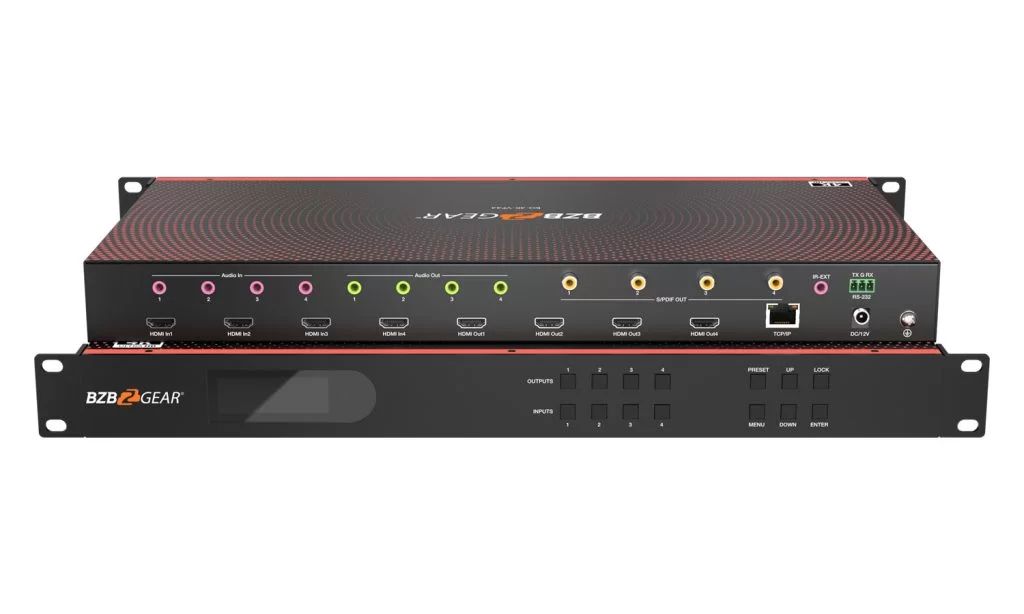

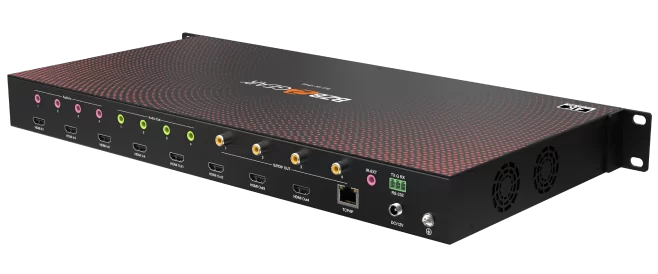

Interfaces
- LCD Screen: LCD screen and IR receiving port, indicator light.
- Output & Input buttons: Output button OUT 1~4 & Input button IN 1~4.
- MENU button: PRESET, MANU, UP, DOWN, LOCK, ENTER.
- Audio In 1~4: 3.5mm ports.
- Audio Out 1~4: 3.5mm ports.
- S/PDIF OUT 1~4: Coaxial Ports.
- IR EXT: 3.5mm port.
- RS232 Port: 3PIN Phoenix port：TX - GND - RX.
- HDMI IN 1~4: A type 19 PIN-HDMI Port.
- HDMI OUT 1~4: A type 19 PIN-HDMI Port.
- Ethernet port: WEB GUI Control.
- Power: Power input 12V/3A.
