4K UHD 18Gbps HDMI/MDP Wall Plate Transmitter & Receiver Kit up to 164ft

Configure the Perfect Solution
Get Started

Overview

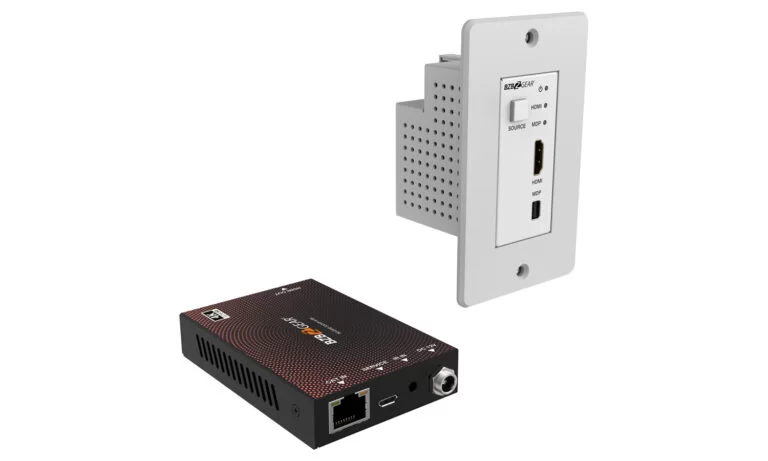

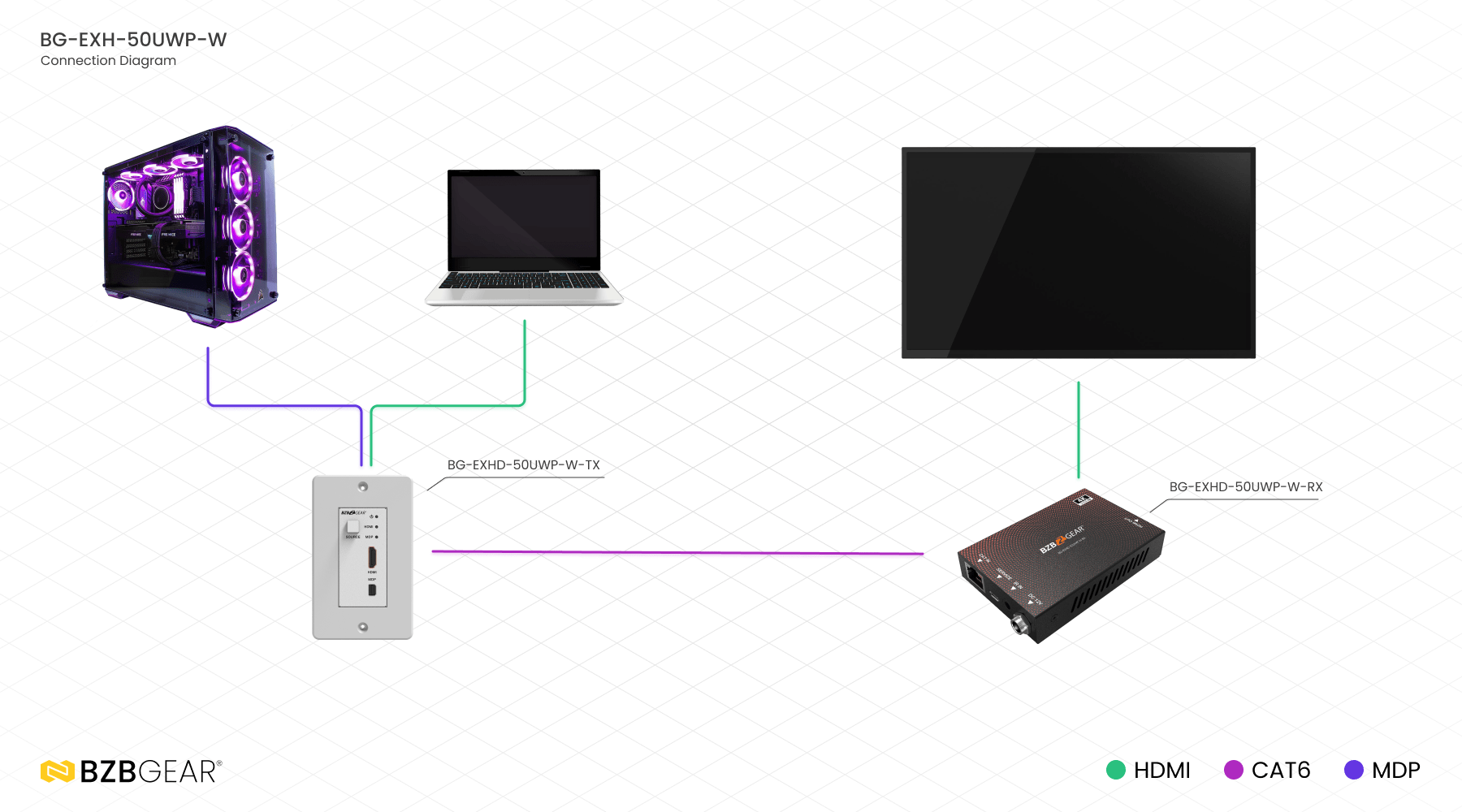

Introducing the BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a cutting-edge solution engineered to enhance your audiovisual experience to new heights. This all-encompassing kit features a sophisticated MDP/HDMI Wall Plate Transmitter paired with a CAT6 to HDMI Receiver, meticulously crafted to deliver unrivaled performance and effortless integration.

Experience seamless connectivity and pristine image quality with the advanced MDP/HDMI Wall Plate Transmitter. Equipped with HDMI and DisplayPort inputs, this transmitter ensures compatibility with a wide range of devices, while its sleek US one-gang enclosure seamlessly blends into any decor.

Extend your viewing experience with the CAT6 to HDMI Receiver, delivering high-definition content to your display device with uncompromising clarity and reliability. With support for resolutions up to 4K/UHD@60Hz 4:4:4 and a transmission distance of up to 164ft / 50m, this receiver offers unparalleled flexibility in installation.

Transmitter Overview

Experience the pinnacle of versatility and sophistication with the MDP/HDMI Wall Plate Transmitter. As a 2x1 switcher and CAT transmitter, it effortlessly handles HDMI and DisplayPort inputs, ensuring compatibility with a wide range of devices. Encased in an elegant US one-gang enclosure, it seamlessly blends into any environment with style and grace.

Immerse yourself in stunning visual clarity and fidelity with support for resolutions up to 4K/UHD@60Hz 4:4:4. Whether you're watching movies, gaming, or delivering presentations, this transmitter delivers uncompromising image quality every time. Extend your viewing experience even further with its CAT6 output, capable of transmitting video signals up to 164ft / 50m, offering unparalleled flexibility in installation.

Enjoy the convenience of Power Over Cable (POC) functionality, allowing the transmitter to be powered remotely by the receiver or other CAT-equipped devices. With comprehensive control options and automatic/manual source signal input modes, you have complete command over your audiovisual setup, ensuring seamless performance in any scenario.

Receiver Overview

Complementing the transmitter's capabilities is the CAT6 to HDMI Receiver, a reliable and indispensable component of your AV system. With a CAT input and HDMI output port, it effortlessly captures and delivers high-definition content to your display device with pristine clarity and reliability.

Stay informed with real-time feedback on connection status, thanks to the power and data signal indicator lamps. With support for DC 12V power input and versatile control options including IR signal input, the receiver offers seamless integration and effortless operation, making it the perfect addition to your audiovisual setup.

From home entertainment systems to corporate boardrooms, the BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit redefines the boundaries of audiovisual excellence, delivering unparalleled performance, reliability, and versatility. Elevate your audiovisual experience to new heights with this exceptional kit.



Features

  • Compliant
    Standards Compliance
    This device adheres to industry standards including HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a
  • bi_badge-4k
    High-Resolution Capability
    Display video resolutions up to 4K/UHD@60Hz with a 4:4:4 color sampling ratio
  • 3
    CAT6 Output
    Utilizing CAT6 output extends video transmission distances up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 using a single CAT5e/6 cable
  • Audio Formats
    Audio Compatibility
    HDMI audio formats supported include LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
  • Efficient Cable Management
    Convenient Signal Selection
    Input signal selection can be set to automatic or manual mode for convenience
  • Plug-and-Play Setup
    Power Over Cable
    Supports Power Over Cable functionality, but only from Receiver to Transmitter

Videos

Taking Advantage In Presentation with BG-EXHD-50UWP-50 MDP/HDMI Wall Plate Extender and Switcher
Taking Advantage In Presentation with BG-EXHD-50UWP-50 MDP/HDMI Wall Plate Extender and Switcher

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
DP Compliance Display Port 1.2a
Video Bandwidth DP: 5.4 Gbps
HDMI: 18 Gbps
Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth 8/10/12-bit (1080P@60Hz)
8-bit (4K@60Hz)
HDR Support
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance Max distance (4K@24) : 164ft / 50m over CAT5e/6
Max distance (4K@60) : 115ft / 35m over CAT5e/6
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:
1x HDMI Type A [19-pin female]
1x mini DP [20-pin female]
Output:
1x CAT6 OUT [RJ45, 8-pin female]
Control:
1x FW [Micro USB, Update port]
Receiver Input:
1x CAT IN [RJ45, 8-pin female]
Output:
1x HDMI OUT [Type A, 19-pin female]
Controls:
1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color White
Dimensions (W x D x H) Wall plate:
1.31in x 2.6in x 2.7in [33.3mm  x 65.7mm  x 68.7mm]
Faceplate:
2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]
Receiver:
3.5in x 2.4in x 0.71in [88mm x 61mm  x 18mm]
Weight Wall plate: 0.39 lbs [175g], Receiver: 0.34 lbs [155g]
Power Supply POE (only from Receiver to Transmitter)
Power Consumption Wall plate: 2.2W (Max), Receiver: 3.72W (Max)
OperatingTemperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)

PACKAGE CONTENTS

  • 1x 18Gbps CAT 50M with MDP/HDMI Wall Plate Transmitter
  • 1x CAT6 to HDMI Receiver
  • 1x User Manual

Interfaces

Interfaces image

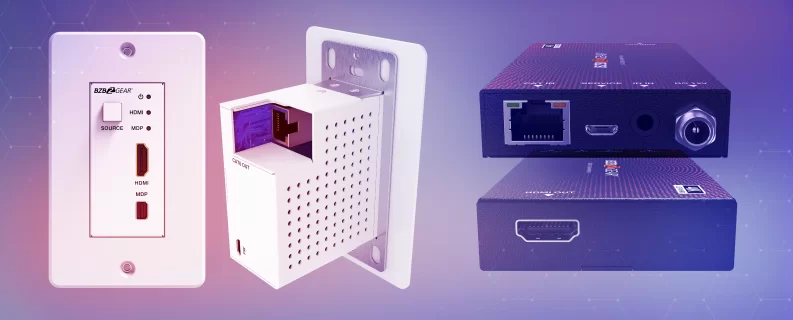

    Transmitter

  1. Power LED: The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby.
  2. HDMI LED: When the HDMI input port is active and the HDMI signal is detected, the green LED will be on.
  3. MDP LED: When the MDP input port is active and MDP signal is detected, the green LED will be on.
  4. HDMI port: HDMI input port, connect to HDMI source device.
  5. MDP port: MDP signal input port.
  6. SOURCE button: Used to switch HDMI / MDP input signal.
  7. CAT6 OUT: Connect to the CAT IN port of Receiver with a CAT5e/6 cable.
  8. FW port: Firmware update port.



    Receiver

  9. CAT IN: Connect to the CAT6 OUT port on the transmitter with a CAT cable.
  10. Power Indicator Lamp (Green): When the receiver is powered on, the power indicator lamp will be on.
  11. Data signal Indicator Lamp (Orange): When there is signal transmission between the transmitter and the receiver, the lamp will be on.
  12. SERVICE port: Used for firmware update.
  13. IR IN: IR signal input port. Connect to the IR Receiver cable.
  14. DC 12V: Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
    (Note: The CAT receiver provides power for the transmitter via a CAT cable.)
  15. HDMI OUT: HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
