16x16 4K UHD HDMI 2.0 Matrix Switcher with Audio De-embedding and Independent Routing (4K60 - 4:4:4 and HDR Support)
Overview

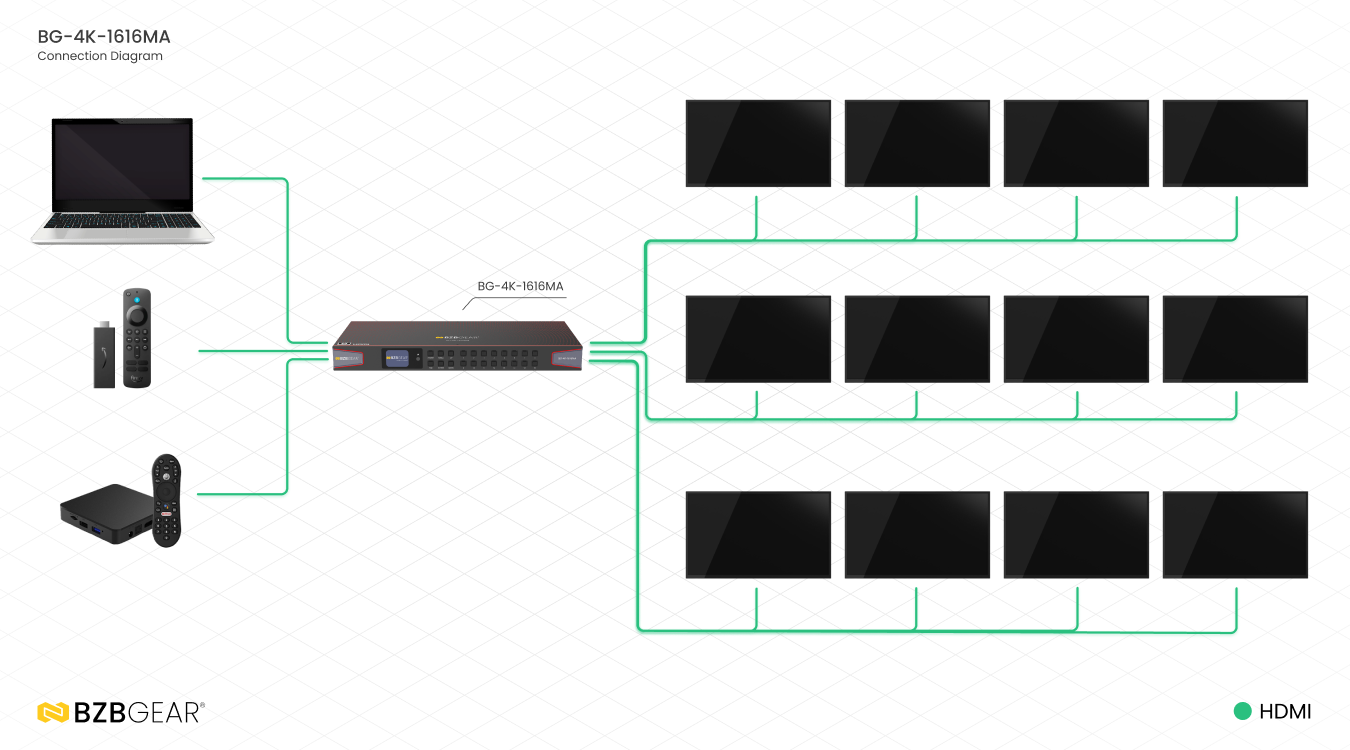

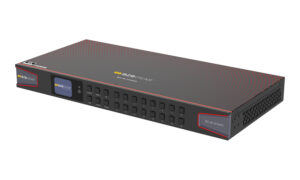

The BG-4K-1616MA 4K HDMI matrix switcher is designed to manage up to sixteen HDMI 2.0 inputs and sixteen HDMI 2.0 outputs, enabling the seamless distribution of multiple HDMI sources to various displays. Whether you need to switch between multiple sources or display a single source on all screens simultaneously, this matrix switcher offers the flexibility and control you need. Audio can also be independently routed. Experience professional-grade picture and audio quality with support for 4K resolutions and a wide range of high-quality audio formats.
Features-in-Depth
Connectivity and Quality: The BG-4K-1616MA supports ultra-high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed without any loss of quality. All HDMI ports on this matrix switcher are HDCP 2.2 compliant, ensuring compatibility with modern content protection standards. It also features auto-downscaling on all outputs to ensure compatibility with older displays. Furthermore, the BG-4K-1616MA supports Digital S/PDIF and Balanced audio output formats for versatile audio integration.
Control: The BG-4K-1616MA offers multiple control methods including front panel controls, an IR remote control, RS-232, and TCP/IP (Web GUI). The included IR receiver allows for remote control operation even when the unit is hidden for a clean installation. Additionally, the full-featured web interface and control software, accessible via RS-232, enables users to adjust advanced settings such as EDID management, signal mapping, and network configurations. Control is also accessible on mobile phones, personal computers, and devices through the BG-SWITCH-CONTROL App by BZBGEAR, available for Windows, Mac, iOS, and Android.
Audio Matrixing: This unit features advanced audio matrixing capabilities. The audio can be independently routed separately from the video signals. This feature provides flexible audio management options for a variety of installation scenarios.
Features
-
![material-symbols_shield-lock-outline]()
HDCP CompliantHDMI 2.0 (18Gbps) HDCP 2.2 (backward compatible with earlier versions) -
![bi_badge-4k]()
4K ResolutionSupports up to 4K@60Hz 4:4:4 with HDR -
![AUDIO MATRIXING]()
Audio MatrixingThe audio can be independently routed -
![solar_remote-controller-2-linear]()
Control OptionsFront panel, IR, RS-232, and TCP/IP (Web GUI) controls -
![ep_connection]()
EDID managementEnsures seamless scaling for optimal display results -
![HDR Support]()
HDR SupportHDR, HDR10, and Dolby Vision pass-through
Effortlessly control and
manage your video system
with our user-friendly app!
Discover flexible control
options

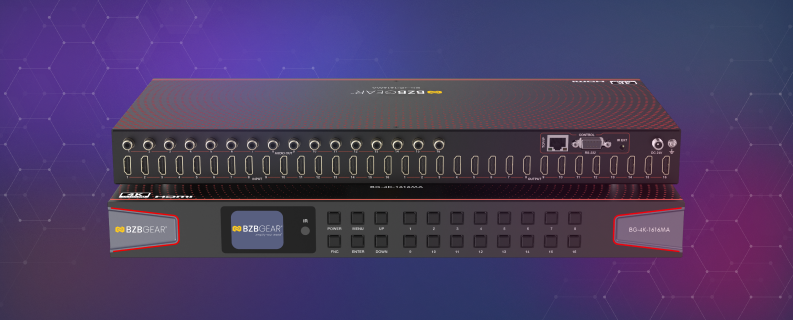

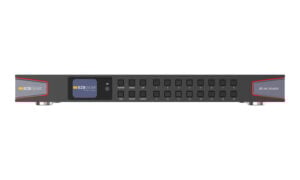

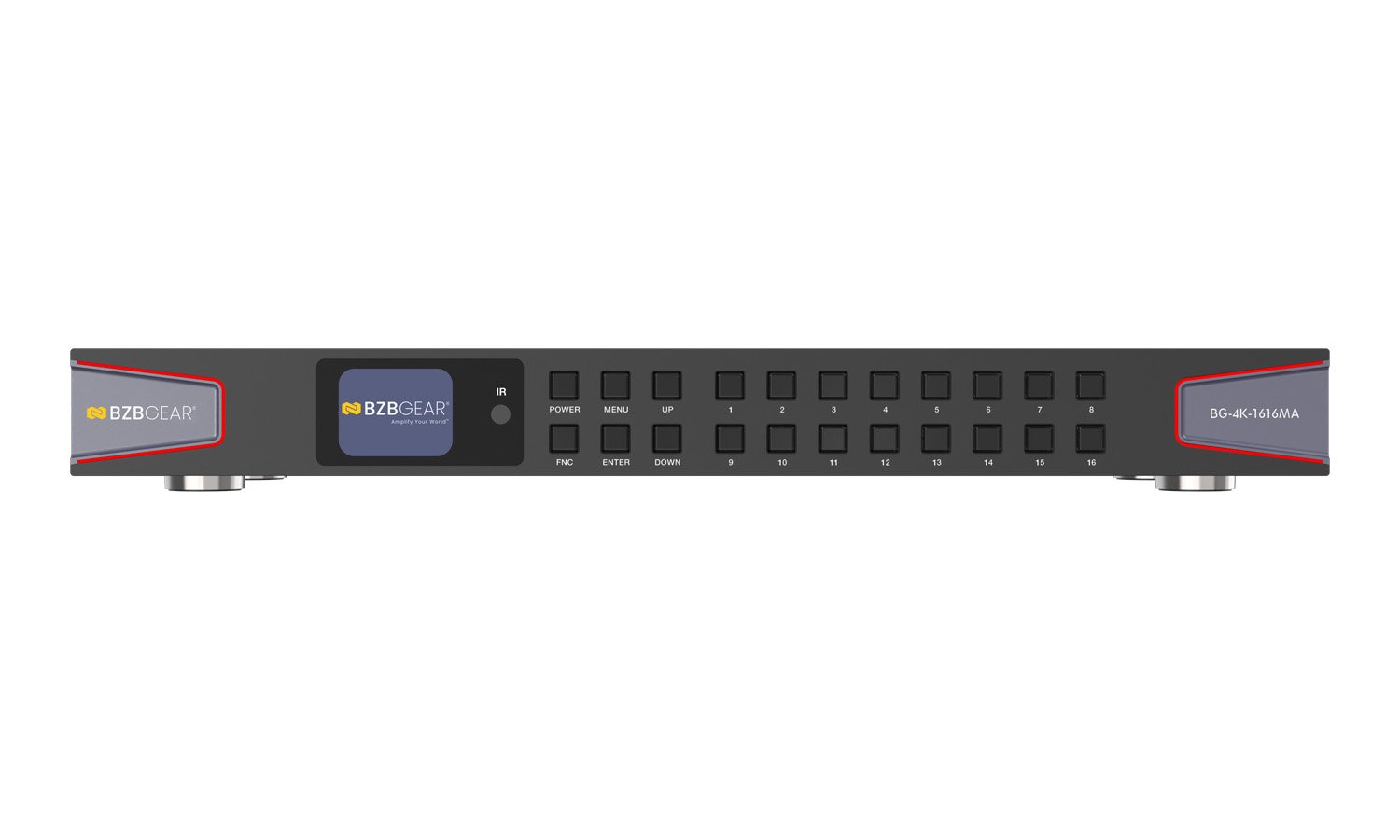

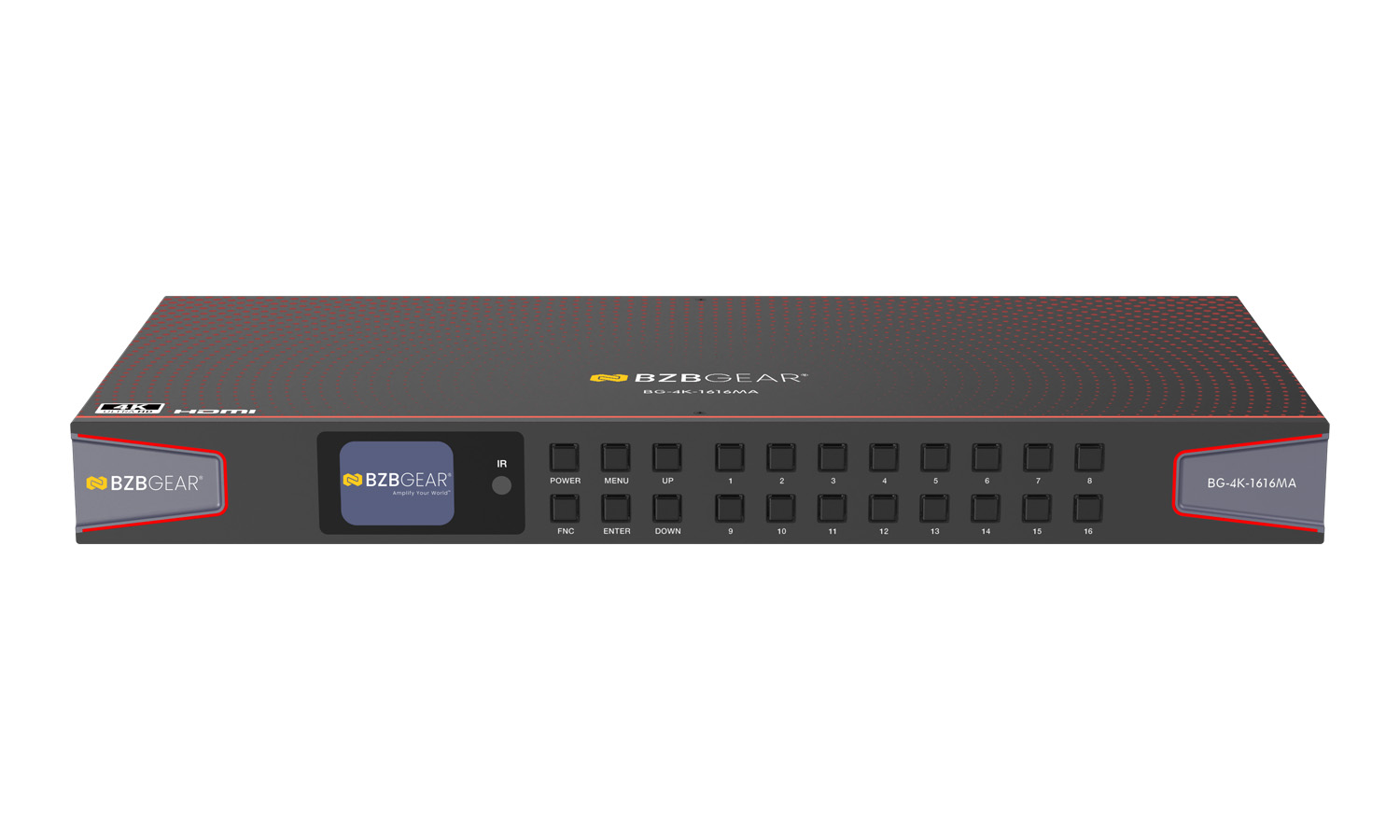

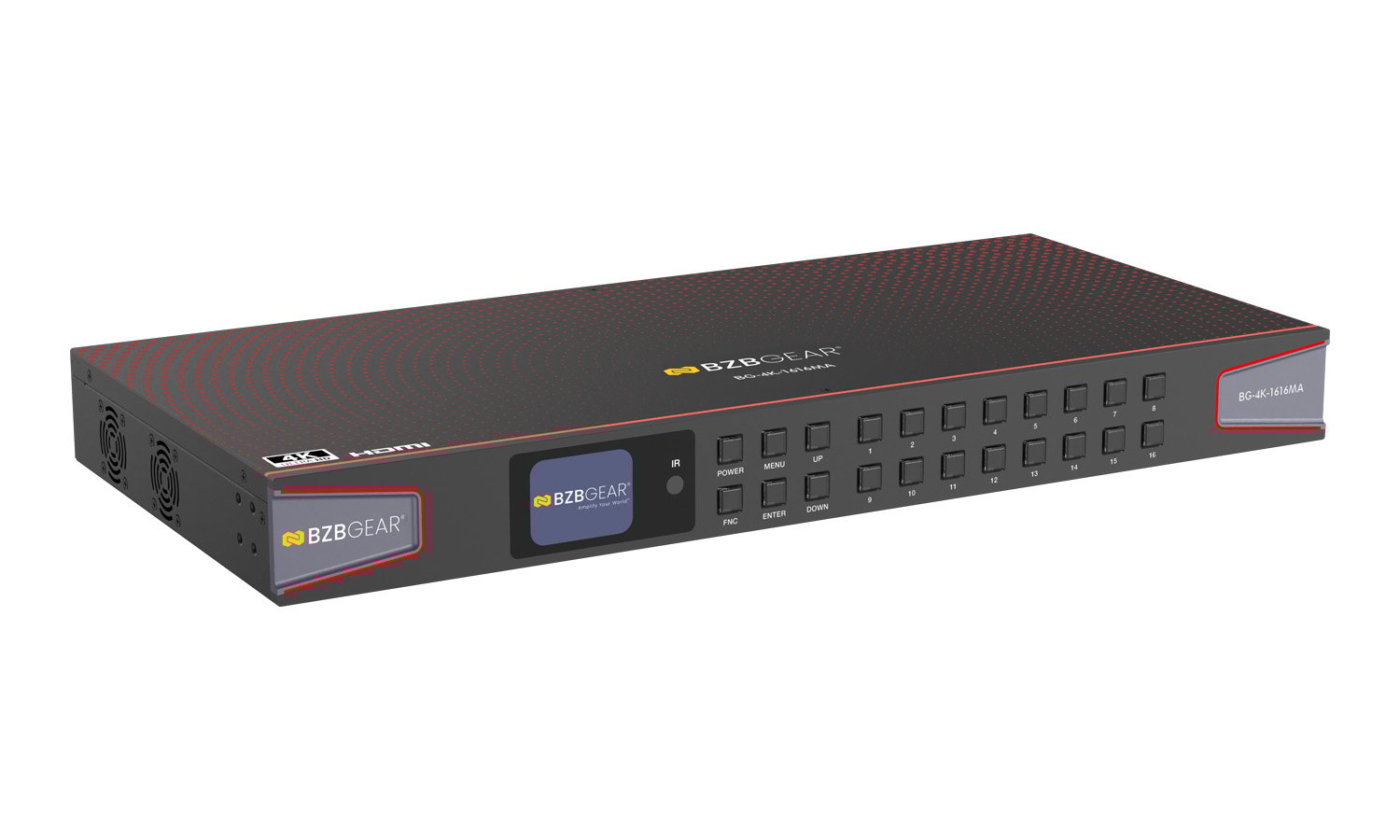

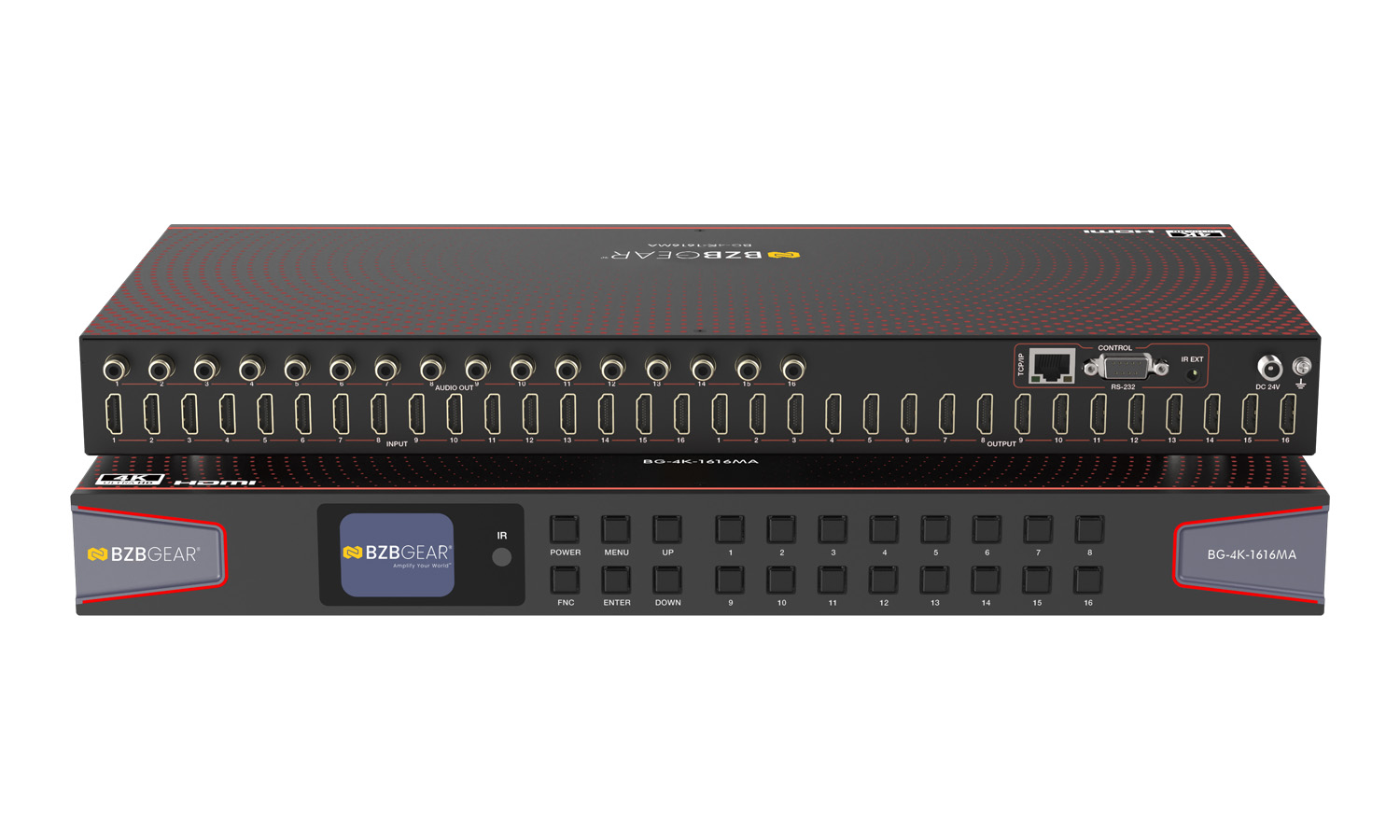

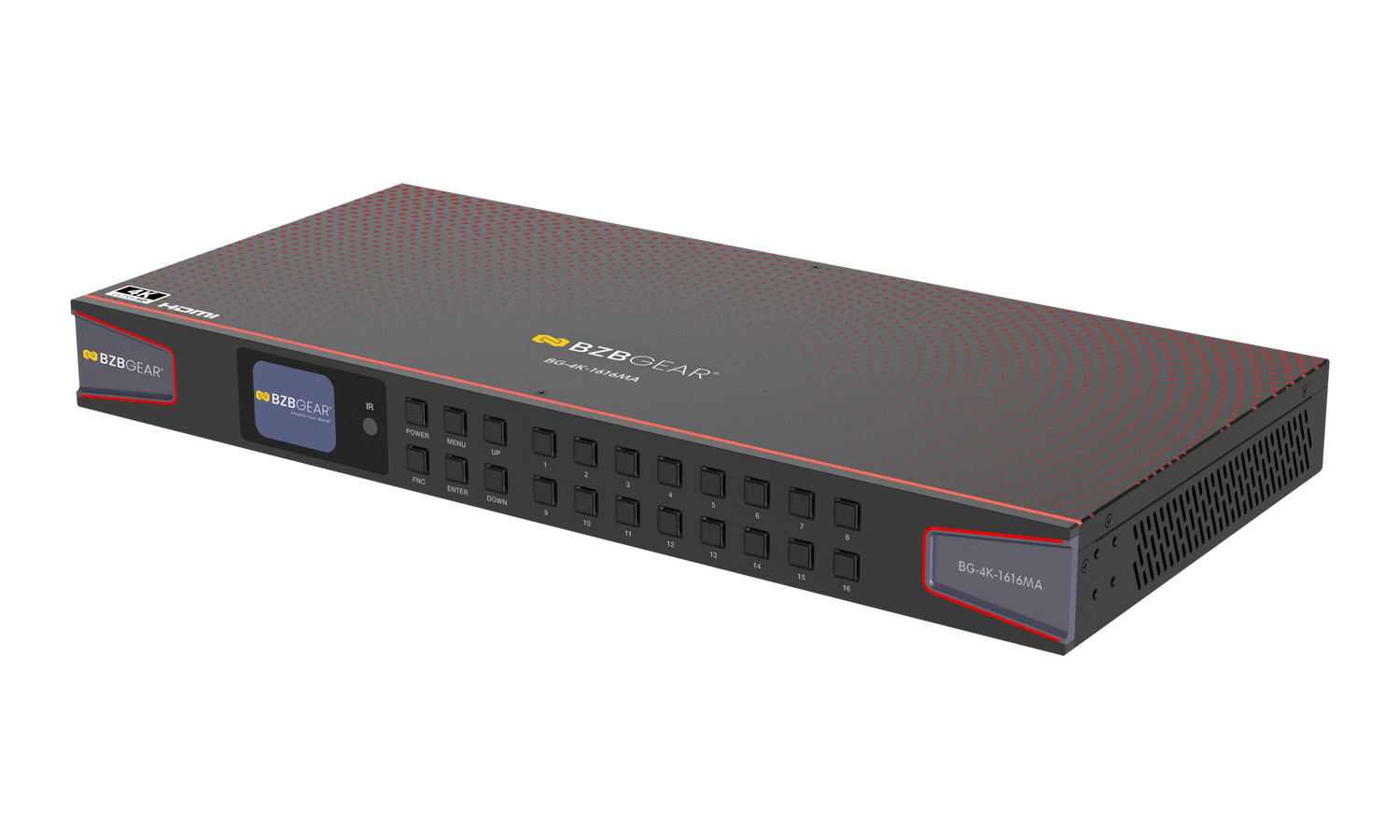

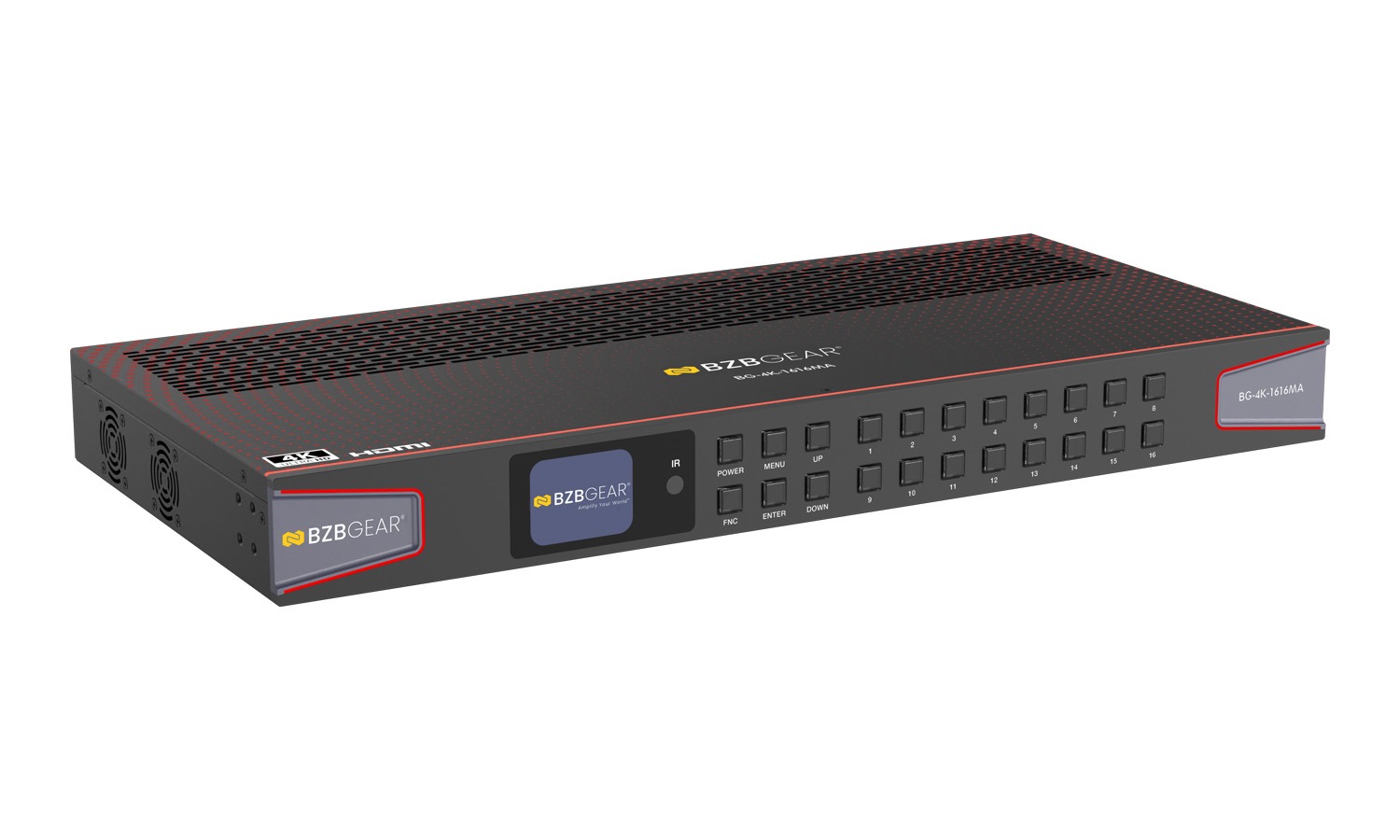

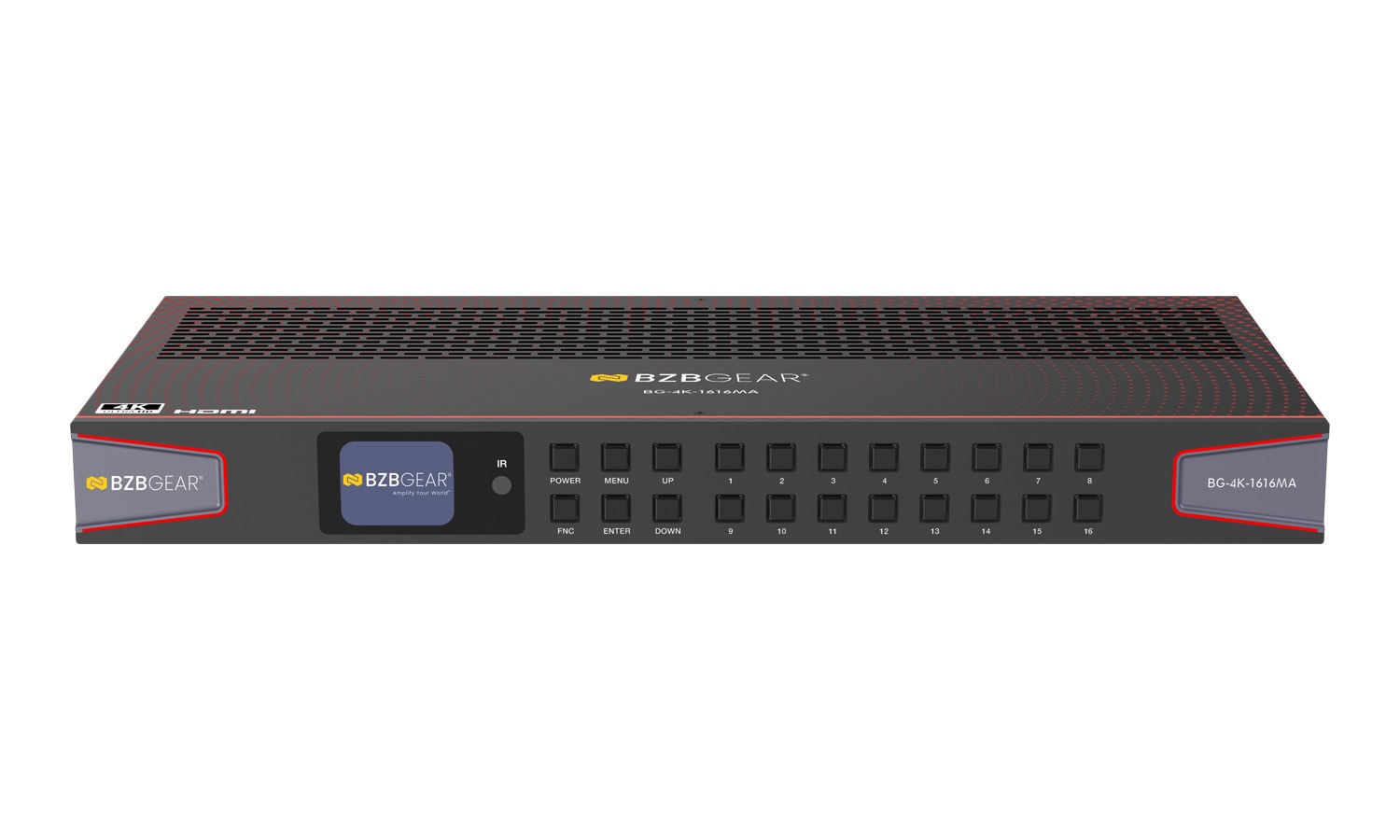

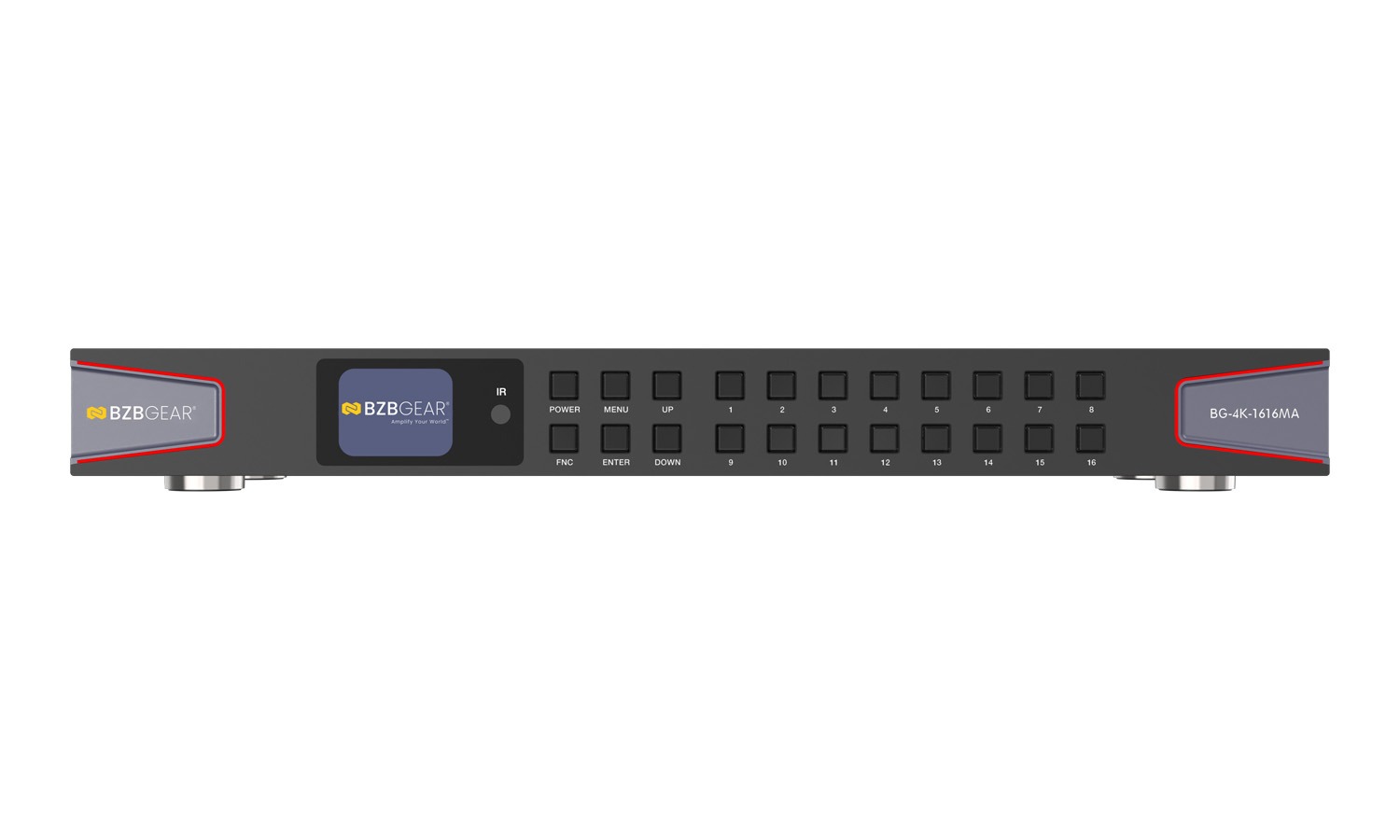

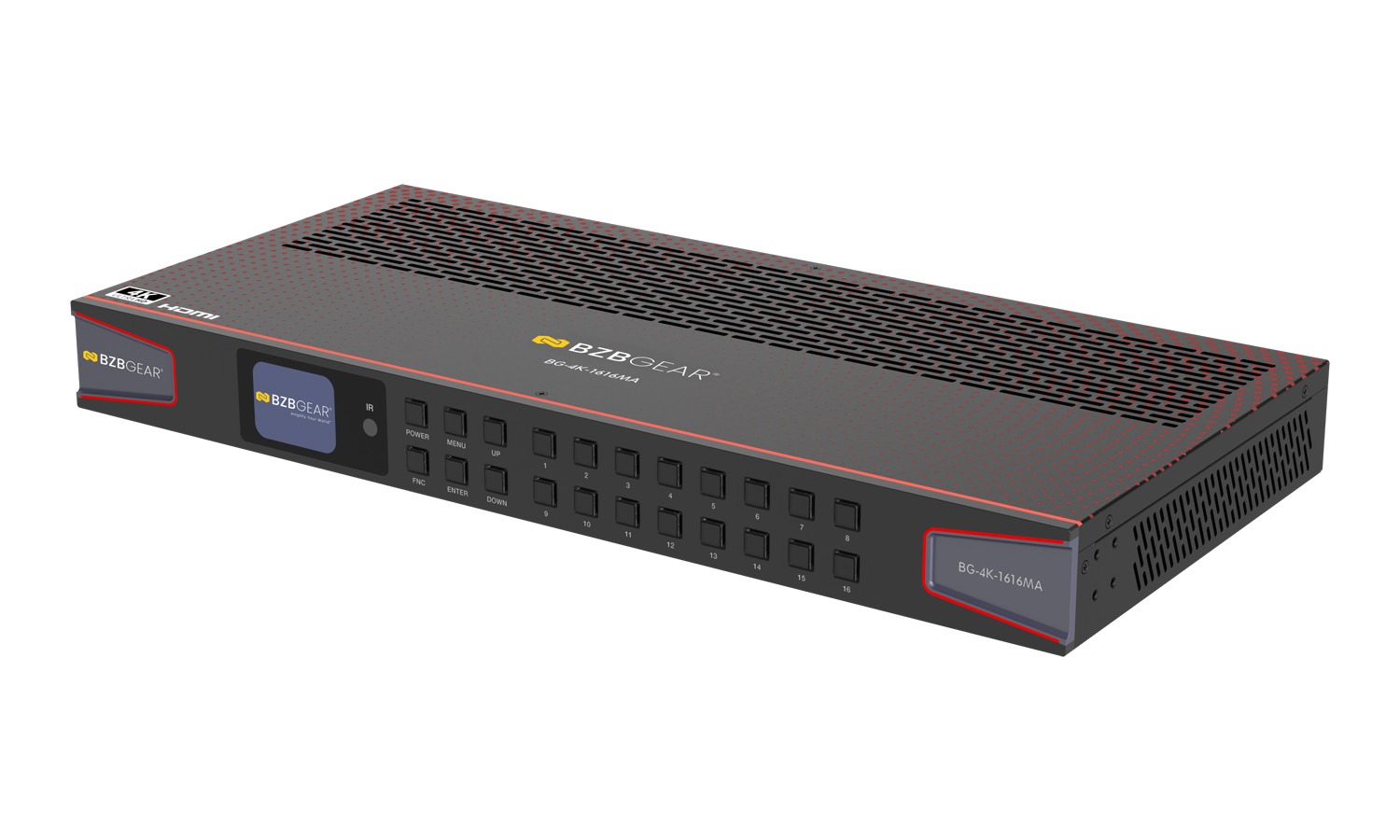

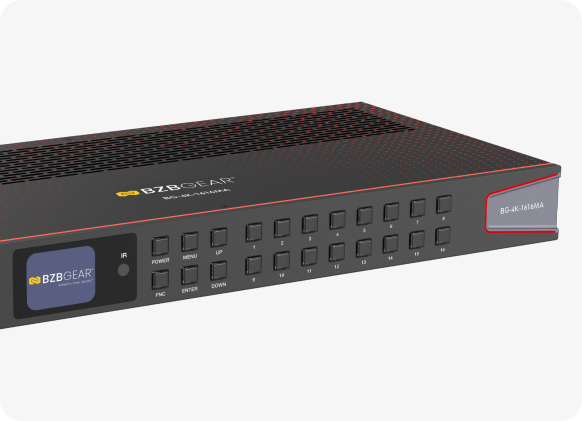

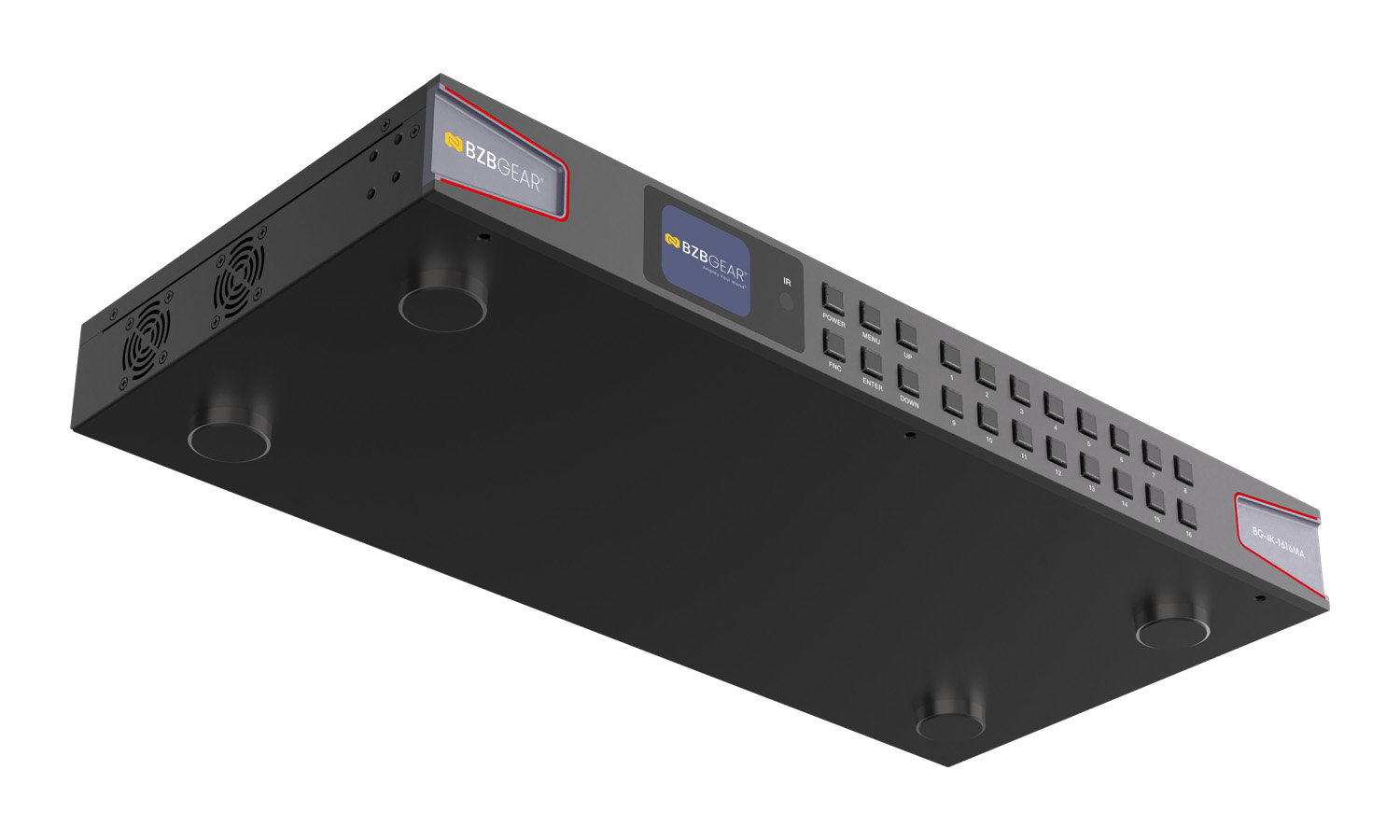

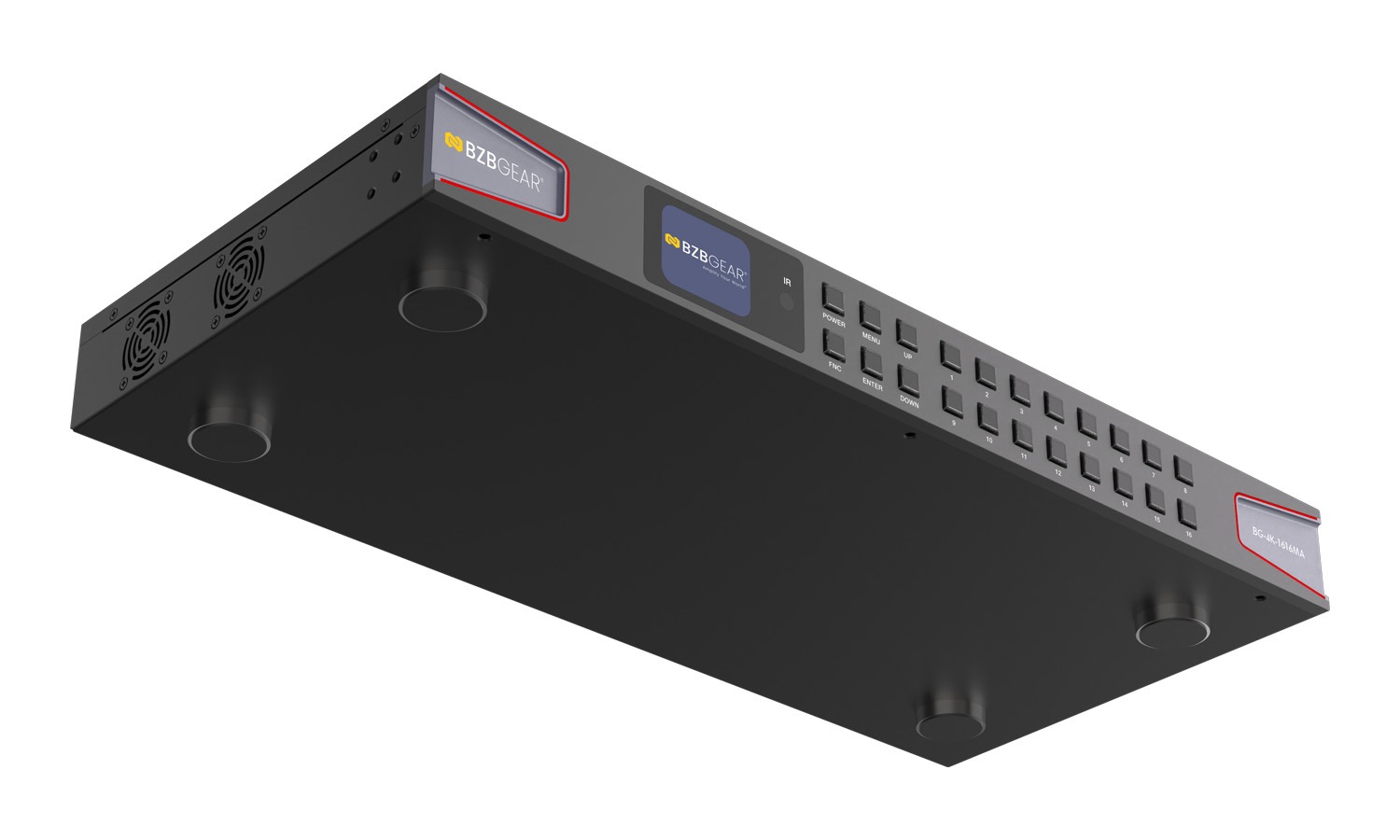

The front panel of the BG-4K-1616MA is thoughtfully designed to blend cutting-edge functionality with contemporary aesthetics. Featuring a vibrant full-color LCD screen, it offers a crisp and detailed view of the system's menu. Navigation is both seamless and intuitive, enhanced by strategically placed backlit buttons conveniently located to the right of the display.

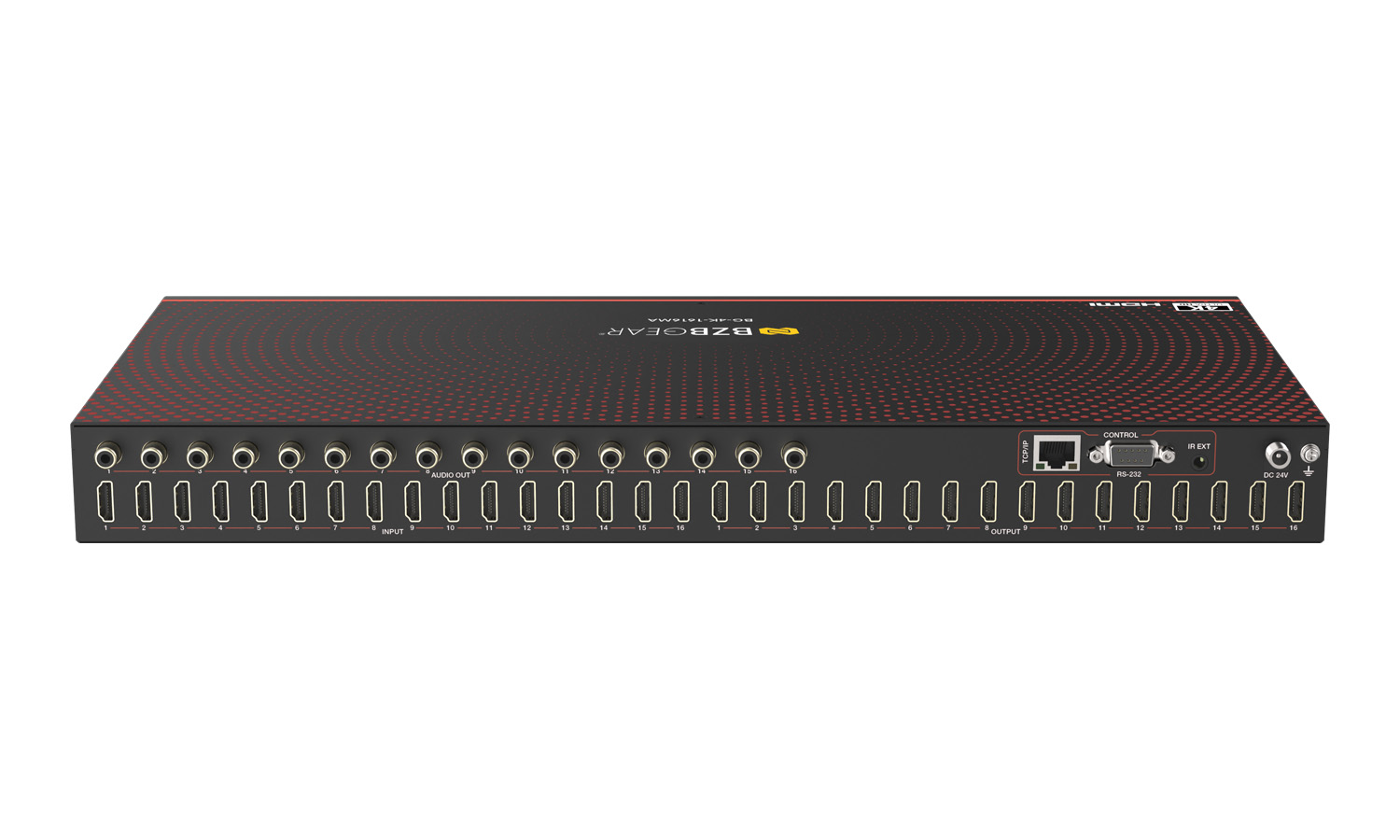

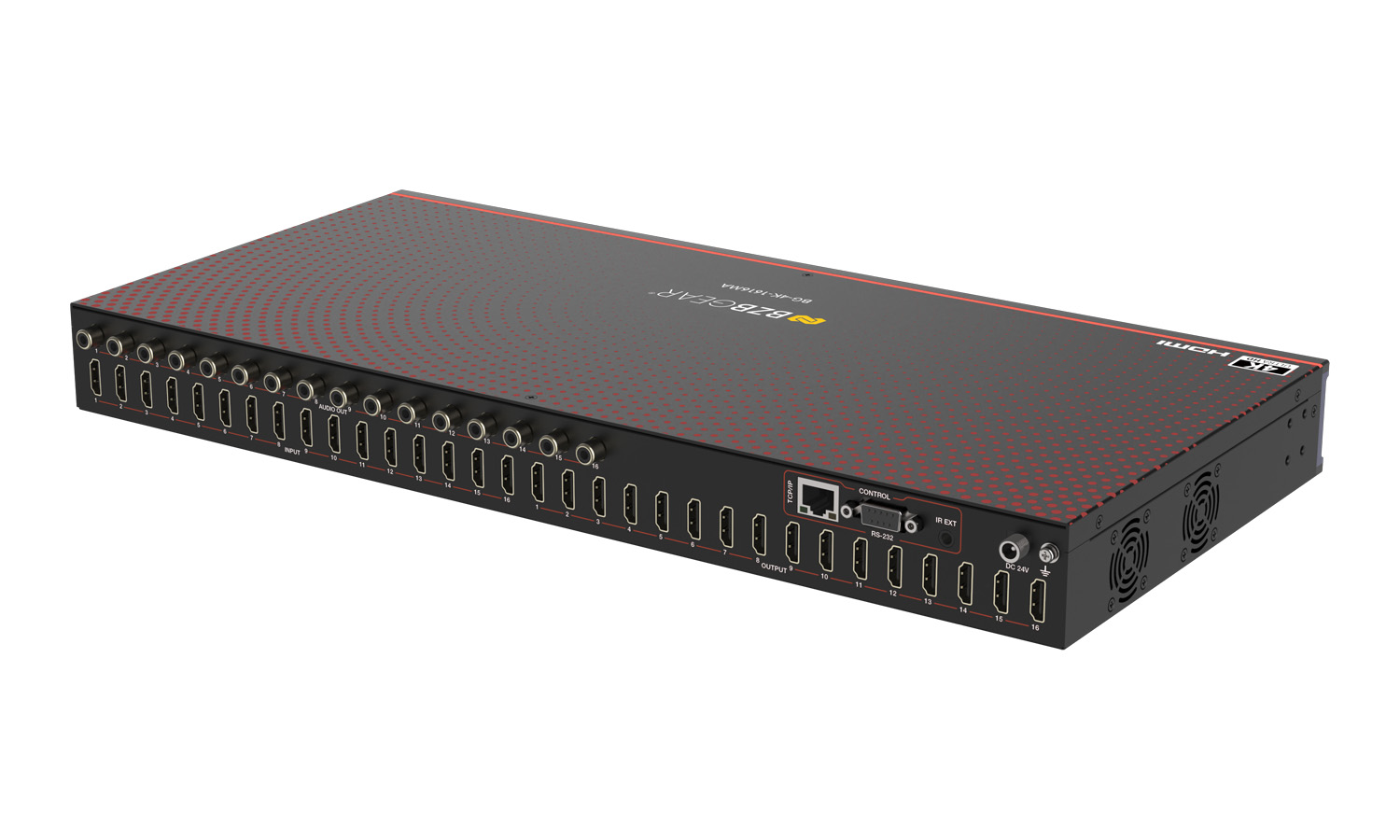

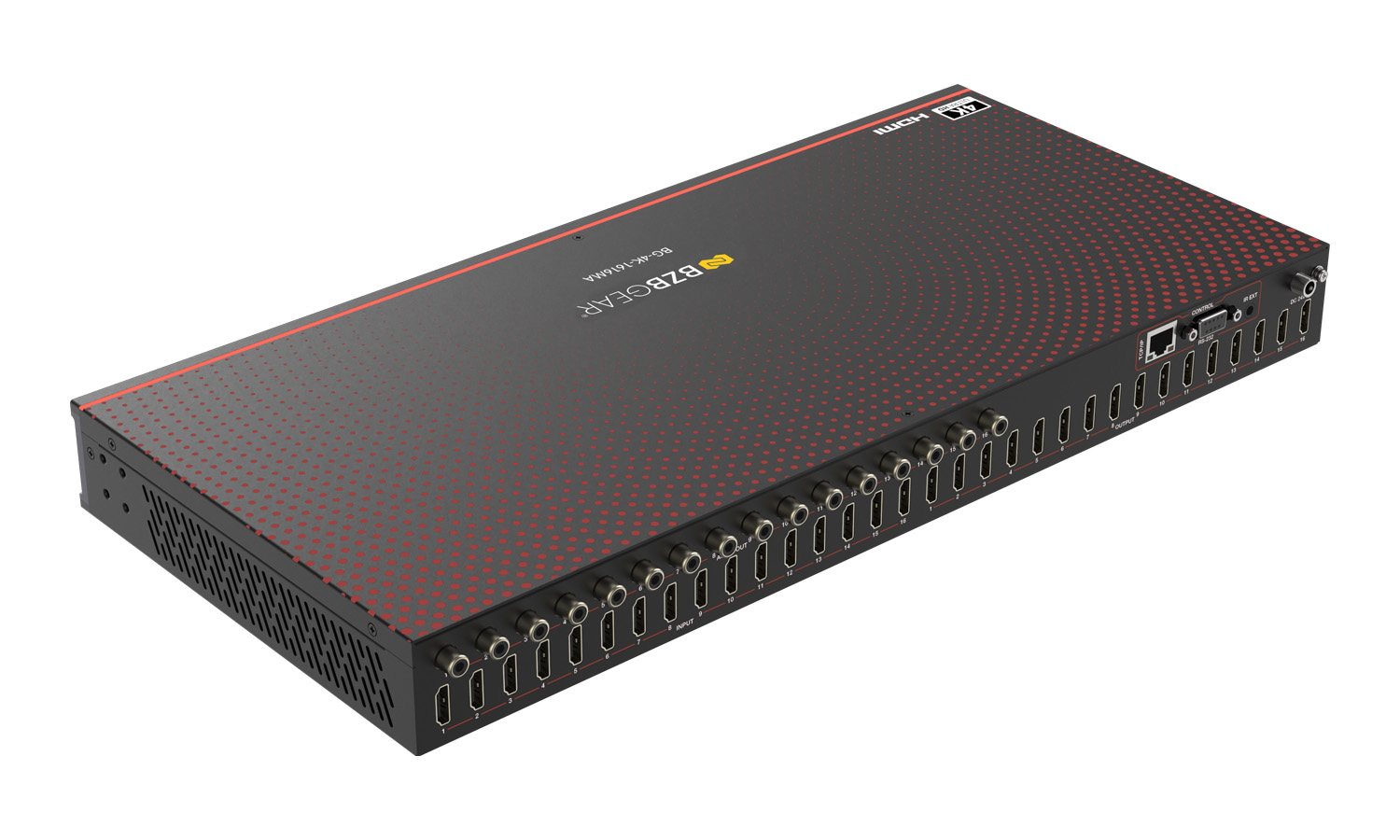

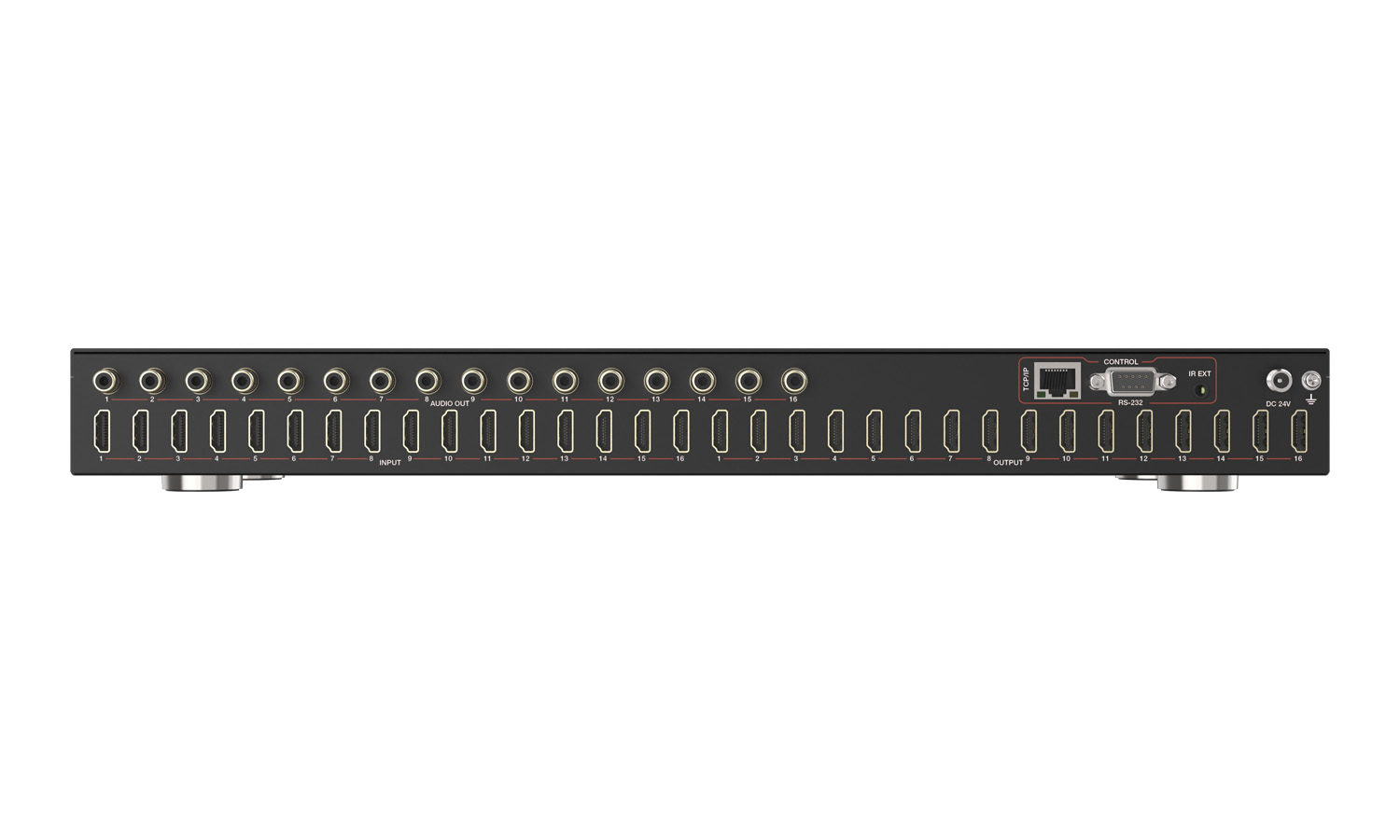

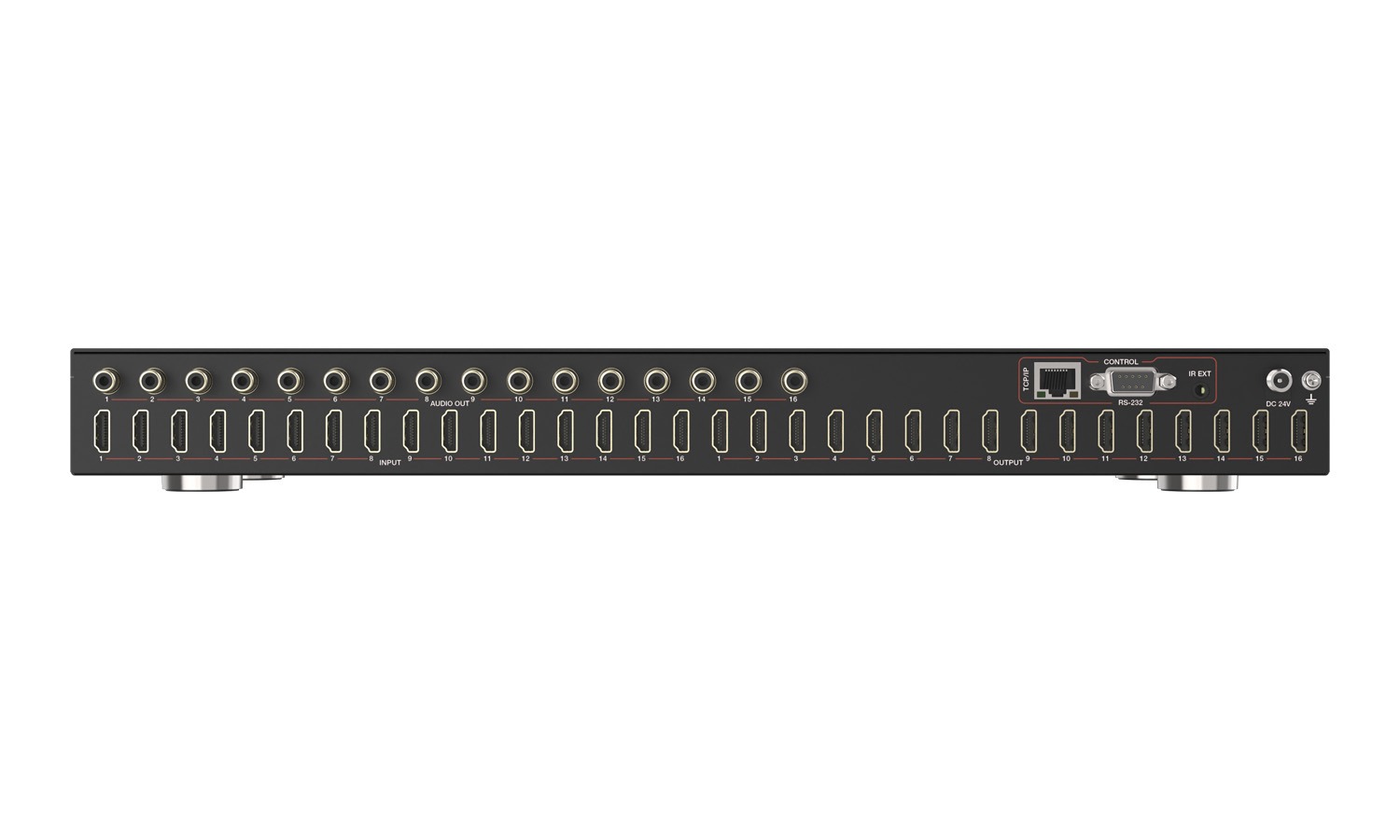

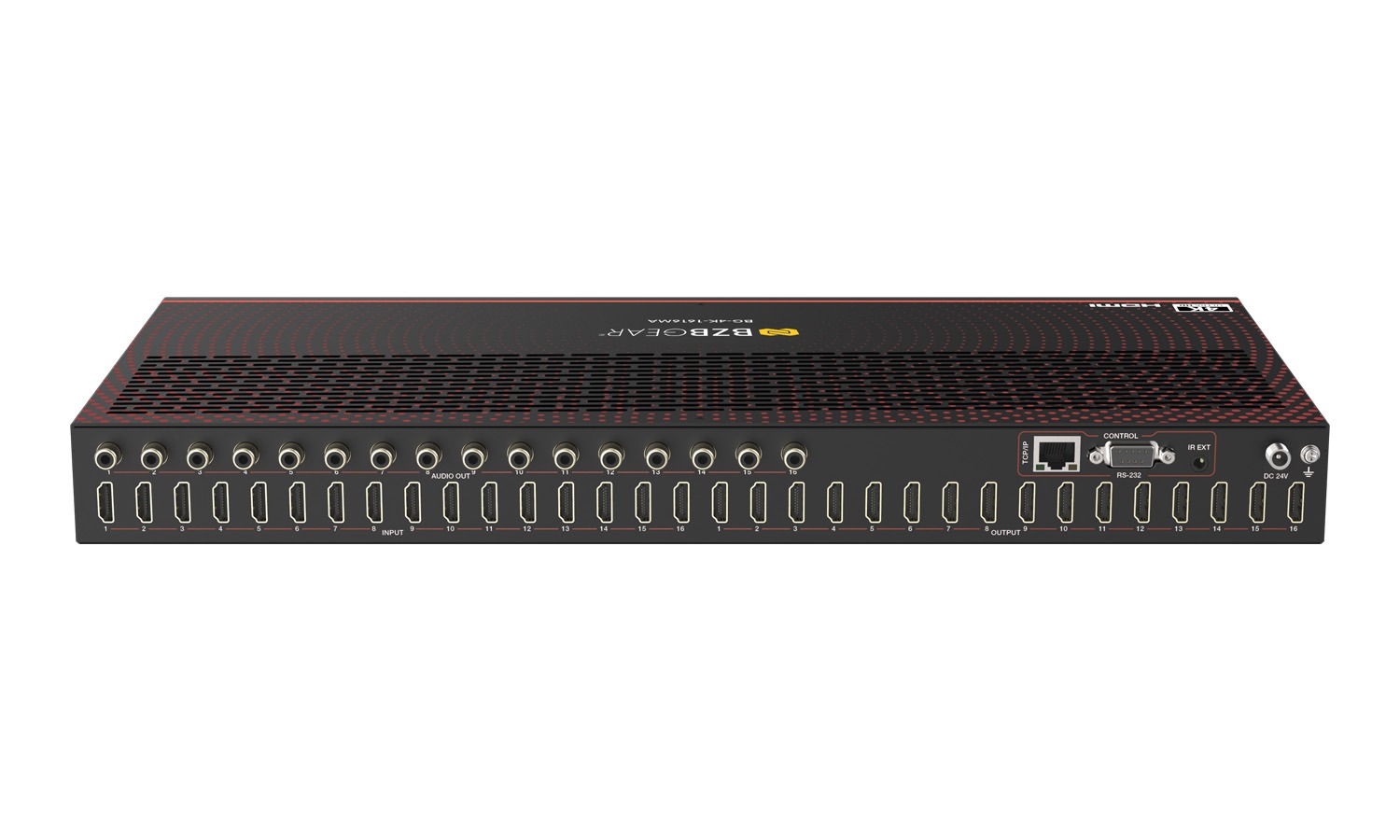

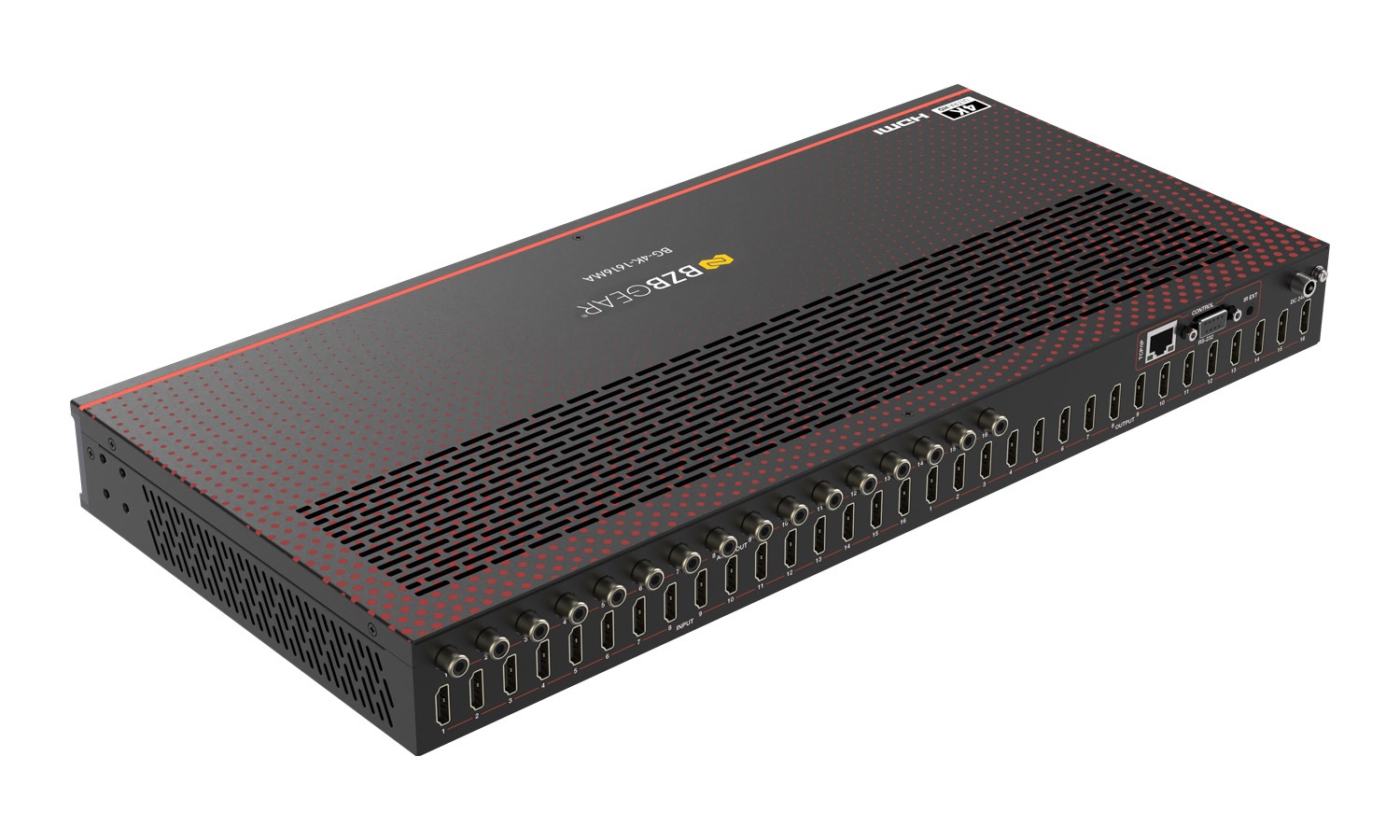

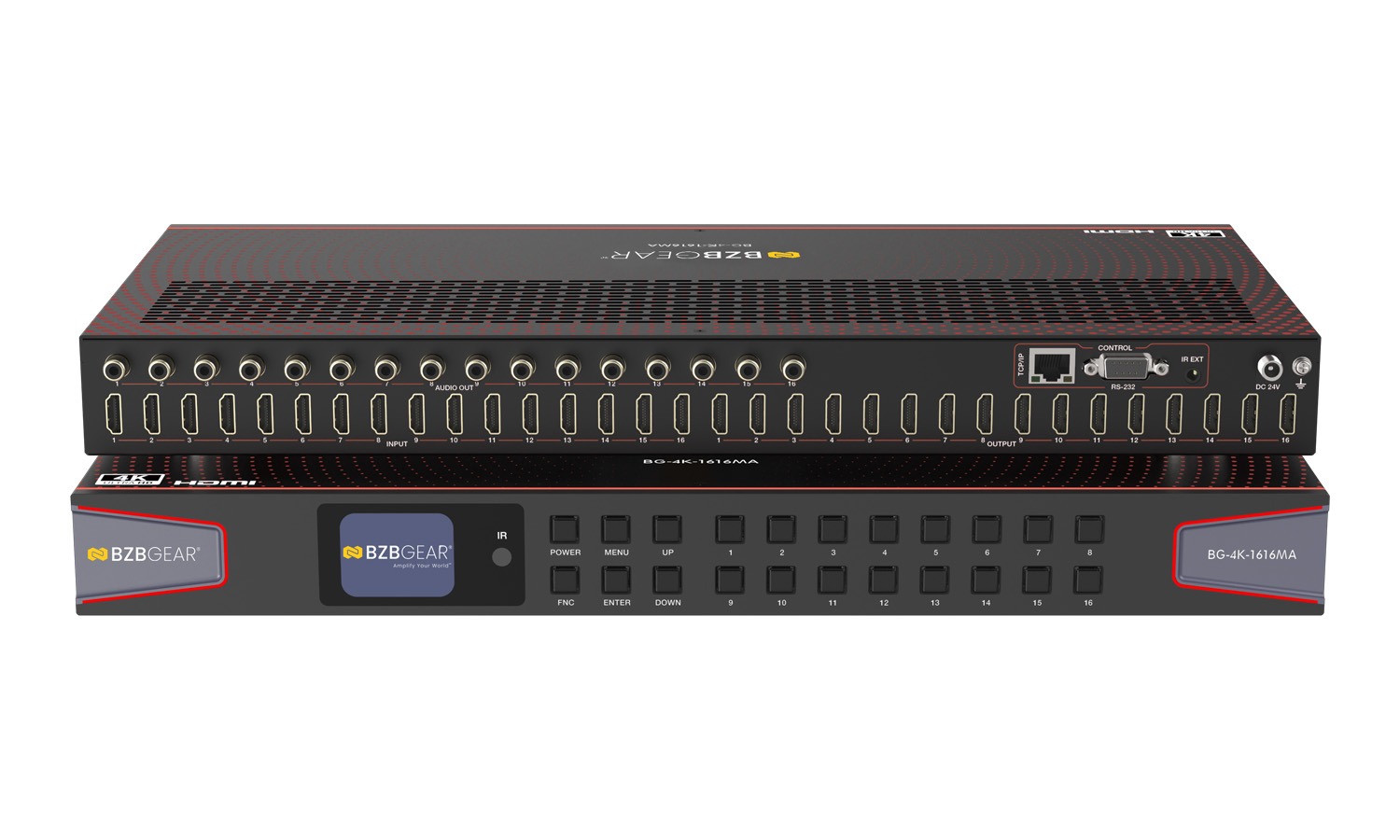

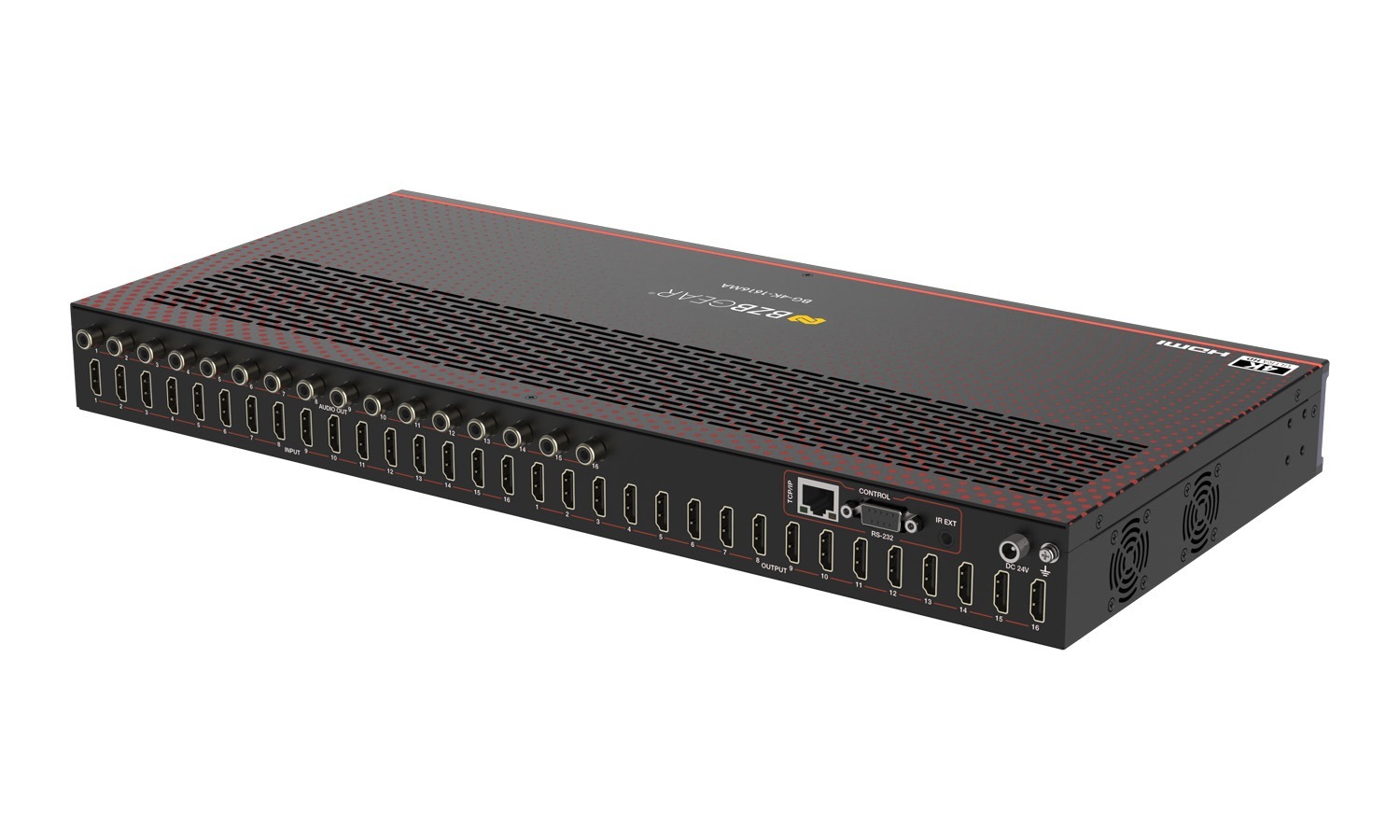

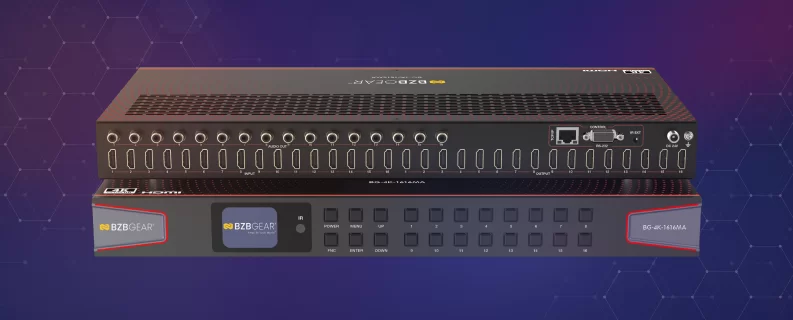

The back panel is equipped with 16 HDMI input ports and 16 HDMI output ports, all clearly labeled and numbered from 1 to 16 for easy identification. These HDMI ports are also readily accessible within the Web GUI and Control Software. Each port supports scalable resolutions, with a maximum capability of 4K60 4:4:4.
The BG-4K-1616MA is equipped with 16 coaxial audio output ports, making audio connectivity straightforward and efficient. Each port allows for easy connections to audio output devices, such as amplifiers, using coaxial cables. The supported coaxial audio formats include LPCM 2.0, Dolby Digital, and DTS 5.1. Furthermore, HDMI audio pass-through supports a wide range of formats, including LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS.

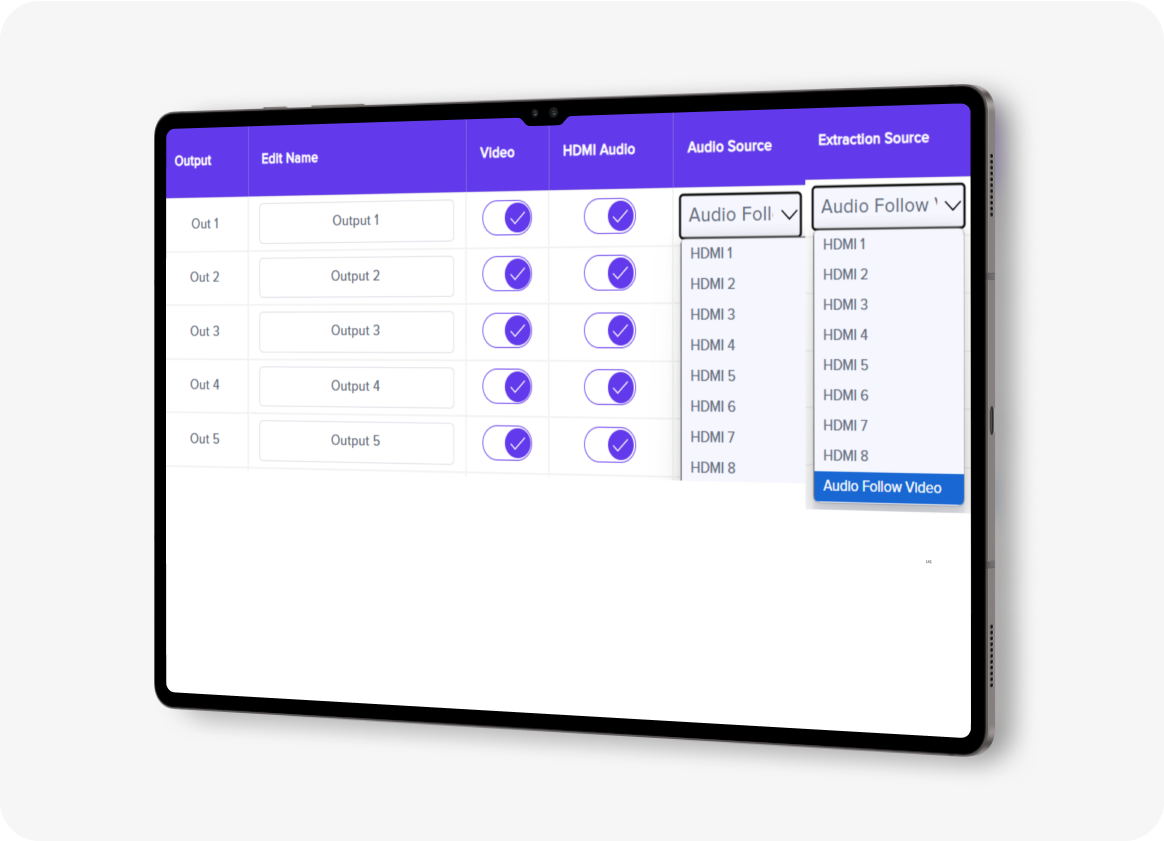

Our advanced audio matrixing feature offers unparalleled flexibility in routing and managing audio signals. With the ability to independently route and control each audio channel, you can tailor your setup to meet your exact requirements. This ensures seamless integration and optimal audio performance in any professional AV environment.
Videos
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K60Hz 4:4:4 **All available resolutions are shown in the table below** |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision LLM, HLG |
| Audio Formats | |
| HDMI IN/OUT | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Audio Breakout (Optical Outputs) | Up to LPCM/Dolby/DTS 5.1CH |
| Audio Breakout (Analog Audio Outputs) | LPCM 2CH (sample rate 32~192kHz) |
| Connection | |
| Input ports | 16x INPUT [HDMI Type A, 19-pin female] |
| Video Output Ports | 16x OUTPUT [HDMI Type A, 19-pin female] |
| Audio Output Ports | 16x AUDIO OUT [RCA] |
| Control ports | |
| Network | 1x TCP/IP [RJ45] |
| Serial | 1x RS-232 [D-Sub9] |
| IR | 1x IR EXT [3.5mm audio jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 17in x 10in x 1.8in [440mm x 256mm x 44.5mm] |
| Weight | 11 lbs [4.9kg] |
| Power Supply | Input: AC 100 - 240V 50/60Hz, Output: DC 24V/5A (US/EU standard, CE/FCC/UL certified) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Power Consumption | 99.6W (Max) |
| Operating | |
| Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
| HDMI Cable Length (IN / OUT) | 4K60: 5m/16ft 4K30: 10m/33ft 1080P: 15m/49ft |
| Note: The use of “Premium High Speed HDMI” cable is highly recommended. | |
Support Resolution and Refresh Rates
| Resolution Category | Supported Resolutions & Refresh Rates |
| PC / VESA | 640x480p60, 800x600p60, 1024x768p60, 1280x1024p60, 1360x768p60, 1440x900p60, 1440x1050p60, 1600x1200p60 |
| SD | 720x480i/p59.94, 720×576i/p50 |
| HD (720p) | 1280x720p50/59.94/60 |
| Full HD (1080) | 1920×1080i50/59.94/60, 1920x1080p23.98/24/25/29.97/30/50/59.94/60 |
| UHD (3840x2160) | 2160p23.98/24/25/29.97/30/50/59.94/60 |
| DCI 4K (4096x2160) | 23.98/24/25/29.97/30/50/59.94/60 |
Resources
PACKAGE CONTENTS
- 1x BG-4K-1616MA
- 1x 24V/5A Power Adapter with US AC Power Cord
- 1x IR Remote
- 1x IR Wideband Receiver Cable (1.5m)
- 1x RS-232 Serial Cable (1.5m, male to female head)
- 8x Machine Screw (KM3*6)
- 2x Mounting Ear
- 1x User Manual

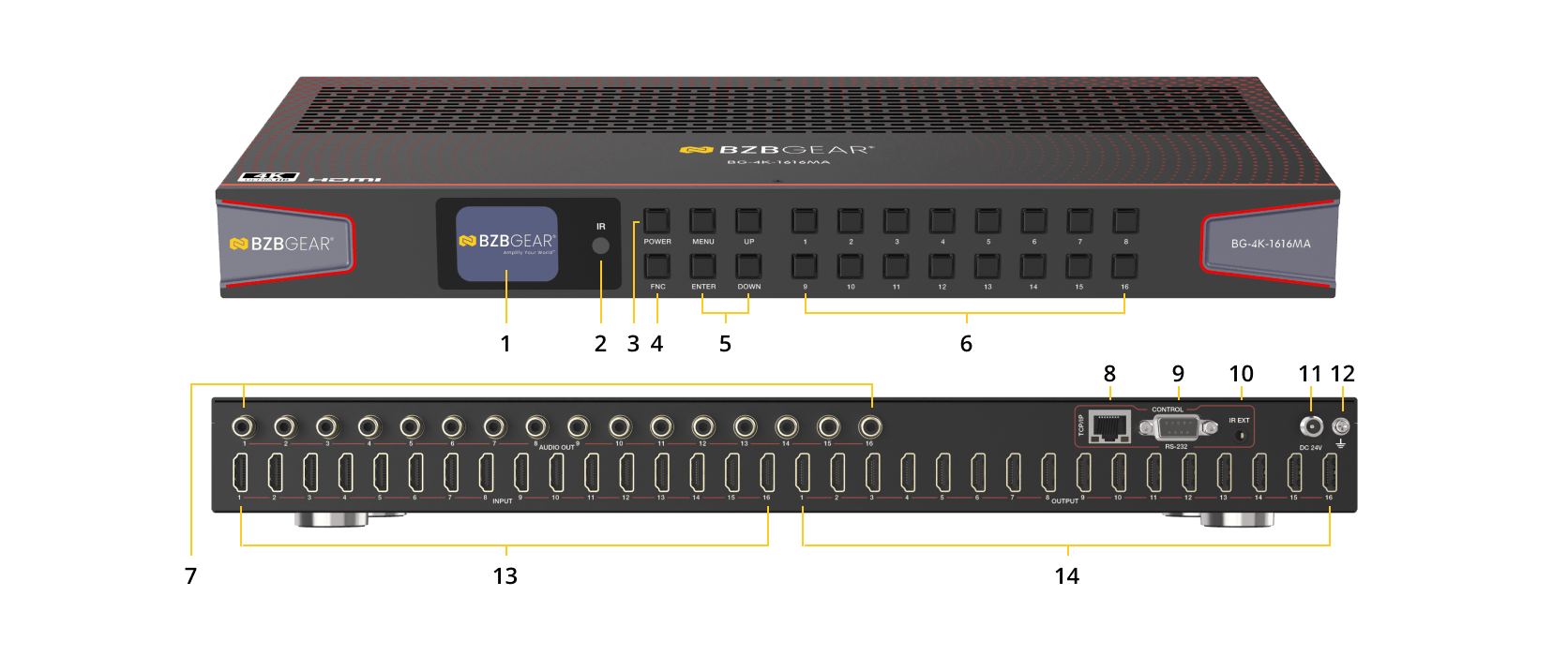

Interfaces
- LCD Screen: Display matrix switching status, input / output port, EDID, baud rate, IP Address, etc.
- IR: IR signal receiver. Receiving the signal from the IR remote.
- POWER Button & Indicator: Press the button to power on the device, and at this time the light is blue.
Long-press the button for 3 seconds to enter the standby mode, and at this time the light is red. - FNC: Multi-function button.
FNC + Number (1~16): Select the input source for all output channels.
Number (1~16) means the input source (1~16).
FNC + FNC + 1: Display IP address.
FNC + FNC + 2: Display the baud rate of serial port.
Note: The info above will disappear automatically in 3 seconds. - MENU / ENTER / UP / DOWN: Screen operation buttons. Take RESET, for example.
① On the initial LCD display screen, press “MENU” button. There are OUTPUT SETTINGS/INPUT SETTINGS/AUDIO BREAKOUT/SETUP/FIRMWARE items to be selected.
② Press the “UP/DOWN” button to select SETUP item.
③ Press the “ENTER” button to enter into the next level. There are LCD ONTIME/BAUDRATE/NETWORK/REBOOT/RESET items to be selected.
④ Press the “UP/DOWN” button to select RESET item.
⑤ Press the “ENTER” button, and it will prompt to confirm. Now press "FNC" to continue, or press "MENU" to return.Note: Pressing the “MENU” button will return to the previous menu on any page. - INPUT / OUTPUT (1~16) Buttons: Press a number (1~16) firstly to select an output channel, and then press a number (1~16) to select the corresponding input source.
- AUDIO OUT (1~16): Digital audio output port, connected to an audio device such as speaker.
- TCP/IP: TCP/IP control port, connected to PC or router with an RJ45 cable.
- RS-232 Port: Connects to a PC or control system to control the matrix.
- IR EXT: Connects to a 12V wideband IR receiver cable. If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal.
- DC 24V: Connects to 24V/5A power supply.
- GND: Connects the housing to the ground.
- HDMI IN (1~16): HDMI signal input ports, connected to HDMI source device such as PC, DVD or set-top box with HDMI cable.
- HDMI OUT (1~16): HDMI signal output ports, connected to HDMI display device such as TV or monitor with an HDMI cable.
