Overview

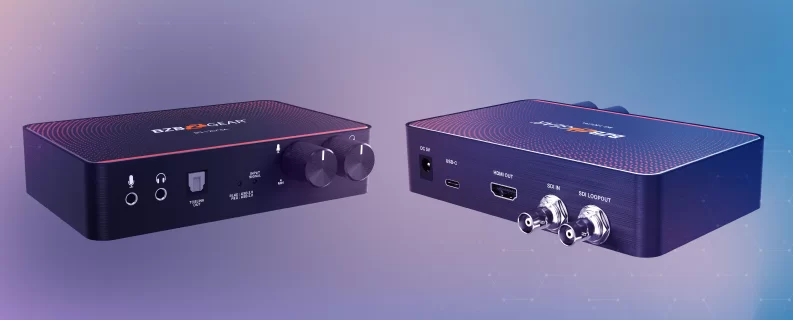

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.
Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.
Features
-
![grommet-icons_volume-control]()
Volume controlUse the volume control knobs to adjust the MIC/Headphone volume -
![Plug-and-Play Setup]()
Plug and PlayAuto-detection of video format -
![fluent_apps-48-filled]()
Software CompatibilityCompatible with most 3rd party software such as OBS Studio and AMCap -
![fluent_slide-microphone-32-regular]()
Mic-in-mixAllows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection -
![fluent_top-speed-24-filled]()
Low Latency3~4ms at 1080P -
![material-symbols_settings-input-component]()
Auto-DetectionAuto 12G/6G/3G/HD-SDI detection
- SDI video and audio streams over USB 3.1 Type-C Gen 1
- UVC1.0/1.1/1.5
- Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
- HDMI up to 4K2K@60
- SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60
- Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Deinterlacer & scaler (upscale to 1080p@120Hz)
- SDI audio extraction
- Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
- USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
- USB-C reversible

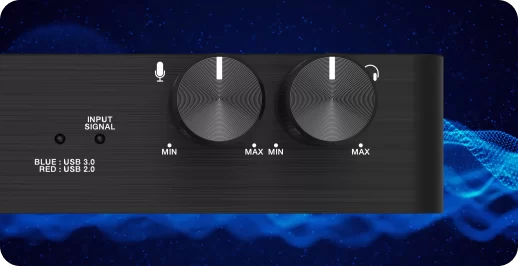

Stereo Audio Input Volume Control
Fine-tune the volume of your stereo audio input, ensuring precise capture of every moment with the desired sound level.
Stereo Audio Output Volume Control
Adjust the stereo audio output volume to perfect your sound, ensuring every detail is captured just how you want it.

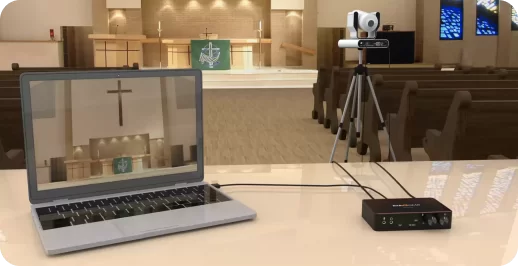

Utilize HDMI Output
Connect to a separate monitor for real-time monitoring or displaying your content via the HDMI output port.

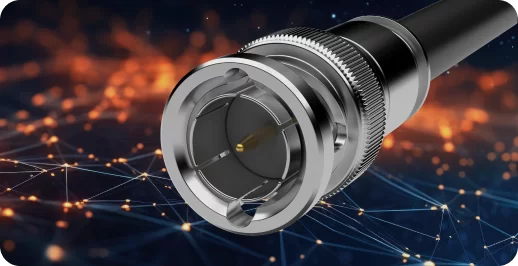

Utilize SDI Loop-Out Port
Seamlessly integrate with external SDI systems or monitors by utilizing the SDI loop-out port to transmit SDI image sources for monitoring purposes.
Videos
Tech Specifications
| Model Name | BG-12GCSA | |
| Technical | ||
| Role of usage | Video Capture Device | |
| Input/loopout Video bandwidth | [SDI] 11.88 Gbps, 11.88/1.001 Gbps | |
| Output bandwidth | Up to 5 Gbps (USB-C) | |
| Video support (USB-C) | Up to 4K2K@30/1080P@120 | |
| Video support (Loopout) | Up to 4K2K@60 | |
| Input Video Support | [12G-SDI] 4K2K @50/59.94/60Hz [6G-SDI] 4K2K @23.98/24, 25, 29.97, 30Hz [3G-SDI] 1080p50/59.94/60Hz [HD-SDI] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz |
|
| Audio Input | SDI Embedded Audio & Stereo audio Input | |
| Audio Support | HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch, Stereo audio up to 2ch | |
| Recording Video Format | RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0) | |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| PCB stack-up | 4-layer board [impedance control — differential 100Ω; single 50Ω] | |
| Cable equalization | [12G-SDI] Input up to 30m; Loopout up to 70m [6G-SDI] Input up to 70m; Loopout up to 120m [3G-SDI] Input up to 200m; Loopout up to 200m |
|
| Firmware update | USB-C Port | |
| Input | 1x BNC(SDI) + 1x 3.5mm | |
| Output | 1x USB-C + 1x HDMI + 1x BNC(SDI) + 1x 3.5mm + 1x Toslink | |
| HDMI connector | Type A [19-pin female] | |
| USB connector | USB 3.1 Type C (SuperSpeed USB) | |
| Software compatibility (not a complete list) |
OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) | |
| OS Support | Windows 7 /8.1 /10/11, Mac and Linux OS | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Dimensions [L x W x H] |
Model | 5.4" x 3.2" x 1.2" [137 x 81 x 30mm] |
| Package | 7.8" x 5.4" x 2.9" [198 x 137 x 74mm] | |
| Weight | Model | 7.3 oz [207g] |
| Package | 1 lbs [492g] | |
| Power supply | 5V DC | |
| Power consumption | 8 Watts [max] | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20~90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-12GCSA
- 1x USB 3.0 A to C Cable (host to device)
- 1x User Manual

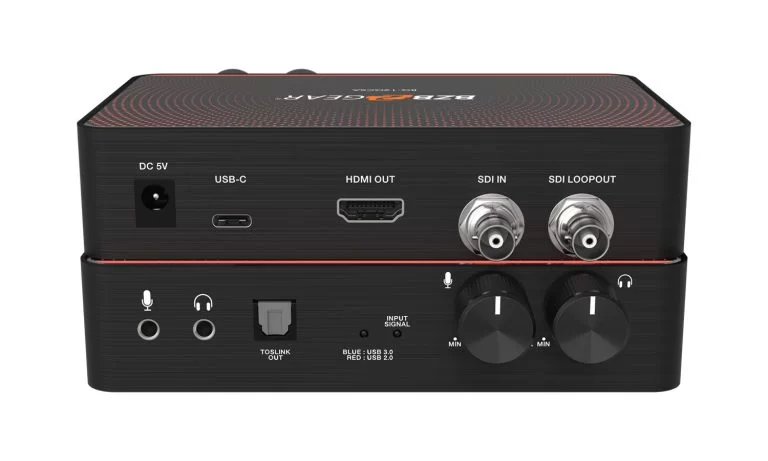

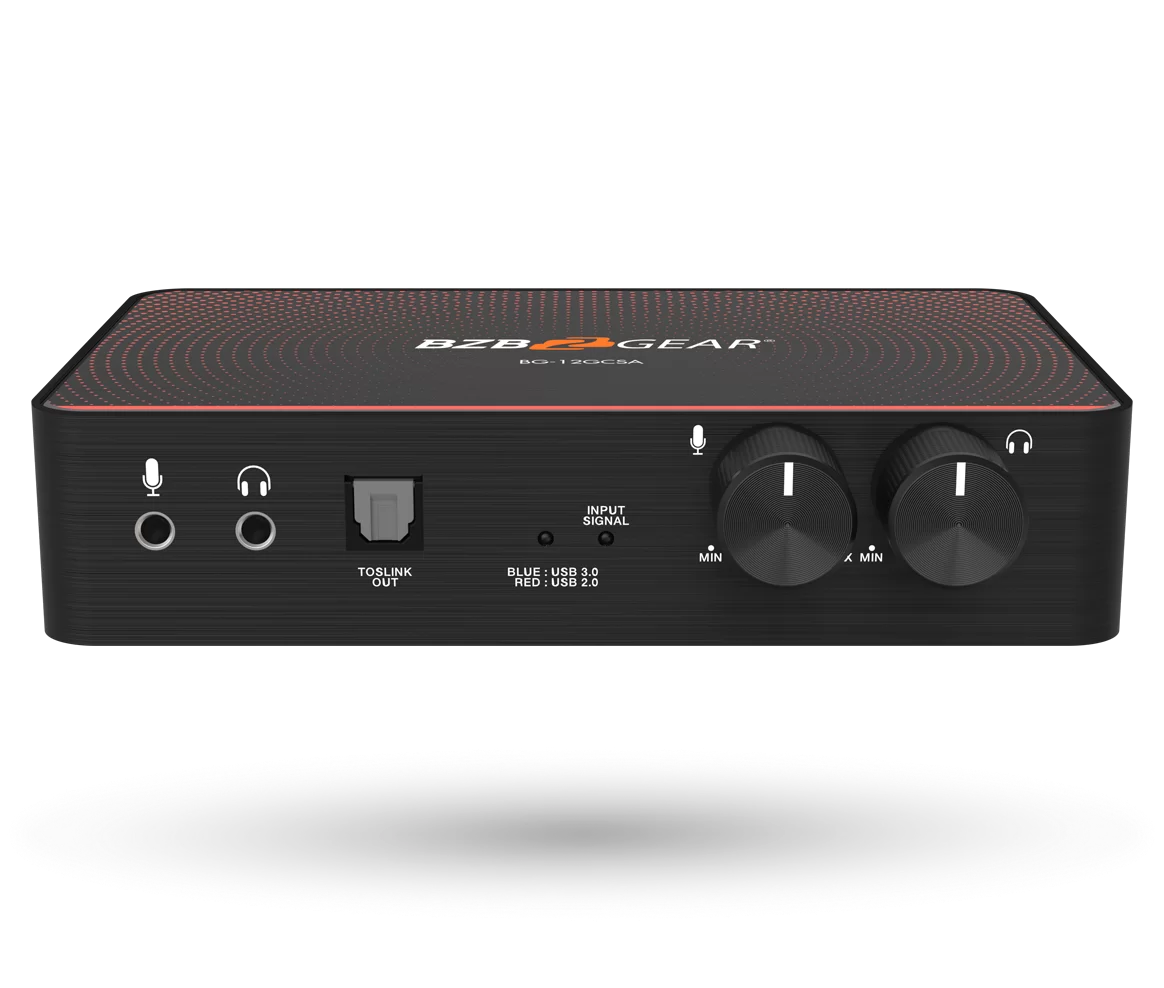

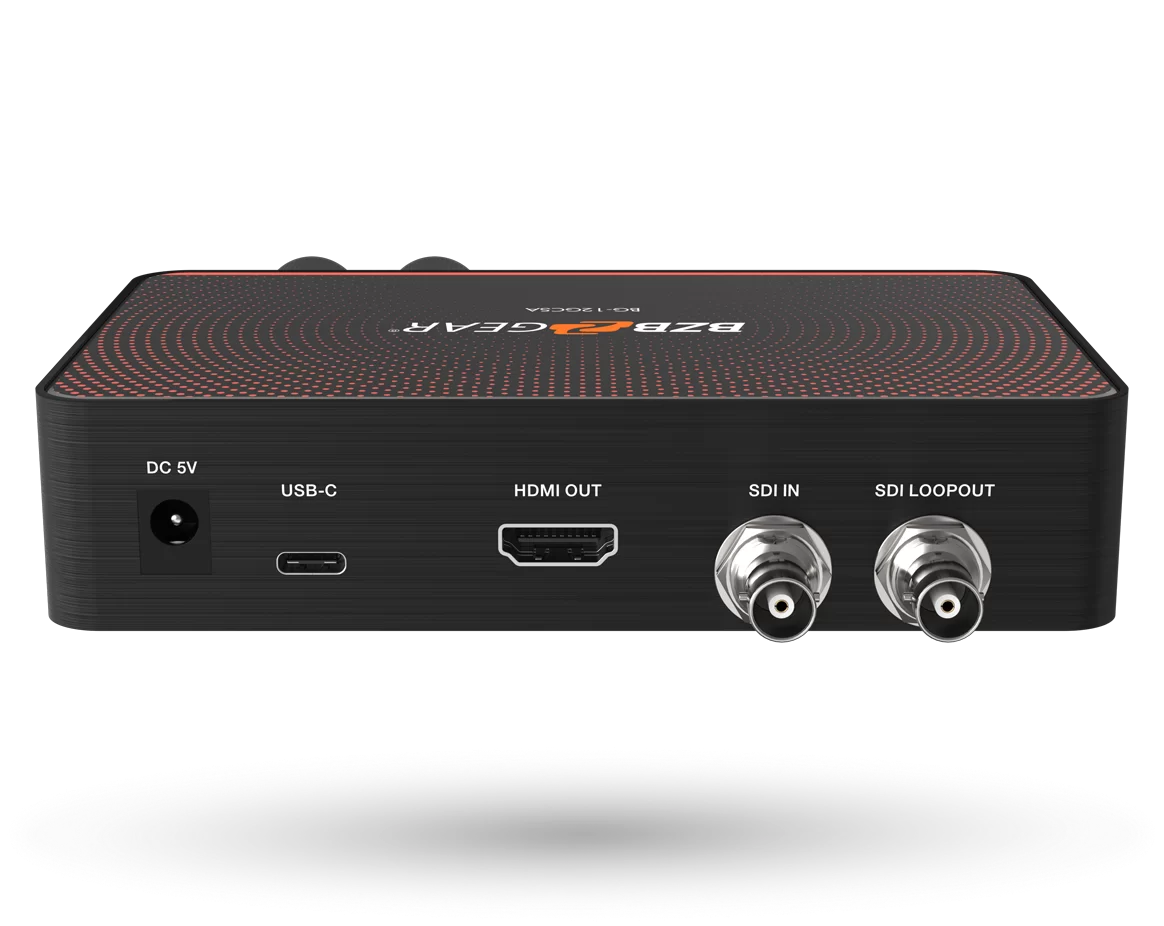

Interfaces
- STEREO AUDIO IN: Connect to an analog stereo audio source.
- STEREO AUDIO OUT: Extract audio from SDI input.
- TOSLINK OUT: Extract audio from SDI input.
- LED INDICATOR: USB-C LED signal indicator
[Red] The device is connected to the USB 2.0 port on the host
[Blue] The device is connected to the USB 3.0 port on the host. - LED INDICATOR: SDI input signal indicator LED.
- STEREO AUDIO IN VOLUME KNOB: Adjust the stereo audio in sound level.
- STEREO AUDIO OUT VOLUME KNOB: Adjust the stereo audio out sound level.
- +5V DC: 5V DC power jack.
- USB-C OUT: Connect to a USB host.
- HDMI OUT: Connect to a HDMI display.
- SDI IN: 12G/6G/3G/HD-SDI Input.
- SDI LOOPOUT: 12G/6G/3G/HD-SDI loopout.
