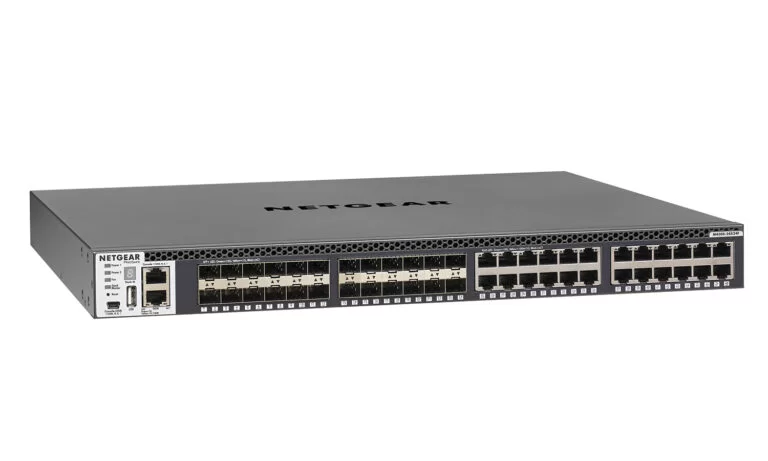

Netgear Stackable Managed Switch with 48x10G including 24x10GBASE-T and 24xSFP+ Layer (XSM4348S-100NES)

Configure the Perfect Solution
Get Started
Overview Specifications Resources Package contents

Overview

NET-M4300-24X24F-PC - Stackable Managed Switch with 24 Ports SFP+ and 24 Ports 10GbE Copper - IT Core & AV-over-IP.

The NETGEAR® M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge and SMB core deployments with unrivalled ease of use: 10/40 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate topologies. Nonstop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Intelligent NETGEAR IGMP Plus™ multicast allows for scalable Pro AV installations at Layer 2 without the PIM complexity. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

NETGEAR Intelligent Edge Switch solutions combine latest advances in hardware and software engineering for higher flexibility, lower complexity and stronger investment protection, at a highvalue price point.

Features

  • High Availability (HA)
    Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  • Multi-Resilienc
    Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  • PVST+ Interoperability
    Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  • Link Dependency
    Enables or disables ports based on link state of different ports
  • Advanced IPv4/IPv6 security
    Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  • Half-Width ToR
    Combine 2 half-width models in a single rack space for redundant Top-of-Rack
  • 24-port 10GBASE-T (RJ45) all independent
  • 24-port 10GBASE-X (SFP+) all independent
  • 960Gbps non-blocking fabric across 48 ports
  • Out-of-band 1G Ethernet Management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Full width form factor with one-unit rack mount kit
  • Ships with one modular APS250W PSU in first power supply slot
  • Ship with a blank cover in the second power supply slot
  • Low acoustics (35.8dB @ 25°C / 77°F)

Tech Specifications

Hardware Specifications

24 Ports Copper 100M / 1G / 10G

24 Ports SFP+ 1G / 10G

1 Modular Bay with One (1) 250W Modular PSU included APS250W

960 Gps Switching Fabric

Fixed Fan Front-to-Back 35.8dB
Management Options

Ethernet: Out-of-band 1G port (Front)

Console: RJ45 RS232 (Front)

Console: Mini-USB (Front)

Storage: USB (Front)

Single-pane-of-glass NMS300 management platform with mass-configuration support

Dual firmware image and configuration file for updates with minimum service interruption
Software Specifications

Table Sizes: 128K MAC 8K ARP / NDP

Up to 960 Gbps

Throughput up to 714 Mpps

Application Static Routing: 64v4 / 64v6 RIP: 512 OSPF: 512

Latency: <0.9µs 10G SFP+, <1.25µs 10G RJ45

IP Multicast: 1,024 IPv4 / 512 IPv6

Multicast IGMP Membership: 2K IPv4 / IPv6

M4300 Series features: License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

VLANS: 4K with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools

Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)


Resources

Documents
Download Manual
Download Brochure

PACKAGE CONTENTS

  • Power cord(s)
  • RJ45 straight-through wiring serial console cable to DB9
  • Mini-USB console cable
  • Rubber caps for the SFP+ sockets
  • Rubber footpads for tabletop installation
  • Installation guide
  • Resource CD with a link to the following manuals and software:
    • Software setup manual
    • CLI manual
    • Software administration guide
    • Hardware installation guide
    • The driver for use with the Mini-USB console cable
  • Full width switch with one APS250W power supply unit
  • Two regular (short) brackets and screws for two-post rack mount (for front posts)
