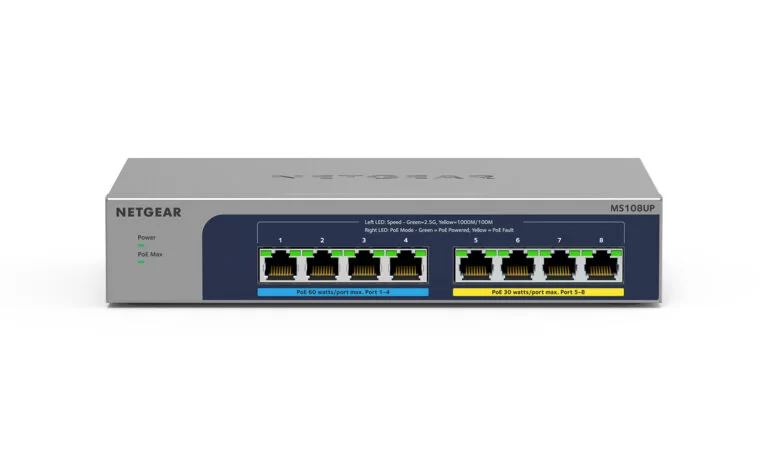

Netgear 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 230 W PoE Budget (MS108UP-100NAS)
Overview
NETGEAR brings the first Unmanaged Multi-Gigabit PoE++ switch NET-00HN43 with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
The new model NET-00HN43 supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/ port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Features
-
Multi-Gigabit Ethernet8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
-
PoE Support4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire
-
PoE Auto-BalanceAutomatically balances the PoE power based on the device needs independent of PoE class detected
-
Non-Blocking Switching40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
-
Fanless DesignSilent operation makes this switch perfect for noise-sensitive environments
-
Versatile Mounting OptionsInstall your switch on your desktop, or mount it to your wall with the hardware provided in the box
Tech Specifications
| Network interfaces | RJ‑45 connectors that support 100BASE‑TX, 1000BASE‑T, and 2.5GBASE‑T |
| Ports | 8 |
| PoE | Ports 1-4: PoE++ (802.3bt) Ports 5-8: PoE+ (802.3at) |
| PoE budget | 230W |
| Power adapter | 54V @ 4.7A DC input |
| Power consumption | 270.5W |
| Dimensions (W x D x H) | 8.27 x 5.51 x 1.58 in (210 x 140 x 40 mm) |
| Weight | 1.98 lb (900 g) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 10 to 90% relative humidity, noncondensing |
| Maximum operating altitude | 10,000 ft. (3,000 m) |
| Storage temperature | -4 to 158°F (-20 to 70°C) |
| Storage humidity | 5 to 95% relative humidity, noncondensing |
| Maximum storage altitude | 10,000 ft. (3,000 m) |
| Electromagnetic certifications and compliance | EMC class B device, FCC, ISED, CE, RCM, VCCI, BSMI, CCC, KC |
| Safety certifications | CB, CE LVD, CSA, BSMI, CCC |
Resources
PACKAGE CONTENTS
- NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Unmanaged Switch
- Power adapter (power cable varies by region)
- Wall-mount installation kit
- Rubber feet
- Installation Guide
