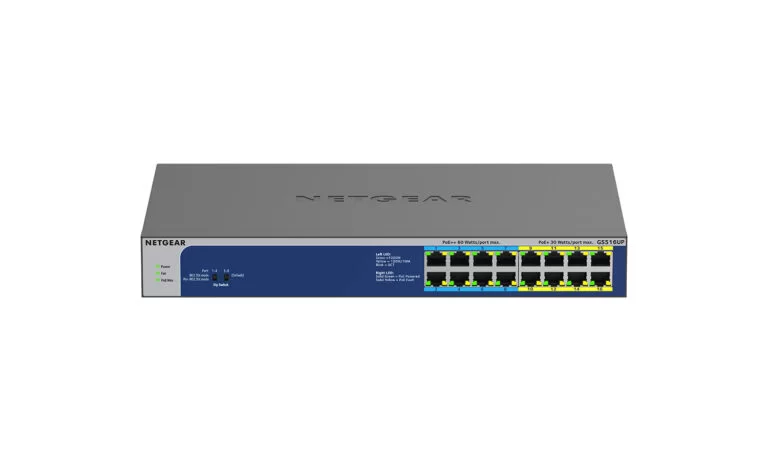

Netgear 16-Port POE++ Gigabit Ethernet Unmanaged Switch 380 W PoE Budget

BZBGEAR Fundamentals
Click here to learn more about BZBGEAR Fundamentals
NET-6RU905-1 NET-6RU905-2 NET-6RU905-3 NET-6RU905-4 NET-6RU905-5 NET-6RU905-6 NET-6RU905-7 NET-6RU905-8 NET-6RU905-9 NET-6RU905-10
NET-6RU905-1
NET-6RU905-2
NET-6RU905-3
NET-6RU905-4
NET-6RU905-5
NET-6RU905-6
NET-6RU905-7
NET-6RU905-8
NET-6RU905-9
NET-6RU905-10
Configure the Perfect Solution
Get Started
Overview Specifications Resources Package contents

Overview

NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with new 16- Port (NET-6RU905) Unmanaged Switch, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W, a compact size, plug-and-play installation, and reliable performance at affordable prices.

These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port. Standardized to IEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11ax wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The NET-6RU905 has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.

Features

  • Ethernet port configuration
    16 Gigabit ports
  • Plug-and-Play
    Simple set up with no software to install or configuration needed and zero maintenance
  • Full performance
    Non-blocking switching architecture for maximum throughput at wire speed
  • Power-over-Ethernet
    8 Ultra60 PoE++, and 8 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more
  • Power auto-balance and allocation
    NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs
  • Silent operation
    The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
  • Energy efficient: Designed to optimize power usage lowering its cost to operate
  • Rugged metal casing: Durable desktop case for longevity
  • Versatile mounting options: Supports desktop or rackmount placement, and includes all mounting hardware in the box
  • Standards-based design: Ensure interoperability with any standards-based PDs

Tech Specifications

RJ-45 ports 16 Gigabit Ethernet for 1 Gbps, 100 Mbps, and 10 Mbps
PoE++ ports 8 (ports 1–8)
PoE+ ports 8 (ports 9–16)
Maximum PoE budget 380W for the entire switch
AC power input 100–240V ~ 50/60 Hz, 8–4A
Dimensions (W x D x H) 13.0 x 8.2 x 1.7 in (330 x 207 x 43 mm)
Weight 5.73 lb (2.6 kg)
Operating temperature 32-122°F (0-50°C)
Operating humidity 10%–90% relative humidity, noncondensing
Compliance FCC class A, UL 62368-1, CB, CE LVD, CE class A, VCCI class A, RCM class A, KC, BSMI

Resources

Documents
Download Download Installation Guide

PACKAGE CONTENTS

  • Switch model NET-6RU905
  • Power cord (varies by region)
  • Rack-mount kit
  • Four rubber feet
  • Installation guide and Insight flyer
