1080P FHD 20X/30X Zoom HDMI/SDI/IP Streaming Box Camera with Audio Input

Zoom
SKU: BG-BSHA
MSRP: $999.00 – $1,199.00
Status: In Stock
Overview Specifications Interfaces Resources Package contents

Overview

The BG-B20SHA/BG-B30SHA 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

With a 1/2.8” Sony CMOS sensor, the BG-BSHA series provides crystal clear imaging at resolutions up to [email protected] The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance.

The BG-BSHA series features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

Connectivity and Control

The BG-BSHA series supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-BSHA series to be easily integrated into most workflows.

Designed for installation in remote locations, the BG-BSHA series can be operated via serial (RS485) control or web interface. The web interface provides a full suite of image adjustment options. It supports PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, providing support for compatible joystick controllers.

Features

Crystal Clear Output
Full HD output delivers up to [email protected] video
Multiple Outputs
Outputs simultaneously from HDMI/3G-SDI/ IP
Zoom
20X/30X Optical Zoom Lens
External Audio Input
Add a microphone or other audio source

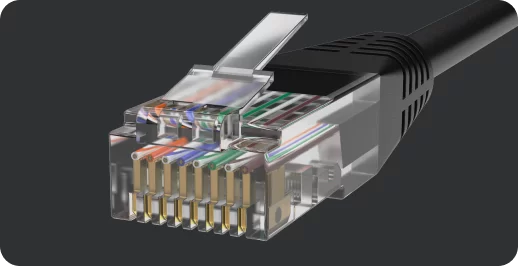

PoE
Power and connect to the camera using just one CAT cable
Multiple Control Protocols
Supports ONVIF, PELCO-D, PELCO-P, VISCA
  • Multiple output resolutions available
  • Small form factor for tight installations
  • RS-485 & RS-232 serial control options
  • H.265/H.264 encoding
  • 2D / 3D noise reduction
  • Auto white balance, iris, and focus options

Videos

8K Ultra High Definition 2x2 HDMI Matrix Switcher - BG-8K-22MA
8K Ultra High Definition 2x2 HDMI Matrix Switcher - BG-8K-22MA
8K Experience Amplified with A 4x4 HDMI 2.1a Matrix Switcher - BG-8K-44MA
8K Experience Amplified with A 4x4 HDMI 2.1a Matrix Switcher - BG-8K-44MA
Easily Switch Between Multiple HDMI Sources Up To 8K at 60Hz
Easily Switch Between Multiple HDMI Sources Up To 8K at 60Hz
Split An 8K HDMI Signal to Multiple Screens
Split An 8K HDMI Signal to Multiple Screens
Create The Ultimate Visual Experience with an 8K HDMI Matrix Switch
Create The Ultimate Visual Experience with an 8K HDMI Matrix Switch

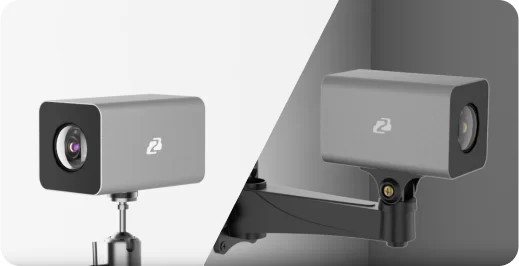

Mounting Ideas

Click the image below to watch a video
Play
Play

Tech Specifications

Camera Specs
Sensor 1/2.8″ Exmor CMOS Sensor, 2.38MP
Frame Rate [email protected]/50/30/25, [email protected]/50/30/25, [email protected]/50
Zoom 20X/30X Optical, 12X Digital Zoom
Focus f=4.7mm-94.0mm
Aperture F=1.6(W)-3.5(T)
Horizontal Field of View 2.9°(T)-65°(W)
Zoom Control VISCA, PELCO D/P
Input/Output Interface
Video Output 3G-SDI / HDMI / IP Streaming
Audio Input 3.5mm Stereo Mini
Power On JEITA type (DC IN 12V)
Communication interface RS485 / RS232
Generic
Dimensions (W x H x L) 2.8 x 2.8 x 4.8in [70 x 70 x 122mm]
Weight 0.44 lbs [0.2kg]
Operating Temperature -10°C ~ 50°C
Max Comsunption 12W  DC12V @1A

PACKAGE CONTENTS

  • 1x BG-BSHA Camera
  • 1x User Manual
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x Power Cable

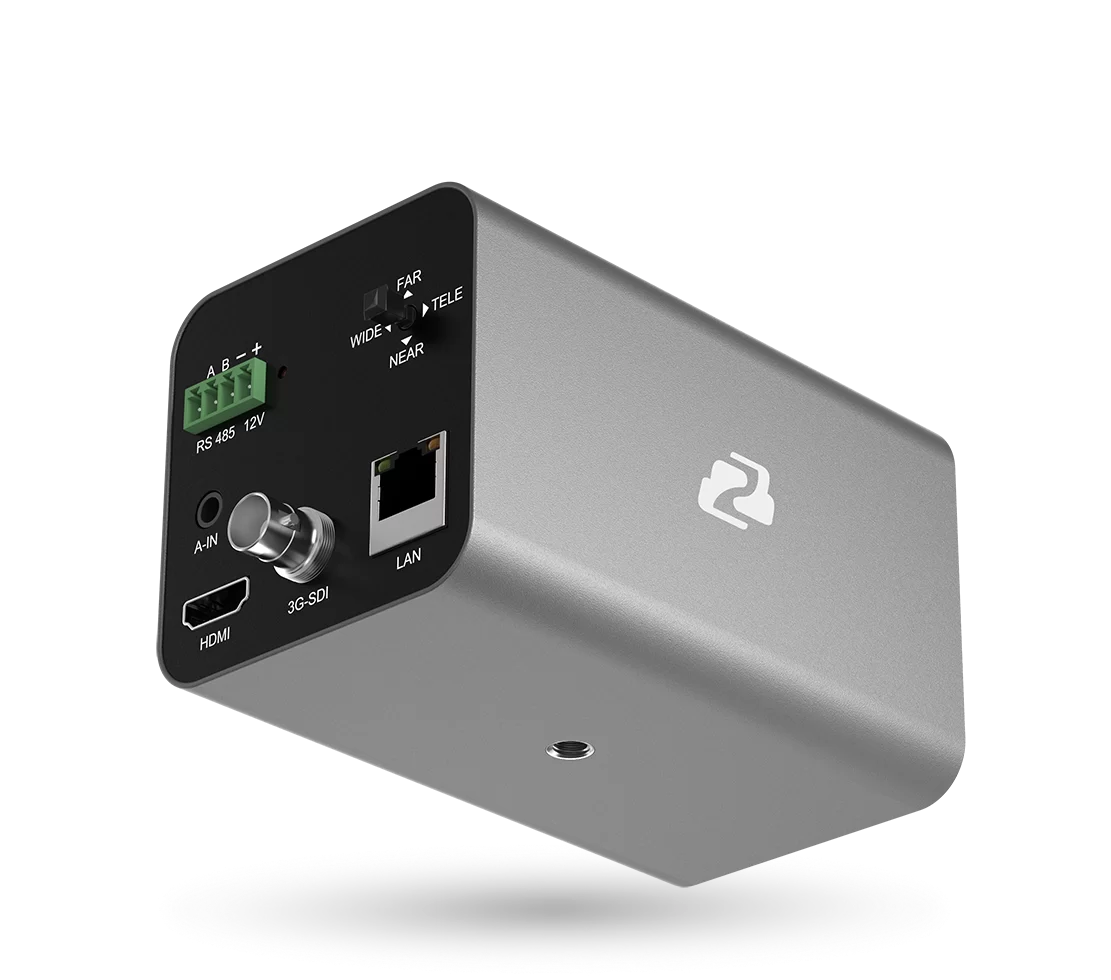

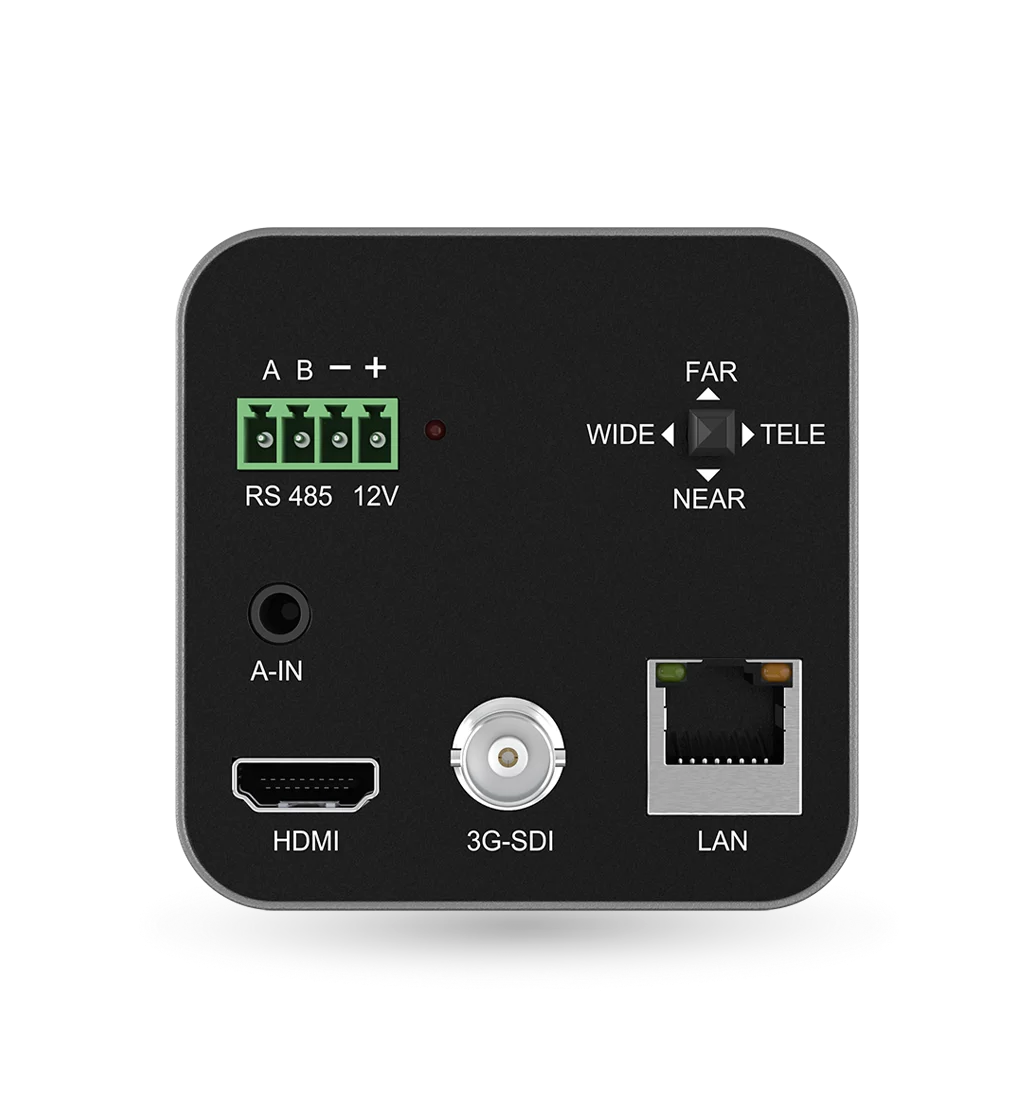

Interfaces

  1. RS-485: Connect RS-485 to control the camera with a joystick controller or control software.
  2. Audio In: Stereo audio input for connecting mics and embedding local audio into all video output interfaces.
  3. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to [email protected]
  4. SDI: Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G ([email protected]) up to 330ft away over SDI cabling.
  5. Power: Connect supplied 12V power adapter.
  6. LAN: Connect to a network switch via category cable to supply power (PoE), control and stream (TCP/IP or webGUI).

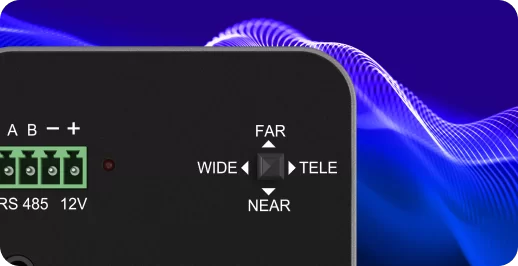

  7. Button: Push this button towards Wide or Tele to zoom in or zoom out. Push towards Far or Near to adjust manual focus.
