4-Port 4K 18Gbps 60Hz HDMI 2.0 Switcher with IR Remote Control
MSRP: $99.00

MSRP $99.00

2

Description

The BZB-SW-41A is a 4X1 HDMI switcher that allows users to connect up to four HDMI sources to a single HDMI display. This HDMI 2.0 and HDCP 2.2 compliant device supports signals up to [email protected] at 18Gbps.
Extract HDMI audio (LPCM only) via the 3.5mm output without any loss of quality. This unit also supports HDMI High Bit Rate (HBR) audio pass through with audio sample rates up to 192kHz.

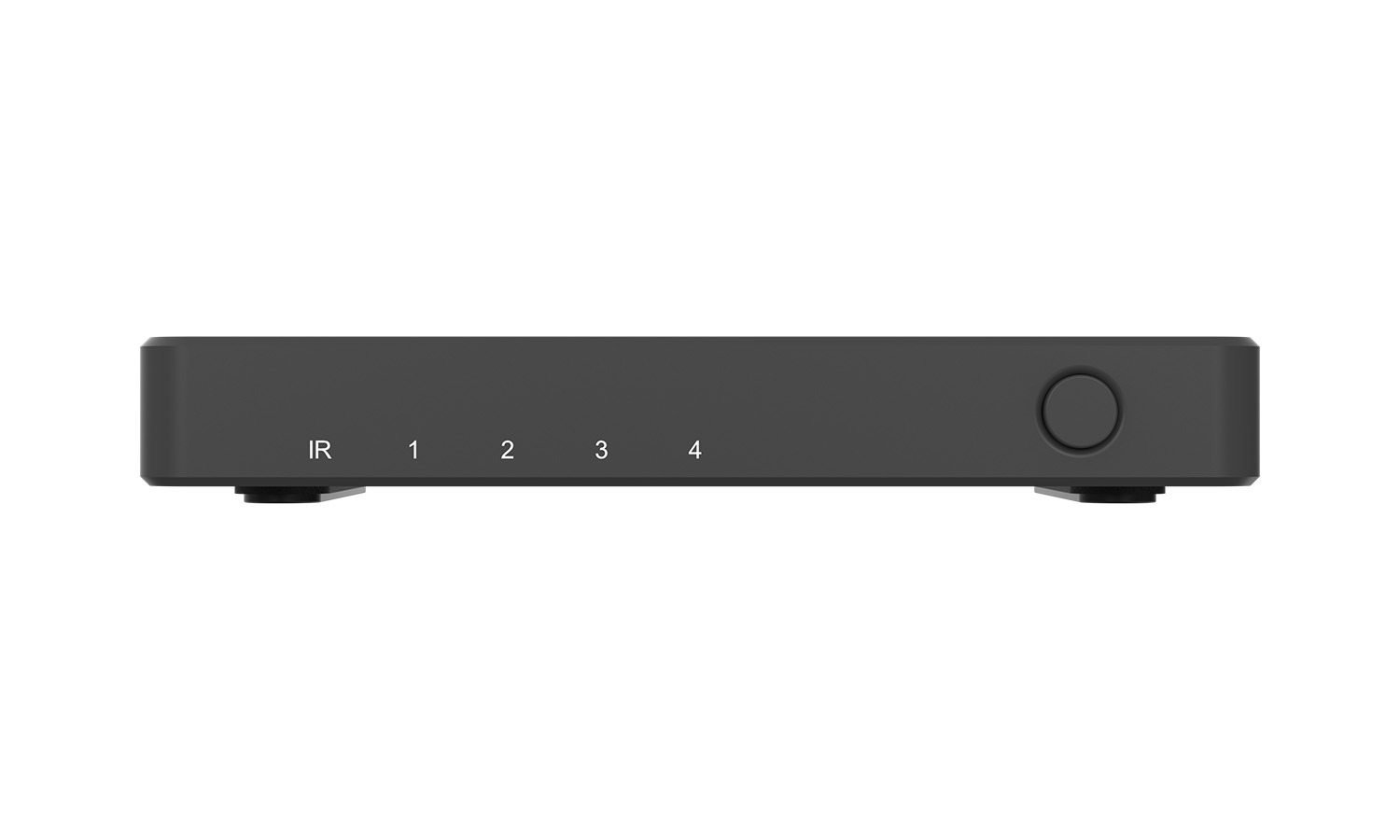

Switching between sources is simple when using the front panel push button or the IR remote, and its compact design makes installation easy.

Additional information

Weight 1 lbs
Dimensions 8.5 × 4.5 × 2.5 in

Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolutions

up to [email protected]/60Hz(YUV4:4:4),[email protected],[email protected], and 1080P [email protected]

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

10-bit, 12-bit

HDMI Audio Formats

(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

L/R Audio Formats

Analog Stereo 2CH

ESD Protection

Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections

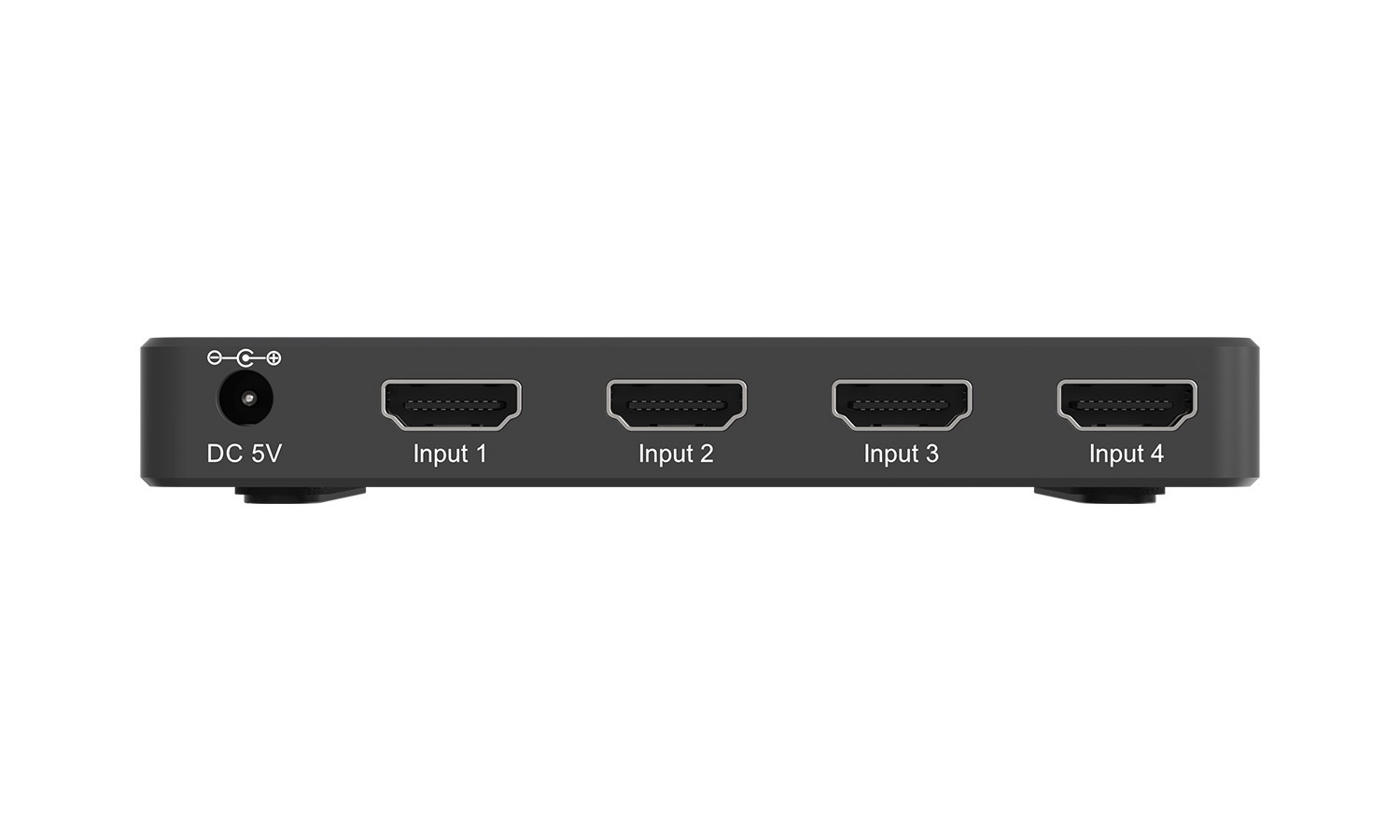

Inputs

4x HDMI Type A [19-pin female]

Outputs

1x HDMI Type A [19-pin female] 1x L/R Audio Out [3.5mm Stereo Mini-jack]

Mechanical

Housing

Plastic Enclosure

Color

Gray

Dimensions

120.97mm [W] x 79.17mm [D] x 16mm [H]

Weight

195g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

1W (Max)

Operation Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Product Video

Package Contents

① 1 x HDMI 4x1 Switcher unit
② 1 x 5V/1A Power Adaptor
③ 1 x Remote Control unit
④ 1 x User Manual

Resources

Download Manual - Click Icon Below

Download Manual

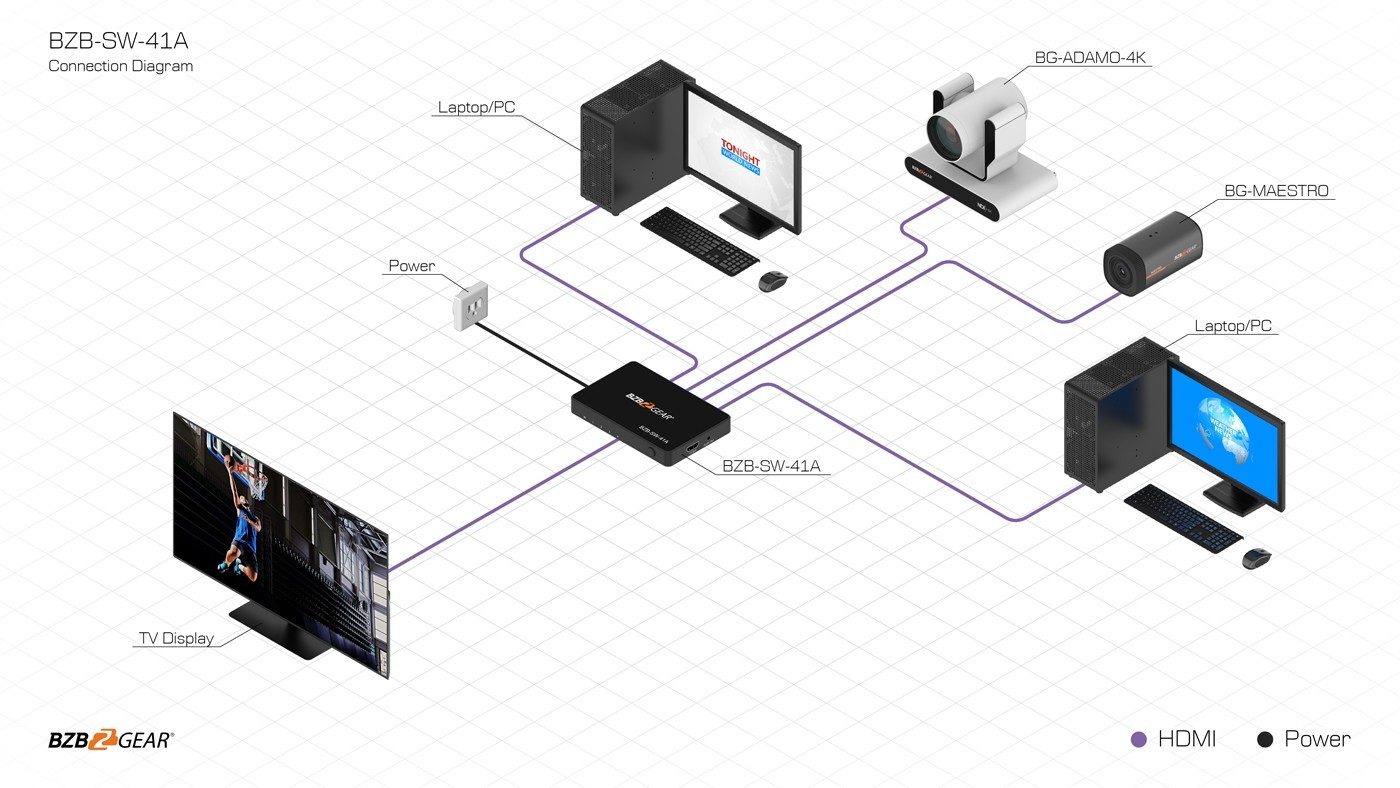

Diagram

Overview

The BZB-SW-41A is a 4X1 HDMI switcher that allows users to connect up to four HDMI sources to a single HDMI display. This HDMI 2.0 and HDCP 2.2 compliant device supports signals up to [email protected] at 18Gbps.
Extract HDMI audio (LPCM only) via the 3.5mm output without any loss of quality. This unit also supports HDMI High Bit Rate (HBR) audio pass through with audio sample rates up to 192kHz.
Switching between sources is simple when using the front panel push button or the IR remote, and its compact design makes installation easy.



Introduction

The new BZB GEAR products we are demoing are the BZB-DA-14 (1×4) Splitter and BZB-SW-41A (4x1) Switcher. Both of these devices are capable of Video resolutions up to [email protected]/60Hz @18Gbps with a chroma sampling of 4:4:4.
Features
HDMI
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant.
4K
Capable of video resolutions up to [email protected]/60Hz (YUV444).
3.5mm Audio Out
Extracts HDMI audio (LPCM only).
Simple to use
Compact design is easy to install and use.
HDR
10 bit HDR (High Dynamic Range) pass through.
Reliable
Built to last.
  • 4K – Capable of video resolutions up to [email protected]/60Hz (YUV444)
  • HDMI - HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
  • Simple to use - Compact design is easy to install and use
  • 3.5mm Audio Out - Extracts HDMI audio (LPCM only)
  • Reliable – built to last
  • HDR – 10 bit HDR (High Dynamic Range) pass through
  • Supports 4 HDMI inputs and 1 HDMI output
  • Built-in retiming and cable driver
  • Supports HDMI High Bit Rate(HBR) audio pass through
  • Audio sample rates up to 192kHz
  • Supports HDCP, 3D and CEC bypass


Specifications
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18 Gbps
Video Resolutions up to [email protected]/60Hz(YUV4:4:4),[email protected],[email protected], and 1080P [email protected]
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
L/R Audio Formats Analog Stereo 2CH
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs 4x HDMI Type A [19-pin female]
Outputs 1x HDMI Type A [19-pin female]
1x L/R Audio Out [3.5mm Stereo Mini-jack]
Mechanical
Housing Plastic Enclosure
Color Gray
Dimensions 120.97mm [W] x 79.17mm [D] x 16mm [H]
Weight 195g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 1W (Max)
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
MORE / LESS SPECS
Ideal fit for:
- Home A/V Systems
- Auditoriums
- Conference Rooms


Who is buying it?
- A/V Integrators
- IT Specialists
- Homeowners

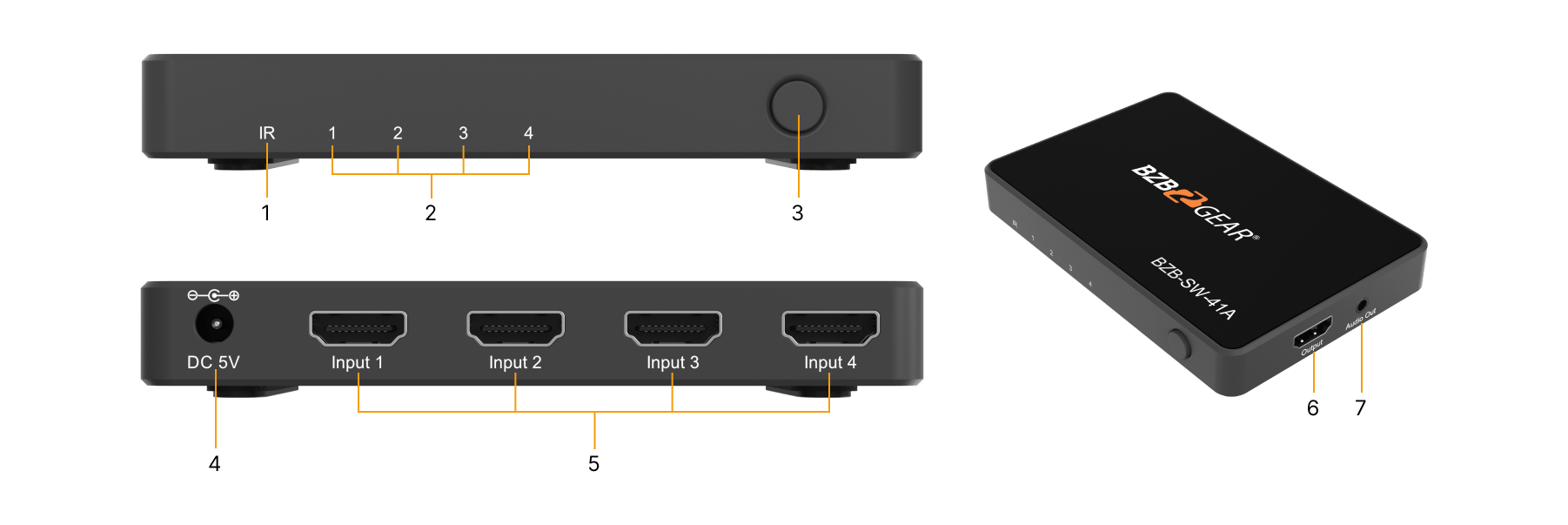

Interface


HDMI

Crystal clear image with resolutions up to [email protected]

L/R Audio Out

Stereo audio output for connecting to local audio system.

Power

Use supplied Power Adapter.

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1xHDMI 4X1 Switcher unit
② 1x 5V/1A Power Adaptor
③ 1xRemote Control unit
④ 1xUser Manual
