BZB-EXH-50
4K/UHD HDR POC HDMI Extender over a Single Cat6/7 up to 165ft with IR and HDMI Loop Out

4K/UHD HDR POC HDMI Extender over a Single Cat6/7 up to 165ft with IR and HDMI Loop Out

SKU: BZB-EXH-50
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS

Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CABLE

POC or Power over cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.

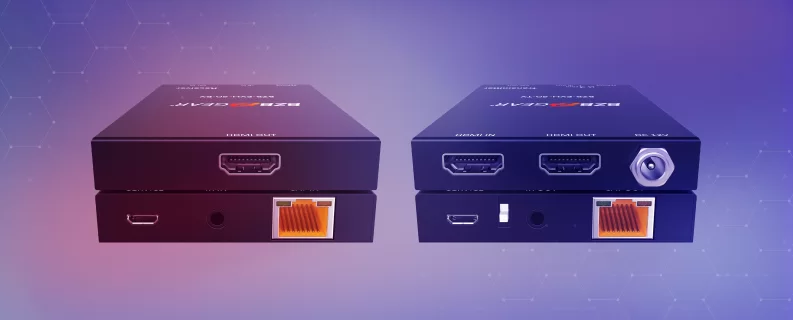

The BZB-EXH-50 HDMI Extender Kit transmits audio, video and IR signals over up to 165ft/50m using a single Cat6 cable delivering 4K2k@60Hz. Additionally, the unit offers POC (Power over Cable), HDMI Loop out on the transmitting unit, EDID management for easy integration eliminating “HDMI Handshake” issues. As well this HDMI extender supports, one-way IR control, deep color video, audio formats including Stereo, 7.1 DTS-HD and Dolby TrueHD. Budget friendly and feature packed, this is a great all-around solution for many applications including restaurants, schools, residential or any HDMI extension requiring 4K resolutions.

MSRP $179.00*

*Pricing is for US only. International pricing will vary.
Features
  • HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
  • Supports 18Gbps bandwidth
  • It supports input and output video resolutions the maximum up to 4k2k@60Hz RGB/Ycbcr 4:4:4/Ycbcr 4:2:2, extends distance the furthest up to 164ft/50m
  • Allows one route HDMI loop output
  • Allows one-way IR control
  • Allows HDR function
  • Supports copy the EDID signal from transmitter’s or receiver’s display device
  • It has a compact design for easy and hassle-free installation
3D Pictures of the Product
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.
Specifications


EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS

Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CABLE

POC or Power over cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2/HDCP 1.4

Video Bandwidth

18Gbps

Video Resolution

Up to 4K60Hz 4:4:4

Color Space

RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0

Color Depth

8/10/12-bit

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,

DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master

Audio, DSD

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connections

Transmitter

Inputs:    1x HDMI Type A [19-pin female]

          1x SERVICE [Micro USB, Update port]

Outputs: 1x HDMI Type A [19-pin female]

        1x IR OUT [3.5mm Stereo Mini-jack]

        1x CAT OUT [RJ45, 8-pin female]

Receiver

Inputs:    1x IR IN [3.5mm Stereo Mini-jack]

         1x CAT IN [RJ45, 8-pin female]

         1x SERVICE [Micro USB, Update port]

Outputs:  1x HDMI Type A [19-pin female]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

101.5mm [W] x 69.3mm [D] x 13.3mm [H]

Weight

Transmitter: 150g, Receiver: 144g

Power Supply

Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A

(US/EU standards, CE/FCC/UL certified)

Power Consumption

6.36W

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)





Resources



Package Contents
① 1xHDMI 2.0 Extender Transmitter
② 1xHDMI 2.0 Extender Receiver
③ 1xWideband IR Blaster cable
④ 1xWideband IR Receiver cable
⑤ 1x12V/1A Locking Power adapter
⑥ 1xUser Manual


Device Interface

See full description of the connections here


Warranty: 2 years
