4K/UHD HDR HDMI Extender (TX/RX) Kit Over Single Cat6/7 up to 165ft with IR and HDMI Loop Out
and engineering support
Overview
The BZB-EXH-50 4K HDMI Extender kit efficiently transmits audio, video, and IR signals across impressive distances of up to 164 feet (50 meters) using a single Cat5e/6/7 cable, delivering resolutions as high as 4K@60Hz. Furthermore, the transmitter features an HDMI loop-out, enabling connection to an additional display. Advanced EDID management is included to streamline integration and eliminate HDMI handshake issues. This extender kit offers one-way IR control, deep color video, and support for various audio formats, including Dolby TrueHD.
These exceptional features, combined with a wallet-friendly price point, make the BZB-EXH-50 the optimal choice for any scenario demanding long-range HDMI extension.
Control Options:
This unit provides a user-friendly one-way IR control feature, designed for easy configuration. To set it up, simply connect your IR receiver to the IR IN port and an IR blaster to the IR OUT port.
Additionally, this unit offers advanced functionality by supporting the duplication of the EDID signal from either the transmitter's or the receiver's display device. This allows for enhanced flexibility in signal management and control, ensuring compatibility and smooth operation in various system configurations.
Features
-
Industry CompliantCompliant with HDMI 2.0, HDCP 1.4/HDCP 2.2, and DVI 1.0 standards -
Advanced EDIDCapable of copying the EDID signal from either the transmitter's or receiver's display device -
Installation FlexibilityCompact design for straightforward and flexible installation -
Extensive ReachExtension distances reaching up to 164 feet (50 meters) -
HDR SupportIncludes support for HDR functionality -
4K UHDSupports input and output video resolutions up to a maximum of 4K2K@60Hz in RGB/Ycbcr 4:4:4/Ycbcr 4:2:2
- Accommodates 18Gbps bandwidth
- Equipped with one-way IR control
- Supports a one-route HDMI loop output
Videos
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K60Hz 4:4:4 |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD |
| ESD Protection | Human body model: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] |
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (WxDxH) | 4.0in x 2.7in x 0.52in [101.5mm x 69.3mm x 13.3mm] |
| Weight | Transmitter: 0.33lbs [150g], Receiver: 0.32lb [144g] |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6.36W |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
PACKAGE CONTENTS
- 1× HDMI 2.0 Extender Transmitter
- 1× HDMI 2.0 Extender Receiver
- 1× Wideband IR Blaster cable
- 1× Wideband IR Receiver cable
- 1× 12V/1A Locking Power adapter
- 1× User Manual

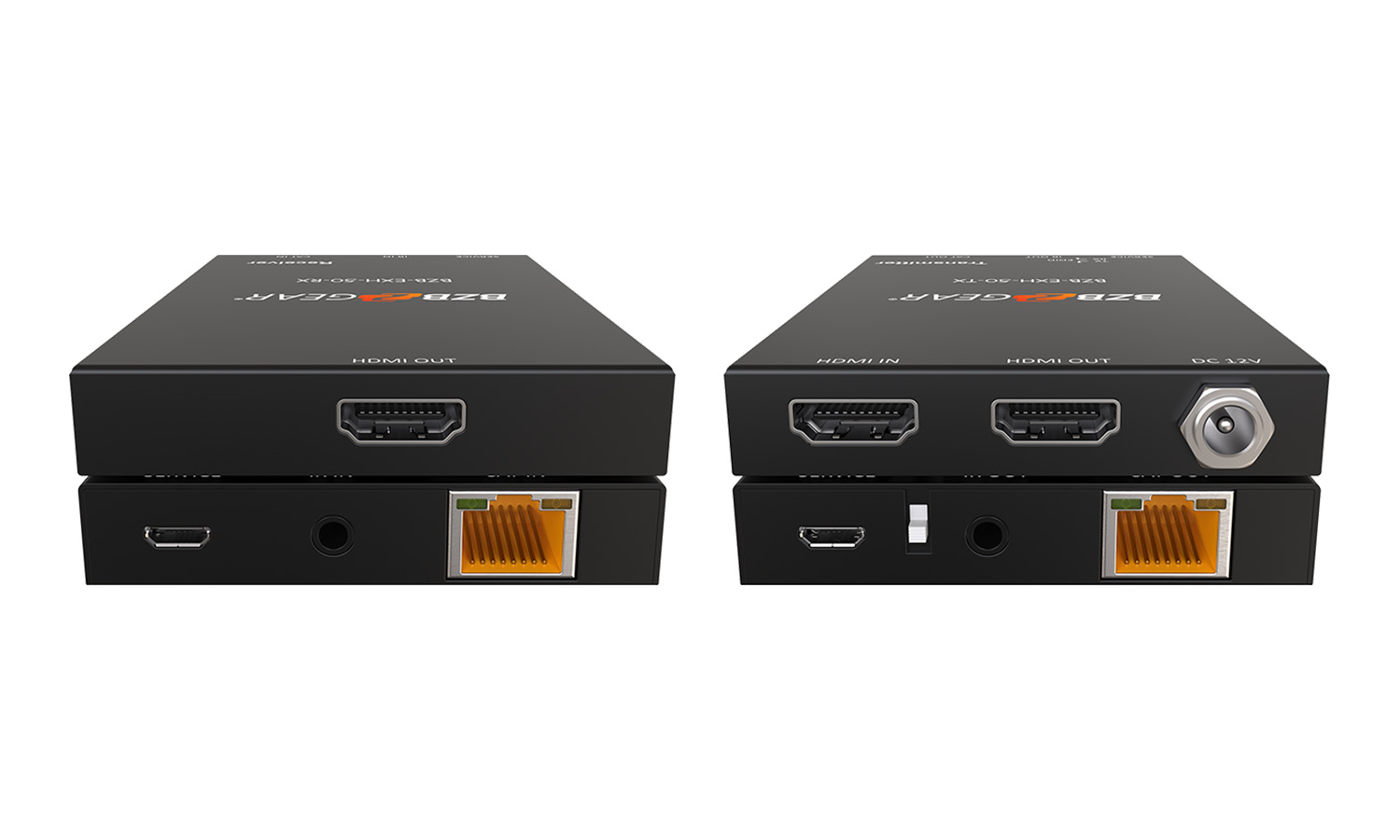

Interfaces
Transmitter (TX)
- SERVICE port: For firmware updated use.
- COPY TX / RX: ▪ When in “TX” position, the unit will copy the EDID setting of the HDMI loop output display device to source device. The source device will send again matching the loop output display device audio / video signal to all HDMI outputs.
▪ When in “RX” position, the unit will copy the EDID setting of the HDMI output display device on the receiving end to source device. The source device
will send again matching the HDMI output display device on the receiving end audio / video signal to all HDMI outputs. - IR OUT: Connect to wideband IR Blaster cable.
- CAT OUT: Connect to CAT IN port on the receiving end with a CAT6 cable.
- Power Indicator Lamp: The lamp will illuminate when the transmitter is power on.
- Connection signal Indicator Lamp: The lamp will illuminate when the transmitter and the receiver have signal transmission.
- HDMI IN: HDMI input port, connect to HDMI source device such as DVD or PS4 player with an HDMI cable.
- HDMI OUT: HDMI loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
- DC 12V: Plug the 12V/1A adapter to AC wall outlet for power supply.
Receiver (RX)
- SERVICE port: For firmware updated use.
- IR IN: Connect to wideband IR Receiver cable.
- CAT IN: Connect to CAT OUT port on the transmitter end with a CAT6 cable.
- Power Indicator Lamp: The lamp will illuminate when the receiver is power on.
- Connection signal Indicator Lamp: The lamp will illuminate when the transmitter and the receiver have signal transmission.
- HDMI OUT: HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
