BG-UM-88ANS

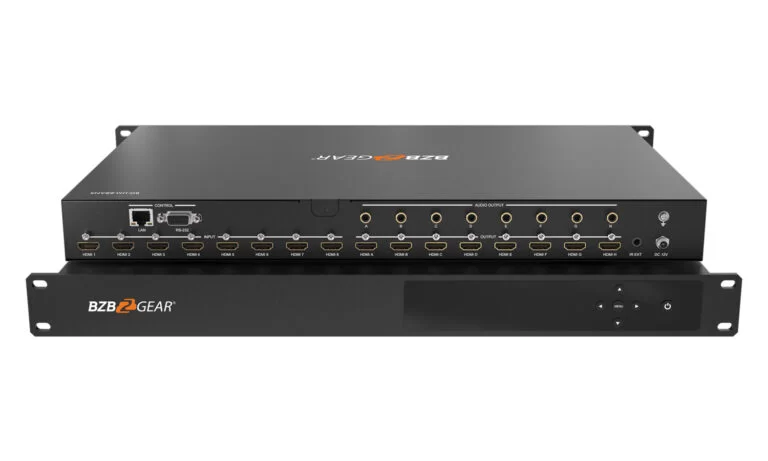

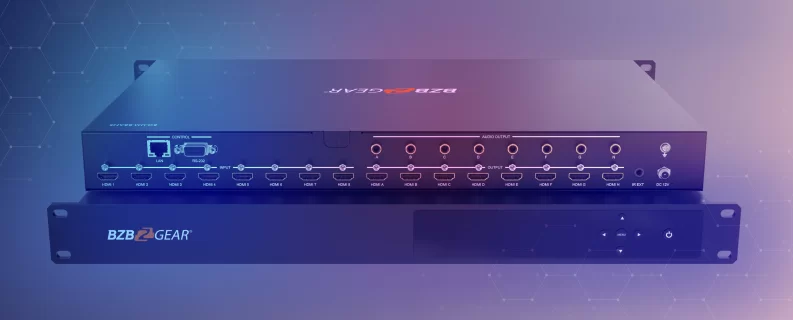

8X8 HDMI 18Gbps Matrix with Audio De-embedded

8X8 HDMI 18Gbps Matrix with Audio De-embedded

SKU: BG-UM-88ANS
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
GUI/WEB UI

Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
4K HDR

4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.

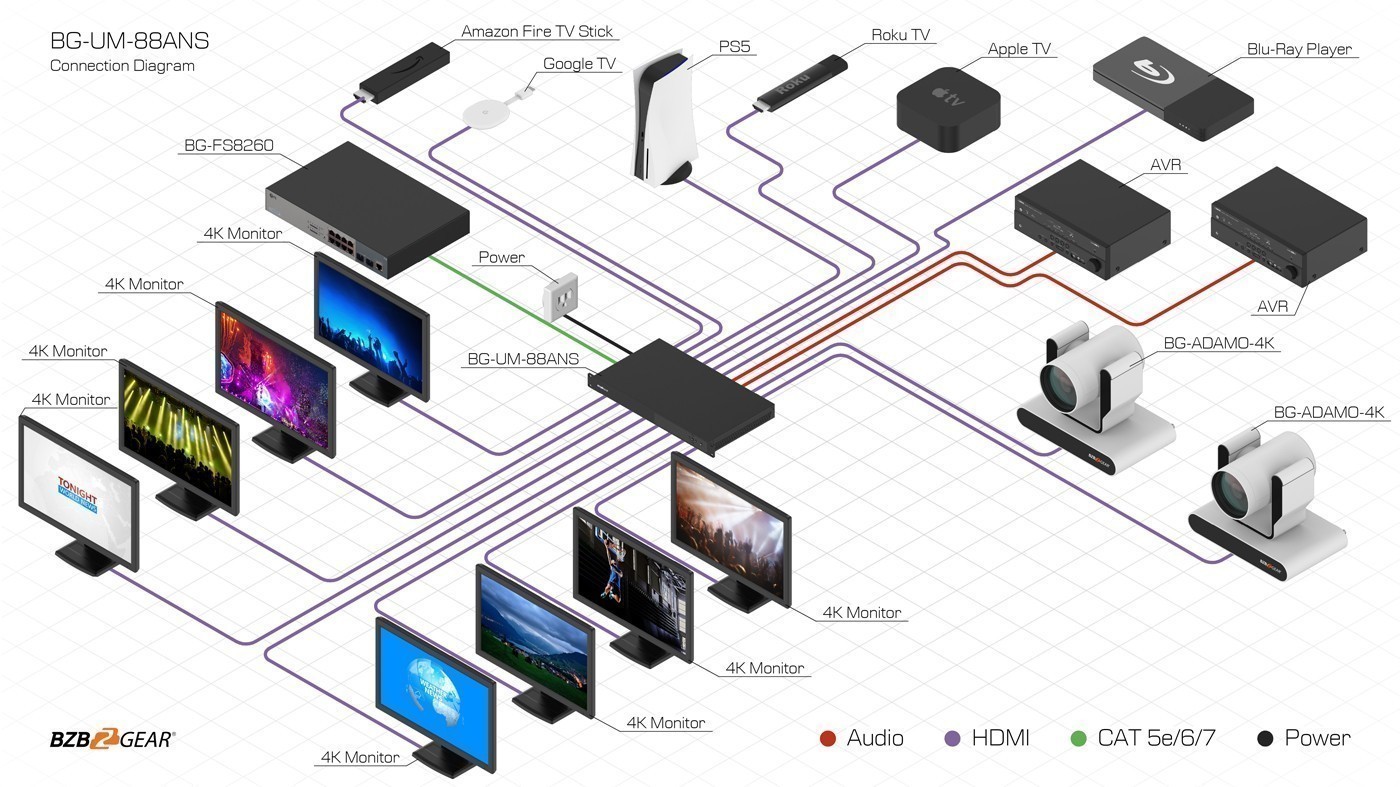

The 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded is supported from 8 HDMI output ports. Control is via button, IR remote, Web GUI and ASCII command.

MSRP $1599.00*

*Pricing is for US only. International pricing will vary.
Features
  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
  • Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
  • Audio de-embedded is supported via coax port
  • HDR, CEC and smart EDID management supported
  • Control is via on-panel Button,IR remote, Web GUI and ASCII command
  • 1U rack mounted design with metal enclosure
Specifications


EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
GUI/WEB UI

Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
4K HDR

4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18Gbps

Video Resolutions

Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz,

1080p@120Hz, and 1080p 3D@60Hz

Color Depth

8-bit, 10-bit, 12-bit

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

HDMI Audio

Formats

LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+,

Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos,

DTS:X

Audio Formats

PCM2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connections

Inputs

8x HDMI Type A [19-pin female]

1x LAN [RJ45, Control]

1x RS-232 [9-pin D-sub, Control]

1x IR EXT [3.5mm Stereo Mini-jack]

Outputs

8x HDMI Type A [19-pin female]

8x Coaxial Audio [RCA]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

483mm (W)×253mm (D)×44.5mm (H)

Weight

3.35kg

Power Supply

Input: AC100~240V 50/60Hz, Output: DC12V/3A

(US/EU standards, CE/FCC/UL certified)

Power Consumption 26.5W (max)

Operating

Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage

Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)





Package Contents
① 1x 8x8 HDMI Matrix
② 1x 12V/3A Locking Power Adaptor
③ 1x IR Remote
④ 1x Wideband IR Receiver cable
⑤ 1x User Manual


Warranty: 2 years
