Overview

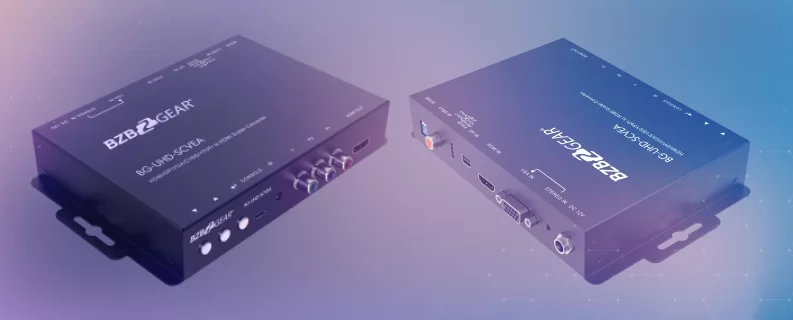

The BG-UHD-SCVEA is a multi-format 4K UHD scaler converter. This unit is designed to scale and convert multiple analog and digital formats (HDMI/DP/VGA/CVBS/YPbPr) to support HDMI devices. This HDMI 1.4/DP1.1 compliant device supports output resolutions up 4K2K@30 4:4:4 with video bandwidth speeds up 10.2Gbps.
Embed analog audio to the HDMI output via the 3.5mm stereo input. Operate and adjust advanced settings including resolution outputs via the front panel push buttons, IR remote, or the provided control software.
With its versatile array of inputs, the BG-UHD-SCVEA is the perfect solution for users looking to convert legacy media formats for use in a modern A/V system.
TAA COMPLIANT PRODUCT.
This product meets the standards of the Trade Agreement Act (TAA).
You can find all BZBGEAR TAA Compliant Products on this page.
Features
-
![bi_badge-4k]()
4K SupportCrystal clear images with resolutions up to 4K2K@30Hz 4:4:4 -
![fluent_zoom-fit-24-filled]()
Multiple Control OptionsUse the front panel push buttons, IR remote, or control software -
![iconoir_pc-check]()
Easy to UseSimple for anyone to learn -
![COMPACT DESIGN]()
PortableIdeal for any on-the-go kit -
![material-symbols_safety-check]()
Rigid DesignDurable metal structure built to withstand years of operation -
![mdi_audio-input-stereo-minijack-1 | IR INPUT]()
Audio EmbeddingEmbed audio using the 3.5mm stereo input
- Supports Input HDMI1.4 /DP1.1/ VGA/CVBS/YPbPr
- Input maximum pixel rate: 165MHz
- Supports multiple VESA resolutions
- De-interlacing supported
- Supports video enhancement features
- Over / under scanning adjustable
- Video H/V mirror supported
- USB firmware upgradable for expanding compatibility
- Wall-mount housing design for easy installation
Videos
Modernize and Scale Any A/V Setup Regardless of Legacy Inputs | BG-UHD-SCVEA
Analog to Digital Video Converter and Upscaler - BZBGEAR BG-UHD-SCVEA
Tech Specifications
| Technical | |||||||
| Role of usage | HDMI/DP/VGA/CVBS/YPbPr to HDMI Converter | ||||||
| HDMI standards | HDMI1.4 | ||||||
| Input Video Maximum Pixel Rate | 165MHz | ||||||
| Output Video bandwidth | 10.2Gbps | ||||||
| Output Video support | up to 4K2K@30 4:4:4 | ||||||
| Audio support | PCM 2 (32KHz - 192KHz Fs sample rate) | ||||||
| ESD protection | [1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge) [2] Core chipset ±2kV |
||||||
| PCB stack-up | 4-layer board [impedance control -differential 100Ω; single 50Ω) | ||||||
| Firmware update | Feasible via USB Port | ||||||
| CEC Channel | N/A | ||||||
| Input | 1x HDMI + 1x VGA + 1x DP+1x RCA + 1x YPbPr + 1x stereo (for VGA) | ||||||
| Output | 1x HDMI | ||||||
| HDMI connector | Type A [19-pin female) | ||||||
| USB connector | Micro USB | ||||||
| Housing | Metal enclosure | ||||||
| Dimensions (L x D x H) | Model | 5.6" x 4.4" x 1" [144 x 113 x 30mm] | |||||
| Package | 10.3" x 6.7" x 3" [264 x 170 x 77mm] | ||||||
| Weight | Model | 9.3 oz [264g] | |||||
| Package | 1.6 lbs [724g] | ||||||
| Fixedness | Wall-mounting case with screws | ||||||
| Power supply | 12V 2A DC | ||||||
| Power consumption | 6 Watts (max) | ||||||
| Operation temperature | 32~104°F / 0~40°C | ||||||
| Storage temperature | -4~140°F / -20~60°C | ||||||
| Relative humidity | 20-90% RH (no condensation) | ||||||
| BG-UHD-SCVEA Supported Resolutions | |
| Supported Input Resolution | Supported Output Resolutions |
| 480p60Hz | 640x480p60/72/75 |
| 480i60Hz | 800x600/60/72/75 |
| 640x480p60/75Hz | 1024x768p60/70/75 |
| 720x576p50Hz | 1152p864p75 |
| 720x576i50Hz | 1280x768p60/75 |
| 800x600p60/75Hz | 1280x1024p60/75 |
| 1024x768p60/75Hz | 1360x768p60 |
| 1280x720p29.97/30/50/59.94/60Hz | 1366x768p60 |
| 1280x1024p60/75Hz | 1440x900p60 |
| 1360x768p60 | 1600x1200p60 |
| 1366x768p60 | 1680x1050 RB |
| 1440x900p60/75Hz | SD (480p) 60 |
| 1600x1200p60Hz | SD (576p) 50 |
| 1680x1050p60Hz | SD (480i) 60 |
| 1920x1080p23.97/24/25/29.97/30/50/59.94/60Hz | SD (576i) 50 |
| 1920X1080i50/59.94/60Hz | HD (720p) 60/59/50 |
| 1920x1200p60Hz | HD (1080i) 60/59/50 |
| 3840x2160p23/30/50/59/60 | HD (1080p) 60/59/50/30/29/25/24/23 |
| 3840x2160p30/29/25/24/23 | |
| 4096x2160p30/29/25 | |
Resources
Software
PACKAGE CONTENTS
- 1x BG-UHD-SCVEA
- 1x 12V/2A power supply unit
- 1x IR Remote control
- 1x User Manual
- 1x Installation software CD
Interfaces

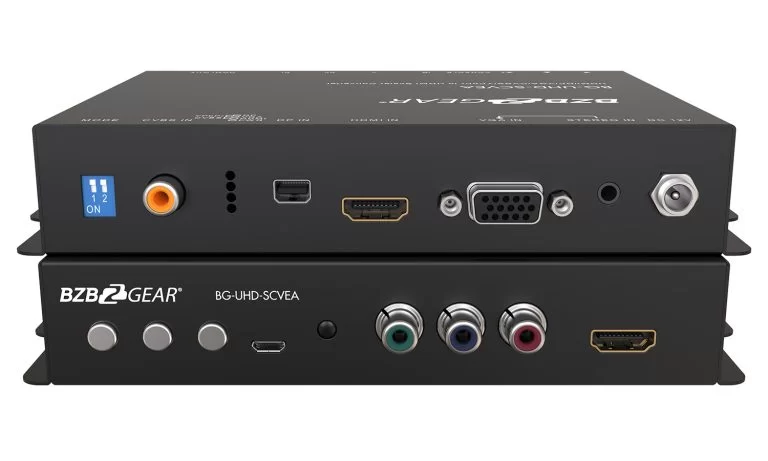

- PUSH BUTTON: [LEFT]: Down Button.
[MID]: Up Bottom.
[RIGHT]: Menu/Enter Button. - Micro USB: Micro-USB port for control port.
- IR SENSOR: IR sensor for receiving the IR commands from IR remote.
- COMPONENT: Y INPUT.
- COMPONENT: Pb INPUT.
- COMPONENT: Pr INPUT.
- HDMI OUTPUT: Connect to a HDMI display.
- DIP SWITCH: For firmware updates.
- CVBS INPUT: Connect to a RCA source.
- LED INDICATOR: Indicates power and selected input (see manual).
- DP INPUT: Connect to a DP source.
- HDMI INPUT: Connect to a HDMI source.
- VGA INPUT: Connect to a VGA source.
- STEREO AUDIO INPUT (VGA): Connect to analog stereo audio source.
- +12V DC: Interlocking power jack for 12V DC power supply unit.
