BG-UHD-QVP-4X2
4K/UHD 4X2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card

4K/UHD 4X2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card

SKU: BG-UHD-QVP-4X2

The BG-UHD-QVP-4X2 is a 4K Quad-View/Multi-Viewer Video Processor suitable for digital signage, presentation spaces, conference rooms, and live or recorded broadcasting. The integrated USB 3.0 capture and auto-scaling outputs at resolutions up to 1080p with 2 channel for use with online conferencing apps like Skype, Zoom, vMix, or OBS Studio. The unit is capable of routing ultra-high definition video sources from four UHD HDMI input sources to the two HDMI display outputs and one HDMI loop output simultaneously while delivering resolutions up to [email protected] 4:4:4 using HDMI 2.0a technology. It can also extract audio via the 3.5mm output.

Control options include the front panel, a built-in web interface, and third-party control via RS-232 and IR. Simply select a customizable layout, choose your inputs and route them to the desired display windows. Packed with options including PIP, PBP, fade-in/out, blend, zoom, and more the BG-UHD-QVP-4X2 gives you studio-quality results with every presentation.





4K/60 4:4:4 Support
Supports input resolutions up to 4096x2160 @ 60Hz (4:4:4).
Seamless Switching
Instantaneously switch between sources with no signal interruption.
Control
RS-232, IR, Web interface.
USB Capture
Convert HDMI sources and output via USB at resolutions up to 1080P.
HDMI Loop Out
Monitor UVC output.
Analog Output
Send signal to an external audio system.


  • 4x HDMI inputs and 2x HDMI outputs
  • Input resolutions support from 640x480 to [email protected] (4:4:4 8bits), interlaced or progressive
  • Output resolutions support up to [email protected] (4:4:4 8bits)
  • Adjustable size & position through software and Cloud
  • Supports PIP, PBP, POP, full screen & quad-view display
  • HDCP 1.4/2.2 compliant
  • Firmware upgradable to support of new features and technology enhancements
  • Titles, borders and colored backgrounds
  • Supports Background picture & logo update
  • Resize, position, zoom & pan and blend output video
  • Supports seamless, fade-in-&-out, wipe and dissolve switching on full screen mode
  • Perfect as a video converter and a live video switcher
  • Pure unaltered uncompressed 7.1ch digital HDMI
  • Software control through RS-232 and Ethernet
  • Supports IR remote and front panel control
  • Supports Cloud Control
  • Supports USB 3.0 FHD Video Capture

Technical Specs
Role of usage Multiplexer / video processor
Background picture update Yes
HDMI compliance HDMI 2.0a
HDCP compliance 1.4 / 2.2
Video bandwidth HDMI [600MHz [18Gbps]
Output Video Support Up to [email protected] (4:4:4 8bits)
Video support Up to 1080p60
Input Video Support Up to [email protected] (4:4:4 8bits)
Video Format Support HDMI 2.0
Audio support Bypass
Embedded video mixer Yes
Input TMDS signal 1.2 Volts [peak to peak]
Recording Mode Software Compression
Recording Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input 4x HDMI + 1xRS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)
Output 2x HDMI + 1x USB + 2x RCA + 1x 3.5mm
HDMI connector Type A [19-pin female]
USB connector USB 3.0 Type A (SuperSpeed USB)
RS-232 connector DE-9 [9-pin D-sub female]
RJ-45 connector WE/SS 8P8C
Software compatibility (not complete list) (Video Capture Function) OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support (Video Capture Function) Windows 7 /8.1 /10, Mac and Linux OS
Mechanical
Housing Metal enclosure
Dimensions (L x W x H) Model 390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
Package 526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton 543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
Weight Model 2.2 kg [5 lbs]
Package 3.5 kg [7.8 lbs]
Power supply 12V 5A DC
Power Consumption 22 Watts [max]
Power Consumption 12 Watt [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]





① 1xBG-UHD-QVP-4X2
② 1xRack-mounting ear set
③ 1xIR receiver
④ 1xInstallation software CD
⑤ 1xDC 5V 4A
⑥ 1xUser Manual
⑦ 1xIR Remote control
*Additional IR remote controllers and IR blasters can be purchased as optional accessories to control* the HDMI sources located separately.

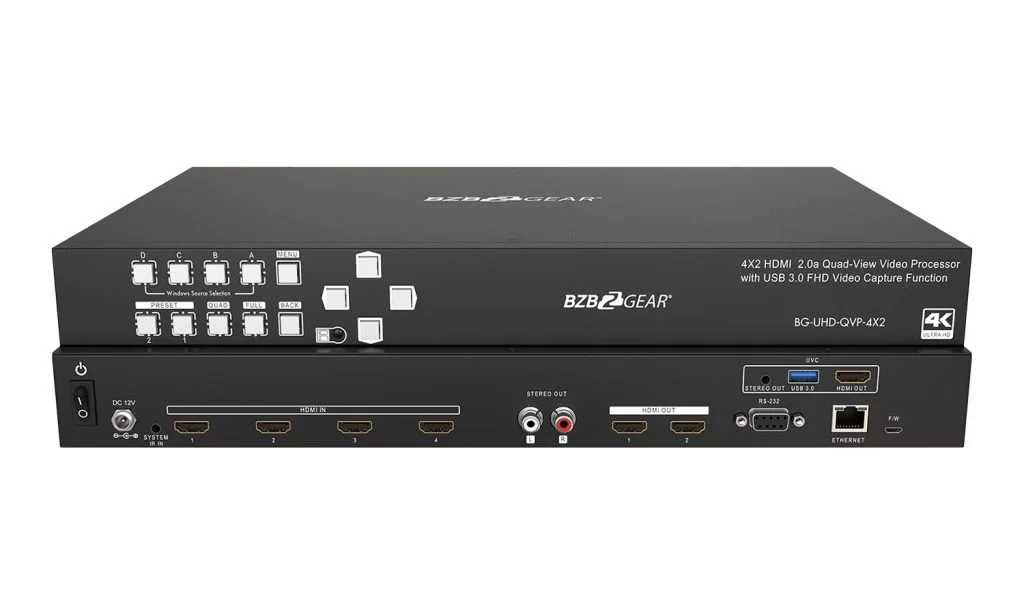

3D Pictures of the Product

Ideal fit for:
- Conference Rooms
- Studios
- Meeting Halls


Who is buying it?
- Broadcasters and Streamers
- Houses of worship
- Schools

Interface


HDMI

Crystal clear image with resolutions up to up to [email protected]

LAN

Power over Ethernet, IP Control, and streaming interface.

USB

USB 3.0 plug & play connectivity.

Audio Out

Stereo audio output for connecting mics and embedding local audio.

Power

Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.

RS-232 Control

If you are looking for simple solution to control of a wider variety of cameras, the RS-232 is for you.

Warranty: 2 years

Buy this 4K/UHD 4X2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card


MSRP $2,499.00*

*Pricing is for US only. International pricing will vary.

MSRP $2499.00

Description

The BG-UHD-QVP-4X2 is a 4K Quad-View/Multi-Viewer Video Processor suitable for digital signage, presentation spaces, conference rooms, and live or recorded broadcasting. The integrated USB 3.0 capture and auto-scaling outputs at resolutions up to 1080p with 2 channel for use with online conferencing apps like Skype, Zoom, vMix, or OBS Studio. The unit is capable of routing ultra-high definition video sources from four UHD HDMI input sources to the two HDMI display outputs and one HDMI loop output simultaneously while delivering resolutions up to [email protected] 4:4:4 using HDMI 2.0a technology. It can also extract audio via the 3.5mm output.

Control options include the front panel, a built-in web interface, and third-party control via RS-232 and IR. Simply select a customizable layout, choose your inputs and route them to the desired display windows. Packed with options including PIP, PBP, fade-in/out, blend, zoom, and more the BG-UHD-QVP-4X2 gives you studio-quality results with every presentation.

Additional information

Weight8 lbs
Dimensions20.5 × 10.5 × 3 in

Specifications

Technical
Role of usageMultiplexer / video processor
Background picture updateYes
HDMI complianceHDMI 2.0a
HDCP compliance1.4 / 2.2
Video bandwidthHDMI [600MHz [18Gbps]
Output Video SupportUp to [email protected] (4:4:4 8bits)
Video supportUp to 1080p60
Input Video SupportUp to [email protected] (4:4:4 8bits)
Video Format SupportHDMI 2.0
Audio supportBypass
Embedded video mixerYes
Input TMDS signal1.2 Volts [peak to peak]
Recording ModeSoftware Compression
Recording Video FormatYUY2 (USB3.0), MJPG (USB2.0/3.0)
ESD protectionHuman body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input4x HDMI + 1xRS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)
Output2x HDMI + 1x USB + 2x RCA + 1x 3.5mm
HDMI connectorType A [19-pin female]
USB connectorUSB 3.0 Type A (SuperSpeed USB)
RS-232 connectorDE-9 [9-pin D-sub female]
RJ-45 connectorWE/SS 8P8C
Software compatibility
(not complete list)(Video Capture Function)
OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support (Video Capture Function)Windows 7 /8.1 /10, Mac and Linux OS



Mechanical
HousingMetal enclosure
Dimensions
(L x W x H)
Model390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
Package526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
WeightModel2.2 kg [5 lbs]
Package3.5 kg [7.8 lbs]
Power supply12V 5A DC
Power Consumption22 Watts [max]
Power Consumption12 Watt [max]
Operation temperature0~40°C [32~104°F]
Storage temperature-20~60°C [-4~140°F]
Relative humidity20~90% RH [no condensation]

Applications





Resources

Download Manual - Click Icon Below


Download Manual

Panel Drawing

Diagram

Package Contents

① 1x BG-UHD-QVP-4X2
② 1x Rack-mounting ear set
③ 1x IR receiver
④ 1x Installation software CD
1x DC 5V 4A
1x User Manual
1x IR Remote control*Additional IR remote controllers and IR blasters can be purchased as optional accessories to control* the HDMI sources located separately.
