BG-UHD-42MG2
4X2 HDMI 2.0 Matrix Switch supporting 4K/HDR at 18Gbps with Audio De-Embedding
4X2 HDMI 2.0 Matrix Switch supporting 4K/HDR at 18Gbps with Audio De-Embedding
4X2 HDMI 2.0 Matrix Switch supporting 4K/HDR at 18Gbps with Audio De-Embedding
SKU: BG-UHD-42MG2
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.

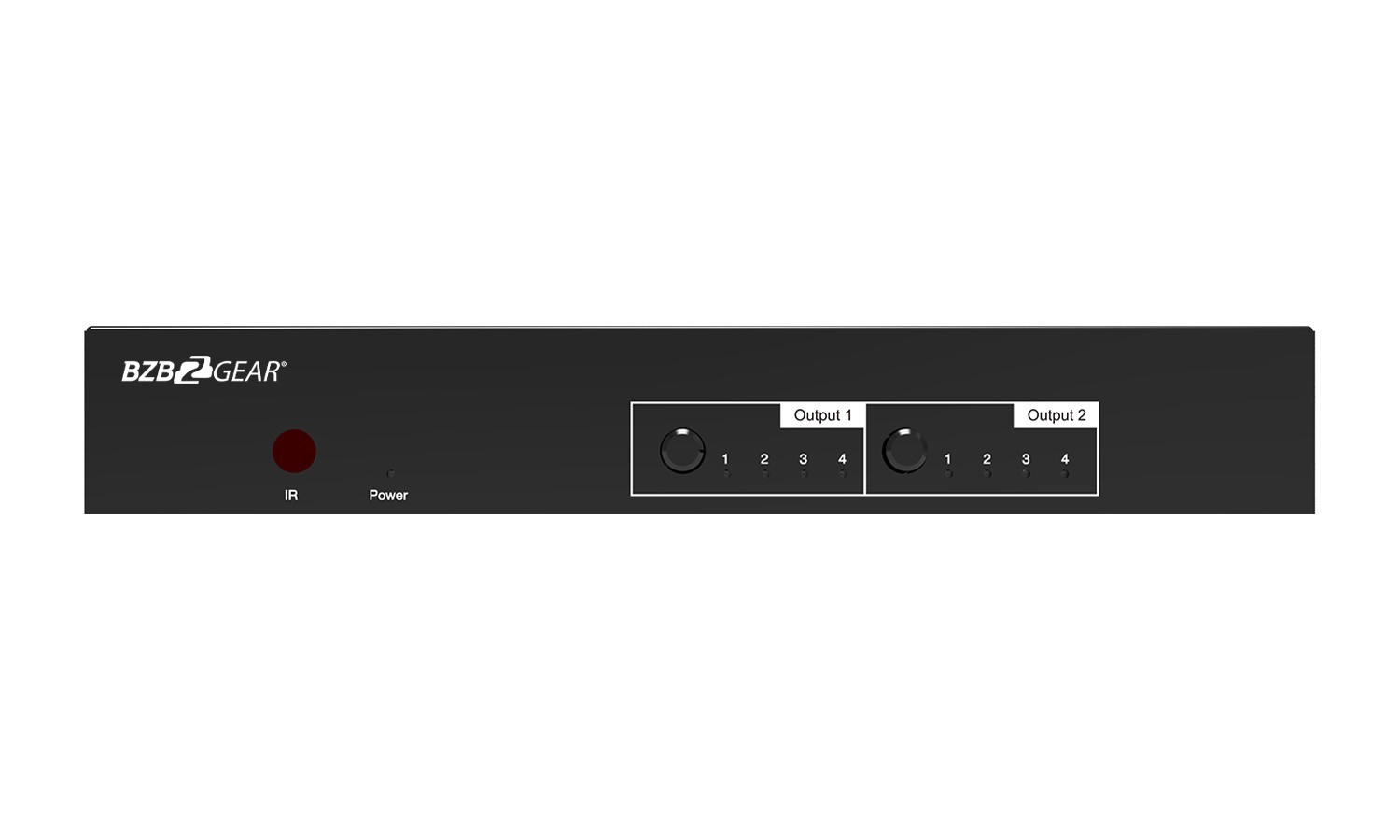

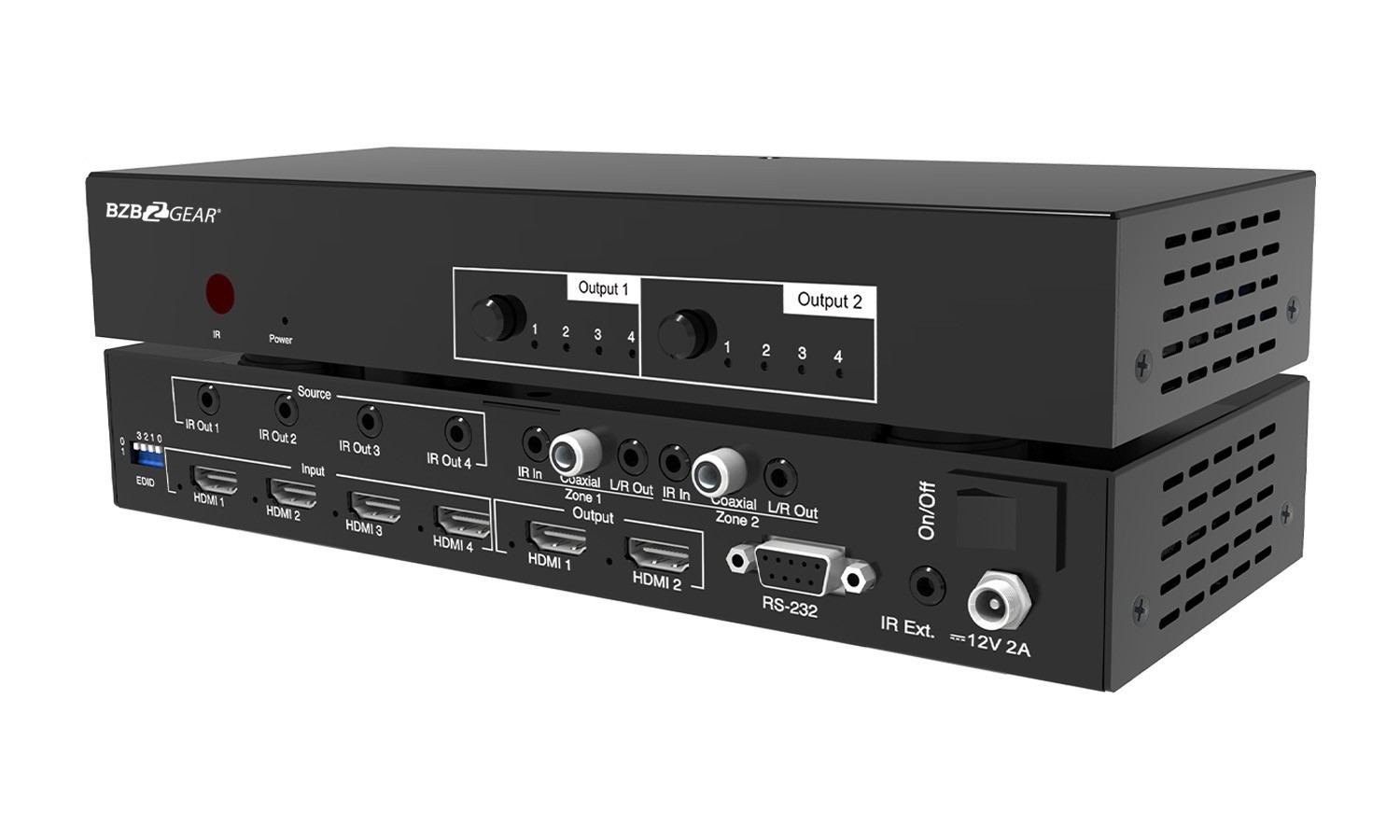

Streaming at 18Gbps the BG-UHD-42MG2 is a HDMI 2.0 Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to either of the two connected HDMI displays. This switch supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions ([email protected] YUV 4:4:4), HDR (High Dynamic Range), Deep Color, and High Definition audio. With audio extractor at each output that can extract the audio from the HDMI output via RCA (S/PDIF) and L/R (PCM). Each source can be routed to any display using the manual selection buttons, IR remote control, and RS-232 interface.
Features:
- Independent switching and control of up to four 4K HDR HDMI sources to up to two individual 4K HDR HDMI display devices.
- Allows any source to be displayed on multiple displays at the same time
- Supports 4K UHD video including HDR (up to [email protected] 4:4:4 at 18Gbps)
- Supports Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Extract audio from HDMI output via RCA (S/PDIF) and L/R (PCM) concurrently.
- Multiple switching mode, push-in button, IR remote control, and RS-232 control
- Supports IR Matrix function to control the sinks or sources.
- Advanced EDID management
- HDCP 2.2 compliant
MSRP $399.00*
*Pricing is for US only. International pricing will vary.Specifications
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
| Bandwidth | 6 Gbps per color |

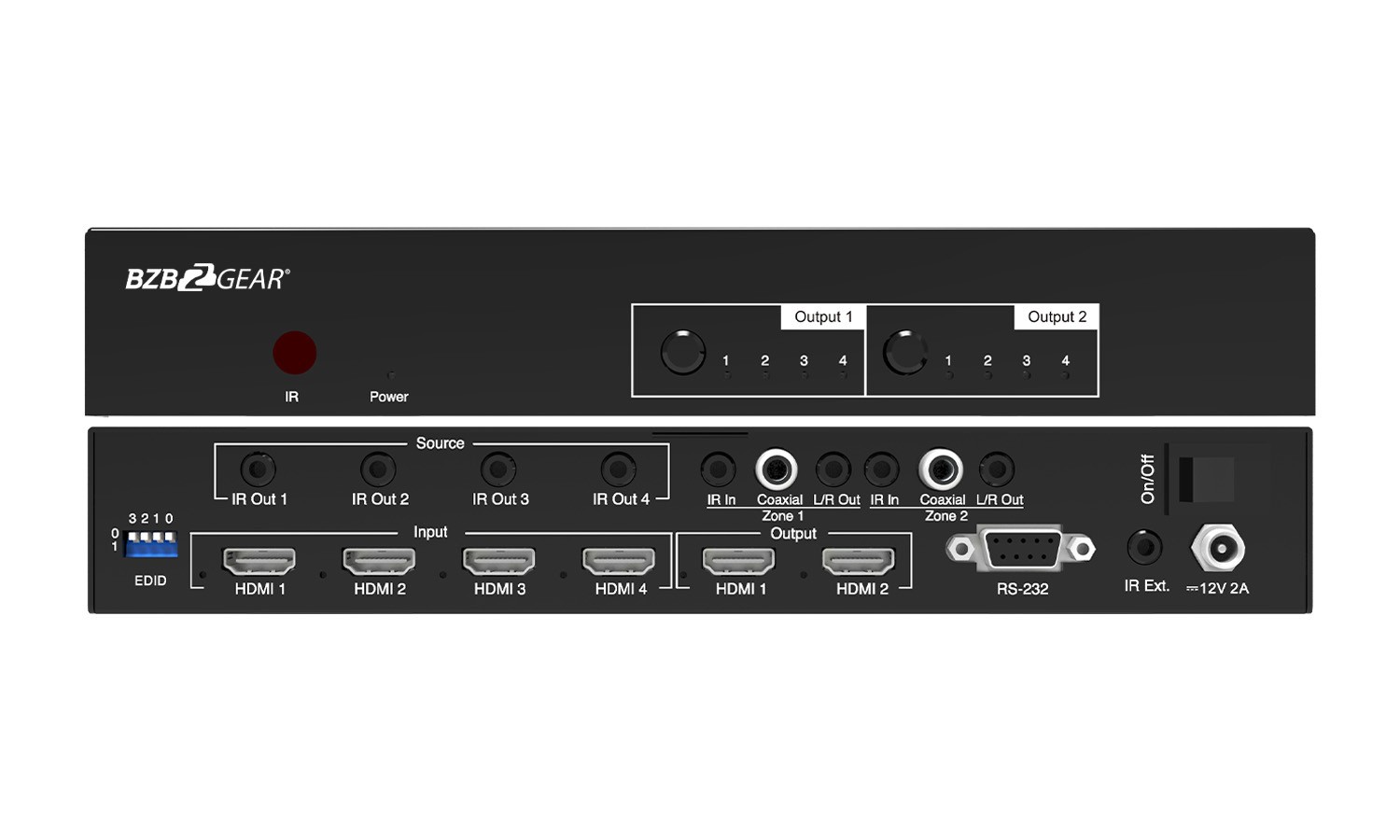

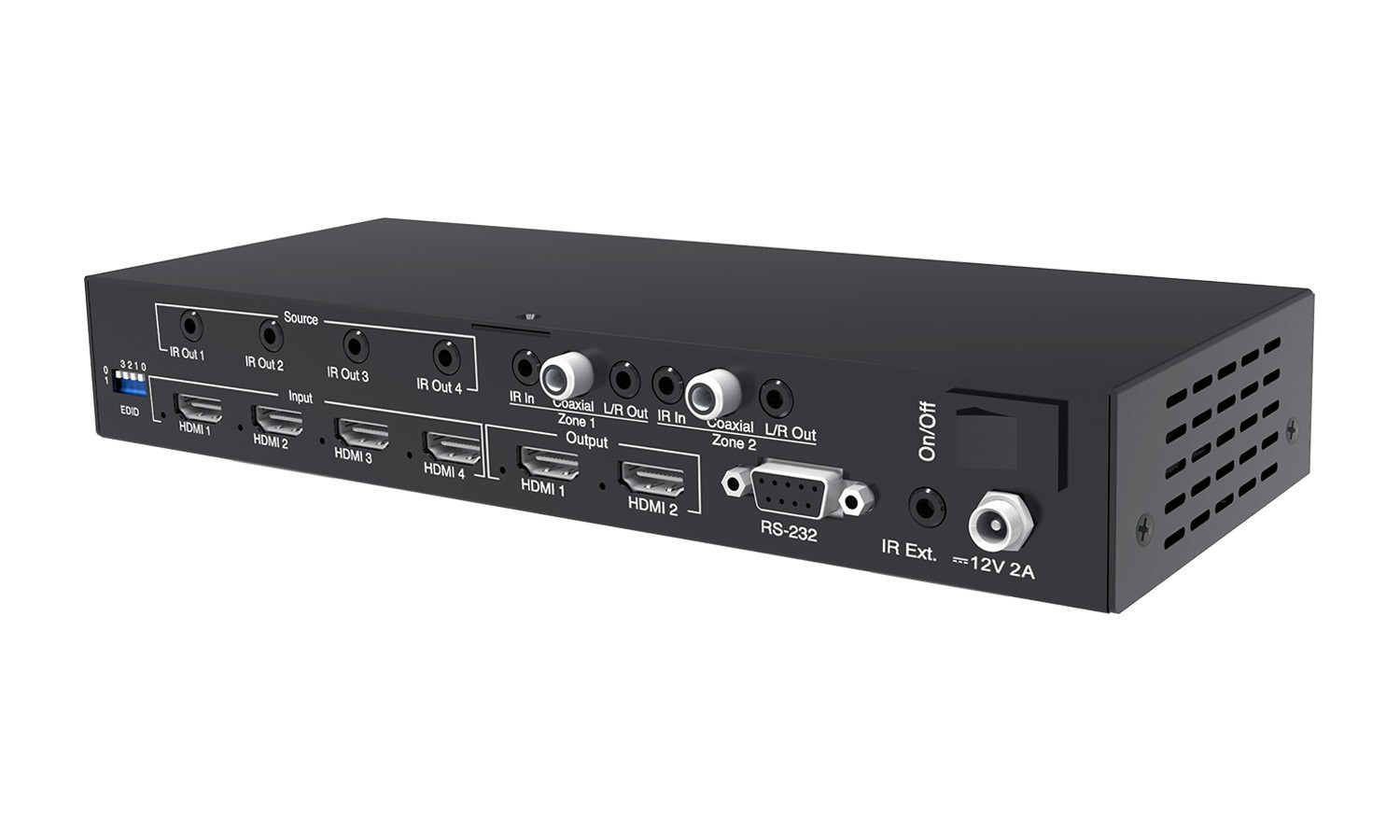

| Video Input Connectors | 4x HDMI Type A, 19-pin, female |
| Video Output Connectors | 2x HDMI Type A, 19-pin, female |
| Audio Output Connectors | 2x RCA(SPDIF), 2 xL/R |
| RS232 Serial port | 1x DB9, female |
| IR input ports | 3x3.5mm stereo jack |
| IR output ports | 4x3.5mm monojack |
| Rack-Mountable | rack ears included |
| Dimensions(L x W x D) | 255mm x 105mm x 40mm, w/o feet |
| Shipping Weight | 1.5KG |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 12V2A DC |
Resources

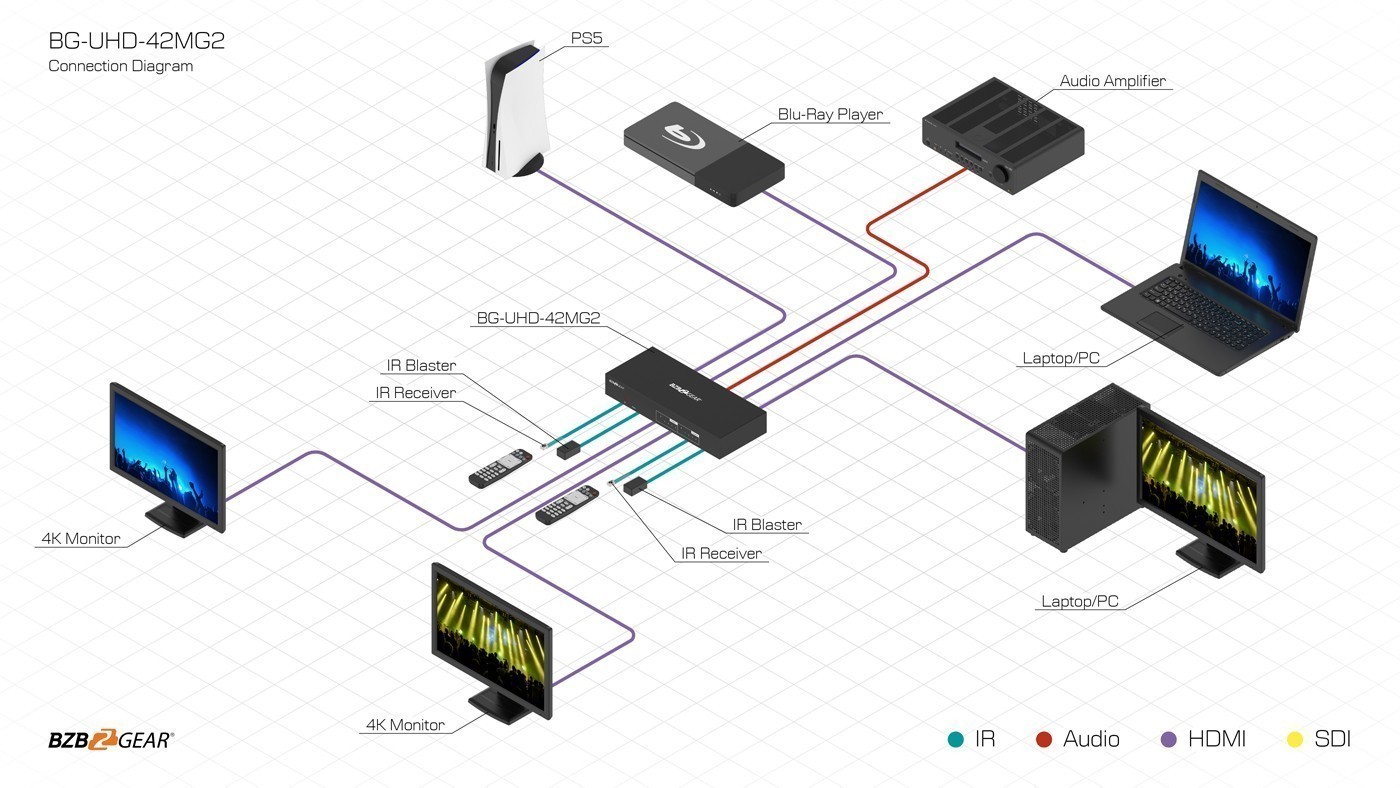

Diagram
Warranty: 2 years
