Overview

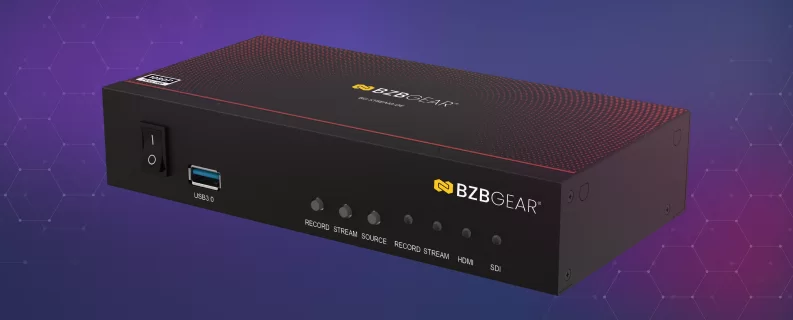

The BG-STREAM-DE is a versatile and powerful video and audio streaming decoding/encoding solution designed for both professional and personal use. This all-in-one device supports 1x HDMI 2.0 or 1x SDI input and loop-through, with an additional HDMI 2.0 output for seamless video integration. It also features a 3.5mm analog audio input for audio embedding and a 3.5mm analog audio output for audio de-embedding, making it a comprehensive tool for high-quality media production and streaming.
Features In-Depth

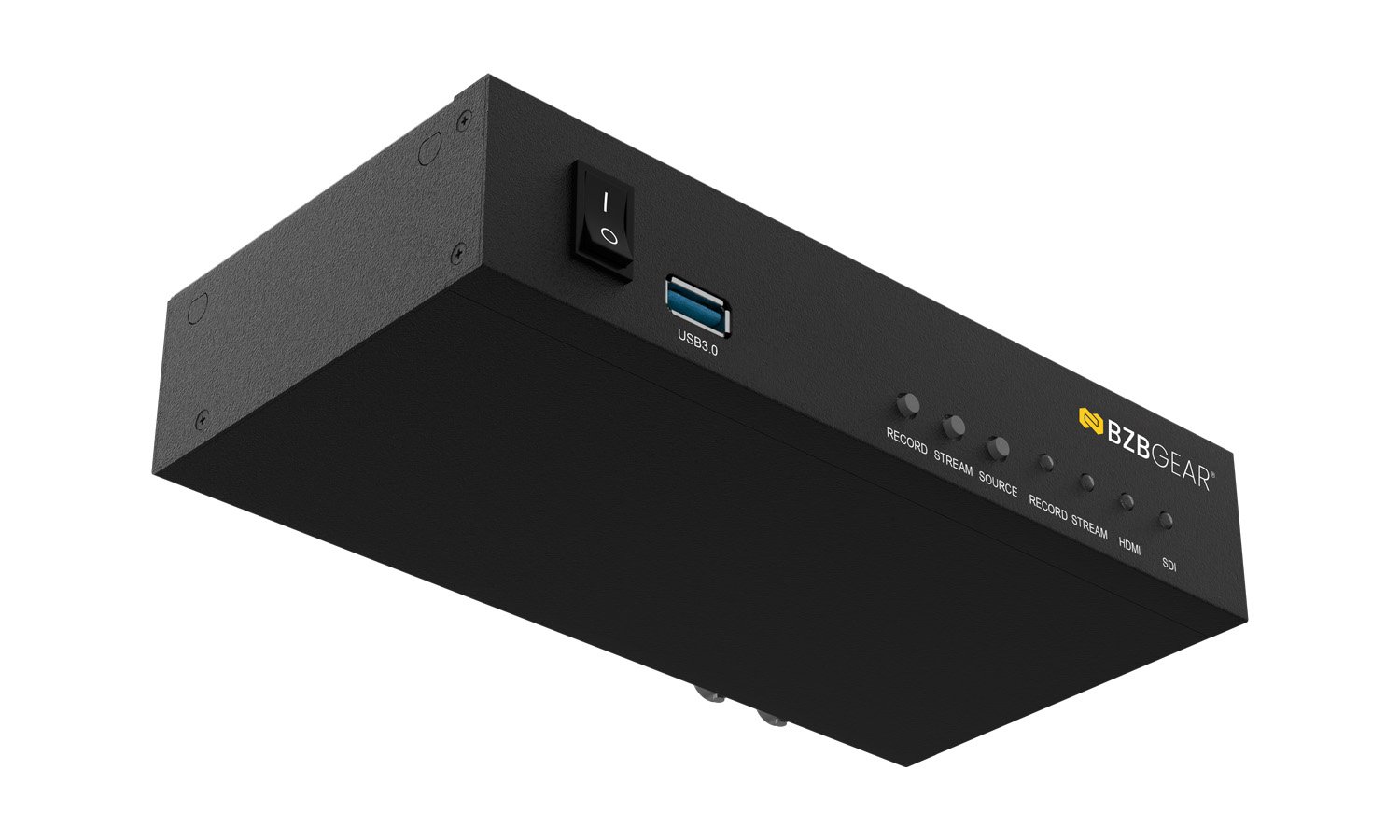

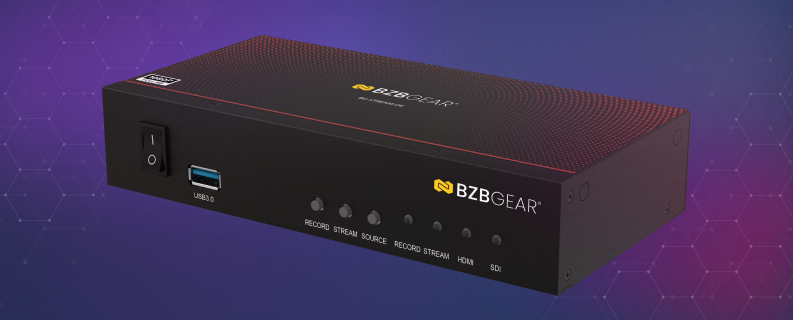

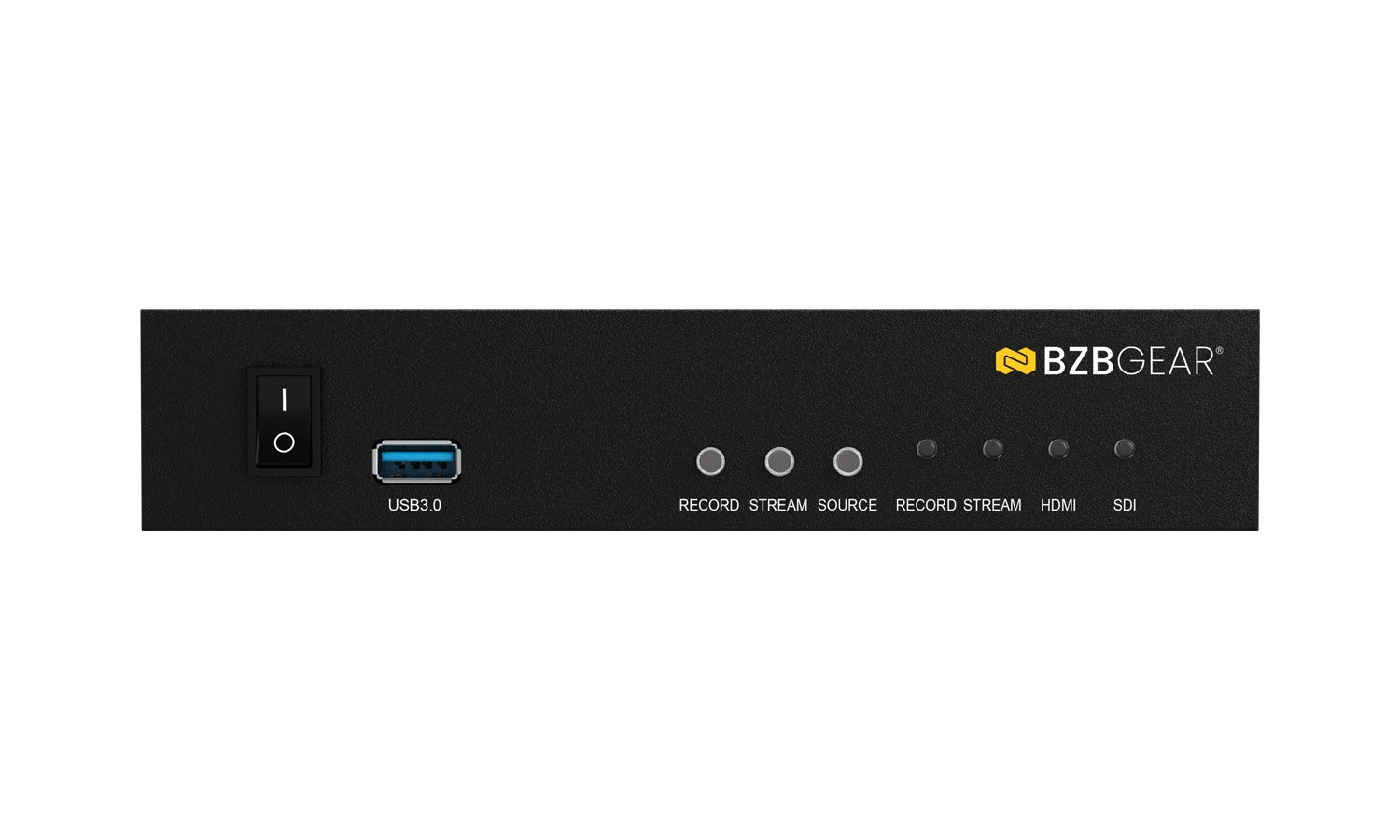

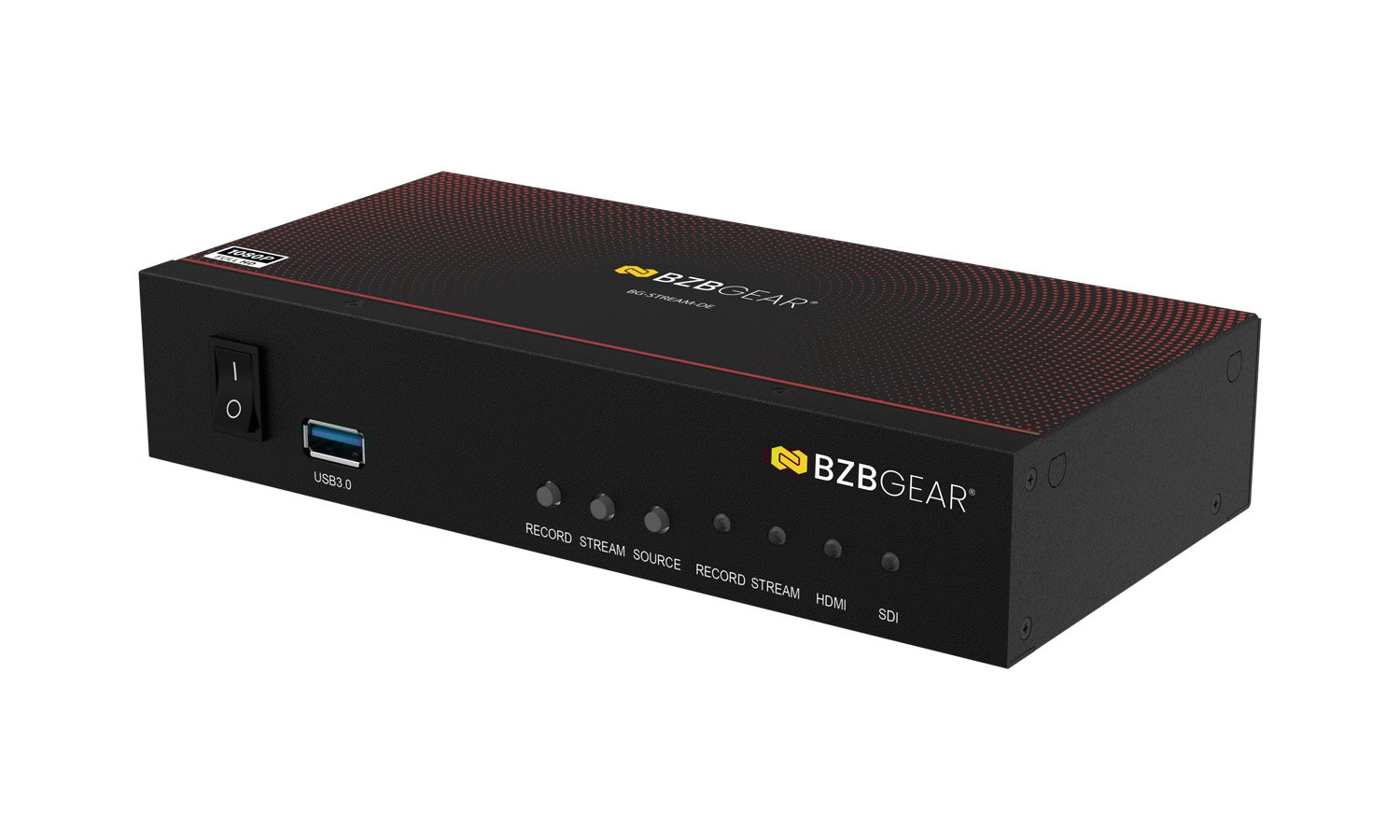

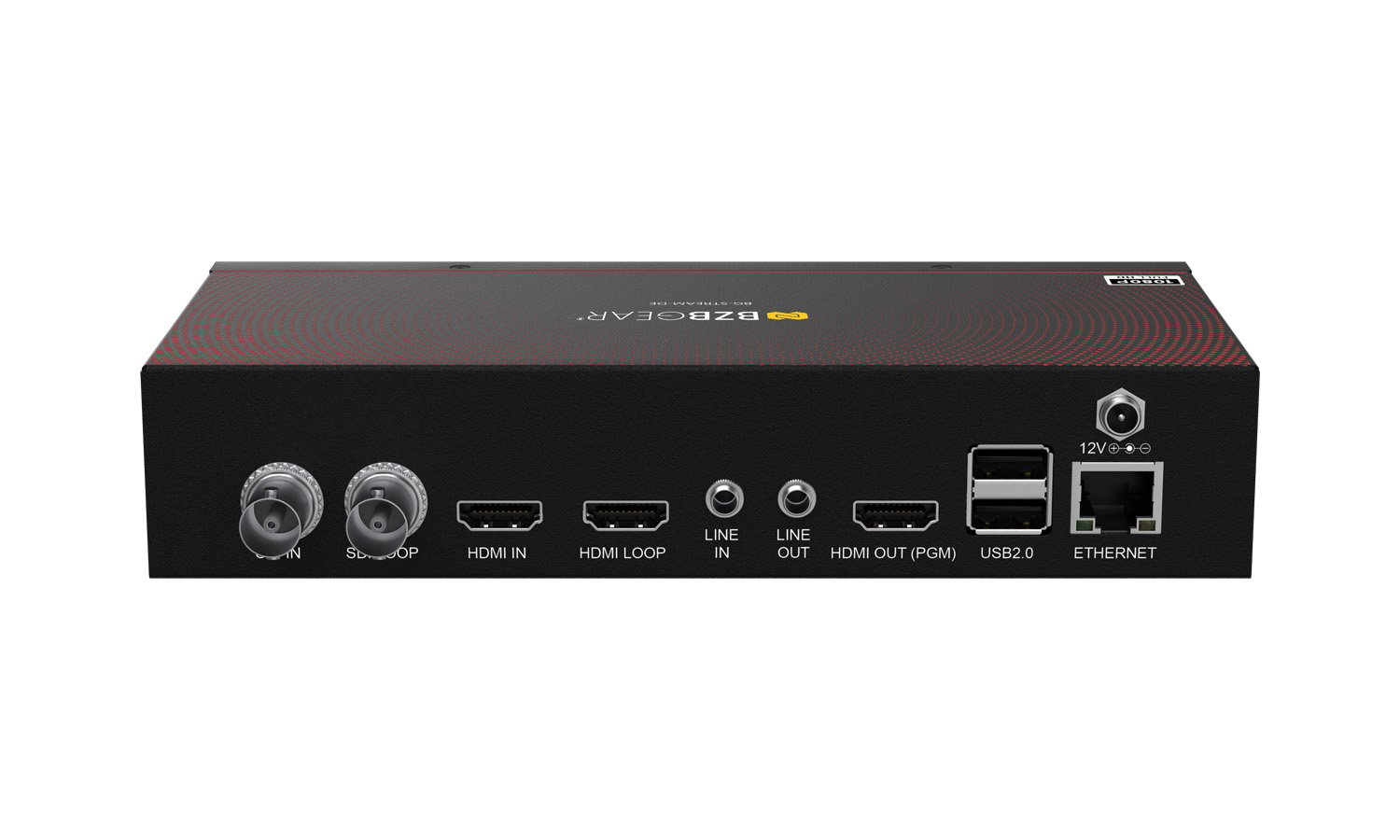

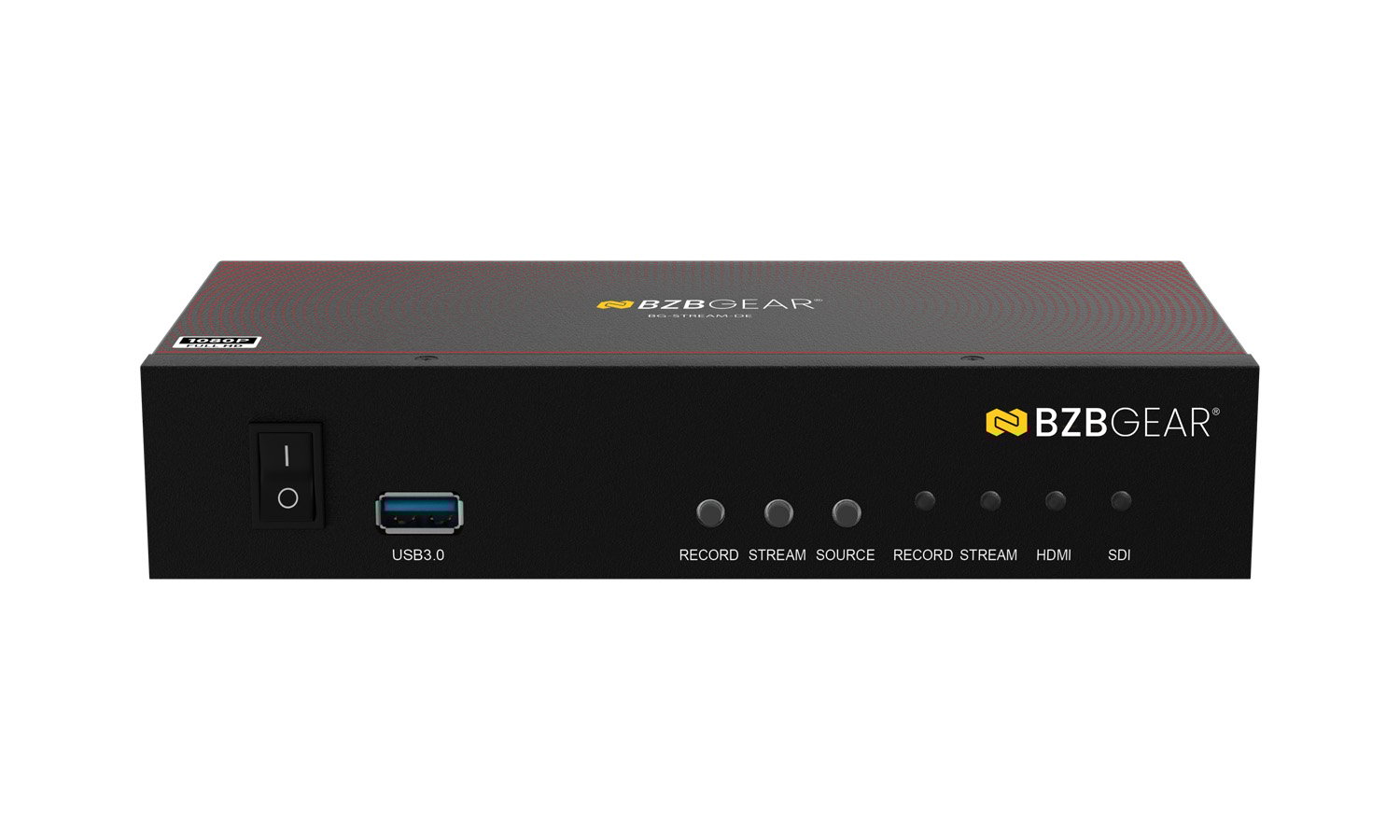

The BG-STREAM-DE offers a user-friendly experience with intuitive front panel controls, including Record, Stream, and Source select buttons. The USB 3.0 interface allows for high-speed recording of various input formats, ensuring flexibility and ease of use. The rear panel is equipped with an RJ45 port for robust internet connectivity and two USB 2.0 ports for connecting peripherals like a keyboard and mouse, facilitating local user interface control.
Supporting a maximum resolution of 1920x1080p at 60/50fps, the BG-STREAM-DE includes advanced video features such as H.265/H.264/AVC encoding and a range of output resolutions to meet different display and recording needs. Audio capabilities include AAC input streams for high-quality sound. With an RJ45 port supporting 10/100/1000Mbps Ethernet and multiple streaming protocols like NDI, Dante AV-H, RTSP, RTMP, and HLS, this device offers extensive streaming flexibility. Users can record in MP4, TS, and MOV formats and utilize various streaming formats, including RTSP, NDI-HX, HLS, RTMP, SRT, TS, and Dante AV.
Control options include using a USB keyboard and mouse or accessing a comprehensive web UI for system configuration. The device also features firmware upgradability and LED indicators for easy monitoring, ensuring seamless operation and versatility in various streaming environments.
Features
-
![Multiple Connection Options]()
Versatile ConnectionsHDMI 2.0 & SDI inputs; HDMI 2.0 (PGM), HDMI & SDI (Loop-through) outputs -
![mdi_audio-input-stereo-minijack]()
Comprehensive Audio3.5mm analog input & output -
![solar_play-stream-bold]()
Recording & Streaming1080p60 (MP4, TS, MOV); supports NDI, Dante AV-H, RTSP, RTMP, HLS, SRT, TS -
![mdi_check-network-outline]()
Simple Network ConfigurationDHCP Client support -
![Control Options]()
Control OptionsConvenient control via USB keyboard/mouse and web UI -
![LED Indicator light]()
Intuitive LED IndicatorsEffortless Status Monitoring at a Glance
- Hardware compression in real-time mode
- Firmware upgradeable
- LED indicators for status monitoring
- Enhanced Functionality: USB 3.0 for storage
Videos
Tech Specifications
| Technical Specifications | |
| Max FPS | 1920x1080p@60/50fps |
| Recording Modes | Hardware Compression, Real-Time Mode |
| Input Interfaces |
Video: |
| Output Interfaces |
Video: |
| Video Support | H.265/H.264/AVC, Baseline/Main/High Profile Support input / output resolutions: 3840x2160p@60/50fps (Output only) 3840x2160p@30/25/24fps (Output only) 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
| Audio Support | Input Audio Stream: AAC |
| Network Features | 1x RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Streaming Protocols | NDI Support ( Separate License with NDI Required ) Dante AV-H ( Separate License with Dante AV-H Required ) TS Over UDP ( Unicast & Multicast ) RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream ) RTMP ( Publish ) HLS |
| Recording Formats | MP4 / TS / MOV |
| Additional Features | Web UI for System Configuration Firmware Upgradable LED Indicator 1x USB 3.0 Host for USB Storage 2x USB 2.0 (For Keyboard and mouse usage) |
Resources
PACKAGE CONTENTS
- 1x BG-STREAM-DE
- 1x 12V DC Adapter
- 1x User Manual

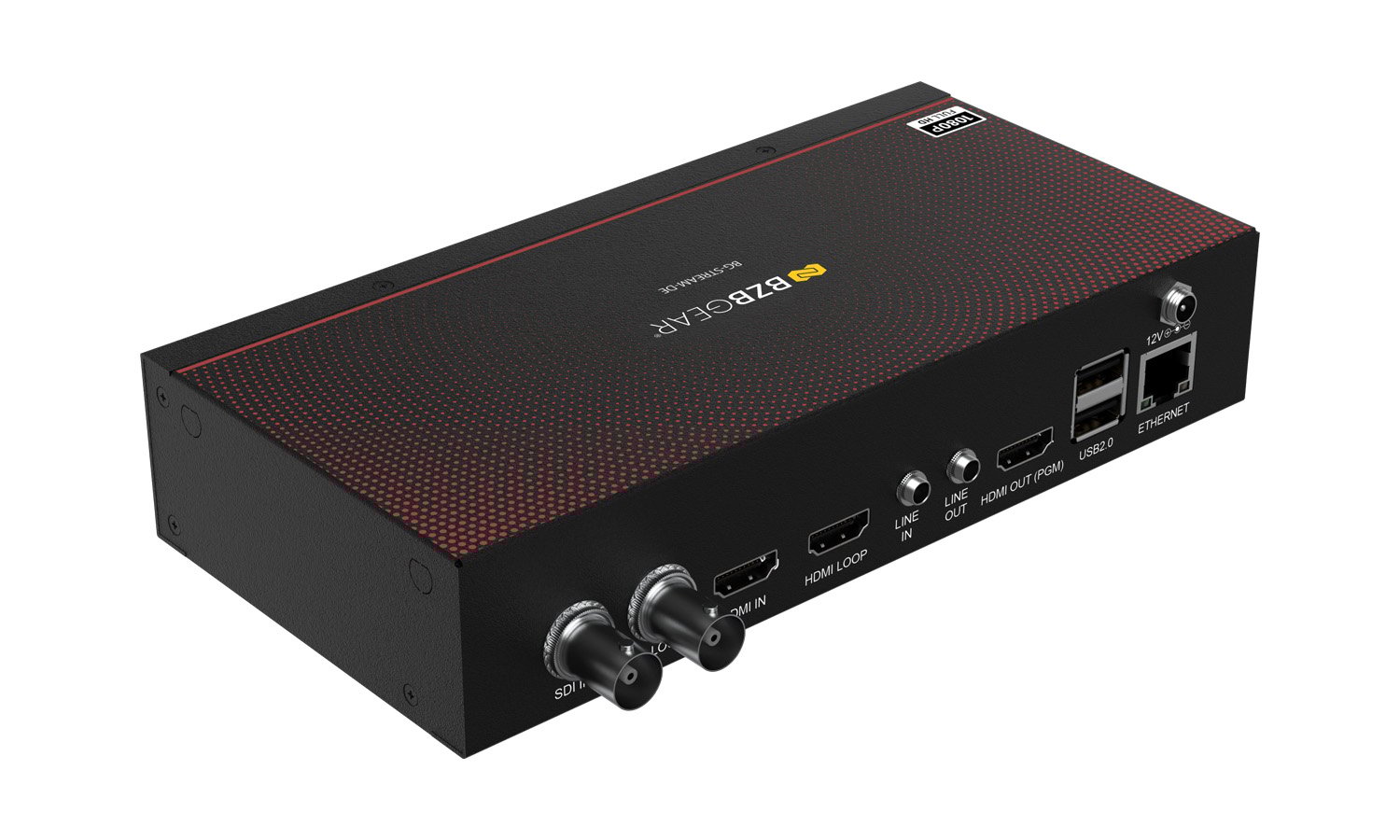

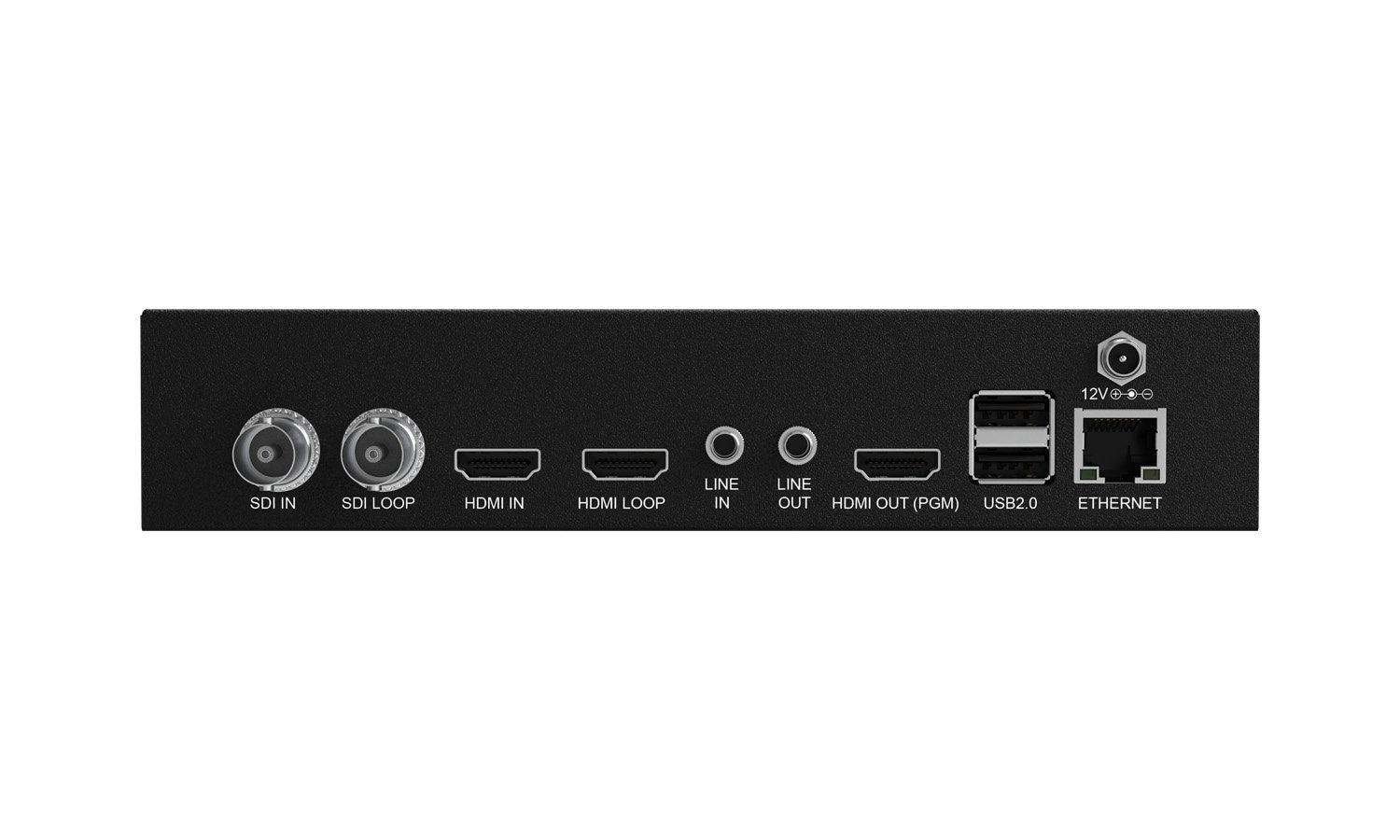

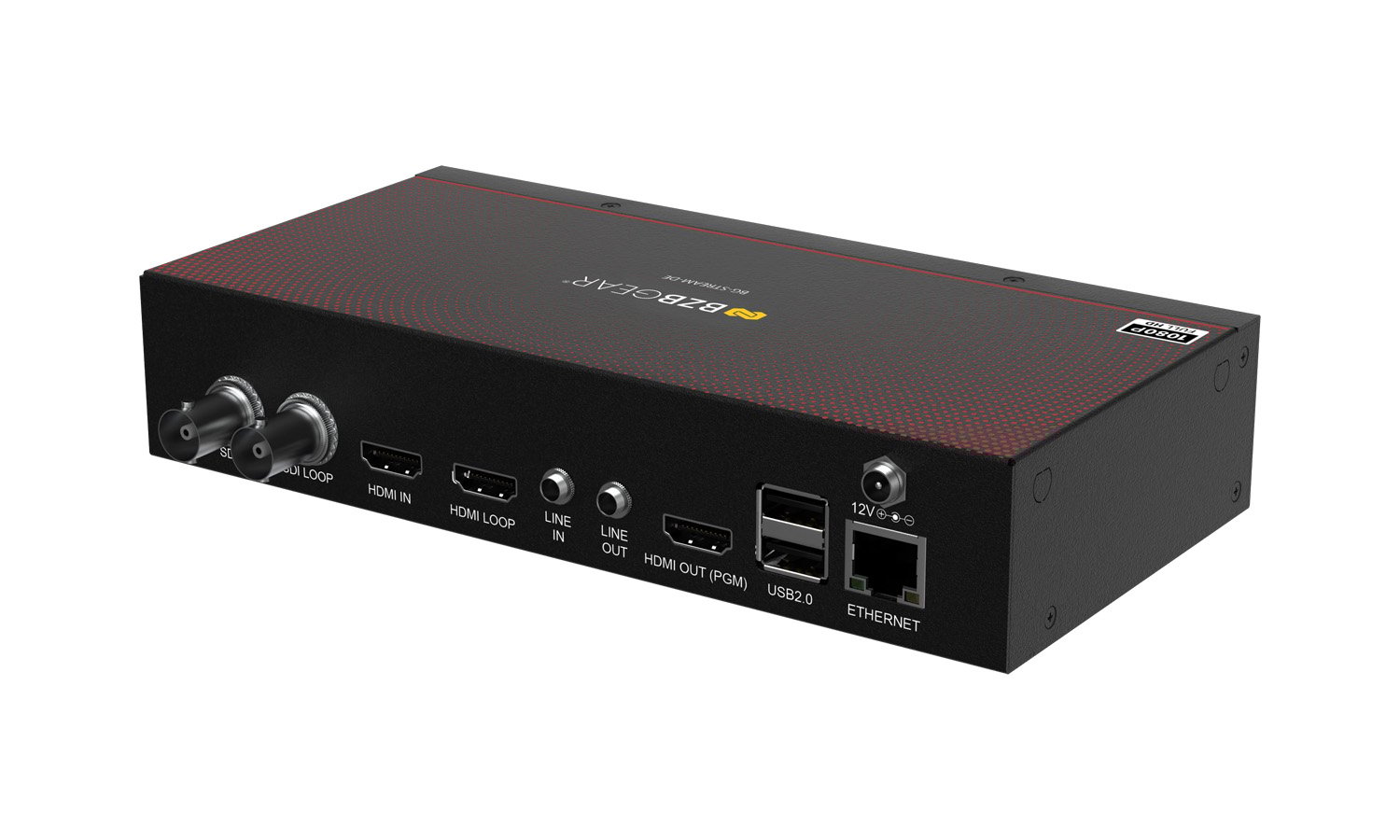

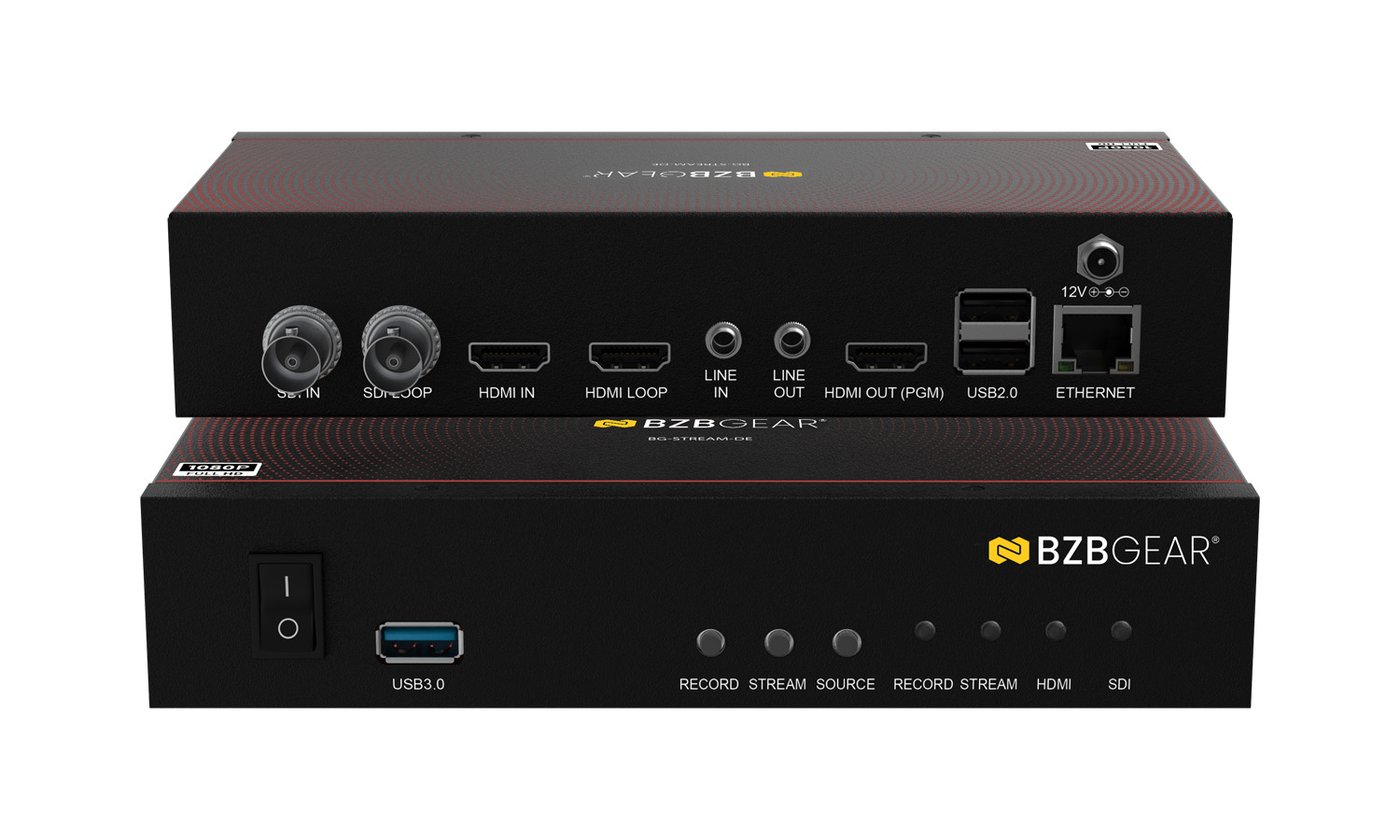

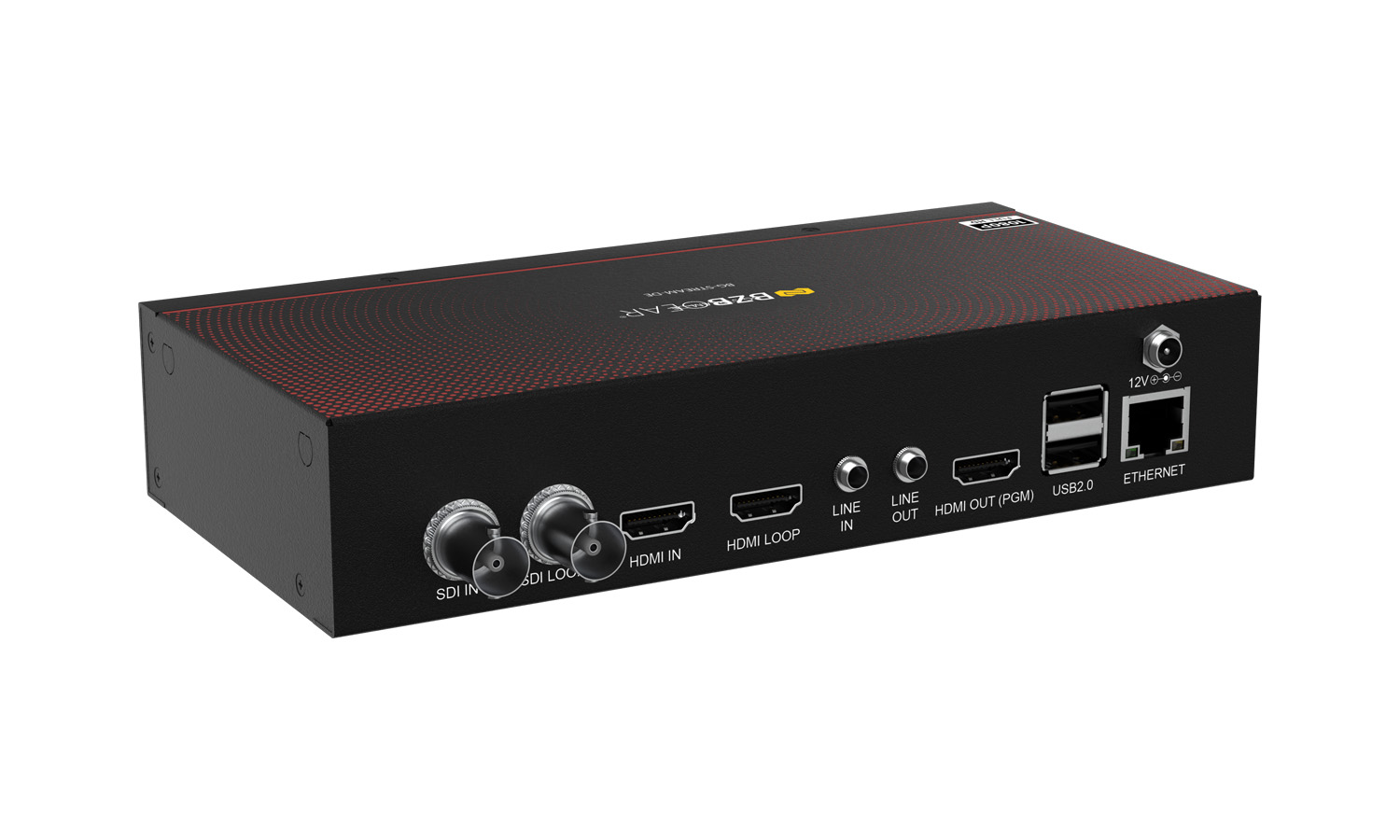

Interfaces
- SDI In: Input for SDI Source.
- SDI Loop: Output for SDI Loop.
- HDMI In: Input for HDMI Source.
- HDMI Out: Output for HDMI Source.
- Line In: Input for Line Audio.
- Line Out: Output for Line Audio.
- HDMI Out (PGM): HDMI Program Output (Current Livestream Output).
- USB 2.0: For Keyboard and Mouse Usage.
- DC In: 12V DC Power Input.
- Ethernet: Connects Unit to the Network for Streaming and Web GUI.
- Power Switch: Turns Unit On/Off.
- USB 3.0: Host for USB Storage.
- Record, Stream, Source Buttons: Selects Active Function.
- LED Indication Lights: Indicates Recording, Streaming, HDMI, and SDI Activity.
