4K UHD HDMI 2.1 Over IP Multicast Wall Plate Encoder/Decoder with Seamless Matrix Switching/Multiview/KVM/USB 3.2 & PoE Support over 1 Gigabit Network
Overview
The BG-IPGEAR-XTREME-W HDMI 2.1 Over IP Multicast Wall Plate System is a high-performance AV transmission solution designed to extend Ultra-HD 4K@120Hz 4:4:4 video and high-fidelity audio over long distances via standard Cat.5e/6/6a/7 cable. Supporting distances of up to 170 meters (560 feet) over copper, this system ensures uncompressed, high-quality transmission from HDMI sources such as Apple TV, PlayStation, Xbox, PCs, and other HDMI-enabled devices to remote displays.
With support for USB-C (Alt Mode DP 1.4), HDMI, and DisplayPort input, the BG-IPGEAR-XTREME-W is ideal for professional AV installations in corporate environments, digital signage, healthcare, gaming, and education sectors. The unit features bi-directional IR pass-through, USB 3.1 for UVC devices, and seamless video switching, making it a robust choice for interactive and multi-display setups.

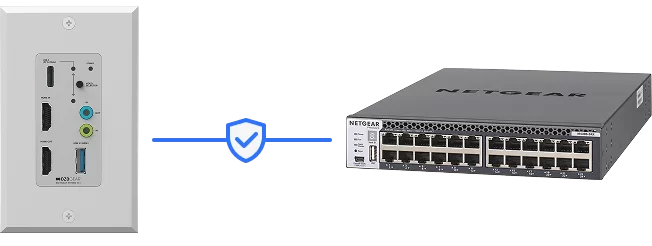

By utilizing a 1 Gigabit Ethernet network switch with IGMP Snooping support, this system enables flexible video distribution in point-to-point, point-to-multipoint, and multicast configurations. Additionally, the built-in 802.1Q VLAN functionality allows for remote control of multiple devices, ensuring an efficient and scalable deployment.
IPGEAR XTREME Series Compatibility
All IPGEAR XTREME Series products (BG-IPGEAR-XTREME, BG-IPGEAR-XTREME-W, BG-IPGEAR-XTREME-PRO) are designed to function cohesively as part of a unified AV over IP ecosystem. Whether you are deploying wall plate encoders, transceiver endpoints, or PRO-level processing nodes, each XTREME device integrates seamlessly within the same multicast network infrastructure.
This unit is fully interoperable with other XTREME Series models, allowing you to mix and match devices based on performance needs, form factor, and application requirements. Systems can be scaled from simple point-to-point extensions to large many-to-many matrix, multiview, video wall, and KVM deployments, without changing platforms or management tools.
Using the same network architecture across all models ensures consistent configuration, simplified expansion, and long-term investment protection. As your system grows, additional XTREME devices can be added without reengineering the core network or control workflow.
Key Benefits
- Full compatibility across all XTREME Series products
- Mix wall plates, standard transceivers, and PRO models in one system
- Shared control software and network architecture
- Scales from small installations to enterprise-level AV over IP deployments
- Protects long-term system investments with future expansion support
Features
-
![bi_hdmi]()
HDMI 2.1 & HDCP 2.3Delivers 4K@120Hz 4:4:4 with up to 40Gbps (FRL 5), HDR, VRR, ALLM, and eARC/ARC for premium video and audio -
![Long-Range | LONG RANGE KVM | LONG RANGE USB | EXTREME RANGE | BUFFERED AND RE-CLOCKED OUTPUTS | ANALOG STEREO RANGE | EXTENDED RANGE]()
Extended TransmissionTransmits uncompressed video and 7.1-channel audio up to 170m (560ft) over Cat.5e/6/6a/7 with zero degradation and auto equalization -
![HDMI]()
Flexible ConnectivityFeatures HDMI, USB-C (DP 1.4 Alt Mode), 3.5mm audio, RJ-45 Ethernet, and USB 3.1 Gen1/Gen2 for peripherals and UVC webcams -
![Compact Design]()
Advanced Video ProcessingSupports ultra-low latency switching, PiP, PbP, PoP (Chroma Key), and custom scaling for optimized display performance -
![Four Control Modes]()
Network & Control IntegrationEnables IGMP Snooping, 802.1Q VLAN, bi-directional IR, RS-232, CEC bypass, EDID management, and software updates -
![Durability-in-Motion]()
Reliable BuildCompact metal enclosure with wall-mount support and ESD protection
Next-Generation HDMI 2.1 Video Over IP
- Delivers 4K@120Hz 4:4:4 and 8K-ready video with HDR, VRR, ALLM, and full HDCP 2.3 compliance.
Scalable Multicast AVoIP Matrix Architecture

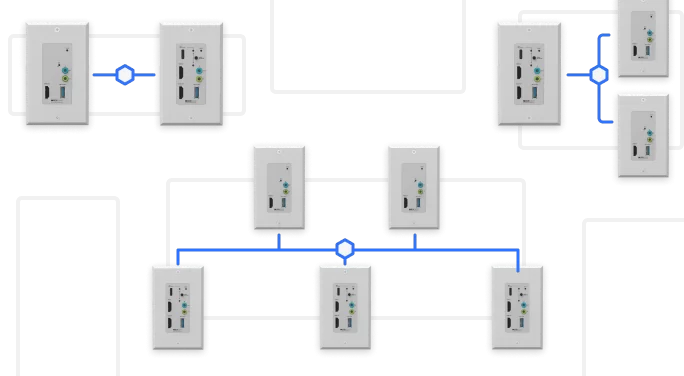

- Supports point-to-point, one-to-many, and many-to-many routing over standard 1Gb Ethernet networks.
Ultra-Low-Latency Switching & Advanced Multiview

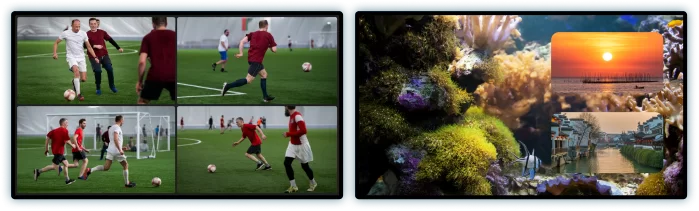

- Enables seamless switching and multiview layouts including PiP, PbP, PoP, chroma key, and custom scaling.
Full KVM Over IP with USB 3.2

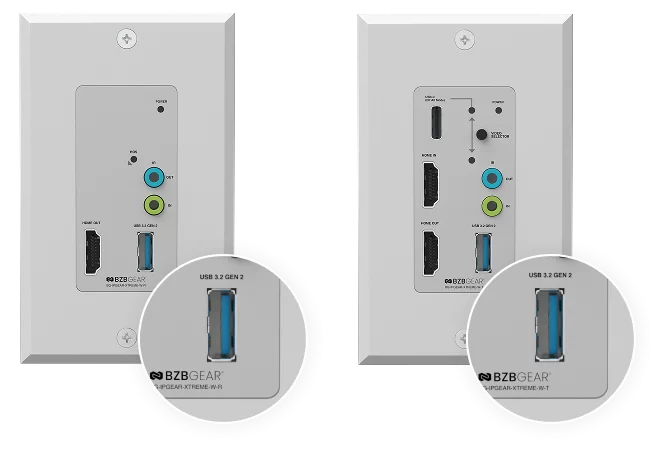

- Extends keyboards, mice, touch displays, USB storage, and UVC webcams with high-speed USB performance.
Flexible Multi-Source Input Connectivity
- Supports HDMI, USB-C (DP 1.4 Alt-Mode), and DisplayPort inputs for maximum source compatibility.
Enterprise-Grade Control & Management
- Managed through BZBGEAR software with support for IR, RS-232, EDID control, VLAN configuration, and network-based firmware updates.
PoE-Powered Wall-Plate Design

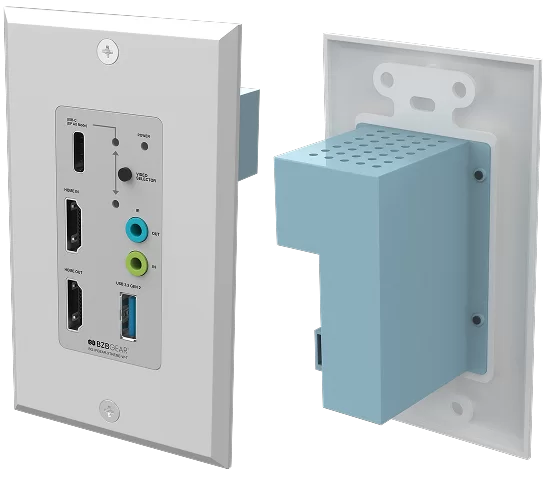

- Streamlined wall-plate form factor with Power over Ethernet for clean, power-simplified installations.
Long-Distance Uncompressed Signal Extension
- Transmits uncompressed video up to 100m (330ft) over Cat.5e/6 with automatic equalization and signal reclocking.
Enterprise-Ready Construction & Warranty
- Features TAA compliance, a rugged metal enclosure with ESD protection, and a 5-year warranty for professional deployments.
