HDMI 2.1 Over Fiber Extender with Bi-Directional IR, RS-232, 1G Ethernet, USB 3.1 & KVM Support

ProGear
NEW
Shipping Q4 2025
BG-IPGEAR-XTREME-F-1 BG-IPGEAR-XTREME-F-2 BG-IPGEAR-XTREME-F-3 BG-IPGEAR-XTREME-F-4 BG-IPGEAR-XTREME-F-5 BG-IPGEAR-XTREME-F-6 BG-IPGEAR-XTREME-F-7 BG-IPGEAR-XTREME-F-8 BG-IPGEAR-XTREME-F-9 BG-IPGEAR-XTREME-F-10 BG-IPGEAR-XTREME-F-11 BG-IPGEAR-XTREME-F-12 BG-IPGEAR-XTREME-F-13
BG-IPGEAR-XTREME-F-1
BG-IPGEAR-XTREME-F-2
BG-IPGEAR-XTREME-F-3
BG-IPGEAR-XTREME-F-4
BG-IPGEAR-XTREME-F-5
BG-IPGEAR-XTREME-F-6
BG-IPGEAR-XTREME-F-7
BG-IPGEAR-XTREME-F-8
BG-IPGEAR-XTREME-F-9
BG-IPGEAR-XTREME-F-10
BG-IPGEAR-XTREME-F-11
BG-IPGEAR-XTREME-F-12
BG-IPGEAR-XTREME-F-13
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Trade In

Overview

The BG-IPGEAR-XTREME-F is a cutting-edge HDMI 2.1 over fiber extender designed for mission-critical AV transmission in broadcast, medical imaging, eSports, control rooms, and high-end home theater applications. With support for uncompressed 4K60 4:4:4 and visually lossless DSC-compressed 4K144 4:4:4, it also enables 8K@30Hz 4:4:4 transmission, ensuring next-generation video performance with zero-frame latency over distances up to 10km (6.25 miles) via single-mode fiber optic cable.

Beyond video, this extender provides full-featured connectivity with bi-directional IR, full-duplex RS-232, USB 3.1 KVM, eARC/ARC, and 1Gb Ethernet pass-through. With its interference-free fiber optic transmission, the BG-IPGEAR-XTREME-F is engineered to deliver the ultimate in high-resolution video, data, and control extension over long distances.



Features In-Depth

The BG-IPGEAR-XTREME-F is built for high-performance AV transmission, supporting 8K@30Hz 4:4:4, uncompressed 4K60 4:4:4, and visually lossless DSC-compressed 4K144 4:4:4 over single-mode fiber. With 48Gbps bandwidth (FRL 6), this extender ensures flawless signal integrity while maintaining compatibility with HDMI 2.1, HDCP 2.3, and DisplayPort 1.4 (USB-C Alt Mode) sources.

For next-generation gaming and media applications, the BG-IPGEAR-XTREME-F supports Variable Refresh Rate (VRR) for smooth, tear-free motion, Auto Low Latency Mode (ALLM) for instant response, and eARC/ARC pass-through for lossless Dolby Atmos and DTS:X audio transmission. Its USB 3.1 KVM function enables remote control of peripherals, while 1Gb Ethernet pass-through facilitates seamless IP communication. Transparent EDID and HDCP handling optimize device compatibility, and CEC pass-through ensures integrated control across connected AV components.

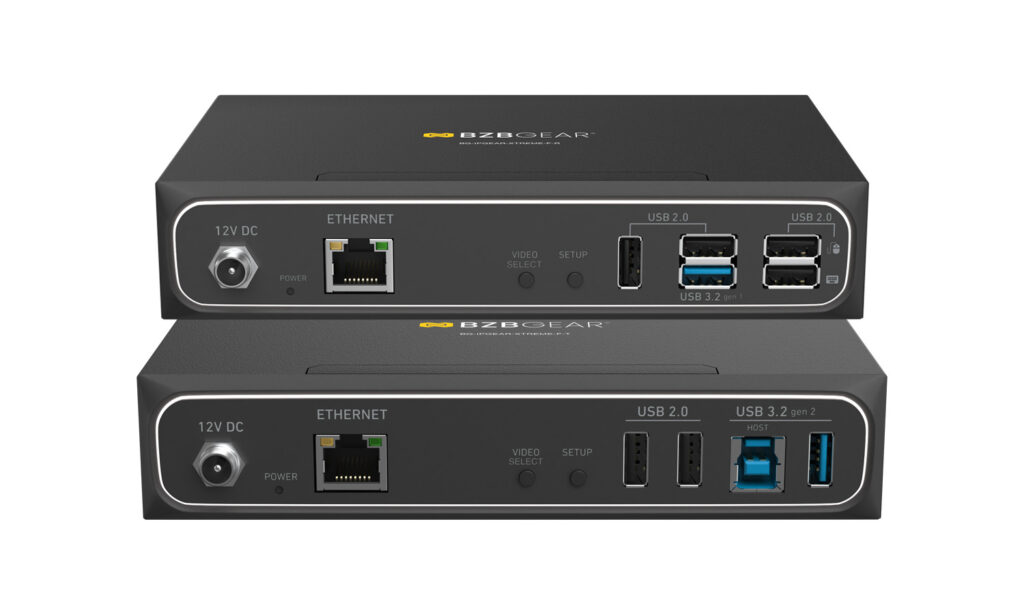

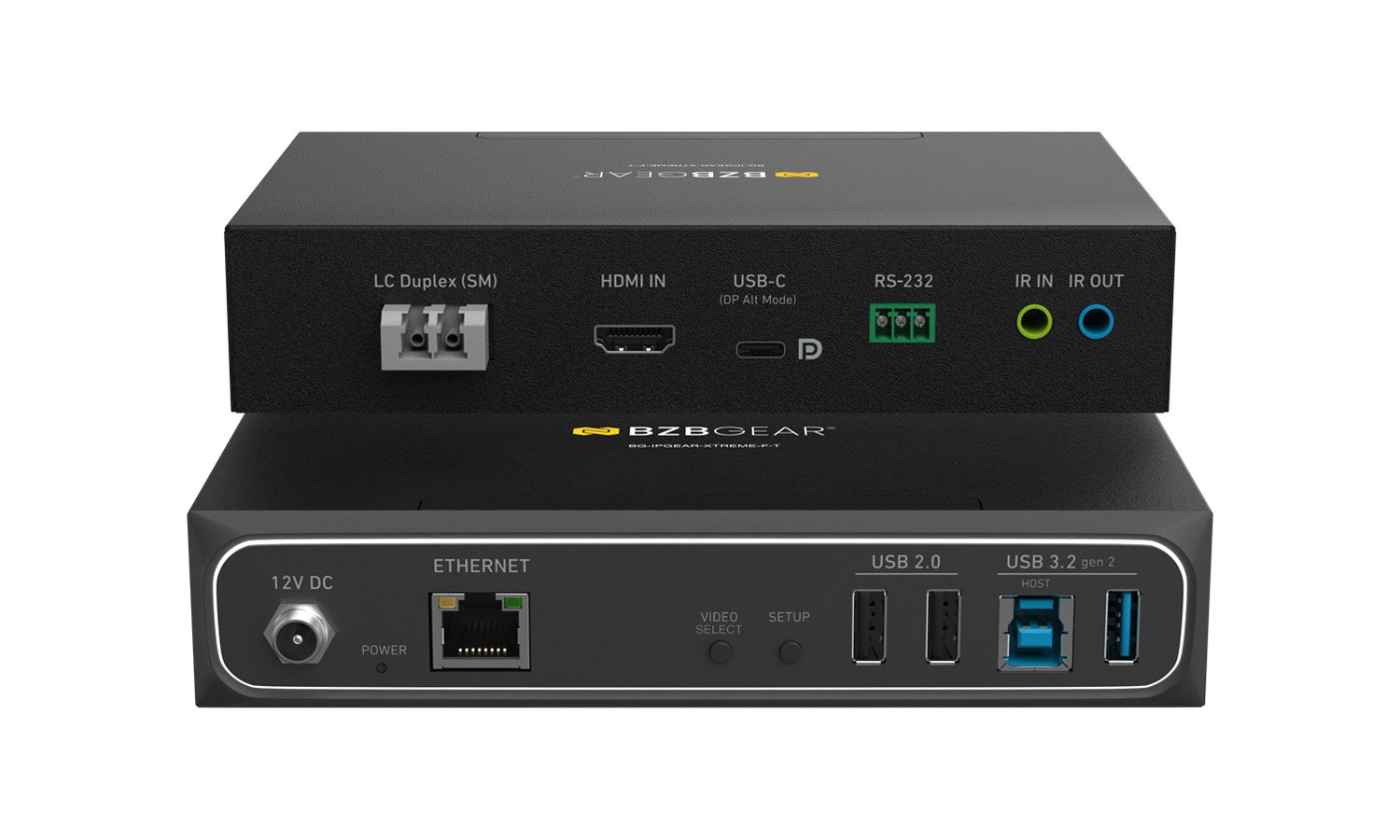

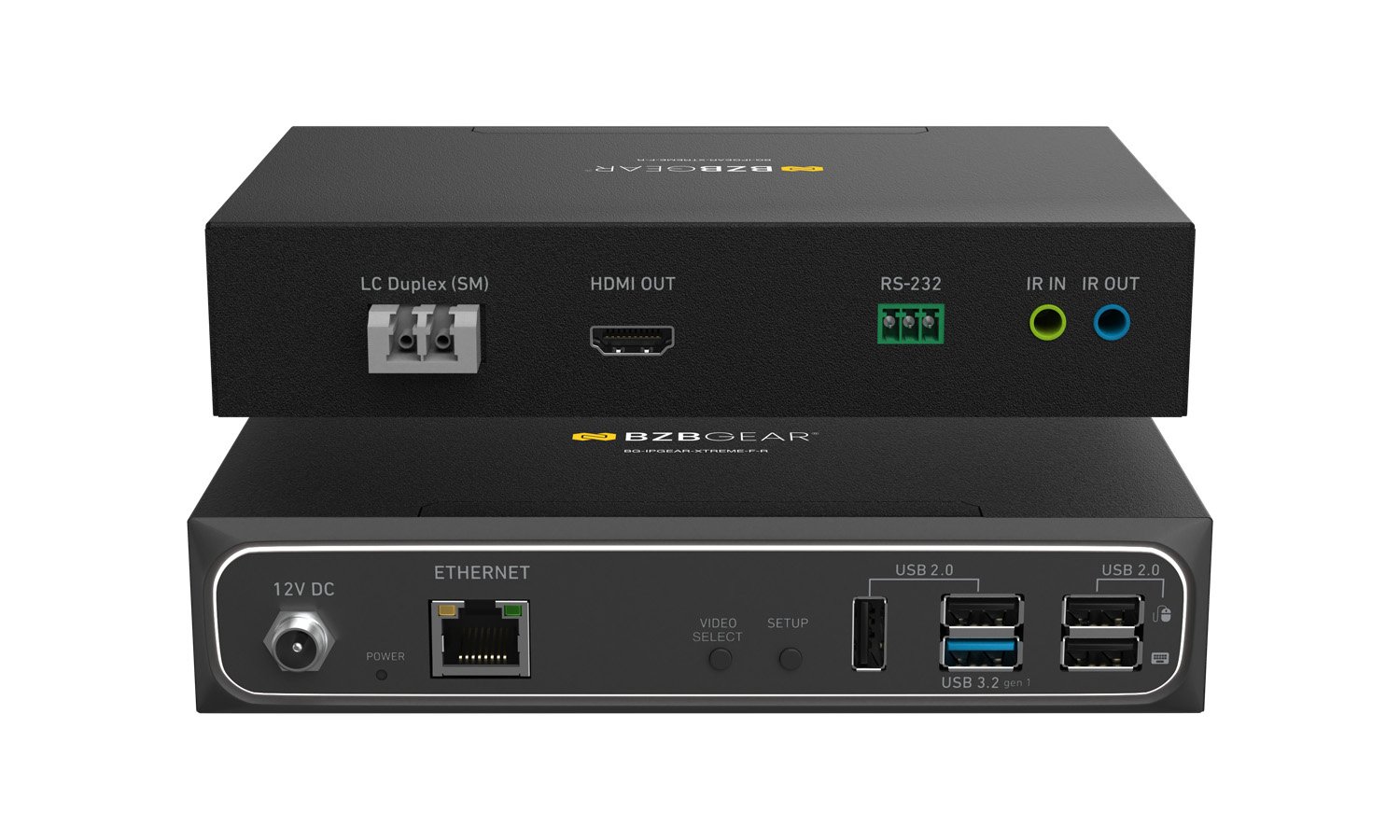

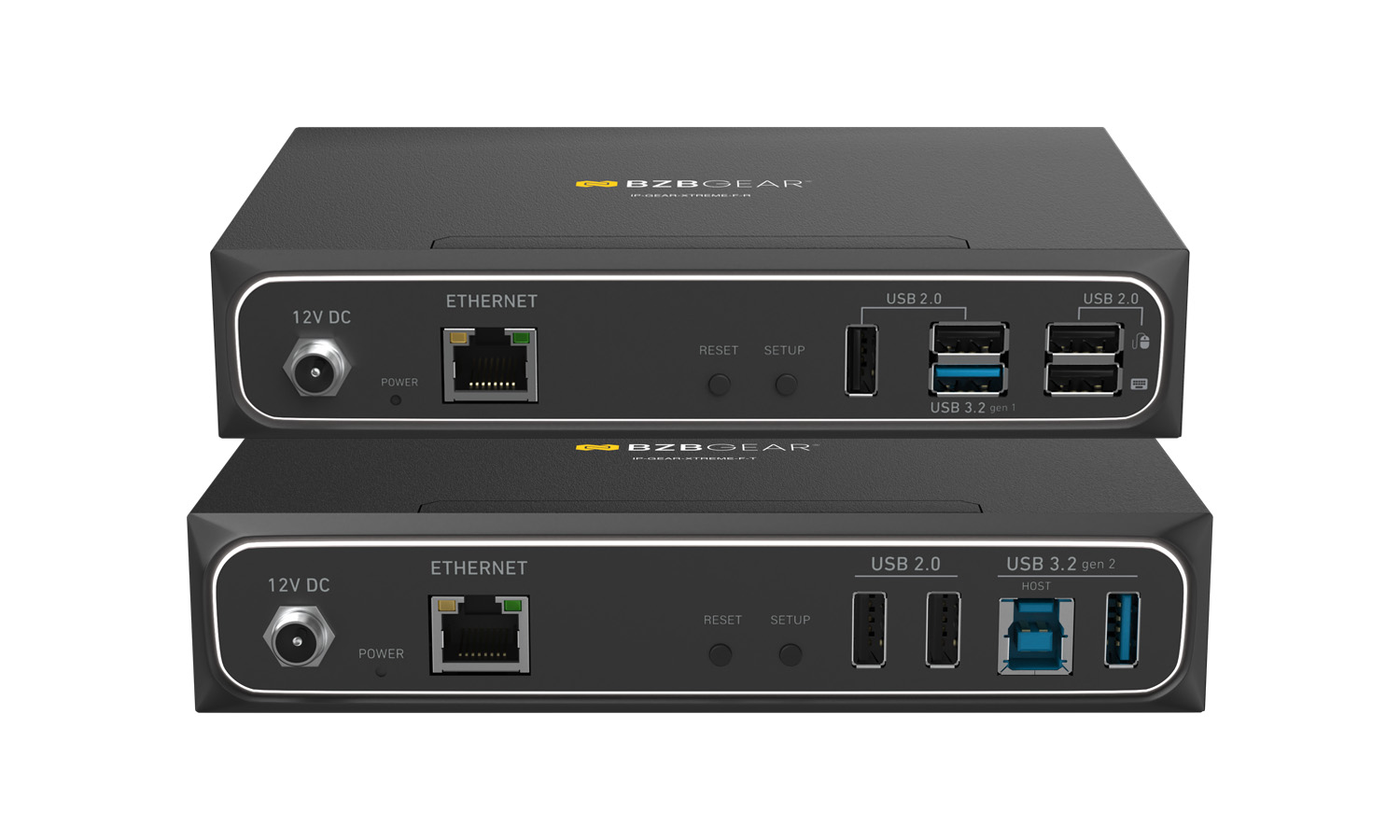

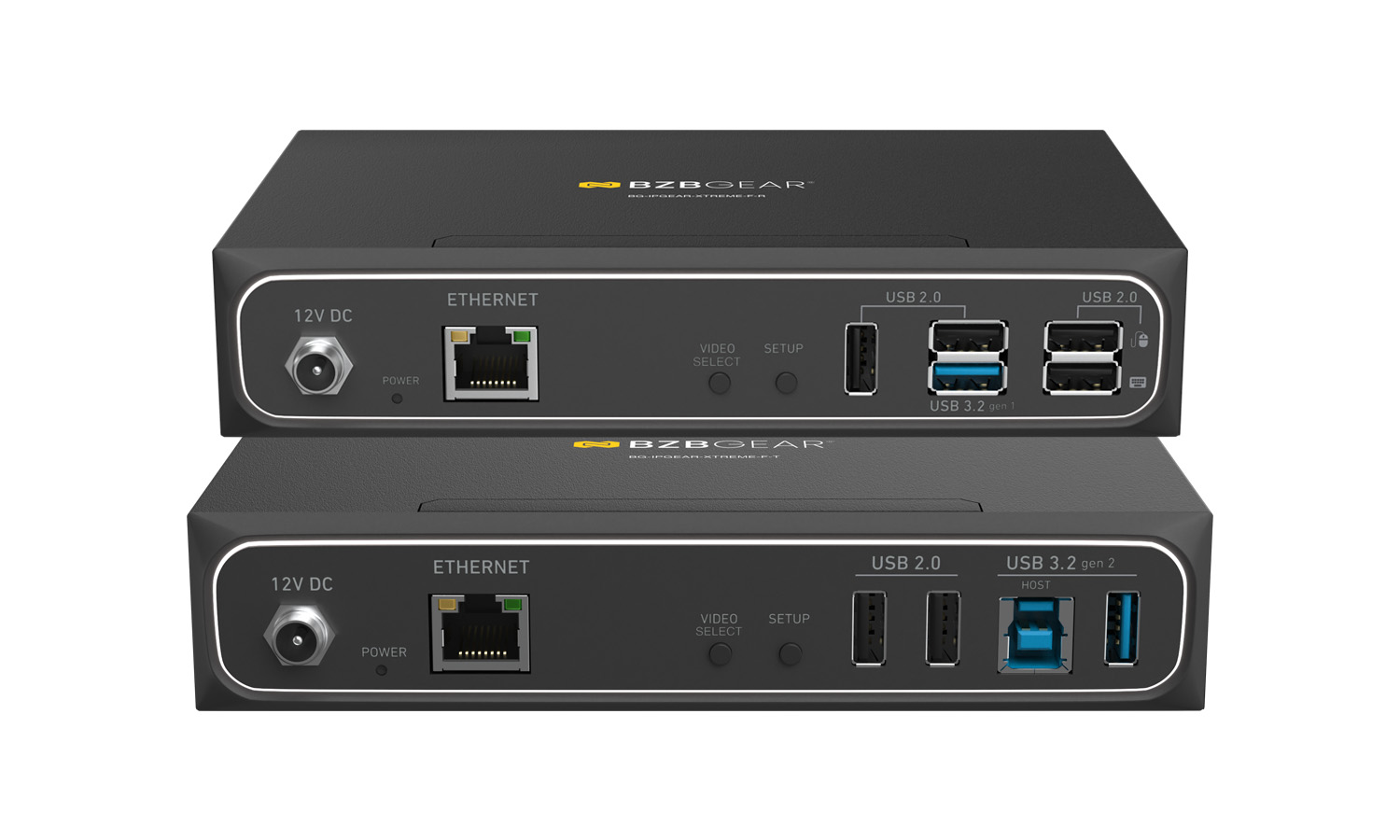

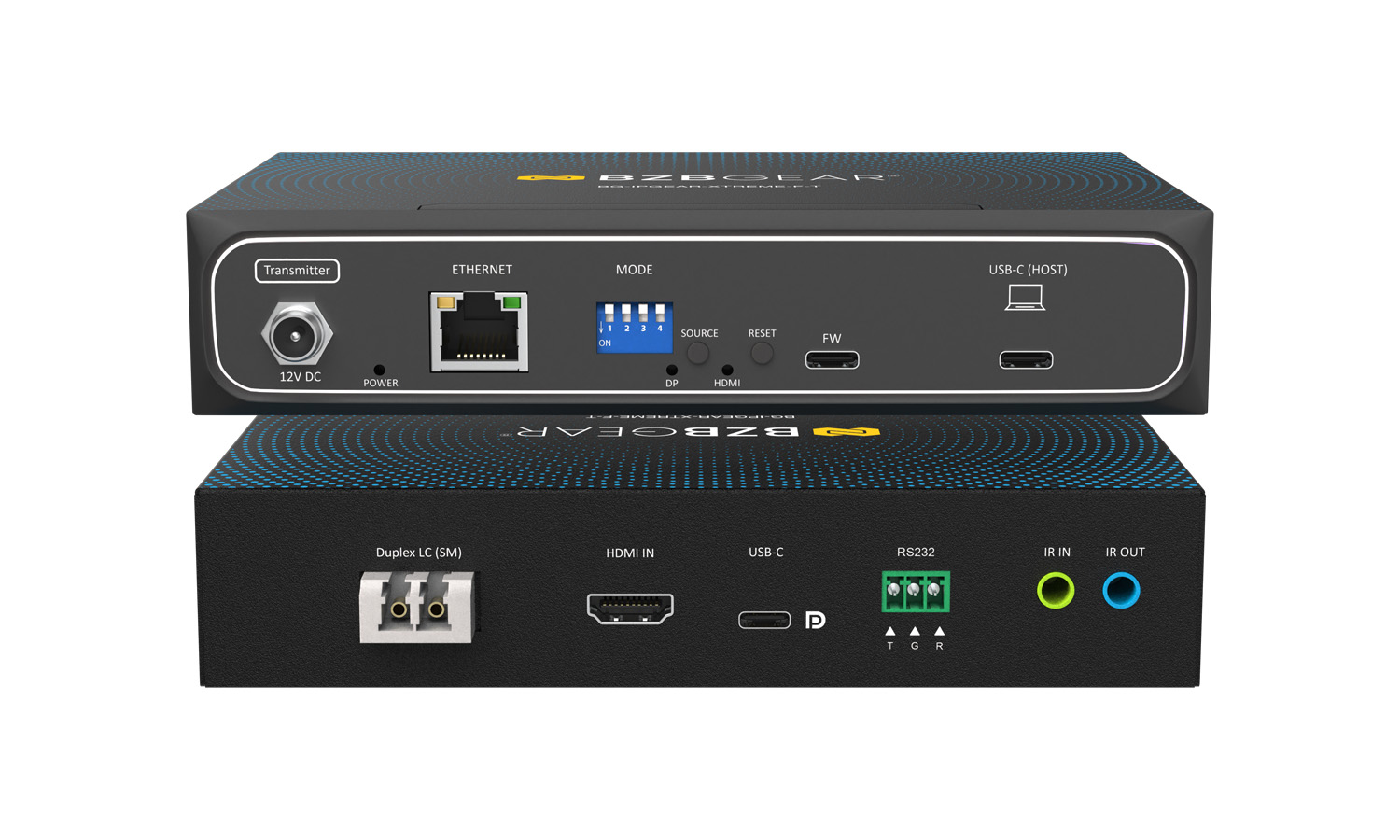

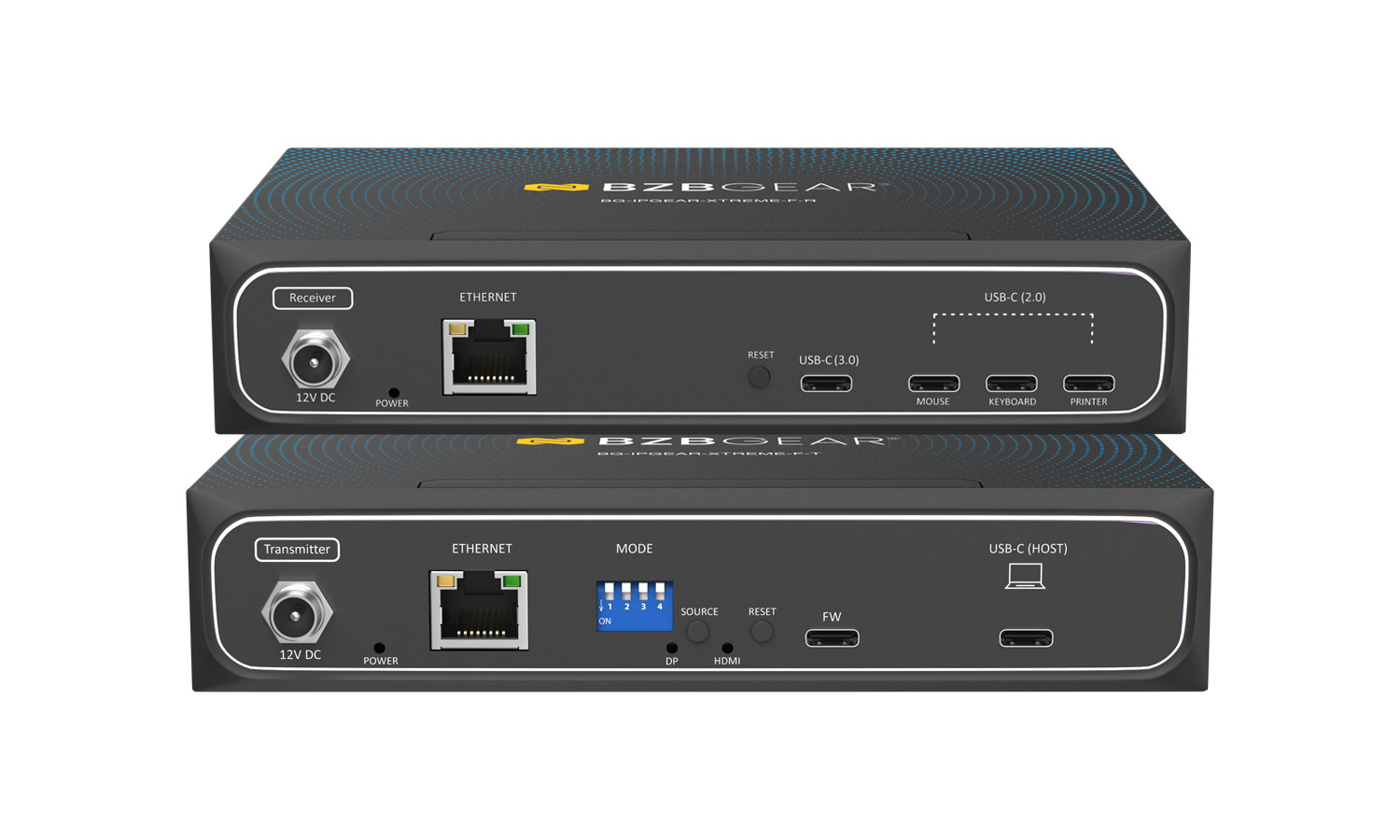

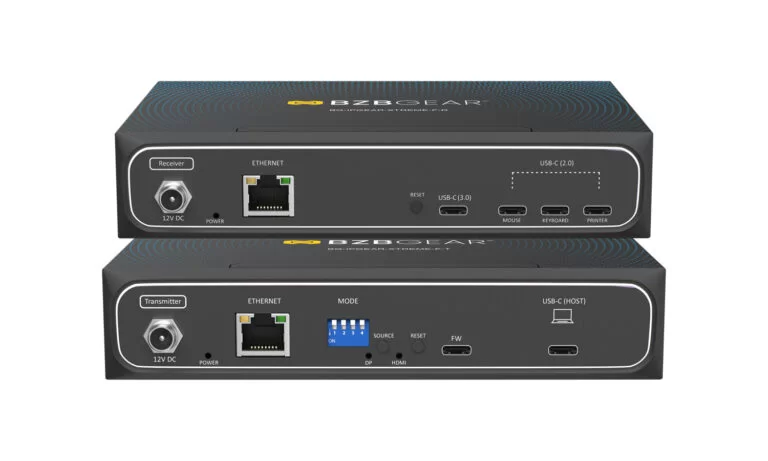

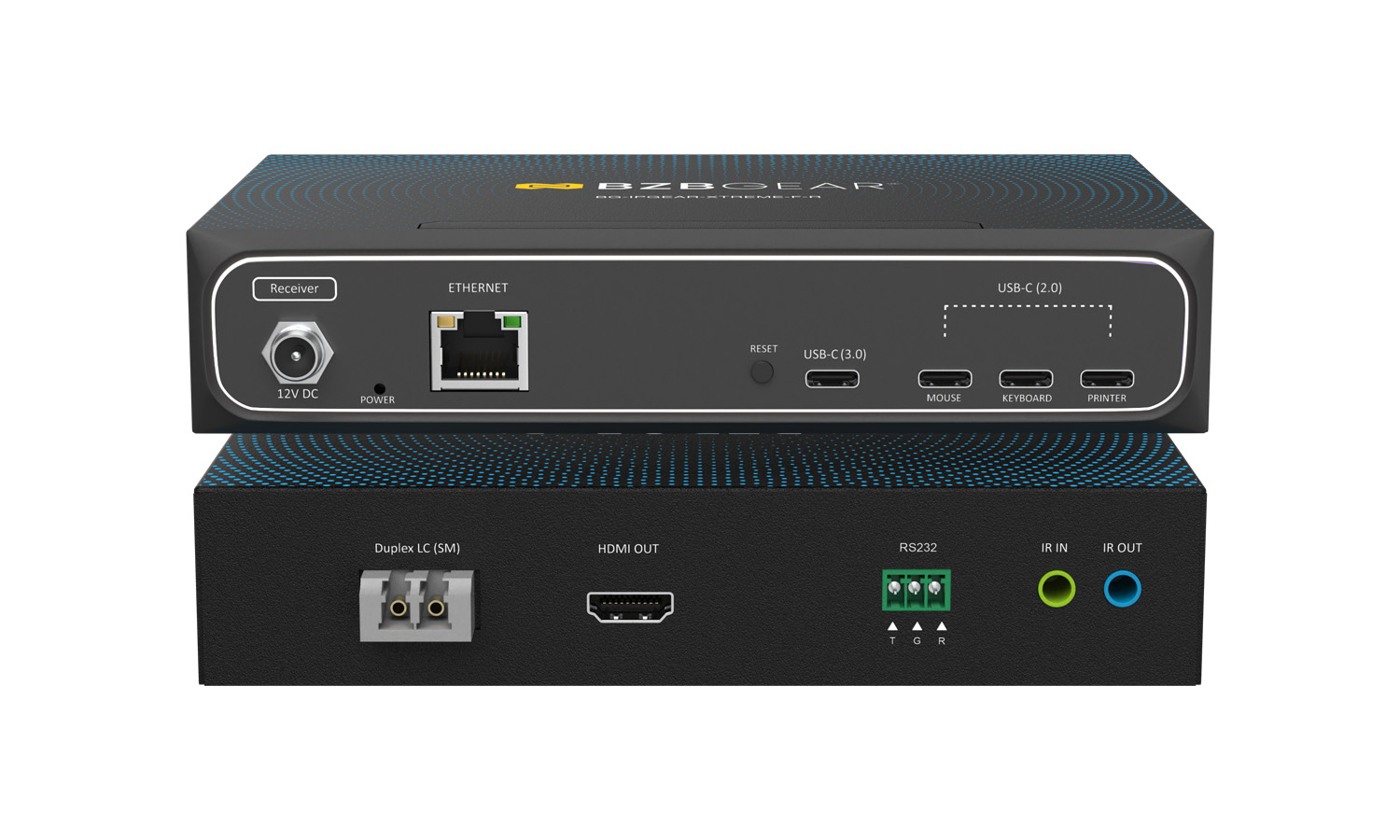

Encased in a rugged metal housing, this extender includes both transmitter and receiver units, single-mode fiber modules, IR blaster/receiver, and DC 12V power adapters. Designed for environments demanding ultra-high-definition, long-range AV distribution, the BG-IPGEAR-XTREME-F delivers unparalleled performance and connectivity for professional AV, gaming, and cinematic applications.



Features

  • 8K@30Hz and 4K@120Hz
    8K & 4K HDR Support
    Transmits up to 8K@30Hz 4:4:4, 4K@144Hz 4:4:4 DSC, and 4K@60Hz 4:4:4 uncompressed for pristine image quality
  • bi_hdmi
    HDMI 2.1 & HDCP 2.3 Compliance
    Ensures compatibility with gaming consoles, media servers, professional video switchers, and AV processors
  • fluent_top-speed-24-filled
    48Gbps Video Bandwidth (FRL 6)
    Provides high-speed, zero-latency transmission for next-generation AV applications
  • bi_usb-c
    DisplayPort 1.4 (USB-C Alt Mode) Input Support
    Connects directly to USB-C-enabled laptops, tablets, and workstations
  • HDMI audio formats
    Uncompressed 7.1ch HDMI Audio
    Supports Dolby TrueHD, DTS-HD Master Audio, and LPCM formats
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    eARC/ARC Pass-Through
    Enables lossless Dolby Atmos and DTS:X audio transmission from displays to AV receivers
  • 10km (6.25 miles) Transmission Over Single-Mode Fiber: Ideal for large-scale AV applications requiring interference-free signal extension
  • Fully Transparent EDID & HDCP Handling: Ensures seamless communication between sources and displays
  • CEC Pass-Through: Enables centralized device control for home automation and AV systems
  • Variable Refresh Rate (VRR) Support: Reduces screen tearing and stuttering for gaming and real-time rendering
  • Auto Low Latency Mode (ALLM): Automatically switches to low-latency mode for fast response times
  • Zero Latency, No Frame Drops: Fiber optic transmission eliminates traditional signal degradation issues
  • USB 3.1 Gen1/Gen2 KVM Support: Allows remote access to UVC cameras, storage devices, touchscreens, and input peripherals
  • Full-Duplex RS-232 Serial Control (115,200bps): Enables seamless integration with automation systems and AV matrix switchers
  • 1G Ethernet Pass-Through: Provides a dedicated network link for AV-over-IP solutions, reducing cabling complexity
  • Bi-Directional Wideband IR (20kHz–60kHz): Ensures remote control signal extension for IR-enabled devices
  • Advanced Compression Technology (DSC 1.2a): Delivers visually lossless video at ultra-high refresh rates without compromising detail
