4K UHD HDMI 2.1 AV over IP Multicast Transceiver with Seamless Matrix Switching/Multiview/KVM/USB & PoE Support over 1 Gigabit Network
Overview
The BG-IPGEAR-XTREME delivers next-generation HDMI 2.1 over IP performance, enabling uncompressed 4K@120Hz 4:4:4 video, multi-channel audio, and advanced KVM functionality over standard Cat.5e/6/6a/7 cabling up to 170 meters (560ft). Designed for professional AV environments, this versatile transceiver can operate as either a transmitter or receiver, supporting point-to-point, point-to-multipoint, and multicast configurations for maximum deployment flexibility. With seamless matrix switching, ultra-low latency transmission, and scalable network architecture, the system is ideal for digital signage, esports, corporate AV, broadcast, education, healthcare, and command center applications.
Supporting HDR10, HDR10+, Dolby Vision, VRR, and ALLM, the BG-IPGEAR-XTREME ensures exceptional image quality with smooth, tear-free performance for both live and interactive content. Integrated USB 3.1 Gen1/Gen2, bi-directional IR, and RS-232 provide full KVM extension and reliable third-party control integration, while PoE support simplifies installation by delivering power, video, audio, and control over a single Ethernet cable.
Features-in-Depth
The BG-IPGEAR-XTREME is engineered to provide high-performance AV distribution with uncompromising video and audio quality. Supporting resolutions up to 4K@120Hz with 4:4:4 chroma sampling, the system preserves every detail, making it suitable for fast-motion video, gaming, medical imaging, and mission-critical monitoring environments. HDR10, HDR10+, and Dolby Vision compatibility ensure vibrant colors, deeper contrast, and enhanced visual realism across connected displays.

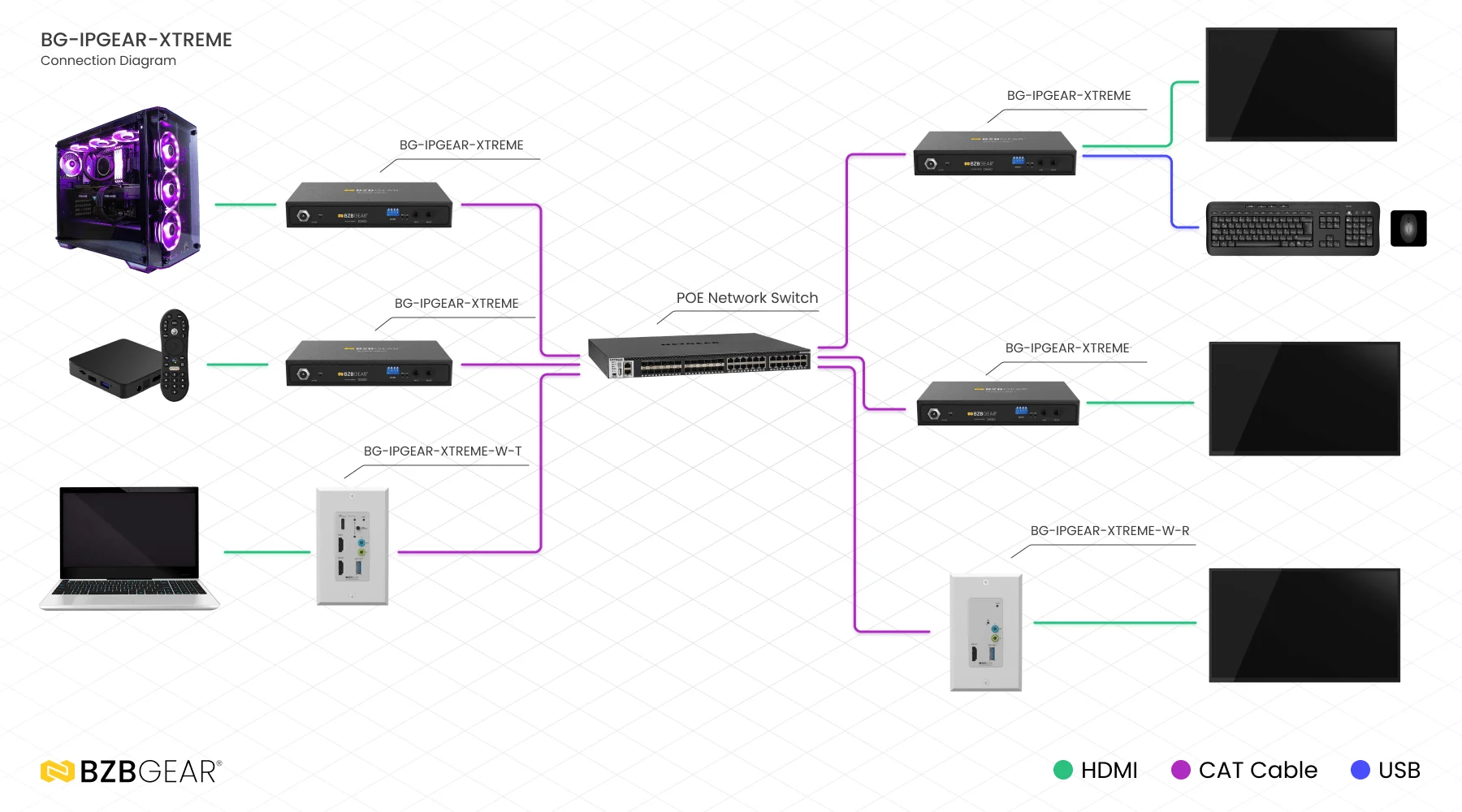

Its flexible transceiver architecture allows each unit to function as either an encoder or decoder, reducing inventory complexity and simplifying system expansion. The scalable multicast design supports seamless matrix switching, video wall processing, and advanced MultiView layouts including PiP, PbP, PoP, and Quad-view configurations. With transmission latency below one frame, the BG-IPGEAR-XTREME delivers real-time responsiveness essential for live production, control rooms, and interactive AV applications.
For USB and control integration, the system supports full KVM extension through USB Host and USB Device connectivity, enabling remote operation of PCs, media servers, and touchscreen systems. Bi-directional IR and RS-232 interfaces allow seamless integration with automation and control platforms for centralized management of displays and source devices. eARC/ARC support, along with Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1 compatibility, ensures premium multi-channel audio performance without additional infrastructure.
Designed for streamlined deployment, the BG-IPGEAR-XTREME utilizes Gigabit Ethernet with PoE support, allowing power, audio, video, and control to travel through a single Cat.5e/6/6a/7 cable up to 170 meters (560ft). This reduces installation complexity while providing the flexibility and scalability needed for modern AV-over-IP systems.
Features
-
![bi_hdmi]()
HDMI 2.1 & HDCP 2.3 ComplianceEnsures compatibility with the latest high-definition content protection standards -
![4K]()
4K@120Hz 4:4:4 Video TransmissionProvides ultra-high-definition video with crystal-clear clarity and exceptional color depth -
![vaadin_refresh]()
VRR (Variable Refresh Rate) & ALLM (Auto Low Latency Mode)Enhances gaming and interactive applications with smooth frame rates and reduced latency -
![Sleek and Discreet]()
Long-Distance TransmissionExtends HDMI signals up to 170m (560ft) over Cat.5e/6/6a/7 cabling -
![Audio Support]()
Advanced Audio SupportDelivers uncompressed 7.1-channel digital HDMI audio, including DTS-HD Master Audio and Dolby TrueHD -
![mdi_check-network-outline]()
Intelligent Network ManagementWorks with managed 1GbE switches supporting IGMP Snooping & 802.1Q VLAN for multicast optimization
- HDCP & CEC Bypass – Maintains compatibility with a wide range of devices
- Bi-Directional IR & RS-232 Control – Enables seamless integration with AV control systems
- eARC/ARC Support – Ensures high-quality audio return from displays
- Seamless Switching & Video Scaling – Provides smooth transitions between sources and adaptable display resolution
- Picture-in-Picture (PiP), Picture-by-Picture (PbP), and Picture-on-Picture (PoP) Support
- USB 3.1 Gen1 & Gen2 Support – Facilitates connectivity for UVC webcams and other USB peripherals
- 1G LAN Integration – Allows network device connection through the built-in Ethernet port
- Multi-Encode & Decode Capability – Utilizes proprietary codecs for optimized video streaming
- Ultra-Low Latency: Less than 1 frame for real-time applications
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Technical | ||
| HDMI Compliance | HDMI 2.1 | |
| HDCP Compliance | HDCP 2.3 | |
| Video Bandwidth | up to FRL 5 (40G) | |
| Video Support | up to 4K@120 4:4:4 | |
| HDMI over UTP | 4K@120 4:4:4 170m (560ft) [CAT.5E/6/6a/7] | |
| Audio Support | Surround sound [up to 7.1ch] | |
| Equalization | Auto | |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] | |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] | |
| ESD Protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| PCB Stack-up | 6-layer board [impedance control — differential 100Ω; single 50Ω] | |
| IR Pass-thru | Bi-directional | |
| RS-232 Support | Yes | |
| Input | 1x HDMI, 1x 3.5mm, 1x USB, 1x USB-C | |
| Output | 1x 3.5mm, 1x RJ-45 | |
| I/O | 1x terminal block (RS-232) | |
| HDMI Source Control | Controllable via IR pass-through from RX to TX or TX to RX with IR extenders | |
| HDMI Connector | Type A [19-pin female] | |
| RJ-45 Connector | WE/SS 8P8C (Reverse Mode) | |
| USB Connector | Type A / USB-C | |
| 3.5mm Connector | IR receiver / IR blaster | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Fixedness | Wall-mounting case with screws | |
| Dimensions (LxWxH) | 5.2 x 3 x 0.79in [132 x 75 x 20mm] | |
| Weight | 1.1 lbs [0.5kg] | |
| Power Supply | 12V DC, 1A | |
| Power Consumption | 12 Watt [max] | |
| Operation Temperature | 32~104°F / 0~40°C | |
| Storage Temperature | -4~140°F / -20~60°C | |
| Relative Humidity | 20~90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-IPGEAR-XTREME
- 1x IR Blaster
- 1x IR Receiver
- 2x DC 12V
- 1x User Manual
- 2x 3-pin Power Terminal Block Connector

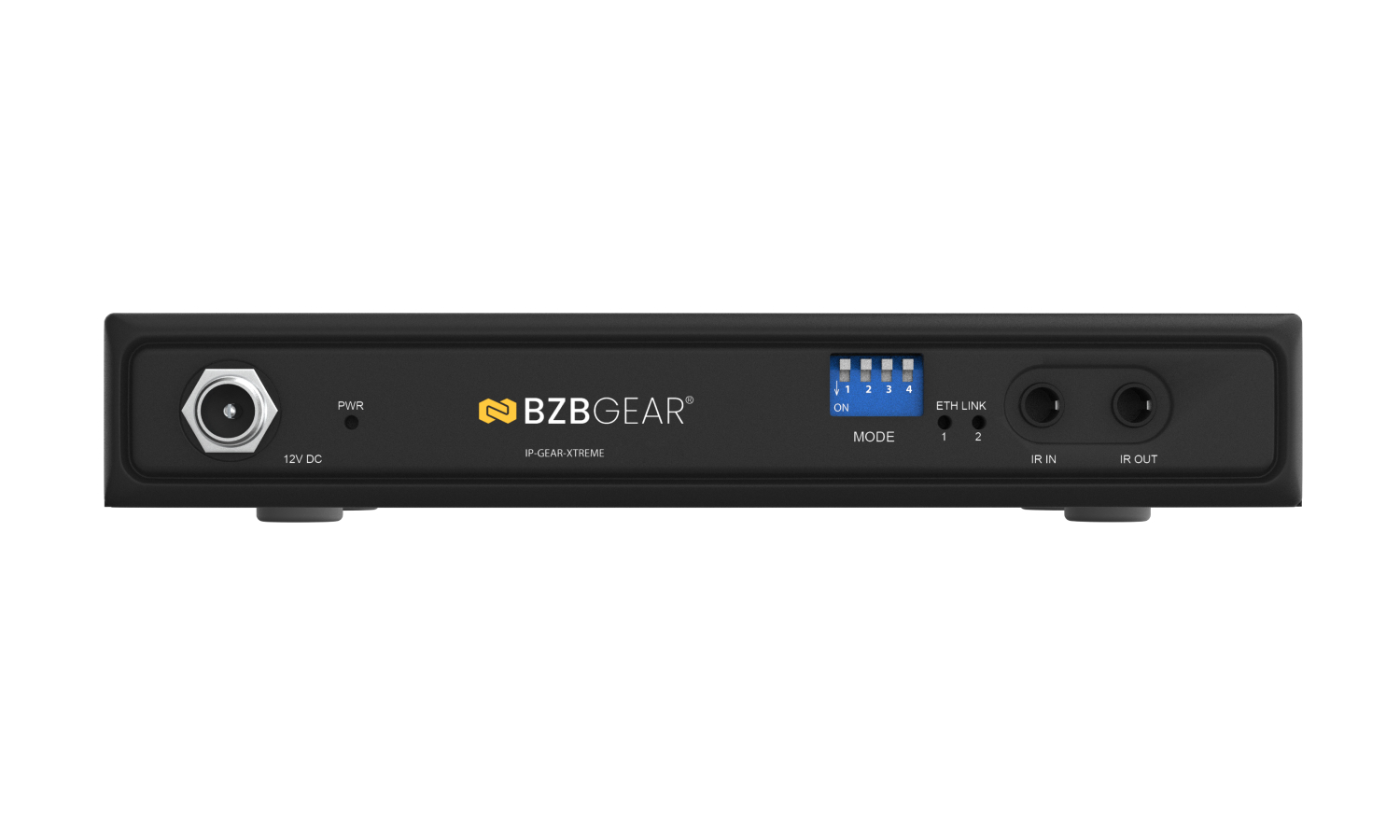

Interfaces

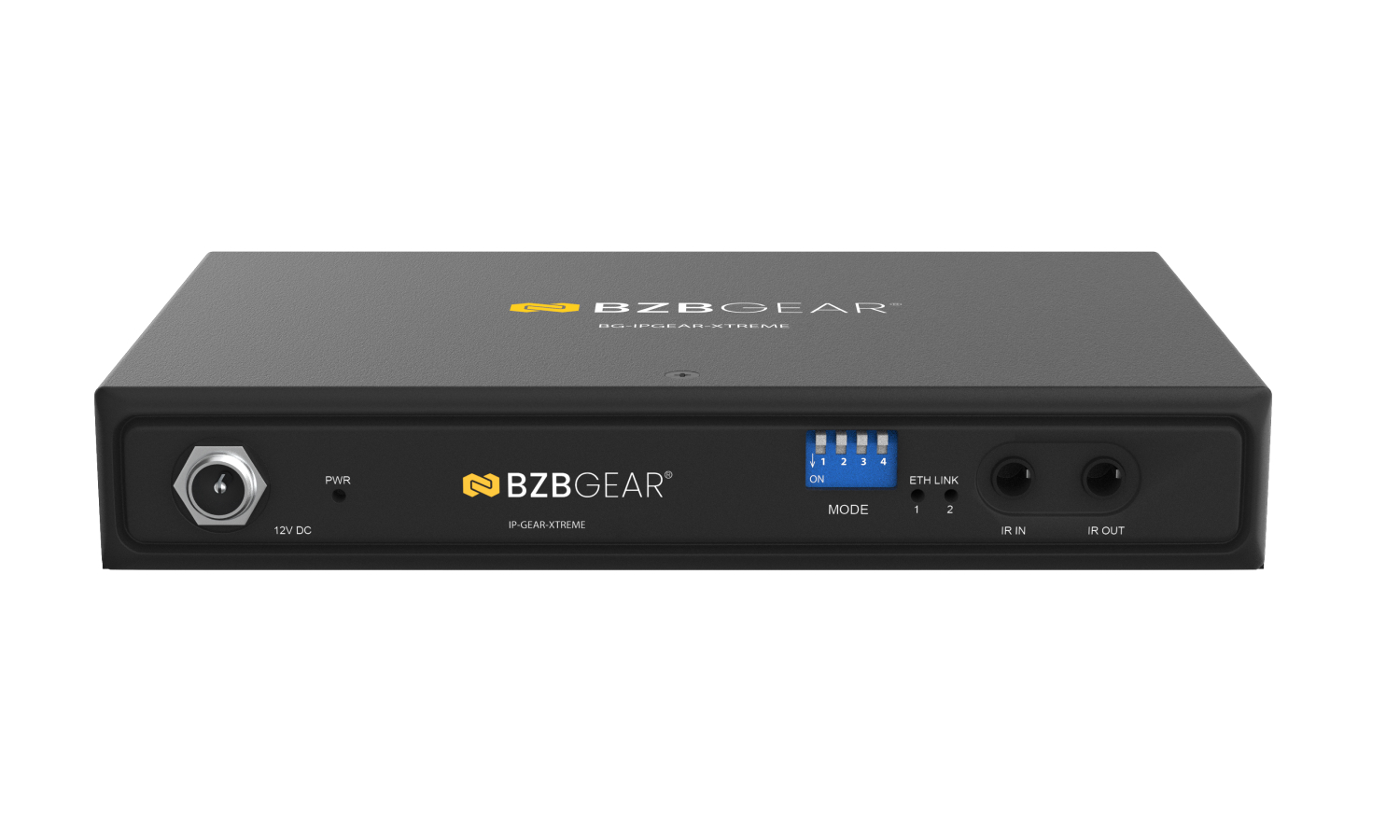

- +12V DC: Interlocking power jack for 12V DC power supply unit.
- Indicator LED: Power indicator LED.
- Mode: for USB host/device mode and FW update mode.
- Indicator LED: ETH and Link indicator LED.
- IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver.
- IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster.

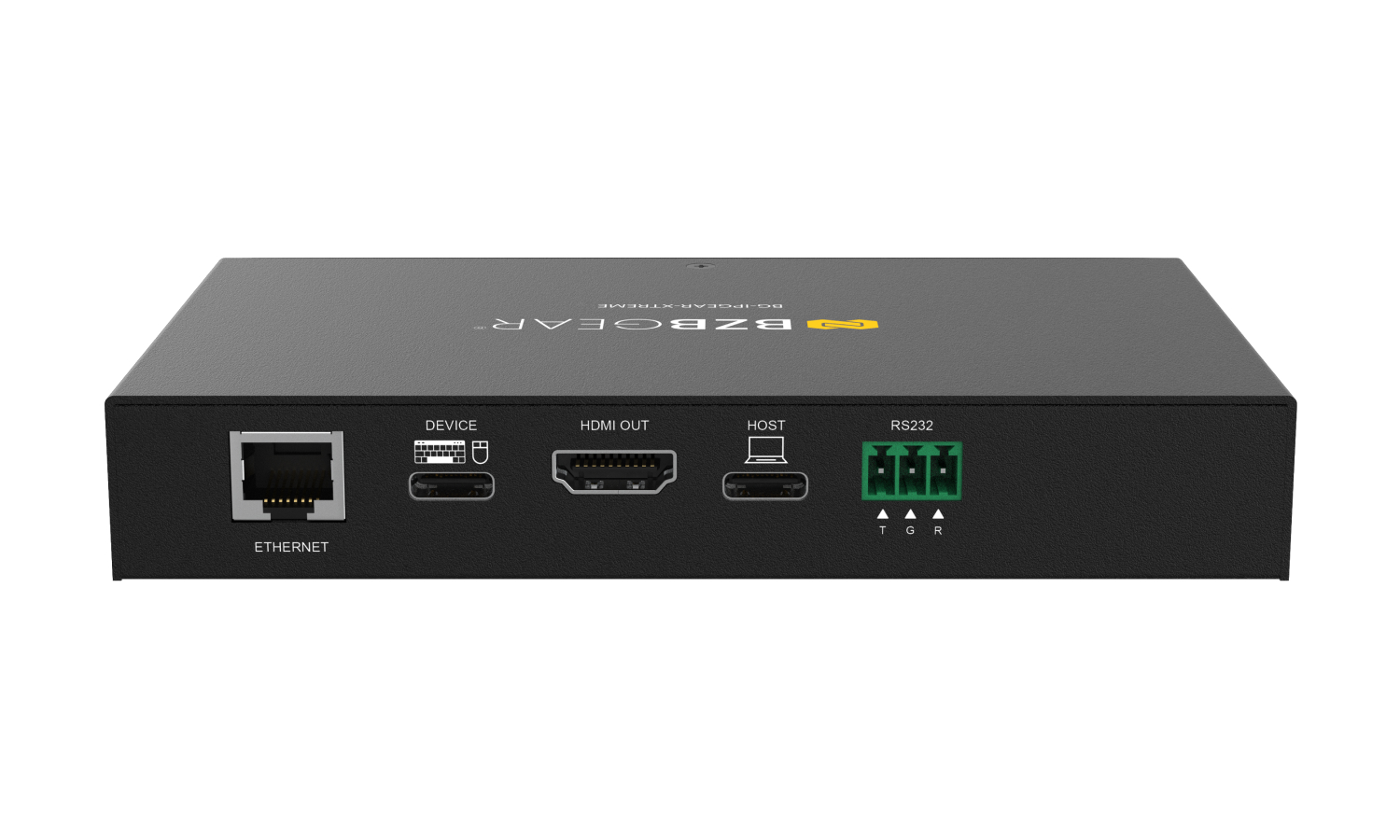

- 1G Copper OUT: Plug in Cat.5e cable that needs to be linked to the other unit.
- USB 3.1 Gen 1: Connect to USB devices.
- HDMI OUT: Connect to a HDMI display.
- USB 3.1 Gen 2 (USB-C): Connect the USB cable to PC.
- RS-232 (terminal block format): The order of RS-232 pin are TX, GND, RX (from the left side to the right).
