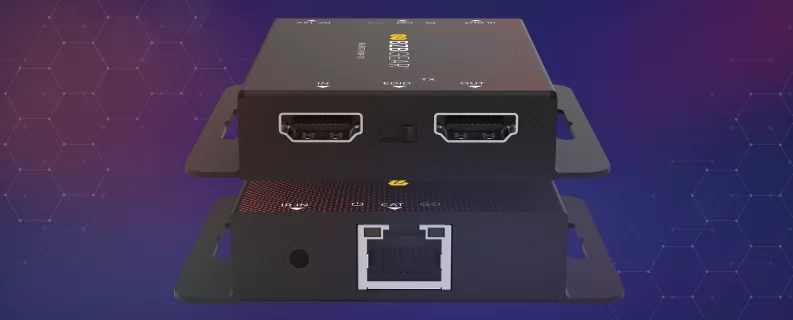

4K UHD HDMI Extender Over Cat5e/6 with PoC/IR/HDMI Loop Out up to 131ft for 4K30

EssentialGear
NEW
BG-EXT-H70P-1 BG-EXT-H70P-TX-1 BG-EXT-H70P-TX-2 BG-EXT-H70P-TX-3 BG-EXT-H70P-TX-4 BG-EXT-H70P-TX-5 BG-EXT-H70P-TX-6 BG-EXT-H70P-TX-7 BG-EXT-H70P-TX-8 BG-EXT-H70P-RX-1 BG-EXT-H70P-RX-2 BG-EXT-H70P-RX-3 BG-EXT-H70P-RX-4 BG-EXT-H70P-RX-5 BG-EXT-H70P-RX-6 BG-EXT-H70P-RX-7 BG-EXT-H70P-RX-8
BG-EXT-H70P-1
BG-EXT-H70P-TX-1
BG-EXT-H70P-TX-2
BG-EXT-H70P-TX-3
BG-EXT-H70P-TX-4
BG-EXT-H70P-TX-5
BG-EXT-H70P-TX-6
BG-EXT-H70P-TX-7
BG-EXT-H70P-TX-8
BG-EXT-H70P-RX-1
BG-EXT-H70P-RX-2
BG-EXT-H70P-RX-3
BG-EXT-H70P-RX-4
BG-EXT-H70P-RX-5
BG-EXT-H70P-RX-6
BG-EXT-H70P-RX-7
BG-EXT-H70P-RX-8
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
3 year warranty
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

The BG-EXT-H70P is a high-performance HDMI extender designed to deliver uncompressed, zero-latency video and audio signals over long distances using a single CAT6/5e cable. Supporting resolutions up to 4K@30Hz (YUV 4:4:4) and fully compliant with HDMI 1.4, HDCP 1.4, and DVI 1.0 standards, this extender is an ideal solution for professional AV installations in conference rooms, classrooms, and large-scale display setups.

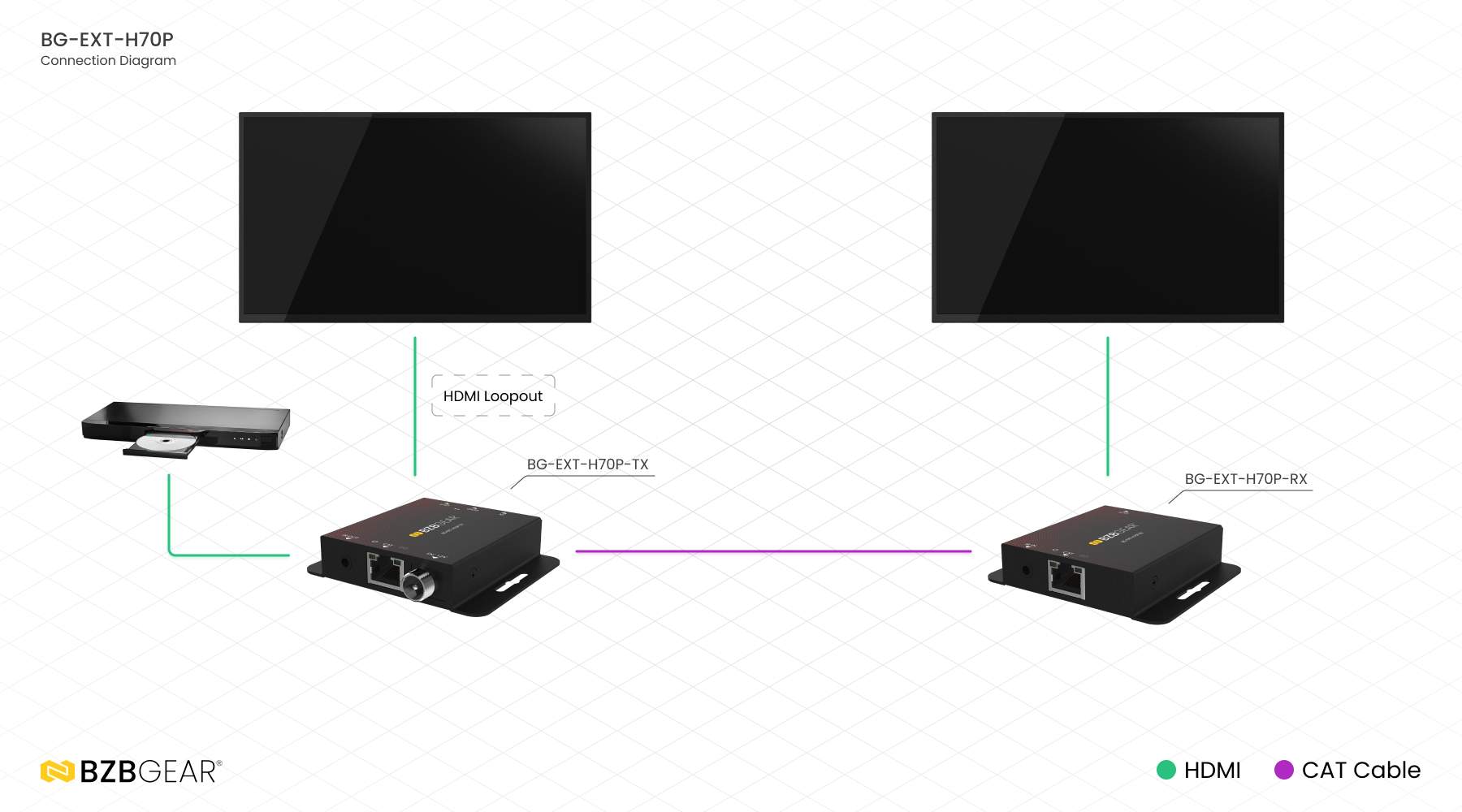

With transmission distances up to 230 feet (70 meters) for 1080p and 131 feet (40 meters) for 4K@30Hz over CAT6, the BG-EXT-H70P ensures reliable signal extension without compromising quality. It features an HDMI loop-out for local monitoring or cascading to additional extenders, EDID copy functionality for flexible compatibility, and one-way IR pass-through for convenient remote control. Power is delivered from transmitter to receiver via PoC (Power over Cable), simplifying installation with fewer cables.

Features

  • material-symbols_shield-lock-outline
    HDCP & DVI Compliance
    Fully compliant with HDCP 1.4 and DVI 1.0 standards
  • bi_badge-4k
    4K Video Support
    Supports resolutions up to 4K@30Hz (YUV 4:4:4)
  • Wide-Angle 1
    Extended Transmission Distance
    Up to 230 ft (1080p) / 131 ft (4K30) over CAT6, and 197 ft (1080p) / 115 ft (4K30) over CAT5e
  • Advanced EDID
    EDID Management
    Supports EDID copy from the receiver’s display or the HDMI loop-out display for reliable signal negotiation
  • Power Over Cable (POC)
    Power over Cable (PoC)
    One-way PoC delivers power from the transmitter to the receiver, simplifying installation
  • IR PASS-THROUGH
    IR Pass-Through
    Supports one-way IR signal transmission
  • Compact Design: Space-saving form factor for clean, flexible, and easy installation in tight spaces
  • Cascading Capability: HDMI loop-out port enables cascading to additional extenders or displays

Tech Specifications

Technical
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Video Bandwidth 10.2Gbps
Video Resolution Up to 4K@30Hz
Audio Support Up to 7.1CH HD audio
Input TMDS Signal 3.3 volts
Input DDC Signal 5.0 volts/P-P
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Input: 1 x IN [HDMI Type A, 19-pin female]
Output: 1 x OUT [HDMI Type A, 19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver Input: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x CAT IN [RJ45, 8-pin female]
Output: 1 x OUT [HDMI Type A, 19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (WxDxH) 3.1in x 2.7in x 0.65in [79.5mm x 69mm x 16.5mm]
Weight Transmitter: 0.29lb [132g], Receiver: 0.29lb [130g]
Power Supply 12V/1A DC
Power Consumption Transmitter: 1.86W, Receiver: 0.87W
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Operating Humidity 20% - 80% RH (no condensation)
Storage Humidity 10% - 90% RH (no condensation)

PACKAGE CONTENTS

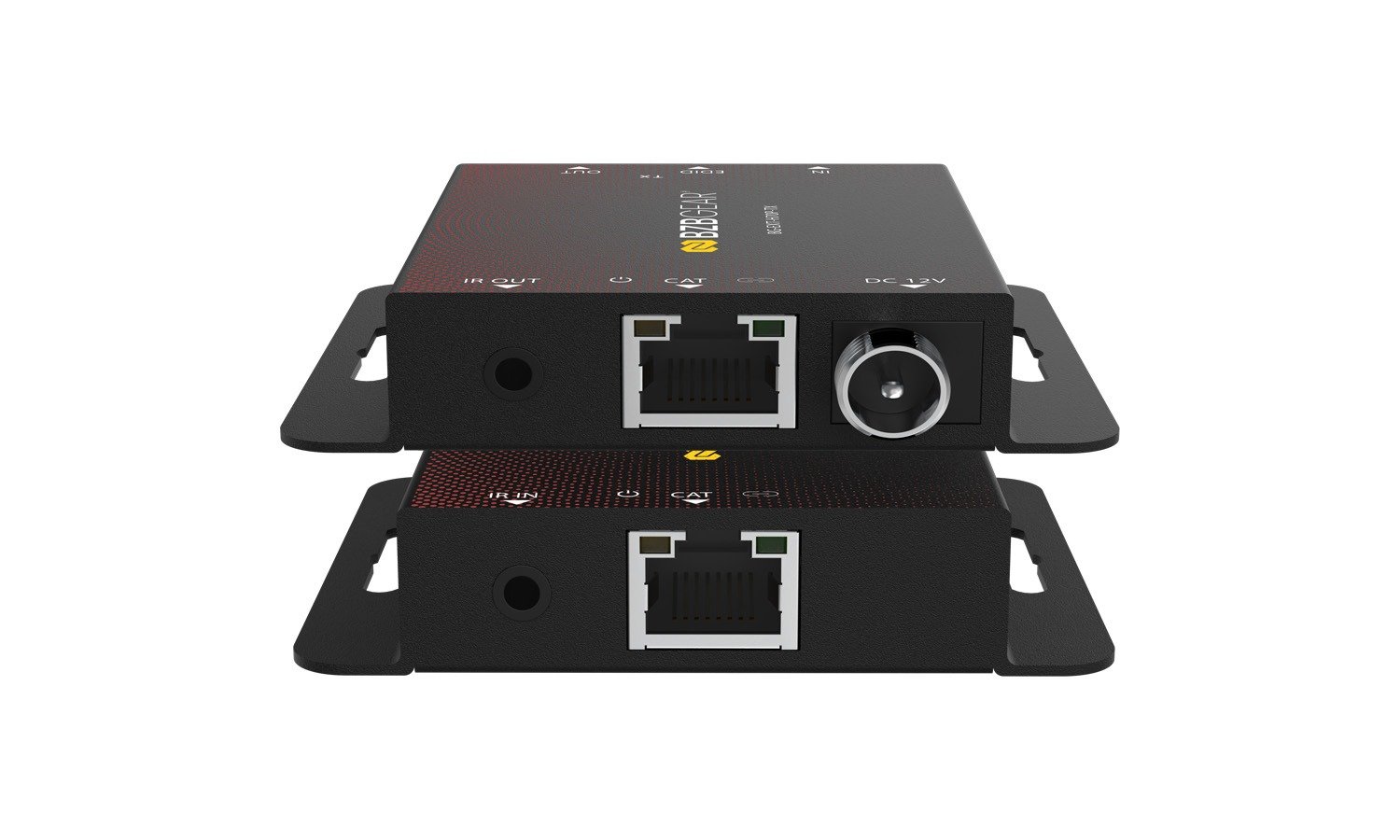

  • 1x HDMI Transmitter
  • 1x HDMI Receiver
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)
  • 1x 12V/1A DC Power Adapter
  • 1x User Manual

Interfaces

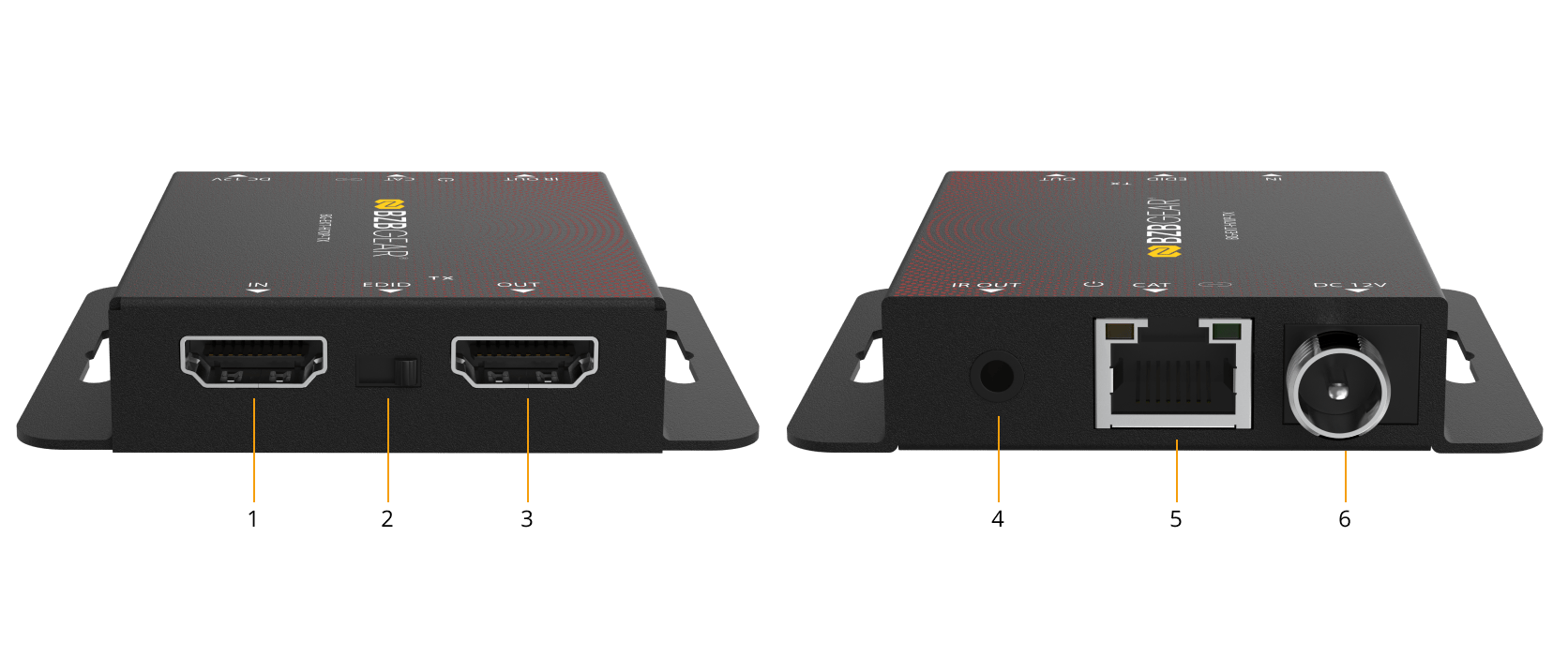

Interfaces image

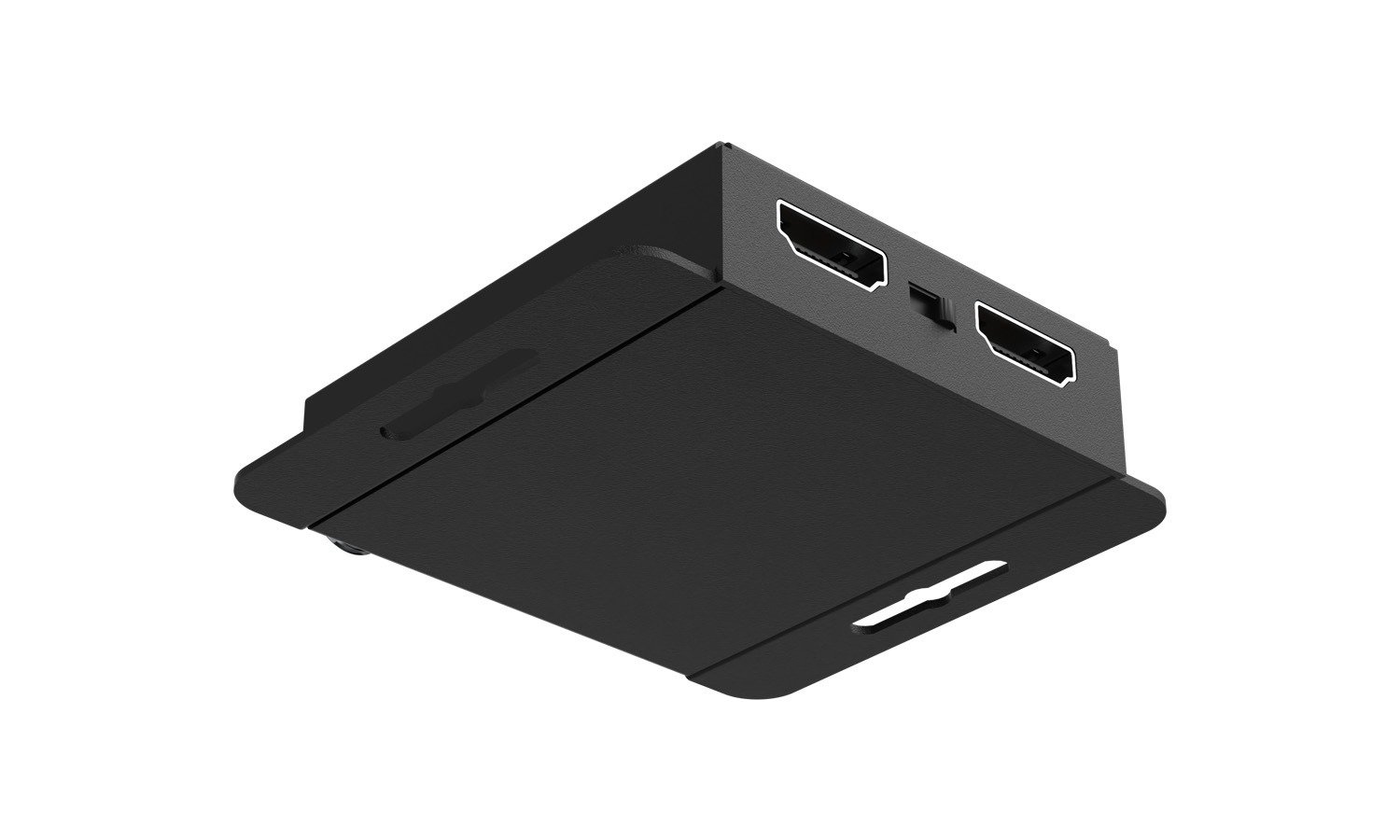

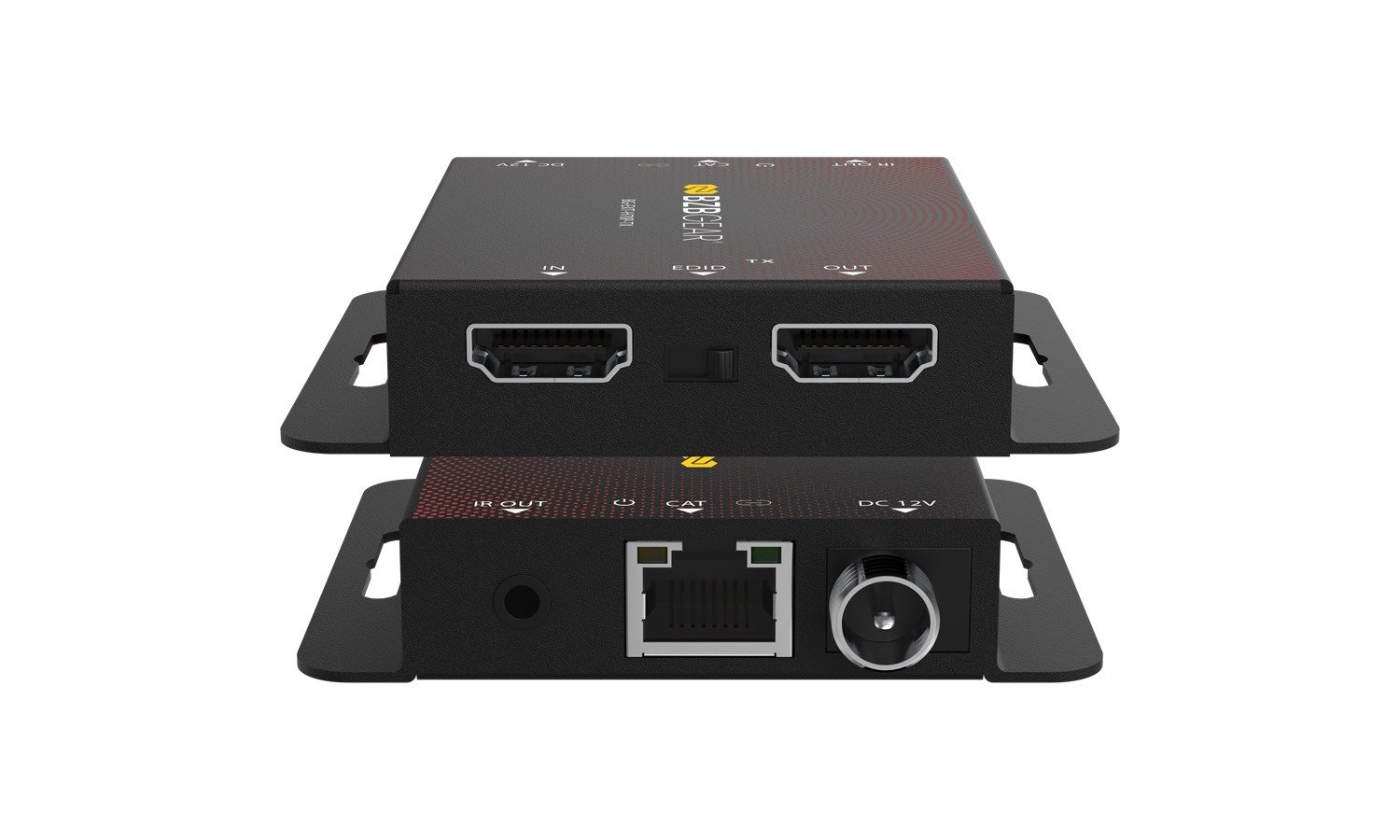

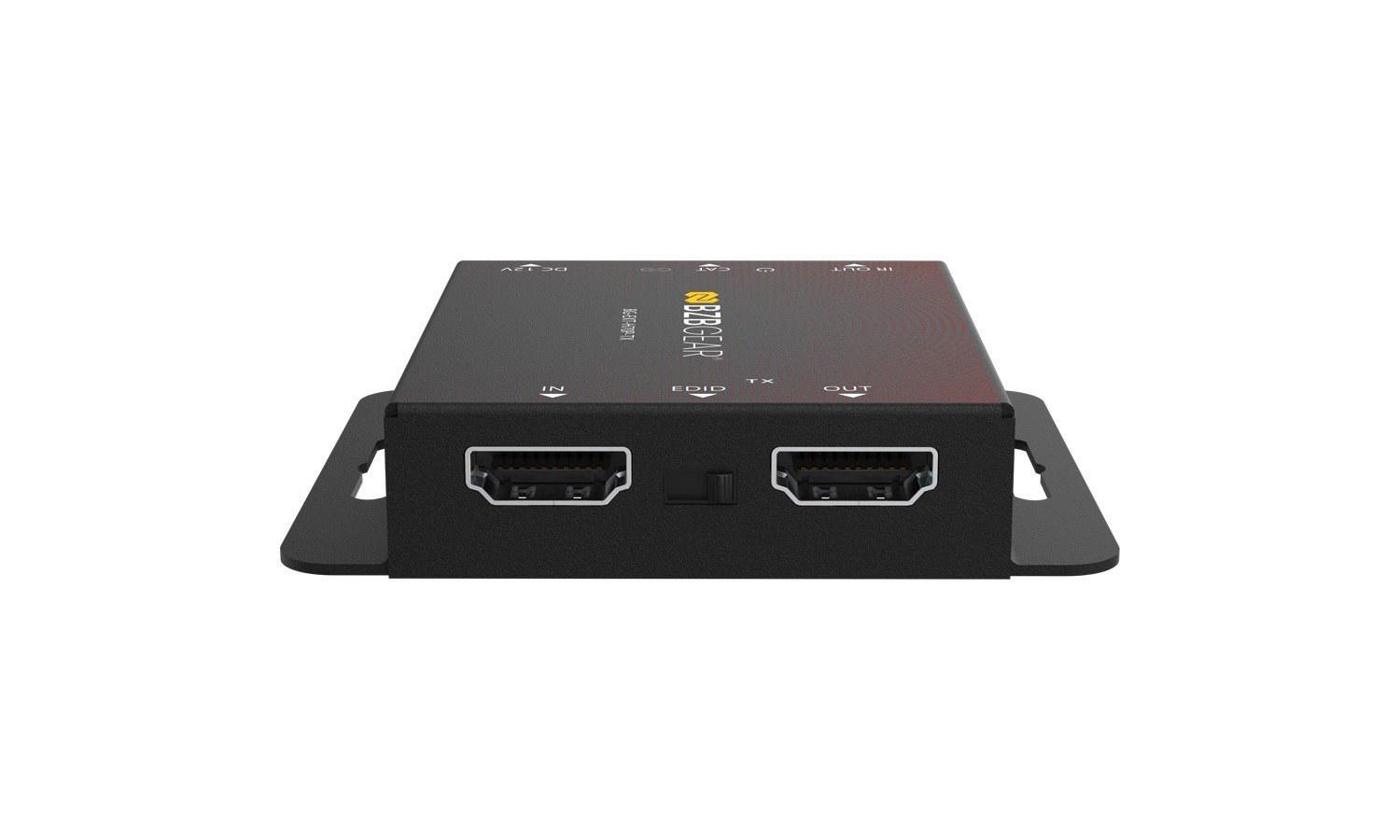

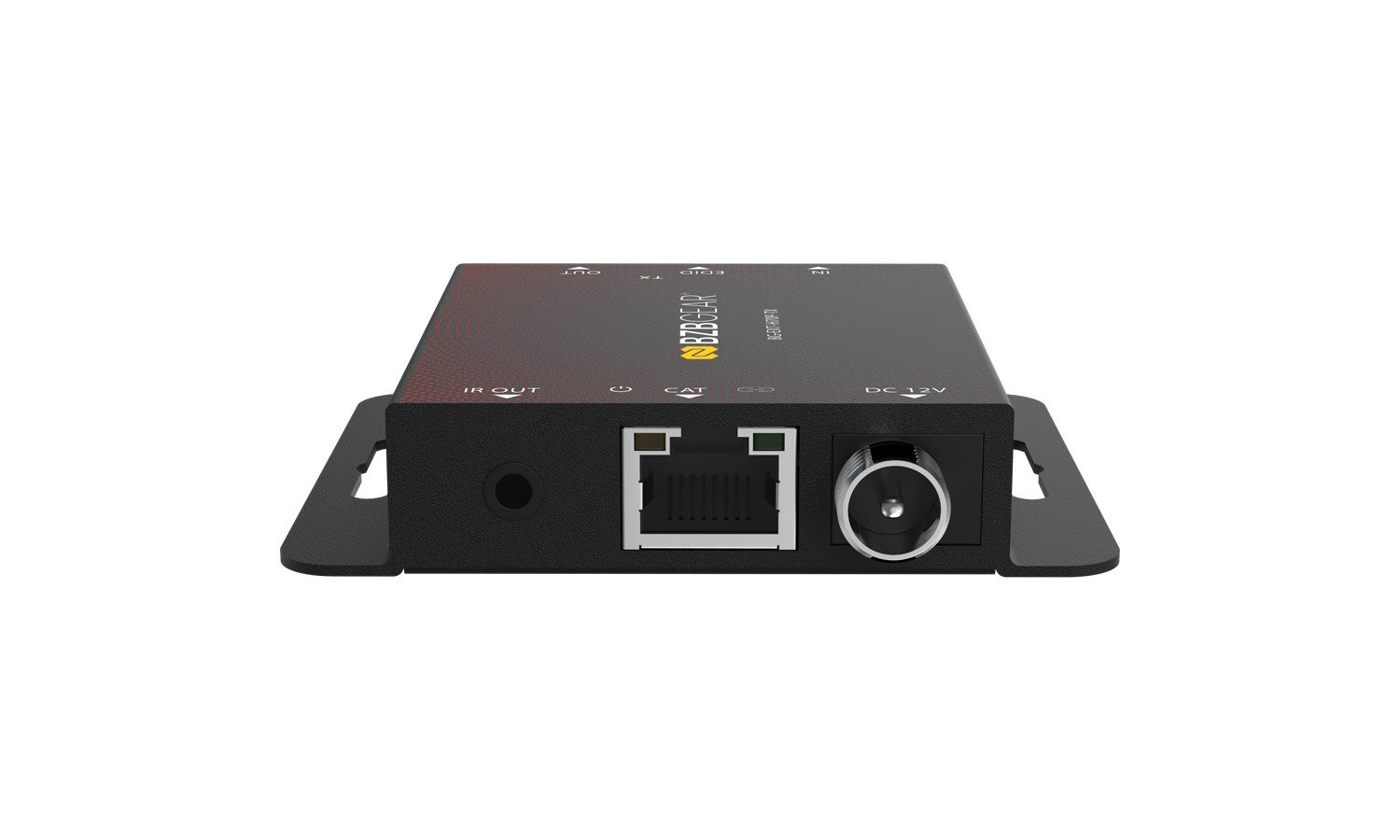

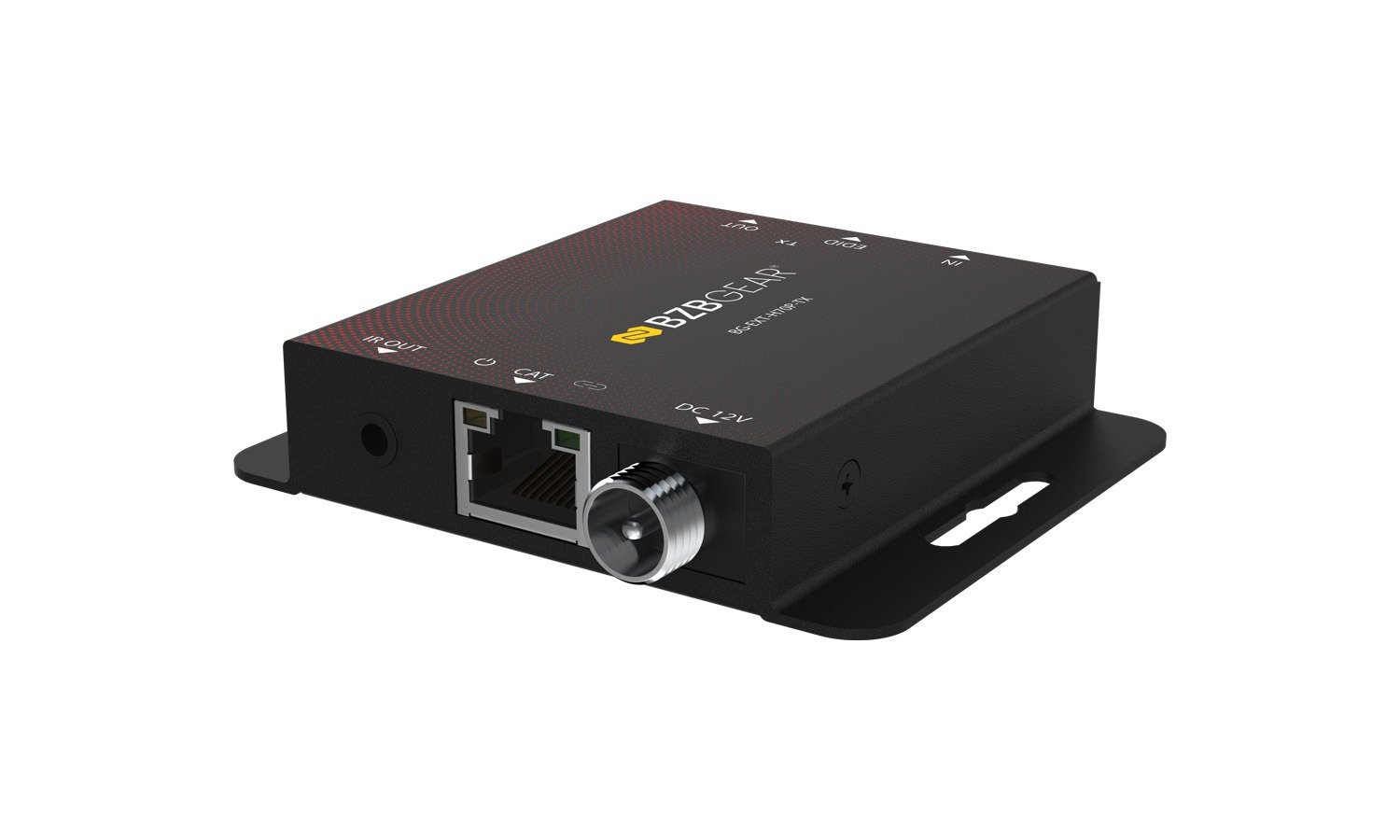

Transmitter

  1. IN Port: HDMI input port. Connect to an HDMI source device such as a DVD player or set-top box.
  2. EDID DIP Switch: Used to select the EDID source:
    • Switch right – the extender copies the HDMI loop-out display’s EDID to the source device.
    • Switch left – the extender copies the receiver display’s EDID to the source device.O
  3. OUT Port: HDMI loop-out port. Connect to an HDMI display device such as an HDTV.

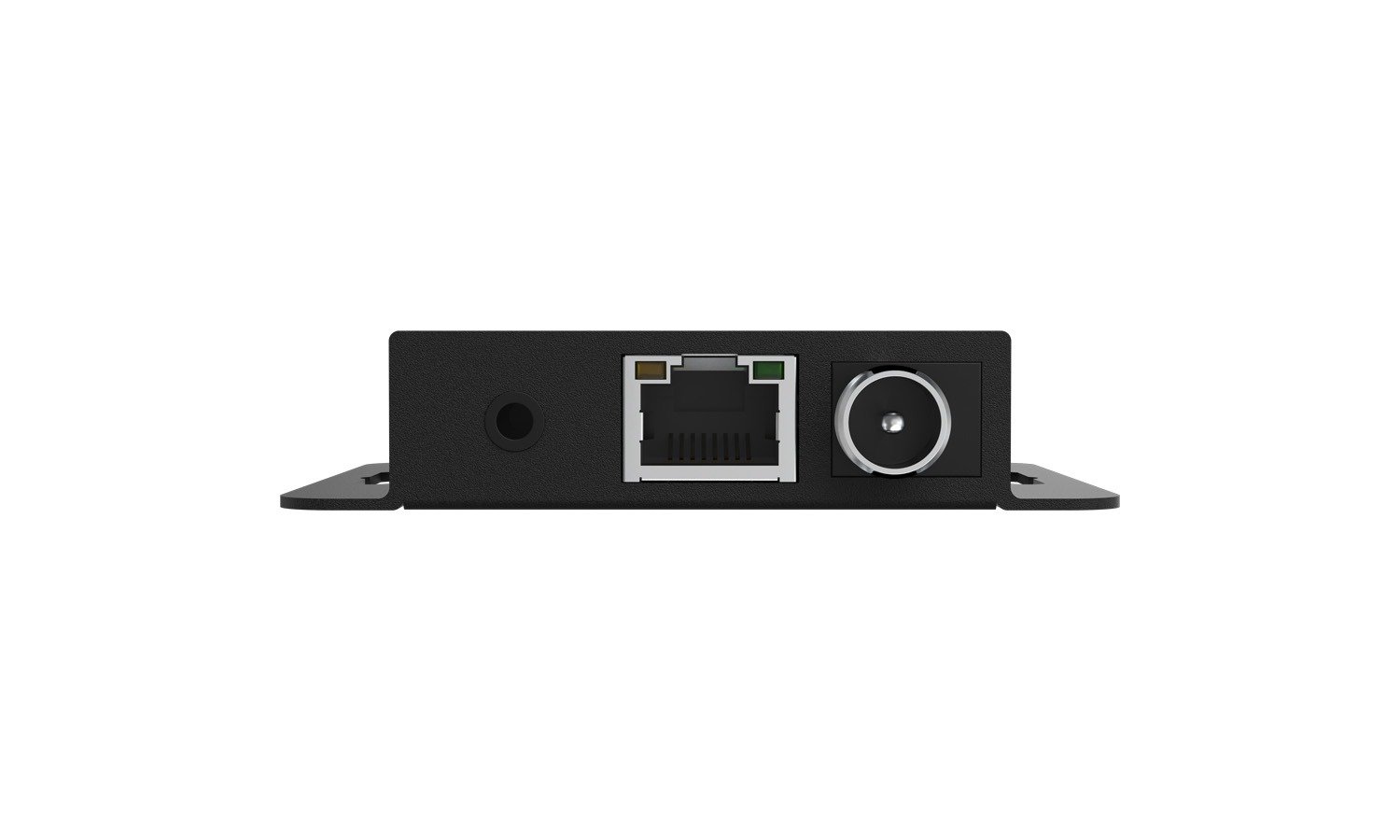

  4. IR OUT Port: Connect to the IR blaster cable. Transmits IR signals received from the IR IN port on the receiver.
  5. CAT Port: CAT output port. Connect to the receiver’s CAT input port using a CAT5E/6 cable.
  6. DC 12V: 12V/1A DC Power port.
Interfaces image

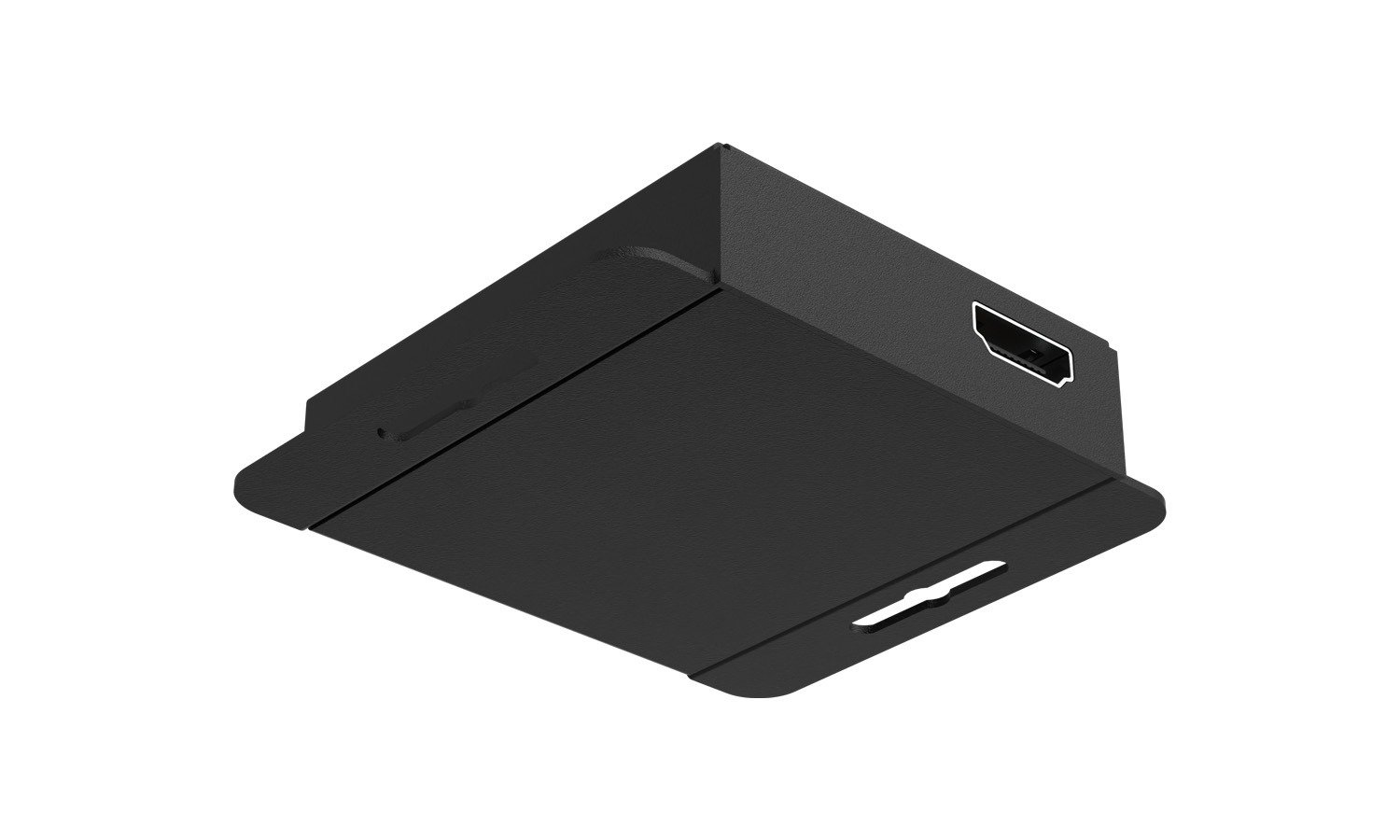

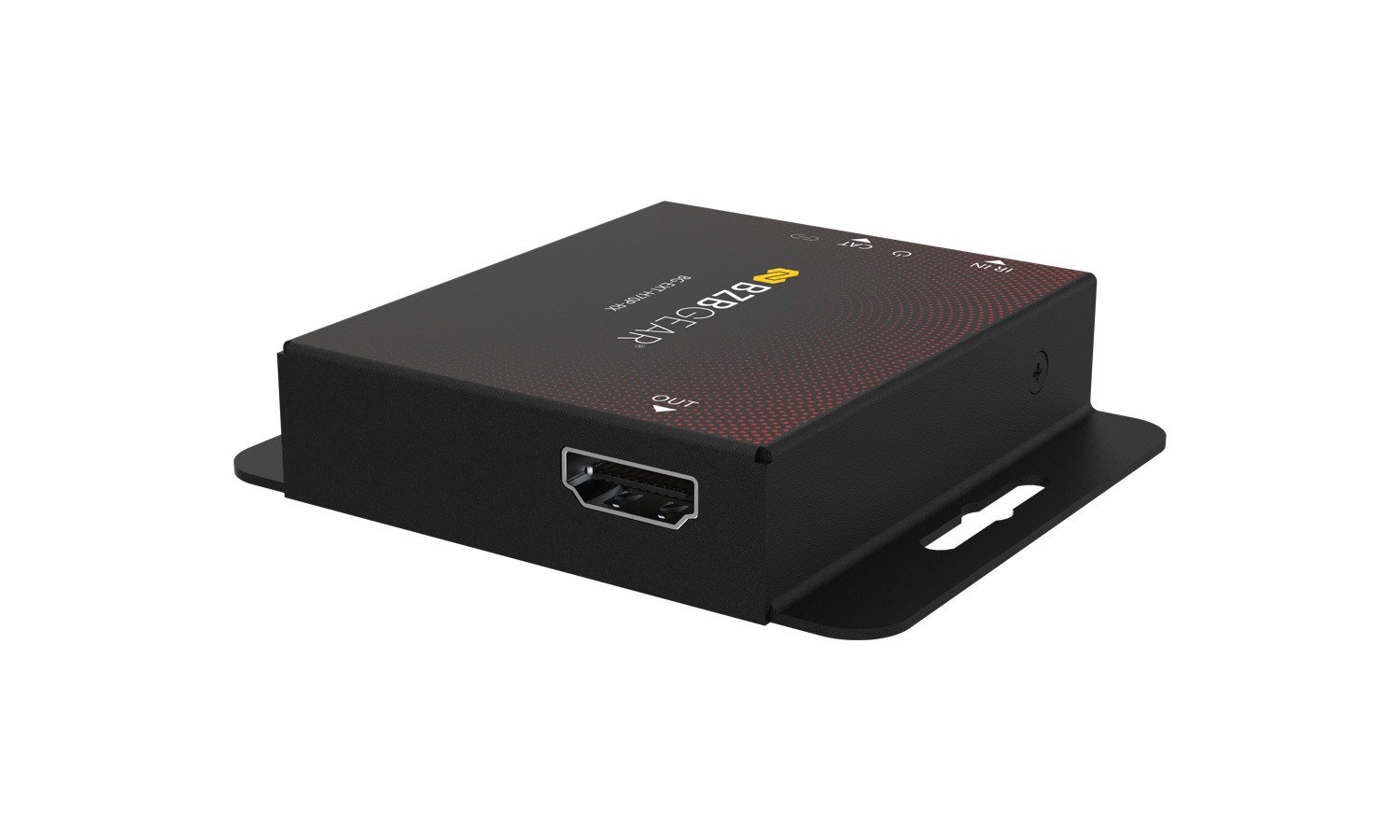

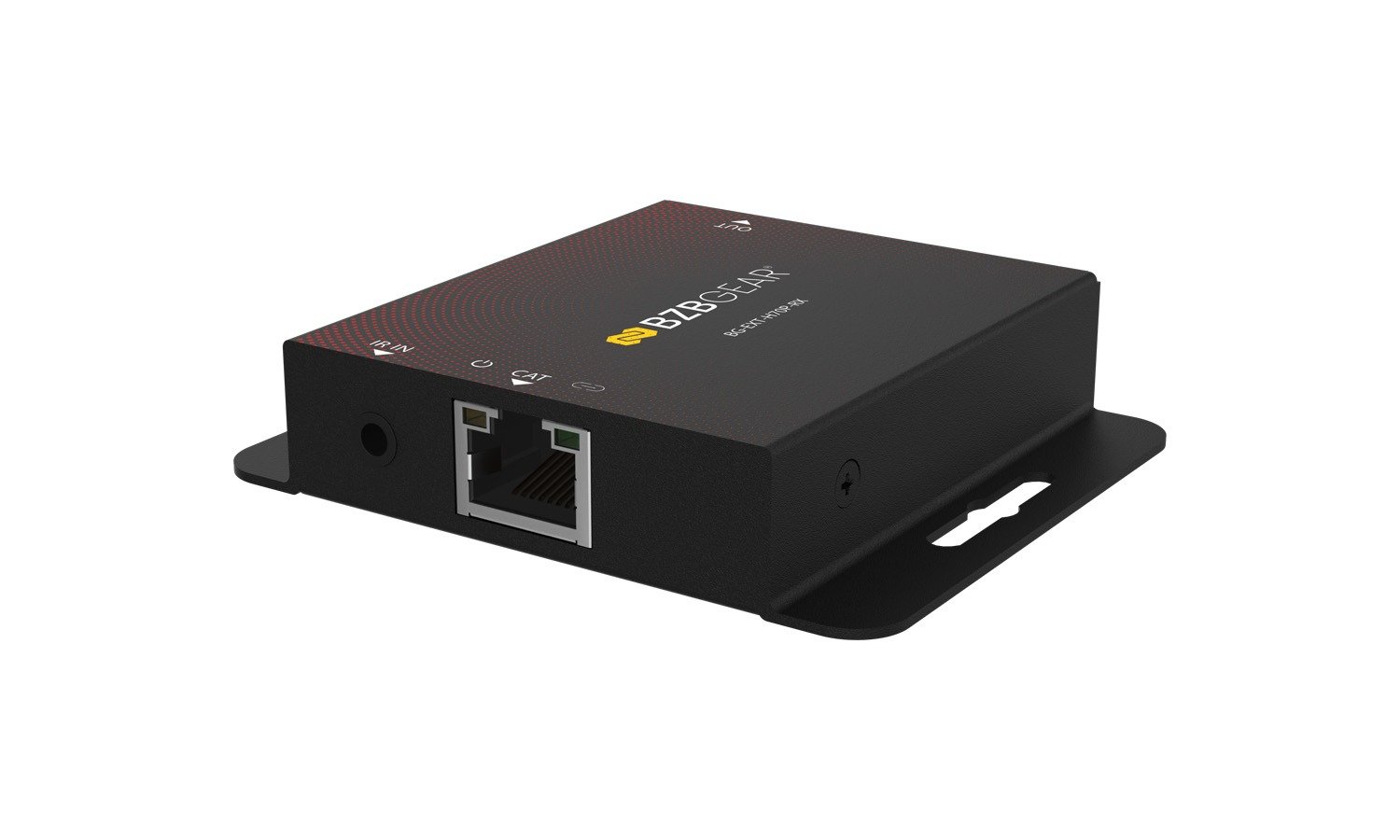

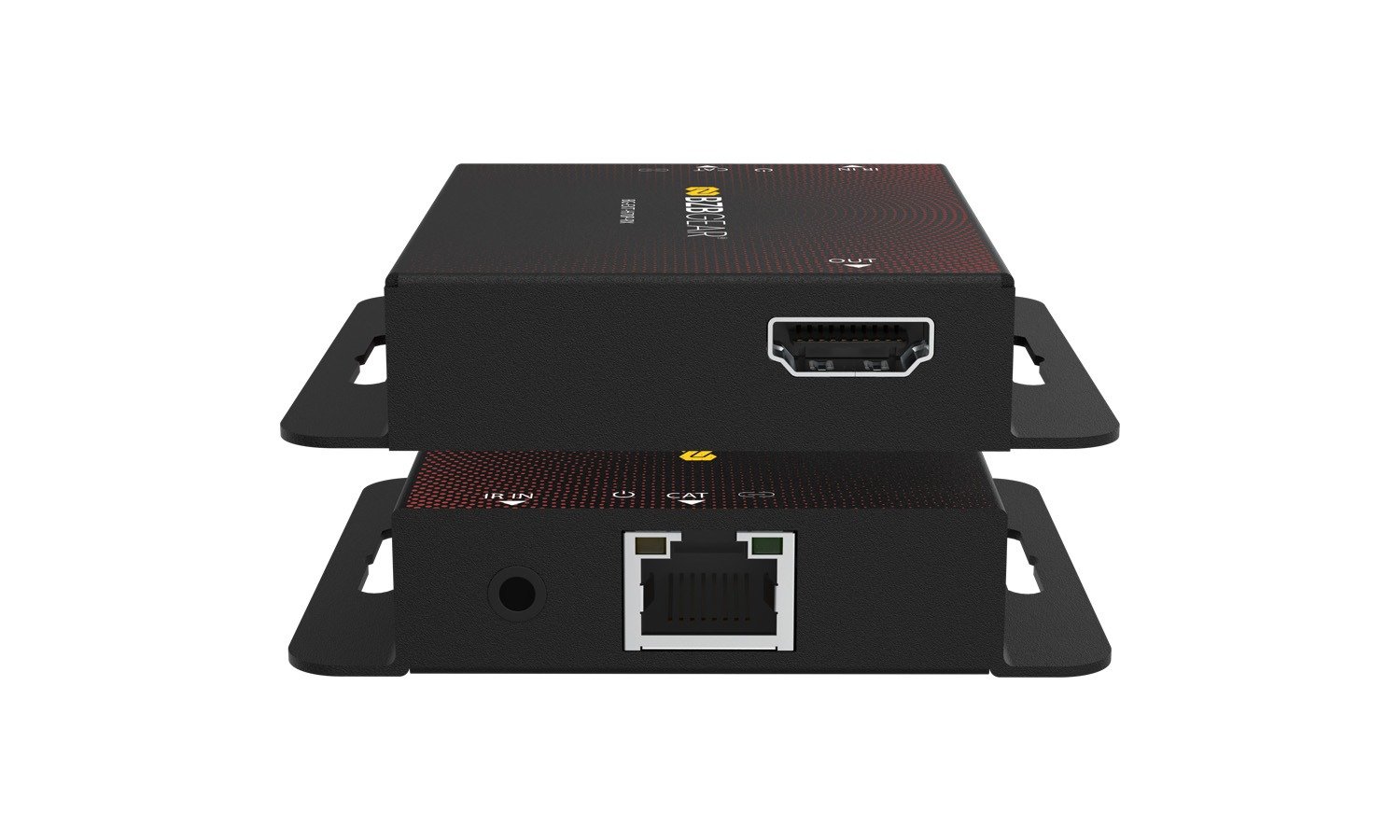

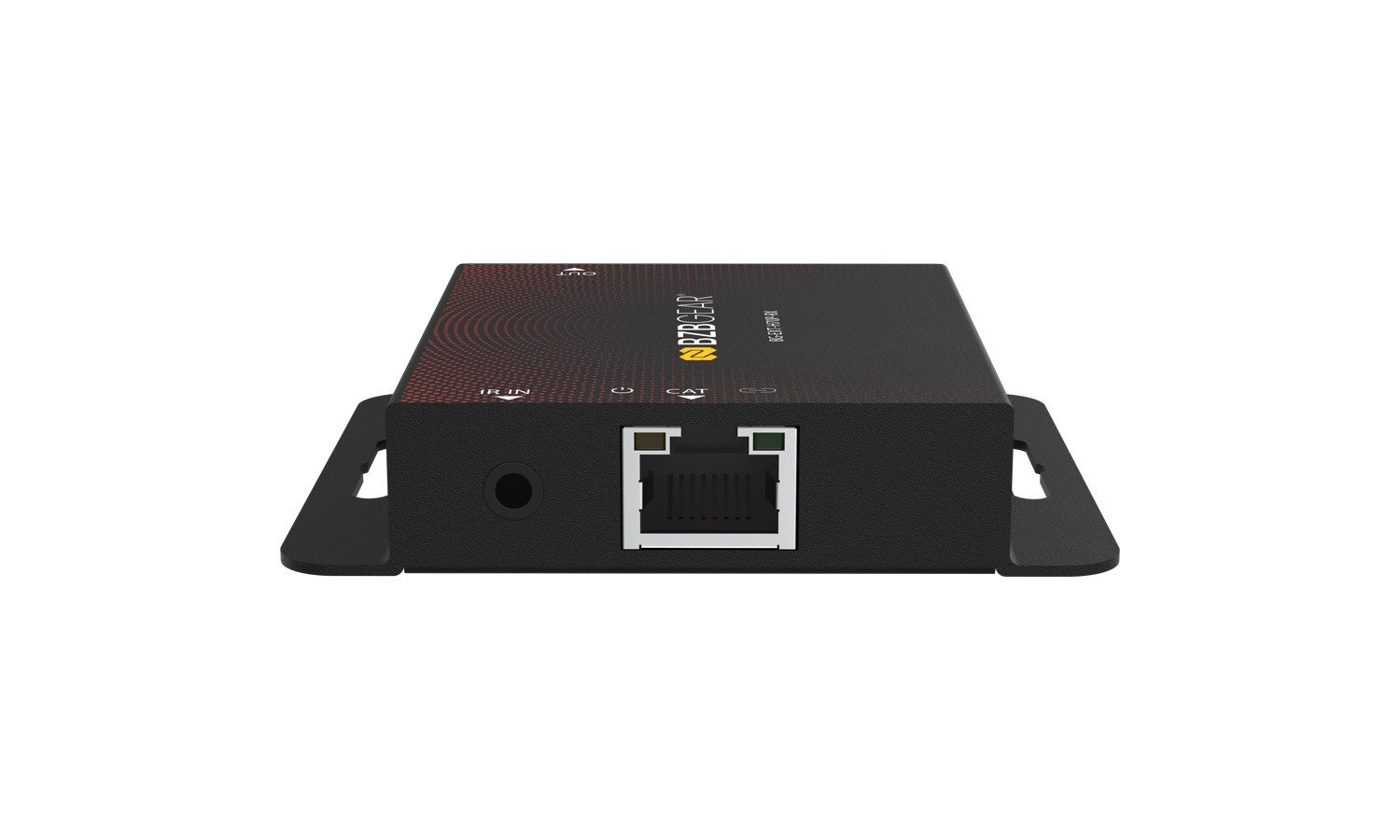

Receiver

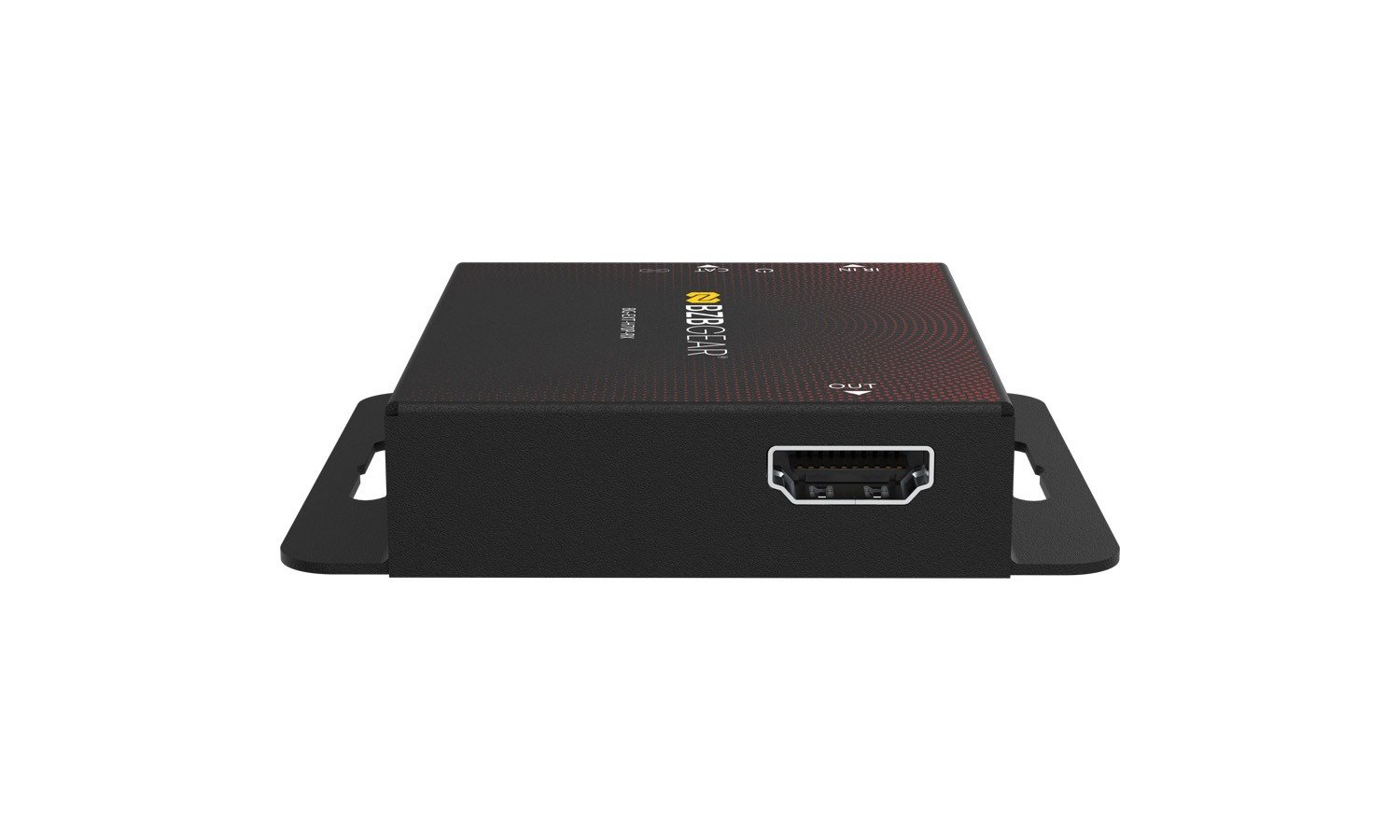

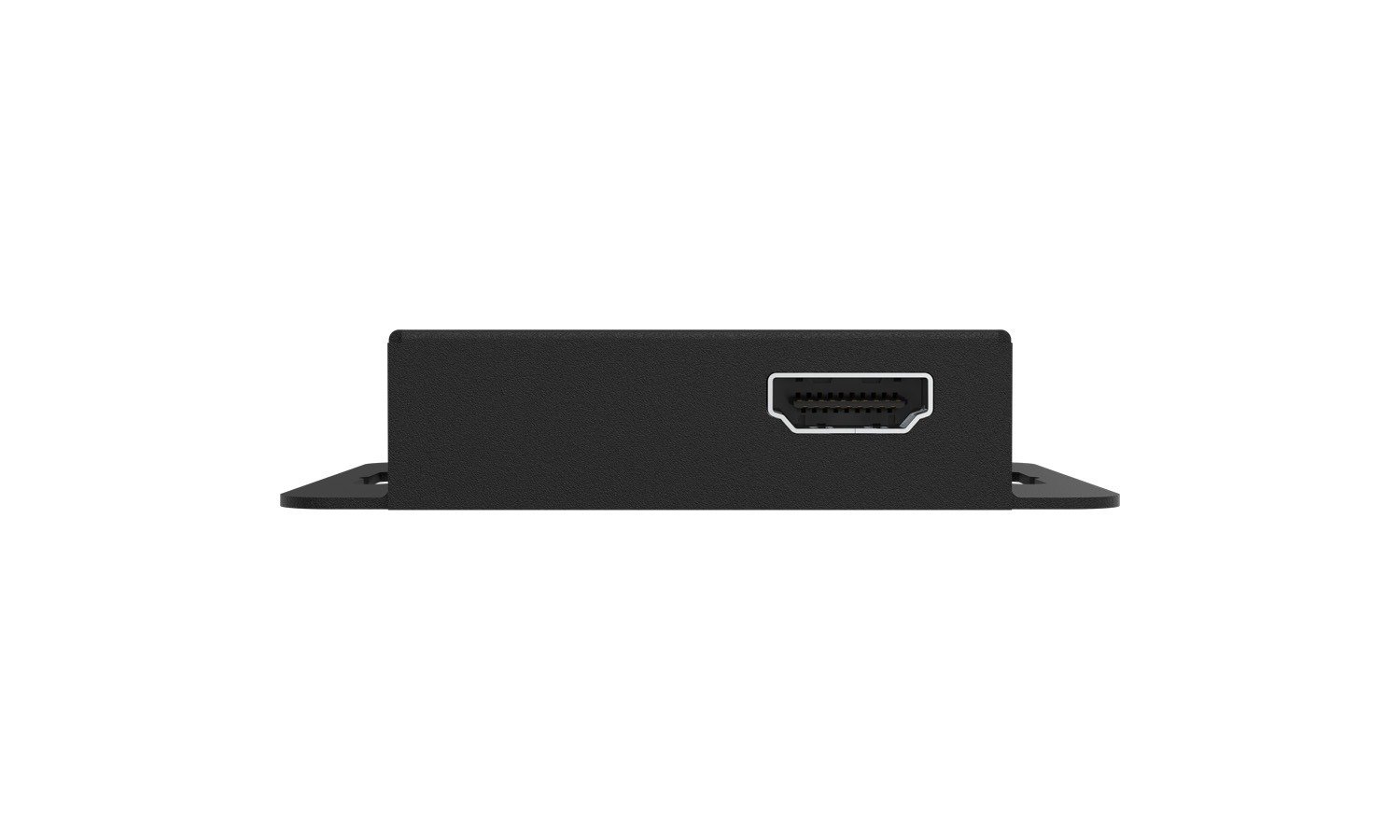

  1. OUT port: HDMI signal output port. Connect to an HDMI display device such as an HDTV.

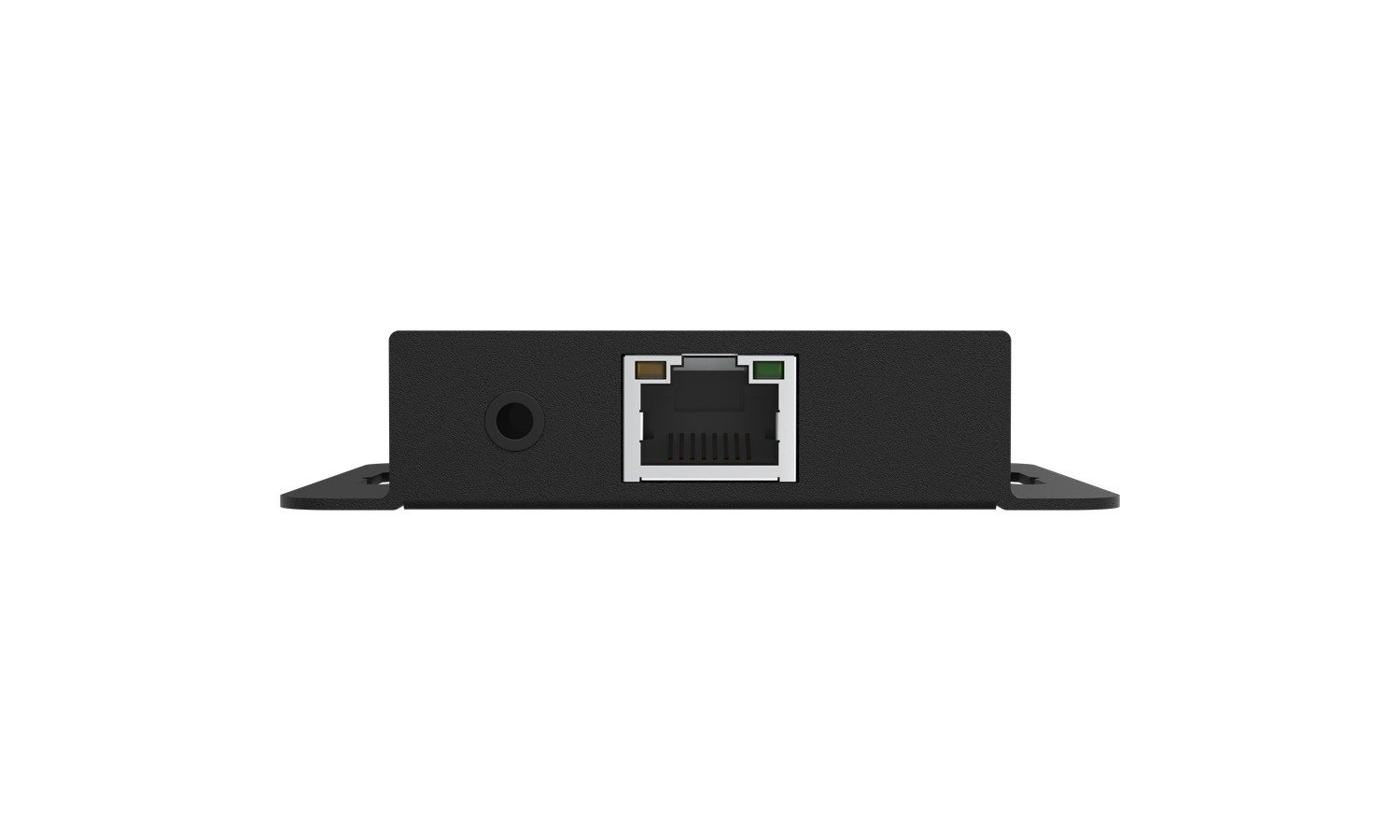

  2. IR IN port: Connect to an IR receiver cable. The IR signal will be transmitted to the IR OUT port on the transmitter.
  3. Power LED: Illuminates when the receiver is powered on.
  4. CAT port: CAT input port. Connect to the CAT output port of the transmitter using a CAT5E/6 cable.
  5. Digital Signal Indicator: Indicates HDMI signal and HDCP status:
    • On: HDMI signal with HDCP.
    • Flashing: HDMI signal without HDCP.
    • Off: No HDMI signal.
