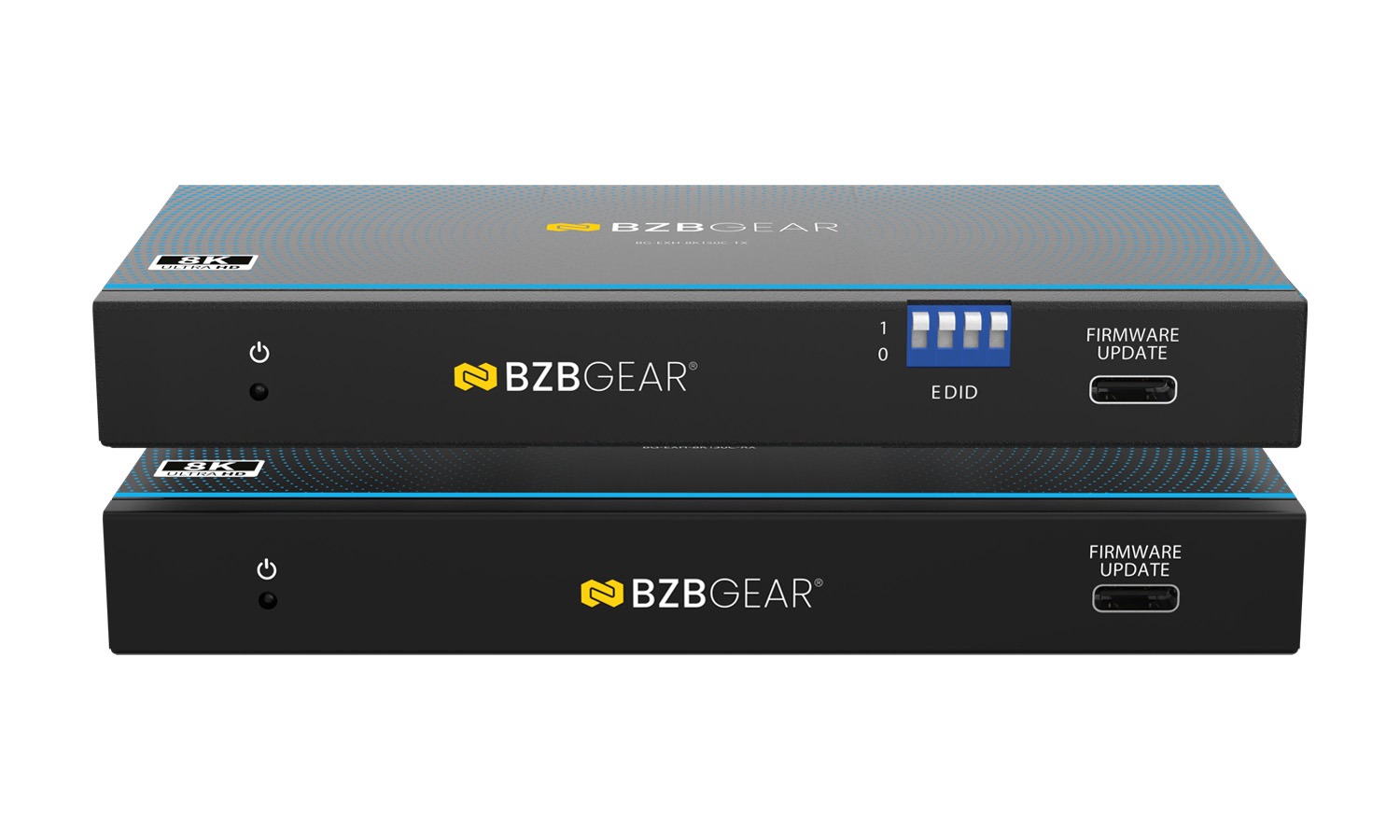

8K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR/RS-232/CEC up to 490ft

ProGear
NEW
BG-EXH-8K150C-1 BG-EXH-8K150C-2 BG-EXH-8K150C-3 BG-EXH-8K150C-4 BG-EXH-8K150C-5 BG-EXH-8K150C-6 BG-EXH-8K150C-7 BG-EXH-8K150C-8 BG-EXH-8K150C-9 BG-EXH-8K150C-10 BG-EXH-8K150C-11
BG-EXH-8K150C-1
BG-EXH-8K150C-2
BG-EXH-8K150C-3
BG-EXH-8K150C-4
BG-EXH-8K150C-5
BG-EXH-8K150C-6
BG-EXH-8K150C-7
BG-EXH-8K150C-8
BG-EXH-8K150C-9
BG-EXH-8K150C-10
BG-EXH-8K150C-11
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

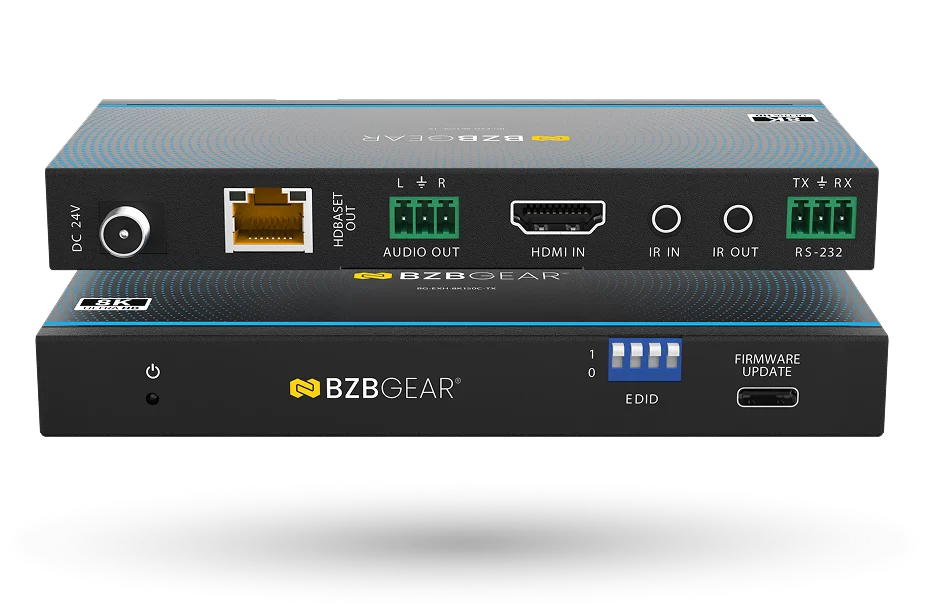

Overview

Experience superior long-distance AV performance with this high-performance 8K HDBaseT extender, engineered to transmit HDMI, RS-232, and IR signals over a single twisted pair cable. With support for up to 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) video formats, this extender ensures uncompromised signal integrity and crystal-clear visuals across professional AV setups, control rooms, and home theater installations.

Built for reliability and versatility, the system seamlessly converts HDMI and control signals for efficient HDBaseT transmission, restoring them at the receiver end with zero quality loss. Offering flexible control options, robust audio support, and advanced gaming and HDR compatibility, this extender is the perfect solution for high-performance, long-distance AV distribution.

Features in Depth

The BG-EXH-8K150C 8K HDBaseT extender is designed to deliver exceptional signal fidelity across extended distances while maintaining full compliance with HDMI 2.1 and HDCP 2.3 standards. It provides transmission ranges of up to 90m (295ft) for 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4), 120m (394ft) for 4K@60Hz (4:4:4), and 150m (492ft) for 1080p resolutions using a single CAT cable. With video bandwidth up to 40Gbps FRL and 18Gbps TMDS, users can expect smooth, artifact-free playback even in demanding high-resolution environments.

Engineered for flexible integration, this extender supports bi-directional IR, RS-232, and CEC control pass-through, enabling seamless communication between connected devices. Advanced re-clocking technology ensures stable HDMI performance by correcting signal degradation, improving compatibility, and resolving HDCP handshake issues. Both the transmitter and receiver also support analog audio de-embedding, allowing users to extract and route audio independently to external sound systems.

For modern AV environments, the extender supports an extensive range of video and audio standards - including HDR10, HDR10+, Dolby Vision, and HLG - as well as immersive sound formats such as Dolby Atmos, TrueHD, and DTS-HD Master Audio. Additionally, Power over Cable (PoC) simplifies installation by powering both the transmitter and receiver from a single power source, minimizing cable clutter and enhancing deployment flexibility.

Features

  • Wide-Angle 2
    8K & 4K Long-Distance Transmission
    Transmits 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) signals up to 90m (295ft), 4K@60Hz up to 120m (394ft), and 1080p up to 150m (492ft) via CAT cable for reliable, long-range performance
  • Standards Compliance
    HDMI 2.1 & HDCP 2.3 Compliance
    Fully compliant with the latest HDMI and content protection standards, ensuring secure and consistent transmission across all compatible devices
  • 8K@30Hz and 4K@120Hz
    Ultra-High Bandwidth Support
    Delivers up to 40Gbps FRL and 18Gbps TMDS, supporting next-generation 8K and high-frame-rate 4K video without signal loss or latency
  • fluent_zoom-fit-24-filled
    Comprehensive Control Integration
    Supports bi-directional IR, RS-232, and CEC pass-through, enabling full device control and automation through a single cable connection
  • Audio Formats
    Advanced Audio & HDR Support
    Handles top-tier audio formats like Dolby Atmos, DTS-HD Master Audio, and TrueHD, plus HDR formats including HDR10, HDR10+, Dolby Vision, and HLG for vivid, lifelike visuals
  • Plug-and-Play Setup
    Power over Cable (PoC)
    Simplifies installation by providing bi-directional PoC, allowing both units to be powered through one connection, reducing setup time and power supply requirements
  • Broad Resolution Compatibility: Supports video resolutions from VGA to 8K@30Hz, covering both legacy and cutting-edge displays
  • HDMI Re-clocking: Improves signal stability, resolves HDCP issues, and ensures consistent performance over long distances
  • Audio De-embedding: Extracts analog audio output on both the transmitter and receiver for flexible audio routing
  • Gaming Optimization: Supports VRR, FVA, and ALLM for ultra-smooth, tear-free gameplay experiences
  • Professional-Grade Reliability: Designed for use in professional AV installations, conference rooms, control systems, and high-end entertainment setups
  • User-Friendly Setup: Plug-and-play functionality with intuitive connection indicators ensures easy installation and maintenance

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 40Gbps FRL and 18Gbps TMDS
Video Resolution (Input & Output) Up to 8K@30Hz (4:4:4)
All available resolutions are shown as follow
IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
HDR Formats HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats LPCM 2.0 / 5.1 / 7.1 (32K–192KHz, 16/20/24-bit); Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
Transmission Distance 150m/492ft for 1080p;
120m/394ft for 4K@60Hz;
90m/295ft for 8K@30Hz over CAT6 cable
ESD Protection IEC 61000-4-2: ±8kV (Air-gap) & ±4kV (Contact)
Connections (Transmitter) 1x HDMI IN (Type A, 19-pin), 1x HDBT OUT (RJ45, 8-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)
Connections (Receiver) 1x HDBT IN (RJ45, 8-pin), 1x HDMI OUT (Type A, 19-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)
Mechanical
Housing Metal enclosure
Color Black
Dimensions (LxWxH) 5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
Weight 0.53 lbs [240g] (Transmitter/Receiver)
Power Supply DC 24V/1A; Supports bi-directional PoC
Power Consumption Transmitter: 11.28W; Receiver: 10.8W
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity 20%~80% (non-condensing)
Storage Humidity 10%~90% (non-condensing)

Supported Resolutions

Resolution Resolution Resolution
480i60Hz 1280x800p60/75/85/120Hz 3840x2160p 24/25/30/50/60/100/120Hz
480p60Hz 1280x960p60/85Hz 3840x2160p24/25/30/50/60Hz
576i50Hz 1280x1024p60/75/85/96Hz 4096x2160p 24/25/30/50/60/100/120Hz
576p50Hz 1360x768p60Hz 4096x2160p 23.976/24/25/30/50/59.94/60Hz
720x480p60Hz 1366x768p60/24/25/30Hz 5120x2160p30/59/60Hz
720x576p50Hz 1400x788p60Hz 5120x2160p75/100Hz
720p50/60/24/25/30Hz 1400x1050p60Hz 7680x4320p24/25/30Hz
720x720p 24/25/30/50/60/100/120Hz 1440x900p60/75/85Hz 1920x2160p60Hz
1080i50/60Hz 1440x960p50/60(RB) 2560x1080p24/25/30/50/60Hz
1080p 24/25/30/50/60/100/120Hz 1600x900p60/24/25/30Hz 2560x1440p60(RB)
1920x1080p 120/100/60/50/24/25/30Hz 1600x1024p60/24/25/30Hz 2560x1600p60/75/85/60(RB)
1920x1200p50/60Hz 1600x1200p 50/60/65/70/75/85/24/25/30Hz 2560x2048p60Hz
1920x1440p60/75Hz 1680x720p 24/25/30/50/60/100/120Hz 3440x1440p60Hz
1680x1050p 50/60/24/25/30Hz 1680x1050p50/60/24/25/30Hz 1856x1392p60/75Hz
1792x1344p60/75Hz 1920x1080i60/50/i30Hz 1920x1200p50/60Hz
1152x864p75Hz 1152x870p75Hz 1024x768p60/70/75/85Hz
852x480p60Hz 848x480p60Hz 1024x576p60Hz
832x624p75Hz 720x400p70/85Hz 640x480p59.94/60/67/72/75/85Hz
640x350p85Hz 640x400p85Hz -

Resources

Documents
Download Download Manual

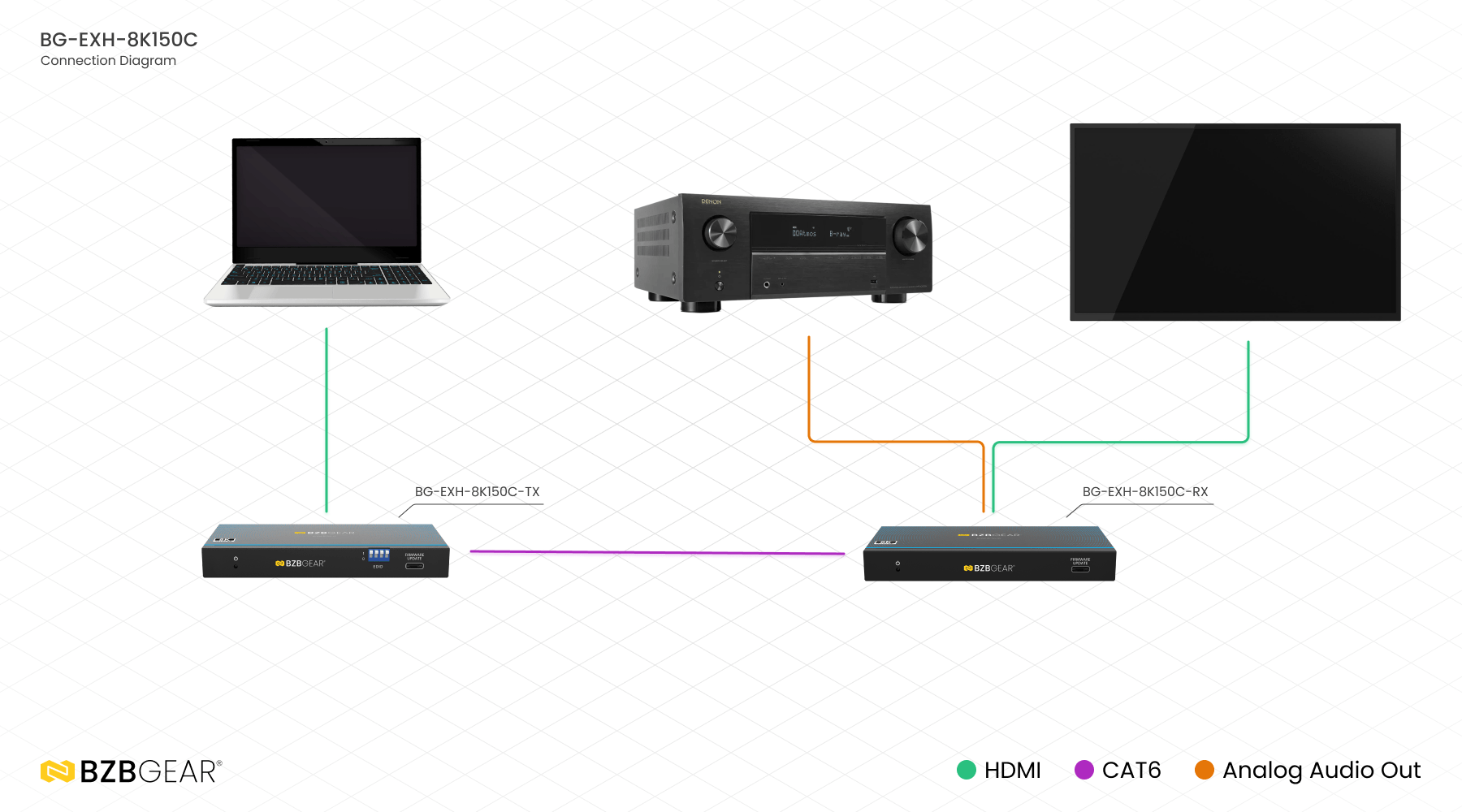

Download See Diagram

PACKAGE CONTENTS

  • 1x 8K HDMI over HDBaseT Extender (Transmitter)
  • 1x 8K HDMI over HDBaseT Extender (Receiver)
  • 1x IR Blaster Cable (1.5m)
  • 1x IR Wideband Receiver Cable (1.5m)
  • 4x 3pin-3.5mm Phoenix Connector
  • 1x 24V/1A Locking Power Supply
  • 4x Mounting Ear
  • 8x Machine Screw (KM3*4)
  • 1x User Manual

Interfaces

Interfaces image

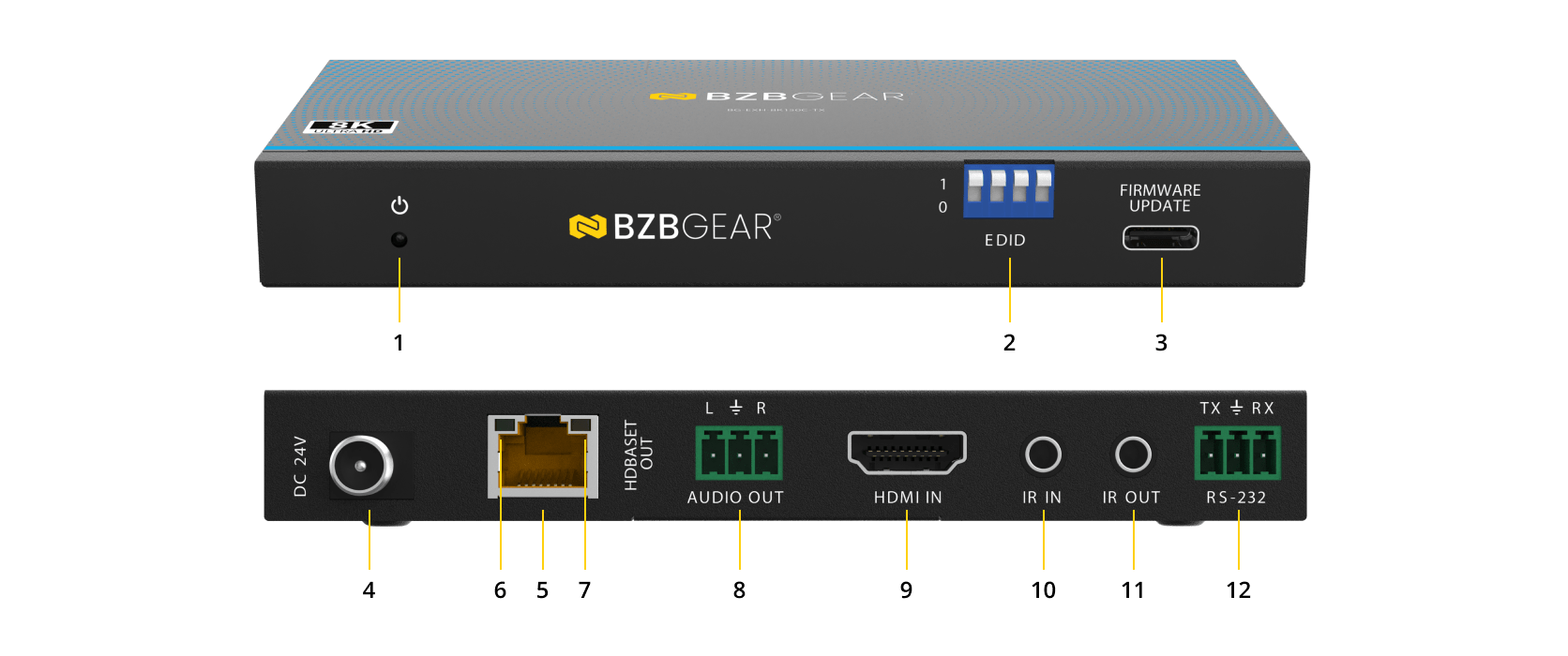

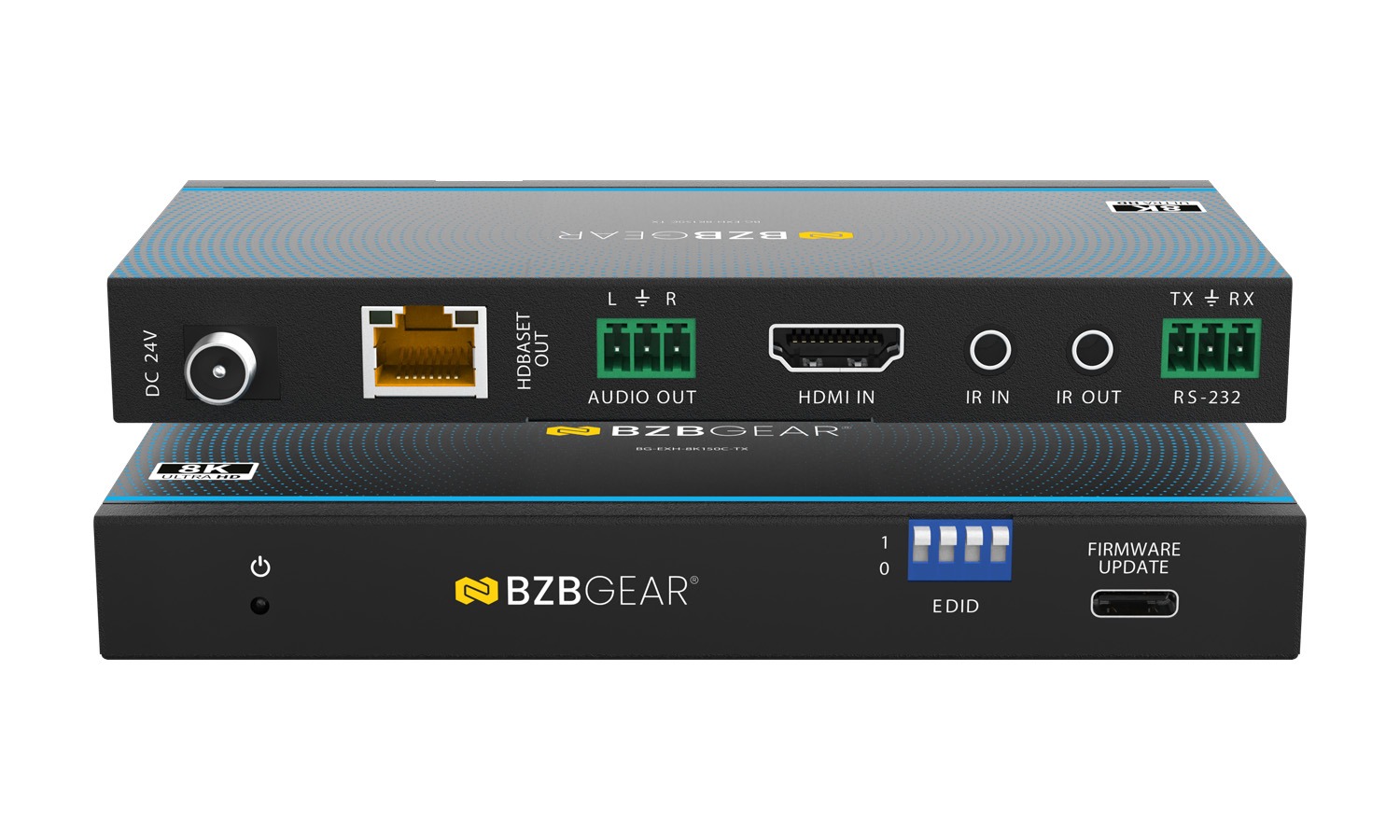

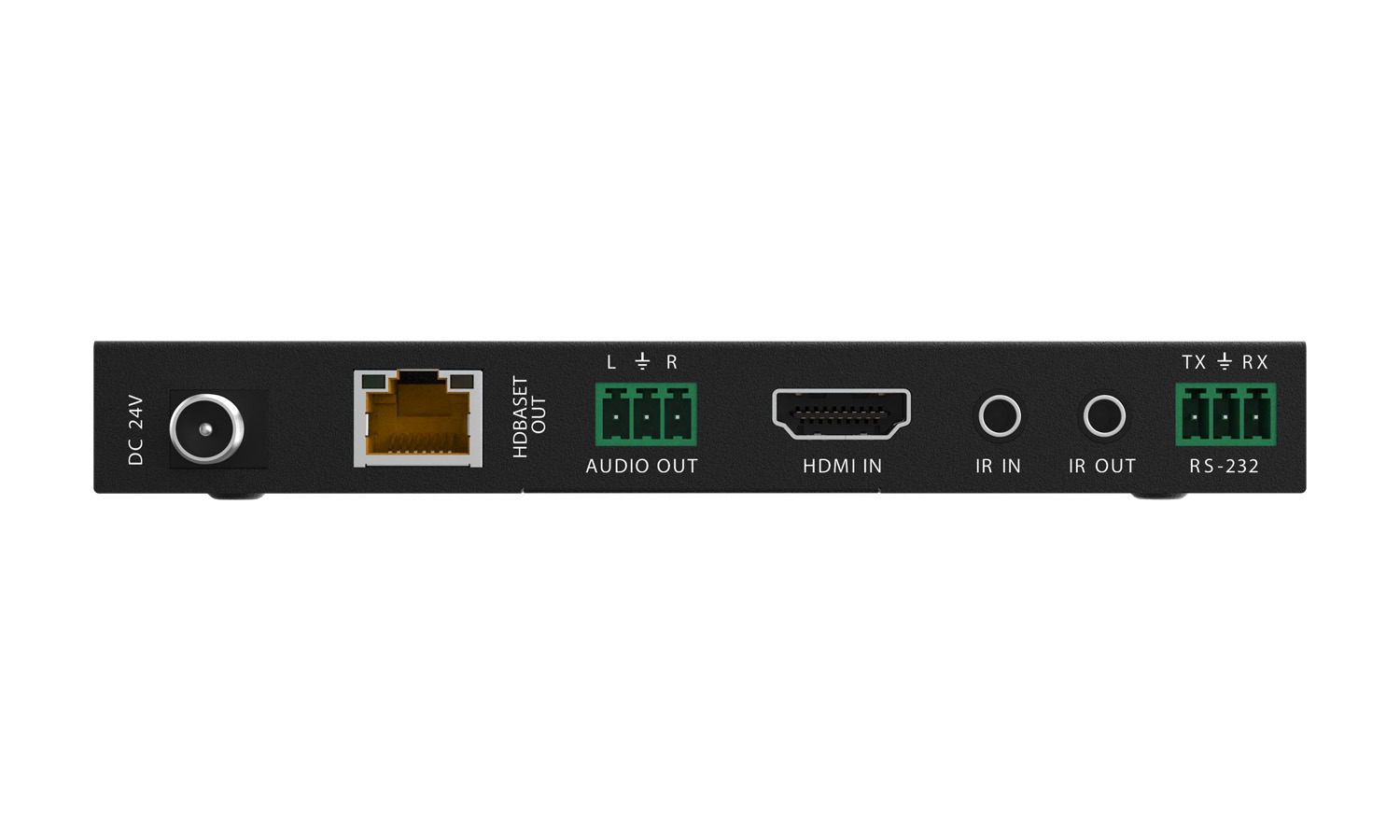

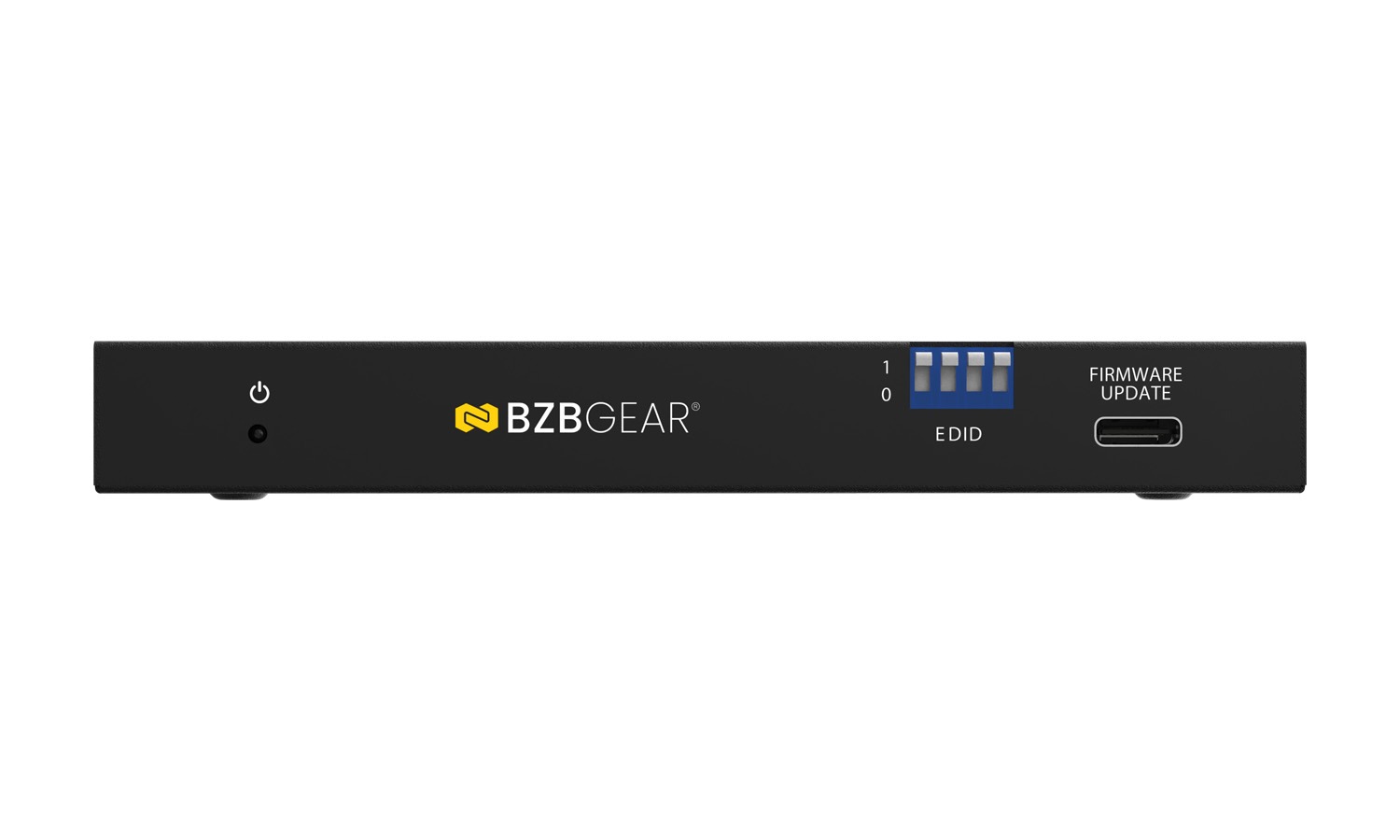

Transmitter

  1. PWR LED: The green LED is on when the Transmitter is powered on.

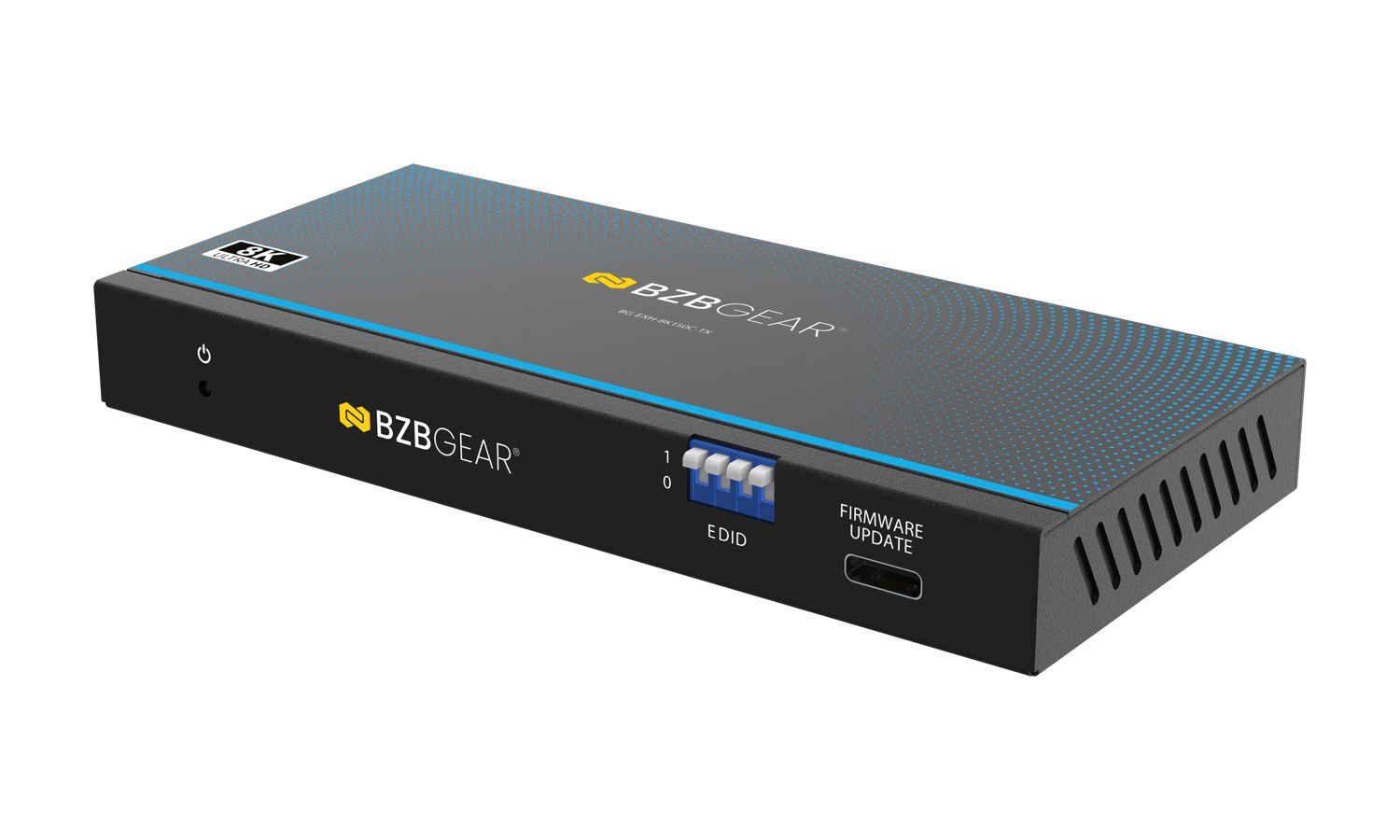

  2. EDID DIP Switch: Used for EDID setting. EDID setting list is shown as follow.
  3. SERVICE: USB-C port, used to debug serial and update firmware.
  4. DC 24V: DC 24V/1A power input port. Note: the extender supports POC function, meaning that either the Transmitter or Receiver is connected to 24V/1A power supply, the other doesn’t need power.
  5. HDBT OUT: HDBT output port, connected to the HDBT IN port of the Receiver with CAT6 cable.
  6. Link Signal Indicator (Green):
    On: Transmitter and Receiver are connected and linked.
    Off: Transmitter and Receiver are not connected.
  7. Data Signal Indicator (Yellow):
    On: HDMI signal with HDCP. Flashing: HDMI signal without HDCP.
    Off: No HDMI signal.
  8. AUDIO OUT (L/R): Analog audio output port, supporting unbalanced audio output with a maximum of 1Vrms. Unbalanced connection method: L+, R+.
  9. HDMI IN: HDMI signal input port, connected to source device with HDMI cable.
  10. IR IN: Connects to IR receiver cable. The IR signal will be emitted to the IR OUT port of the Receiver.
  11. IR OUT: Connects to IR blaster cable. The IR signal is from the IR IN port of the Receiver.
  12. RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command transmission.
Interfaces image

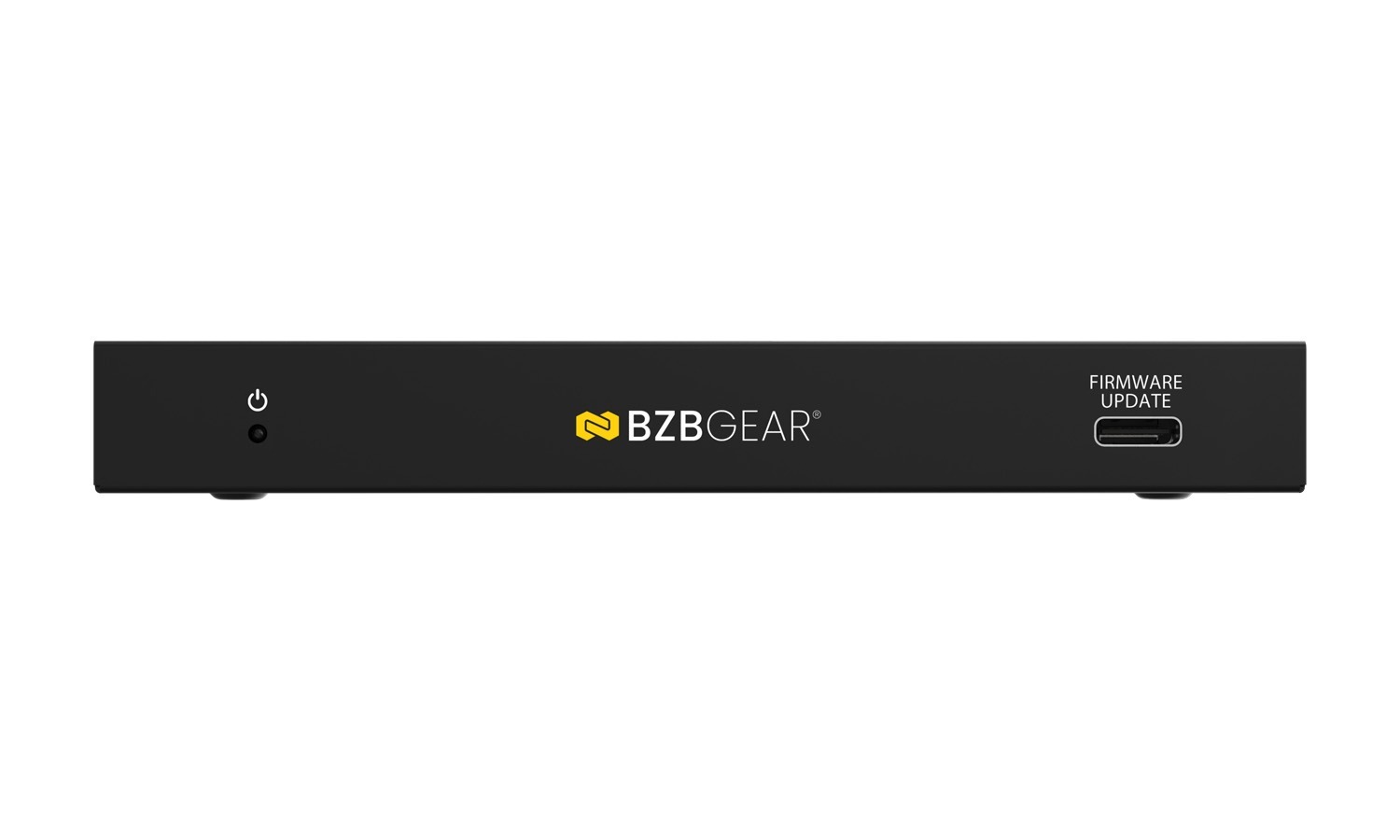

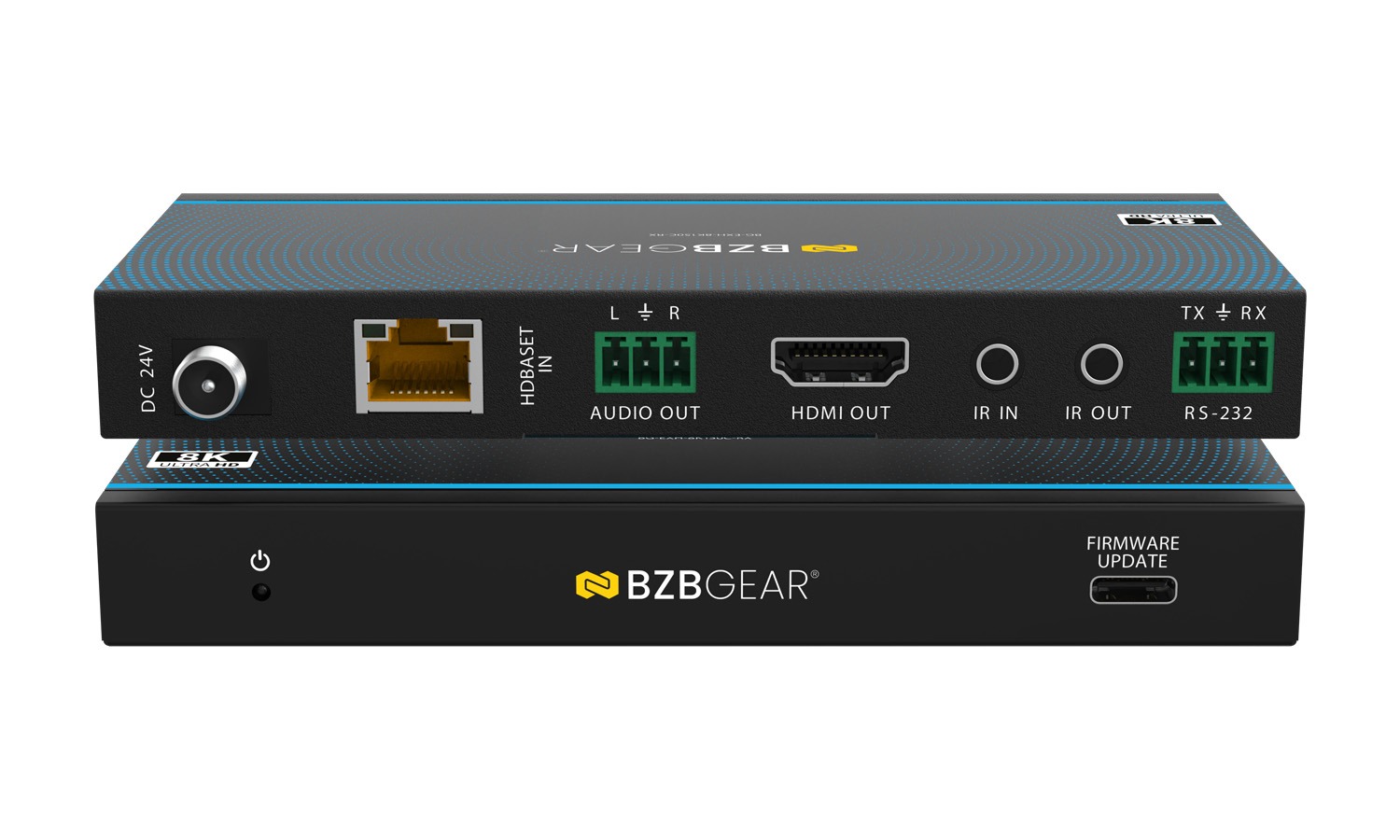

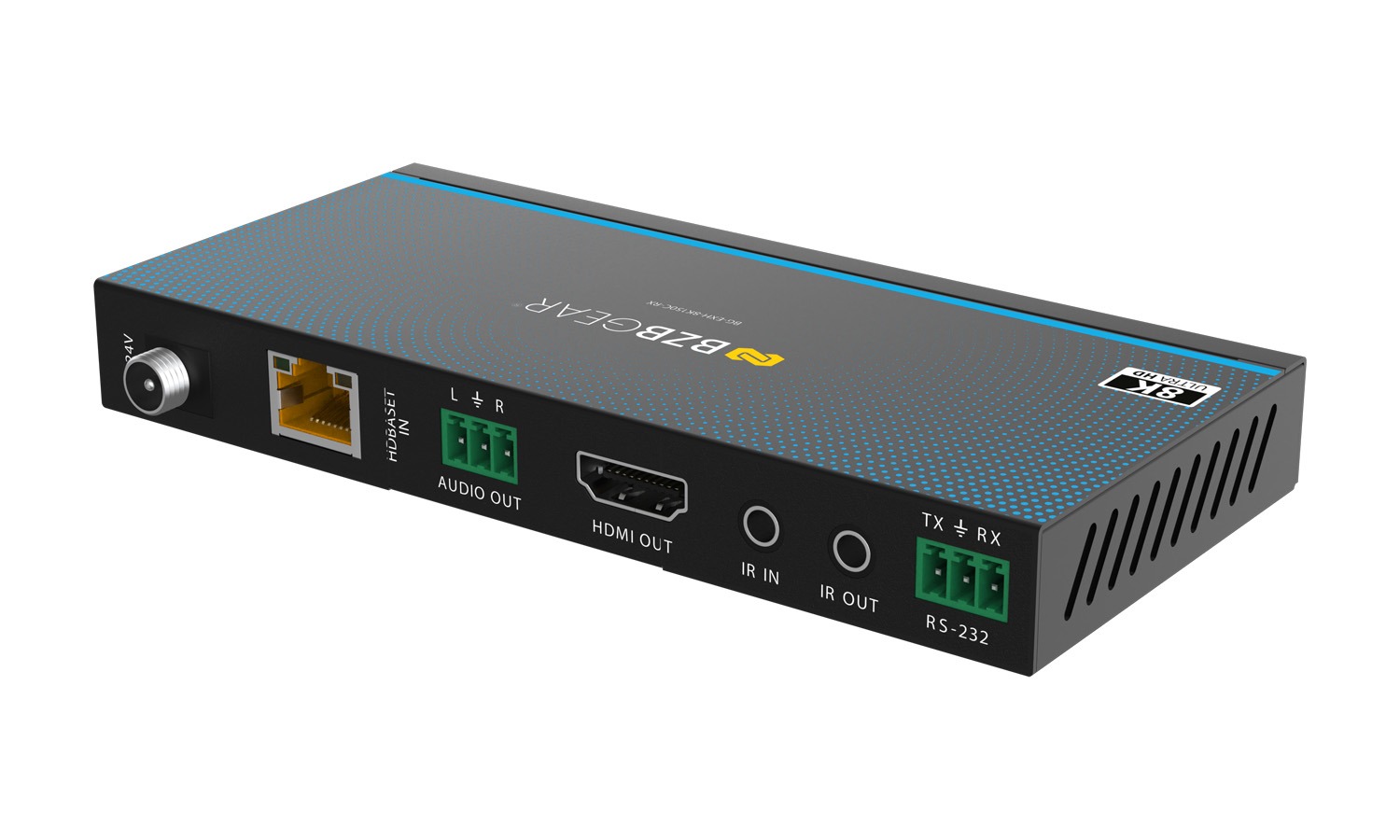

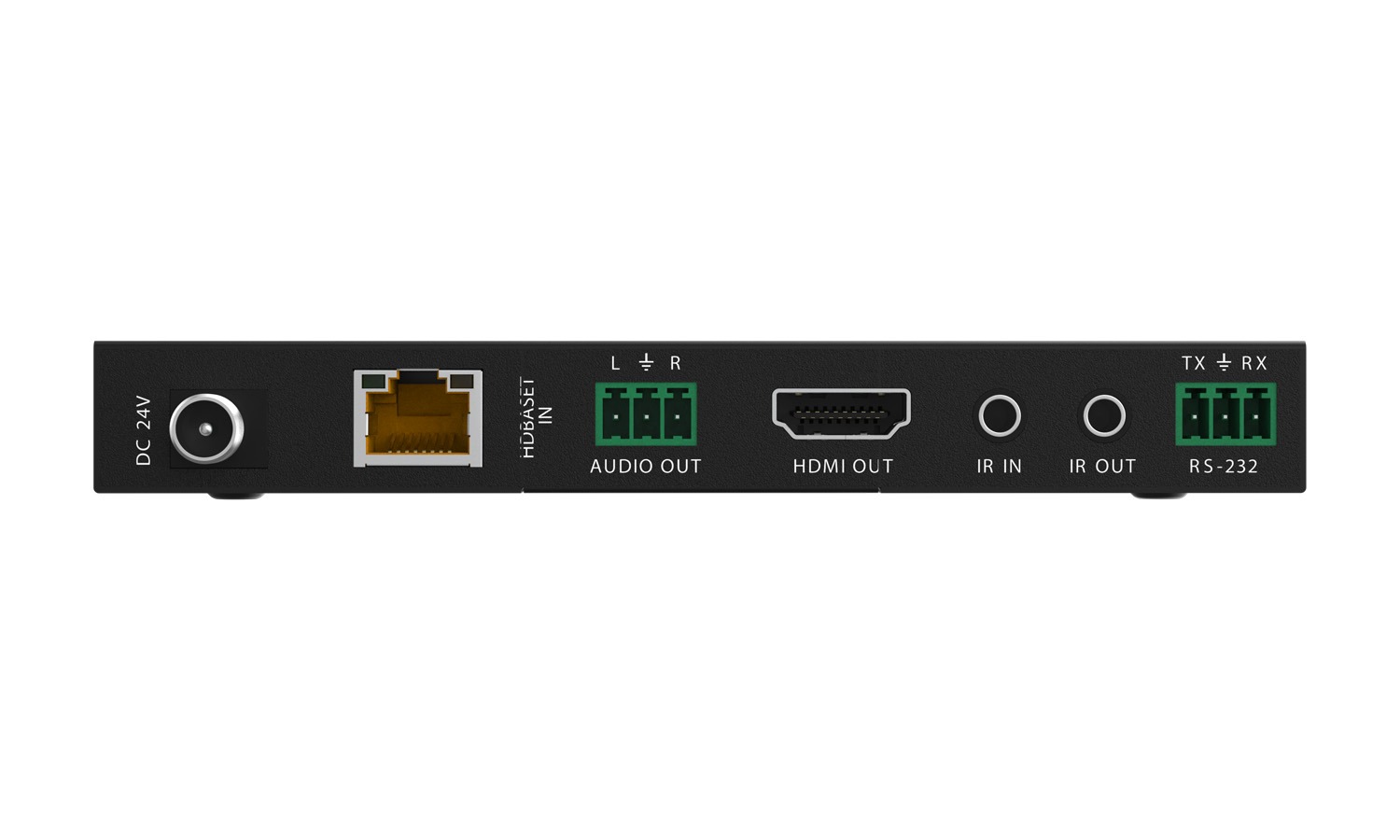

Receiver

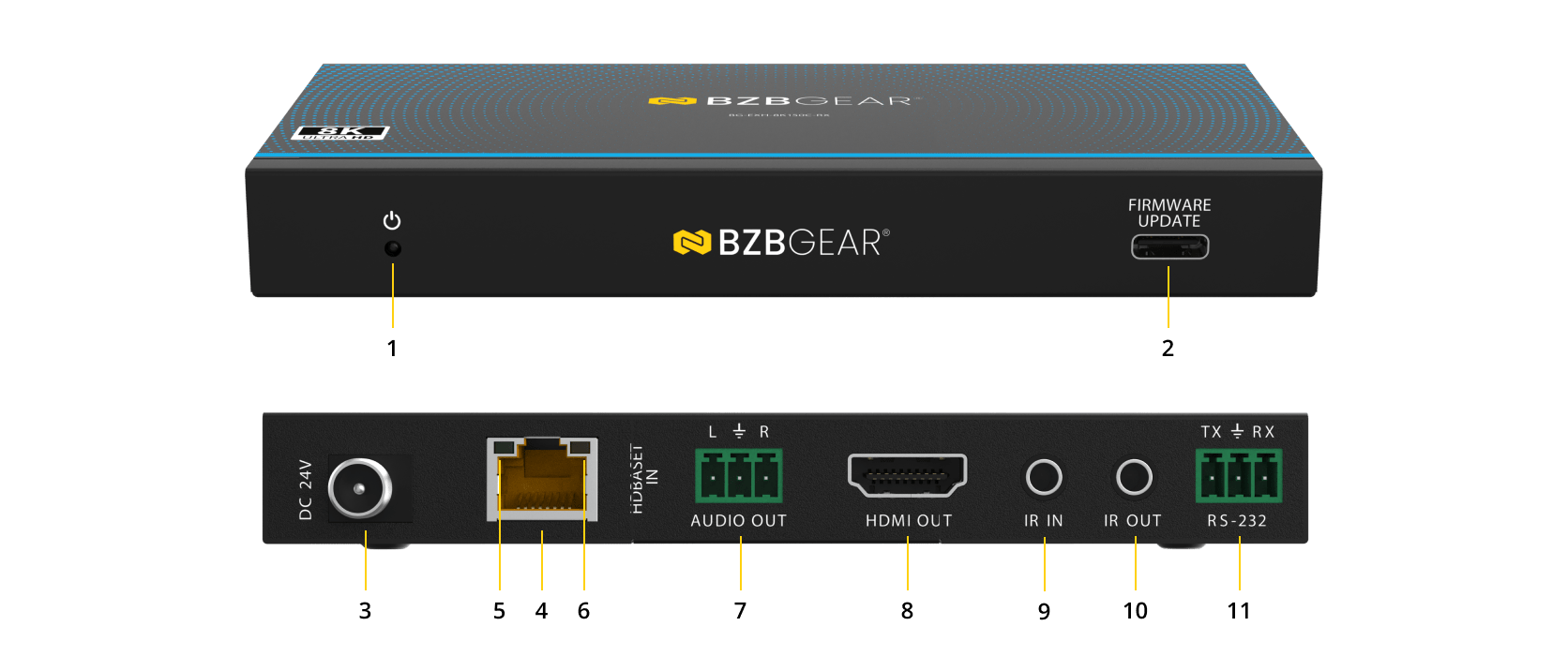

  1. PWR LED: The green LED is on when the Receiver is powered on.
  2. SERVICE: USB-C port, used to debug serial and update firmware.
  3. DC 24V: DC 24V/1A power input port. Note: the extender supports POC function, meaning that either the Transmitter or Receiver is connected to 24V/1A power supply, the other doesn’t need power.
  4. HDBT IN: HDBT input port, connected to the HDBT OUT port of the Transmitter with CAT6 cable.
  5. Link Signal Indicator (Green):
    On: Transmitter and Receiver are connected and linked.
    Off: Transmitter and Receiver are not connected.
  6. Data Signal Indicator (Yellow):
    On: HDMI signal with HDCP. Flashing: HDMI signal without HDCP.
    Off: No HDMI signal.
  7. AUDIO OUT (L/R): Analog audio output port, supporting unbalanced audio output with a maximum of 1Vrms. Unbalanced connection method: L+, R+.
  8. HDMI OUT: HDMI signal output port, connected to display device such as TV or monitor with HDMI cable.
  9. IR IN: Connects to IR receiver cable. The IR signal will be emitted to the IR OUT port of the Transmitter.
  10. IR OUT: Connects to IR blaster cable. The IR signal is from the IR IN port of the Transmitter.
  11. RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command transmission.
