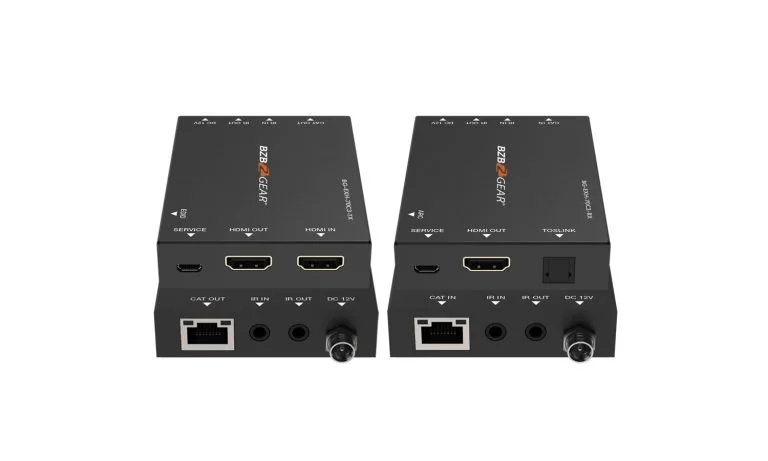

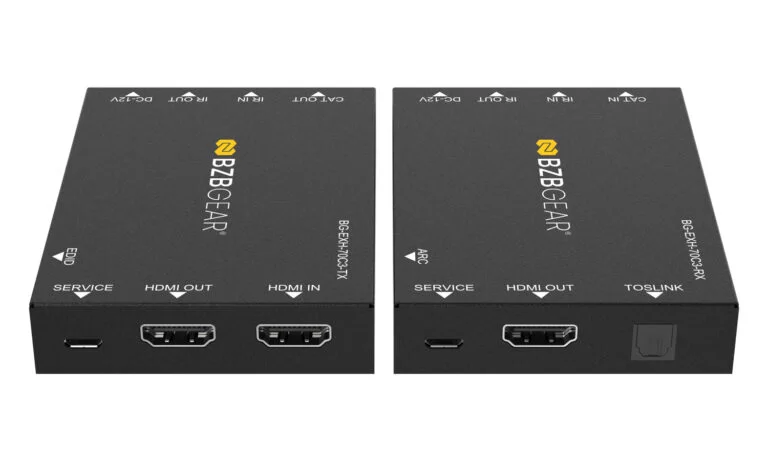

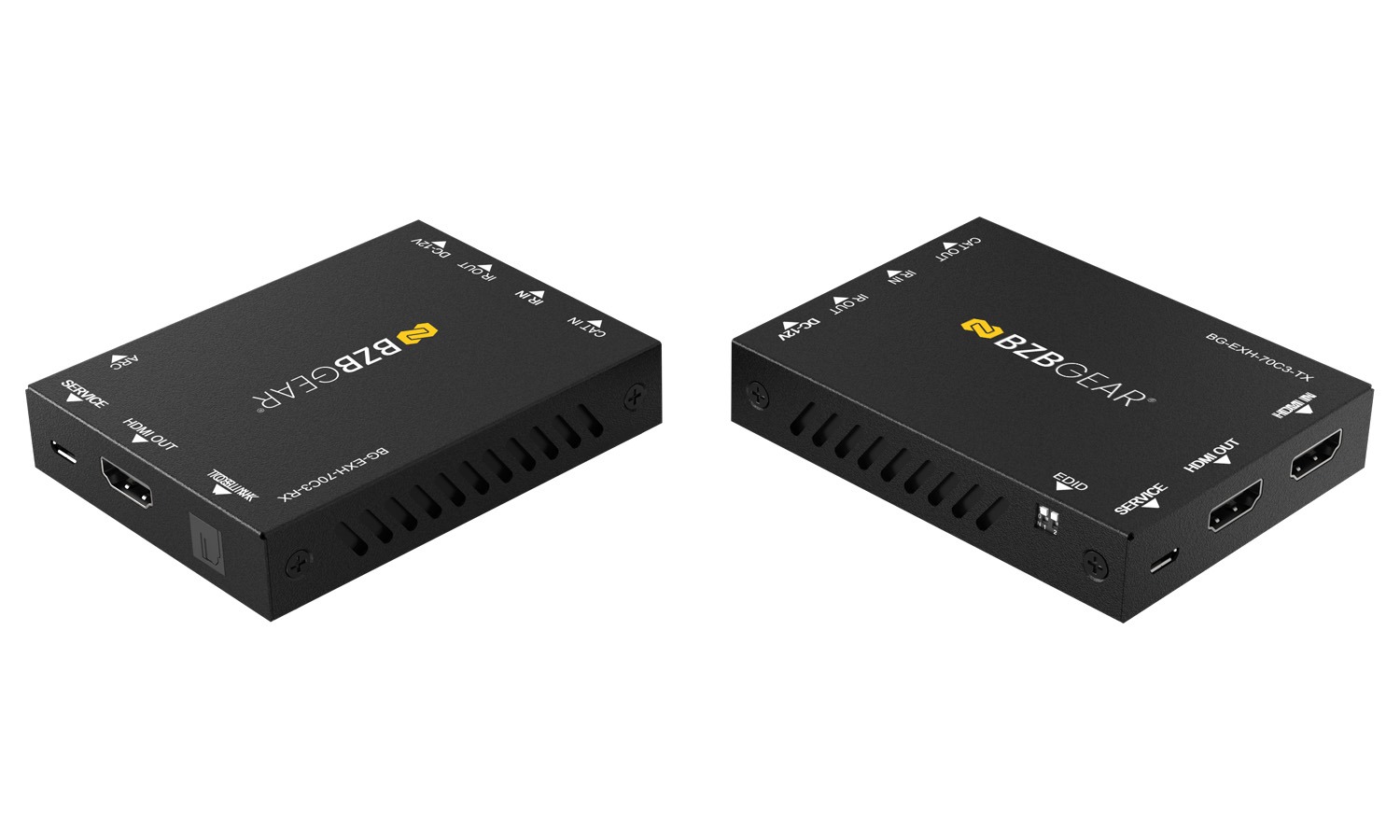

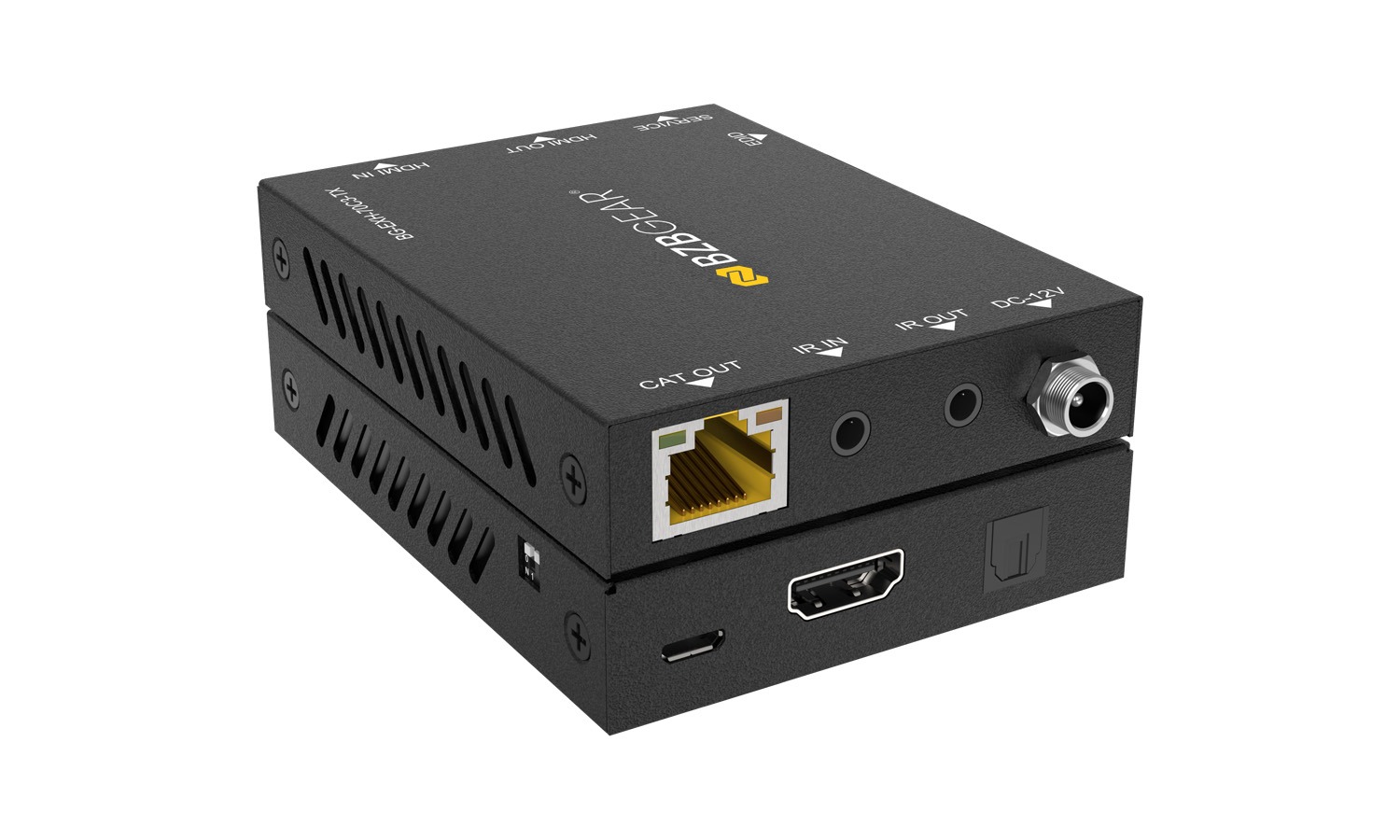

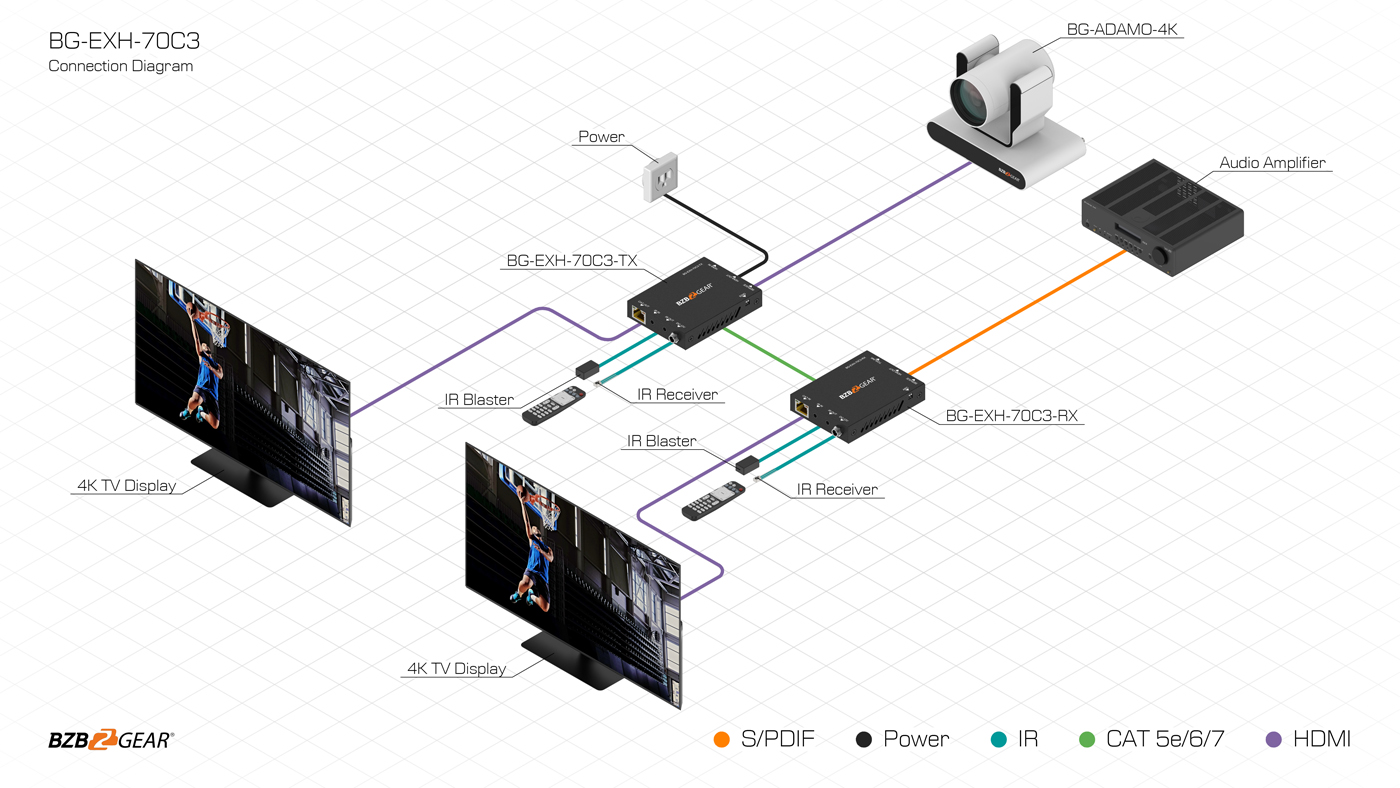

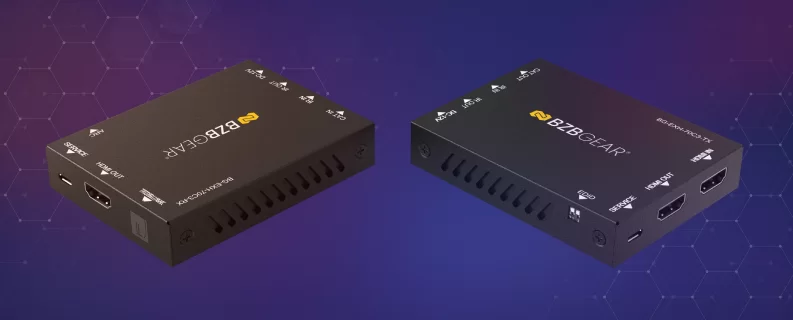

The BG-EXH-70C3 is an 18Gbps HDMI extender that can transmit HDMI and IR control signals up to 230ft(70m) via a single CAT6/6a cable and the uncompressed, long-distance transmission between the transmitter and receiver is achieved with zero-delay. These devices are also HDMI 2.0b and HDCP 2.2 compliant ensuring content is protected. The extenders feature bi-directional IR and power over cable(PoC) meaning only one of the units in the pair needs a power supply while IR blaster and receiver cables can be utilized to control devices on either end of the system simplifying a clean installation.

EDID copy pass-through between the source and display devices help to ensure the best signal quality possible. Video resolution is crystal clear with up to 4K2K@60Hz 4:4:4 along with rich colors provided by HDR, HDR10, HDR10+, Dolby Vision, and HLG. The receiving unit (RX) can extract LPCM 5.1, Dolby True HD, and DTS HD Master formats from the ARC connection on a display to its TOSLINK port. The flexible and compact design of the BG-EXH-70C3 allows for a wide range of uses where signal sources may need to be further away from their displays.

Features

  • fluent-mdl2_connect-virtual-machine
    HDMI Loop-out
    Loop-out to view content locally at transmitter side
  • solar_remote-controller-2-linear
    Bi-Directional IR
    Control devices via IR either from the receiver or transmitter
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • HDR
    Rich Color Contrast
    HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
  • bi_badge-4k
    Stunning Image Quality
    Crystal clear images at 4K 60Hz 4:4:4
  • Plug-and-Play Setup
    Power Over Cable
    Power only needs to be supplied to the either transmitter or receiver allowing for easier installation
  • Audio Formats: LPCM 5.1, Dolby True HD, DTS HD Master, Dolby 5.1, DTS 5.1, PCM 2.0
  • EDID copy pass-through
  • The receiving unit (RX) can extract the digital audio from the ARC connection on a display to its TOSLINK port

Videos

Extend your 4k HDMI Signal 230ft With HDR and 2 Way Audio De-embedding | BG-EXH-70C3
Extend your 4k HDMI Signal 230ft With HDR and 2 Way Audio De-embedding | BG-EXH-70C3
Top 3 BZBGEAR HDMI Extenders That Go The Distance
Top 3 BZBGEAR HDMI Extenders That Go The Distance

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4
IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz
Transmission Distance 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable)
Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats HDMI: LPCM 5.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Connection

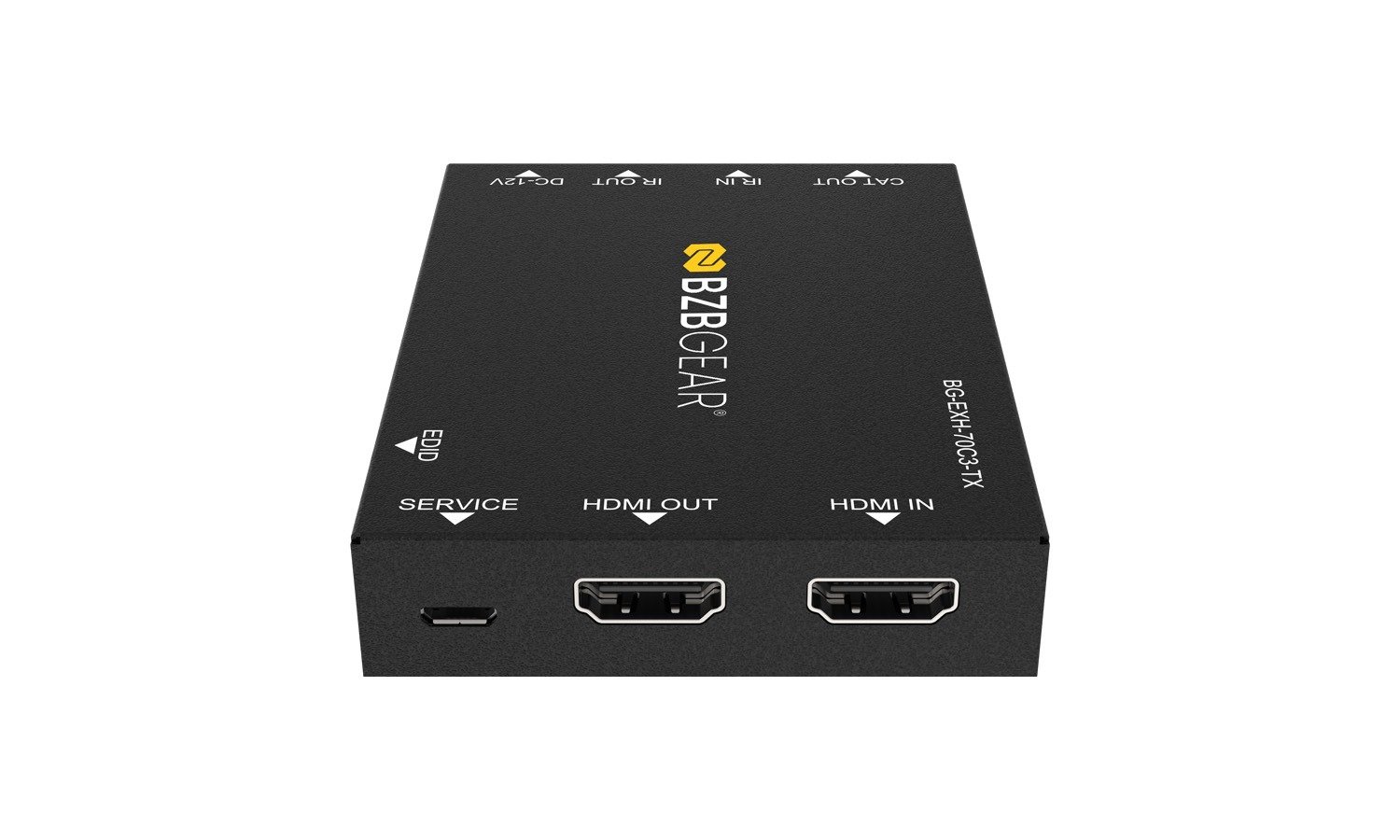

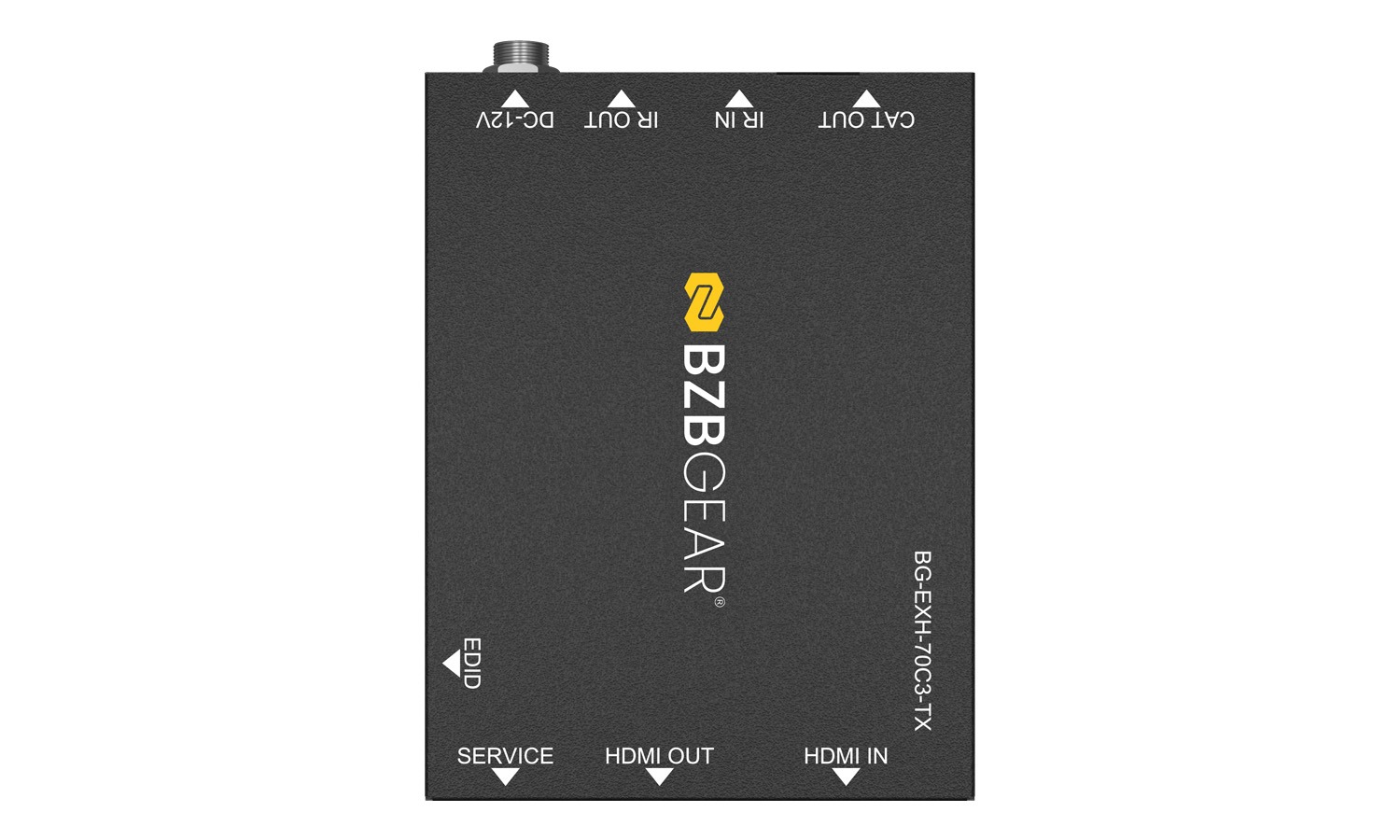

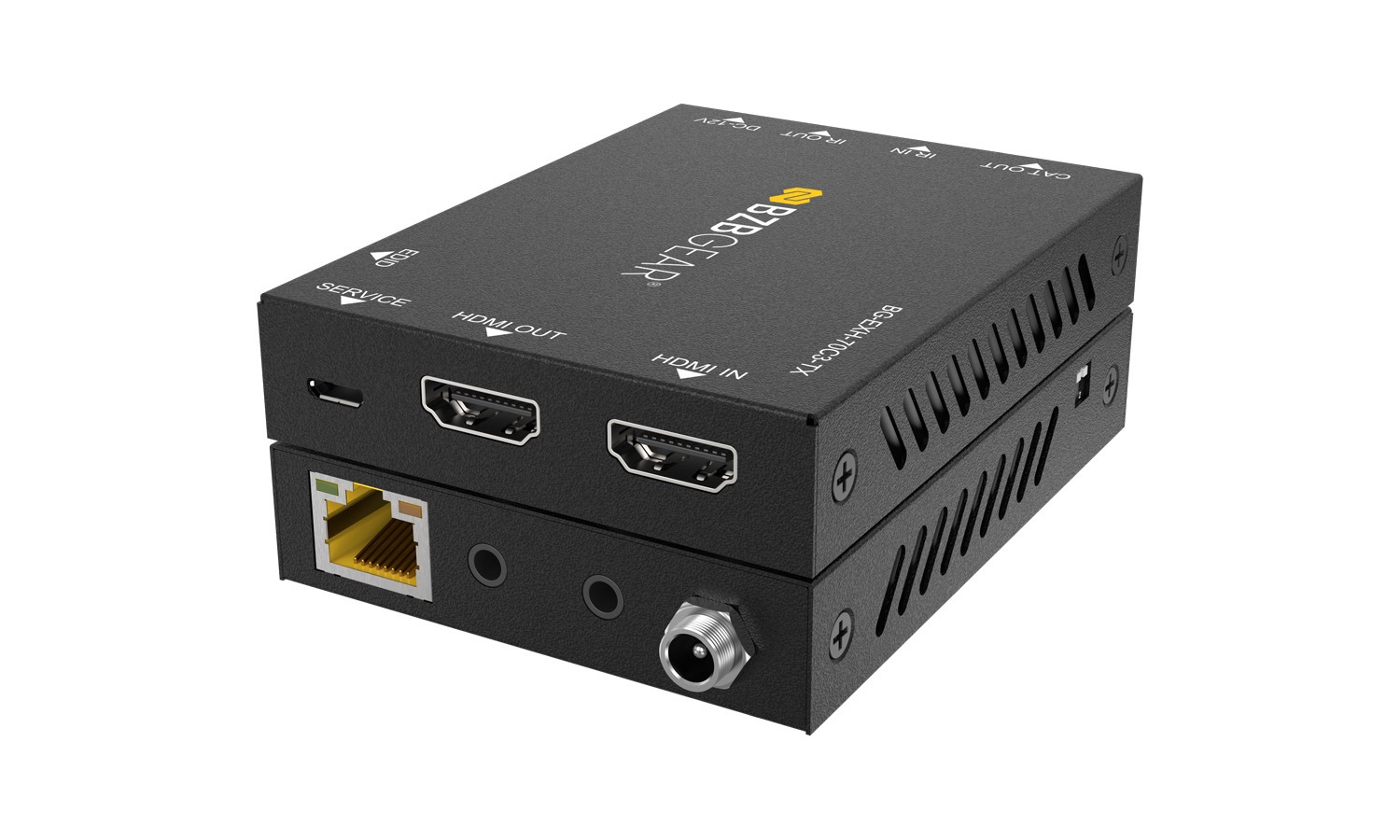

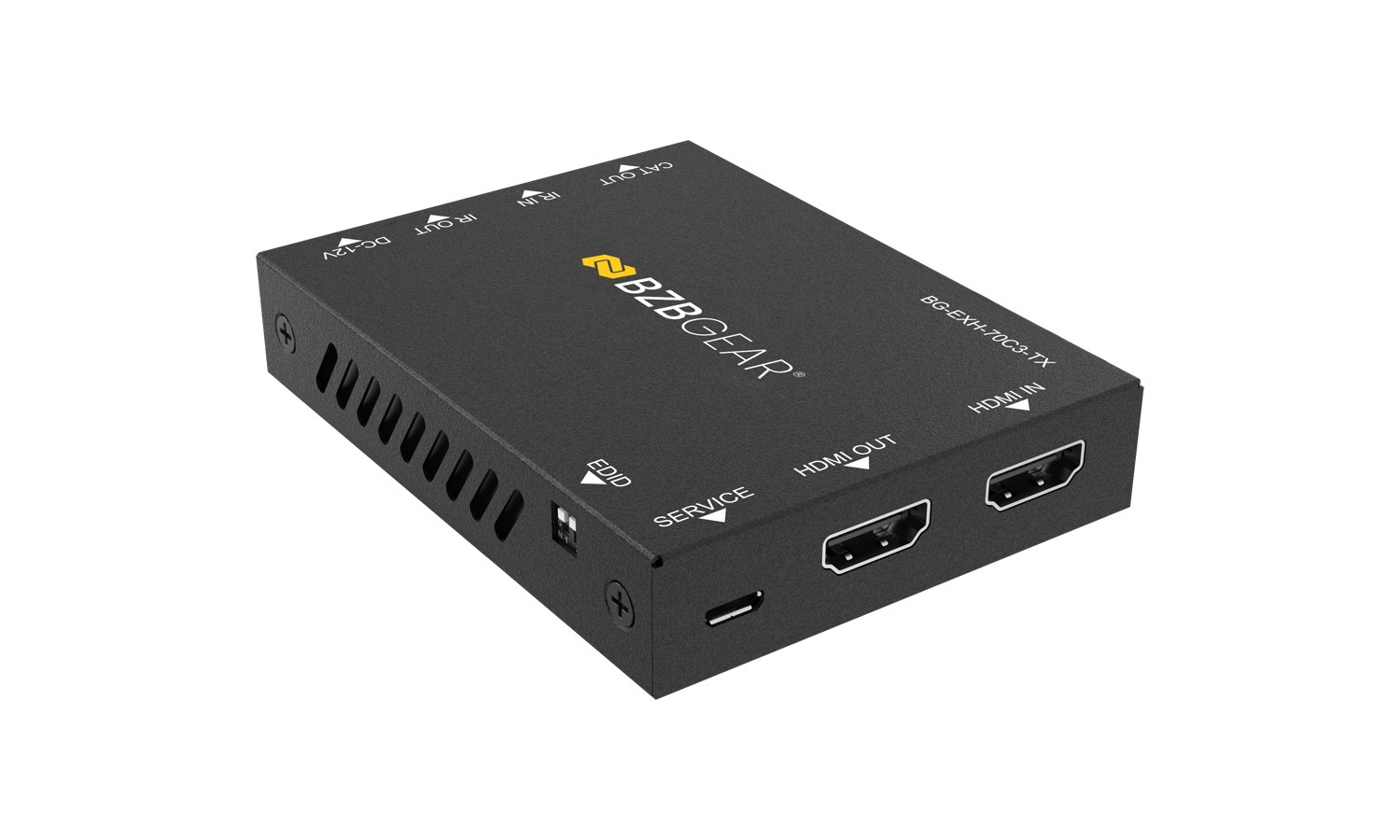

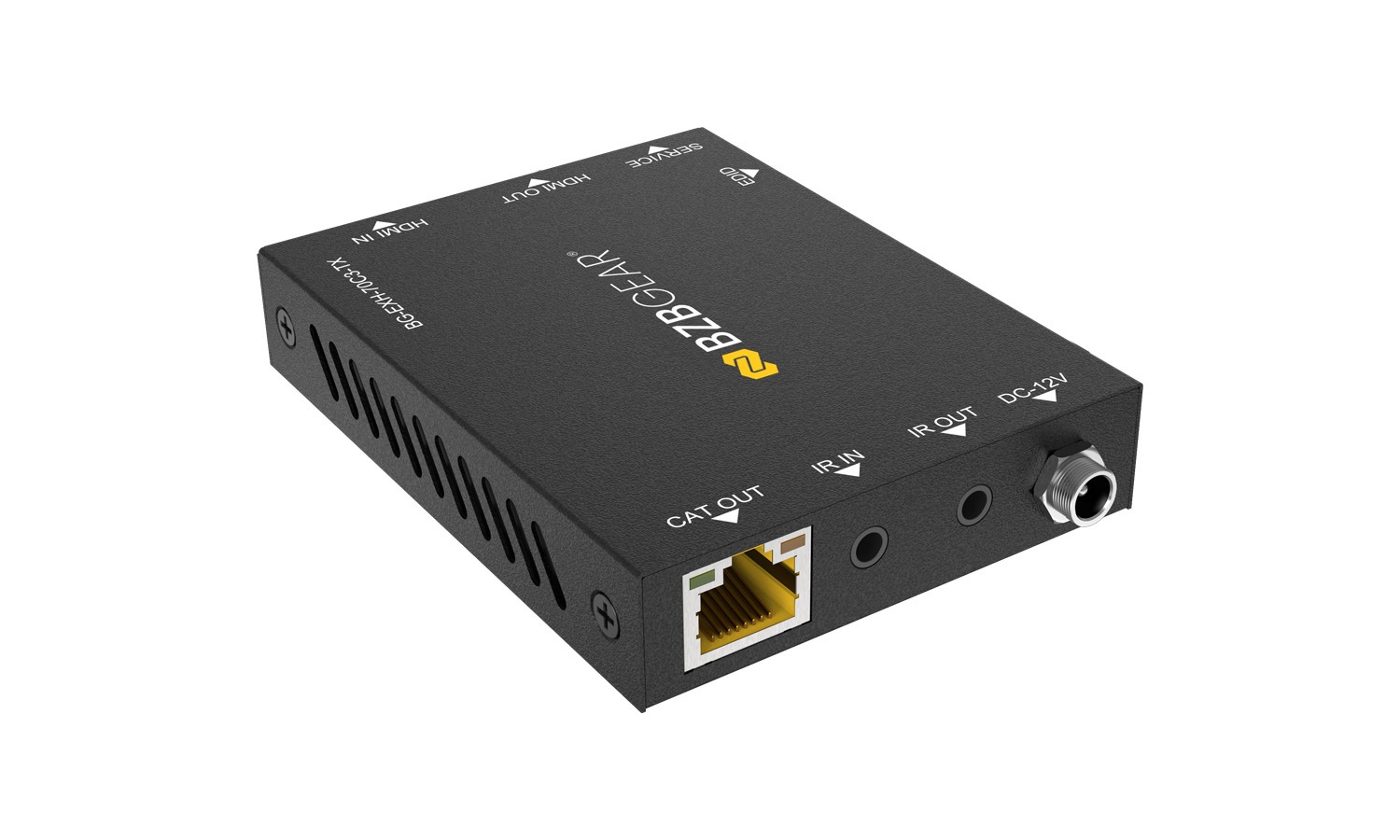

Transmitter Input: 1× HDMI IN [Type A, 19-pin female]
Output: 1× HDMI OUT [Type A, 19-pin female] / 1× CAT OUT [RJ45]
Control:
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini jack]
1× IR OUT [3.5mm Stereo Mini jack]
Receiver Input: 1× CAT IN [RJ45]
Output: 1× HDMI OUT [Type A, 19-pin female] / 1× TOSLINK S/PDIF
Control:
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini jack]
1× IR OUT [3.5mm Stereo Mini jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 3.5" (W) x 2.7" (D) x 0.7" (H) [90mm (W)×68mm (D)×18mm (H)]
Weight Transmitter: 5.64oz [160g], Receiver: 5.47oz [155g]
Power Supply DC 12V/1A; Supported bi-directional PoC function
Power Consumption 3.36 W (max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1 x 18Gbps HDMI Extender (Transmitter)
  • 1 x 18Gbps HDMI Extender (Receiver)
  • 1 x IR Blaster cable (1.5 meters)
  • 1 x IR Wideband Receiver cable (1.5 meters)
  • 4 x Mounting Ears
  • 8 x Machine Screws (KM3*4)
  • 1 x 12V/1A Locking Power Adapter
  • 1 x User Manual

Interfaces

Interfaces image

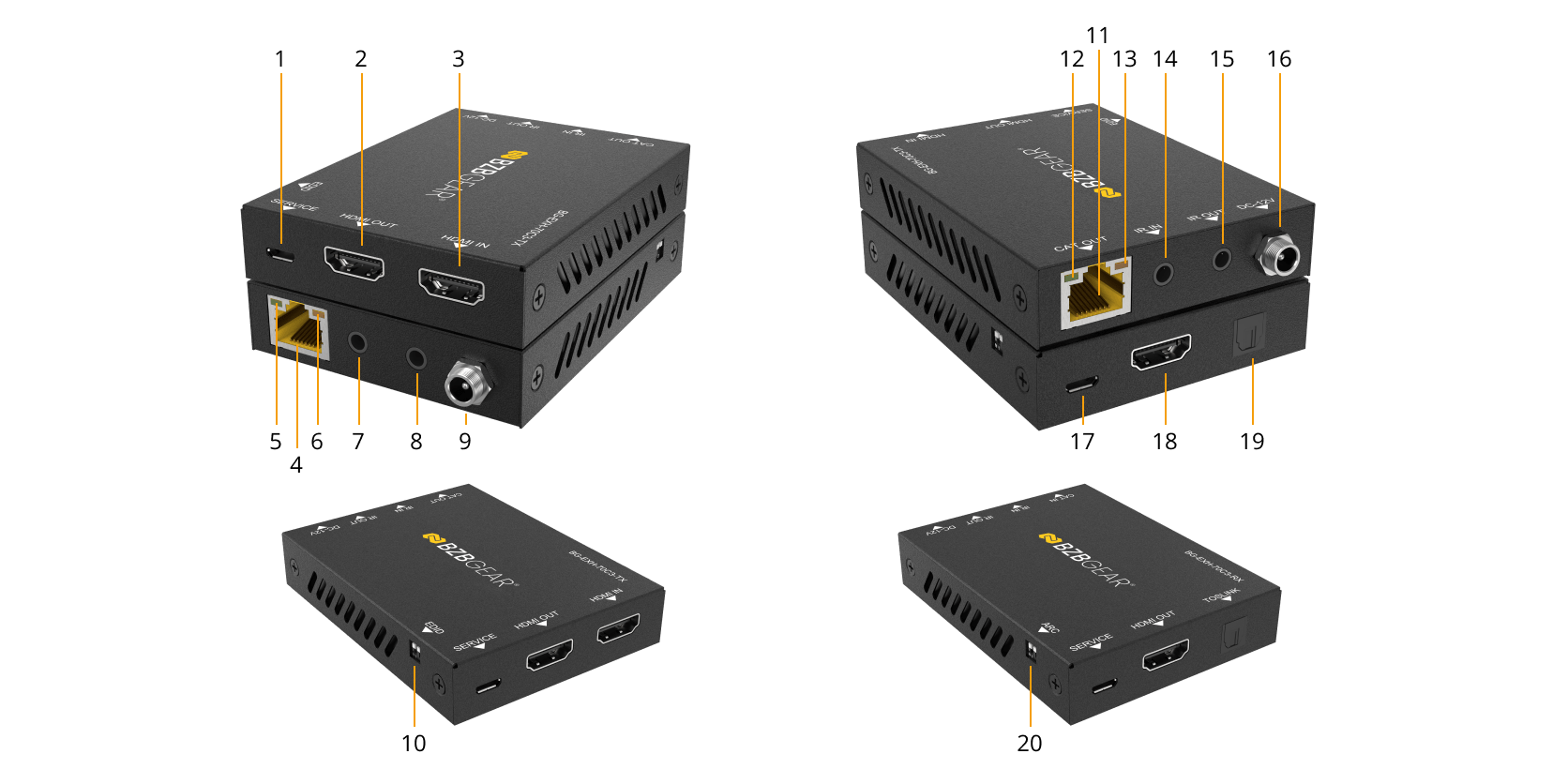

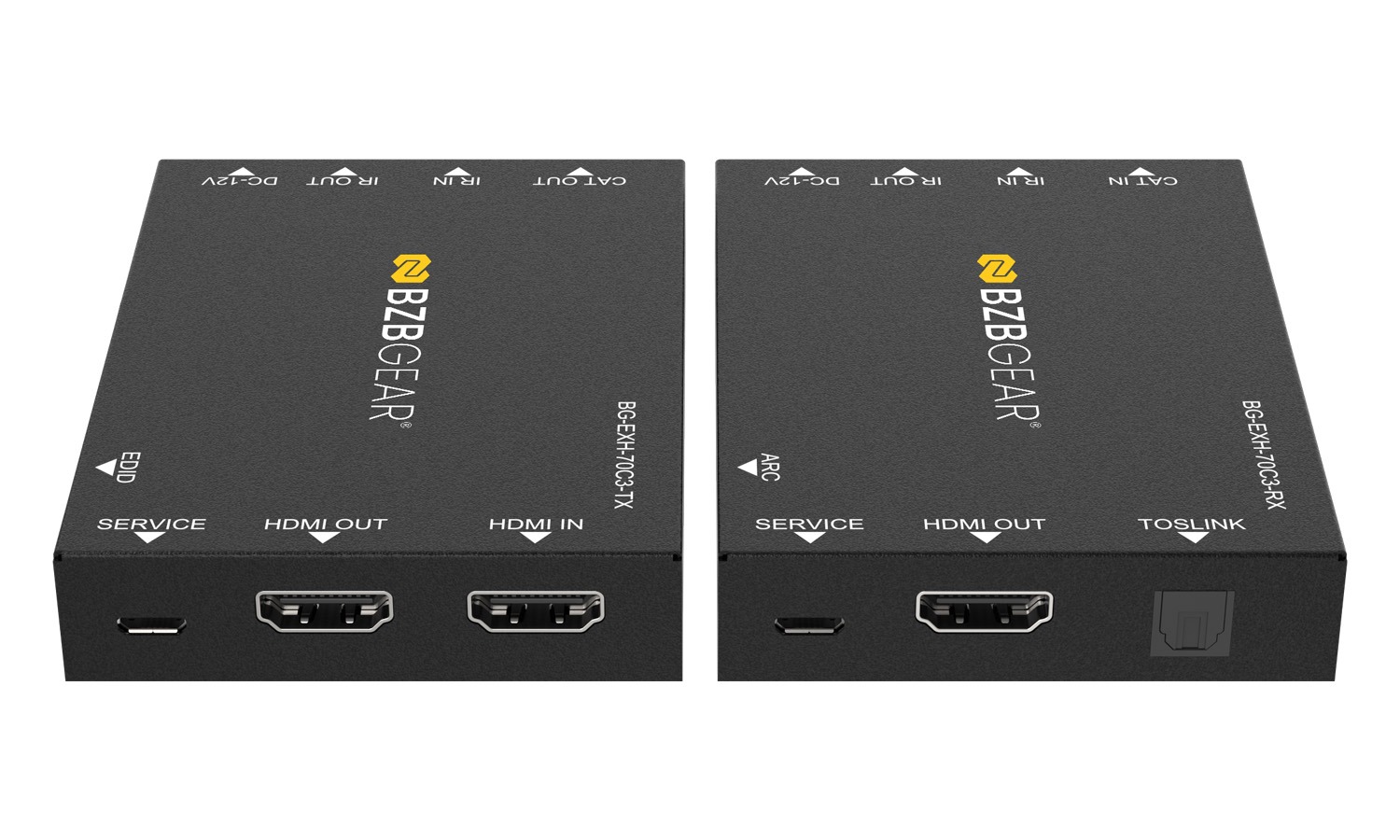

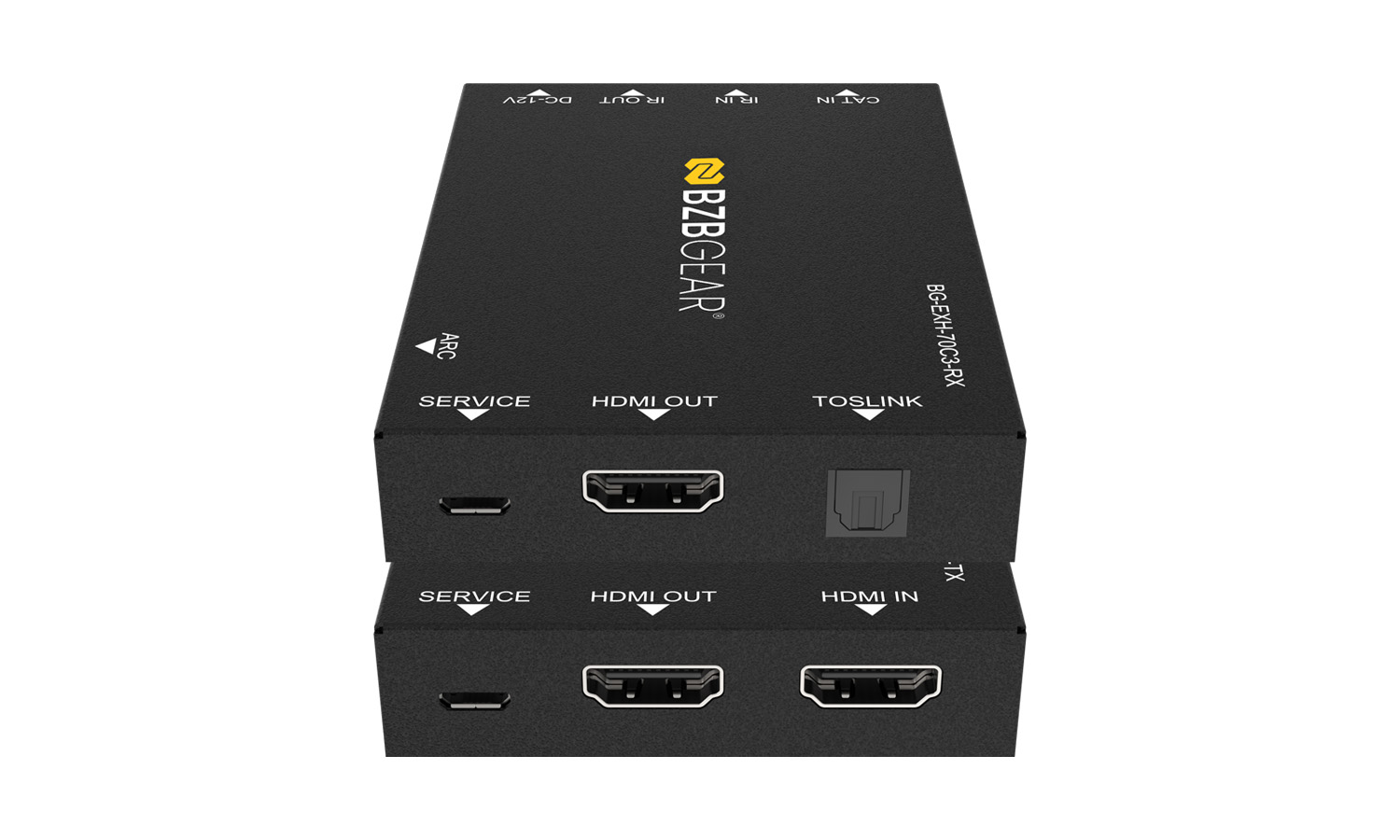

  1. SERVICE: Micro USB firmware update port.
  2. HDMI OUT: HDMI signal loop output port. Connect to HDMI display devices with HDMI cable.
  3. HDMI IN: HDMI signal input port. Connect to an HDMI source device with HDMI cable.
  4. CAT IN: RJ45 connector for connecting the CAT OUT port of the Transmitter with CAT6/6a cable.
  5. Link Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.
  6. Data Indicator (Orange): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  7. IR IN: Connect to the IR receiver cable. The IR signal will be sent to the IR OUT port of the Transmitter.
  8. IR OUT: Connect to the IR blaster cable, the IR signal is from IR IN port of the Transmitter.
  9. DC 12V: DC 12V/1A power input port.
  10. EDID DIP switch: Use the DIP switch to set EDID.
  11. CAT OUT: RJ45 connector for connecting the CAT IN port of the Receiver with CAT6/6a cable.
  12. Link Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.
  13. Data Indicator (Orange): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  14. IR IN: Connect to IR receiver cable, the IR receive signal will emit to the IR OUT port of the Receiver.
  15. IR OUT: Connect to IR blaster cable, the IR emit signal is from the IR IN port of the Receiver.
  16. DC 12V: DC 12V/1A power input port.
  17. SERVICE: Micro USB firmware update port.
  18. HDMI OUT: HDMI signal output port. Connect to HDMI display devices with HDMI cable.
  19. TOSLINK: Optical fiber audio output port. Connect the amplifier with an optical cable.
  20. ARC DIP Switch: Use the DIP switch to enable ARC audio from a display to be extracted at the RX TOSLINK port.
