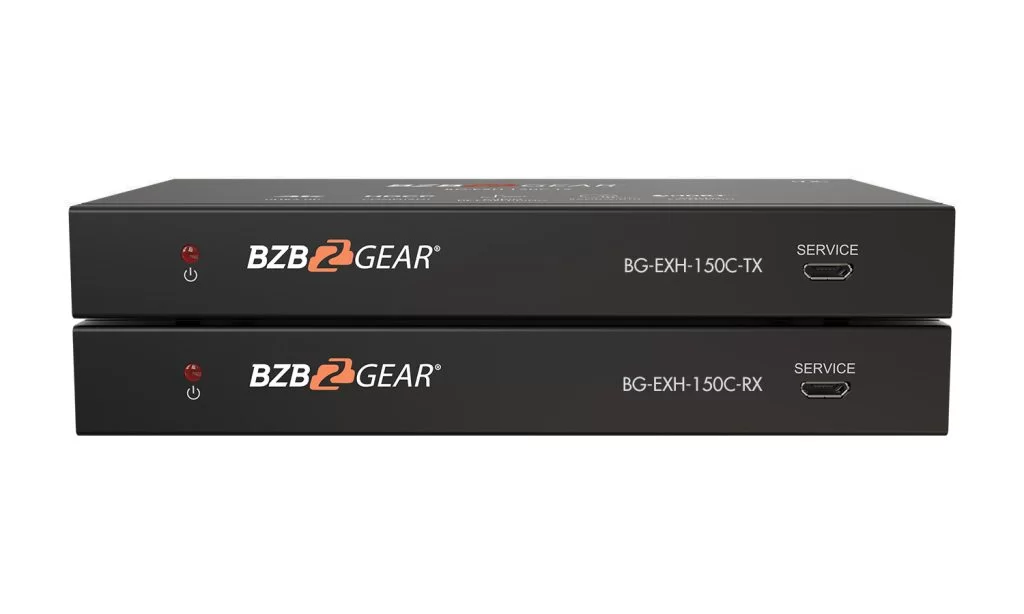

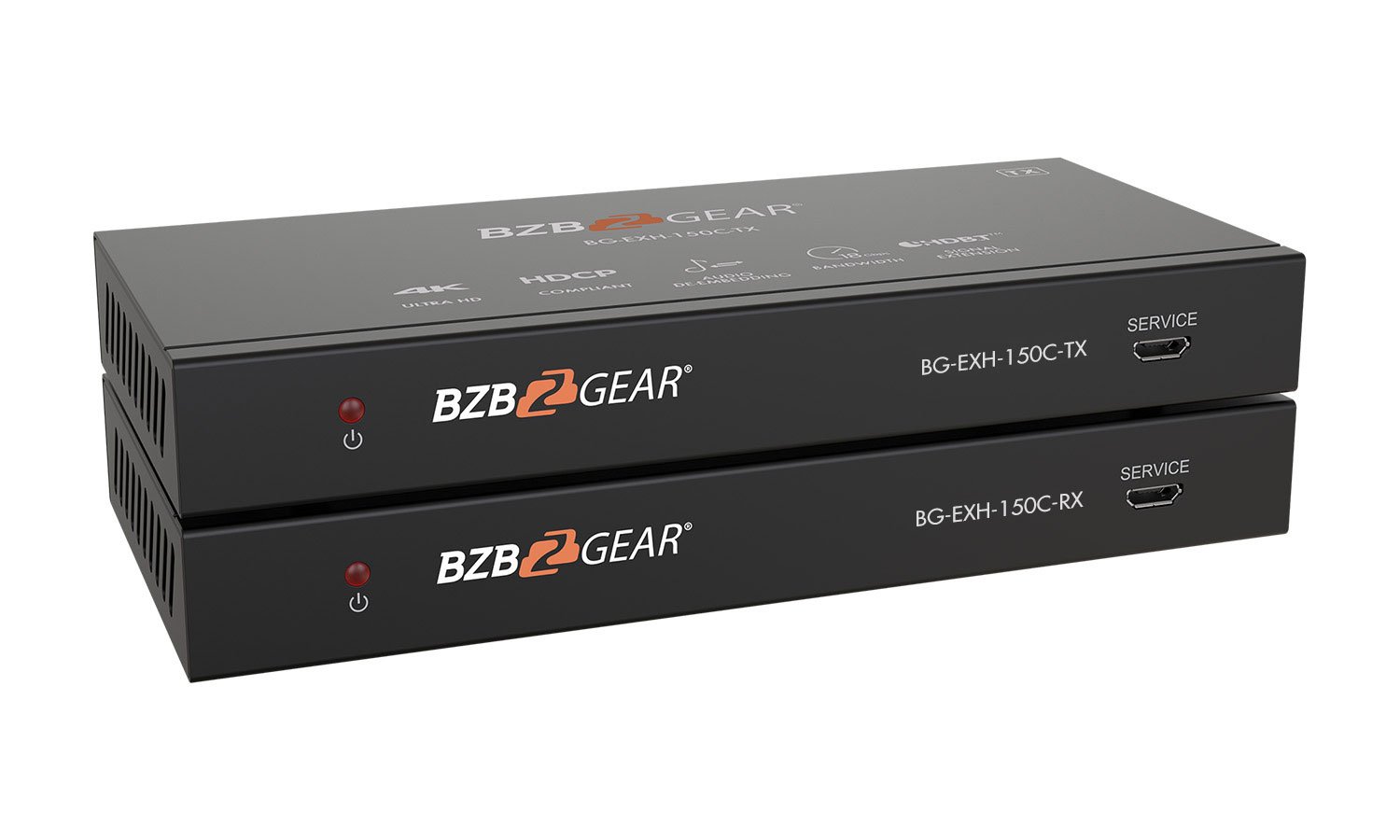

4K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR RS-232 and CEC up to 490ft

Name: 4K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR RS-232 and CEC up to 490ft
Brand: Bzbgear
SKU: BG-EXH-150C
Price: 349.00 USD
Availability: InStock

ProGear

U.S.-based Company

Complimentary design services<br> and engineering support

Complimentary design services
and engineering support

5 year warranty

Click here to learn more about BZBGEAR Fundamentals

Configure the Perfect Solution

Get Started

Overview Specifications Interfaces Resources Package contents

Overview

Overview

You need to extend HDMI signal and looking for reliable futureproof solution packed with all necessary features? Stop right there and search no more because you already found it – BZBGEAR BG-EXH-150C!

This device with a help of HDBaseT technology will extend HDMI signal for up to 150M (492 ft) with resolutions for up to 4K@60Hz using single CAT6 ethernet cable. But probably this is not the only feature you are looking for. So, it can do much more – along with HDMI it will extend IR and RS-232 signal, so you can control your TV from the source side (for example, when using 3rd party control system) or you can control the source (like your cable box) from the TV side.

If you need to connect local audio system – there is a 3.5mm mini-jack connector on the receiver which provides de-embedding audio from HDMI signal. If you need to duplicate transmitted signal – there is a HDMI loop-out connector, which you can use to connect monitor or another device.

Power over category cable adds more convenience for your setup – only one side (either transmitter or receiver) needs power adapter to be connected to electrical outlet, and to make it secure it has locking connector.

BZBGEAR BG-EXH-150C also supports many modern video technologies (like HDR, HDR10+, Dolby Vision and HLG) and audio formats as well as digital media protection for up to HDCP 2.2.

Features

Extreme Range

Transmit 1080p up to 492ft and 4K up to 394ft
Stunning Image Quality

Supports resolutions up to 4K@60Hz
HDR Support

HDR, HDR10+, Dolby Vision, HLG
PoC

Only one of the units, TX or RX, needs to be plugged into AC power
Multiple Types of Control

Control devices with bi-directional IR, RS-232 and CEC pass-through
Audio De-Embedding

Receiver provides analog audio output for external audio system

HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
With bi-directional IR, RS-232 and CEC pass-through
18Gbps video bandwidth
Compact design for easy and flexible installation
HDMI loop output on the transmitter
Durable metal housing

Videos

Send Your 4K Signal up to 492 ft With the HDBaseT Extender the BG-EXH-150C

How to Pick The Perfect HDMI Extender for Any Venue

High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR

BZBGEAR 4K HDMI HDBaseT Extenders Simplify AV Installs

Tech Specifications

Technical
HDCP Compliance	HDCP 2.2 / HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K@50/60Hz 4:4:4 4K2K@50/60Hz 4:2:2 4K2K@50/60Hz 4:2:0 4K2K@30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4)
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats	PCM 2.0
ESD Protection	Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

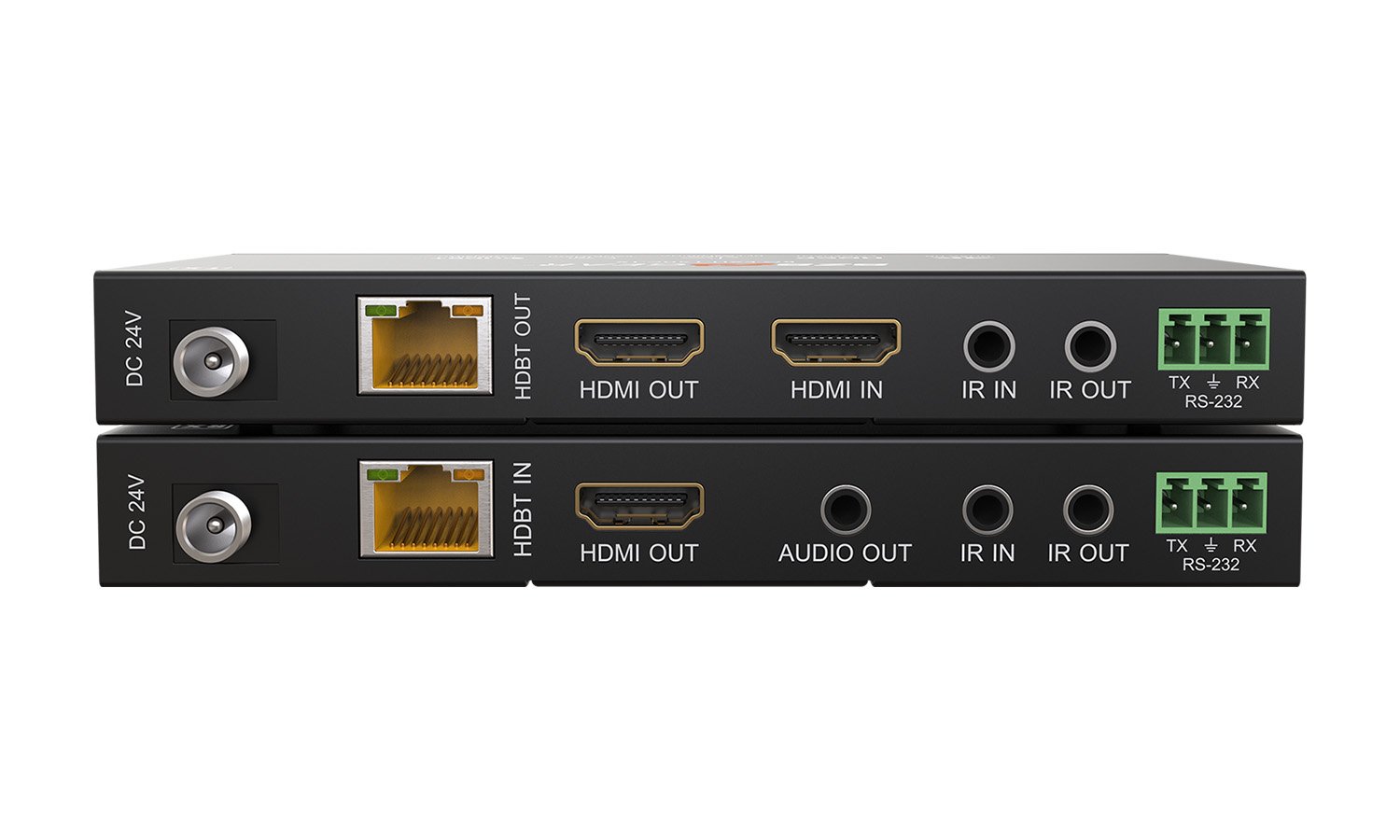

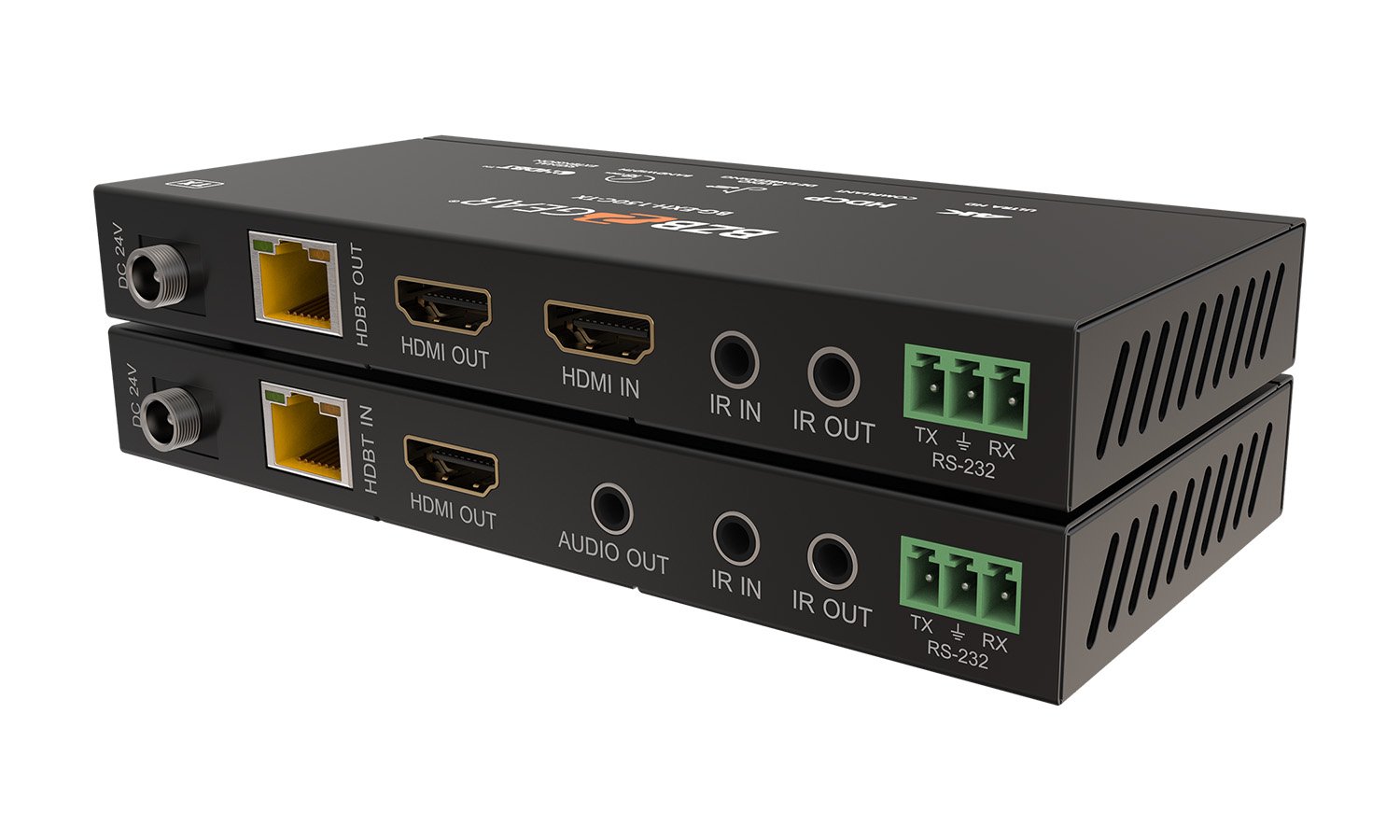

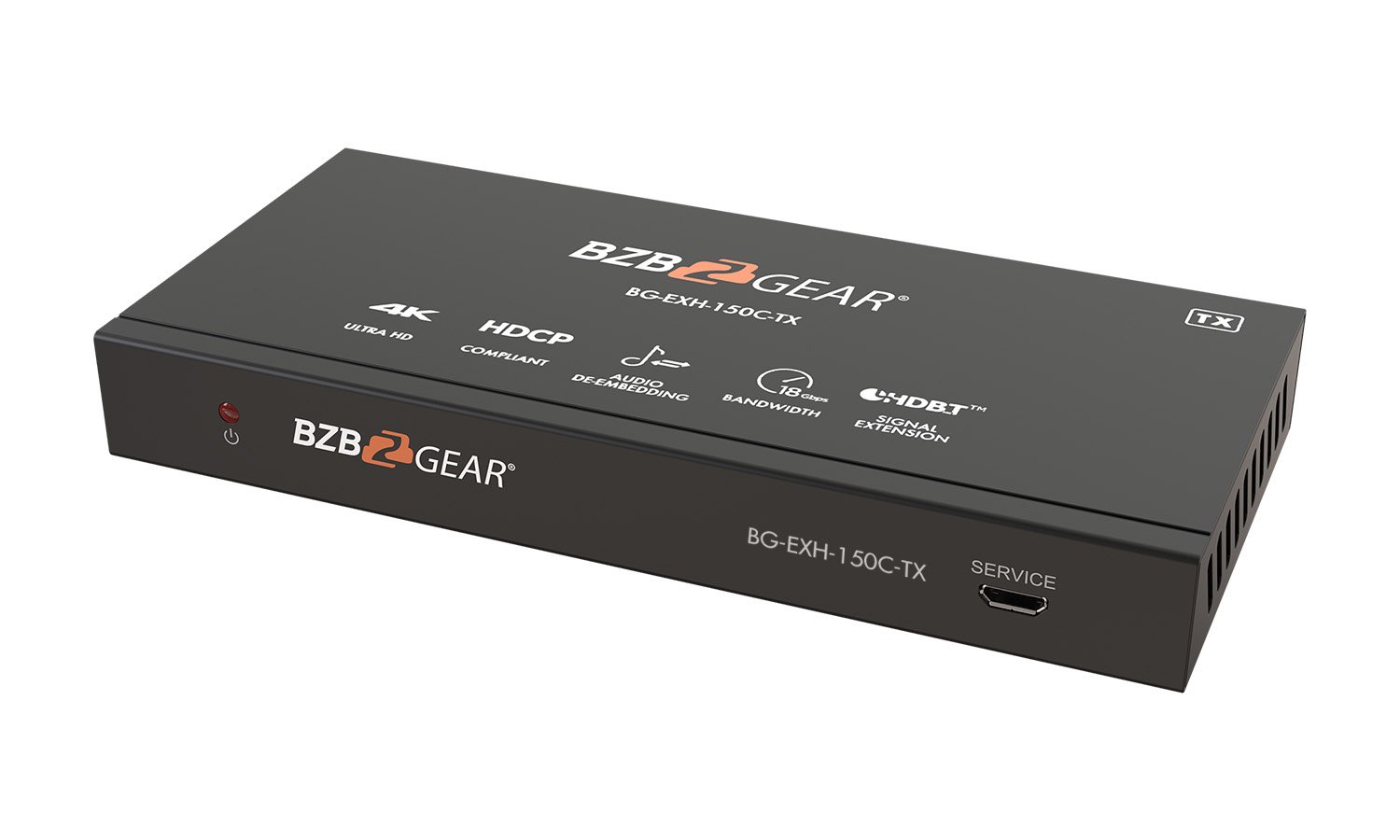

Transmitter	Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]

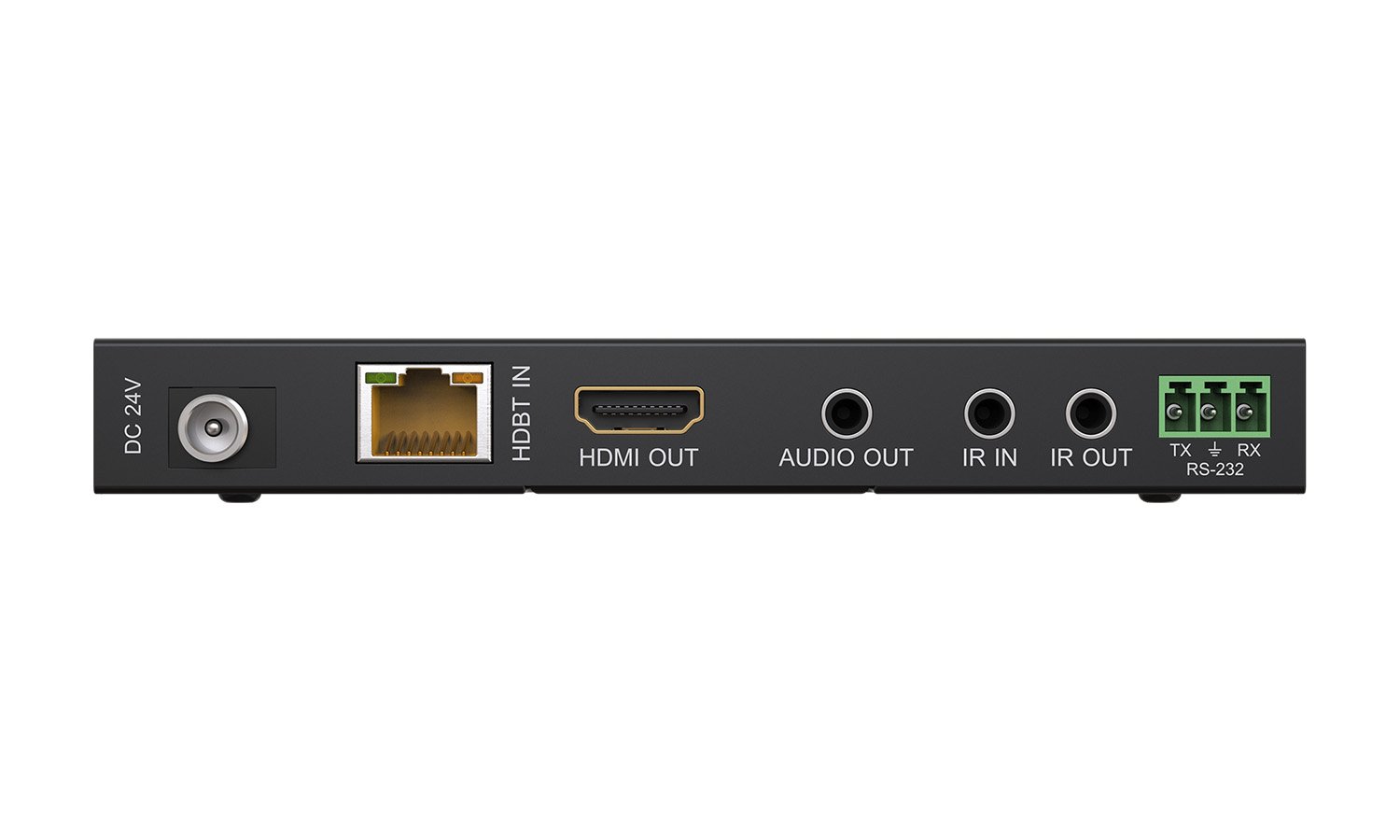

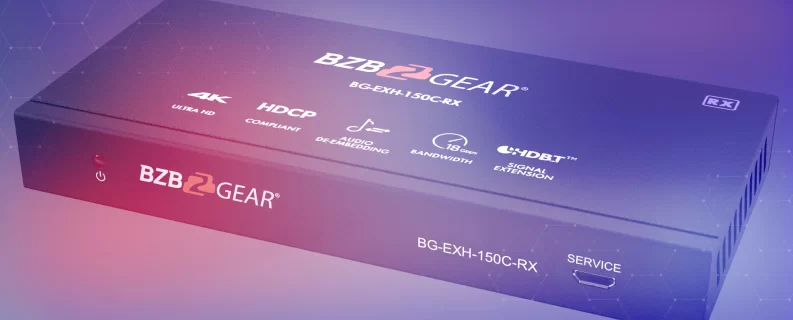

Receiver	Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 5.5" (W) x 2.5" (D) x 0.7" (H) [140mm (W) x 65mm (D) x 18mm (H)]
Weight	Transmitter: 0.35lbs [160g], Receiver: 0.34lbs [155g]
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector)
Power Consumption	9.36 W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Resolution / Distance
4K2K	394ft / 120M
1080P	492ft / 150M
Resolution / Cable Length	4K@60 - Feet / Meters	4K@30 - Feet / Meters	1080P@60 - Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

Resources

Documents

Download Manual

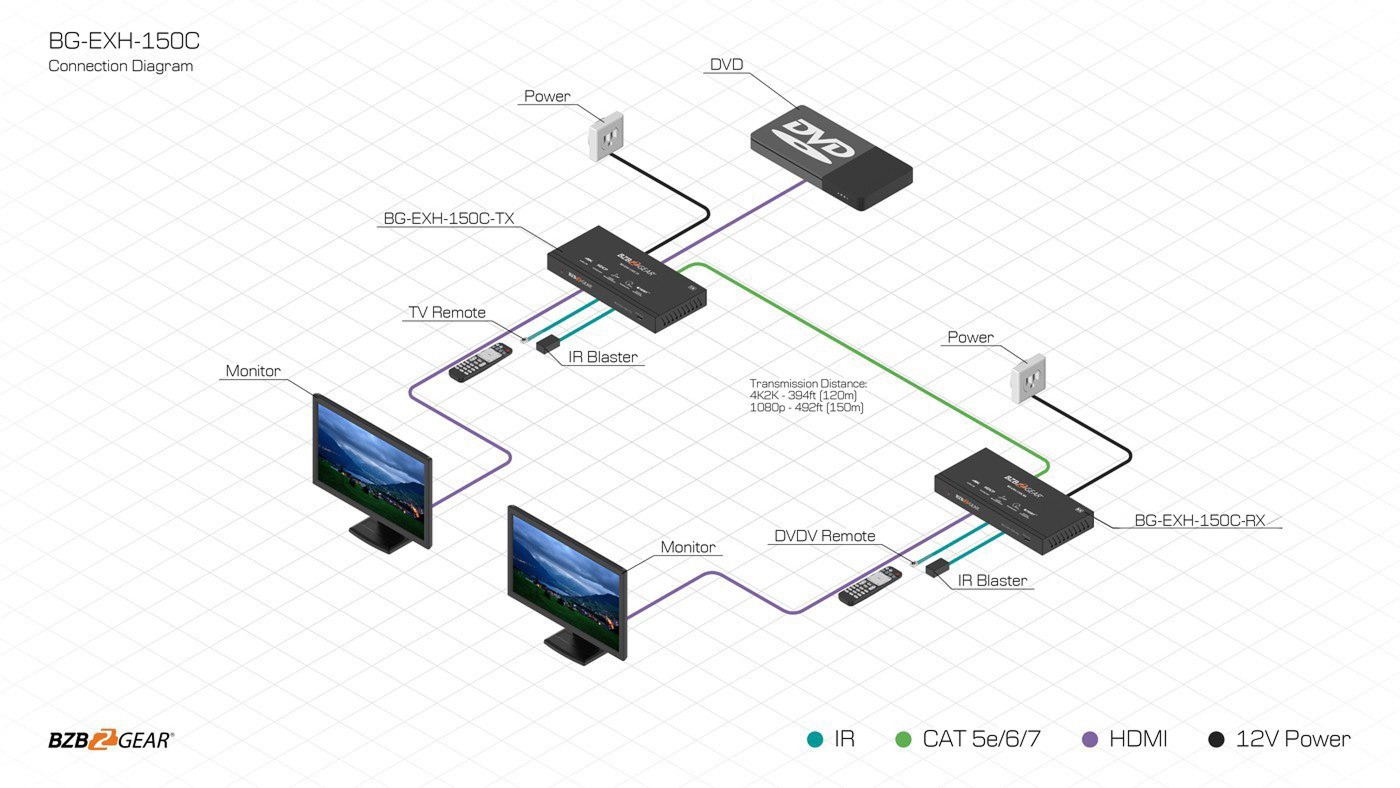

See Diagram

Download Brochure

PACKAGE CONTENTS

1x 18Gbps HDMI over HDBaseT Extender (Transmitter)
1x 18Gbps HDMI over HDBaseT Extender (Receiver)
1x IR Blaster cable (1.5 meters)
1x 20~60KHz IR Receiver cable (1.5 meters)
4x Mounting Ear
2x 3-pin Phoenix connector
1x 24V/1A Locking Power adapter
1x User Manual
1х Quick Start Guide

Interfaces

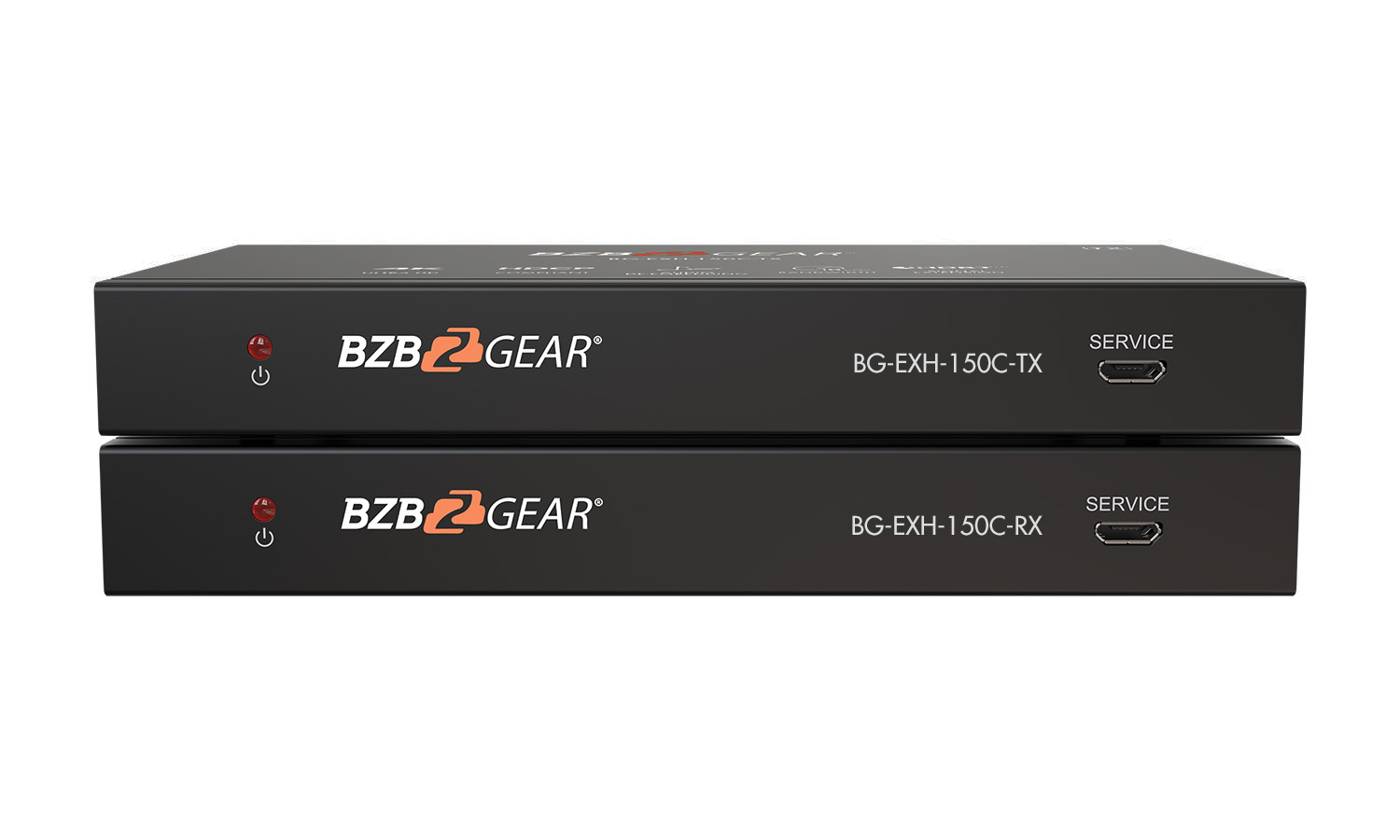

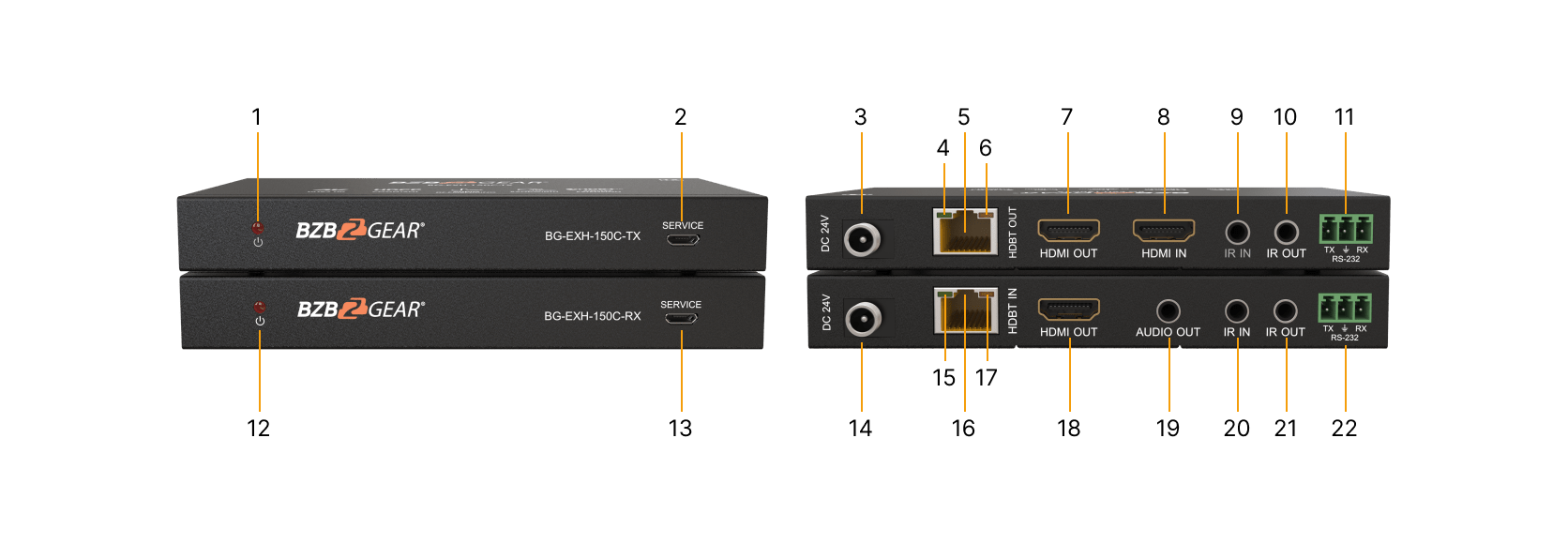

Power LED: Red LED indicates that the transmitter is powered on.
SERVICE port: Micro USB firmware update port.
DC 24V: DC 24V/1A power supply input port.
Connection Indicator lamp: Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
HDBT OUT: RJ45 connector for connecting the HDBT IN port of the receiver with a CAT 5e/6 cable.
Data Indicator lamp: Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.
HDMI OUT: HDMI loop output for display.
HDMI IN: HDMI source input.
IR IN: IR input port for receiving the signal of IR remote.
IR OUT: IR output port for control of source device. This IR output signal is from the IR IN port of the receiver.
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
Power LED: Red LED indicates that the receiver is powered on.
SERVICE port: Micro USB firmware update port.
DC 24V: DC 24V/1A power supply input port.
Connection Indicator lamp: Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
HDBT IN: RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 5e/6 cable.
Data Indicator: Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.
HDMI OUT: HDMI output for display.
AUDIO OUT: 3.5mm stereo connector for analog audio output.
IR IN: IR input port for receiving the signal of IR remote.
IR OUT: IR output port for control of display device. This IR output signal is from the IR IN port of the transmitter.
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
