Overview

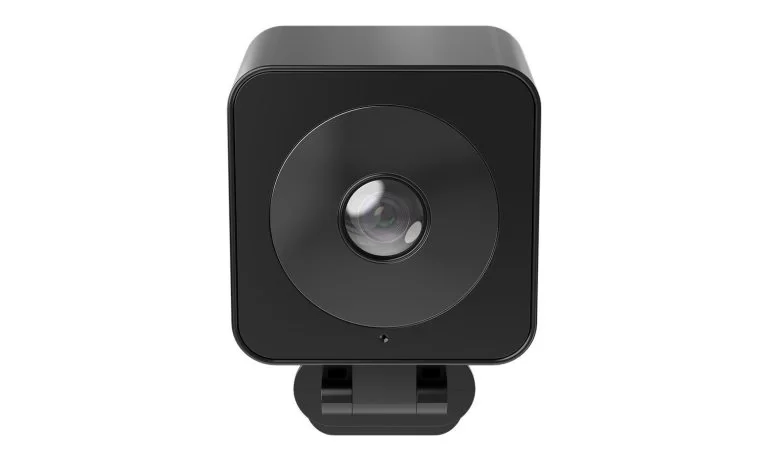

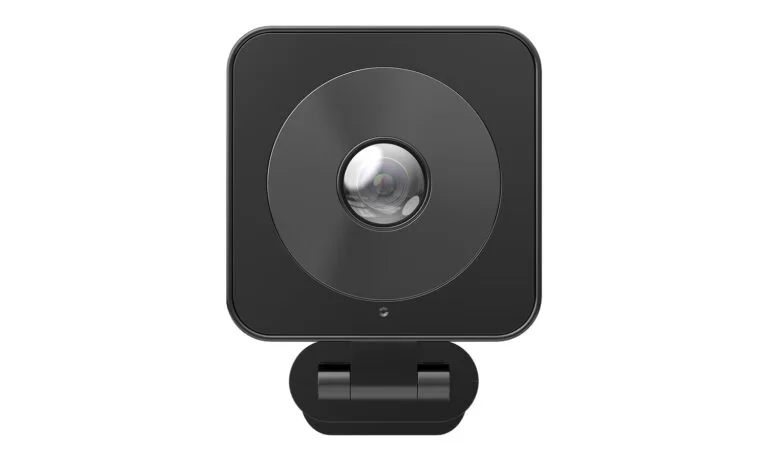

The BG-EPTZ-UH4K is a powerful webcam in the hands of educators, students, remote employees, and other home broadcasters. This compact webcam offers users an extending degree of flexibility with simultaneous USB 3.0 and HDMI outputs while capturing images in up to 4k@30Hz resolution with 4x digital zoom.
With electronic pan/tilt/zoom (ePTZ), the BG-EPTZ-UH4K is a great option for presenters who need to zoom and shift the image to focus on different subjects in a field of view of 130°. Equipped with an omnidirectional microphone, this camera has the ability to clearly pick up voices from up to 8 meters away.
Its USB 3.0 connectivity isn’t just for high-speed data transmission. It also provides power to the device, making for easy setup and reducing the number of cables required to operate the webcam. With a universal mounting solution, the small BG-EPTZ-UH4K will fit perfectly in any situation, whether it be at home or in the studio on a desktop, monitor, tripod, or bracket.
Camera & Audio Recording
The BG-EPTZ-UH4K owes its stellar image quality to a Sony 1/2.5” CMOS sensor which allows it to provide up to 4k@30Hz resolution. The camera has a 130° field of view as well which is one of the widest FOV configurations on the market. The zoom and super wide angle support this camera’s ePTZ functions, enabling presenters to zoom in and focus on a particular part of the frame when necessary.
The omnidirectional microphone on this camera is great for many situations as it can pick up sound up to 8 meters away. This opens up the possibility for this device to capture small meetings for streaming and recording.
Control & Connectivity
To control this camera’s ePTZ functions, users can take advantage of an IR remote. This gives presenters the power to change the focus of their presentation at will. With power and data over USB 3.0, you don’t need to worry about extra power cables. Not only can you output video via USB, but you can output video over HDMI at the same time. The BG-EPTZ-UH4K can be mounted to various surfaces such as desktops, monitors, tripods, and brackets as well for any situation. The camera is also small enough to be portable, enabling users to pack it away when traveling. This makes it especially handy for remote employees.
Ready to Go
The BG-EPTZ-UH4K is ready to use right out of the box, thanks to the included 1x IR Remote Controller and 1x USB 3.0 Cable. Simply plug the camera into your device via USB 3.0 and use the IR remote to achieve the perfect angle!
Features
-
4K Ultra HDCrystal clear image in any application -
USB 3.0High speed data transmission and power supply in one cable -
Integrated MicrophoneOmni-directional pickup up to 8 meters -
Wide AngleOne of the widest FOV on the market - 130°! -
Integrated MountMount to desktop, monitor, tripod, or bracket -
HDMI OutputIdeal for capture cards or extra monitors
- Sony 1/2.5” CMOS
- H.265 / H.264 / MJPEG encoding
- Small enough to take with you
- 0.02Lux @ F1.8
- Voice pickup up to 8 meters
- 1/30s ~ 1/10000s shutter speed
- Auto, indoor, outdoor, one push, and manual WB
- 4X ePTZ digital zoom @1080p
- Control with IR remote
Videos
Tech Specifications
| Camera | |
|
Video System
|
Sony 1/2.5" CMOS |
|
Min Illumination
|
0.02Lux @ F1.8, AGC ON
|
|
Effective Pixel
|
4K@3820*2160 |
|
Digital Noise Reduce
|
2D, 3D |
| Zoom | 4X Digital Zoom @ 1080p |
| Shutter | 1/30s ~ 1/10000s |
| Lens | F=2.8mm FOV 130° |
| Auto Focus | Support |
|
White Balance
|
Auto / Indoor /Outdoor/ ONE PUSH, Manual |
| USB Function | |
|
Video Output
|
4K@30Hz/25; 1080p@30Hz/25; 1080i@60Hz/50/30/25; 720p@60Hz/50Hz
|
| Encoding | H.265 / H.264 / MJPEG |
|
UVC Protocol
|
Support |
| Video | UVC1.0 - UVC1.5 |
| Audio Function | |
| Built-in | YES |
| Audio | USB 3.0 |
|
Voice Pickup Range
|
8 Meters |
| HDMI Interface | |
|
Video Output
|
4K@30Hz/25; 1080p@30Hz/25; 1080i@60Hz/50/30/25; 720p@60Hz/50
|
| Encoding | H.265 / H.264 / MJPEG |
|
Audio Output
|
N/A |
| ePTZ | Support, 4X Digital Zoom @ 1080p |
|
Interface: USB 3.0 Type B Female
|
Compatible with all interfaces below USB 3.0, support video, control, power supply, audio input and output
|
| Interface: HDMI 2.0 |
Compatible with HDMI 2.0, 1.4, 1.3A, 1.3 and other interfaces, only supports video transmission
|
| Dome Parameter | |
|
Input Voltage
|
5V (USB 3.0) |
|
Operation Temperature
|
14°F ~ 122°F / -10°C ~ +50°C |
|
Storage Temperature
|
-40°F ~ 140°F / -40°C ~ 60°C |
| MTBF | 50000 hours |
|
Camera Brackets
|
Brackets with Damper, Support±30° adjustment |
|
Dimensions (LxWxH)
|
2.8 x 2.8 x 2.2in [70 x 70 x 56mm] (Bracket not included) |
| Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS
- 1x ePTZ Camera
- 1x IR Remote Controller
- 1x USB 3.0 Cable
- 1x Wall Plug USB Adapter
- 1x User Manual

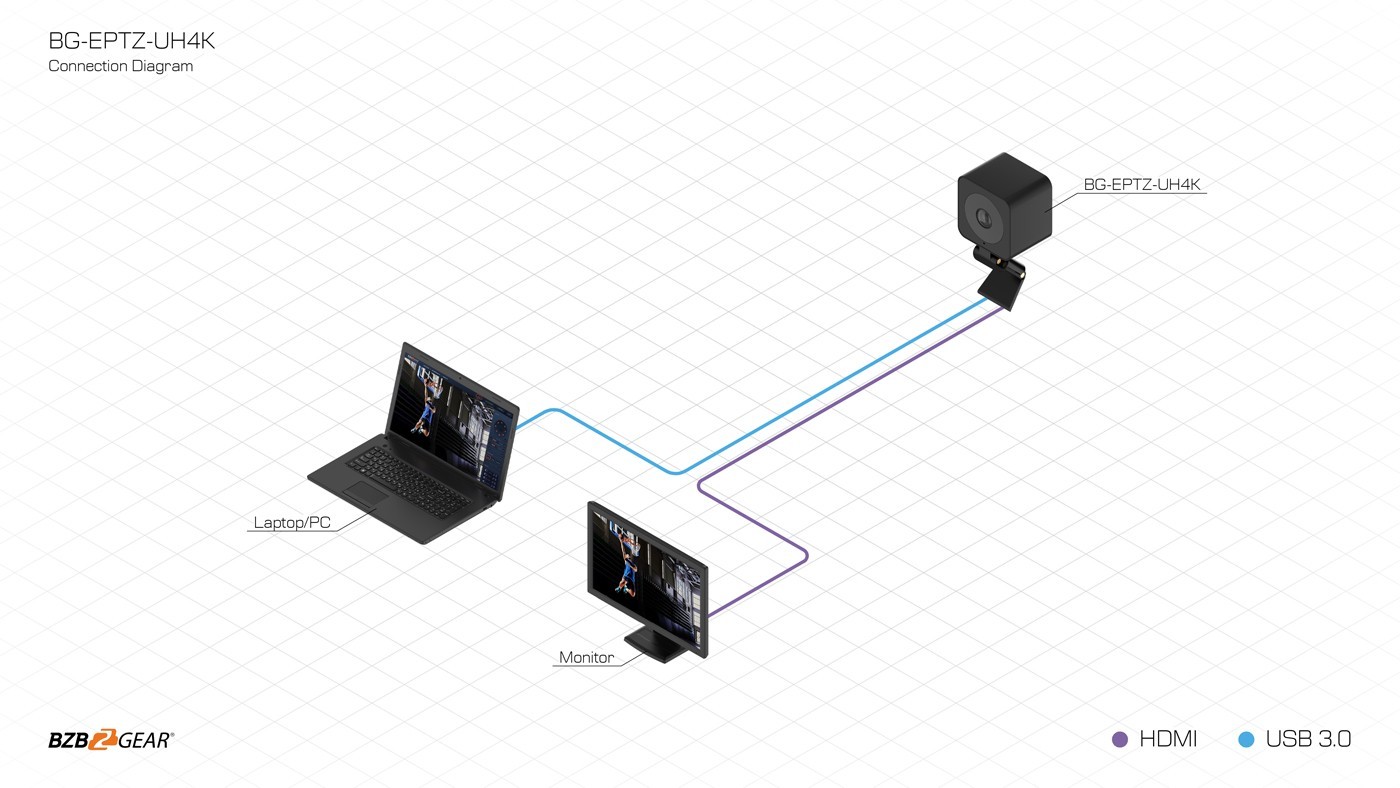

Interfaces
-
USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
-
HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 4K@30Hz.
