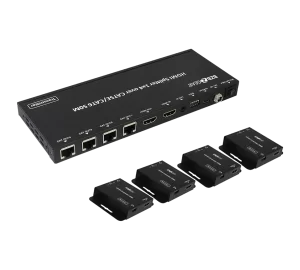

BG-DA-1X4C50M
HDMI Splitter 1X4 Over CAT5E/CAT6 50m

HDMI Splitter 1X4 Over CAT5E/CAT6 50m

SKU: BG-DA-1X4C50M
1080p Full HD

1080P HD OVER HDBaseT Our original powerhouse series of matrices, which come in 4x4, 6x6, 8x8 and 16x16 configurations. The PP-POH (Modular) series transmits crisp, uncompressed 1080P HD content at distances of up to 70m/230ft with no latency. With many options, this series delivers quality at a cost-ef-fective price and is the perfect choice in a still dominating 1080p world.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by Internet cable. The splitter supports resolutions up to 1080p@60Hz, and supports smart EDID management.

Call us for price


Features
  • Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0
  • Full HD support: 1080p@60Hz@24 bit/pixels
  • Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
  • Operates for TMDS clock frequencies up to 148.5MHz
  • Support Power over cable function
  • Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission
  • UTP cable termination follows the standard of IEEE-568B
  • Supports EDID control via EDID selector
Specifications


1080p Full HD

1080P HD OVER HDBaseT Our original powerhouse series of matrices, which come in 4x4, 6x6, 8x8 and 16x16 configurations. The PP-POH (Modular) series transmits crisp, uncompressed 1080P HD content at distances of up to 70m/230ft with no latency. With many options, this series delivers quality at a cost-ef-fective price and is the perfect choice in a still dominating 1080p world.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

Maximum Pixel Clock165 MHZ
HDMI Splitter:
Input Ports1x HDMI, 1xMini USB
Output Ports1xHDMI, 4xRJ45, 1xIR out
Receiver:
Input Ports1xRJ45, 1x IR in
Output Ports1x HDMI
Power SupplyDC 12V 2.5A
ESD Protection± 8kV (air-gap discharge)
Human Body Model± 4kV (contact discharge)
Dimensions (mm)Transmitter : 210x83X17mm
Receiver: 79x68x17mm
Weight Transmitter:415g
Weight Receiver:4 x 131g
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (Non-condensing)
Power Consumption (Max) 8W





Package Contents
① 1xHDMI Splitter
② 4xReceiver
③ 1x12V2.5A DC Power Supply adapter
④ 1xWideband IR Tx cable
⑤ 4xWideband IR Rx cable
⑥ 1xOperation Manual
⑦ 2xMounting ears


Warranty: 2 years
