4K UHD 12X PTZ All-In-One Speaker Tracking/AutoFraming Video Bar with HDMI/USB/Wi-Fi and ProGrade Speaker/Microphone
and engineering support
Overview

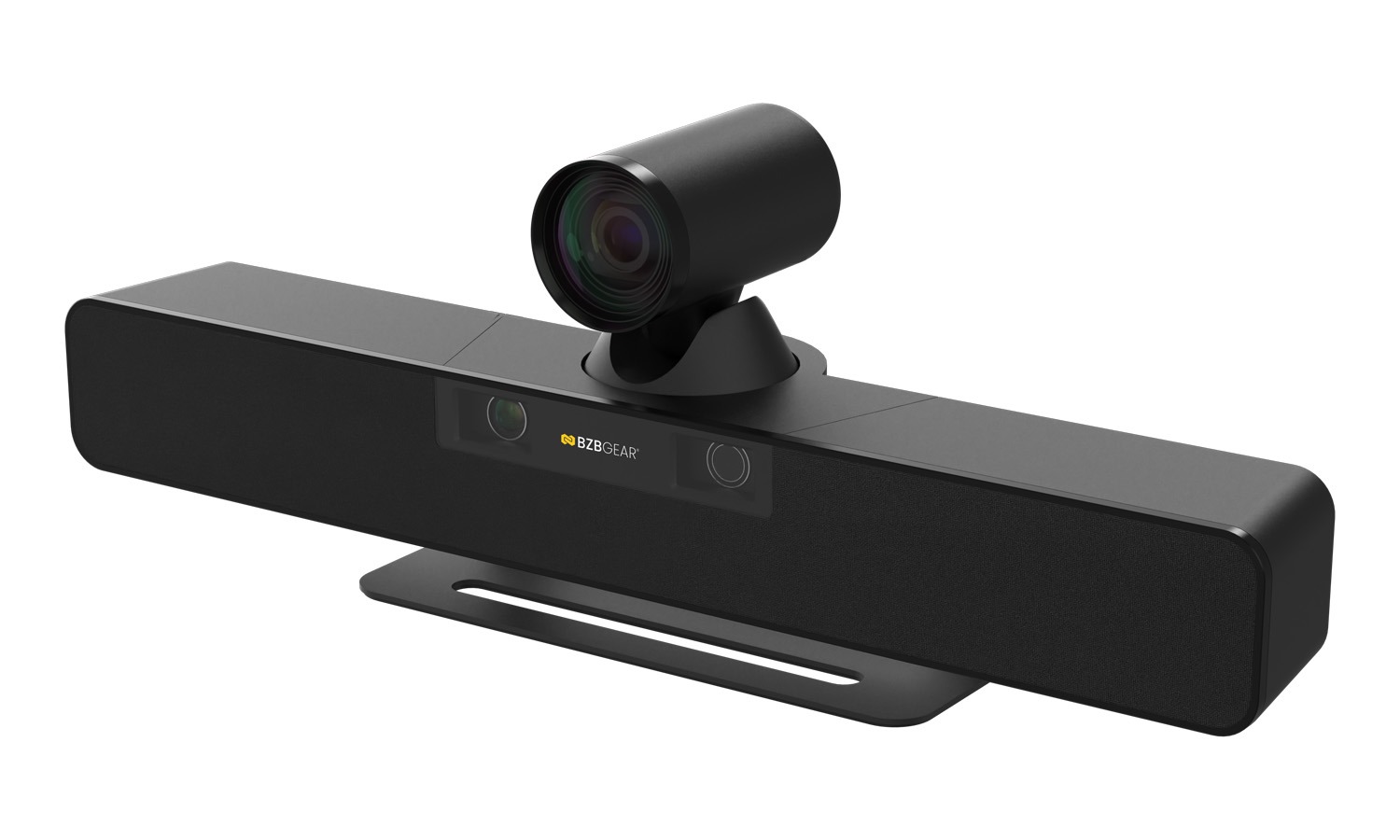

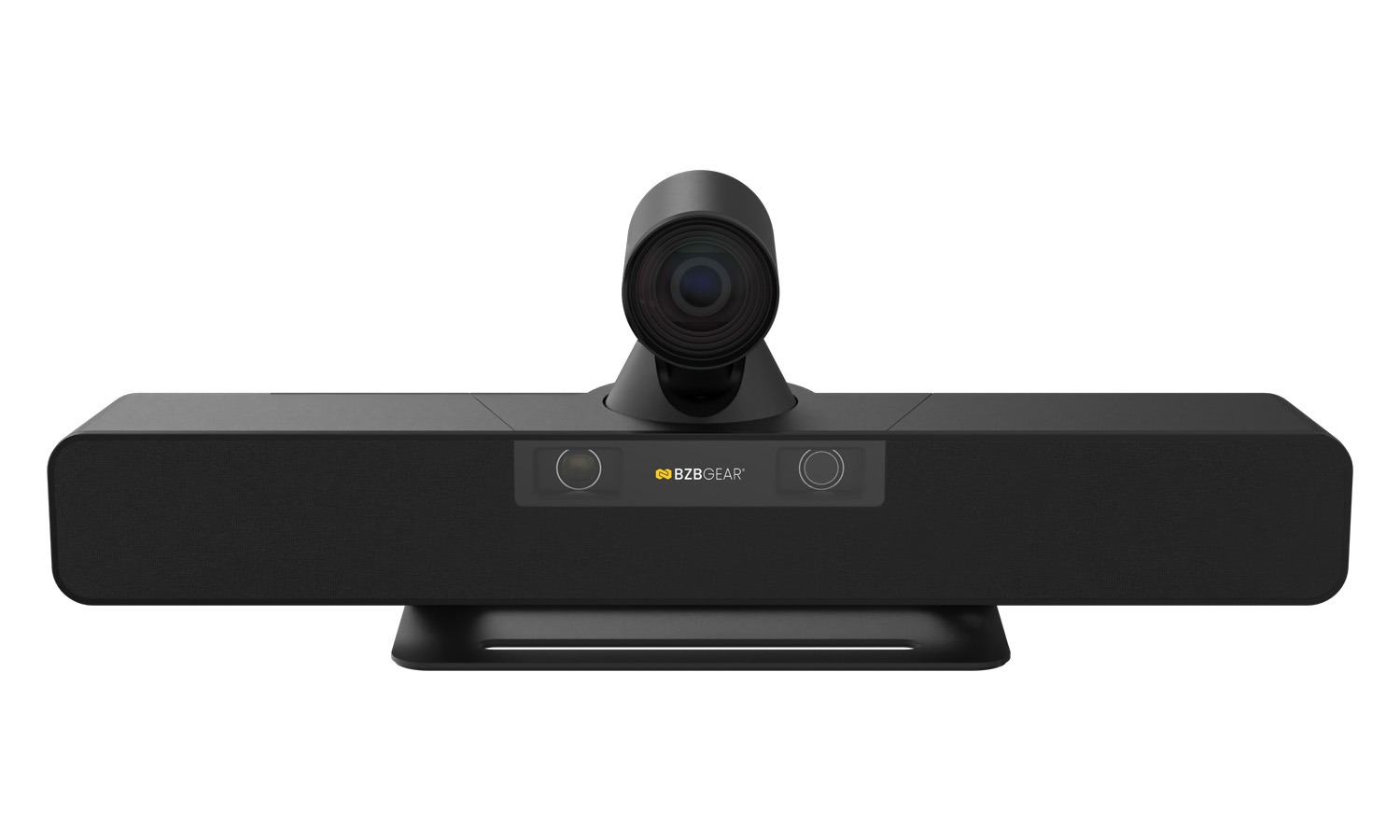

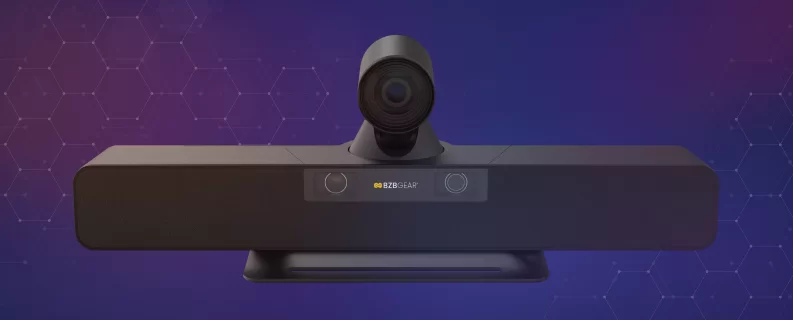

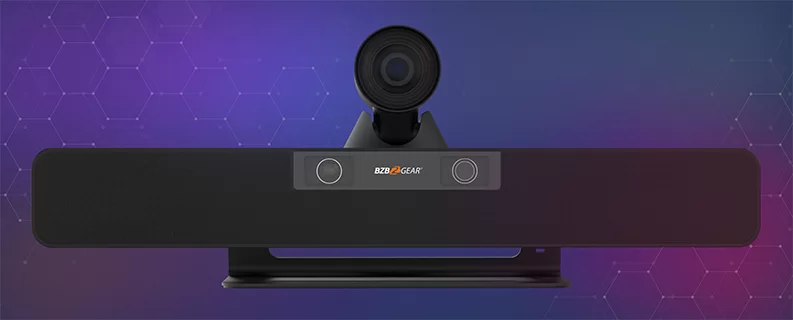

The BG-CYCLOPS-PRO is a cutting-edge 4K UHD camera designed for seamless video conferencing and collaboration. Its dual-lens system combines a 120° ultra-wide panoramic lens with a 12x optical zoom lens, delivering crystal-clear visuals and exceptional versatility. This all-in-one device features integrated AI capabilities like auto-framing, speaker tracking, and Smart Gallery, along with a beamforming microphone and professional-grade speaker for outstanding audio quality. With flexible mounting options, built-in Wi-Fi, and easy USB connectivity, the BG-CYCLOPS-PRO is the ultimate solution for modern BYOM and BYOD workflows.
Whether on a tabletop, wall-mounted, or attached to a display, the BG-CYCLOPS-PRO delivers outstanding performance, making it the ultimate solution for professional video communication and collaboration.
Features-in-Depth

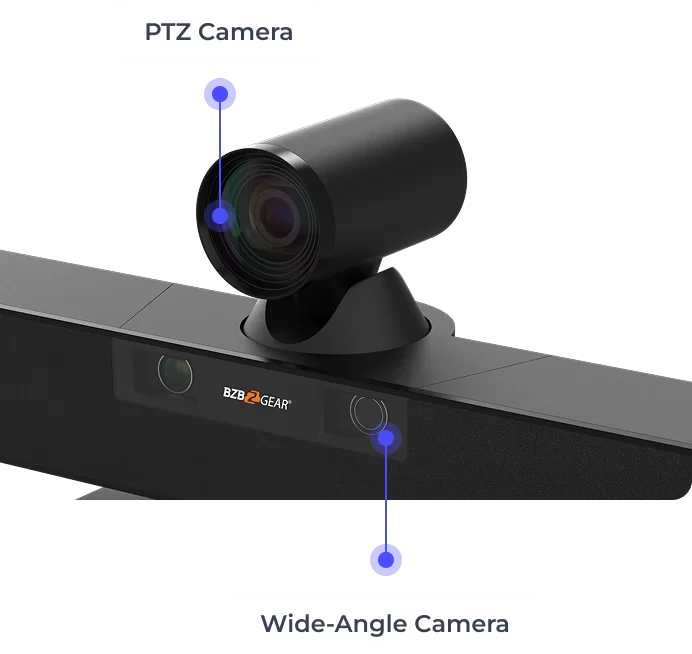

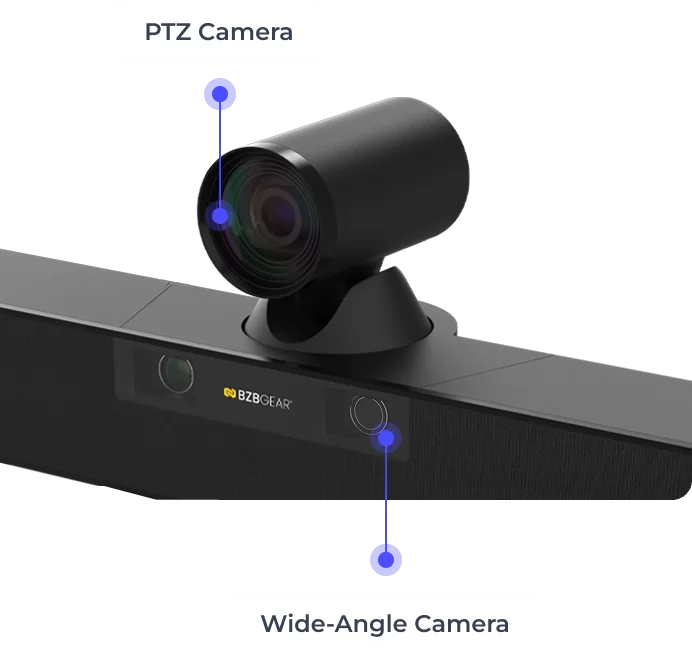

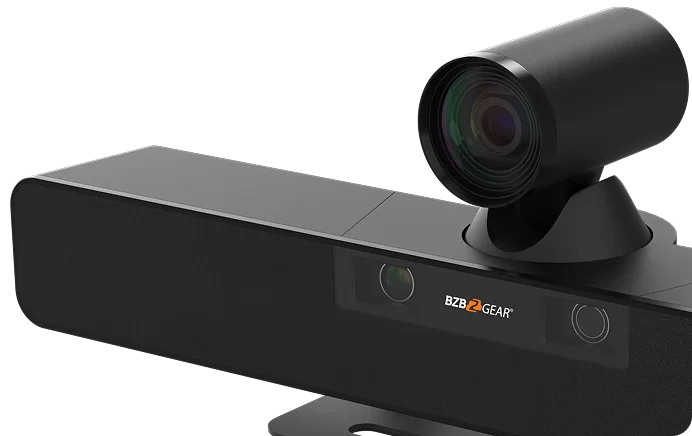

The BG-CYCLOPS-PRO dual-lens system includes a 120° ultra-wide-angle fixed-focus lens for panoramic detection and a 12x optical zoom lens for detailed close-ups, both delivering crystal-clear visuals in 3840x2160 resolution via a high-quality 1/2.5-inch CMOS sensor. It supports 1080p and 720p outputs for compatibility.
This sleek all-in-one device integrates a 4K close-up and panoramic camera, beamforming microphone, and full-range speaker, ensuring high performance and convenience. The ultra-wide 120° lens is ideal for large conference rooms, while flexible mounting options enhance versatility.
Audio clarity is achieved with a 6-element beamforming microphone array and advanced Audio 3A (AEC, AGC, ANS) algorithms for echo cancellation, automatic gain control, and noise suppression. The professional-grade full-range speaker delivers immersive sound quality.
AI-powered features include automatic framing, speaker tracking, and Smart Gallery, which dynamically adjust views and focus using sound localization and facial recognition. These features ensure an equitable and engaging experience for remote participants.

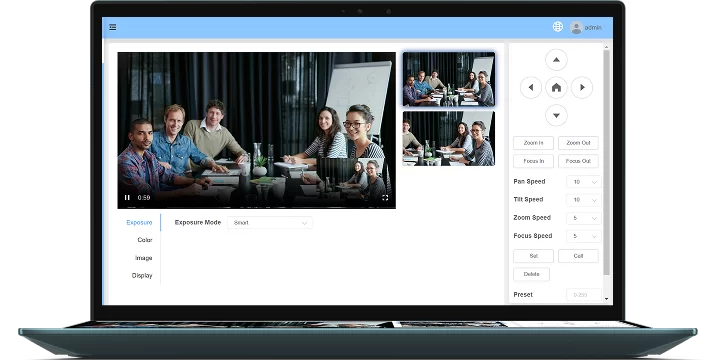

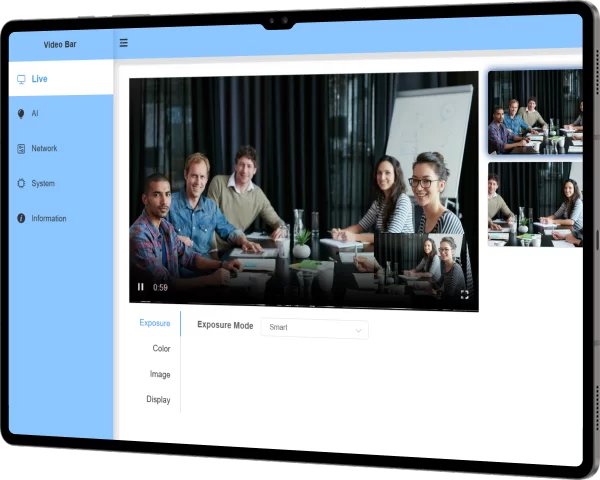

Designed for modern BYOM and BYOD workflows, the BG-CYCLOPS-PRO includes built-in Wi-Fi, wireless screen projection, and rich connectivity options like USB 3.0, HDMI, and RJ45 for seamless integration. Plug-and-play functionality simplifies setup, while a web interface allows easy configuration of AI modes, PTZ settings, and network management.
Features
-
Dual-Lens SystemCombines a 120° ultra-wide-angle lens for panoramic views with a 12x optical zoom lens for detailed close-ups, both supporting 4K UHD resolution -
Advanced AI CapabilitiesFeatures auto-framing, speaker tracking, and Smart Gallery for intelligent participant focus and equitable remote collaboration -
Integrated Audio SystemIncludes a 6-element beamforming microphone array with Audio 3A algorithms (AEC, AGC, ANS) for clear communication and a professional-grade full-range speaker for immersive sound -
All-in-One DesignCombines a 4K close-up camera, panoramic camera, microphone, and speaker in a compact, sleek design for maximum convenience -
Modern ConnectivityBuilt-in Wi-Fi, USB 3.0, HDMI, and RJ45 ports ensure seamless integration into existing setups, along with support for wireless screen projection -
Flexible InstallationOffers versatile mounting options for table, wall, or display attachment, making it ideal for various room sizes and configurations
Videos
Tech Specifications
| Technical Specifications | |
| Dual Lens System | Panoramic Camera: 120° 4K fixed-focus wide-angle lens. Close-Up Camera: 12x optical zoom with motorized pan-tilt. |
| Image Sensor | 1/2.5-inch UHD CMOS sensor with 8.51 million pixels. |
| Resolutions Supported | 4K (3840x2160), backward compatible with 1080p and 720p. |
| Field of View (FOV) | Horizontal FOV: 71° wide-angle lens. |
| Pan-Tilt Mechanism | Horizontal Range: ±90°. Vertical Range: -23° to +23°. |
| AI Features | AI Auto Framing: Automatically adjusts composition based on meeting room occupancy. Speaker Tracking: Tracks active speakers using sound source localization and analysis. Smart Gallery: Facial recognition extracts and arranges participant close-ups. |
| Audio | 6 integrated microphones with low-distortion lateral beamforming algorithm. Supports cascading for extended microphone coverage. Speaker: Full-range, high-fidelity speaker with optimized acoustic design. |
| Audio Processing | Built-in 3A Audio Algorithm: AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Acoustic Noise Suppression). |
| Interfaces | USB: 1 x USB 3.0 Type-C 1 x USB 3.0 Type-A Video Output: 1 x HDMI OUT Network: 1 x RJ45 (LAN) Power: 1 x DC 12V interface |
| Wireless Connectivity | Wi-Fi Module: Enables wireless projection (BYOD). Supports BYOM for video and audio calls via personal laptops. |
| Mounting Options | Tabletop placement. Wall mount bracket (included). TV/display mount (optional). |
| Indicators and Controls | Status Indicator: Visual operational status feedback. Privacy Cover: Ensures privacy when not in use. Reset Port: For device resets. |
| Power Supply | Input: 12V/5A (standard power adapter provided). |
| Build and Safety | Ventilation design to prevent overheating. Non-waterproof - recommended for dry indoor environments. |
| Cable Length Recommendations | Maximum horizontal cascade distance: 3 meters. Maximum number of cascades: 3 (future software updates required). |
PACKAGE CONTENTS
- 1x BG-CYCLOPS-PRO
- 1x USB Cable
- 1x Remote Control
- 1x Wall Mount Bracket (with screws)
- 1x Power Adapter
- 1x User Manual

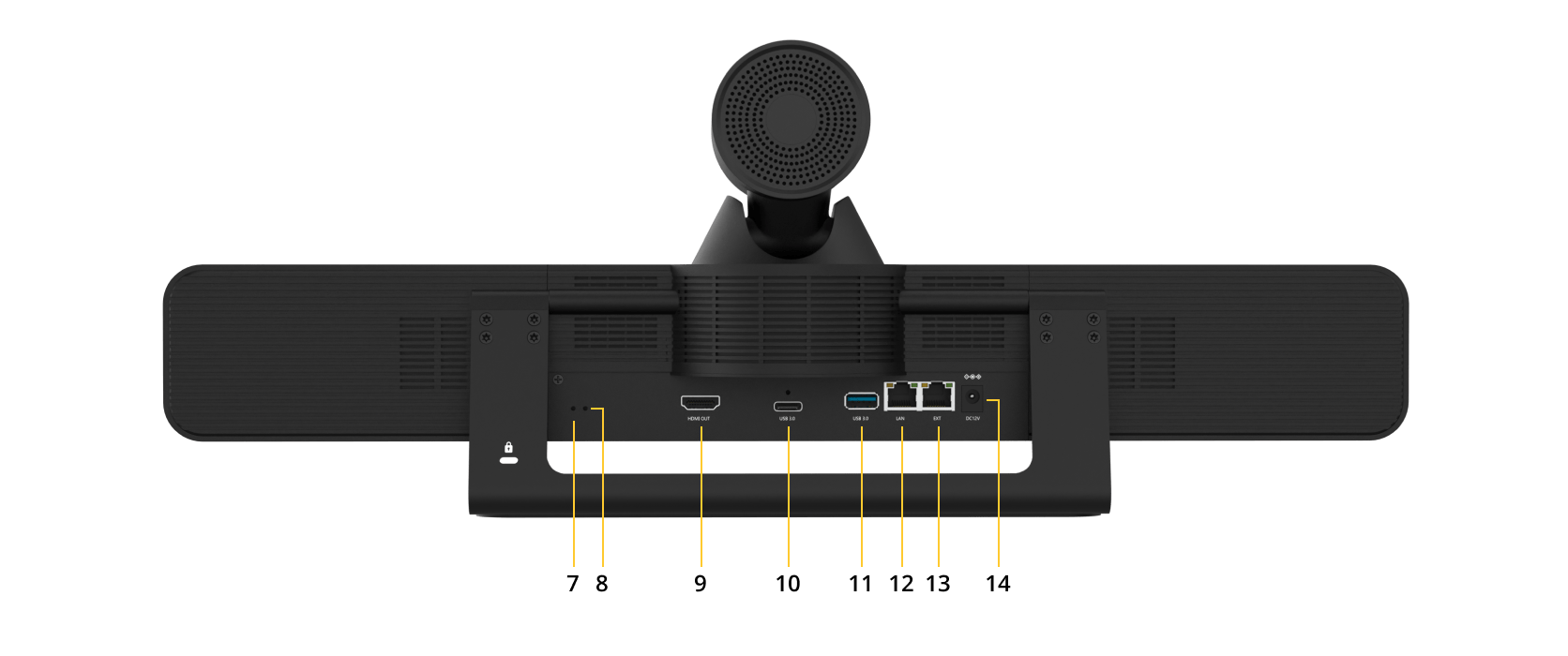

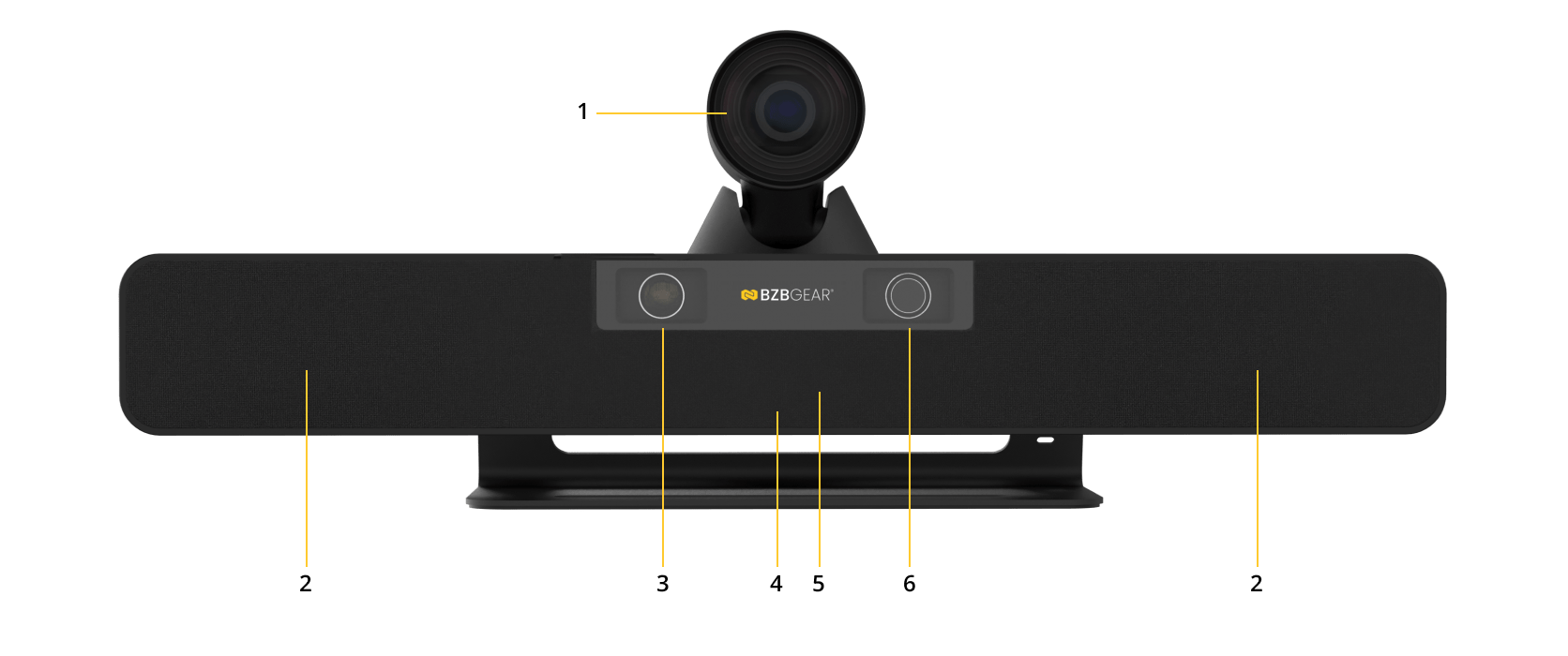

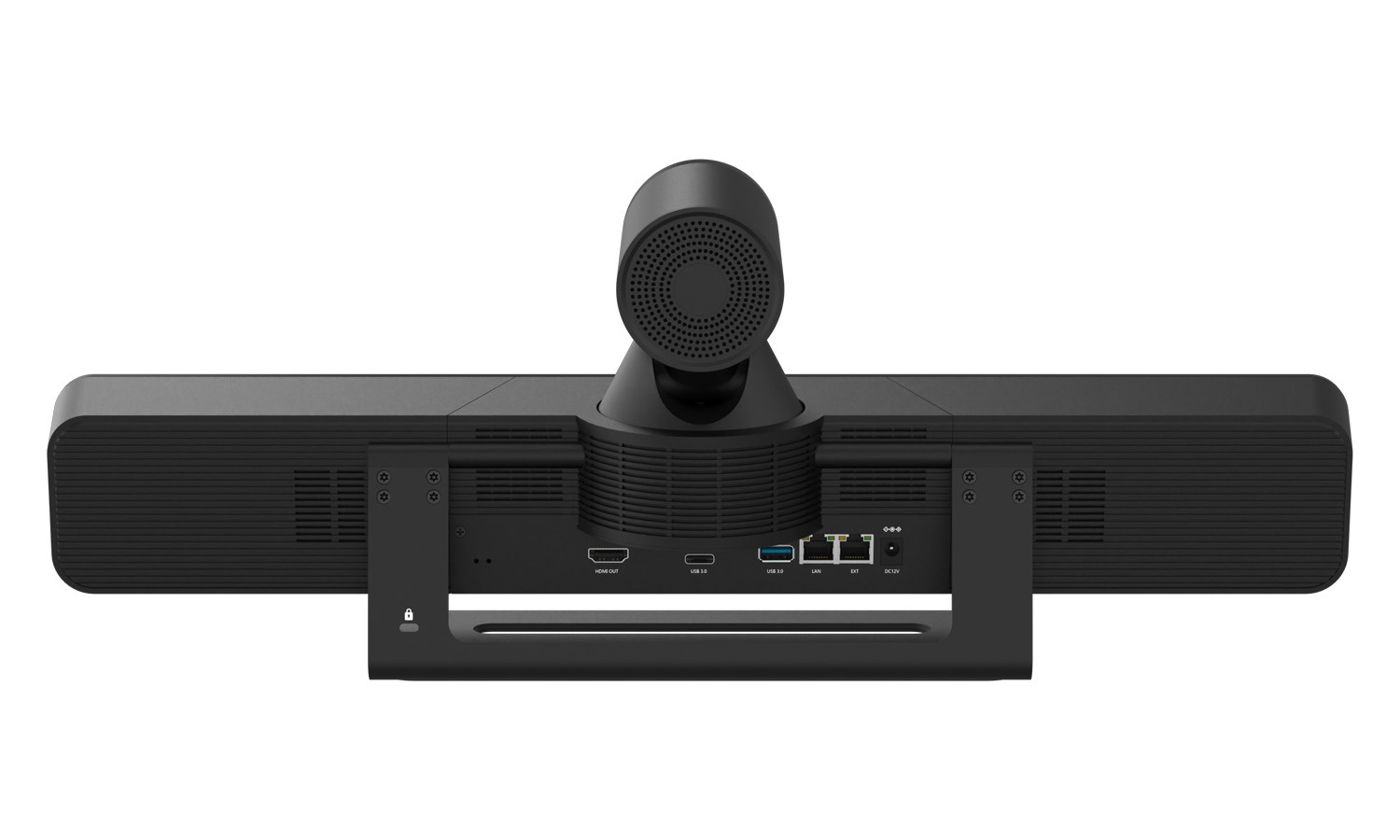

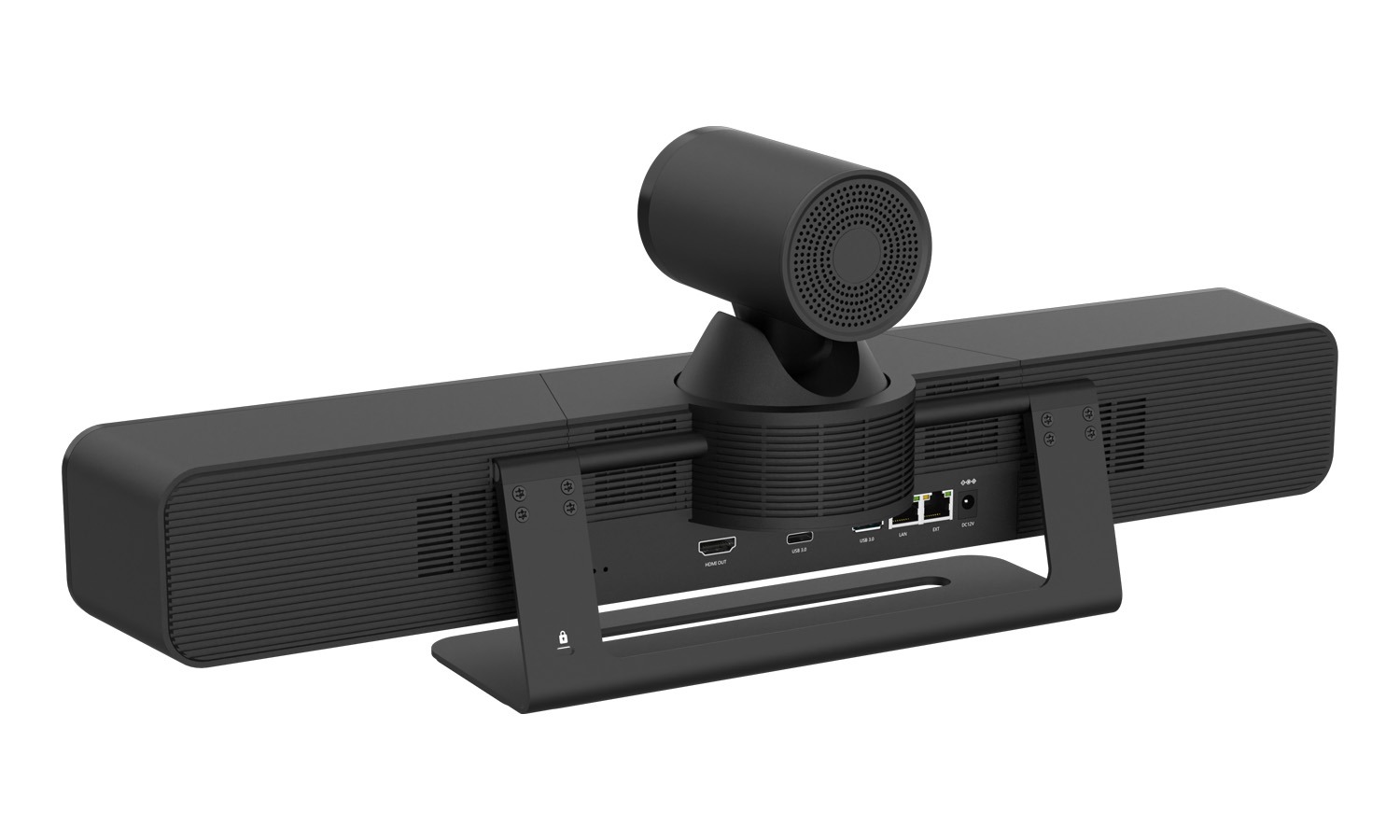

Interfaces
- Features Lens
- Loudspeaker
- Panorama Lens
- Microphone
- Status Indicator
- IR Window
7. Reset Port
8. Burning Port

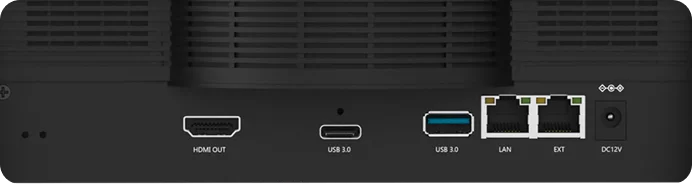

9. HDMI OUT Interface
10. USB 3.0 Type-C Interface
11. USB 3.0 Type-A Interface
12. LAN Interface
13. EXT Interface
14. DC 12V Interface
