All-in-One 4K IP Production Switcher and PTZ Joystick Controller (4-Channel/ Touchscreen/PoE/IP/RS-232)
and engineering support
Overview
The BG-Commander-UltraLX is a professional portable 4-channel HDMI production switcher and joystick controller designed for multi-camera productions. Supporting up to 4K signal input with 1080p@60Hz output, it integrates advanced features such as picture-in-picture, chroma key, logo overlay, and multiple transition effects. With dual HDMI outputs, USB-C virtual camera capability, direct recording to USB/SD, PTZ camera control, and tally light support, this device delivers a complete live production solution for live streaming, online courses, corporate press conferences, events, or church services.
Features In Depth

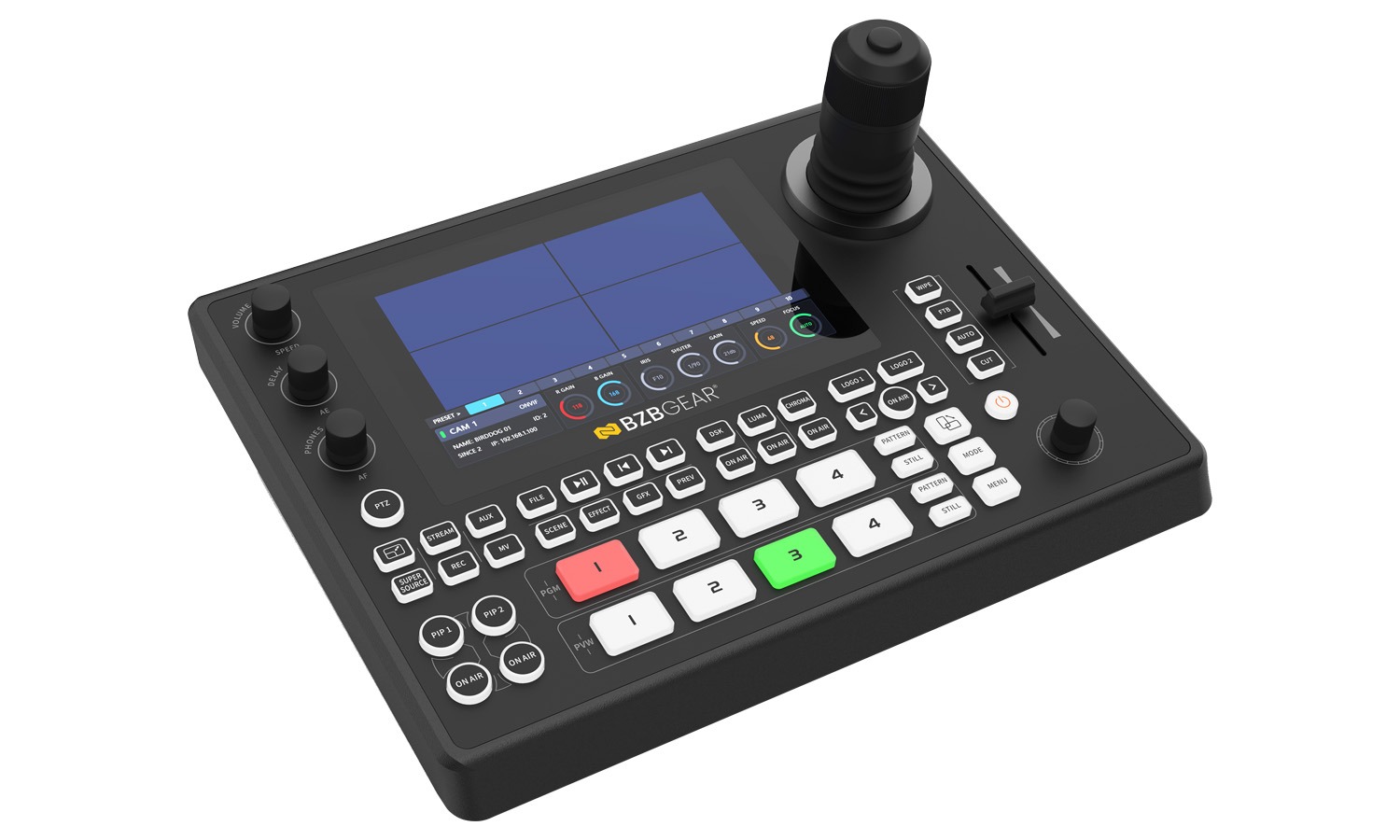

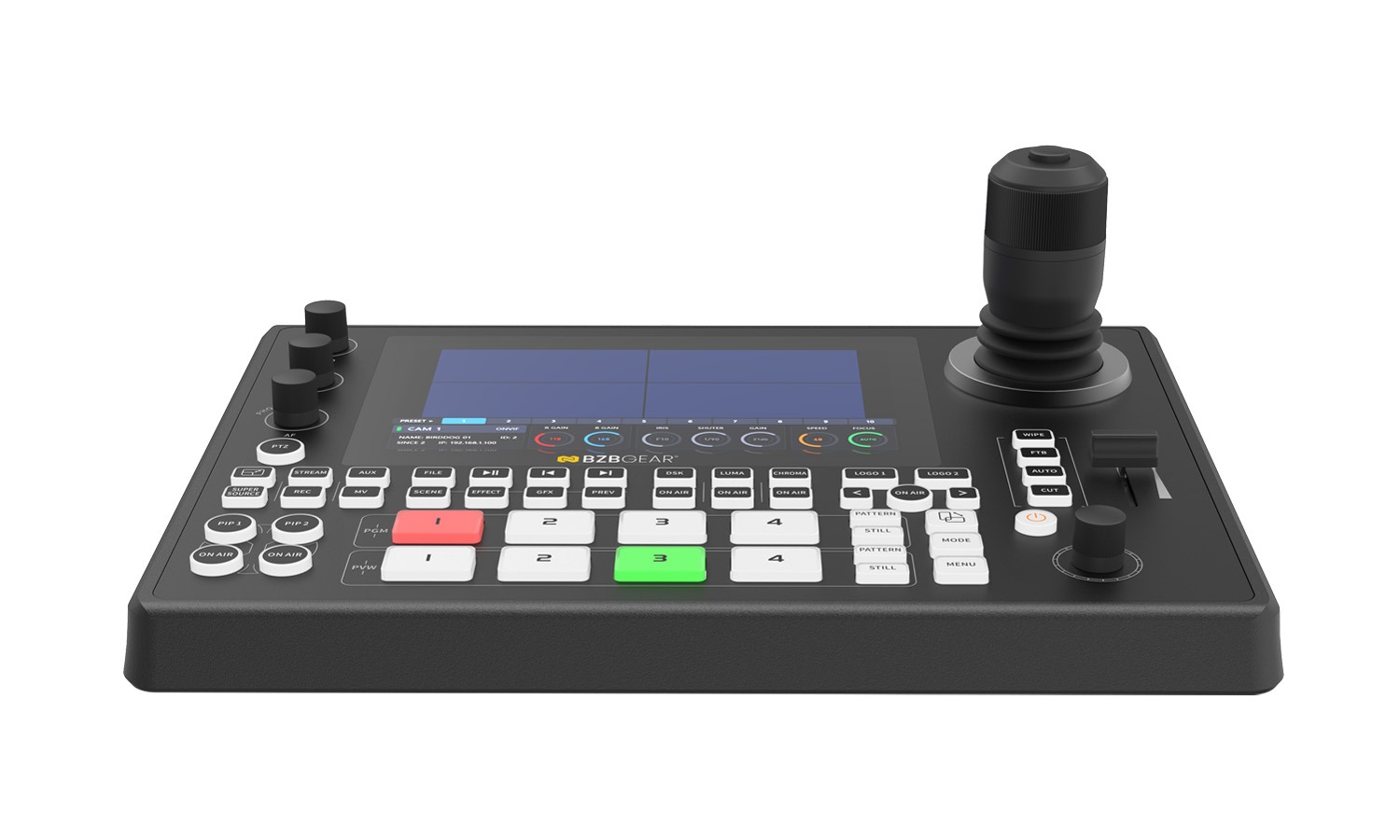

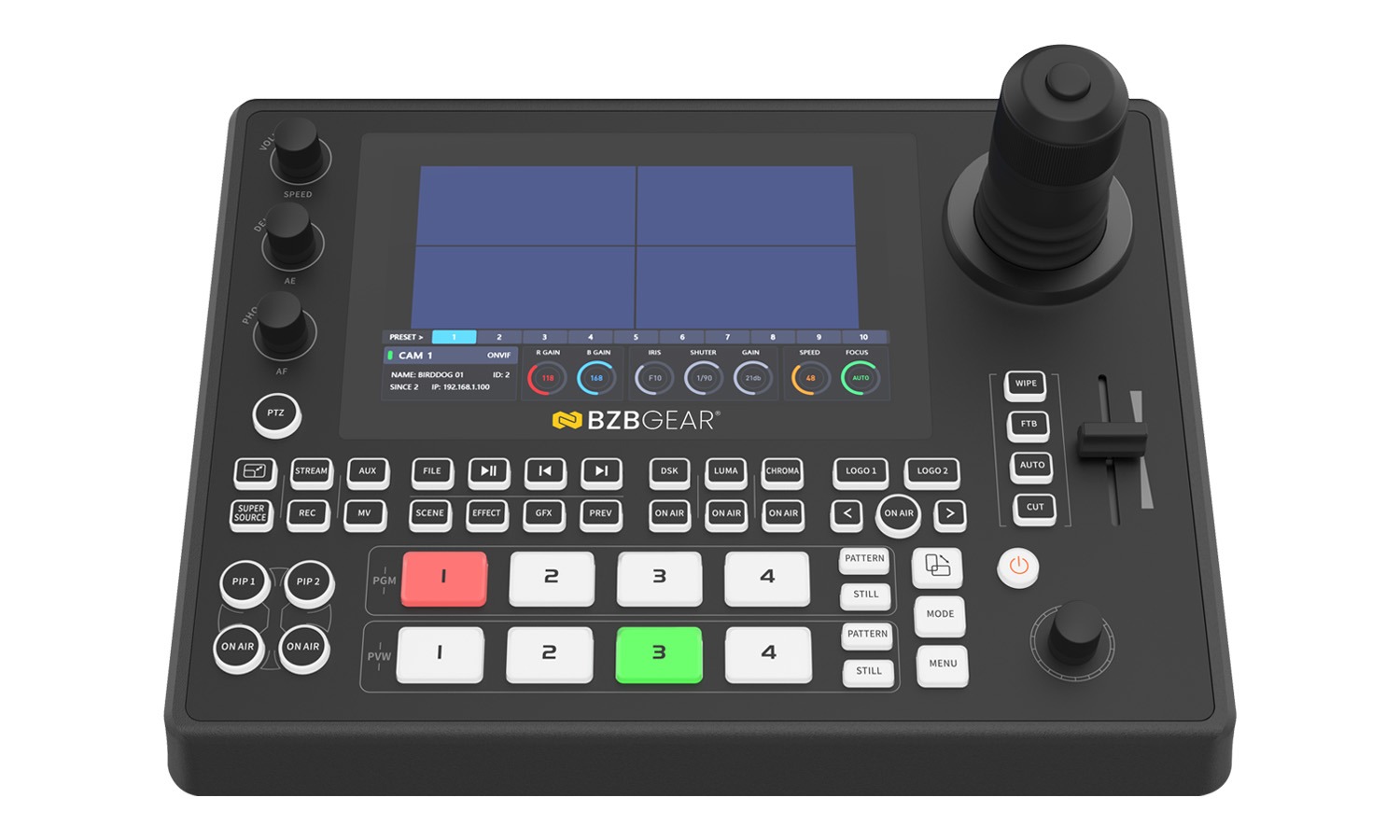

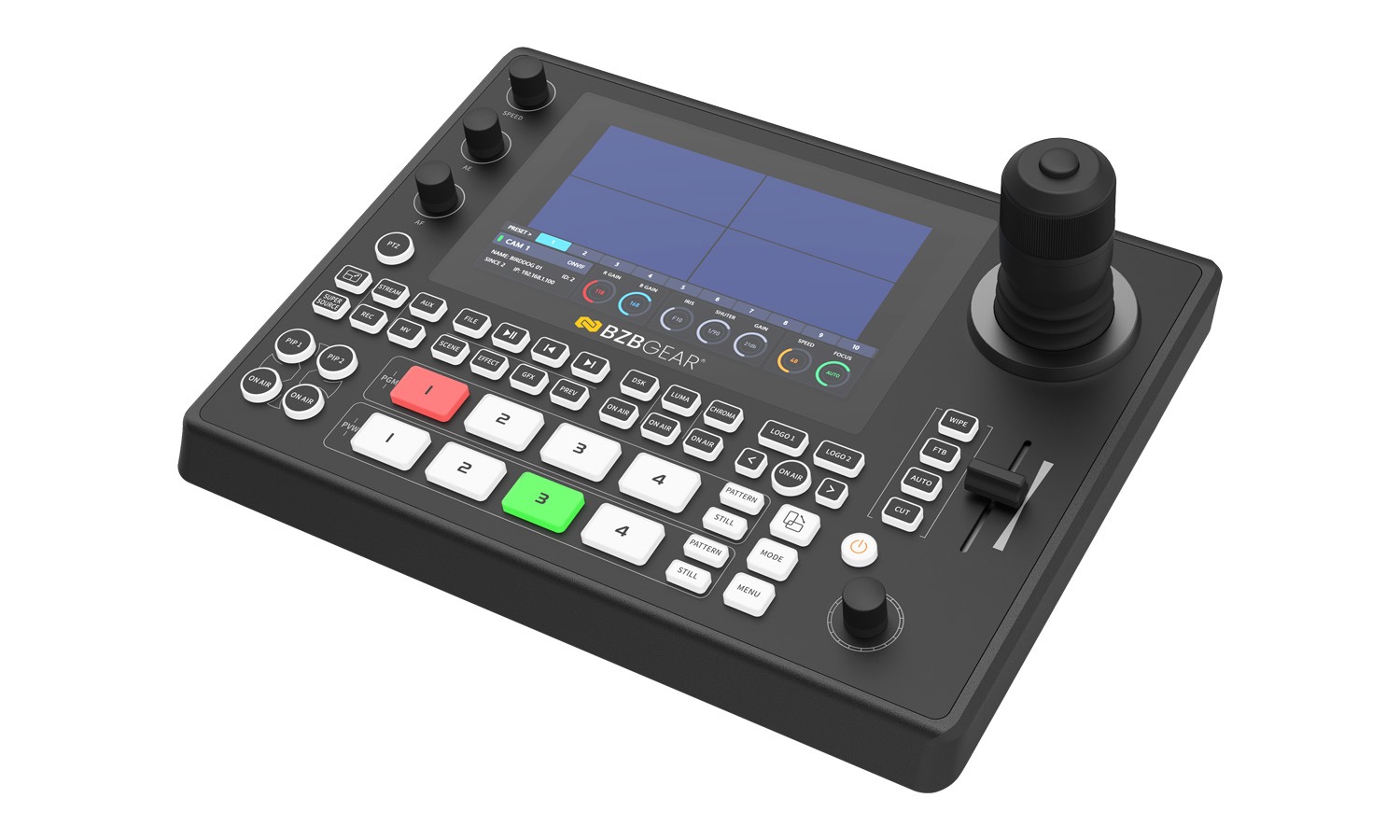

The BG-Commander-UltraLX combines multi-camera switching, professional effects, and intuitive control in a single compact device. Its 7-inch LCD touchscreen provides real-time monitoring and menu navigation, while the integrated 4D joystick, sliding T-bar, and precision knobs allow for smooth operation during live production.
With four HDMI inputs supporting 4K@30Hz and flexible output options (HDMI, USB-C, and direct recording), the UltraLX ensures uncompromised video quality. The Type-C virtual camera output makes it plug-and-play with popular live streaming and conferencing platforms, removing the need for external capture cards.
Advanced features like chroma key, PIP overlays, and transition effects bring broadcast-level polish to productions, while PTZ camera control and tally integration expand flexibility for multi-camera environments. Whether for mobile production teams or fixed installations, the BG-Commander-UltraLX empowers operators to achieve professional-grade results with minimal setup.
Features
-
![One-Push Source Switching]()
4-in-2-out SwitchingFour 4K HDMI inputs with two HDMI outputs for program and monitoring -
![fluent_tv-usb-48-regular]()
Type-C Virtual CameraDirect USB-C output for seamless use with live streaming and video conferencing software -
![bi_images]()
Professional EffectsBuilt-in chroma key, picture-in-picture, logo overlay, and multiple transitions -
![bi_sd-card]()
Dual Recording SupportRecord directly to USB drives or SD cards without a PC -
![LED Indicator light]()
PTZ & Tally IntegrationControl PTZ cameras and synchronize live/on-air status -
![LCD Display]()
7-Inch LCD DisplayHigh-resolution screen for monitoring, menu navigation, and settings control
- Supports output resolutions up to 1080p@60Hz
- Compatible with ONVIF 2.8 and VISCA Over IP protocols
- Integrated audio mixer with multiple input options
- Smooth T-bar transitions and intuitive 4D joystick control
- Low power consumption (
- Compact, portable design for on-site and mobile production setups
- Operating temperature range: -10°C to 50°C
Tech Specifications
| Operating System | Linux |
| LCD Display Size | 7 inch LCD screen |
| Display Resolution | 1024x600 |
| Decoding Ability | Input: 4K@30Hz (3840x2160) / 1080p@60Hz (1920x1080) Output:1080p@60Hz (1920x1080), compatible with 1080p@30Hz / 720p@60Hz / 480p / 576p |
| Control Protocol | ONVIF 2.8, VISCA Over IP |

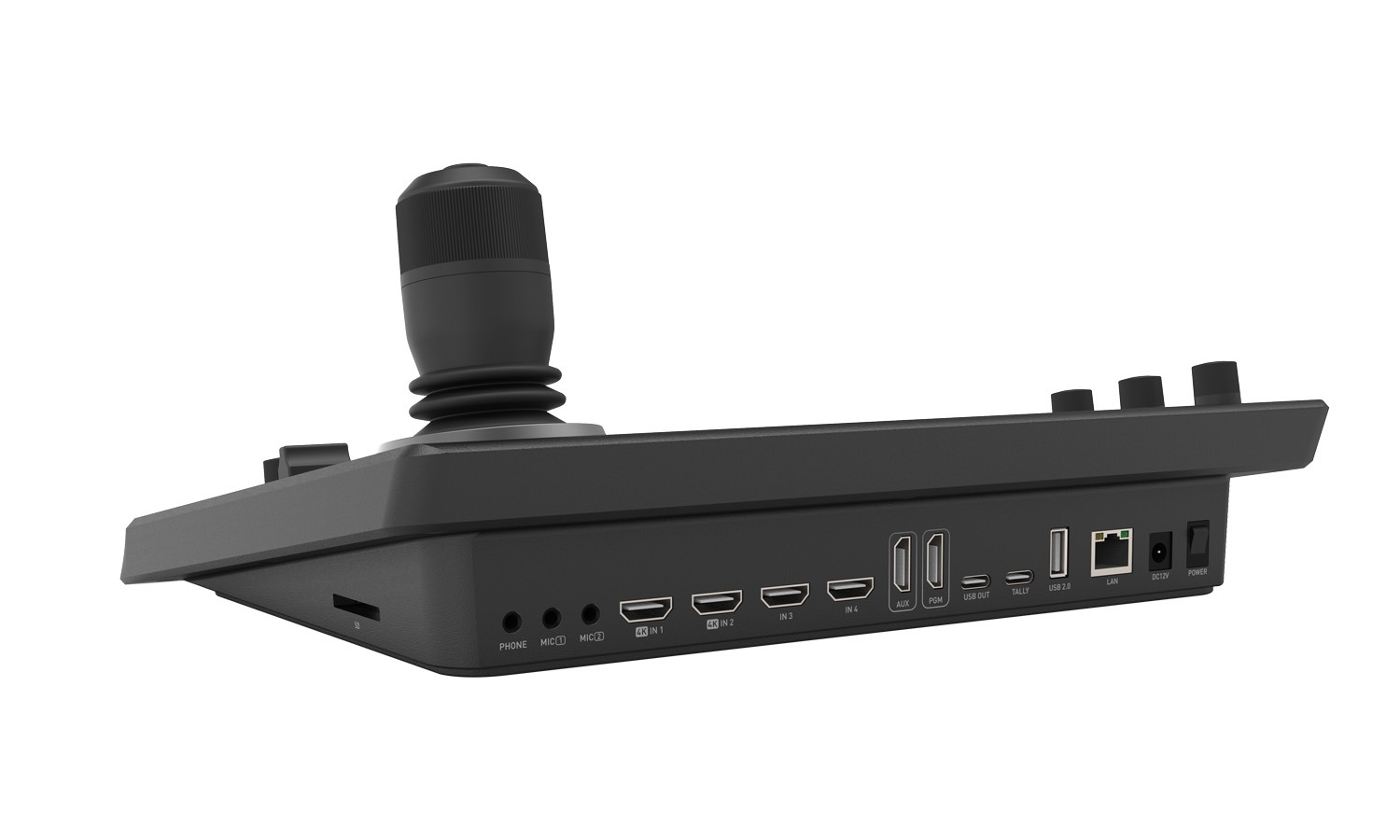

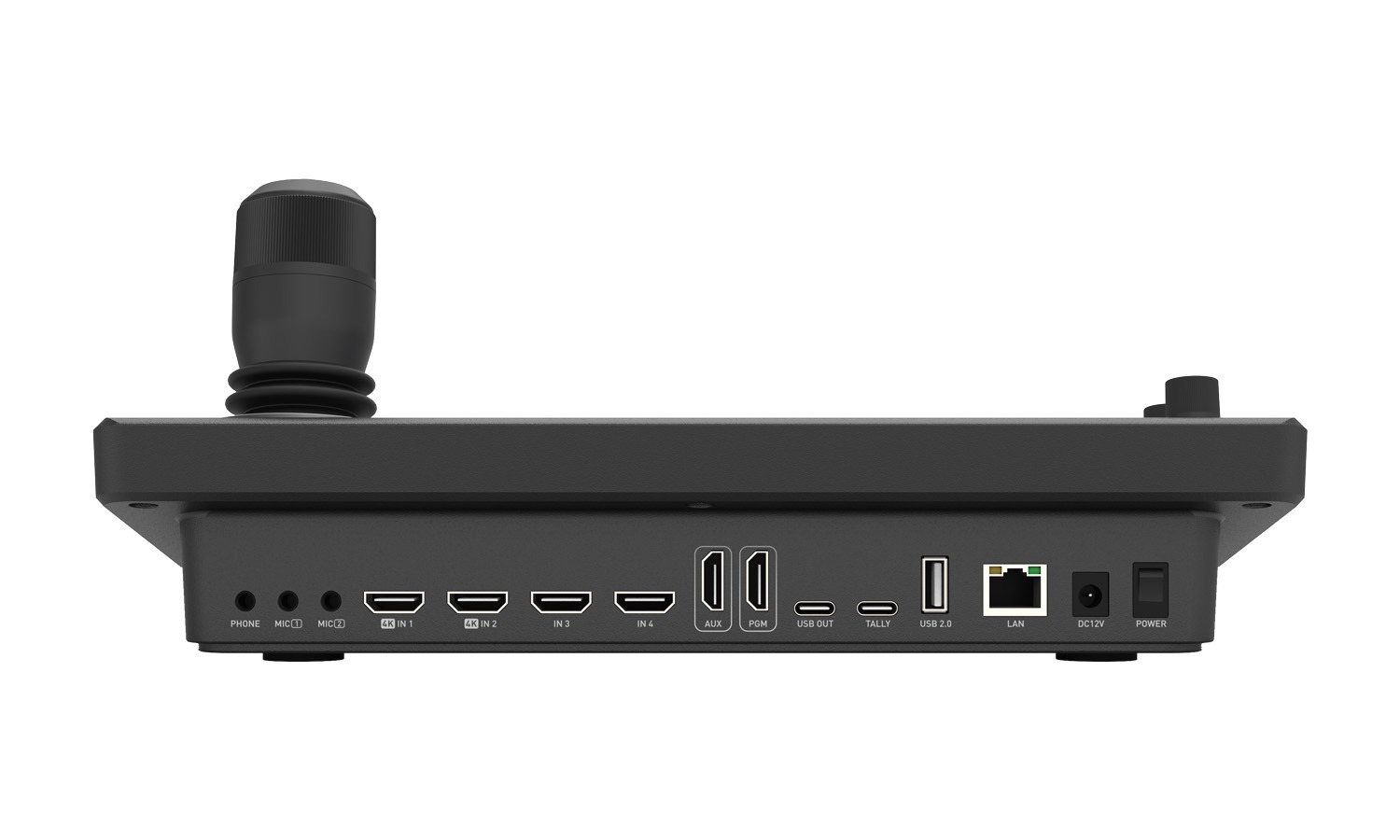

| Interface | 4x Video input (HDMI IN) 2x Video output (HDMI OUT (PGM/MON)) 1x Video Output (USB-C (Webcam)) 3x Audio Input (AUDIO IN) 1x Headphone Jack (3.5mm) 2x Control Ports (Tally & LAN) 2x Data Storage (USB-A 2.0 & SD Card) 1x Power Port (DC12VIN) |
| System Setting | Supports video settings, audio settings, recording settings, device control, system maintenance |
| Operating Components | 4D control joystick, step-less knob, sliding T-bar |
| Power Supply | Standard 5.5/2.1 power connector, DC 12V 2A ±10% |
| Power Consumption | < 15W |
| Working Temperature | -10°C - 50°C |
| Working Humidity | 20%~80% Non-condensing |
| Storage Temperature | -40°C - 60°C |
| Storage Humidity | 0%~90% Non-condensing |
