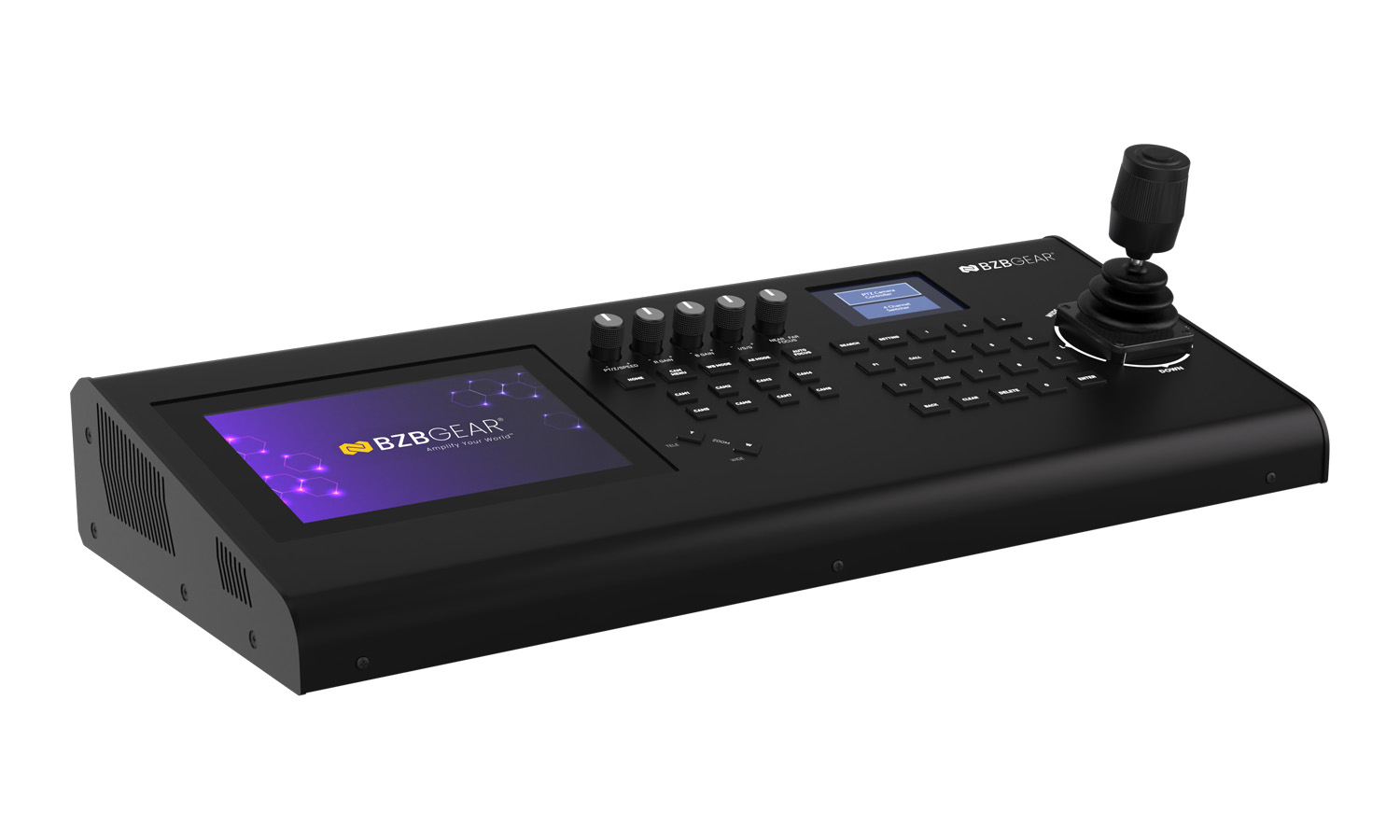

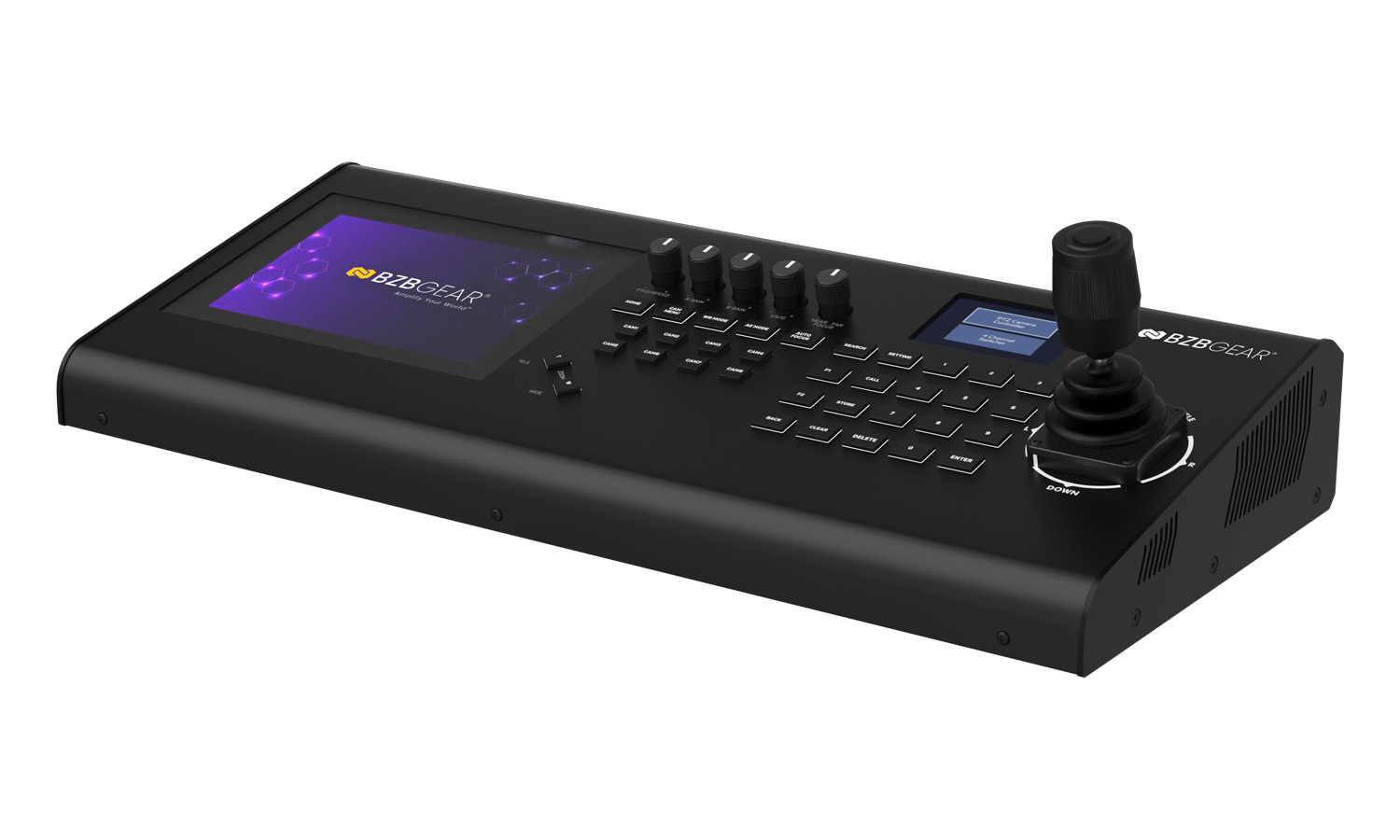

Overview
The BG-COMMANDER-ULTRA is a state-of-the-art 4K HDMI production studio device that integrates a 4K HDMI switcher interface and a PTZ joystick controller. Designed to meet the needs of high-performance video production environments, it offers a comprehensive range of features and robust connectivity options. This versatile unit excels in handling complex video and audio tasks, including camera control, video mixing, and advanced signal management.
The BG-COMMANDER-ULTRA is the ideal solution for high-end video production studios seeking a reliable and feature-rich device to handle complex video and camera control tasks. Its advanced functionality, robust build, and extensive connectivity options make it a valuable addition to any professional AV setup.
Features-in-Depth
As a 4K HDMI production studio, the BG-COMMANDER-ULTRA supports up to 4K2K@60Hz resolution with both HDR and SDR capabilities, ensuring superior video quality and color depth for professional production applications. It is fully compatible with HDMI 2.0 standards, offering high-definition video and audio output with a bandwidth of 18Gbps (600MHz single-link). The device also supports HDCP 1.4/2.2 for secure content protection and playback.
The BG-COMMANDER-ULTRA provides comprehensive input/output options, including 5 HDMI inputs, 4 HDMI outputs, 2 XLR audio inputs, 1 USB-C output port, firmware upgrade port, and multiple control ports (RS-232, RS-422, Ethernet) for flexible connectivity and integration with various equipment. The unit is also equipped with a Micro SDXC card slot for local recording of the PGM output stream. For audio, it supports LPCM audio and provides analog stereo output via XLR connectors, ensuring high-quality sound management. An embedded video mixer features seamless switching with transitions such as wipe, dissolve, and DVE.
For camera control, the BG-COMMANDER-ULTRA allows remote control of multiple camera settings (pan, tilt, zoom, focus, iris, white balance) using VISCA, Pelco-D, and Pelco-P protocols over IP and serial connections.

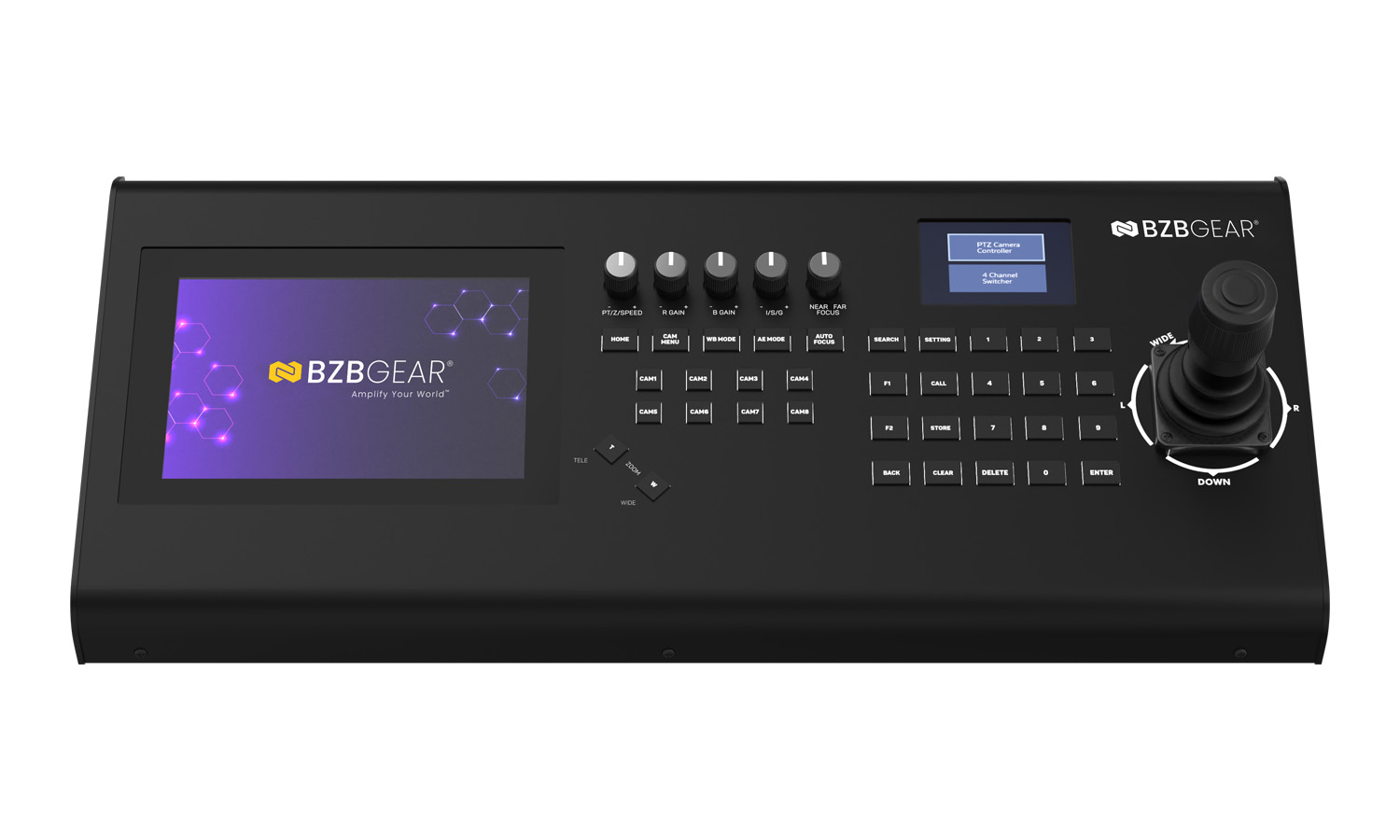

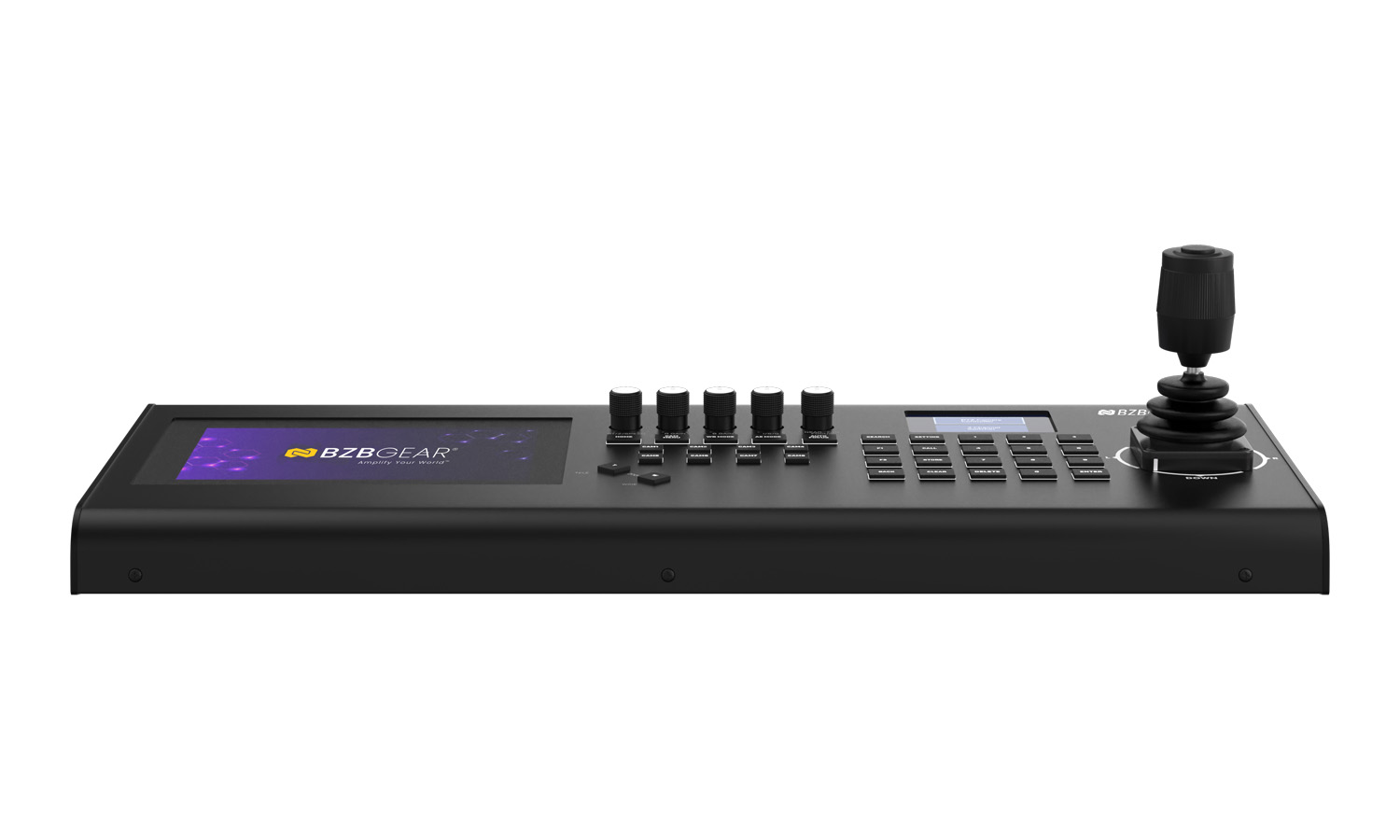

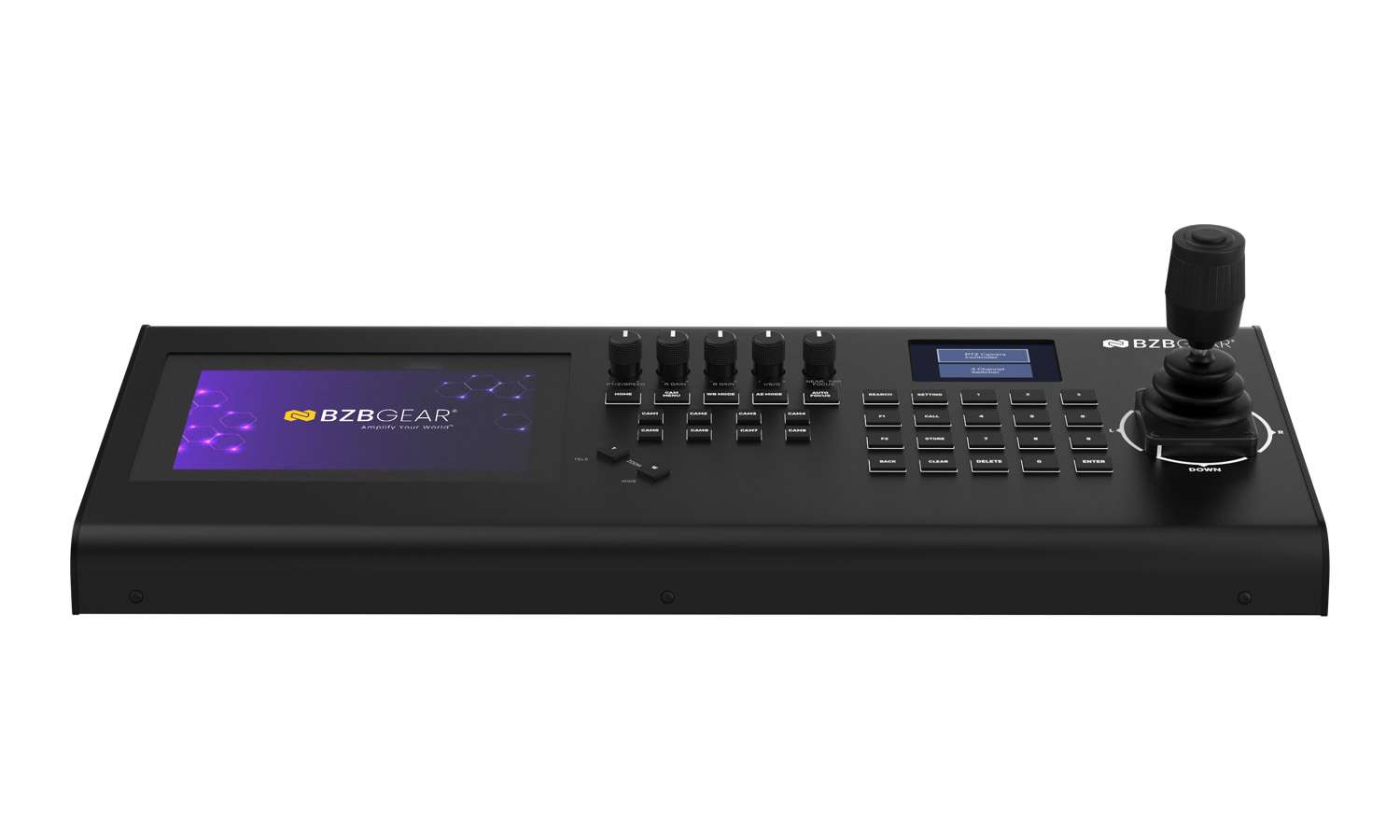

The frontboard control allows users to navigate between PTZ Camera Controller and 4 Channel Switcher modes using a joystick and dedicated buttons, adjusting PTZ speeds, focus, and other camera settings directly from the unit. It also manages up to four full-view outputs and one multi-view output for comprehensive monitoring and production. The intuitive On-Screen Display (OSD) menu provides access to detailed camera settings and device information, supporting configuration for various control protocols and network settings. The device’s firmware can be updated via USB for new features and performance enhancements.
Features
-
4K HDMI ProductionSupports up to 4K2K@60Hz resolution with both HDR and SDR capabilities, ensuring superior video quality and color depth for professional production applications -
Advanced Audio SupportProvides LPCM audio support and analog stereo output via XLR connectors for high-quality sound management -
Advanced Switcher SoftwareUnlock a powerful suite of video and audio mixing and switching tools with our intuitive, free software interface. Accessible via RS-232 and IP -
Integrated Capture CardStream high-quality content directly from the integrated capture through the USB-C output port -
Integrated Micro SDXCCapture and store your Program output feed directly with the built-in Micro SDXC card slot for hassle-free recording -
Versatile Operating ModesEffortlessly toggle between PTZ Camera Controller and 4-Channel Switcher modes via the on-screen display (OSD) menu
- HDMI 2.0 Compliance: Fully compatible with HDMI 2.0 standards, offering high-definition video and audio output with a bandwidth of 18Gbps (600MHz single-link)
- HDCP Compliance: Supports HDCP 1.4/2.2 for secure content protection and playback
- Camera Control: Allows remote control of multiple camera settings (pan, tilt, zoom, focus, iris, white balance) using VISCA, Pelco-D, and Pelco-P protocols over IP and serial connections
- Effortless IP Control and Streaming: Connect to the network for remote management through the web interface and enjoy seamless RTMP streaming
- Multi-View and Full-View Flexibility: Oversee up to four full-view outputs and one multi-view output for unparalleled monitoring and production control
- Large LCD Display: View the current PGM output image in real-time for enhanced monitoring and precise PTZ control, ensuring optimal video production and management
Videos
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 1.4/2.2 |
| HDR Support | Supports HDR for both inputs and outputs, HDR to SDR conversion |
| Video Bandwidth | Single-link 600MHz (18Gbps) |
| Video Format Support | HDMI 2.0 |
| Video Support | Up to HDR 4K2K@60 (4:2:0 10 bits) / 4K2K@60 (4:4:4 8 bits) |
| Audio Support | LPCM |
| Control Options | Ethernet / RS-232 / RS-422 |
| Camera Control | Remote control of multiple camera settings: pan, tilt, zoom, focus, iris, white balance Protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P |
| Embedded Video Mixer | Yes |
| Input TMDS Signal | 1.2 Volts (peak to peak) |
| ESD Protection | Human-body Model: ±15kV (Air-gap discharge), ±8kV (Contact discharge) |
| Connection | |
| Input | 5x HDMI 2x XLR 2x RJ-45 (LAN) 1x USB (Type A) 1x RS-232 1x Terminal Block (RS-422) |
| Output | 4x HDMI 1x 3.5mm 1x USB-C |
| Connectors | HDMI Connector: Type A (19-pin female) USB Connector: USB Type A, USB Type C RJ-45 Connector: WE/SS 8P8C |
| Mechanical | |
| Housing | Metal Enclosure |
| Fixedness | Wall-mounting case |
| Power Supply | 12V DC |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (no condensation) |
Resources

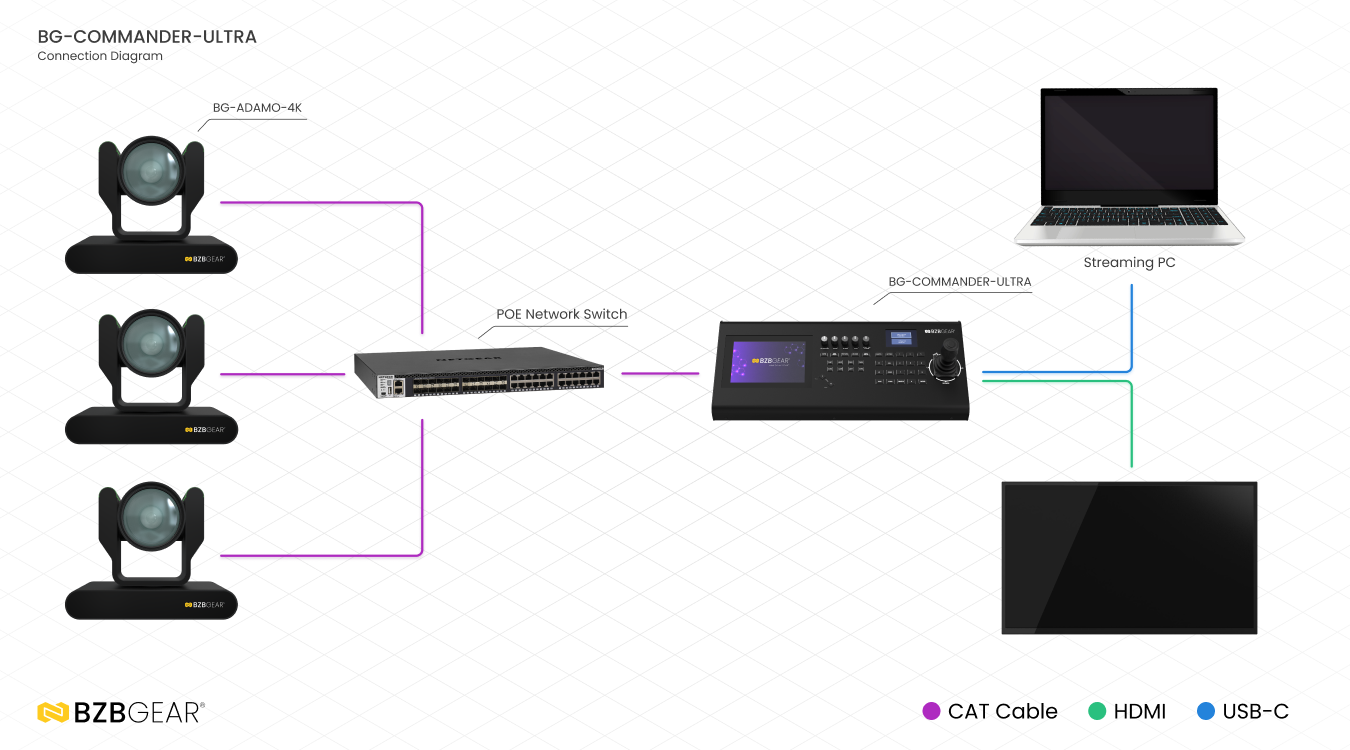

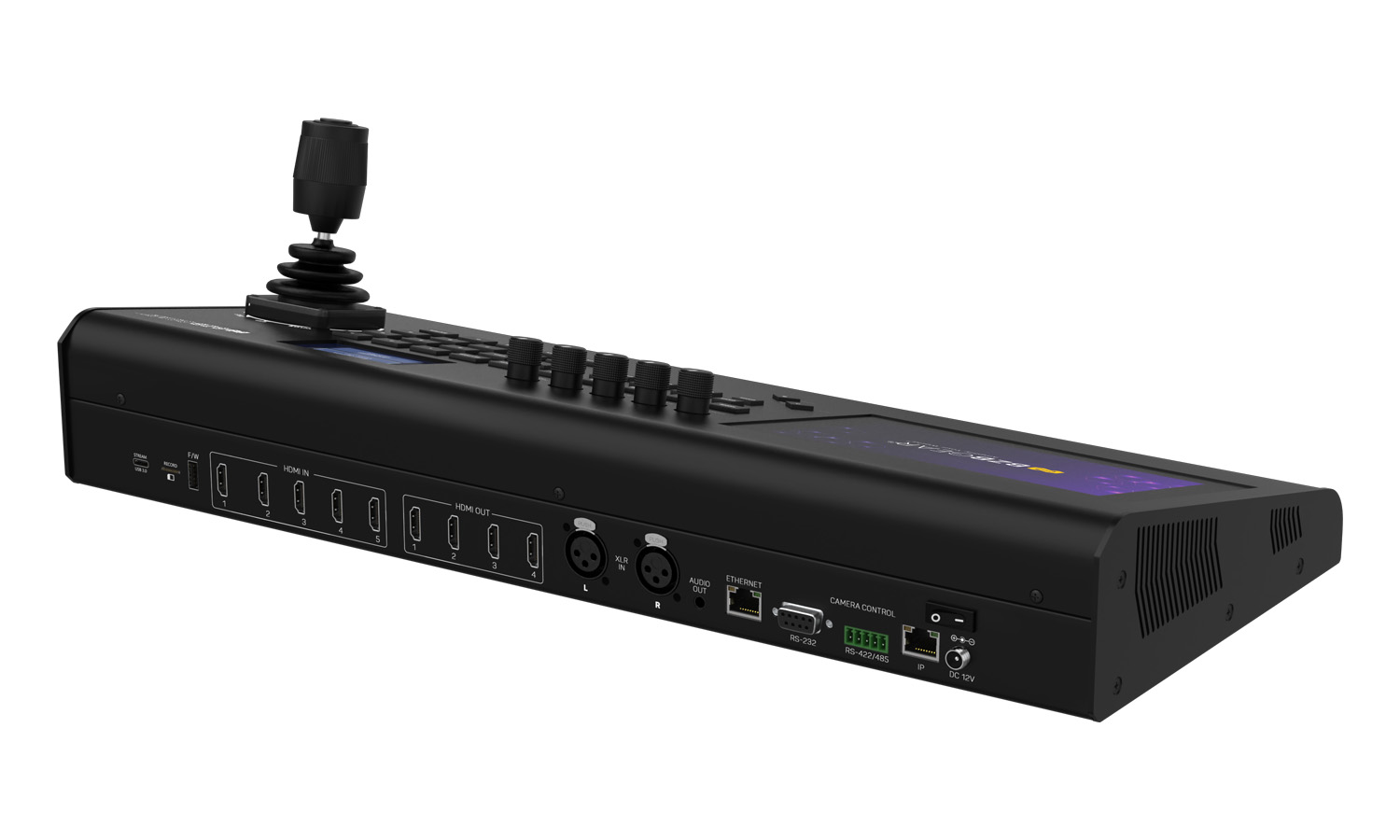

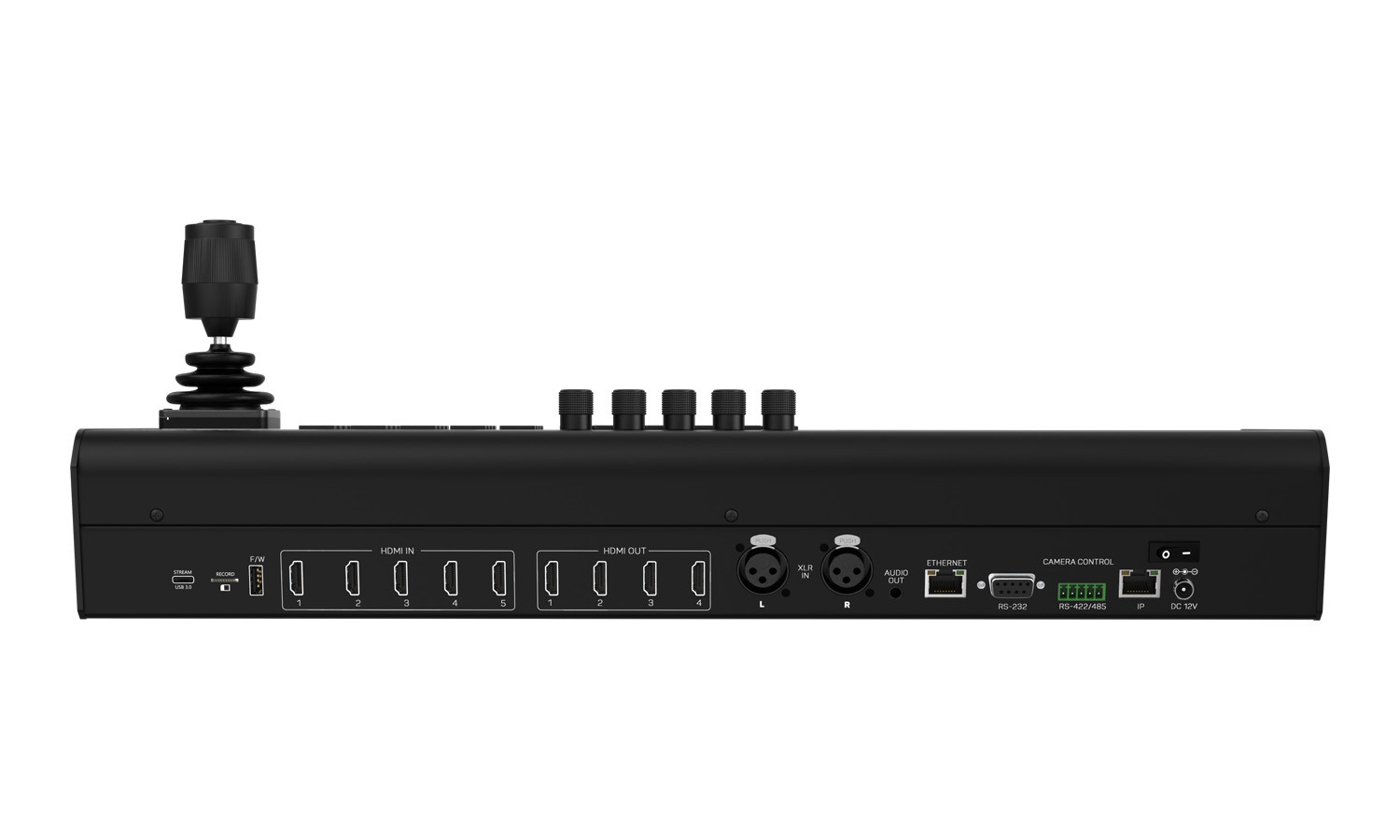

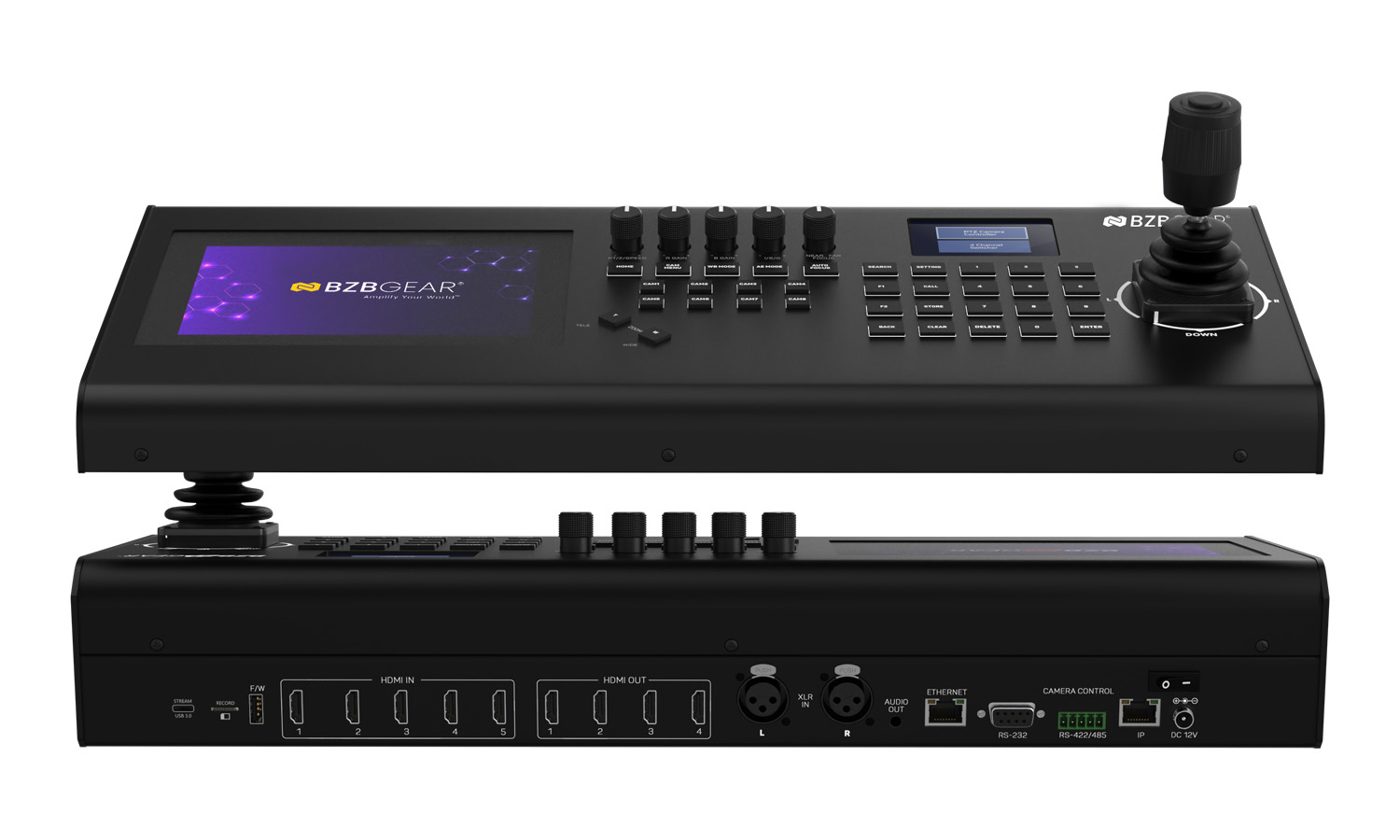

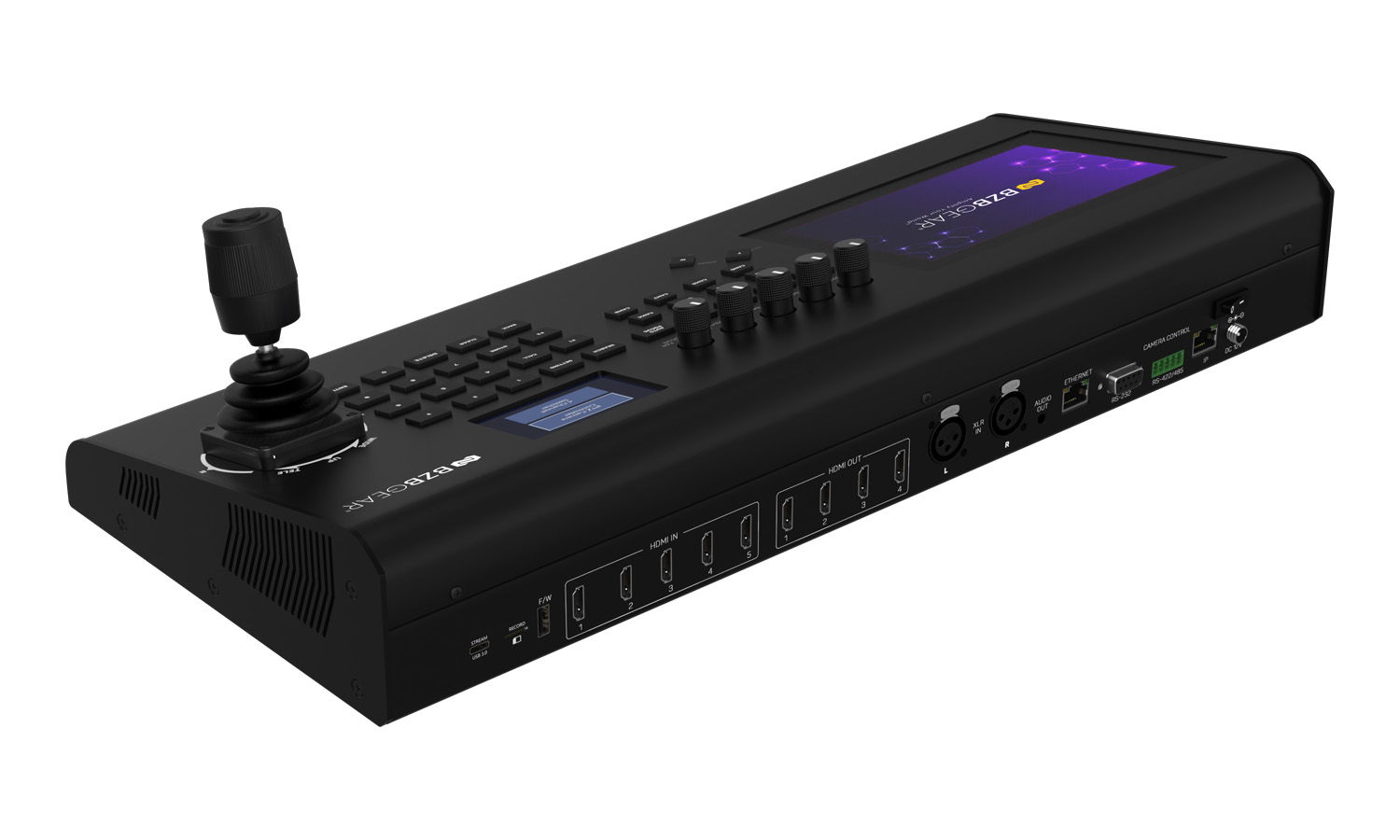

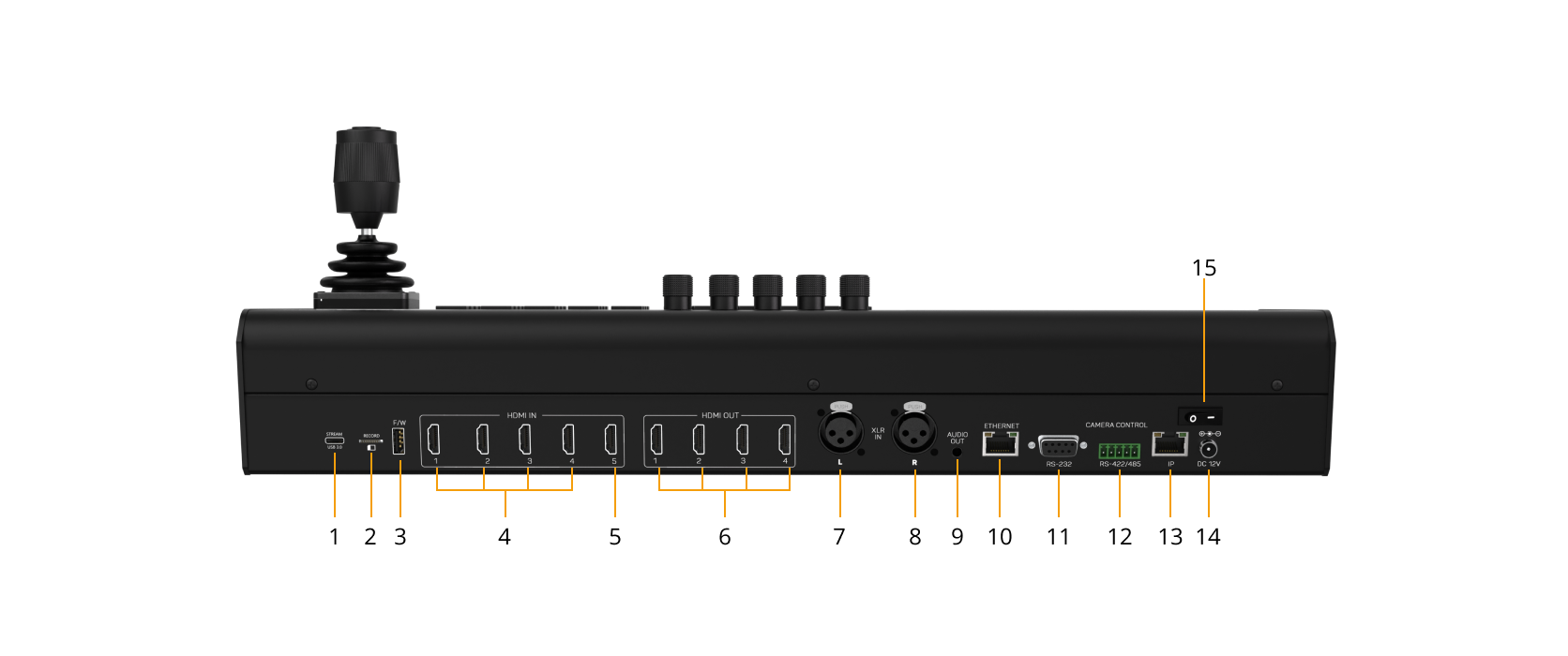

Interfaces
- USB-C Output: USB-C output port for streaming from integrated capture.
- Micro SDCX Card Slot: For recording and storing the PGM feed.
- USB Firmware Port: For firmware updates.
- HDMI Input 1-4: Four HDMI input ports.
- HDMI AUX Input: Auxiliary input port.
- HDMI Output 1-4: Four HDMI output ports.
- XLR-L Input: Left channel XLR audio input.
- XLR-R Input: Right channel XLR audio input.
- Stereo OUT: Stereo audio output.
- Ethernet Control Port: For Ethernet control.
- RS-232 Software Control: RS-232 port for serial control of the mixer interface.
- RS-422 Remote Control: RS-422 port for remote control.
- VISCA over IP Remote Control: For controlling via VISCA over IP.
- +12V DC: Power input port (+12V DC).
- Power Switch: On/off power switch.
